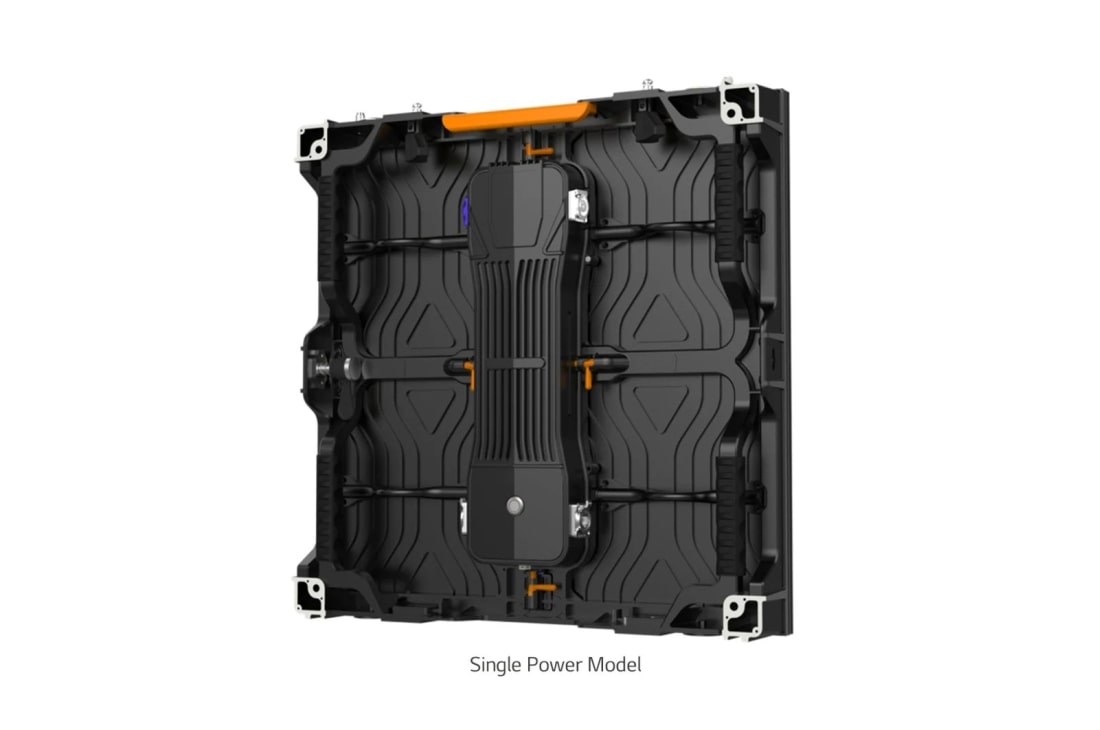

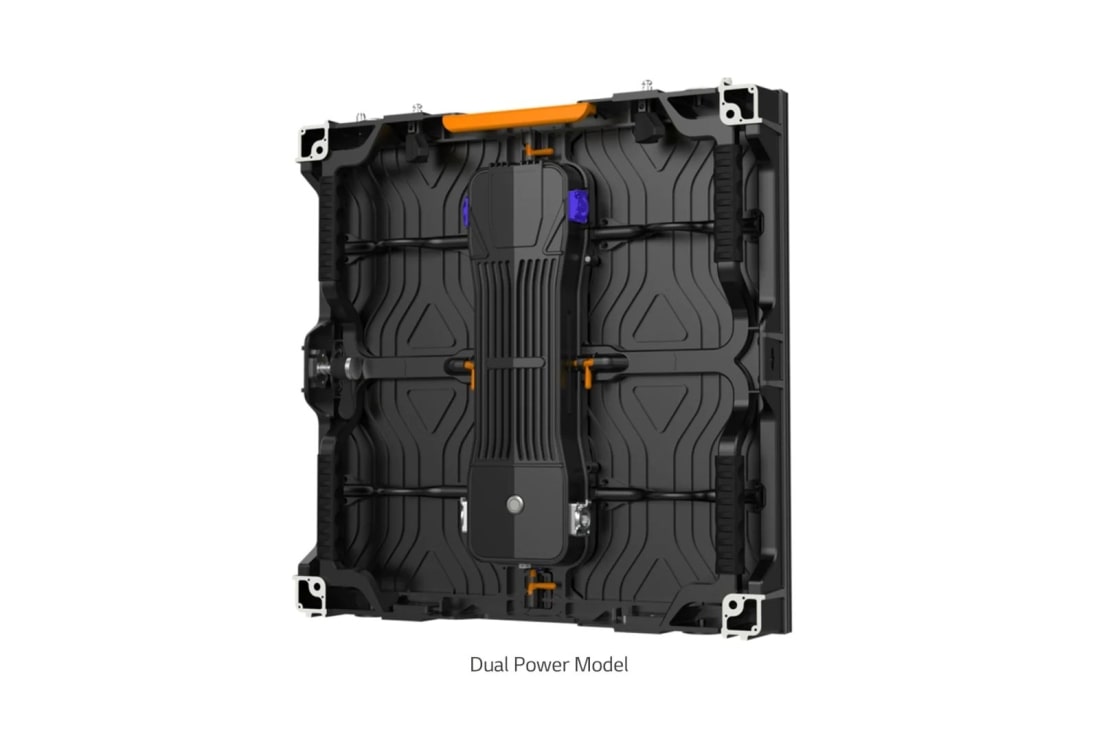

LSBA025-GD component-copyModelName
Compact Series

Key Features

Choose your Pitch

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Compact Series
Find a Dealer
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch(mm)
    2.50
  • Module Resolution (WxH)
    100 x 100
    Module Dimensions(WxH,mm)
    250 x 250
  • Weight per Module (kg)
    0.54
    No. of Modules per Cabinet (WxH)
    2 x 2
  • Cabinet Resolution (WxH)
    200 x 200
    Cabinet Dimensions (W x H x D, mm)
    500 x 500 x 74
  • Cabinet Surface Area (㎡)
    0.250
    Weight per Cabinet (kg/Cabinet)
    7.5
  • Weight per Square Meter (kg/m²)
    30.0
    Physical Pixel Density (pixels/m²)
    160,000
  • Flatness of Cabinet (mm)
    ±0.5
    Cabinet Material
    Die-casting
    Aluminum

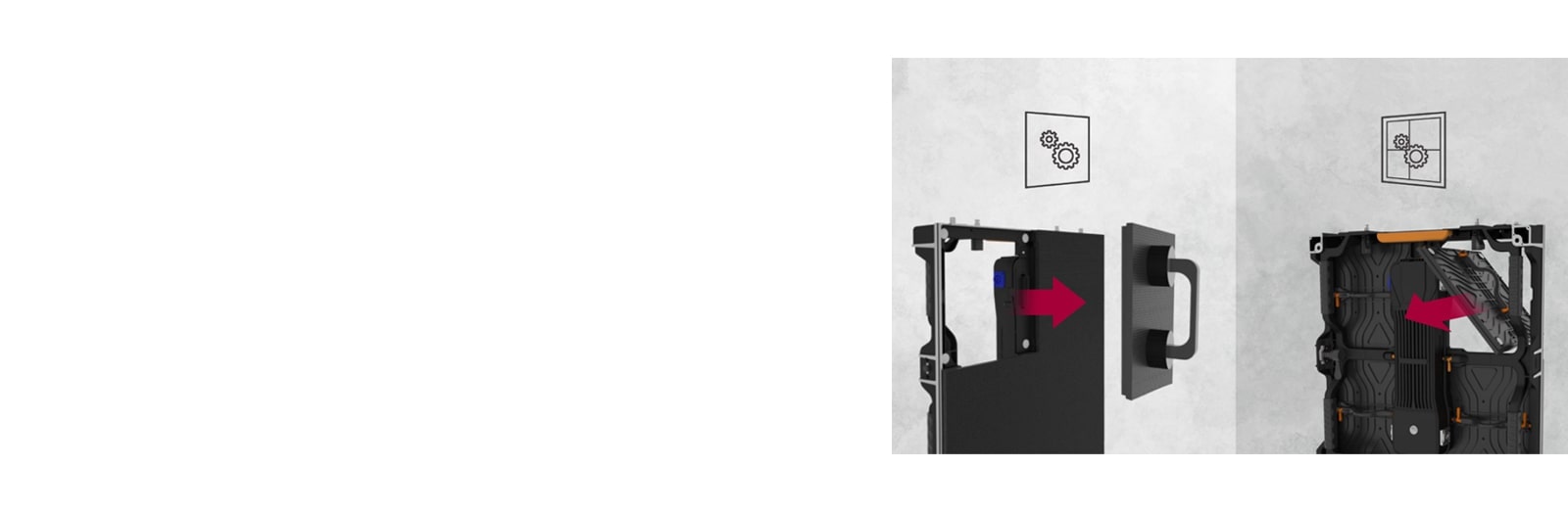

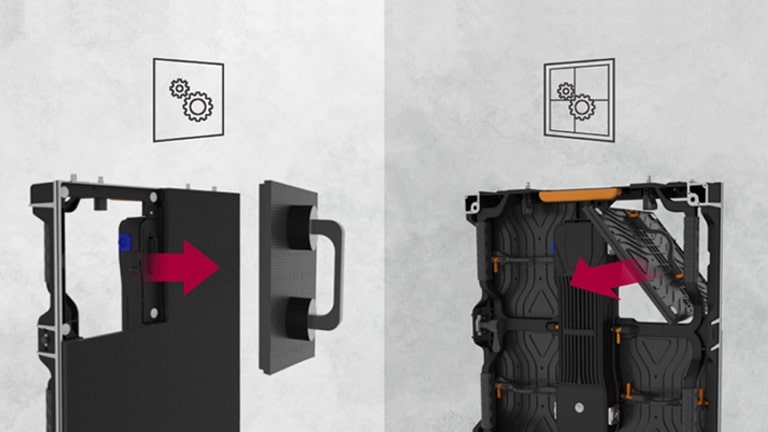

  • Service access
    Front or Rear (One Option Only)
OPTICAL SPECIFICATIONS
  • Min. Brightness (After Calibration, nit)
    1,000
    Color Temperature (K)
    3,000 - 10,000
  • Visual Viewing Angle (H × V)
    160 × 140
    Brightness Uniformity
    97%
  • Color Uniformity
    ±0.003Cx,Cy
    Contrast Ratio
    8,000
  • Processing Depth (bit)
    16
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    135
    Power Consumption (W/Cabinet, Avg.)
    58
  • Power Consumption (W/m², Max.)
    540
    Heat Dissipation (BTU/h/Cabinet, Max.)
    461
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    198
    Heat Dissipation (BTU/h/m², Max.)
    1,842
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature(℃)
    -20∘to +40∘
  • Operating Humidity
    10-80%RH
    IP Rating (Front / Rear)
    IP5X / IP5X
CERTIFICATION
  • Certification
    CE / FCC / cTUVus / CB
Environment
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    LCLG006
