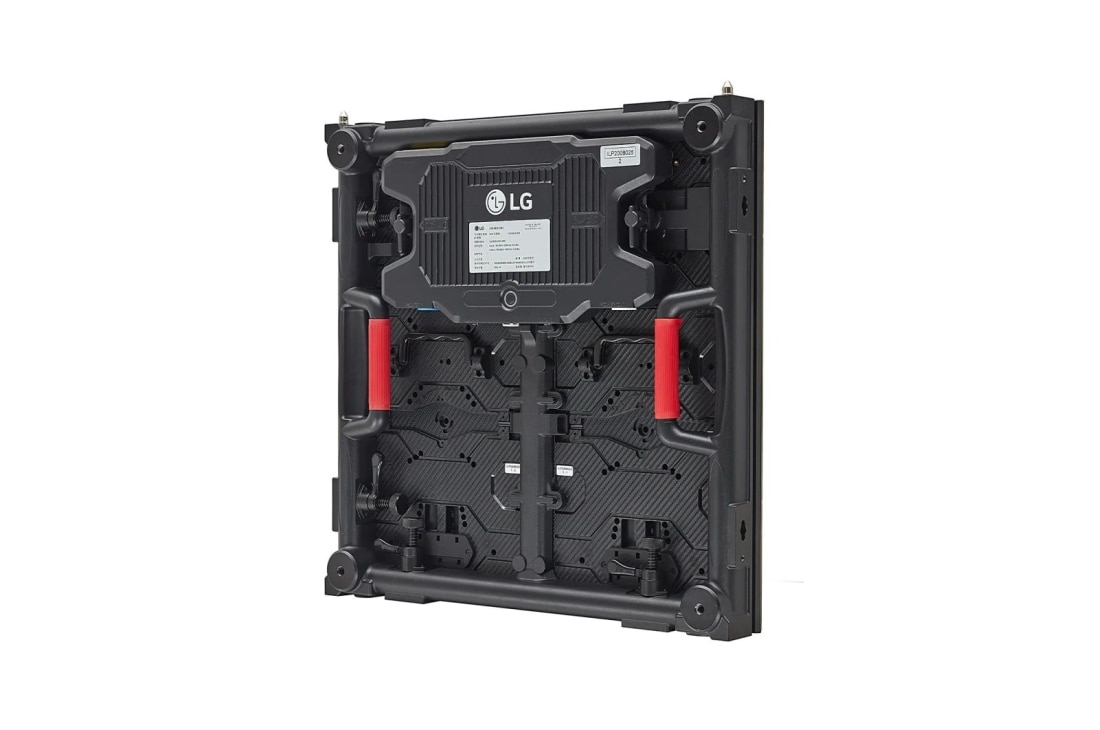

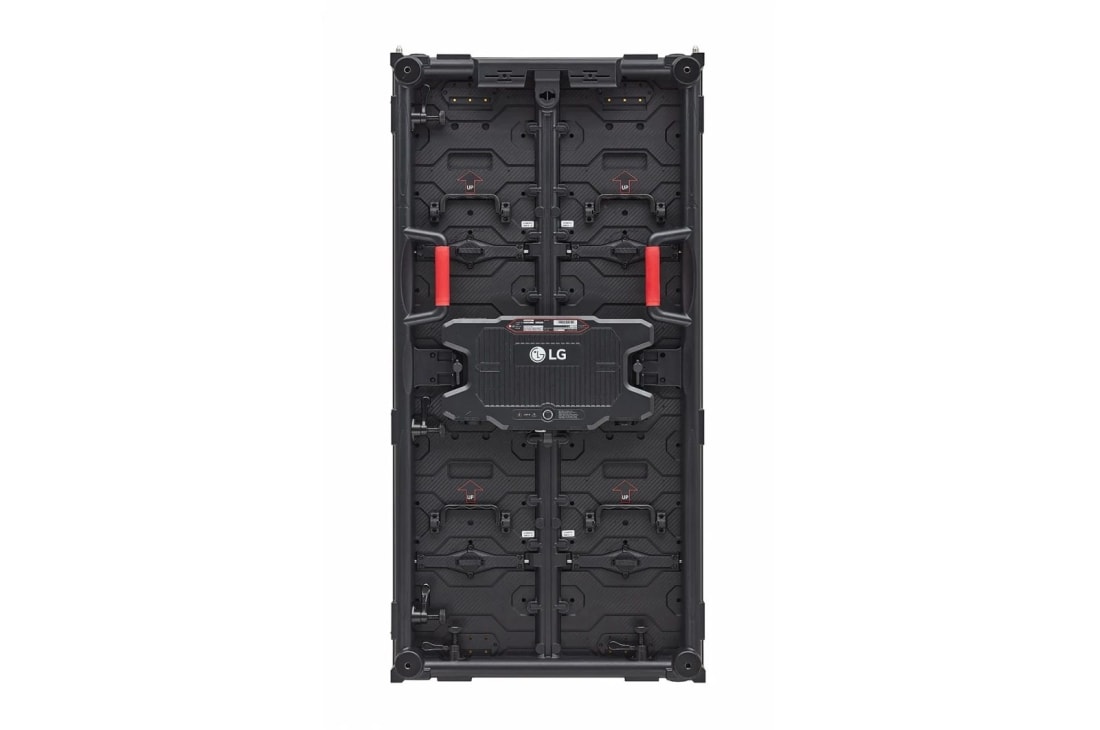

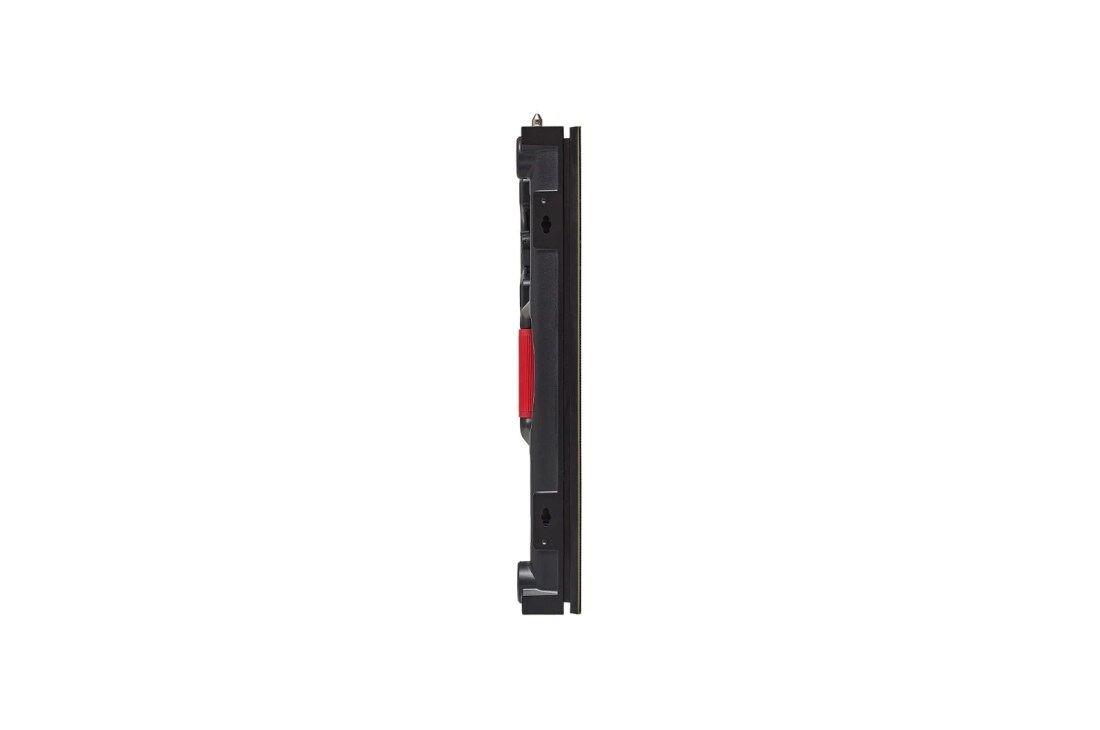

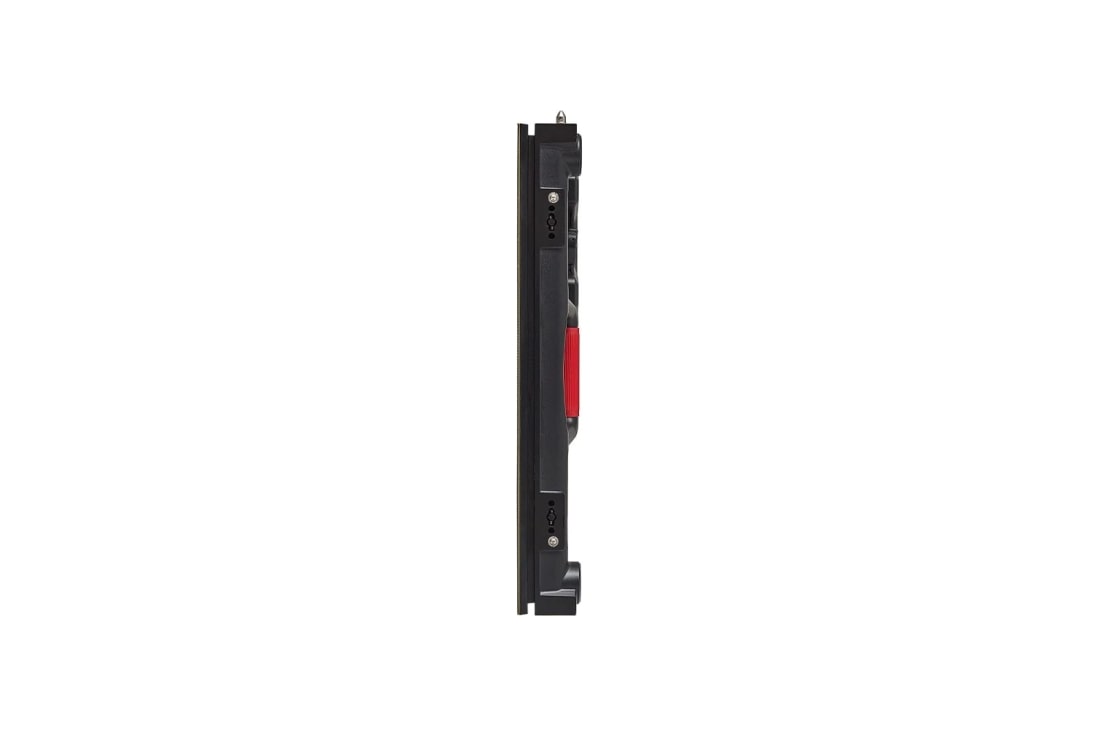

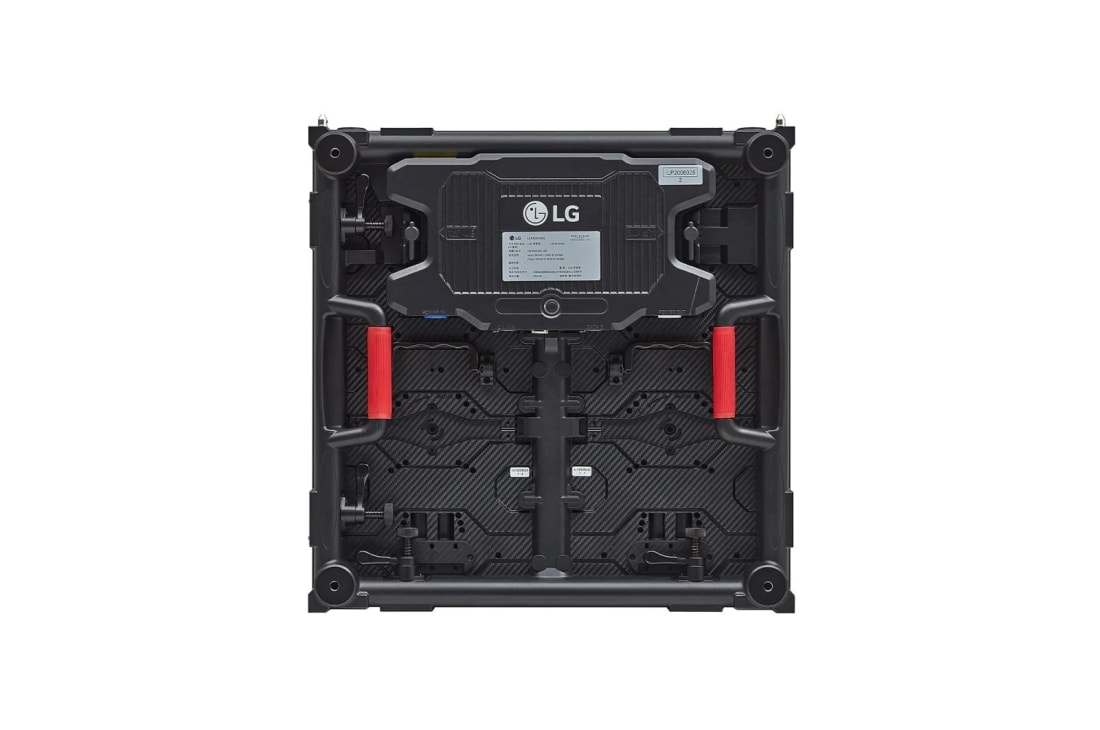

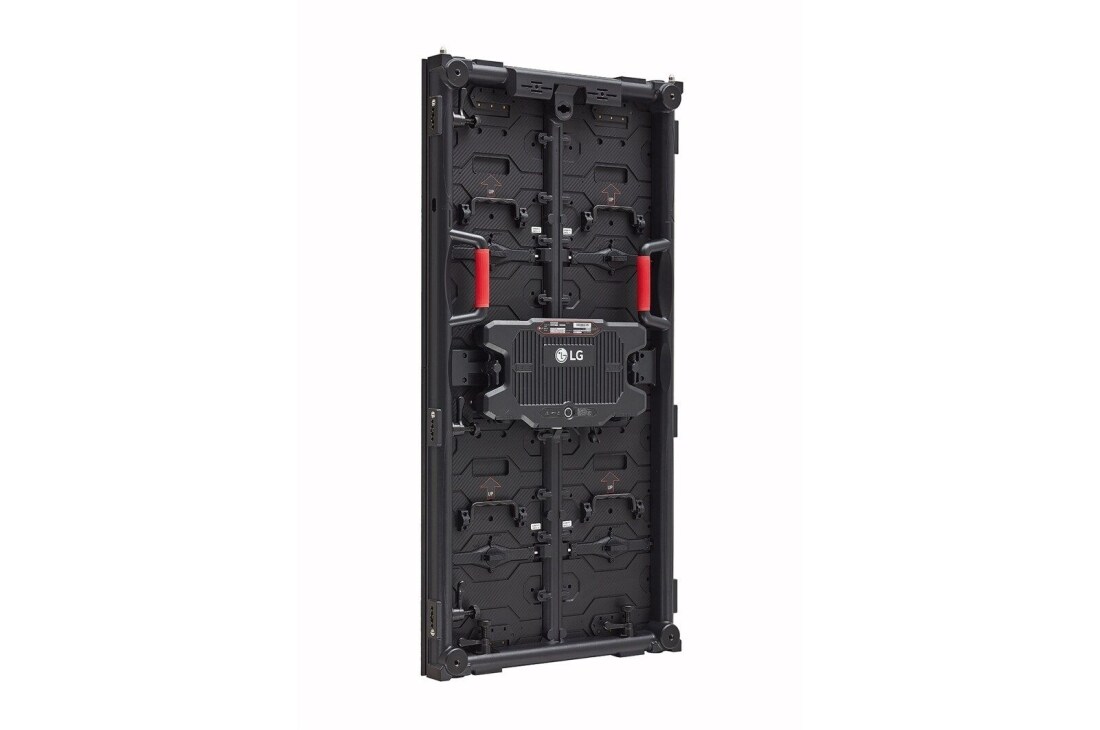

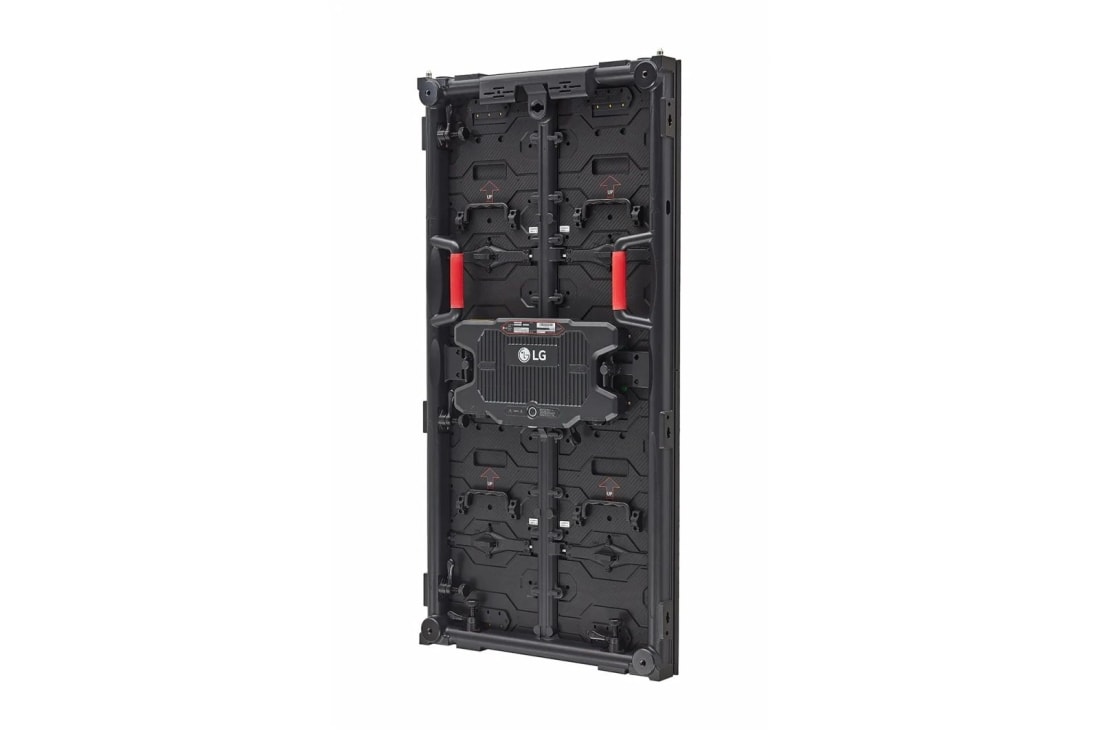

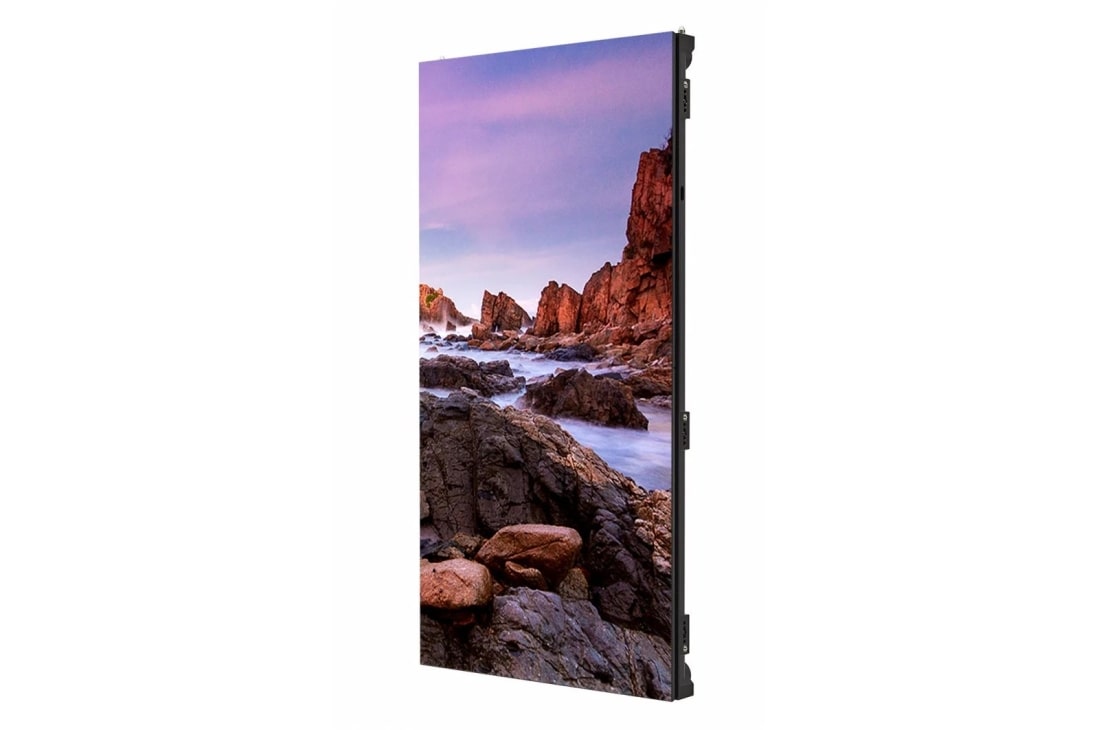

LSCA029-RK
Versatile Series
  • Pixel Pitch: 2.97mm
  • Brightness: 1,000 cd/m²
  • Fast Assembly and Easy Maintenance
  • Two Cabinet Options
  • 90º Corner Option Available

component-OBScountrySelectDesc

Versatile Series

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
Fast Installation Fast Installation

Compatibility with
LG Software Solutions

Powered by LG’s high performance system controller, the LSCA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Compatibility with LG Software Solutions Compatibility with LG Software Solutions
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch(mm)
    2.97
  • Module Resolution (WxH)
    84x168
    Module Dimensions(WxH,mm)
    250x500
  • Weight per Module (kg)
    1.30
    LED Package Manufacturer
    KL+Cu
  • No. of Modules per Unit Case (WxH)
    2x2
    Unit Case Resolution (WxH)
    168x336
  • Unit Case Dimensions (W x H x D, mm)
    500x1000x65.6
    Unit Case Surface Area (㎡)
    0.500
  • Weight per Unit Case (kg/unit)
    14.0
    Weight per Square Meter (kg/㎡)
    28.0
  • Physical Pixel Density (pixels/㎡)
    112,896
    Flatness of Unit Case (mm)
    ±0.3
  • Unit Case material
    Die-casting Aluminum
    Service access
    Front or Rear (select one only)
OPTICAL SPECIFICATIONS
  • Min. Brightness (After Calibration, nit)
    1,000
    Color Temperature (K)
    3500 ~ 9000
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003CxCy
  • Contrast Ratio
    5,000
    Processing Depth (bit)
    14
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Unit, Max.)
    270
    Power Consumption (W/Unit, Avg.)
    90
  • Power Consumption (W/㎡, Max.)
    540
    Power Consumption (BTU/Unit, Max.)
    921
  • Power Consumption (BTU/Unit, Avg.)
    307
    Power Consumption (BTU/㎡, Max.)
    1,842
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    2,880
    Inrush Current (Typ, A@VA)
    160
  • Leakage Current (mA)
    0.61
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -10∘to +45∘
  • Operating Humidity
    0~80%RH
    IP rating Front
    IP30
  • IP rating Rear
    IP30
