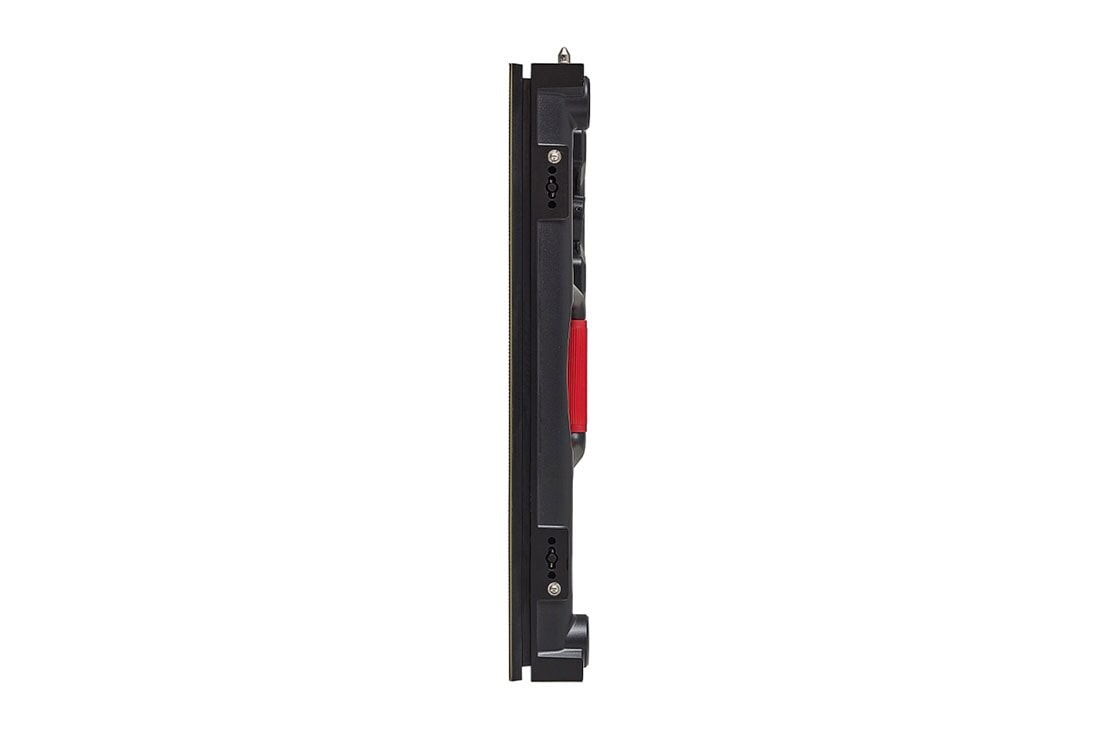

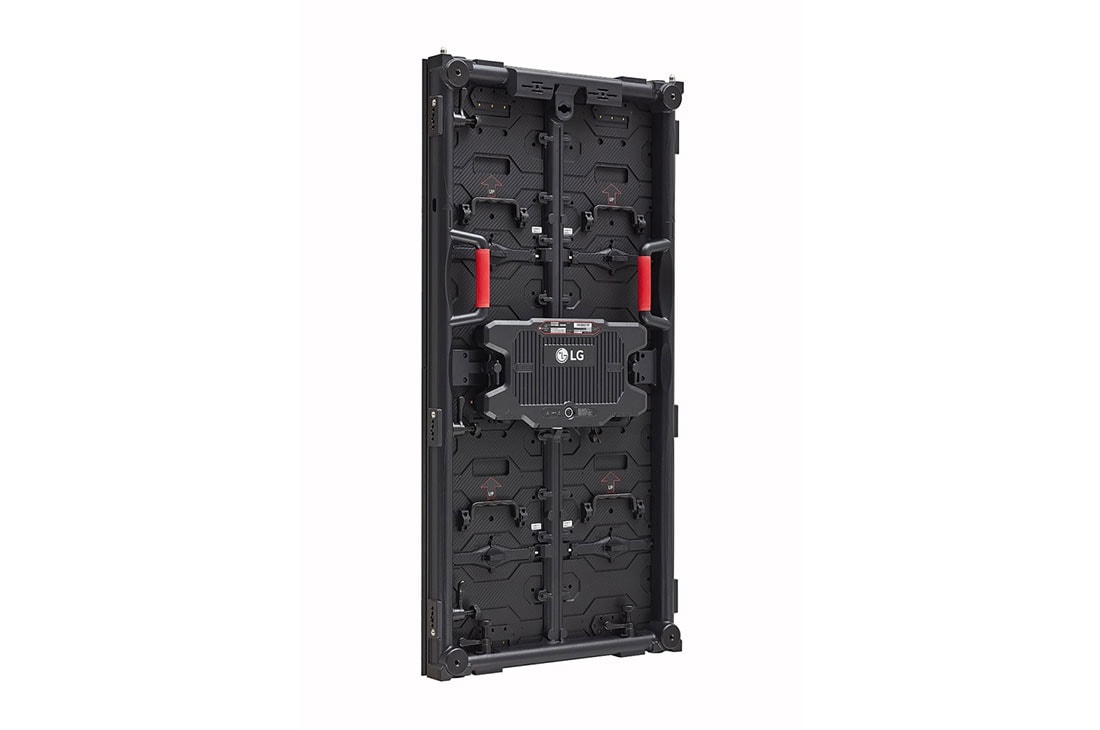

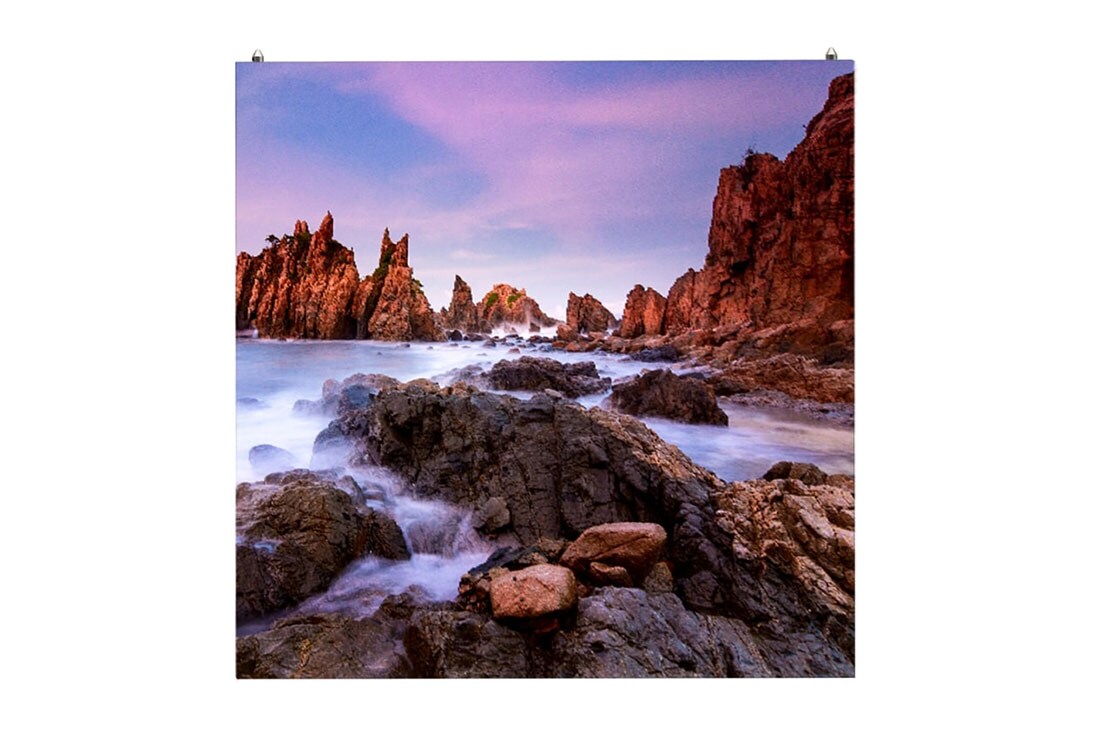

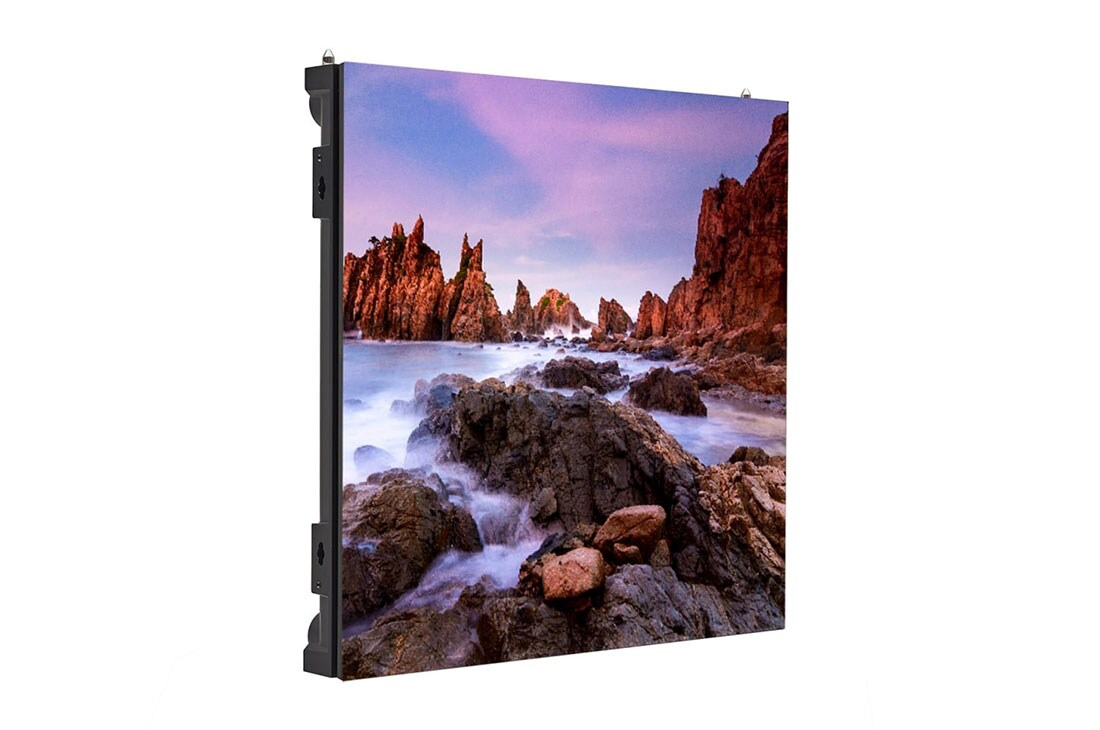

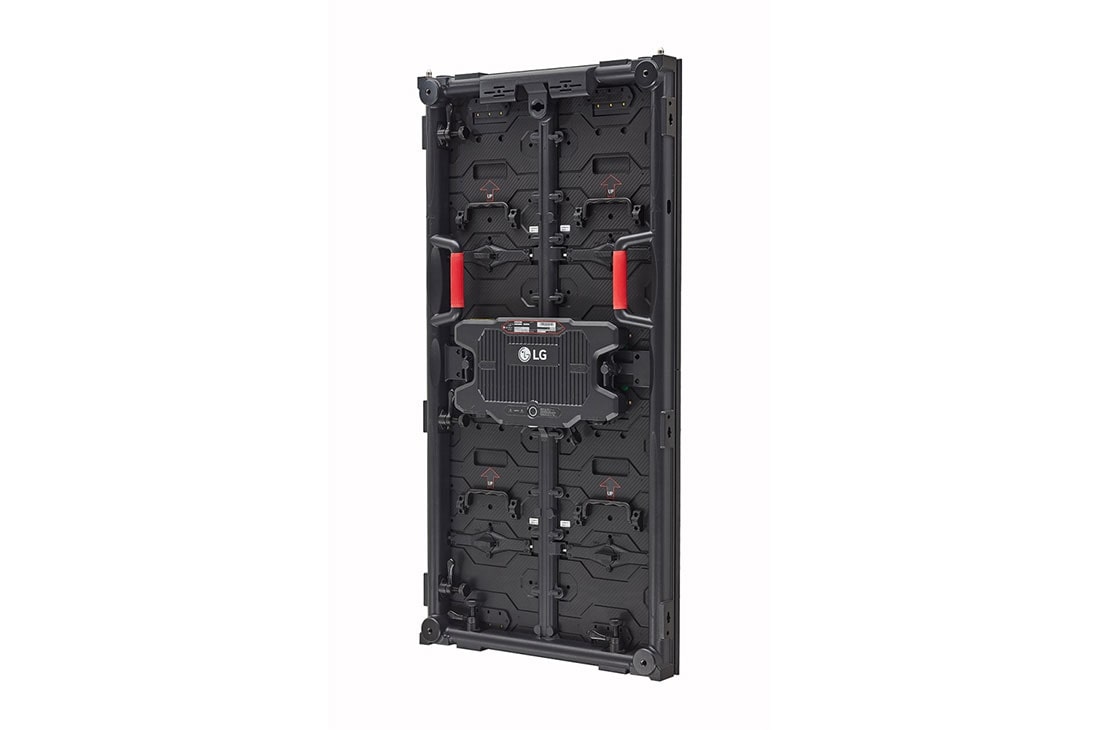

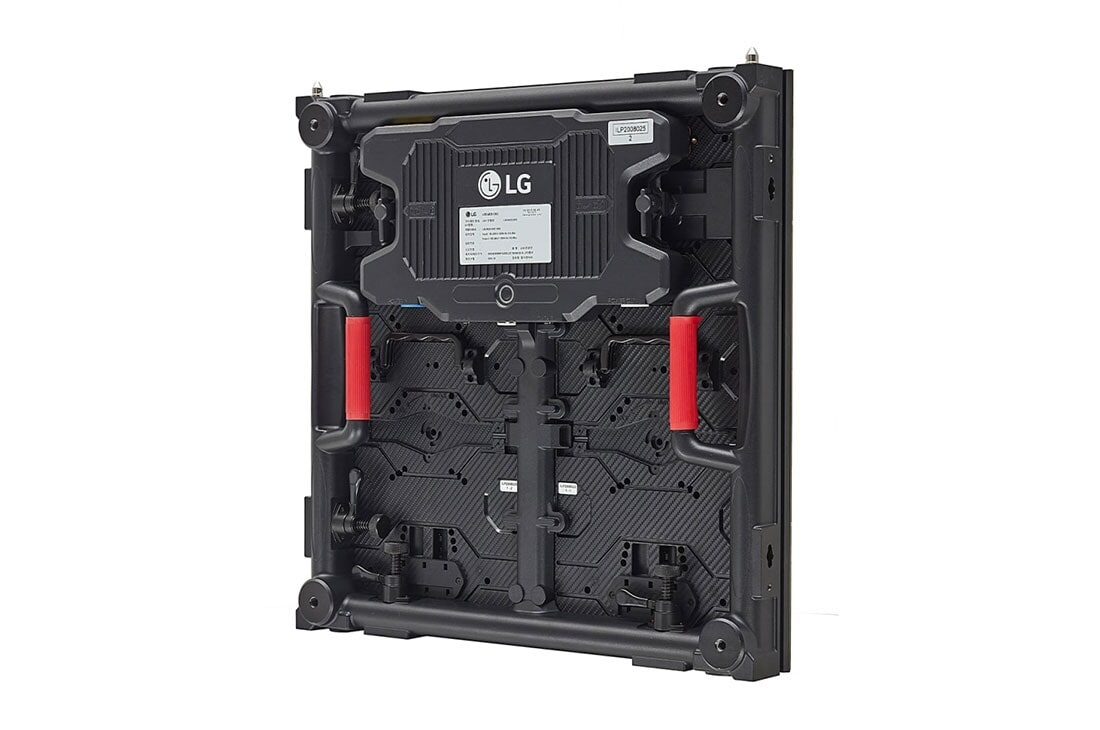

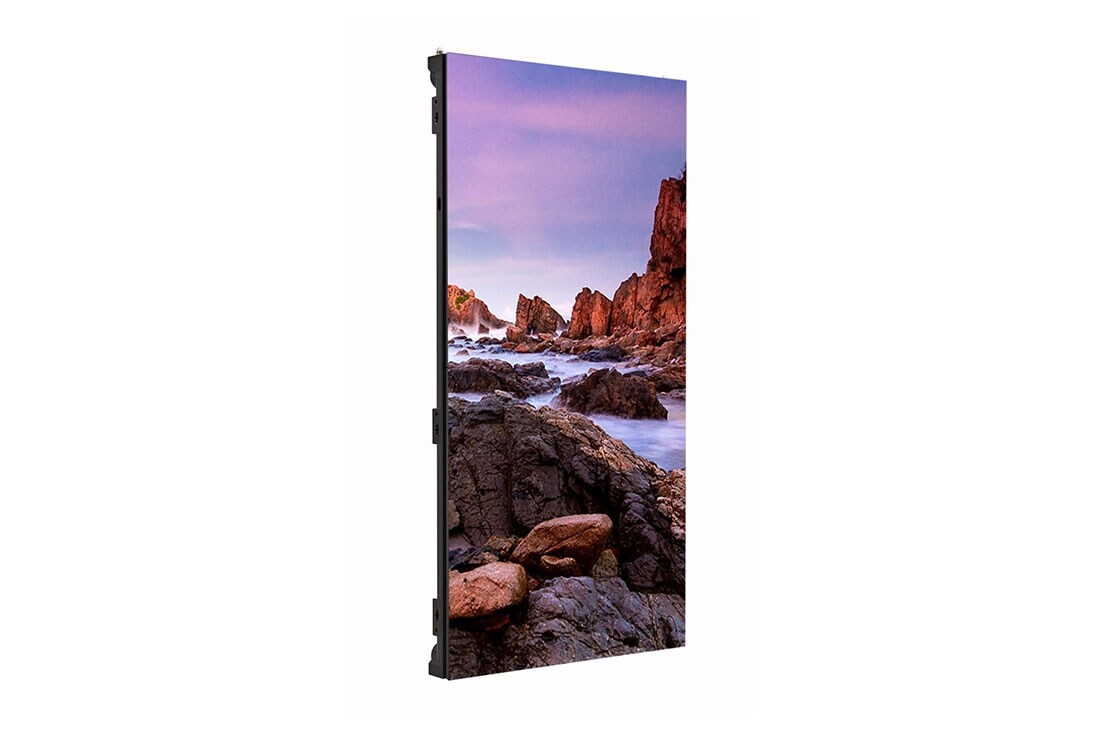

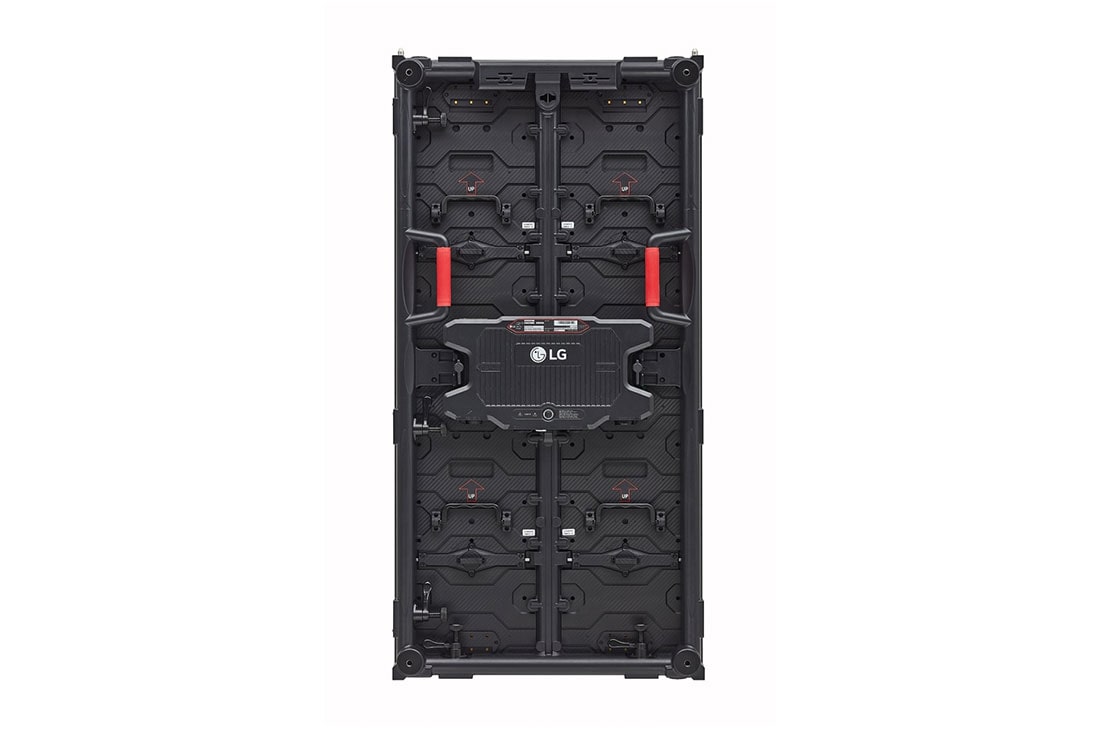

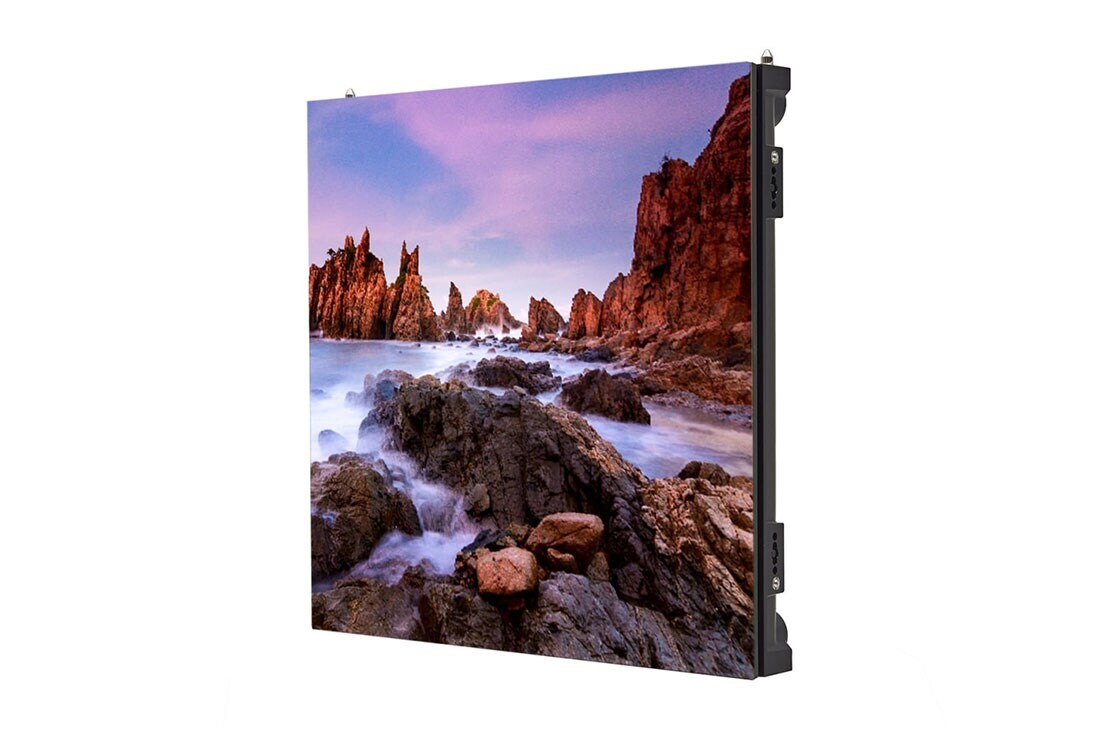

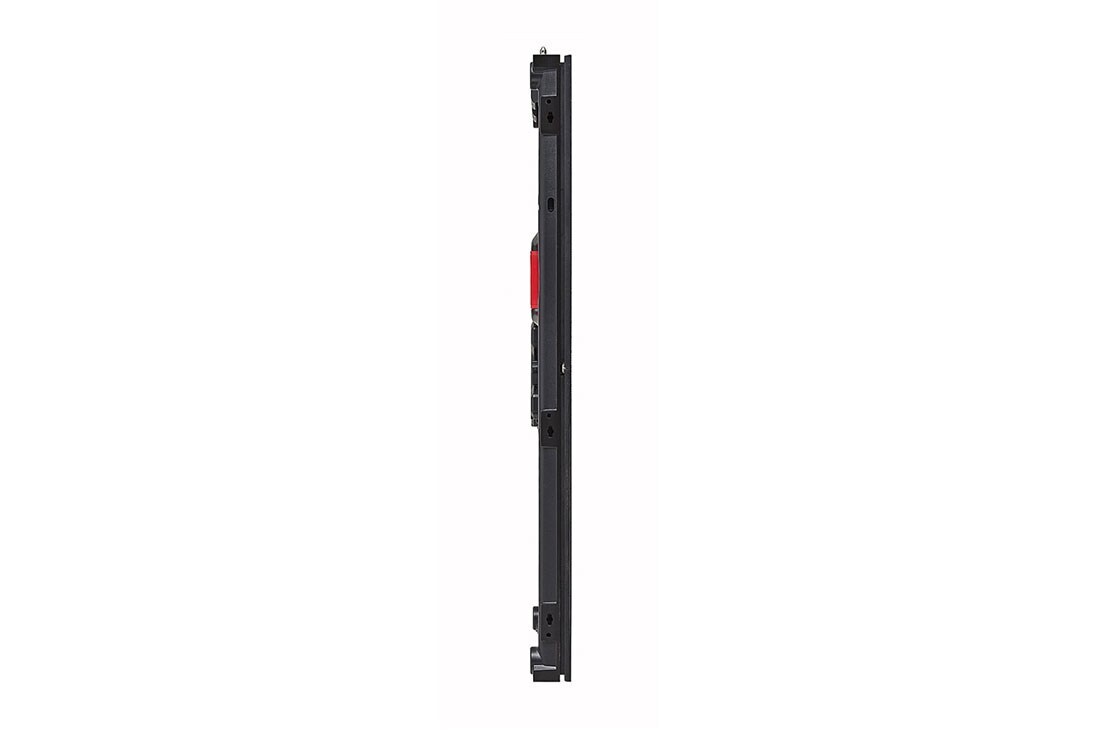

LSCA039-RK component-copyModelName
Indoor Versatile Series

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Indoor Versatile Series
Find a Dealer
Close
PHYSICAL PARAMETER
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    3.91
  • Module Resolution (W x H)
    64 × 128
    Module Dimensions (W x H, mm)
    250 × 500
  • Weight per Module (kg)
    1.30
    No. of Modules per Cabinet (W × H)
    2 × 2 / 2 × 1 (Half-sized)
  • Cabinet Resolution (W × H)
    128 × 256 / 128 × 128 (Half-sized)
    Cabinet Dimensions (W × H × D, mm)
    500 × 1,000 × 74.88 / 500 × 500 × 74.88 (Half-sized)
  • Cabinet Surface Area (m²)
    0.500 / 0.250 (Half-sized)
    Weight per Square Meter (kg/m²)
    25.0 / 34.0 (Half-sized)
  • Weight per Cabinet (kg/cabinet)
    12.5 / 8.5 (Half-sized)
    Physical Pixel Density (pixels/m²)
    65,536
  • Flatness of Cabinet
    ± 0.3 mm
    Cabinet Material
    Die Casting Aluminum Alloy
  • Service Access
    Front or Rear (One Option Only)
OPTICAL PARAMETER
  • Max. Brightness (After Calibration)
    1,000
    Color Temperature
    3,200-9,300 (K)
  • Visual Viewing Angle (Horizontal/Vertical)
    160 × 160
    Brightness Uniformity
    97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    7,000
  • Processing Depth (bit)
    14
ELECTRICAL PARAMETER
  • Power Consumption (W/cabinet, Max.)
    270 / 135 (Half-sized)
    Power Consumption (W/cabinet, Avg.)
    90 / 45 (Half-sized)
  • Power Consumption (W/m², Max.)
    540
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
OPERATION CONDITIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -10 °C to +45 °C
  • Operating Humidity
    0 - 80 % RH
    IP rating Front / Rear
    IP30 / IP30
CONTROLLER(CVCA)
  • Input Interface
    HDMI / DP / OPS / USB
    Input Resolution
    3,840 x 2,160 @60Hz
  • Output Signal
    Gigabit Ethernet (16 ea)
    Output Fiber Optical
    No
  • Control RJ45
    Yes
    Control USB
    No
  • Electrical Power Consumption (W)
    50
    Electrical Power Supply (V)
    AC 100-240 V
  • Mechanical Size (mm)
    443 (W) × 307.5 (D) × 63 (H)
    → EIA Standard Rack (2U)
    Mechanical Weight (kg)
    4.9
  • Feature Signal Redundancy
    Yes
    Feature HDR10
    Yes
Controller(LCIN006)
  • Input Interface
    HDMI / DVI
    Input Resolution
    1,920 x 1,200 @60Hz
  • Output Signal
    Gigabit Ethernet (4 ea)
    Output Fiber Optical
    No
  • Control RJ45
    No
    Control USB
    Yes
  • Electrical Power Consumption (W)
    16
    Electrical Power Supply (V)
    AC 100-240 V
  • Mechanical Size (mm)
    482.6 (W) × 250 (D) × 44.45 (H)
    → EIA Standard Rack (1U)
    Mechanical Weight (kg)
    2.9
  • Feature Signal Redundancy
    Yes
    Feature HDR10
    No
Controller(LCIN008(4K))
  • Input Interface
    HDMI / DVI / DP
    Input Resolution
    3,840 x 2,160 @60Hz
  • Output Signal
    Gigabit Ethernet (16 ea)
    Output Fiber Optical
    4 ea
  • Control RJ45
    Yes
    Control USB
    Yes
  • Electrical Power Consumption (W)
    30
    Electrical Power Supply (V)
    AC 100-240 V
  • Mechanical Size (mm)
    482.6 (W) × 250 (D) × 96 (H)
    → EIA Standard Rack (3U)
    Mechanical Weight (kg)
    4.6
  • Feature Signal Redundancy
    Yes
    Feature HDR10
    Yes
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
