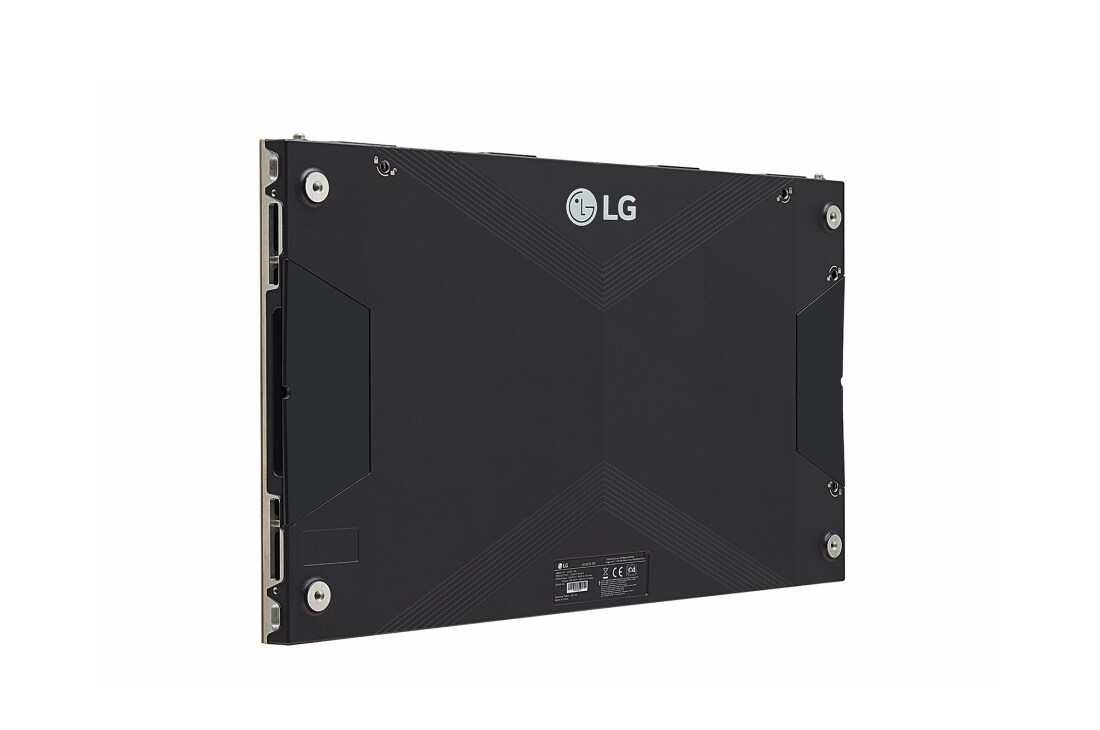

LSCB015-CK
Ultra Slim Series
  • Pixel Pitch: 1.56mm
  • Brightness: 800cd/m²
  • Ultra Slim Depth
  • EMC Class B, BS 476 Part7 Class 1

component-OBScountrySelectDesc

Ultra Slim Series

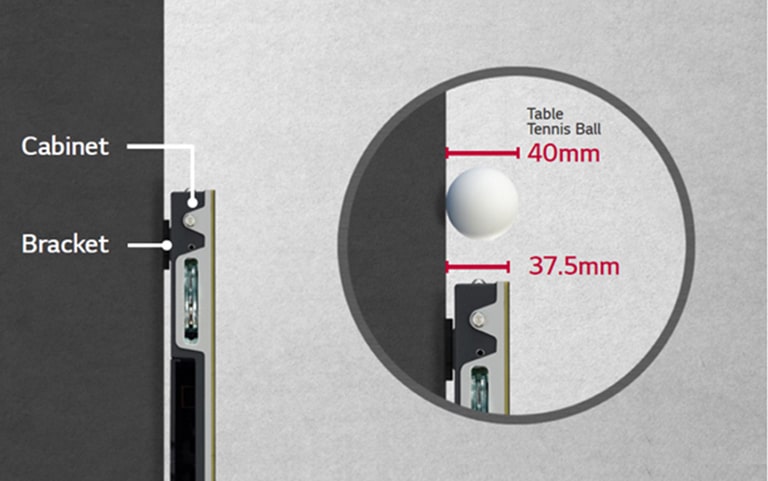

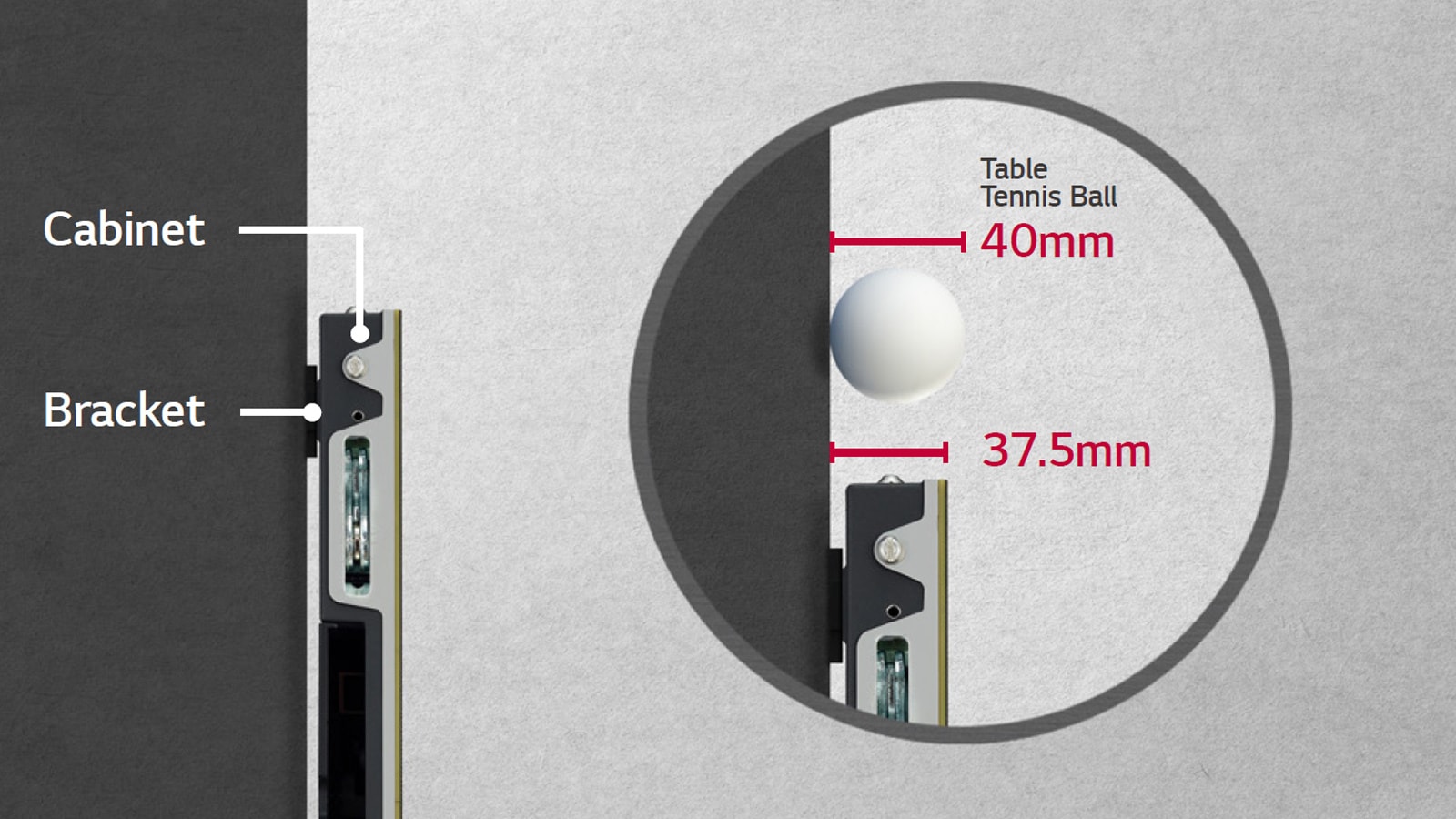

Ultra Slim Depth

Its ultra-slim design with 37.5 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed and utilized in any type of venues without restriction.
Ultra Slim Depth Ultra Slim Depth

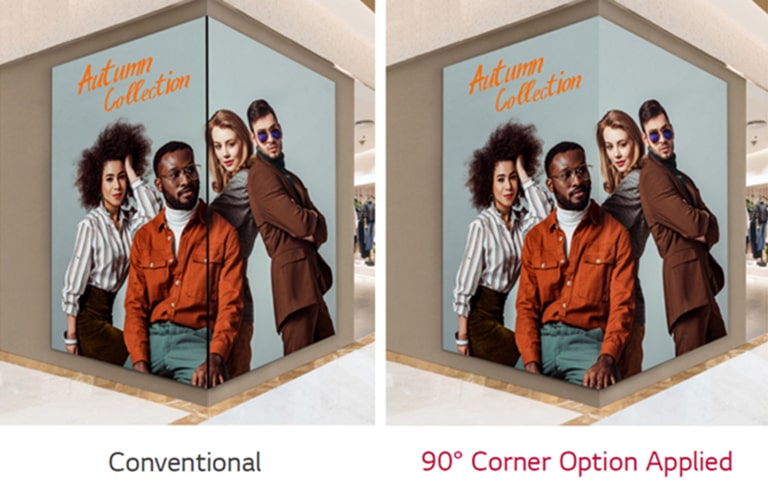

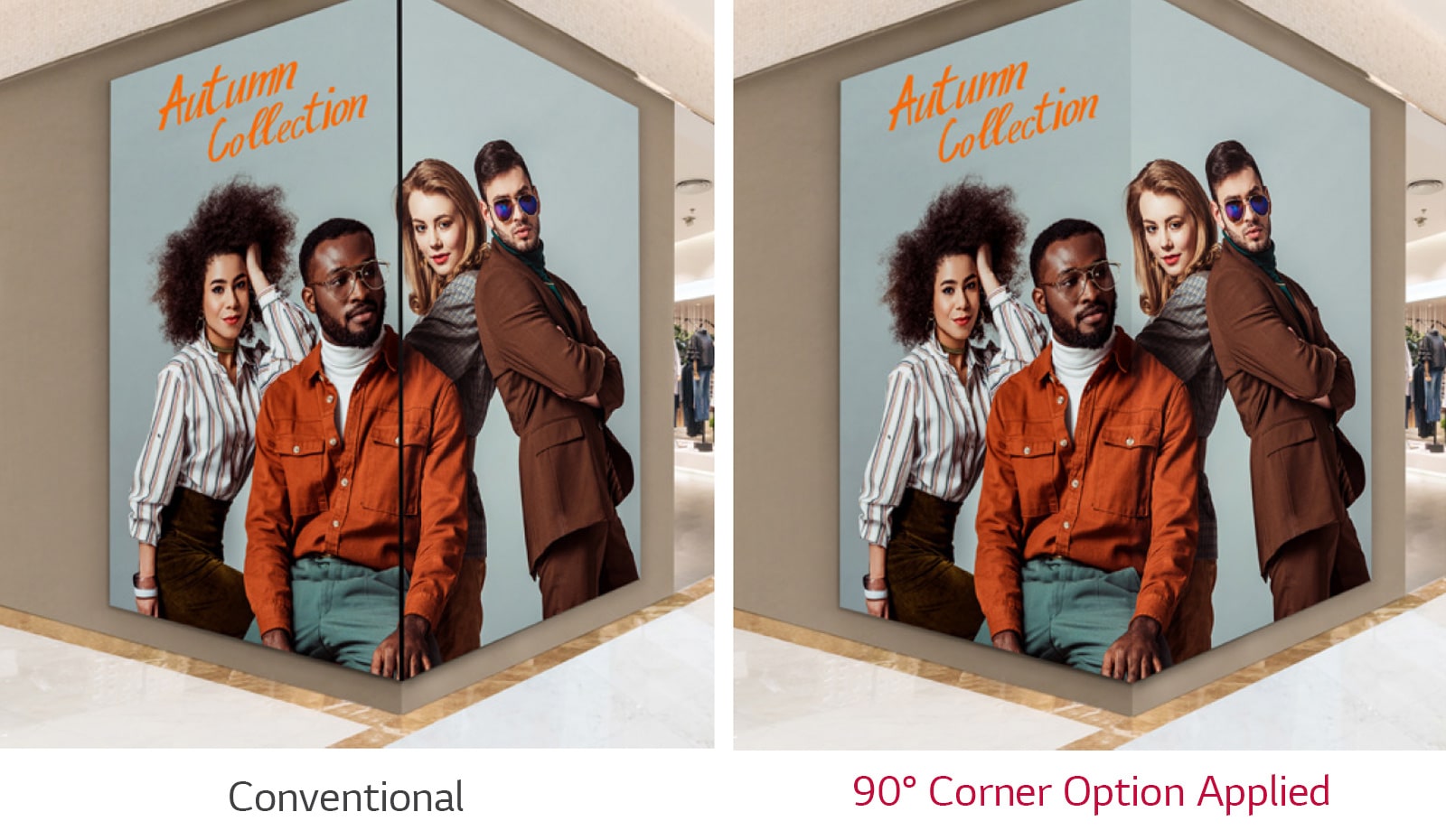

90° Corner Design Available

If you add 90°corner option, the LSCB series fits naturally into the space and delivers smooth & flawless content to customers.
90° Corner Design Available 90° Corner Design Available
* Left & right side cutting
* Depending on the radius, the unit case dimension size changes.

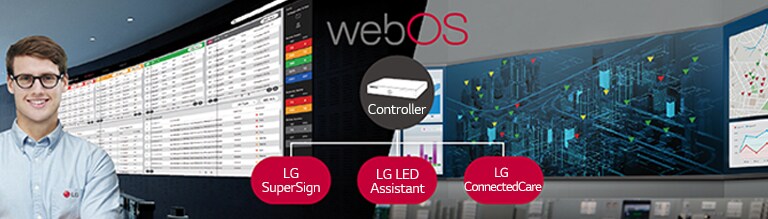

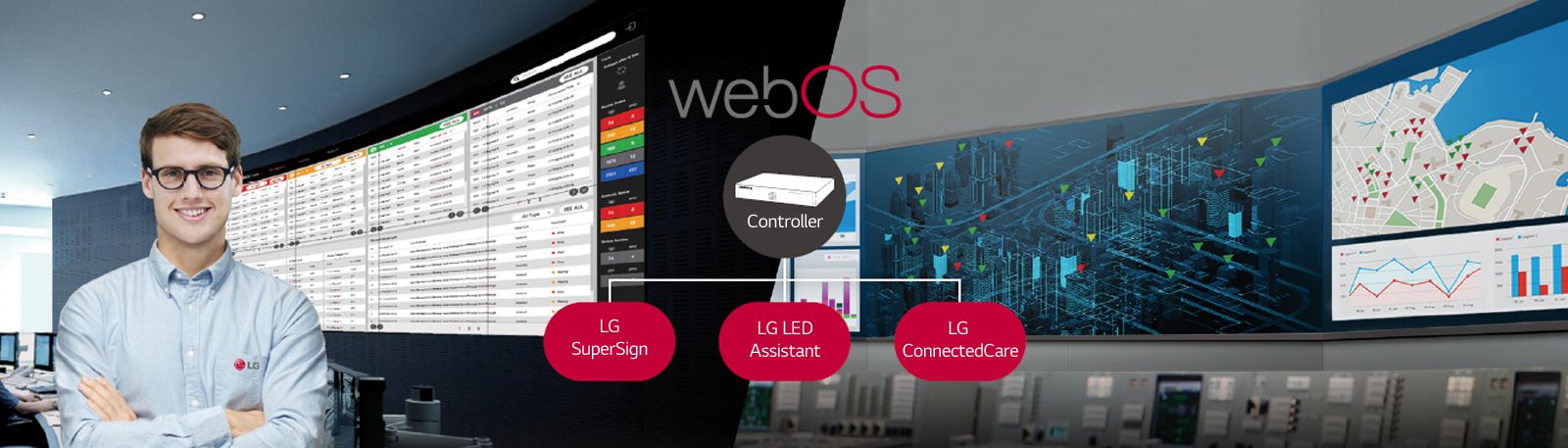

Compatibility with
LG Software Solutions

Powered by LG’s high performance system controller, the LSCB series is compatible with LG software solutions including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Compatibility with LG Software Solutions Compatibility with LG Software Solutions
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
PHYSICAL PARAMETER
  • Pitch Name
    P1.5625
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch (mm)
    1.563
    Module Resolution (W x H)
    192 × 108
  • Module Dimensions (W x H, mm)
    300 × 168.75
    Weight per Module (kg)
    0.34
  • LED Package Manufacturer
    KL+Cu
    No. of Modules per Unit Case (WxH)
    1x2
  • Unit Case Resolution (WxH)
    192x216
    Unit Case Dimensions (W x H x D, mm)
    300x337.5x29.7
  • Unit Case Surface Area (㎡)
    0.101
    Weight per Unit Case (kg/unit)
    3.95KG
  • Weight per Square Meter (kg/m²)
    39.01KG
    Physical Pixel Density (pixels/m²)
    409,600
  • Flatness of Unit Case (mm)
    ±0.1
    Unit Case material
    Aluminum Machine
  • Service Access
    Front
OPTICAL SPECIFICATIONS
  • Min. Brightness (After Calibration, nit)
    800
    Color Temperature (K)
    3500-9000K(default:6500K)
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003CxCy
  • Contrast Ratio
    5,000
    Processing Depth (bit)
    14
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Unit, Max.)
    90
    Power Consumption (W/Unit, Avg.)
    30
  • Power Consumption (W/㎡, Max.)
    890
    Power Consumption (BTU/Unit, Max.)
    307
  • Power Consumption (BTU/Unit, Avg.)
    102
    Power Consumption (BTU/㎡, Max.)
    3,037
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -10∘to +45∘
  • Operating Humidity
    0~80%RH
    IP rating Front
    IP30
  • IP rating Rear
    IP30
CERTIFICATION
  • Certification
    CE,FCC,ETL, EMC Class-B Fire Protection
Environment
  • Environment
    RoHS
CONTROLLER
  • Controller
    CVCA
90 degree corner cut
  • 90 degree corner cut
    O
