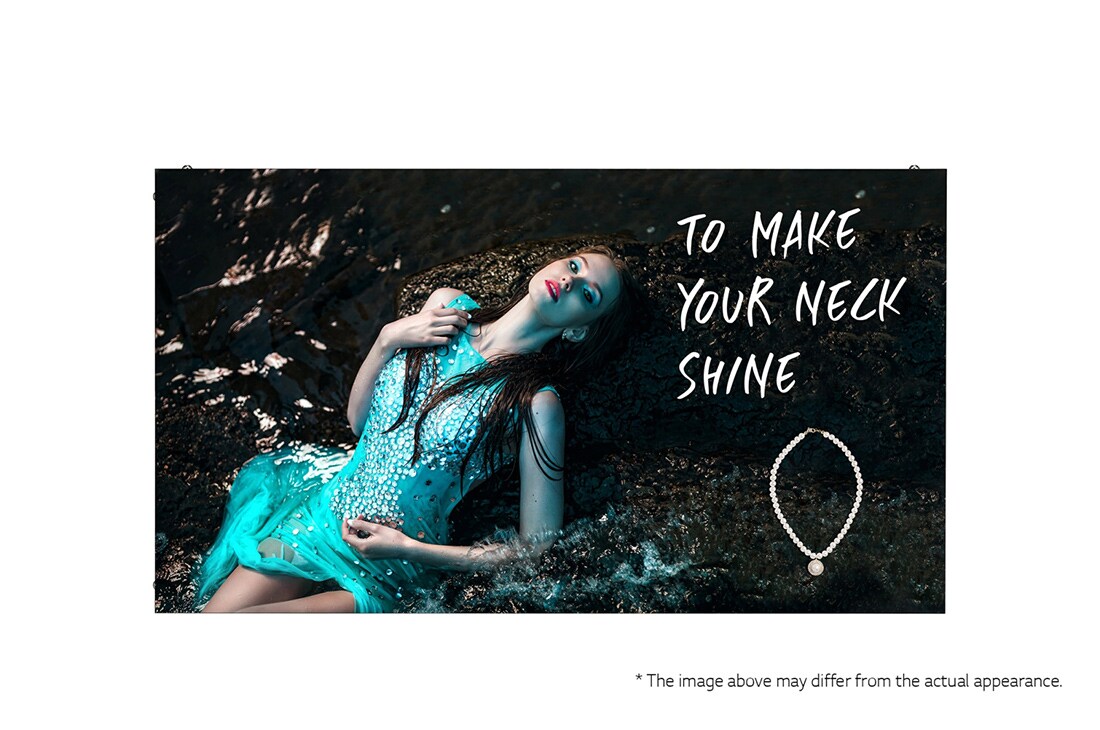

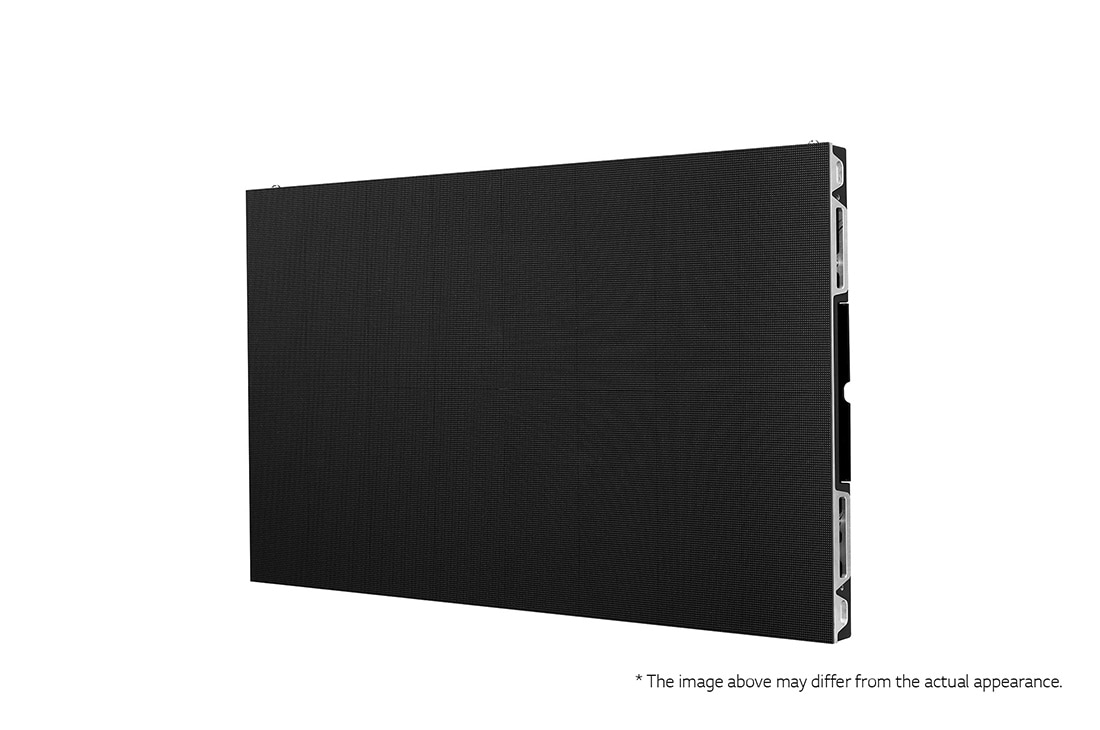

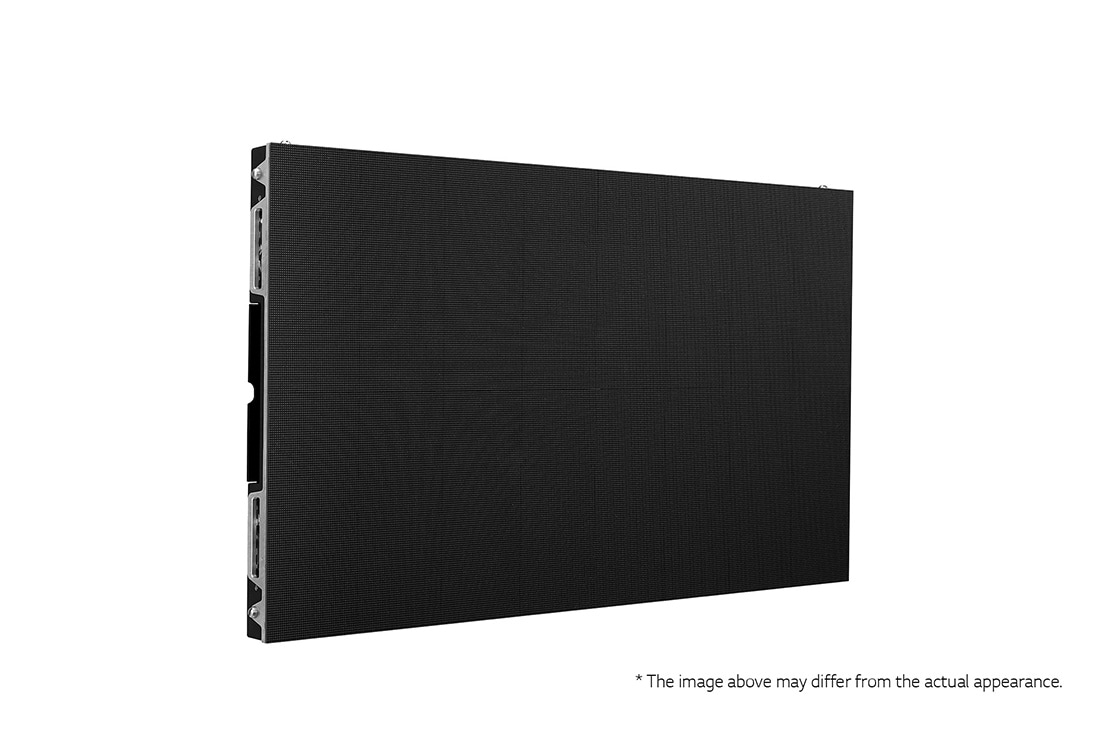

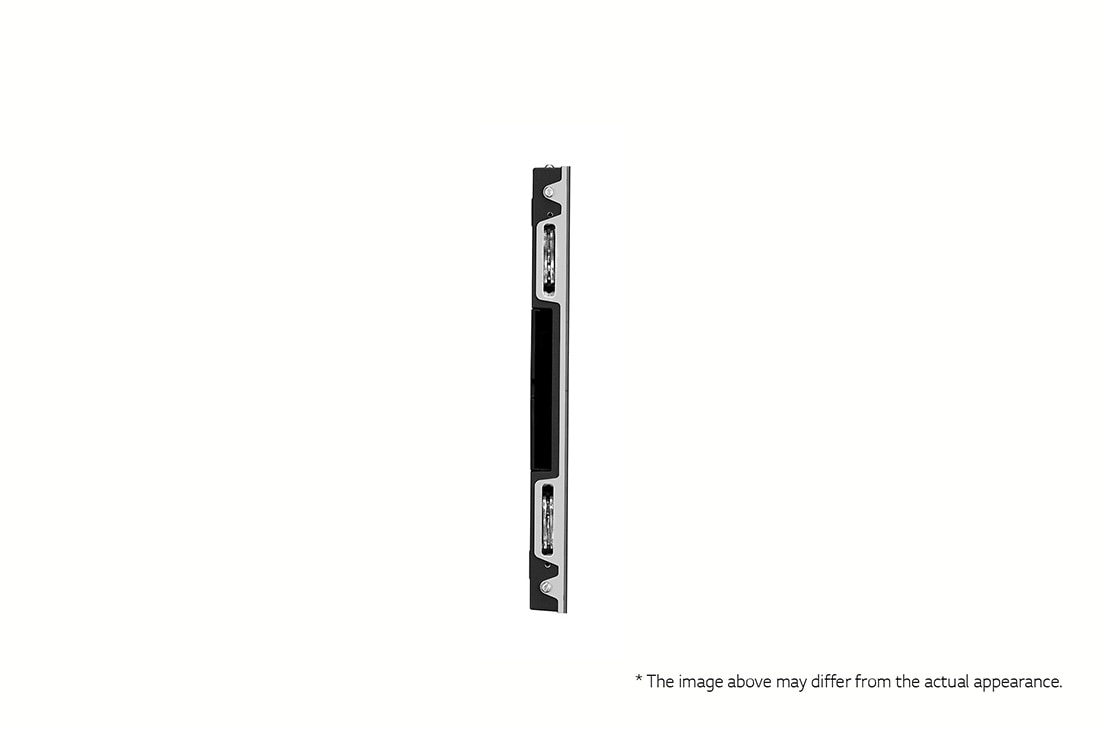

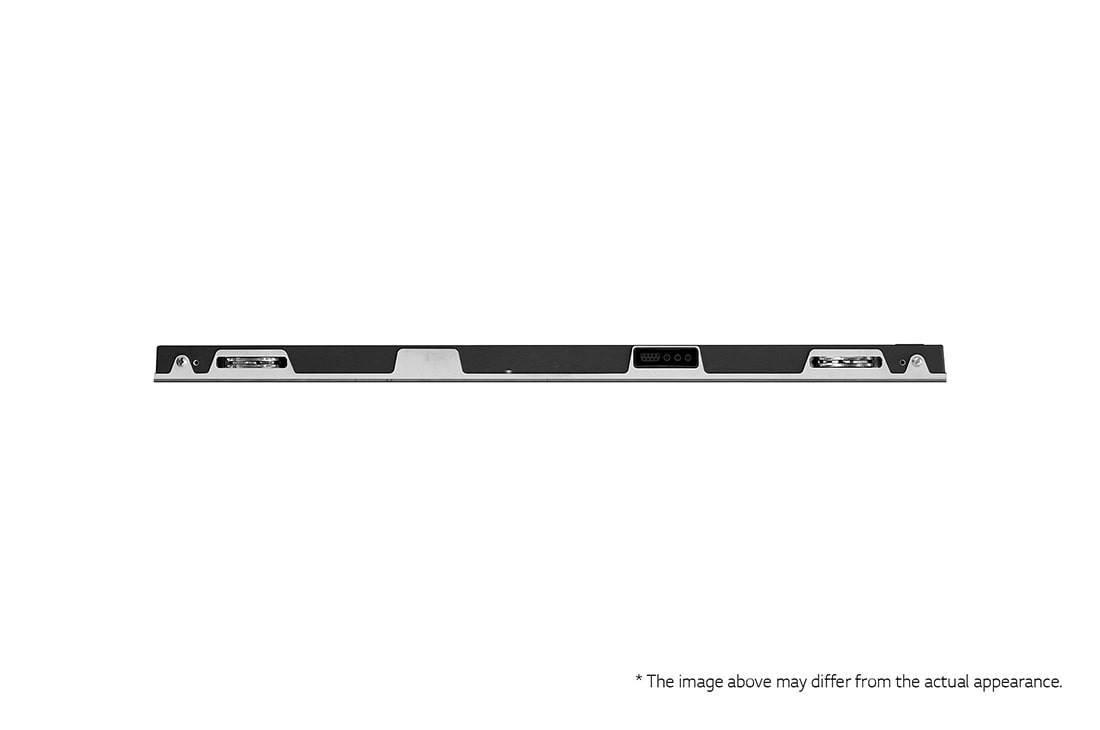

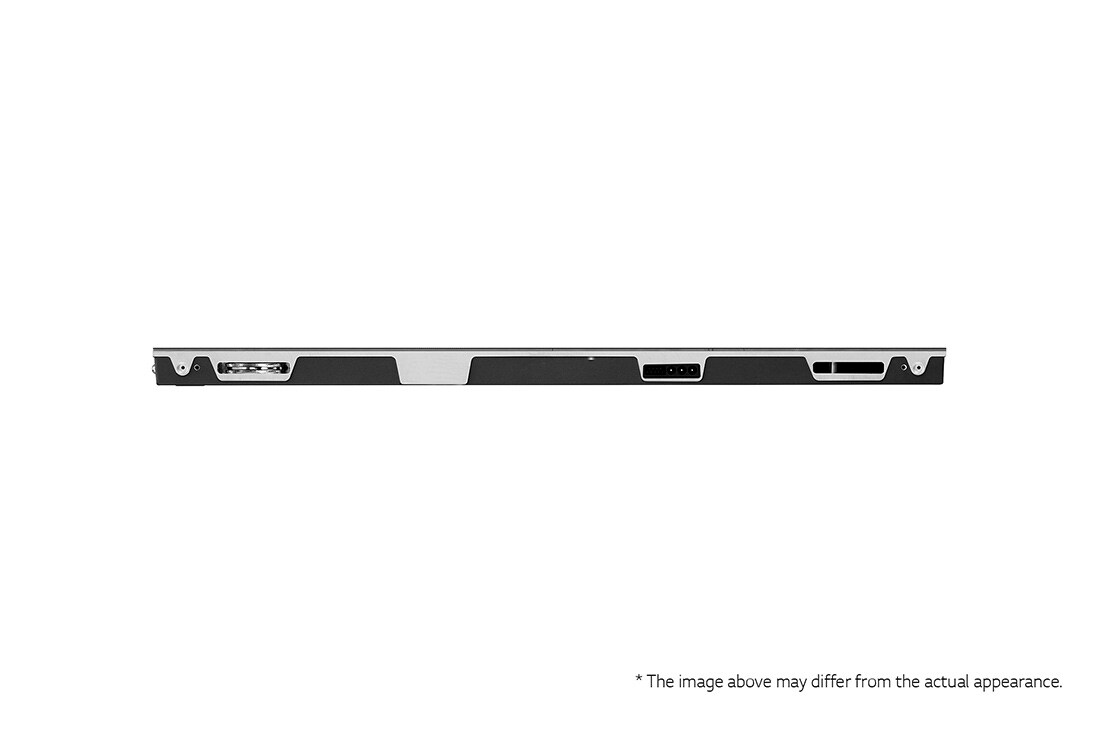

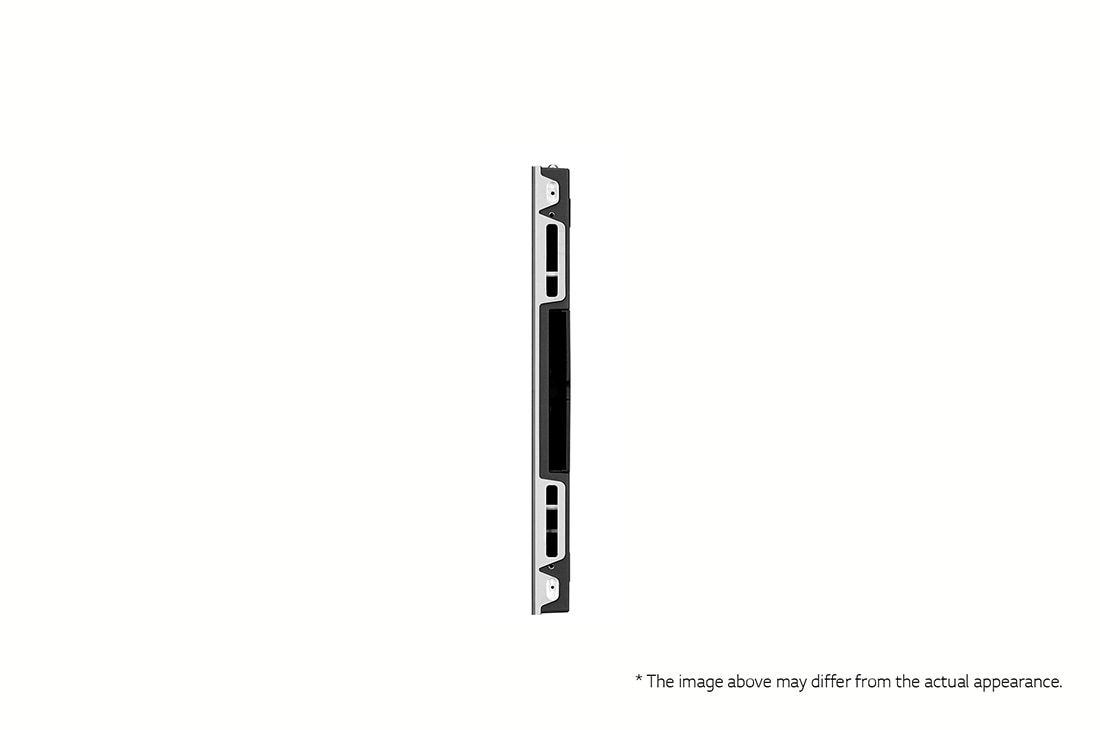

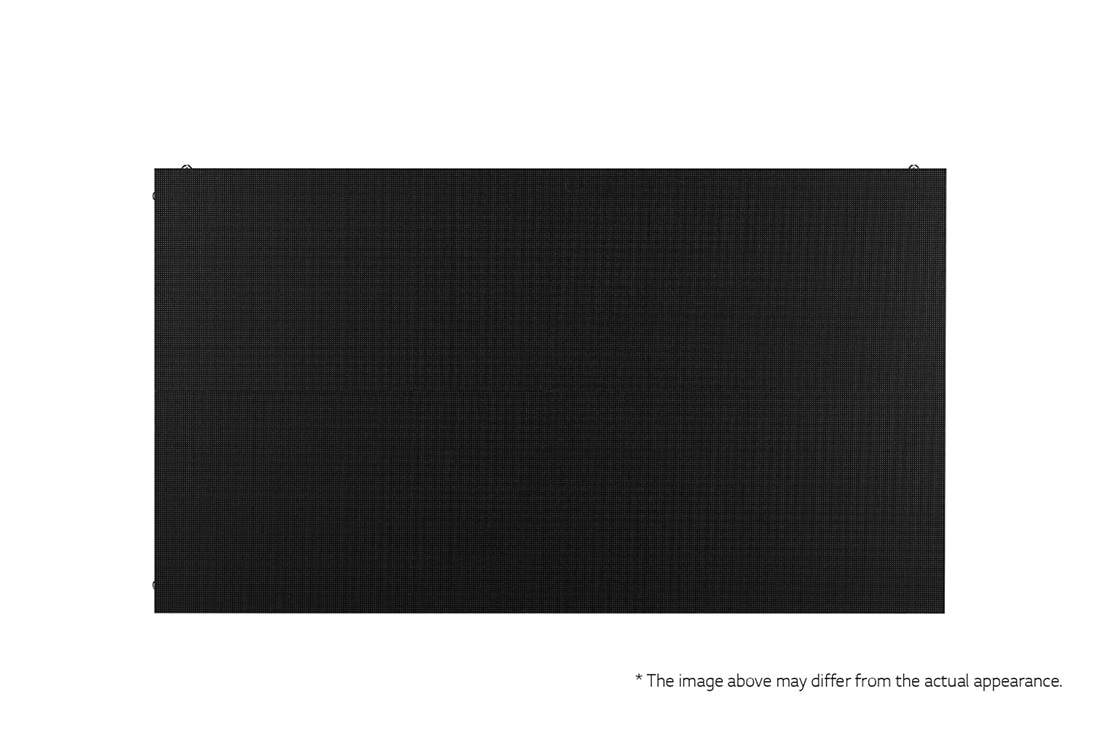

LSCB015-GK component-copyModelName
Ultra Slim Series

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Ultra Slim Series
Find a Dealer
Close
PHYSICAL PARAMETER
  • Pitch Name
    3 in 1 SMD
    Pixel Pitch (mm)
    1.56
  • Module Resolution (W x H)
    192 × 108
    Module Dimensions (W x H, mm)
    300 × 168.75
  • Weight per Module (kg)
    0.40
    No. of Modules per Cabinet (W × H)
    2 × 2
  • Cabinet Resolution (W × H)
    384 × 216

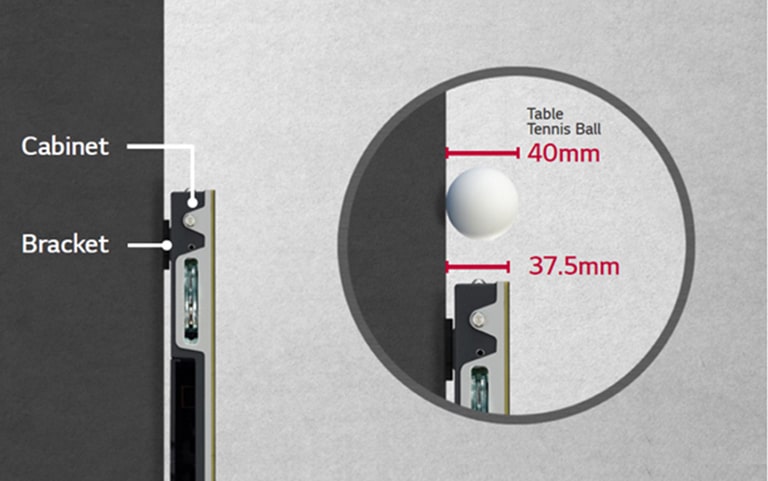

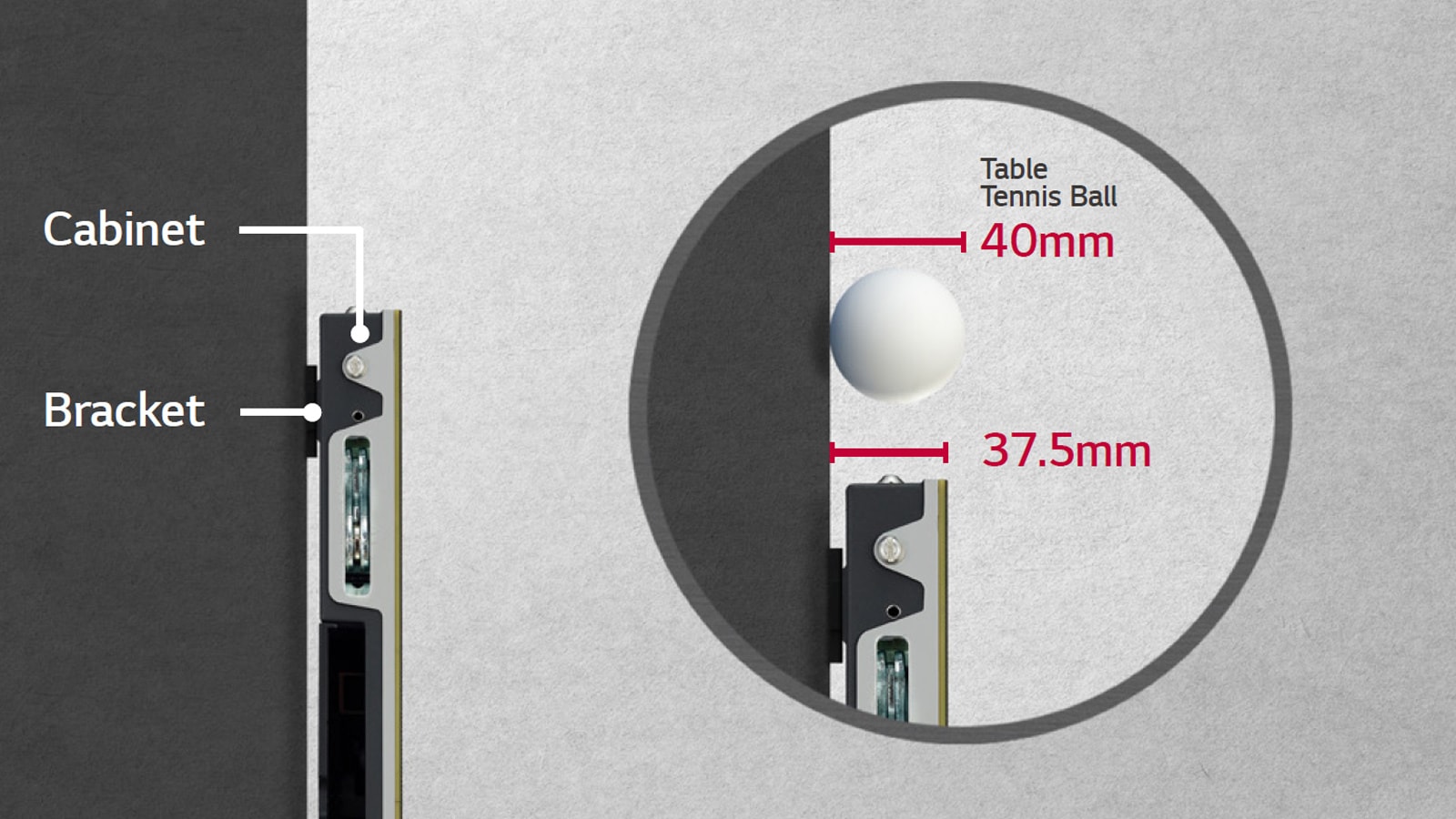

    Cabinet Dimensions (W × H × D)
    600 × 337.5 × 35 mm
  • Cabinet Surface Area (m²)
    0.203
    Weight per Cabinet (kg/cabinet)
    5.2
  • Weight per Square Meter (kg/m²)
    25.7
    Physical Pixel Density (pixels/m²)
    409,600
  • Flatness of Cabinet
    ± 0.1 mm
    Cabinet Material
    Die-casting Aluminum

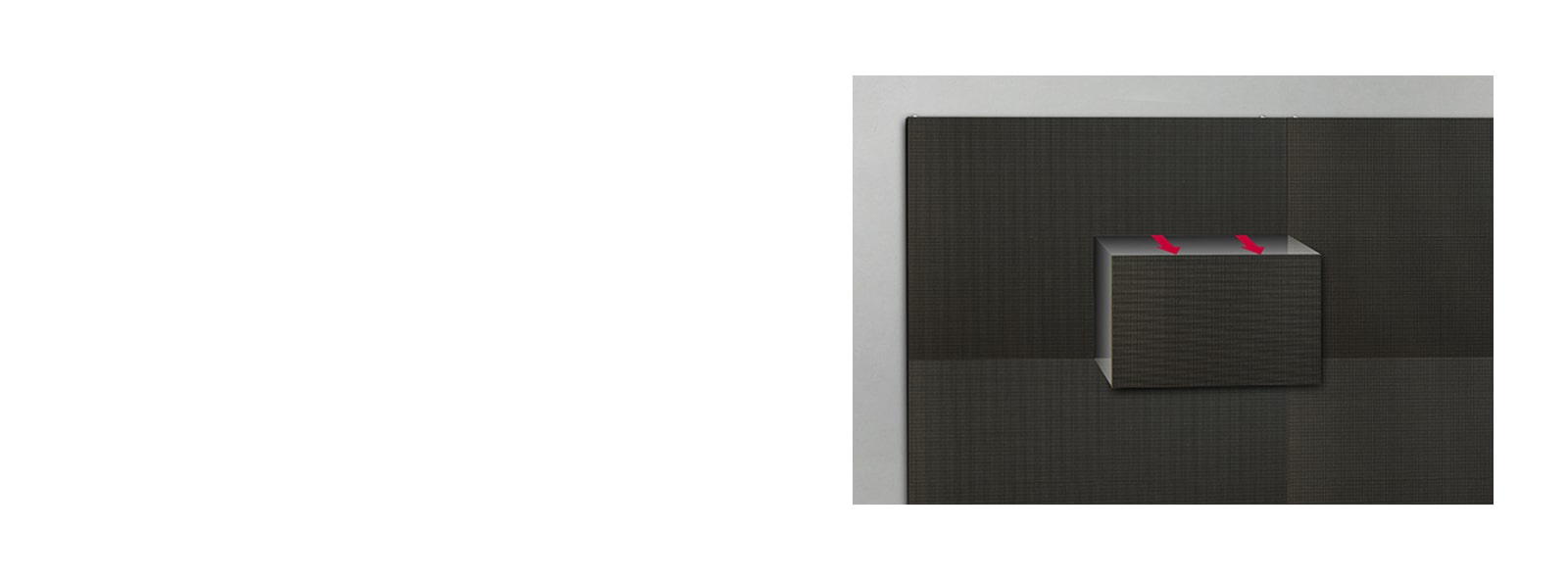

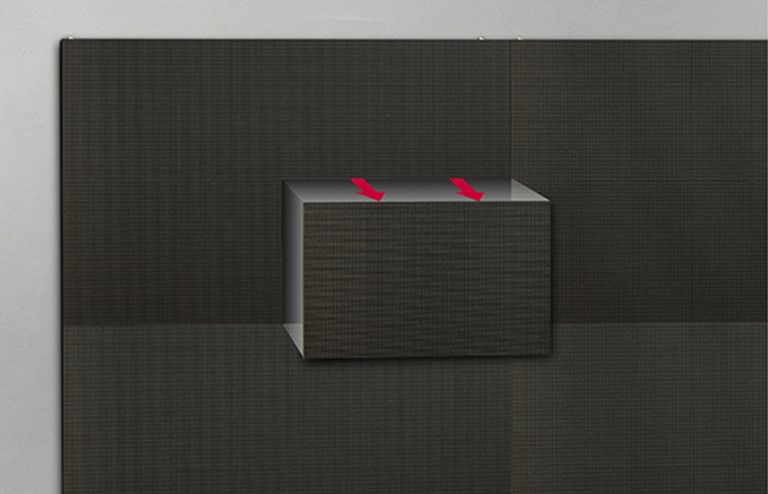

  • Service Access
    Front
OPTICAL PARAMETER
  • Min. Brightness (After Calibration)
    800 nit
    Color Temperature
    3,500 ~ 9,000
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    97%
    Color Uniformity
    ± 0.003 Cx,Cy
  • Contrast Ratio
    5,000
    Processing Depth (bit)
    14
ELECTRICAL PARAMETER
  • Power Consumption (W/cabinet, Max.)
    150
    Power Consumption (W/cabinet, Avg.)
    50
  • Power Consumption (W/m², Max.)
    740
    Power Consumption (BTU/h/cabinet, Max.)
    512
  • Power Consumption (BTU/h/cabinet, Avg.)
    171
    Power Consumption (BTU/h/m², Max.)
    2,525
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION CONDITIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -10 °C to +45 °C
  • Operating Humidity
    0 - 80 % RH
    IP rating Front / Rear
    IP30 / IP30
CERTIFICATION
  • Certification

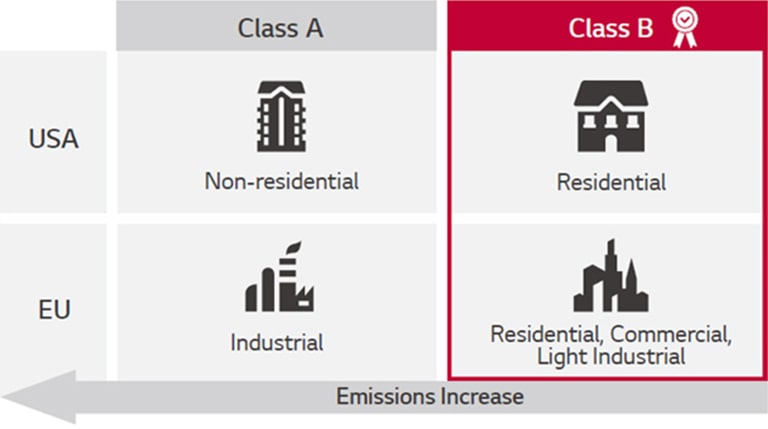

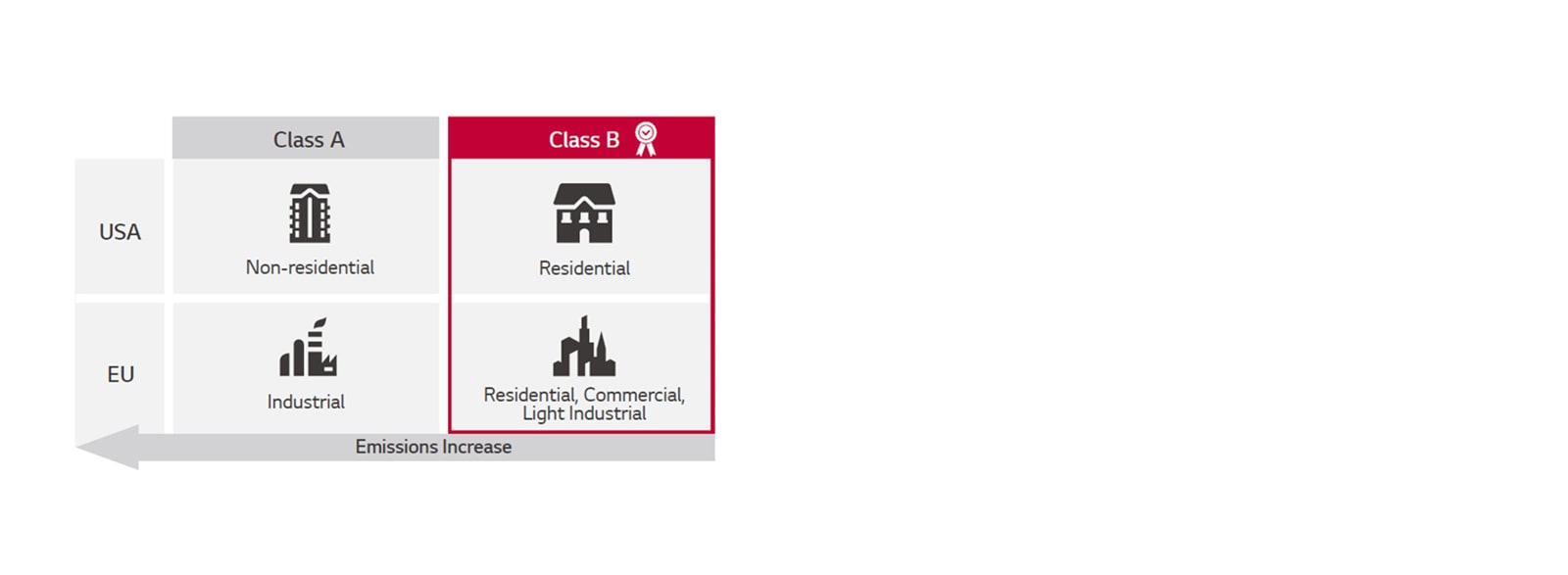

    CE, FCC, ETL, EMC Class-B Fire Protection
Environment
  • Environment
    RoHS, REACH in progress
CONTROLLER
  • Controller
    CVCA, LCIN006
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
