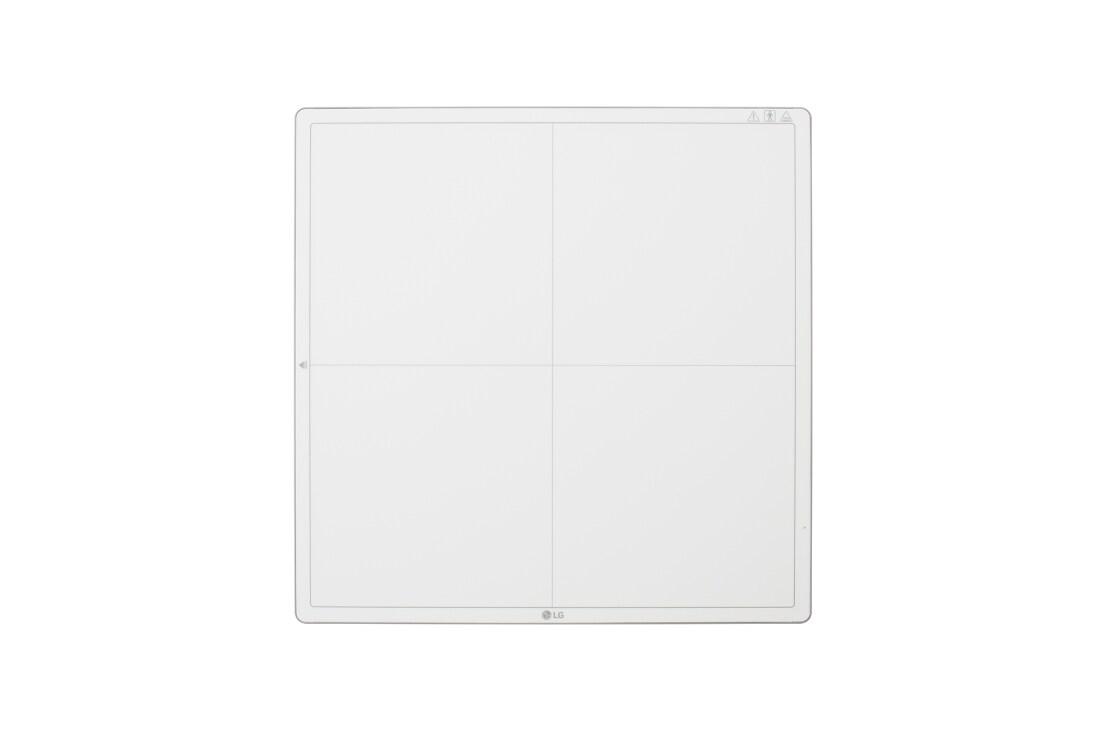

Digital X-Ray Detector (DXD)

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (17HK701G-WP)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (17HK701G-WP)
    AED
    AED
    LG Members Price
Total
Digital X-Ray Detector (DXD)
* IP: Ingress protection
* Maximum load weight: uniform load 150kg (331lb), point load 100kg (220lb)
AC ADAPTER FOR BATTERY CHARGER
  • AC Power Cord
    Yes
    DC Cable length
    1,500 mm
  • Dimensions(WxDxH, mm)
    134 x 59.8 x 31mm
    Input
    100 ~ 240VAC
  • Output
    19V/3.42A
    weight(kg)
    0.9 kg
ACCESSORIES
  • Cable
    Power cord, Manin Cable 1m (LAN Cable, Sync cable Option)
    CD
    Manual, Calibration SW
  • Other
    Book Manual , Outgonig Inspection sheet
BATTERY
  • Battery duration in standby status
    Typ. 13 hrs
    Dimensions(WxDxH, mm)
    204.6*110.5*7.8
  • Nominal Capacity
    30W (7.5V, 4000mAh)
    Nominal Voltage
    7.5V
  • Operation Time
    Typ. 240 shots / 6.0 hrs (Condition : Interval Time 90 sec)
    Type
    Detachable
  • weight(g)
    229.86
BATTERY CHARGER
  • Bundle battery Q'ty
    2
    Charging Time
    3 Hours
  • Dimensions(WxDxH, mm)
    125 x 255.5 x 90.5mm
    Input voltage
    19V
  • Output voltage
    8.7V
    Slot Q'ty
    3
  • weight(kg)
    0.9 kg
CONTROL BOX
  • AC Power Cord
    1.5m, White
    Dimensions(WxDxH, mm)
    125 x 255 x 109.8mm
  • Power Input
    AC100 to 240V, 47-63Hz
    Power Output
    DC24V / 2.1A
  • weight(kg)
    1.3 kg
DEGRADATION
  • A/D Conversion
    16 bit
    Auto Exposure Detection
    Yes
  • Data Output
    16 bit
    Detachable Wire (Easy to plug / unplug)
    Yes (Magnetic)
  • Expected lifetime (Gy)
    100 Gy
    Power unit interface
    Connect to Control Box
  • Sensitivity degradation at the 'end of Life'
    20%
    Sensor
  • Shock monitoring
    Yes
    Spatial Resolution(lp/mm)
    3.57 lp/mm
  • Unit Interface
    Connect to Control Box
    Wired Communication
    Yes
  • WLAN
    IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
    X-ray generator voltage range
    40 to 150kVp
  • X-ray period (ms) (=Window Time)
    Standard: 500 ( ~4000)
DQE(TYP)
  • DQE @ 0.1lp/mm
    72%
    DQE @ 0.5lp/mm
    67%
  • DQE @ 1lp/mm
    61%
    DQE @ 2lp/mm
    49%
  • DQE @ 3lp/mm
    28%
    Sensitivity( lsb/uGy ) / Programmable
    Typ. 600 / Yes
ENVIRONMETAL
  • Operating-Attitude
    Less than 5000 m
    Operating-Humidity
    Less than 80% RH, No condensation
  • Operating-Pressure
    70 ~ 106 kPa
    Operating-Temperature
    10 to 35 ℃
  • Storage-Attitude
    Less than 12,192 m
    Storage-Humidity
    Less than 90% RH, No condensation
  • Storage-Pressure
    50 ~ 106 kPa
    Storage-Temperature
    -20 to 60 ℃
MAIN CABLE(DXD-CONTROL BOX)
  • LAN Cable (Control Box-PC) : Optional(When Buyer requires this cable, is shipped according to BOM)
    (Option)
    Length
    1m10m15m
  • Sync Cable(Control Box - X-ray Generator) : Optional(When Buyer requires this cable, is shipped according to BOM)
    (Option)
MTF(TYP.)
  • MTF @ 0.5lp/mm
    89%
    MTF @ 1lp/mm
    74%
  • MTF @ 2lp/mm
    47%
    MTF @ 3lp/mm
    29%
SENSOR(PANEL)UNIT
  • Cycle Time(Ethernet / WLAN)
    8sec / 11 sec (Ethernet / WLAN)
    Falling
    40 Cm
  • Full Image(Raw Image)
    Ethernet 3sec / WLAN 6 sec
    Image-lag (Typ.)
    0.023%
  • Input
    DC24V/2.1A
    Maximum Load Weight
    Full (Uniform Load) : 150kg Local (Point Load) : 100kg
  • Number of Pixels
    3072x3072
    Pixel Pitch
    140㎛
  • Power consumption
    Typ. 19.0W (No Charging), 30.5W (with Charging)
    Scintillator
    CsI
  • Sensor Protection Plate
    Carbon Fiber Plate
    TFT Active Area(mm)
    430.08×430.08 mm
  • TFT Dimensions(WxDxH, mm)
    445 x 445 mm
    TFT Type
    A-si
  • Weight(kg) / Icld. Battery (Typ.)
    3.4kg
    X-ray sensitive Area(mm)
    430.08 x 430.08mm
  • X-ray Sensitive Pixel
    3072 x 3072
WARRANTY
  • Warranty
    36 Month
WATERTIGHTNESS
  • Anti-Bacteria
    JIS Z 2801 0.99%
    Cleaning and desinfecting products
    Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
  • Watertightness
    IP41
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
