19HK312C-B component-copyModelName

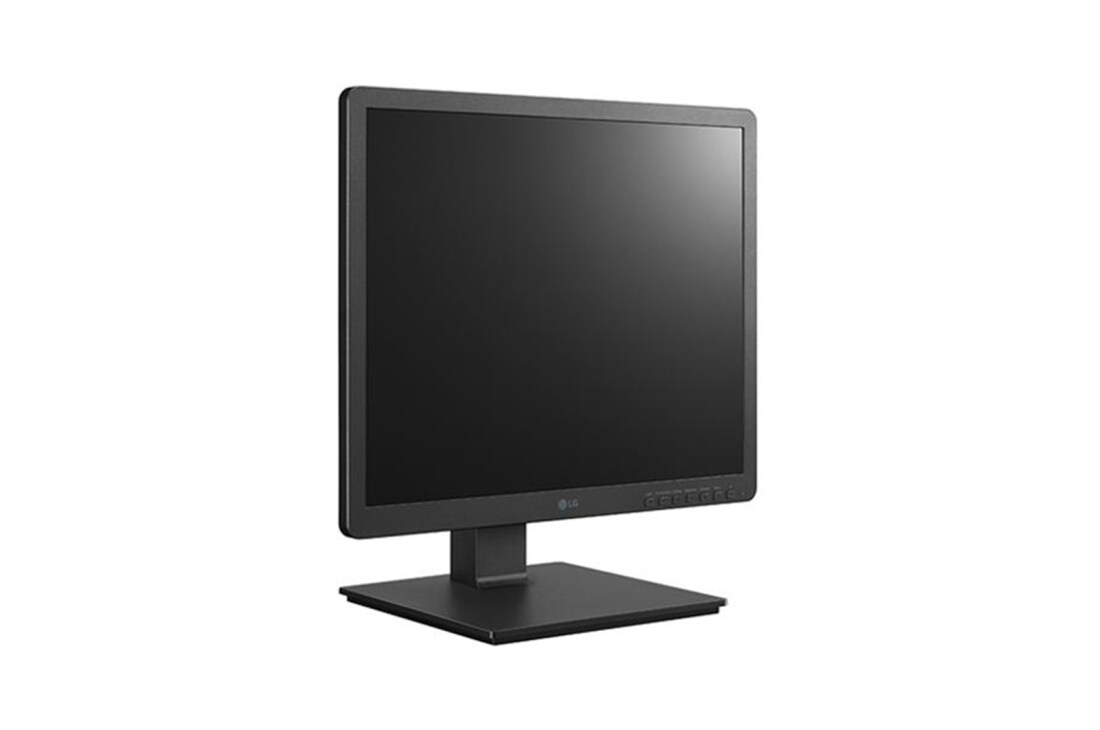

19'' 1.3 MP Clinical Review Monitor

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (19HK312C-B)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (19HK312C-B)
    AED
    AED
    LG Members Price
Total
19" 1.3 MP Clinical Review Monitor
Find a Dealer
330nits & NTSC 72% Precise Resolution1 330nits & NTSC 72% Precise Resolution2

330nits & NTSC 72% Precise Resolution

The clinical review monitor offers 330nits, making it brighter. An optimal range of colors for 1.3MP HD resolution medical images represented by NTSC 72% guarantee both precise picture quality and optimal grayscale.
DICOM Part 14 Compatible1 DICOM Part 14 Compatible2

DICOM Part 14 Compatible

To ensure the most accurate and consistent shading possible for medical images, LG measures and sets every grayscale tone on the production line to produce a monitor compliant with DICOM Part 14.
Brightness Stabilization1 Brightness Stabilization2

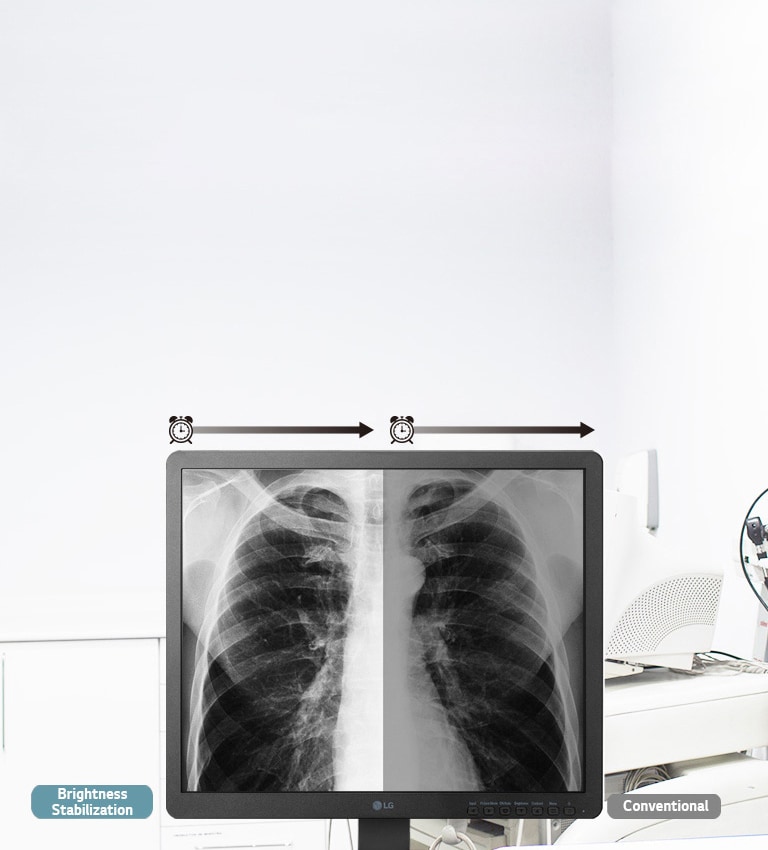

Brightness Stabilization

A sensor measures the monitor's backlight brightness stability and automatically compensates for brightness fluctuations caused by aging, for consistently stable images during usage.
Quick Response Time1 Quick Response Time2

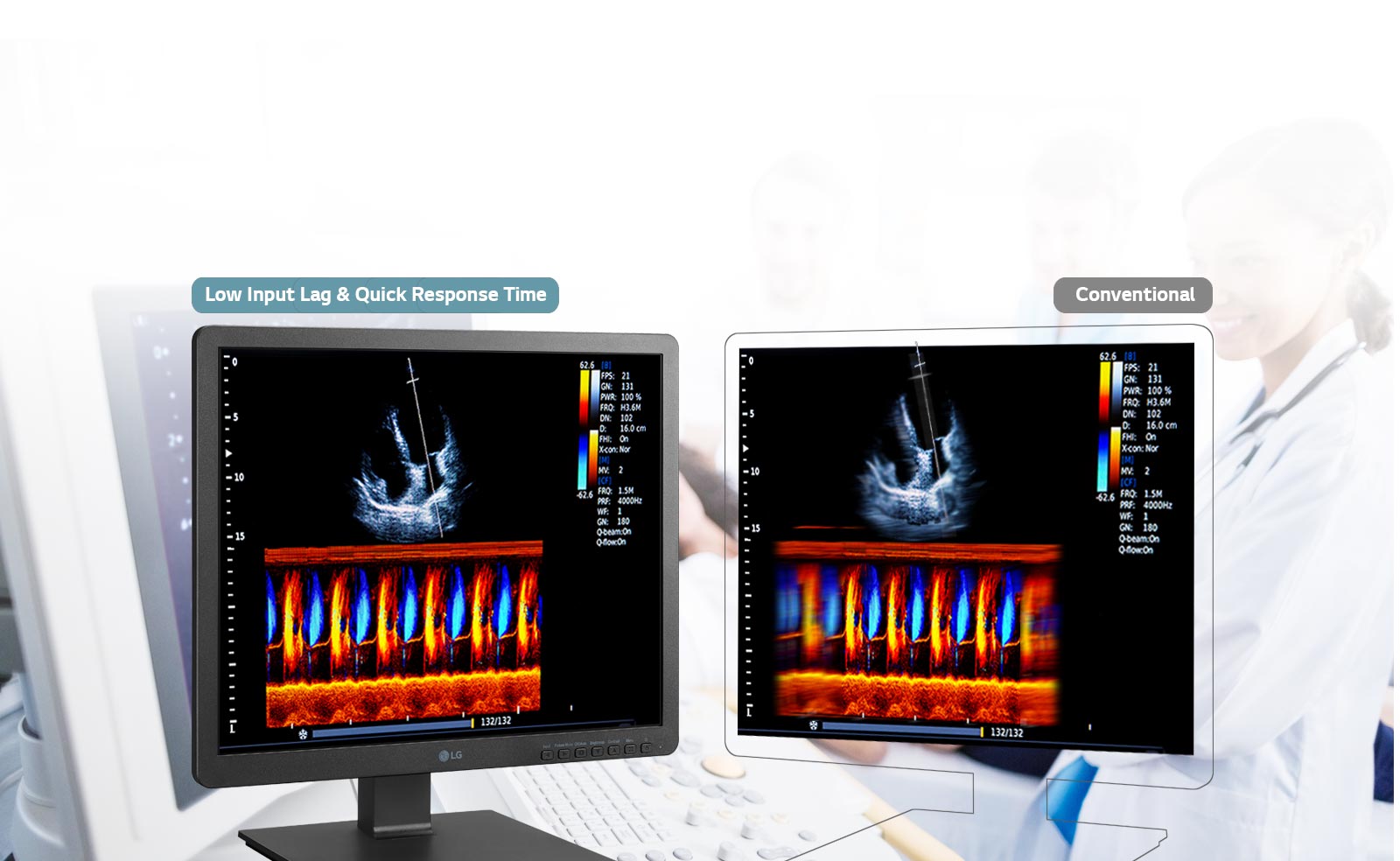

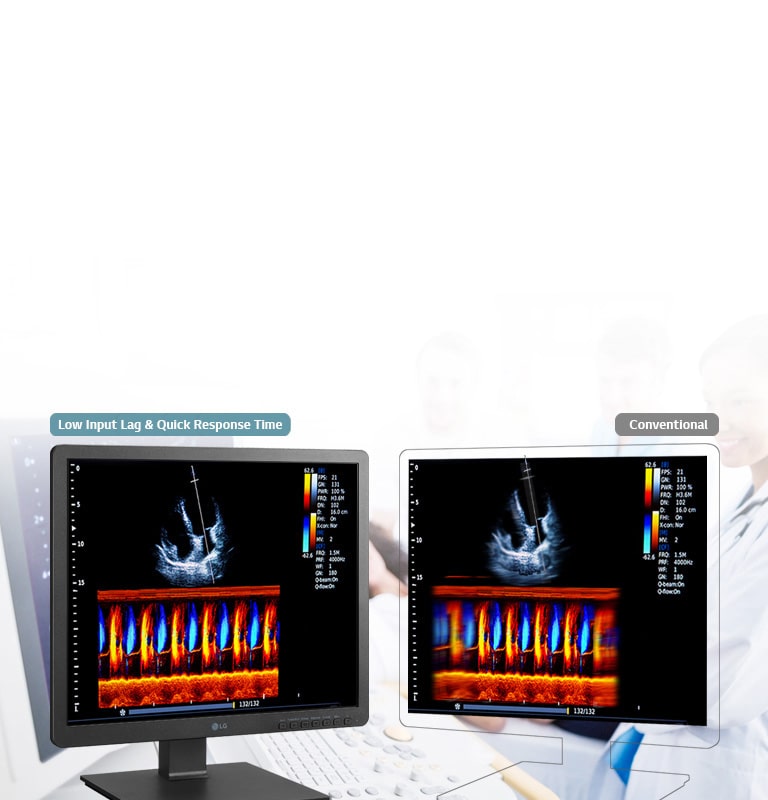

Quick Response Time

With a low input lag and quick response time, it allows the monitor to receive a signal quickly and display a clear image with no distortion, for precise decoding information to achieve an efficient review.
Flicker Safe1 Flicker Safe2

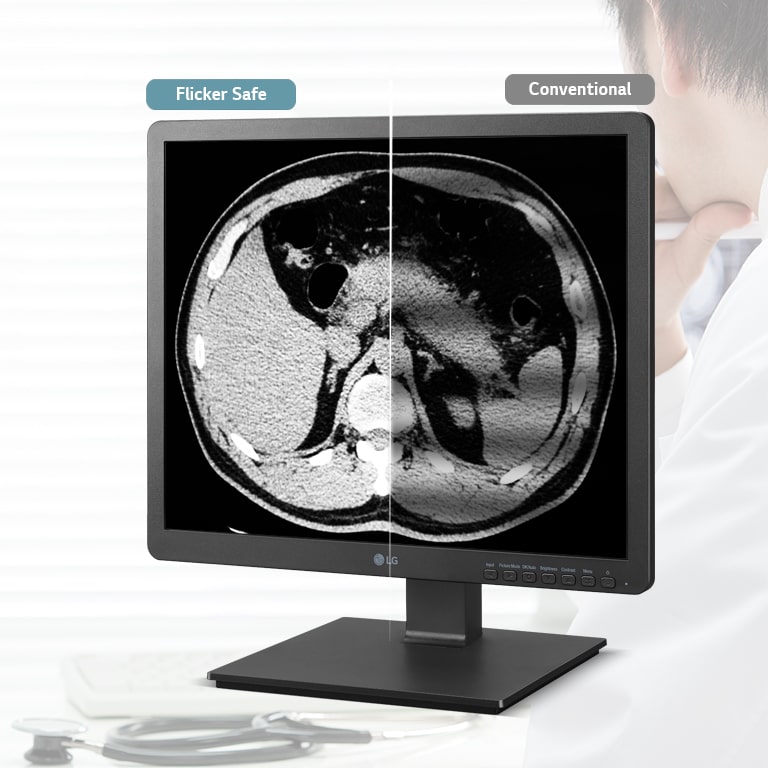

Flicker Safe

The Flicker Safe reduces the flicker level on screen that may cause eye fatigue. With this feature, looking at your computer screen for longer periods of time is more comfortable.
Reader Mode1 Reader Mode2

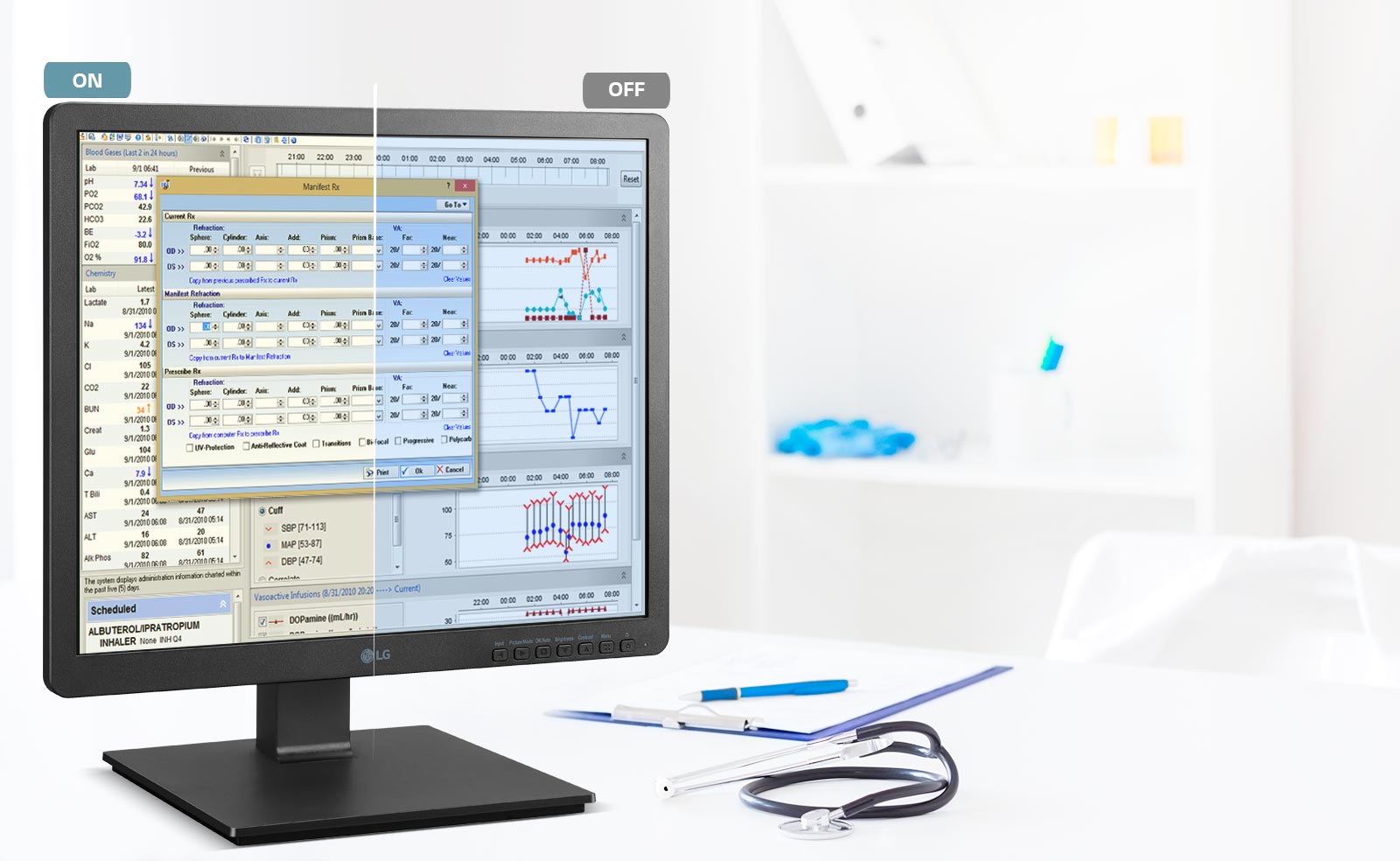

Reader Mode

Reader Mode provides optimal conditions for clinical use. Reducing blue light to help lessen eye fatigue, Reader Mode provides optimal condition for reading.
Two-Way Pivot1 Two-Way Pivot2

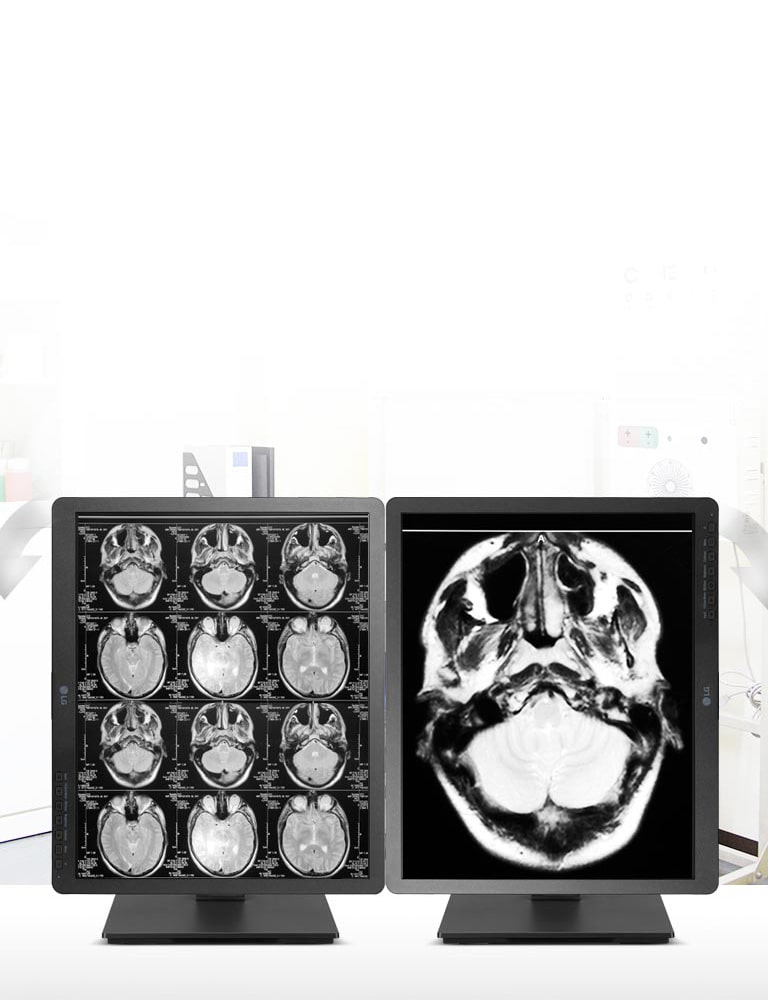

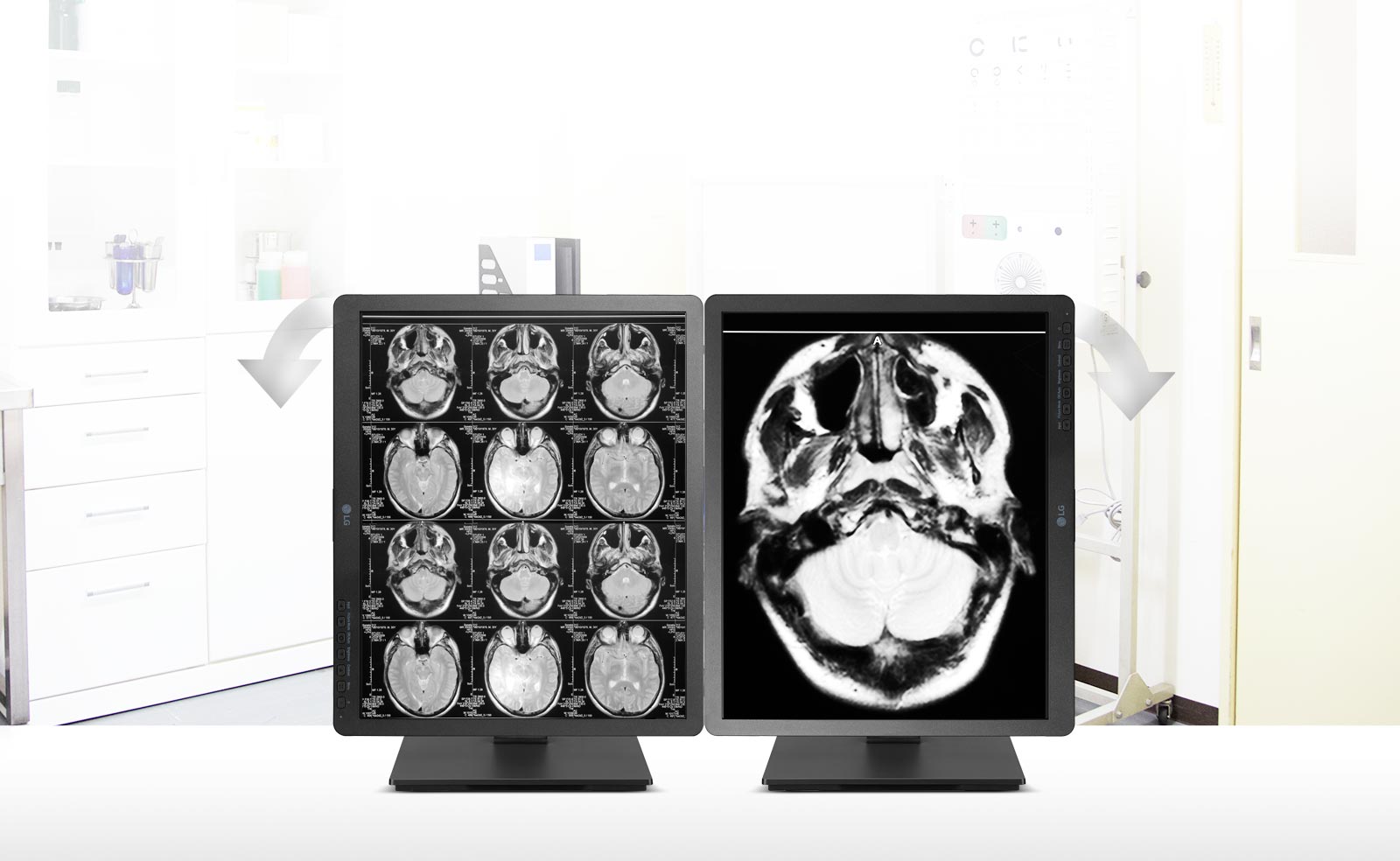

Two-Way Pivot

The monitor with Bi-directional pivot stand can be configured according to user needs and medical environment alongside other medical devices.
Close
PANEL
  • Size
    19" class (19" Diag.)
    Pixel Pitch (mm)
    0.294mm x 0.294mm
  • Panel Type
    IPS
    Response Time (on/off)
    14ms (Typ)
  • Viewing Angle (CR≥10)
    178 / 178
    Aspect Ratio
    5:4
  • Contrast Ratio (Original)
    900:1
    Resolution
    1280 x 1024
  • Color Depth (Number of Colors)
    16.7M (8bit)
    Brightness
    330 cd/m²
  • Color Gamut (CIE 1931)
    NTSC 72%
    (DFC)
    Mega
  • (GTG)
    5ms (Faster)
    Surface Treatment
    Anti-Glare 3H

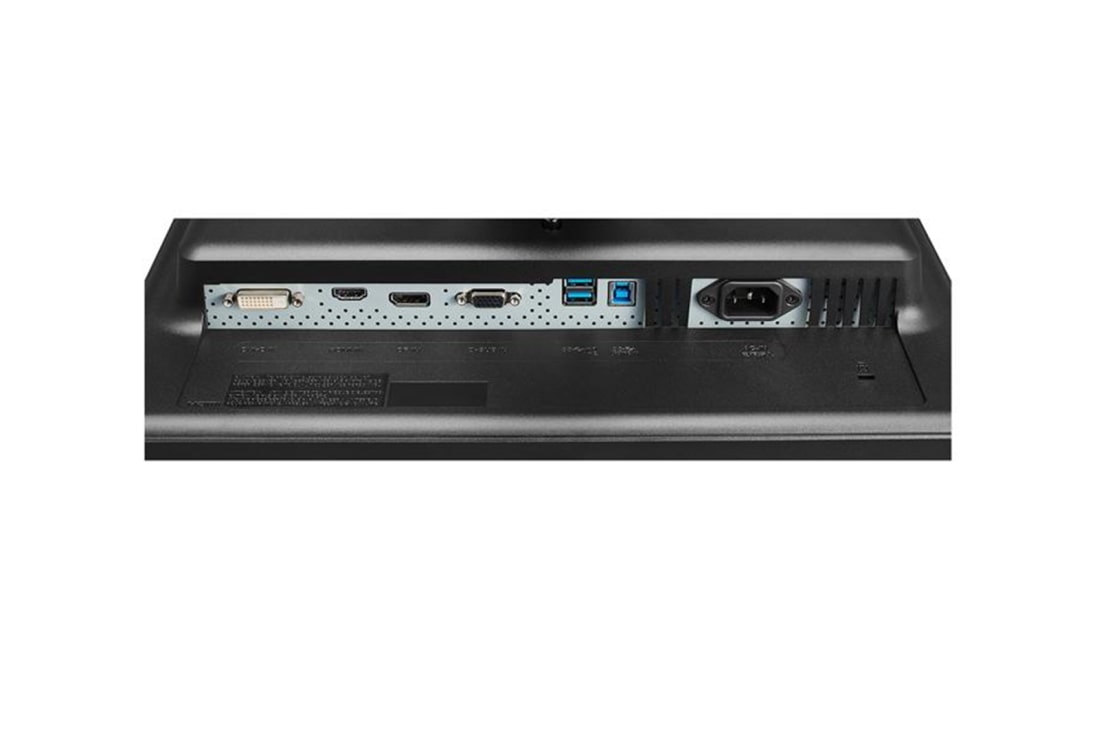

SIGNAL INPUT
  • DVI-D
    x1
    HDMI
    x1 (1.4)
  • DisplayPort
    x1 (1.2)
    USB
    USB3.0 1up 2down
  • Jack Location
    Rear
    D-Sub
    x1
POWER
  • Type
    PSU (Internal Power)
    Input
    100-240Vac, 50/60Hz
  • Output
    24V 2.1A
    Sleep Mode (Max)
    0.5W
  • DC Off(Max)
    0.5W
    Normal On (Max)
    50W
HDMI AND DP FREQUENCY
  • H-Frequency (D-Sub)
    30~83 kHz
    V-Frequency (D-Sub)
    56~75 Hz
  • H-Frequency (DVI-D)
    30~83 kHz
    V-Frequency (DVI-D)
    56~75 Hz
FREQUENCY
  • HDMI
    30~83 kHz
    DVI-D
    56~75 Hz
  • DisplayPort
    56~75 Hz
    D-Sub
    D-Sub
RESOLUTION
  • D-sub
    1280 x 1024
    HDMI
    1280 x 1024
  • DVI-D
    1280 x 1024
CONTROL KEY
  • Key Number (Power Key Included)
    7
    LED Color (On Mode)
    Green
  • Key Location
    Front
    Key Type
    Tact
  • LED Color (Power save mode)
    Green Blinking
OSD
  • Country
    Worldwide
    Number of Language
    17
SPECIAL FEATURES
  • DDC/CI
    Yes
    HDCP
    Yes
  • Flicker Safe
    Yes
    Plug & Play
    Yes
  • DICOM Mode
    Yes (Kδ <= 10%)
    Picture Mode
    Yes
  • Key Lock
    Yes
    Response Time Control
    Yes
  • Color Calibrated
    Yes
    Super Resolution+
    Yes
  • Original Ratio
    Yes
    Gamma
    Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve
  • Color Temperature
    6500K / 7500K / 9300K, Manual (5000K ~ 10000K)
    Factory Calibration
    Yes (Delta E≤5, Gamma 1.8 ~ 2.6 / DICOM curve)
  • H/W Calibration
    Yes (Calibration 1-2 Mode)
    Dynamic Sync Mode (Thru Mode)
    Yes
  • Brightness Stabilization
    Yes
    Uniformity Compensation
    Yes
  • DPM
    Yes
    User Preset
    Yes
  • Reader Mode
    Yes
    Dual Controller
    Yes
  • Automatic Standby
    Yes
    True Color Pro
    Yes
  • 4 Screen Split
    Yes
    On Screen Control
    Yes
COLOR
  • Front
    Black
    Stand
    Black
  • Base
    Black
    Back Cover
    Black

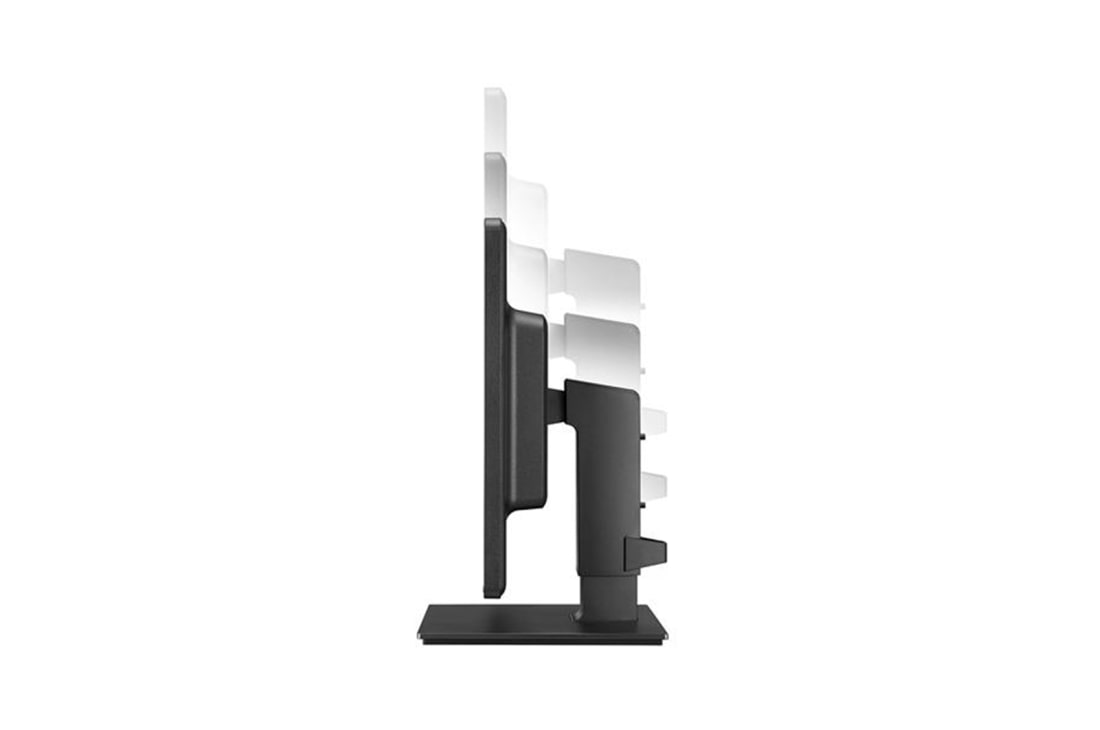

STAND
  • Pivot
    Yes ( -90~0~+90)
    Base Detachable
    Yes
  • Height (mm)
    Yes (range 130mm)
    Tilt (Angle)
    Yes (-5°~35°)
  • One Click stand set-up
    Yes
    Swivel (Angle)
    Yes (-177.5° ~ +177.5°)
CABINET
  • Monitor (with Stand)
    16.1" x 9.8" x 15.3"
    Weight (with Stand)
    11.2 lbs
  • Weight (Without Stand)
    6.4 lbs
    Monitor (without Stand)
    16.1" x 2.3" x 13.5"
  • Box
    47.5" x 50.4" x 19.9"
    Weight (Box)
    16.3 Ibs.
  • VESA® Wall Mount
    100 x 100
STANDARD
  • Windows 10
    Yes
    FCC
    FCC part 15 Class A
  • FDA (US)
    FDA Class I
    Others
    DICOM part 14
  • CE (EU)
    Yes
    CMDR (Canada)
    CMDR (Canada)
  • cUL (US/Canada)
    ANSI/AAMI ES 60601-1 CSA CAN/CSA-C22.2 NO. 60601-1
    IEC (Global)
    IEC60601-1
  • RoHS / REACH / WEEE
    Yes
    EN (EU) and CB (EU)
    EN60601-1
  • CE MDD (EU)
    CE (MDD) Class I
ACCESSORIES
  • Power Cord
    Yes (5.9 ft)
    HDMI
    Yes
  • D-Sub
    Yes
    DVI-D
    Yes
  • USB
    Yes (USB3.0)
    Display Port (1.2)
    Yes
  • Factory Calibration Report
    Yes
    Warranty Card
    Yes
  • CD-ROM
    Yes (User Manual/True Color Pro/Dual Controller/On Screen Control 2.0)
    Others
    Adapter
OTHER
  • Warranty
    3-Year Limited Warranty Parts/Labor/Backlight
    UPC
    7 19192 61760 5
