27HJ713C-B

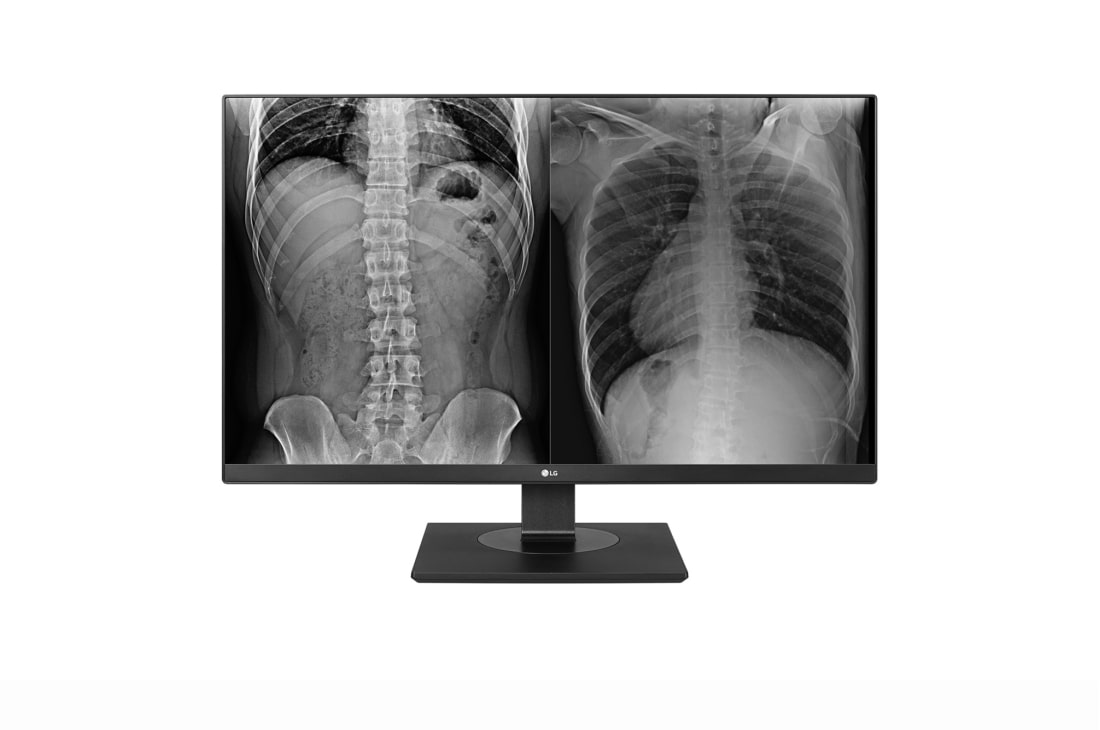

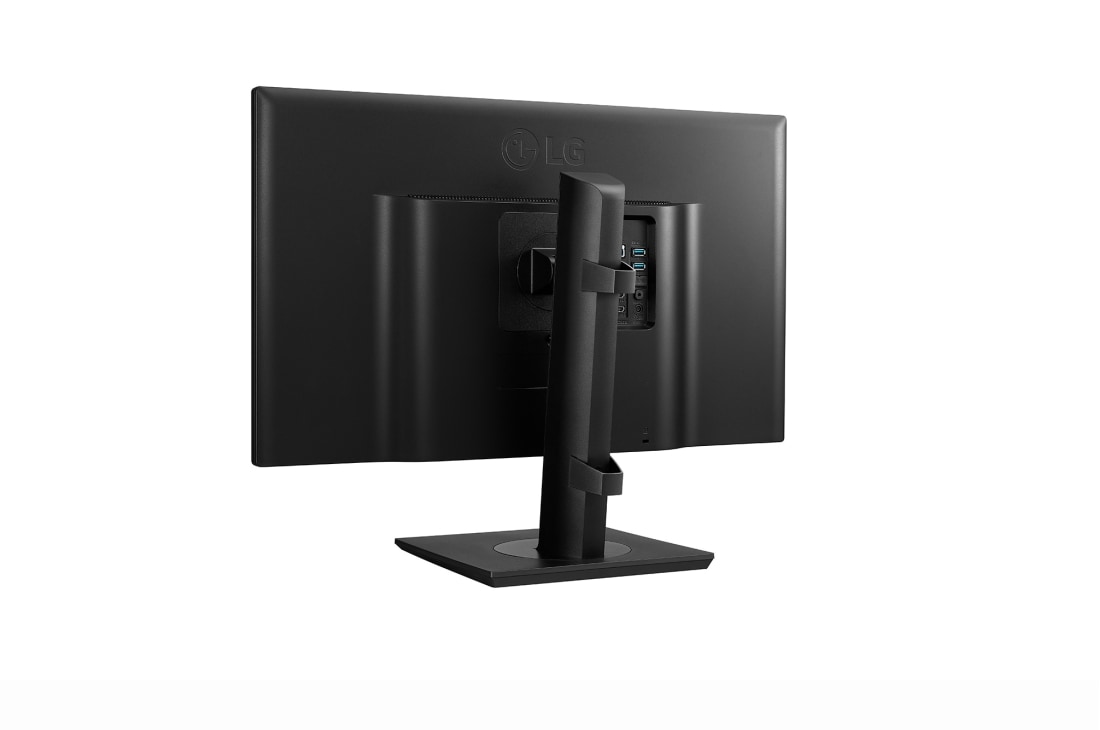

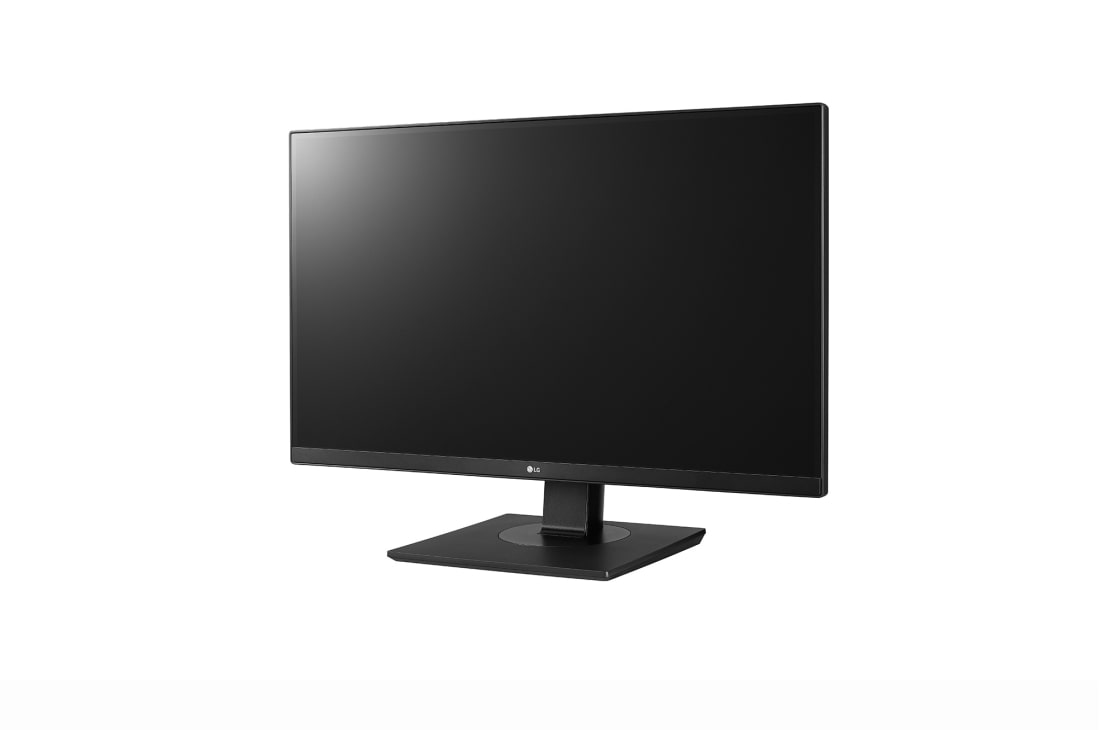

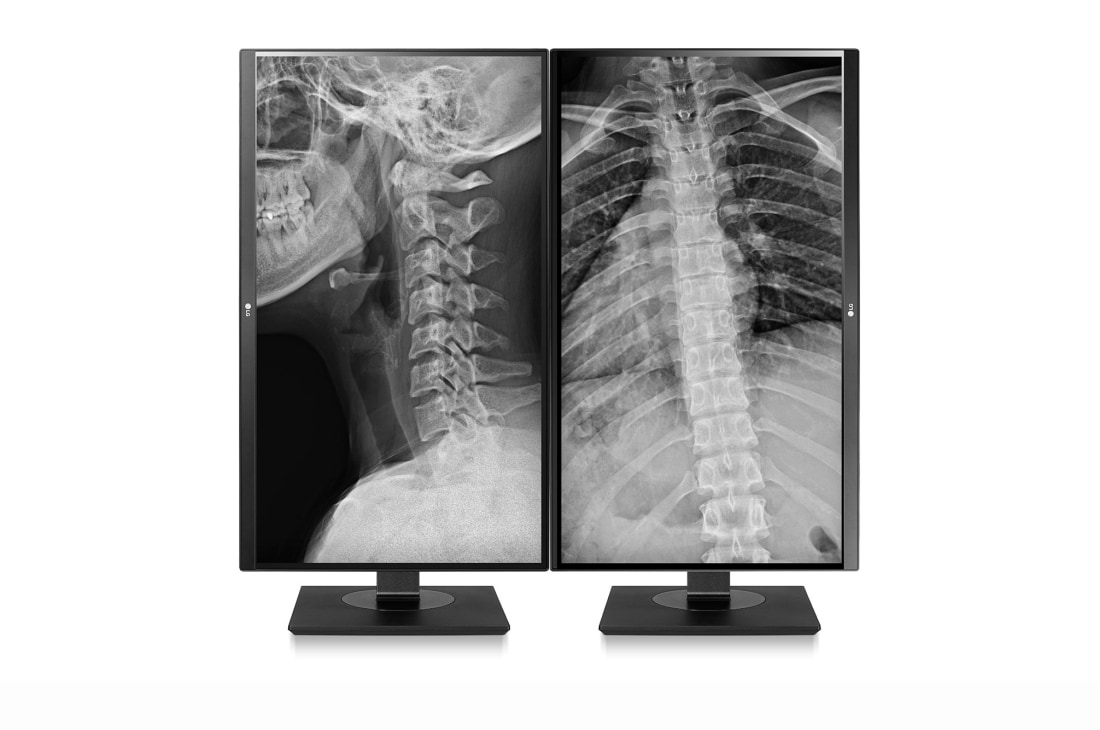

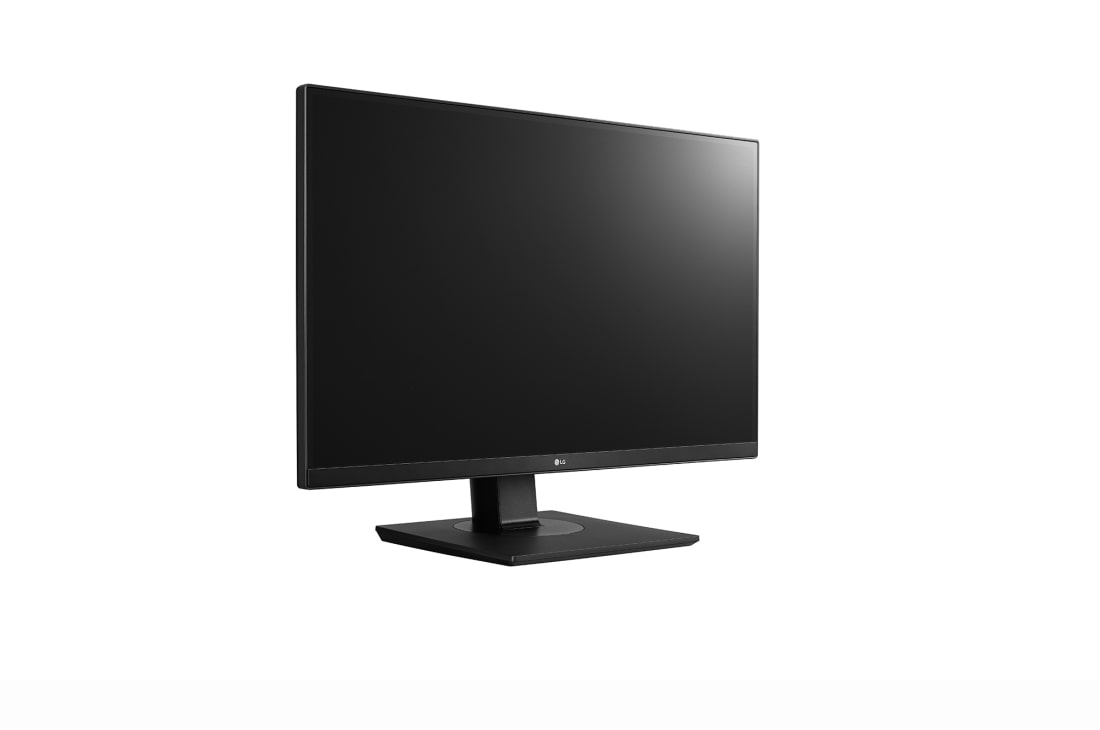

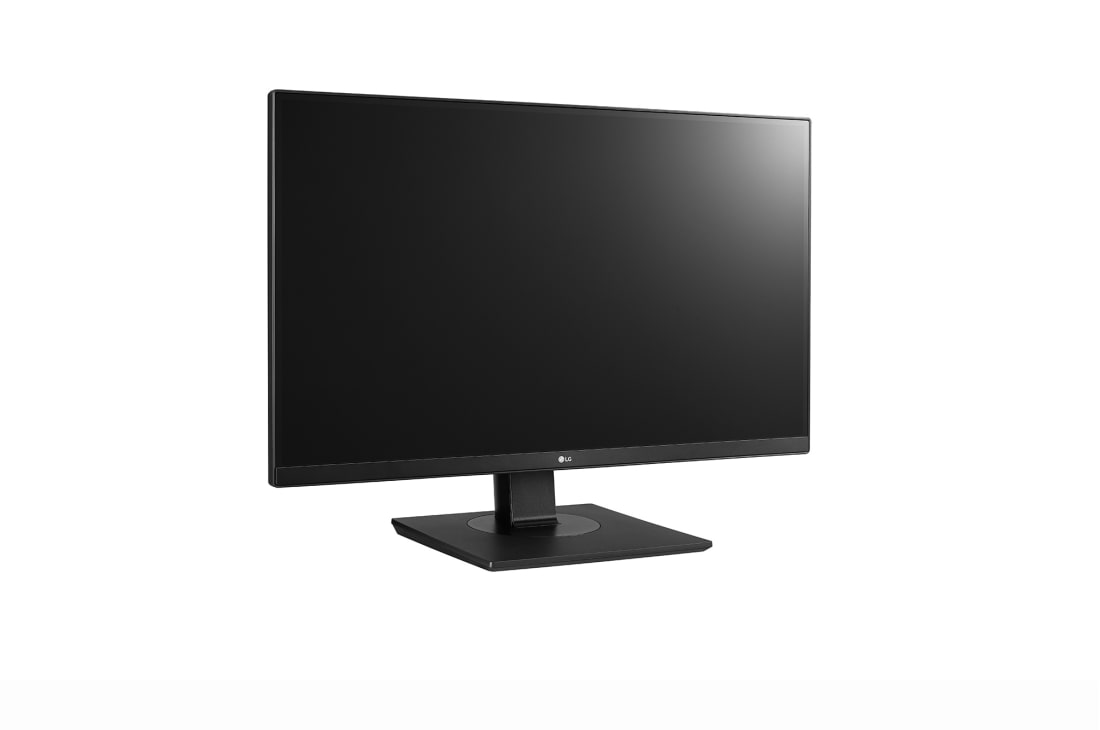

LG 27'' UHD 8MP Clinical Review Monitor
  • 27” IPS 8MP
  • 350nits(Typ.) & sRGB 99%
  • DICOM Part 14

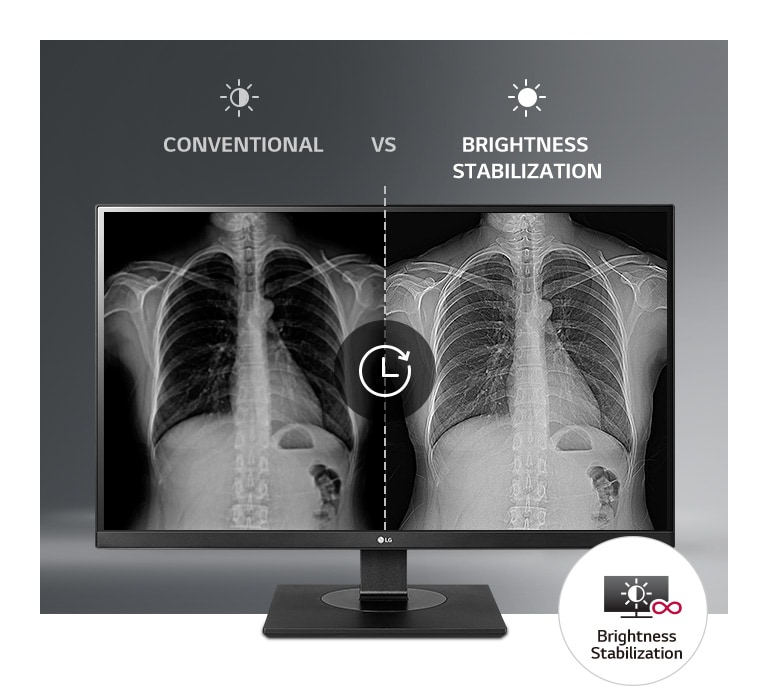

  • Brightness Stabilization

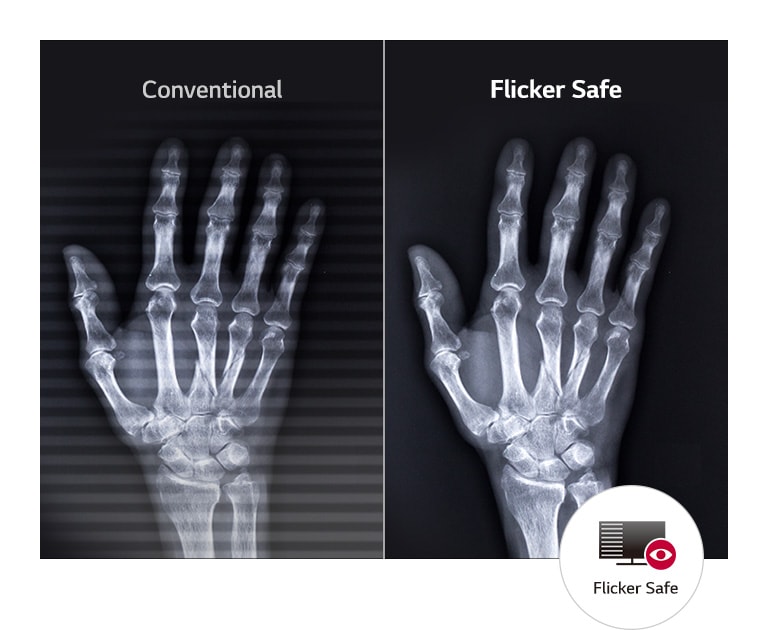

  • Flicker Safe

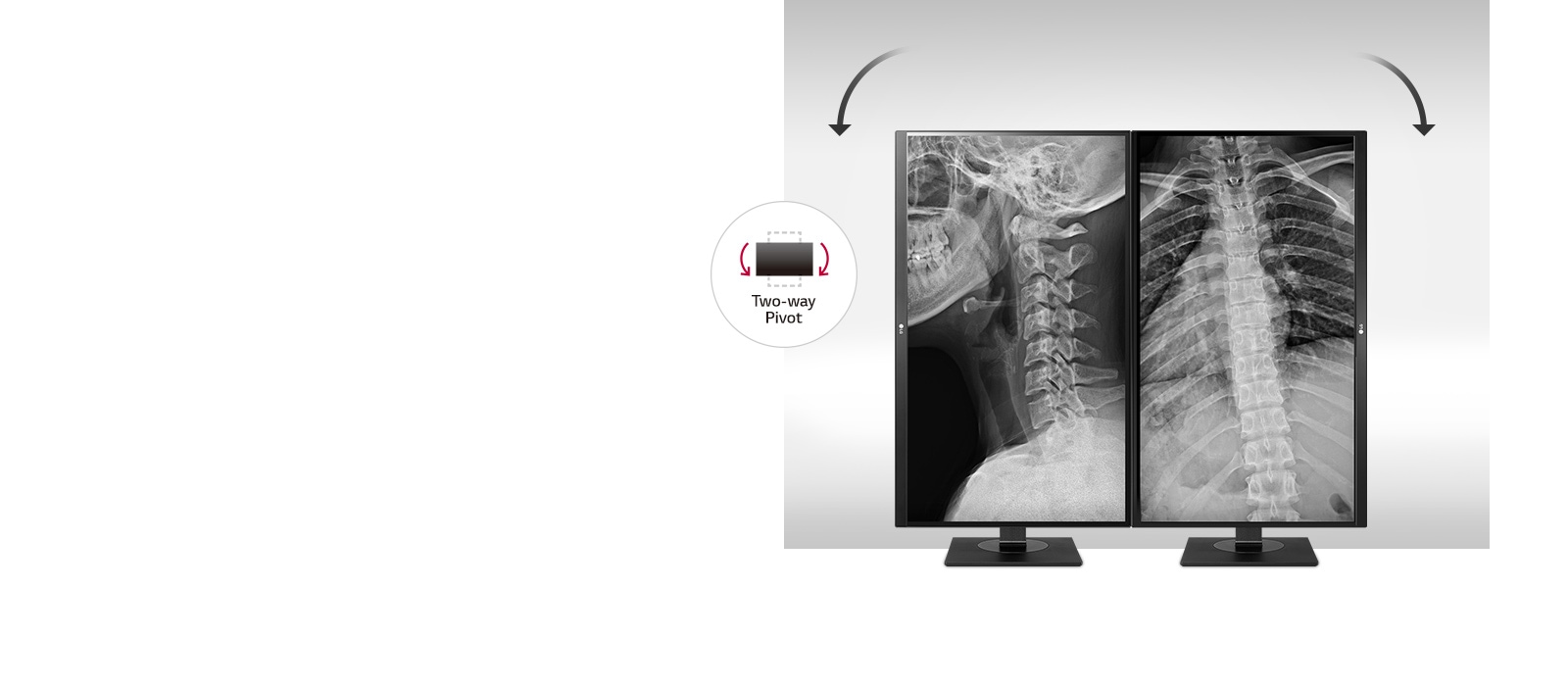

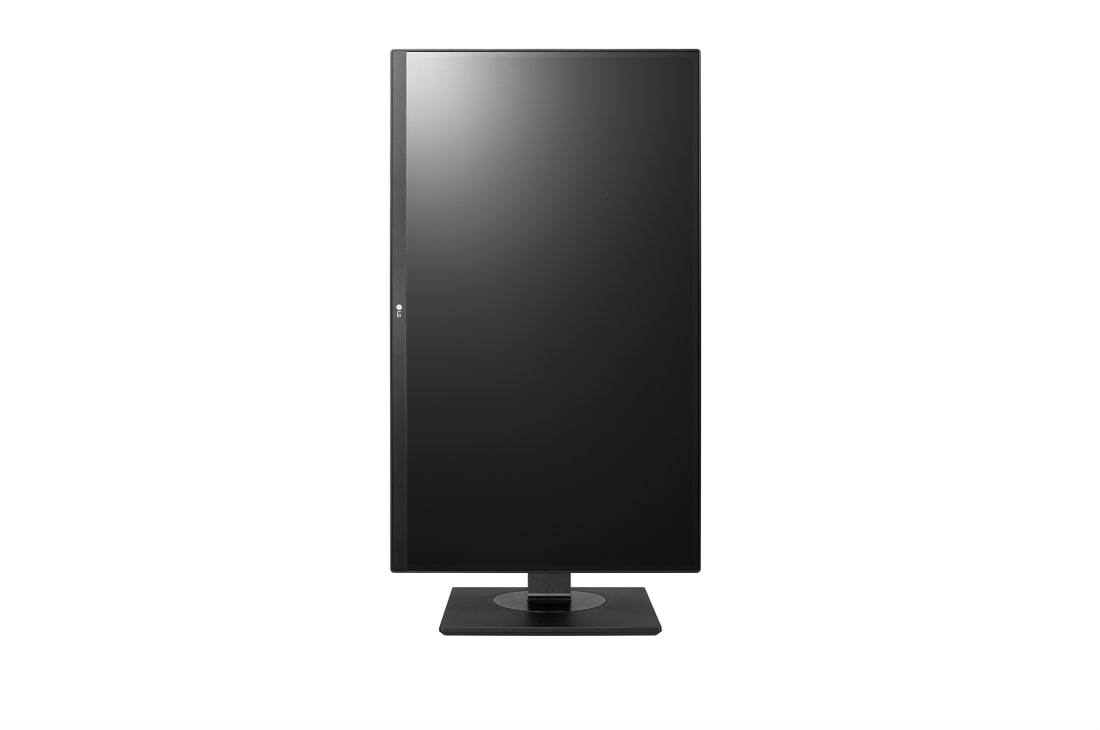

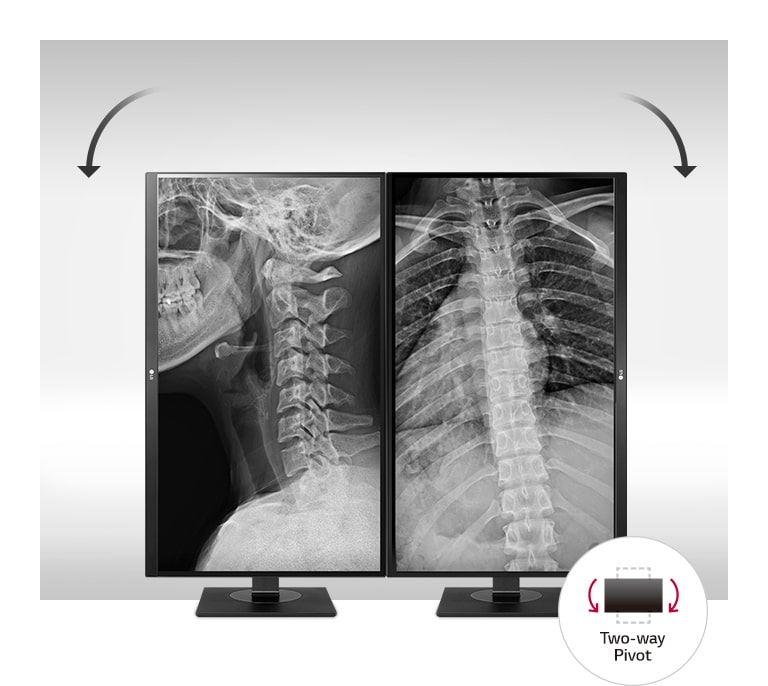

  • Two-way Pivot

component-OBScountrySelectDesc

LG 27" UHD 8MP Clinical Review Monitor
*ACR-AAPM-SIIM Secondary Review Brightness Guideline : The secondary review brightness guideline developed collaboratively by the American College of Radiology (ACR), the American Association of Physicists in Medicine (AAPM), and the Society for Imaging Informatics in Medicine (SIIM).

PANEL

  • (GTG)
    5ms (High)
    Aspect Ratio
    16:9
  • Brightness (DICOM Calibrated)
    250 cd/m²
    Brightness
    350 cd/m²
  • Color Depth (Number of Colors)
    1.07 B (10bit)

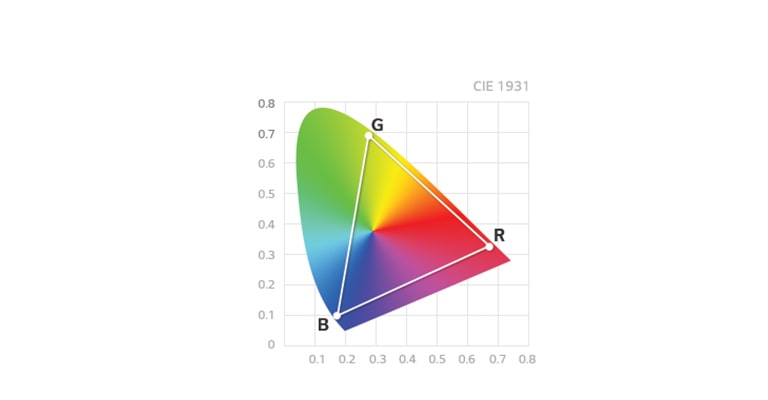

    Color Gamut (CIE1931)
    sRGB 99%
  • Contrast Ratio (Original)
    1000:1
    Panel Type
    IPS
  • Pixel Pitch (mm)
    0.1554mm x 0.1554mm
    Resolution
    3840 x 2160
  • Response Time_Typ. (on/off)
    14ms (Typ)
    Size
    27" Class (27.0" Diagonal)
  • Surface Treatment
    Anti-Glare 3H
    Viewing Angle (CR≥10)
    178 / 178

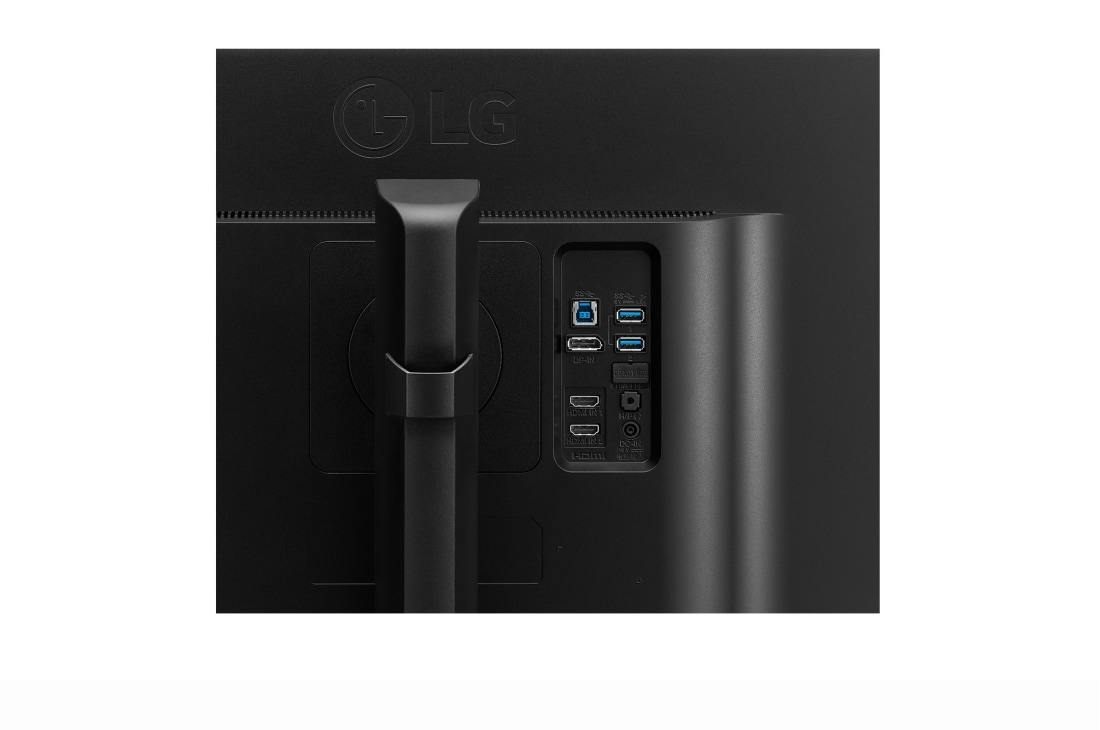

SIGNAL INPUT

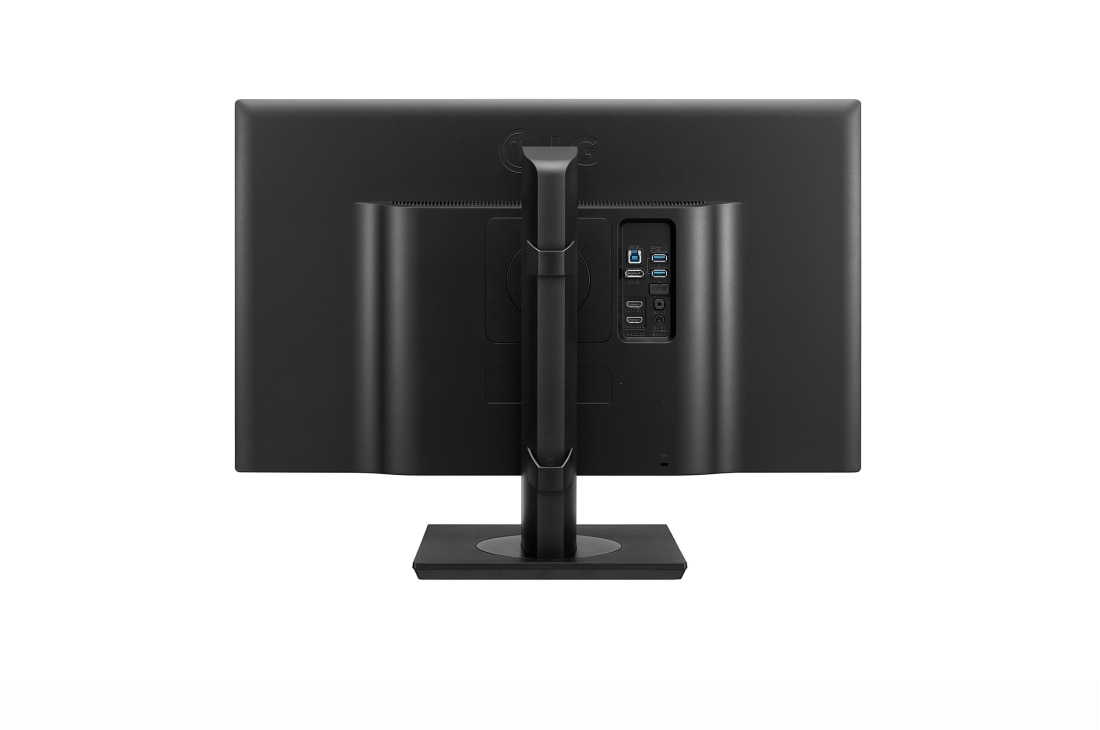

  • [ Jack Location ]
    Rear
    DisplayPort
    x1 (1.2)
  • HDMI
    x2 (2.0)
    USB
    USB3.0 1up 2down

AUDIO OUTPUT

  • [ Jack Location ]
    Rear
    Headphone Out
    Yes

CABINET

  • Box
    694 x 504 x 185 mm / 27.3" x 19.8" x 7.3"
    Monitor (with Stand)
    615.0 x 276.1 x 546.3 mm / 24.2" x 10.9" x 21.5"
  • Monitor (without Stand)
    615.0 x 42.7 x 365.1 mm / 24.2" x 1.7" x 14.4"
    VESA® Wall Mount
    100 x 100
  • Weight (Box)
    22.7 lbs / 10.3 kg
    Weight (with Stand)
    16.5 lbs / 7.5 kg
  • Weight (Without Stand)
    10.4 lbs / 4.7 kg

RESOLUTION

  • Digital (HDMI)
    3840x2160
    Display Port
    3840x2160
  • HDMI
    3840x2160

SPECIAL FEATURE

  • 4 Screen Split
    Yes
    Automatic Standby
    Yes
  • Brightness Stabilization
    Yes
    Color Calibrated
    Yes
  • Color Temperature
    6500K / 8500K / 9300K, Manual (5000K ~ 10000K)
    DDC/CI
    Yes
  • DICOM Mode
    Yes (Kδ <= 10%)
    DPM
    Yes
  • Dual Controller
    Yes
    Dynamic Sync Mode (Thru Mode)
    Yes
  • Factory Calibration
    Yes (Delta E<2, Gamma 1.8 ~ 2.6 / DICOM curve)
    Flicker safe
    Yes
  • Gamma
    Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve
    H/W Calibration
    Yes (Calibration 1-2 Mode)
  • HDCP
    Yes
    Key Lock
    Yes
  • On Screen Control
    Yes
    ORIGINAL RATIO
    Yes
  • PBP
    Yes
    Picture Mode
    Yes
  • Plug & Play
    Yes
    Quick Charge
    Yes
  • Reader Mode
    Yes
    Response Time Control
    Yes
  • SIX Axis Control
    Yes
    Smart Energy Saving
    Yes (Conserve energy by using luminance compensation algorithm)
  • Super Resolution+
    Yes
    True Color Pro
    Yes
  • Uniformity Compensation
    Yes

COLOR

  • Back Cover
    Black
    Base
    Black
  • Front
    Black
    Others
    Deco cover : Black
  • Stand
    Black

CONTROL KEY

  • [ Key Location ]
    Bottom
    Key Number (Power Key Included)
    5
  • Key Type
    Joystick
    LED Color(On Mode)
    White
  • LED Color(Power save mode)
    White Blinking

FREQUENCY

  • H-Frequency (Display Port)
    30~135kHz
    H-Frequency (HDMI)
    30 ~ 135kHz
  • V-Frequency (Display Port)
    56~61Hz
    V-Frequency (HDMI)
    56 ~ 61Hz

OSD

  • Country
    Worldwide
    Number of Language
    17

POWER

  • DC Off (Max)
    0.3W
    Input
    100-240Vac, 50/60Hz
  • Normal On (Max) (Brightness100 + USB Load)
    65W
    Output
    19V, 3.42A (65W)
  • Sleep Mode (Max)
    0.5W
    Type
    Adapter

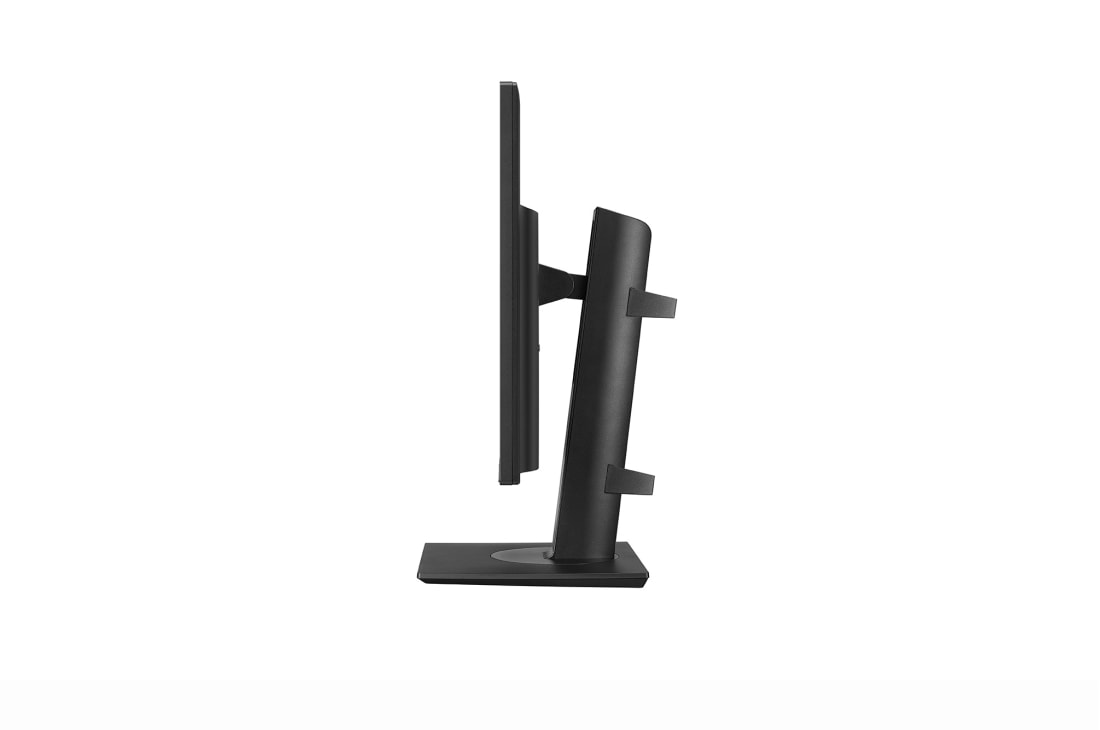

STAND

  • Base Detachable
    Yes

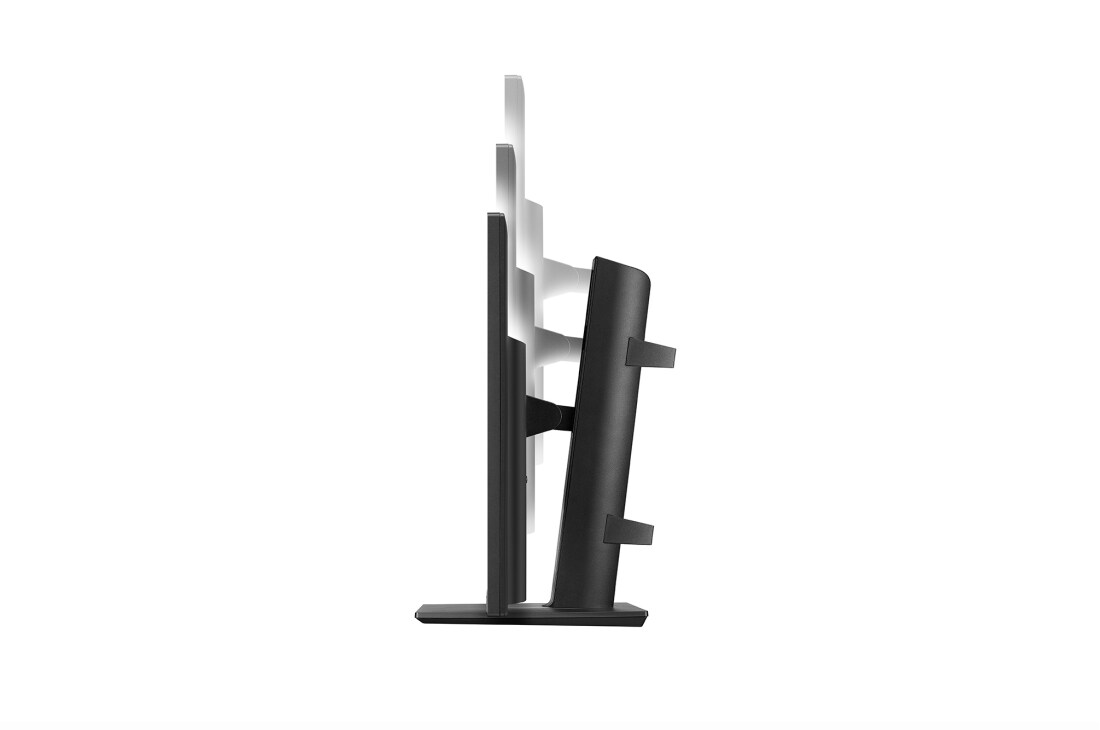

    Height (mm)
    Yes (range 150mm)
  • One Click stand set-up
    Yes
    Pivot
    180°
  • Swivel (Angle)
    Yes (-45o ~ +45o )
    Tilt (Angle)
    Yes (-5o ~ 25o )

ACCESSORY

  • CD-ROM
    Yes (User Manual / True Color Pro/Dual controller)
    Display Port (1.2)
    Yes
  • Factory Calibration Report
    Yes
    HDMI
    Yes (Black)
  • Manual
    Yes
    Others
    Adapter
  • Power Cord
    Yes (Black)
    USB
    Yes (USB3.0)

STANDARD

  • CCC (China)
    Yes
    CE (EU)
    Yes
  • CE MDD (EU)
    CE MDD Class I
    CISPR (Global)
    Yes
  • CMDR (Canada)
    Yes
    cUL (US/Canada)
    ANSI/AAMI ES 60601-1 CSA CAN/CSA-C22.2 NO. 60601-1
  • Display Port
    Yes
    EN (EU) CB (EU)
    EN 60601-1)
  • FCC (US)
    FCC Part 15 Class A
    FDA (US)
    FDA Class I
  • ICES-003
    Yes
    IEC (Global)
    IEC 60601-1
  • MFDS (Korea)
    MFDS Class I
    RCM (Australia)
    Yes
  • RoHS / REACH / WEEE
    Yes
    TGA/RCM (Australia)
    Yes
  • Windows 10
    Yes

OTHER

  • UPC
    7 19192 62502 0
    Warranty
    3-Year Limited Warranty (Parts/Labor/Backlight)
