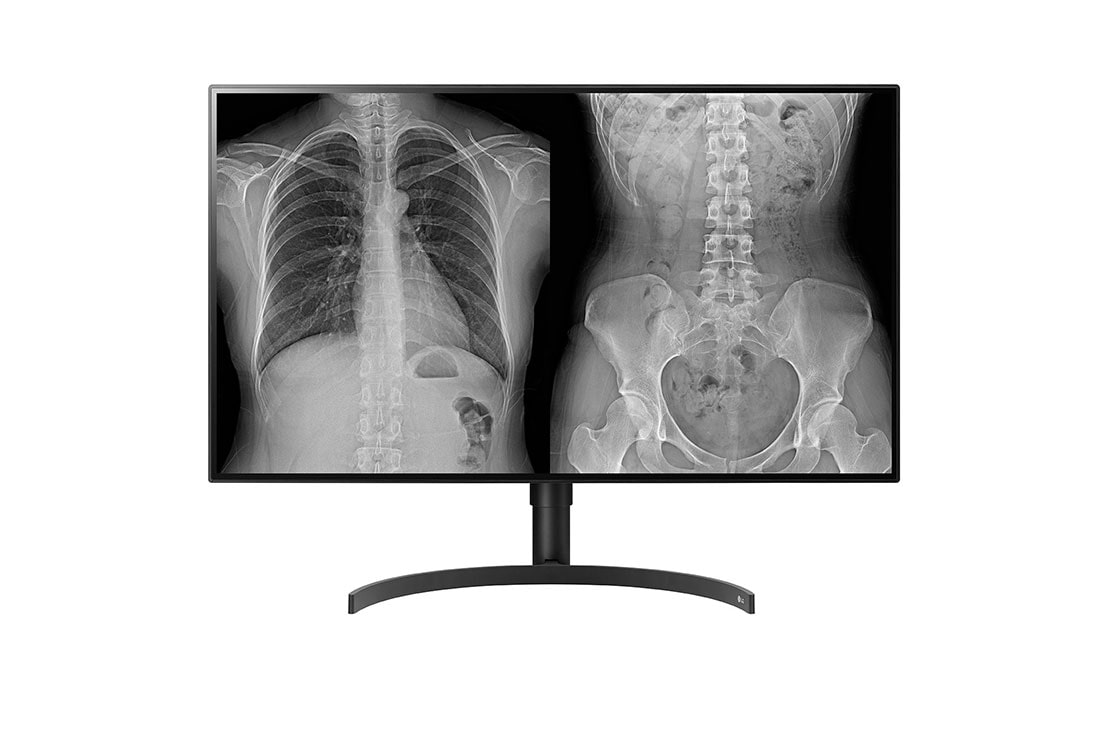

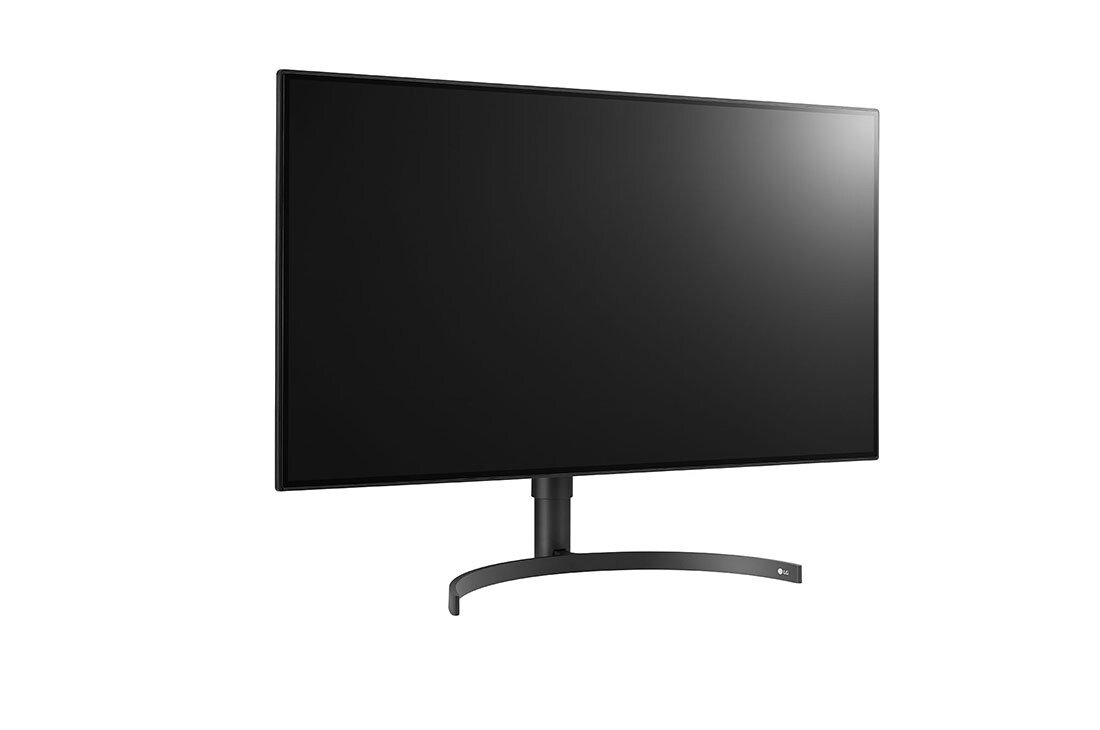

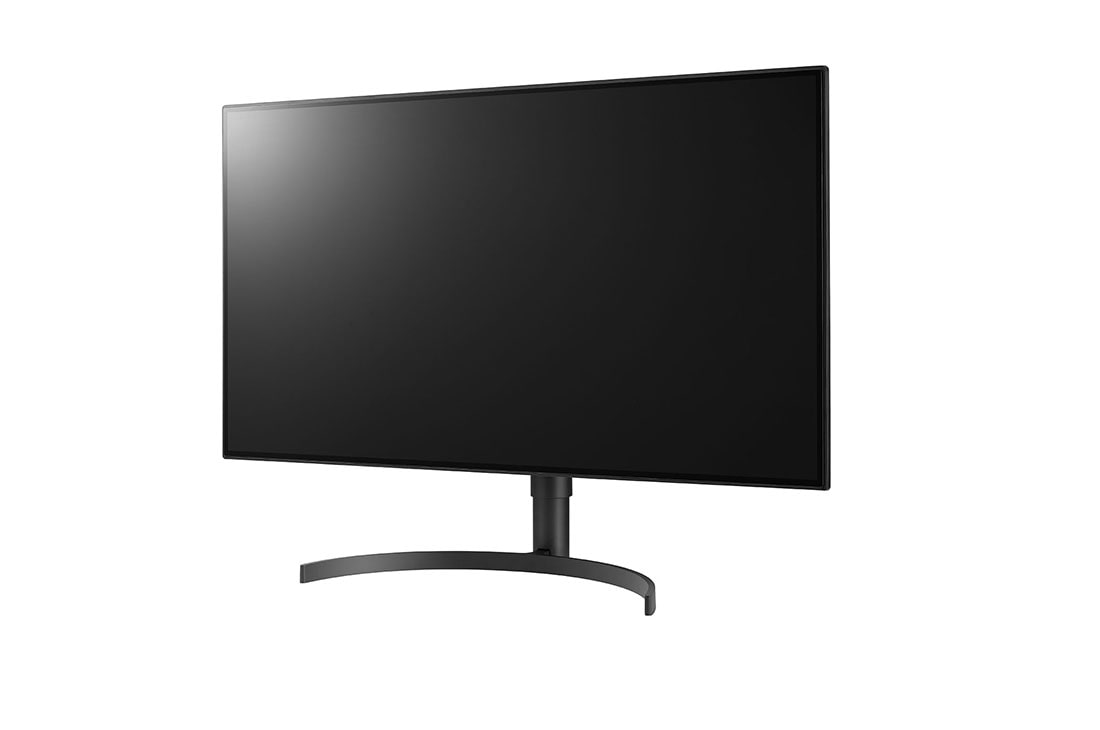

32HL512D-B

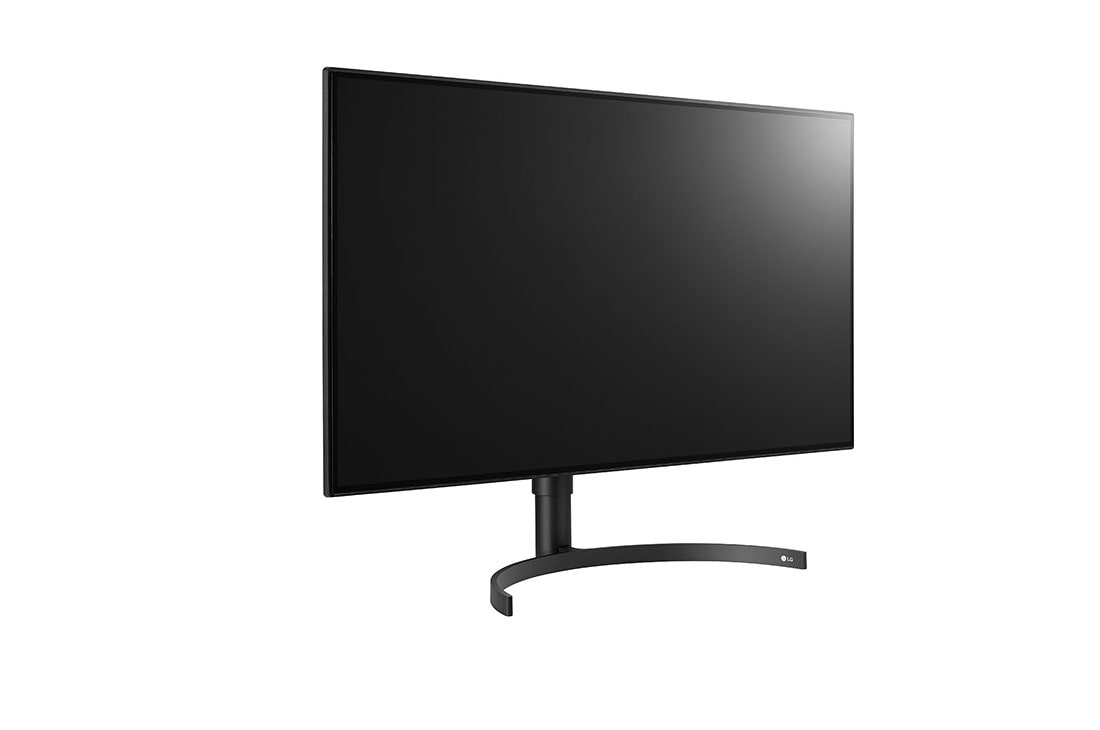

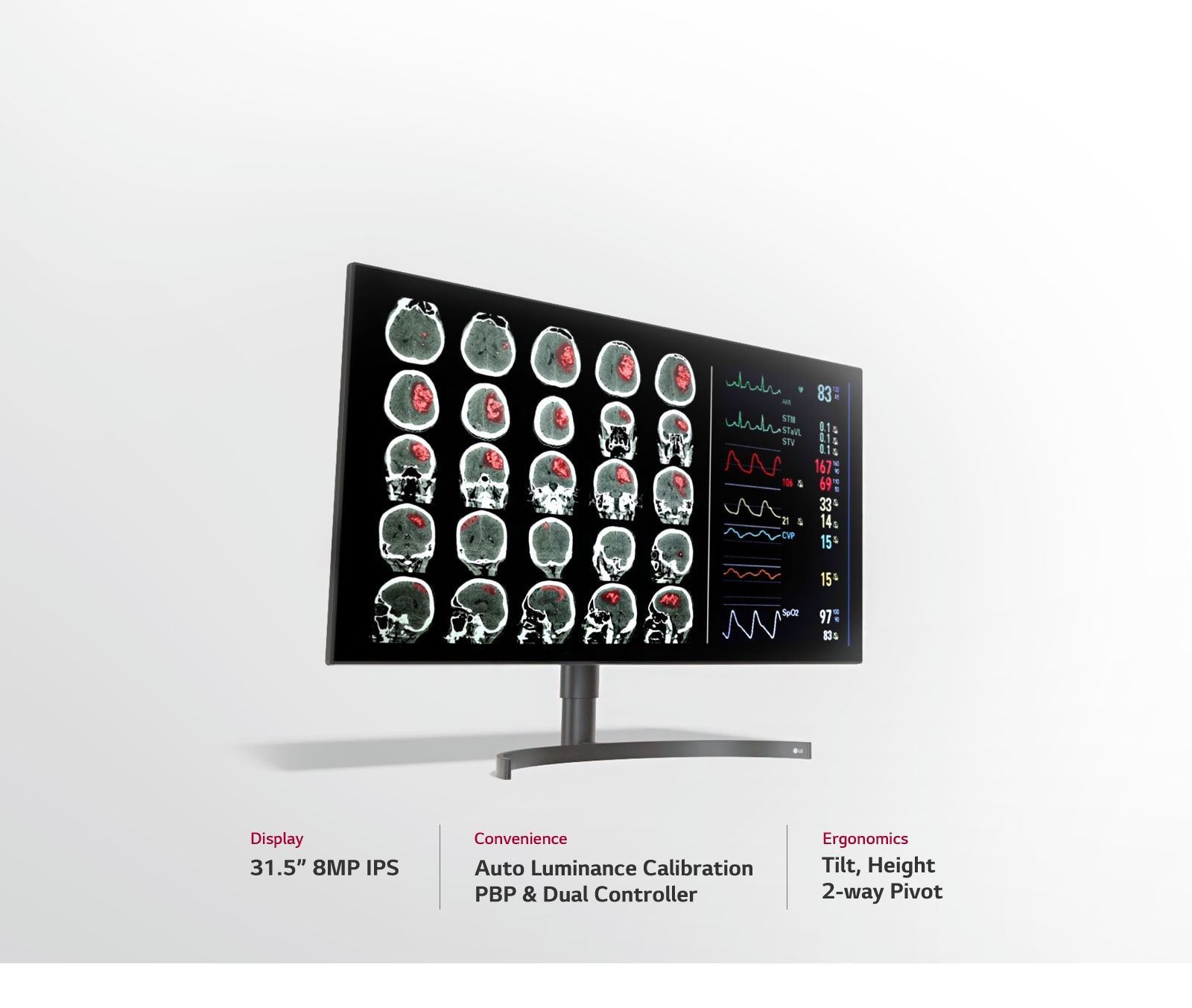

31.5'' 8MP (3840x2160) IPS Diagnostic Monitor

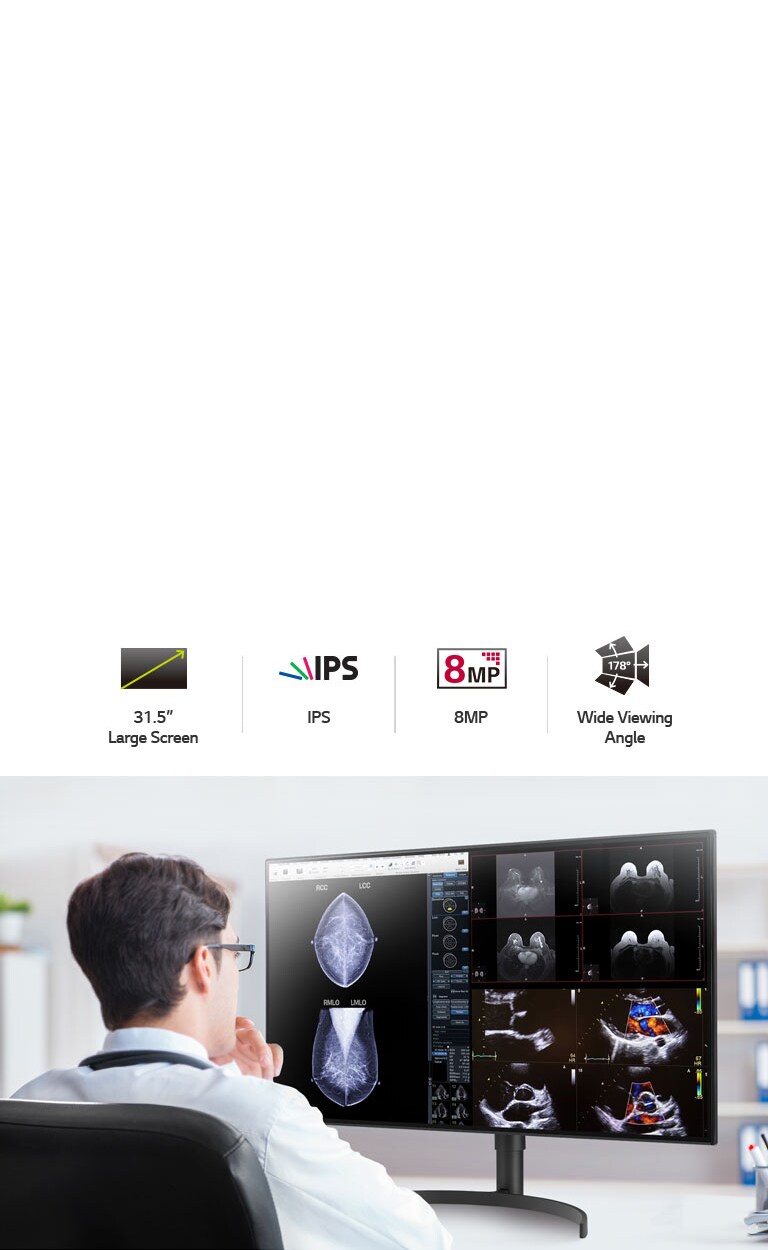

  • 31.5'' 8MP IPS Display

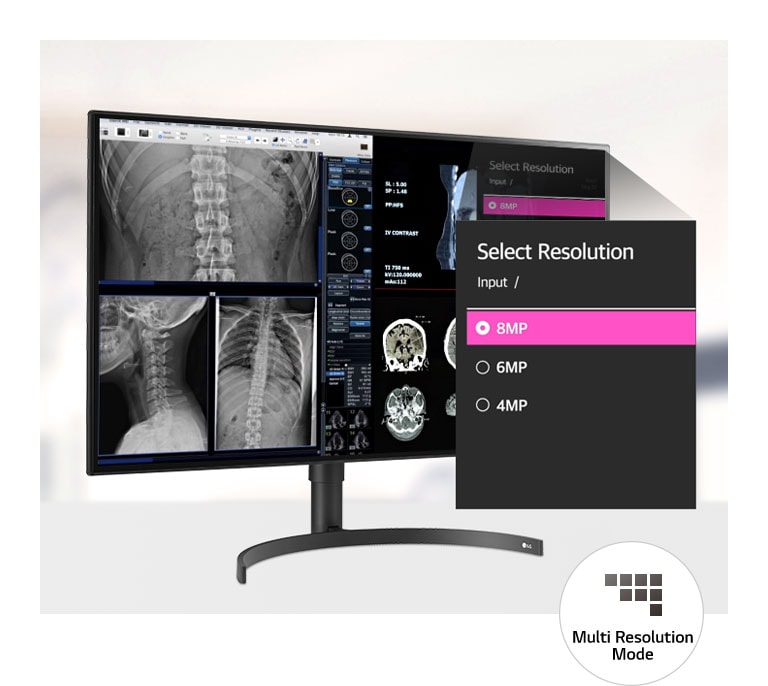

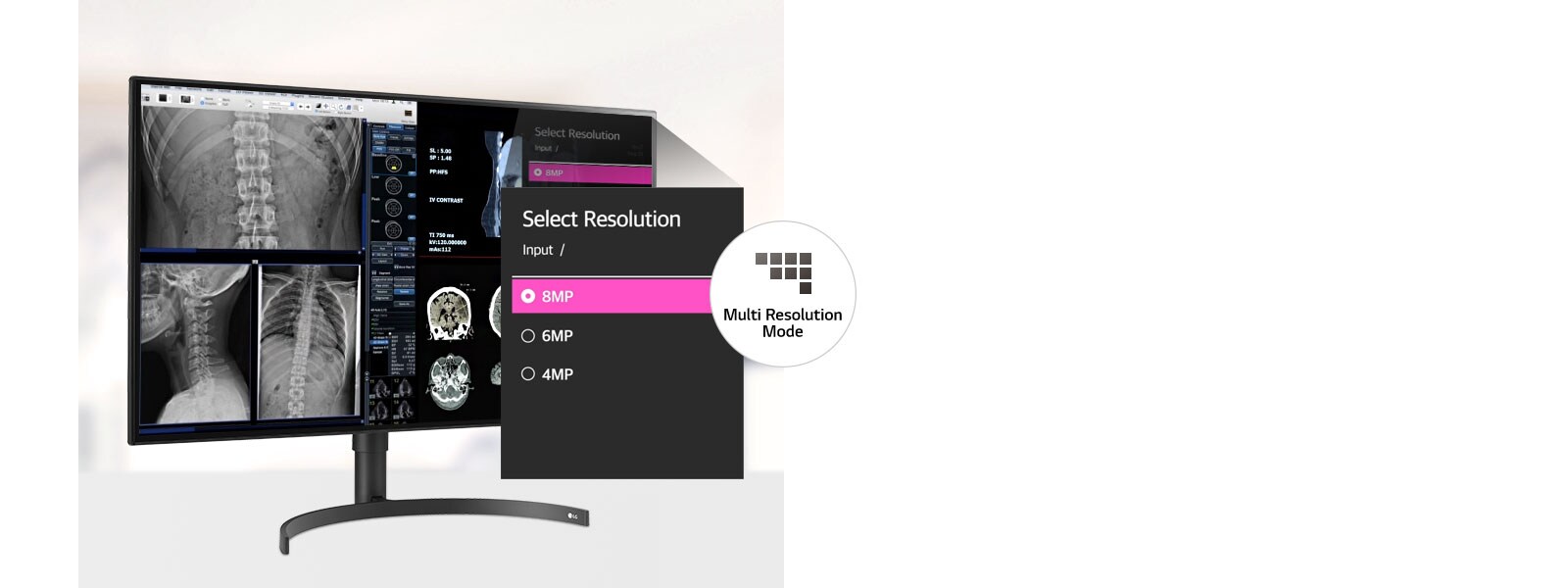

  • Multi-Resolution (8/6/4MP)
  • Brightness(Typ.) 450cd/m²

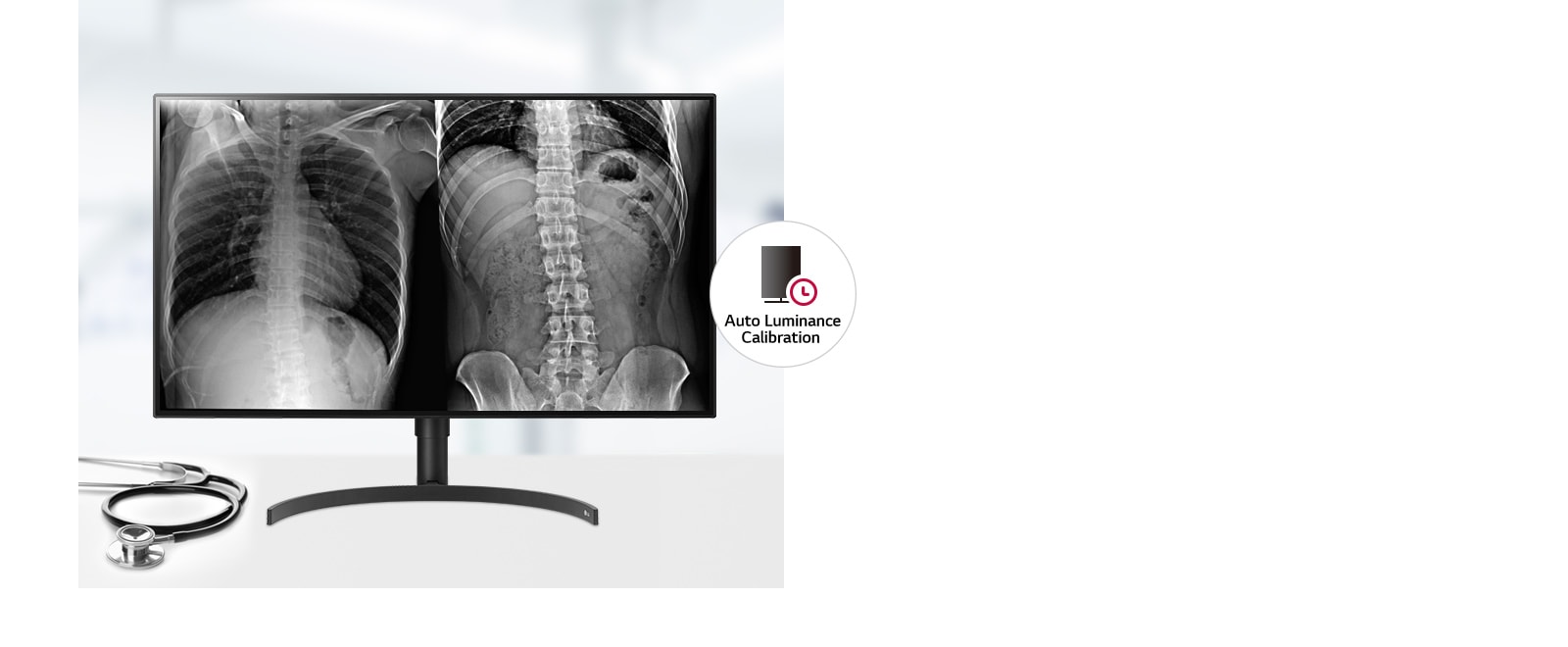

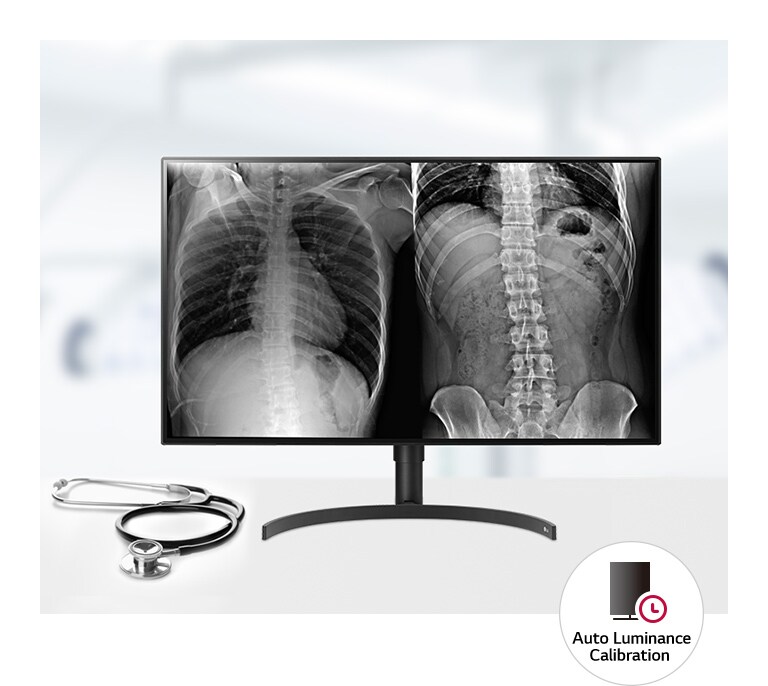

  • Auro Luminance Sensor

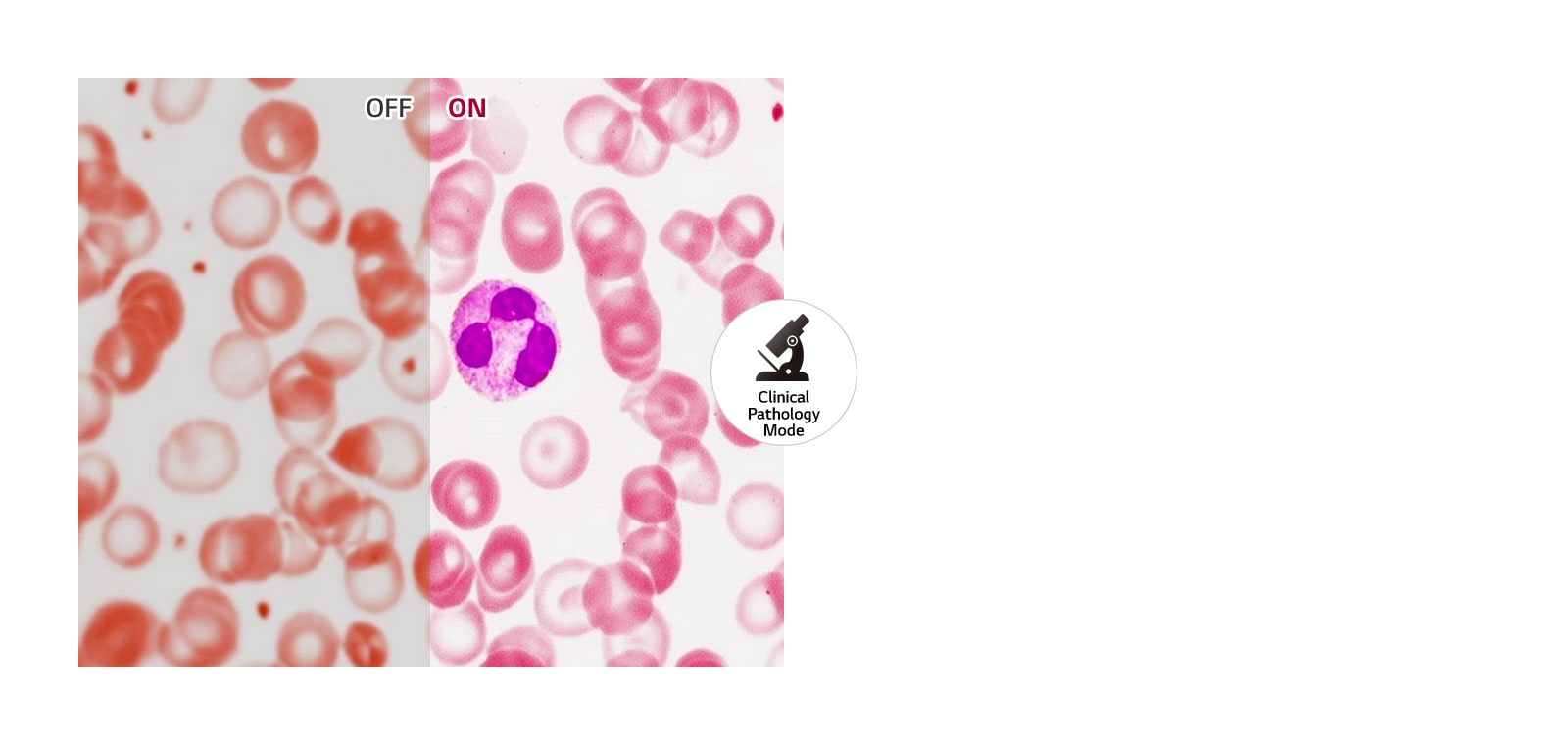

  • Pathology Mode

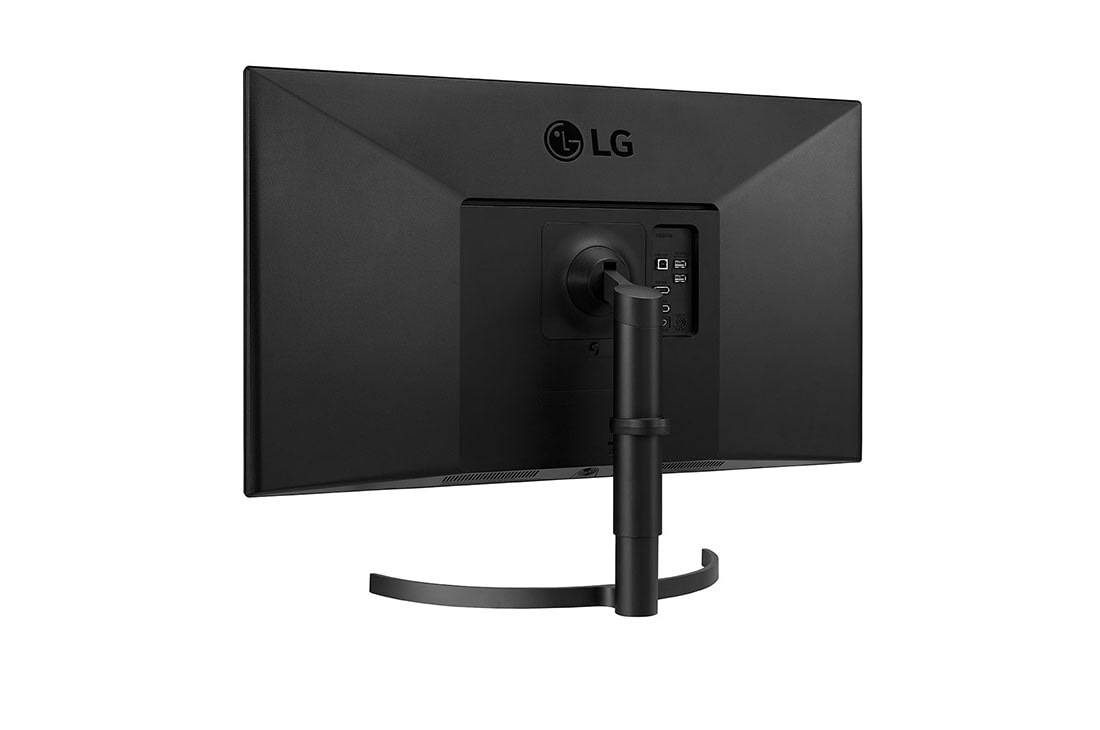

  • Tilt/Height/Pivot

component-OBScountrySelectDesc

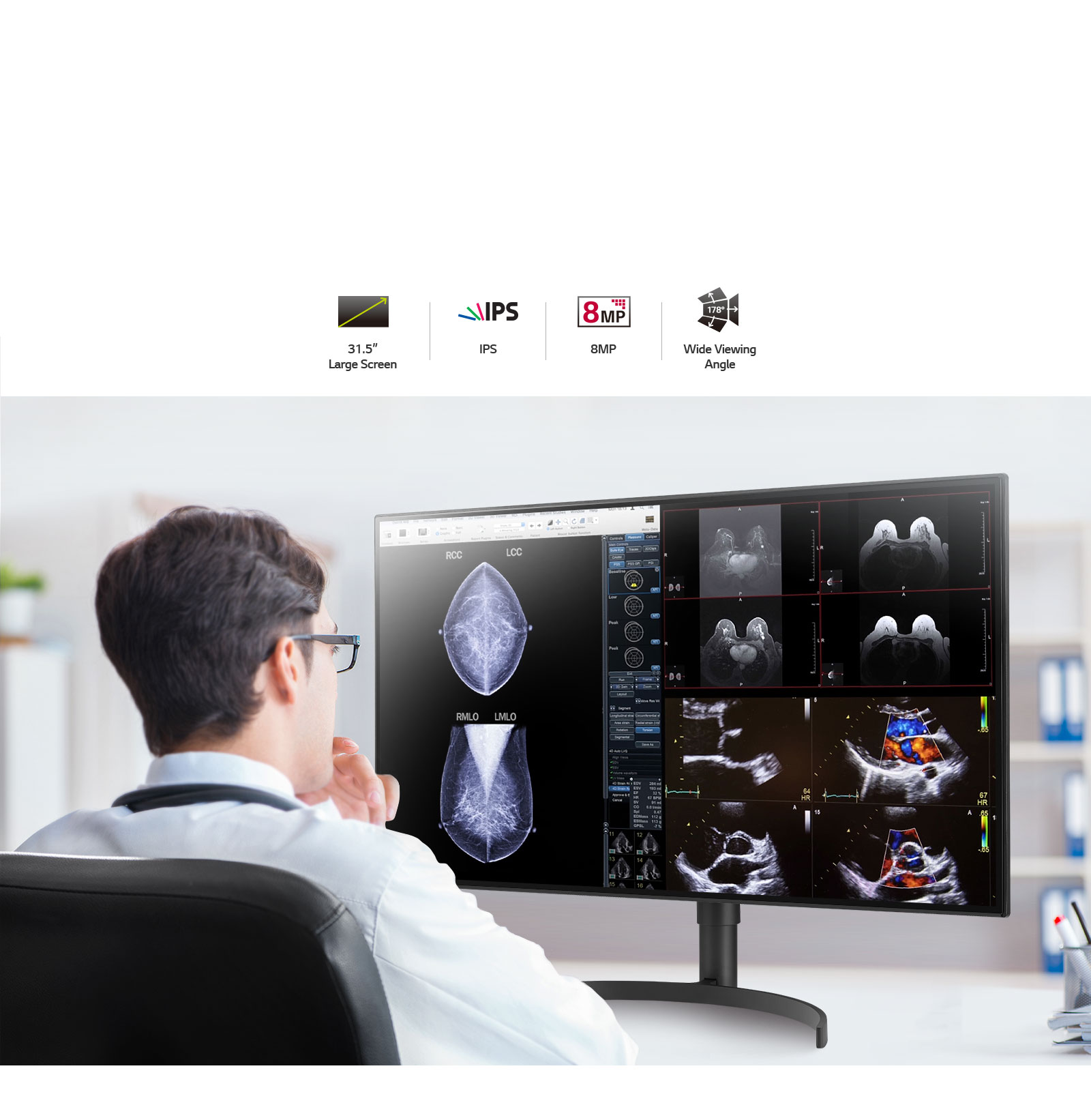

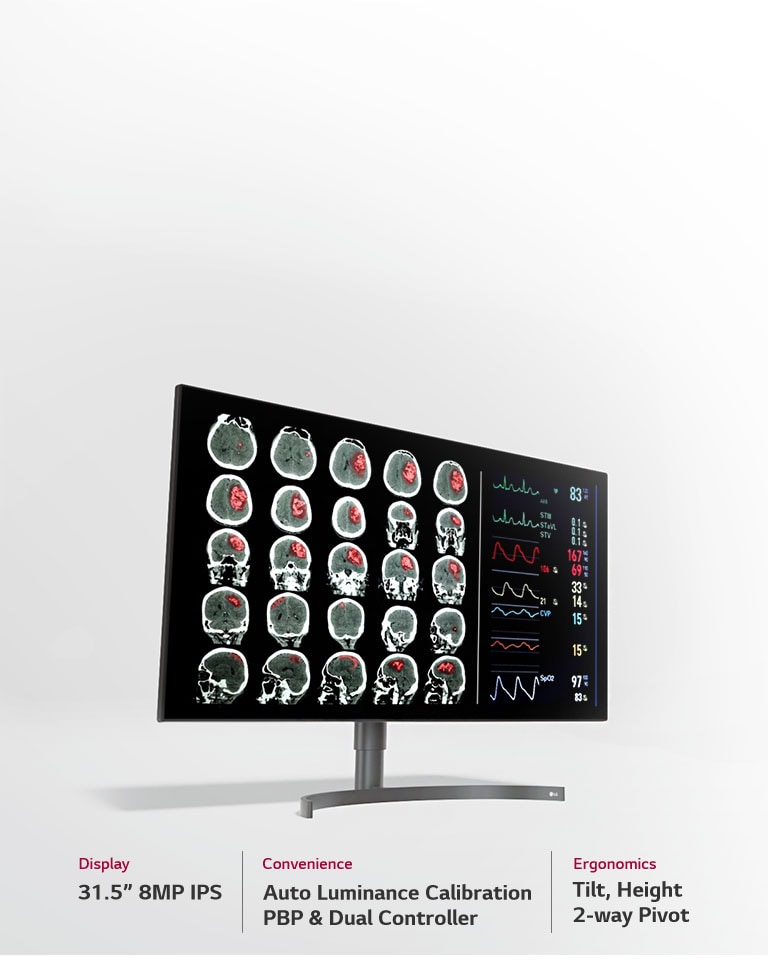

31.5'' 8MP (3840x2160) IPS Diagnostic Monitor

Optimized Image Quality for Diagionestic Review

To increase Efficirncy & Convinence

DISPLAY

  • Size (Inch)
    31.5 inch
    Size (cm)
    80.01 cm
  • Resolution
    2048 x 1536
    Panel Type
    IPS
  • Backlight Technology
    LED
    Backlight Type
    Edge
  • Aspect Ratio
    4:3
    Pixel Pitch
    0.2115 (H) x 0.2115 (V)
  • Brightness
    1000 cd/m² (Typ.)
    Color Depth (Number of Colors)
    1.07G
  • Color Bit
    10bit
    Contrast Ratio_Min.
    1100:1
  • Contrast Ratio_Typ.
    1400:1
    Contrast Ratio with DFC
    Mega
  • Response Time
    30ms
    Viewing Angle (CR≥10)
    178º (R/L), 178º (U/D)
  • Surface Treatment
    Anti-Glare

FEATURES

  • HW Calibration
    Yes
    Auto Brightness
    Yes
  • OSD Language
    18 countries English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese (brazil), Traditional Chinese, Hindi

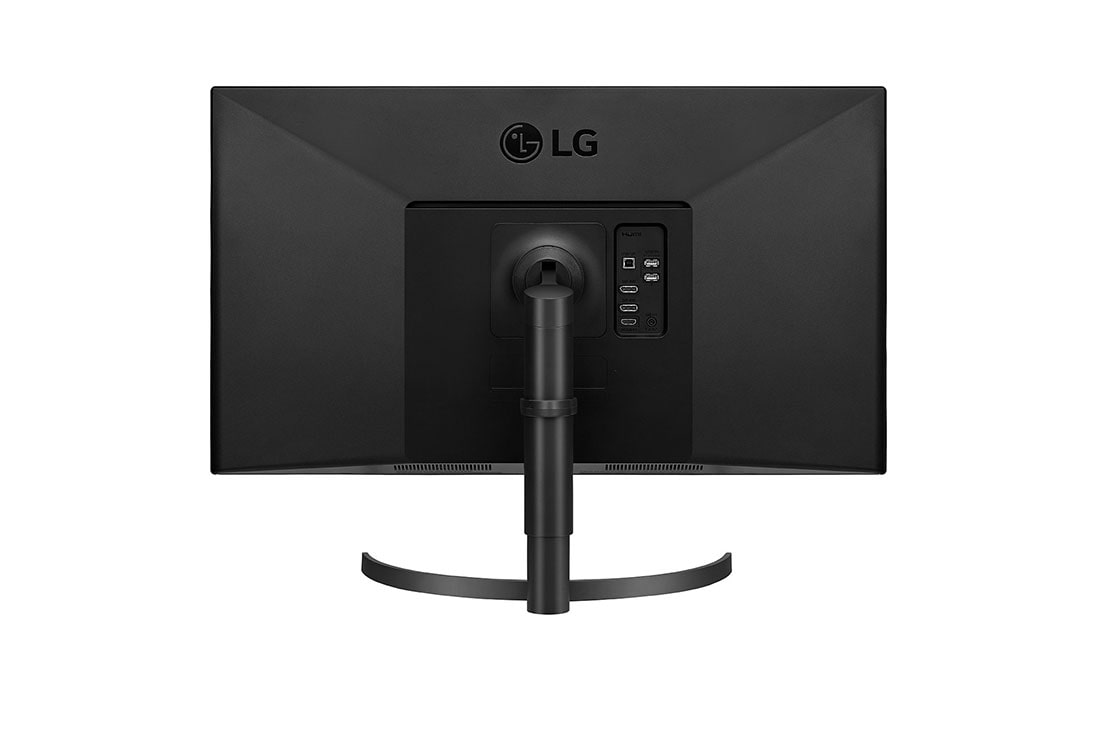

CONNECTIVITY

  • DVI
    Yes
    DVI (V Frequency)
    60
  • DVI (Max Resolution at Hz)
    2048 X 1536 @60HZ
    DisplayPort
    Yes (1ea)
  • DP (V Frequency)
    60
    DP (Max. Resolution at Hz)
    2048 x 1536 @60HZ
  • USB Upstream Port
    Yes (1ea)
    USB Downstream Port
    Yes (2ea)
  • [Location]
    Bottom

POWER

  • Type
    Internal Power (LIPS)
    AC Input
    100-240Vac, 50/60Hz
  • DC Output
    24V, 4.17A
    Power Consumption (Typ.)
    85W
  • Power Consumption (Max.)
    100W
    Power Consumption (Sleep Mode)
    Less than 6.5W
  • Power Consumption (DC Off)
    Less than 6.5W

MECHANICAL

  • Borderless Design
    Normal
    Color (Front Cabinet)
    Black
  • Color (Back Cover)
    Black
    Color (Stand Body)
    Black
  • Color (Stand Base)
    Black

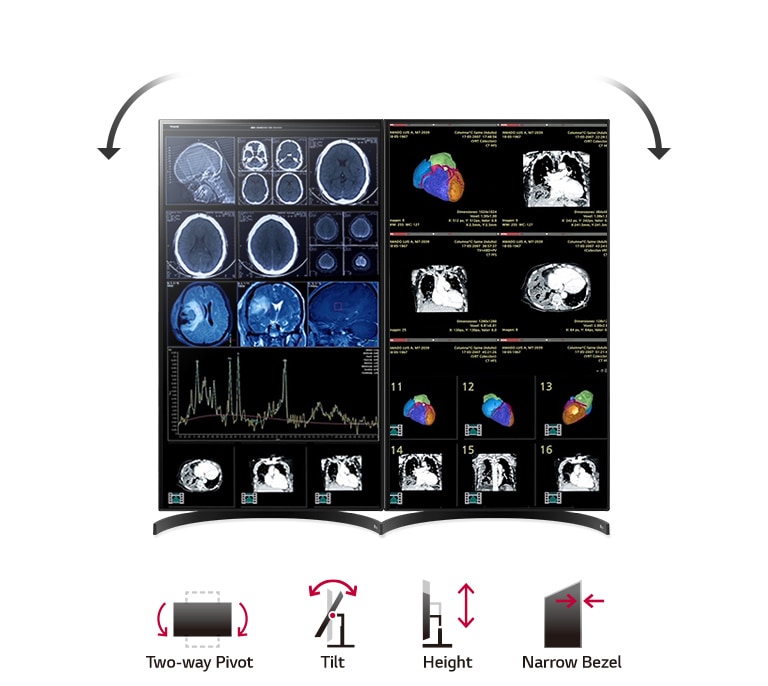

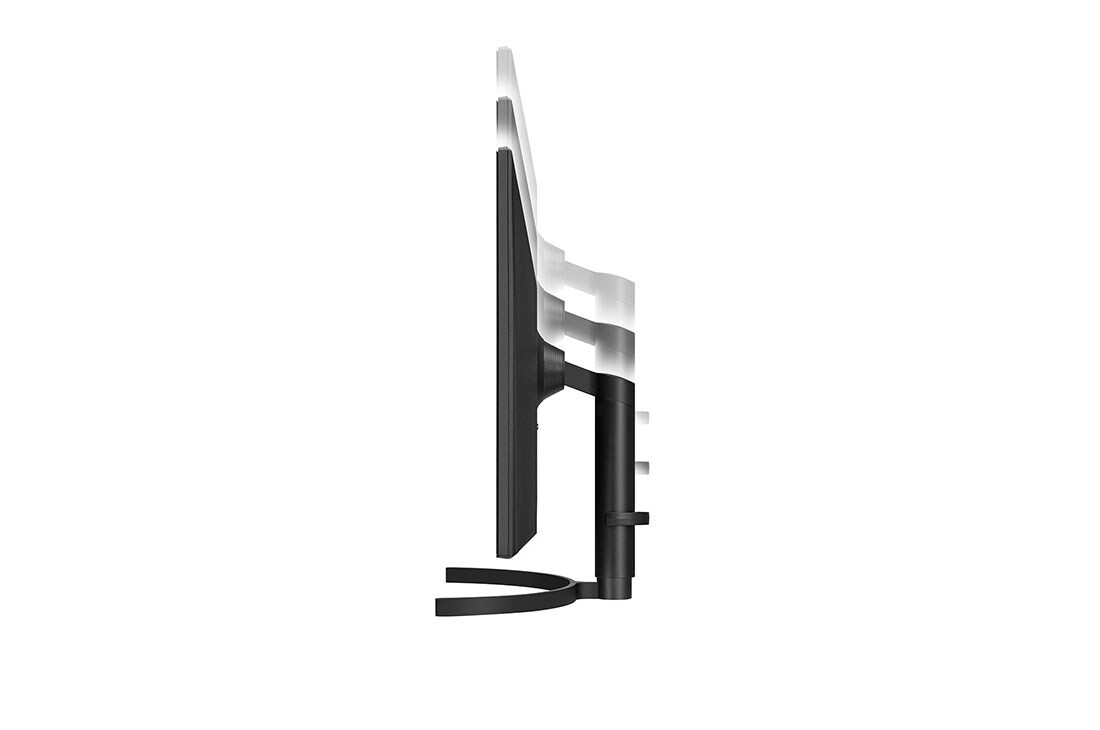

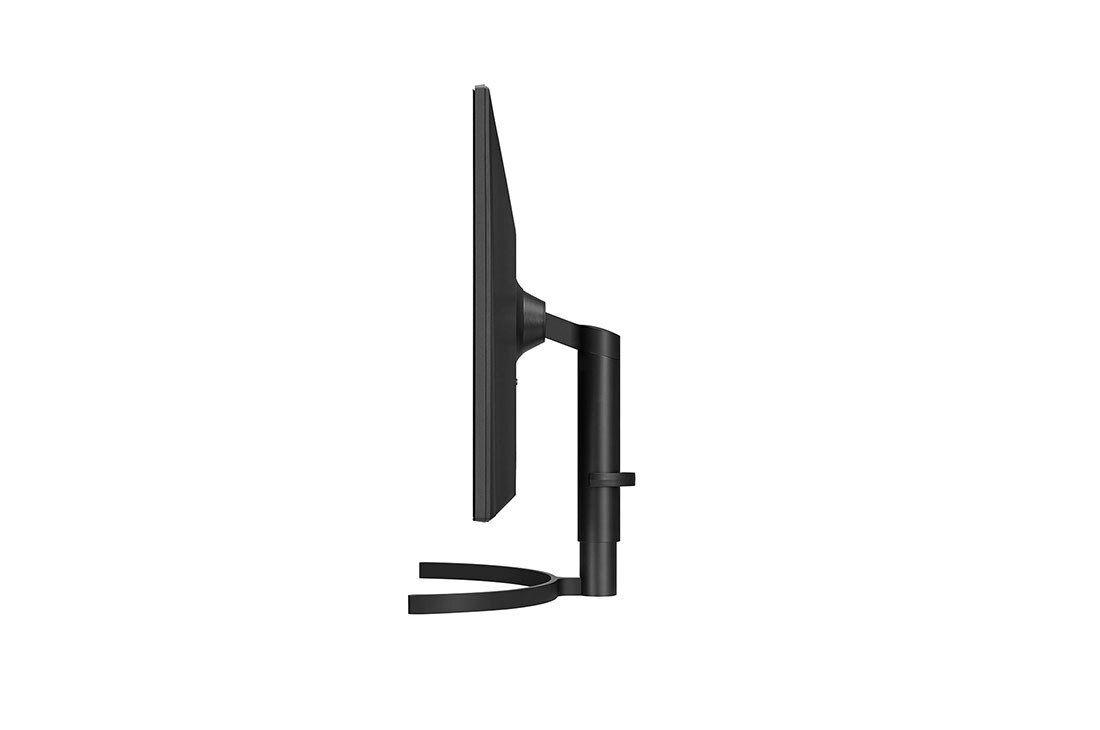

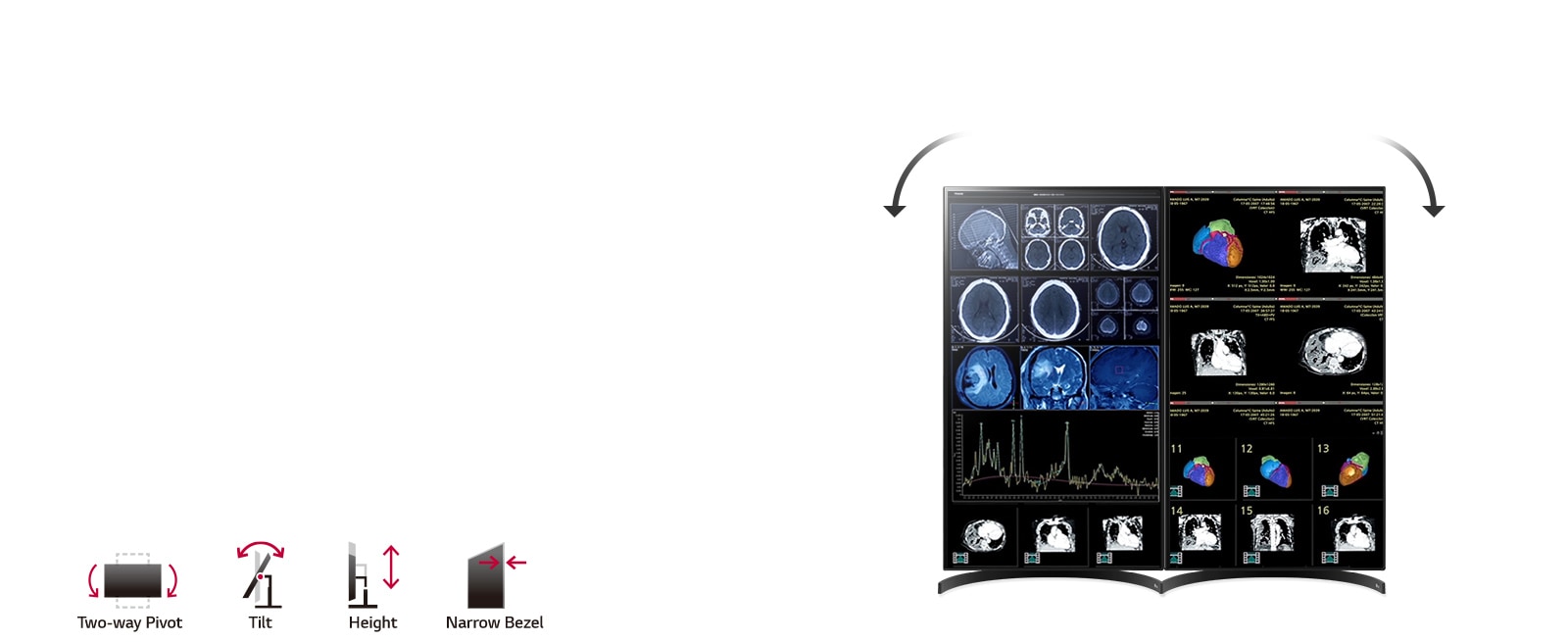

    Display Position Adjustments
    Tilt/Height/Pivot
  • Tilt
    -5 ~ +35 º(±3)
    Swivel
    0~355±5
  • Height Range
    0 ~ 130 mm
    Down Height
    71.3

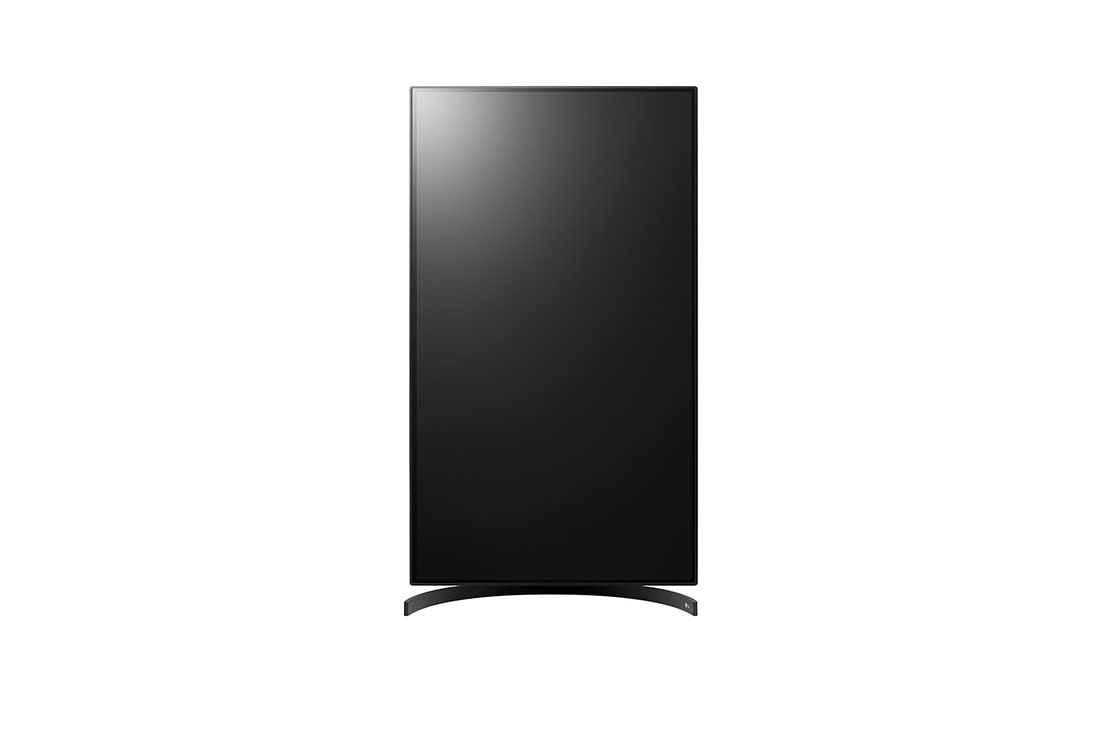

  • Pivot
    90º
    Wall Mountable
    100 x 100 mm
  • Base Detachable
    Yes
    OneClick Stand
    Yes

DIMENSIONS/WEIGHT

  • Dimension with Stand (W x H x D)
    553.8 x 512.9 x 240
    Dimension without Stand (W x H x D)
    553.8 x 333.1 x 67.6
  • Dimension in Shipping (W x H x D)
    626 x 474 x 194
    Weight with Stand
    6.1
  • Weight without Stand
    4
    Weight in Shipping
    TBD
  • Pallet Stuffing (20ft/40ft/40ft HC)
    440/928/1008

STANDARD

  • UL (cUL)
    Yes
    CB
    Yes
  • FCC-B
    Yes
    CE
    Yes
  • CCC (for China)
    Yes
    MFDS (for Rep. of Korea)
    Yes
  • ERP
    Yes
    Windows
    Yes
  • ROHS, REACH
    Yes
    PVC-Free
    Yes
  • VCCI (for Japan)
    Yes

ACCESSORY

  • Adapter (Color)
    Black
    Power Cord (Color/Length)
    Black / 3m
  • DVI-D
    Yes
    DVI-D (Color/Length)
    Black / 3m
  • DisplayPort
    Yes
    Display Port (Color/Length)
    Black / 3m
