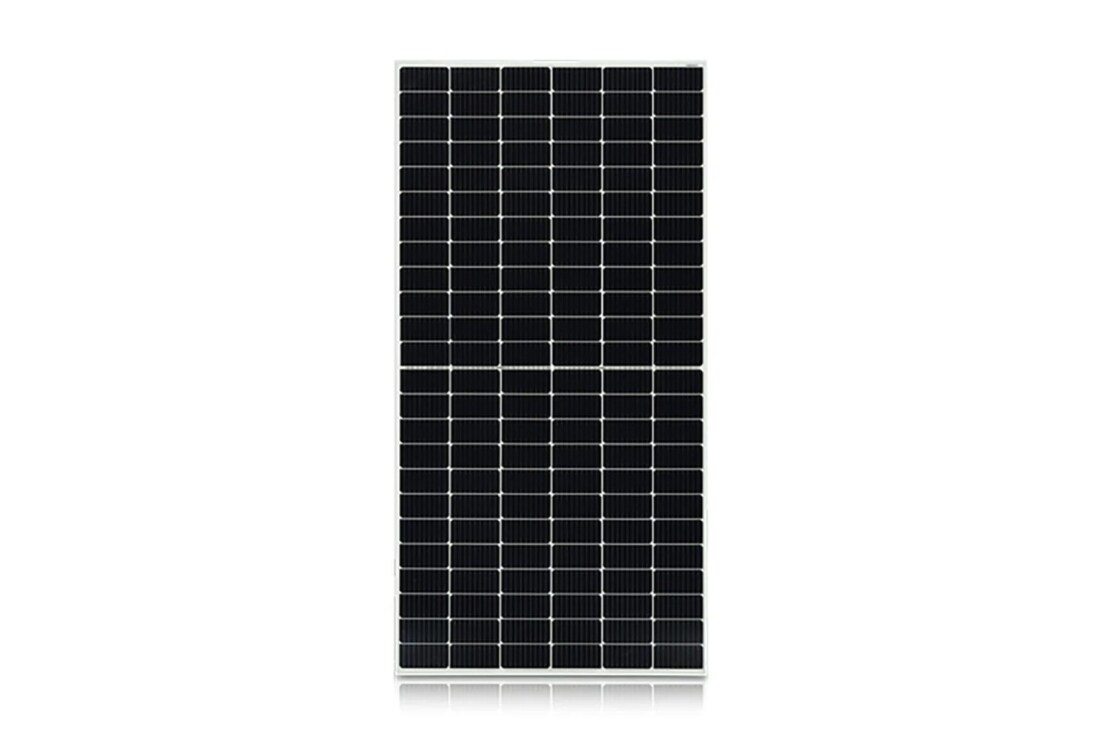

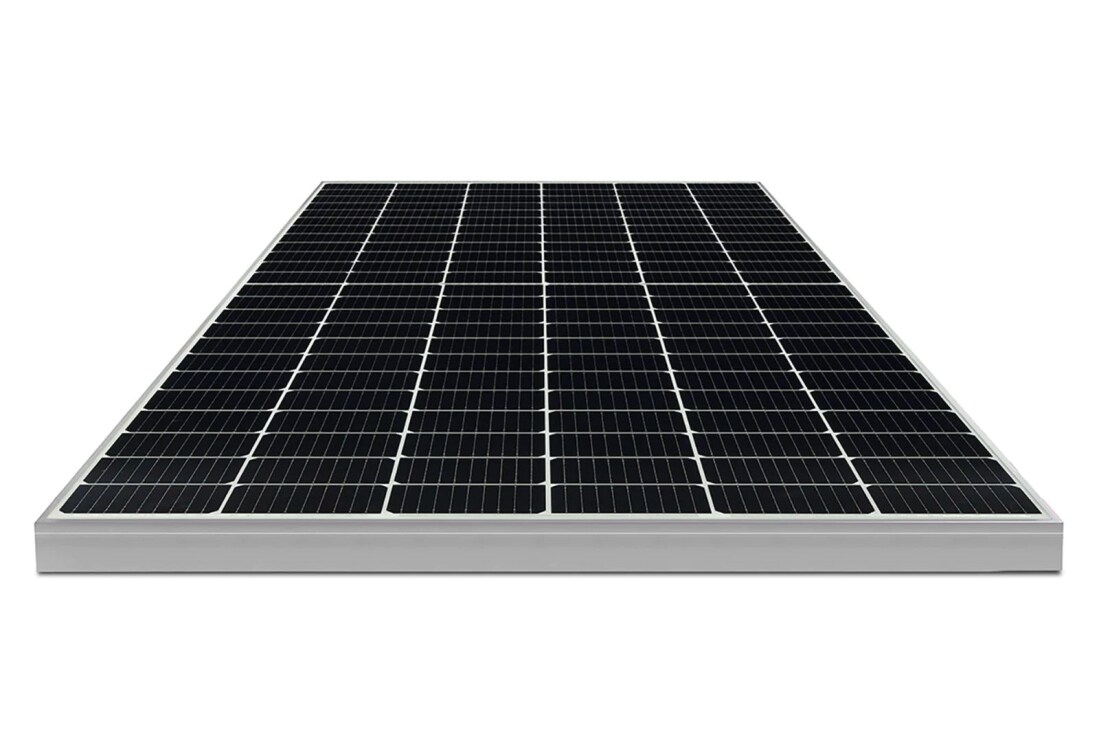

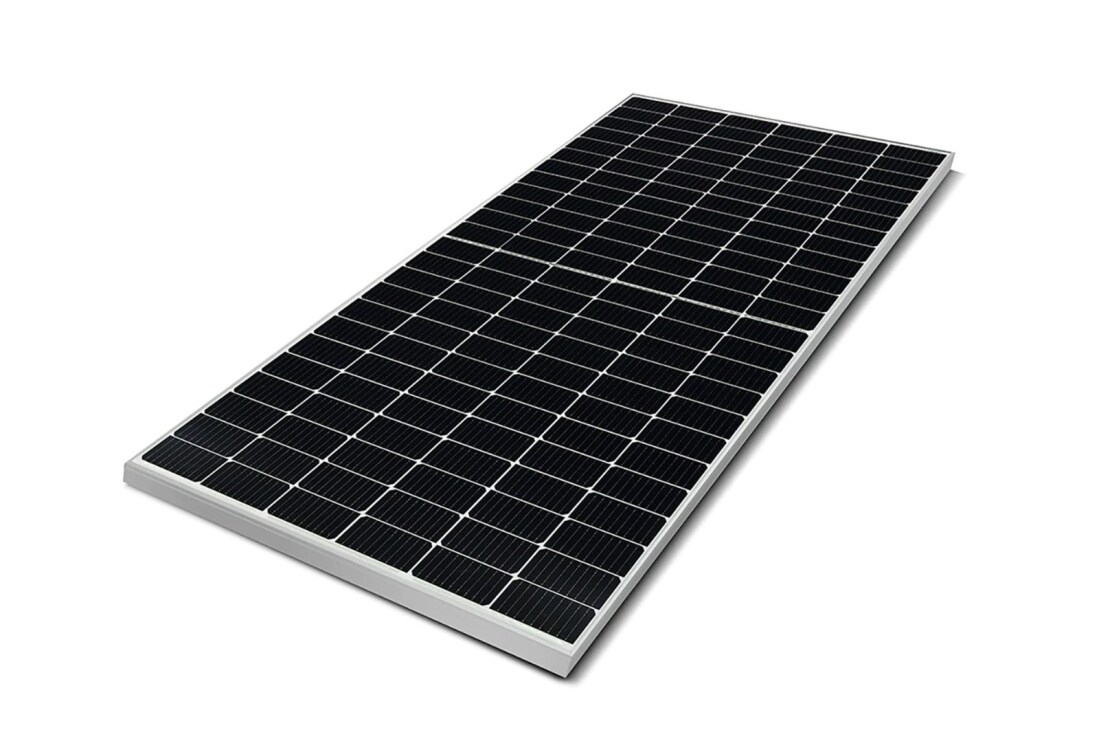

LG Mono X® Plus

Key Features

component-OBScountrySelectDesc

LG Mono X® Plus
ELECTRICAL PROPERTIES(STC*)
  • Maximum Power (Pmax) [W]
    370
    MPP Voltage (Vmpp) [V]
    33.95
  • MPP Current (Impp) [A]
    10.91
    Open Circuit Voltage (Voc, ±3 %) [V]
    41.72
  • Short Circuit Current (Isc, ±4 %) [A]
    11.32
    Module Efficiency [%]
    19.8
  • Power Tolerance [%]
    0 ~ +3
    *
    STC (Standard Test Condition) : Irradiance 1000W/m2, Cell temperature 25°C, AM 1.5
ELECTRICAL PROPERTIES(NMOT)
  • Maximum Power (Pmax) [W]
    277
    MPP Voltage (Vmpp) [V]
    31.64
  • MPP Current (Impp) [A]
    8.75
    Open Circuit Voltage (Voc) [V]
    39.09
  • Short Circuit Current (Isc) [A]
    9.21
GENERAL DATA
  • Cell Properties (Material / Type)
    Monocrystalline / N-type
    Cell Configuration
    120 Cells (6 x 20)
  • Number of Busbars
    9 EA
    Module Dimensions (L x W x H)
    1,776 x 1,052 x 40mm

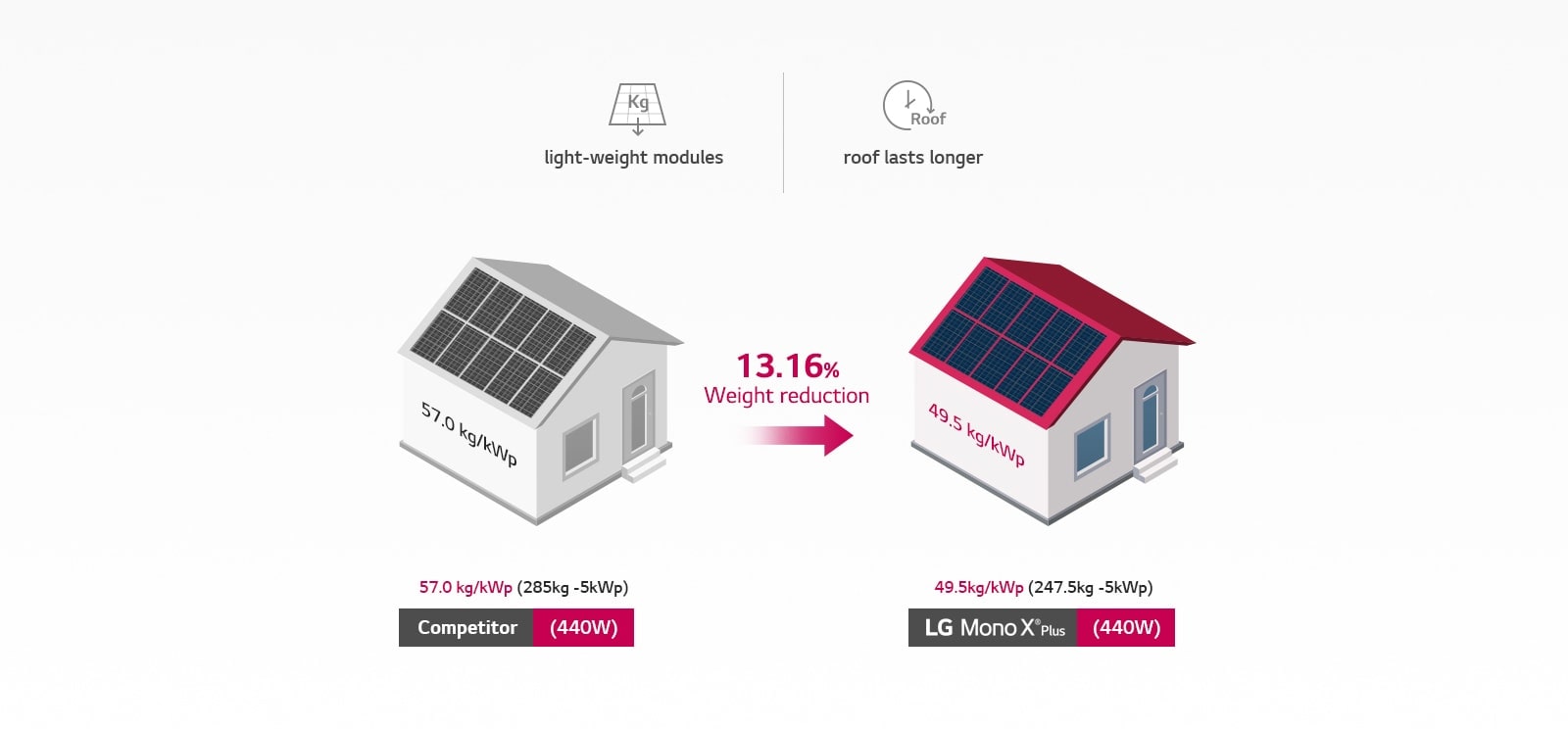

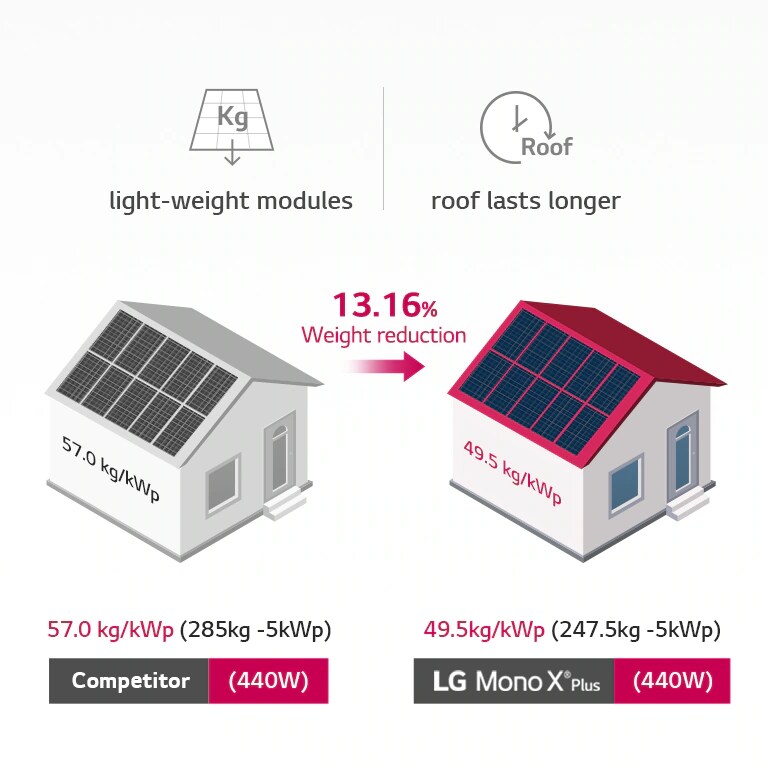

  • Weight
    19.7kg
    Glass (Material)
    Tempered Glass with AR coating
  • Backsheet (Color)
    White
    Frame (Material)
    Anodized Aluminium

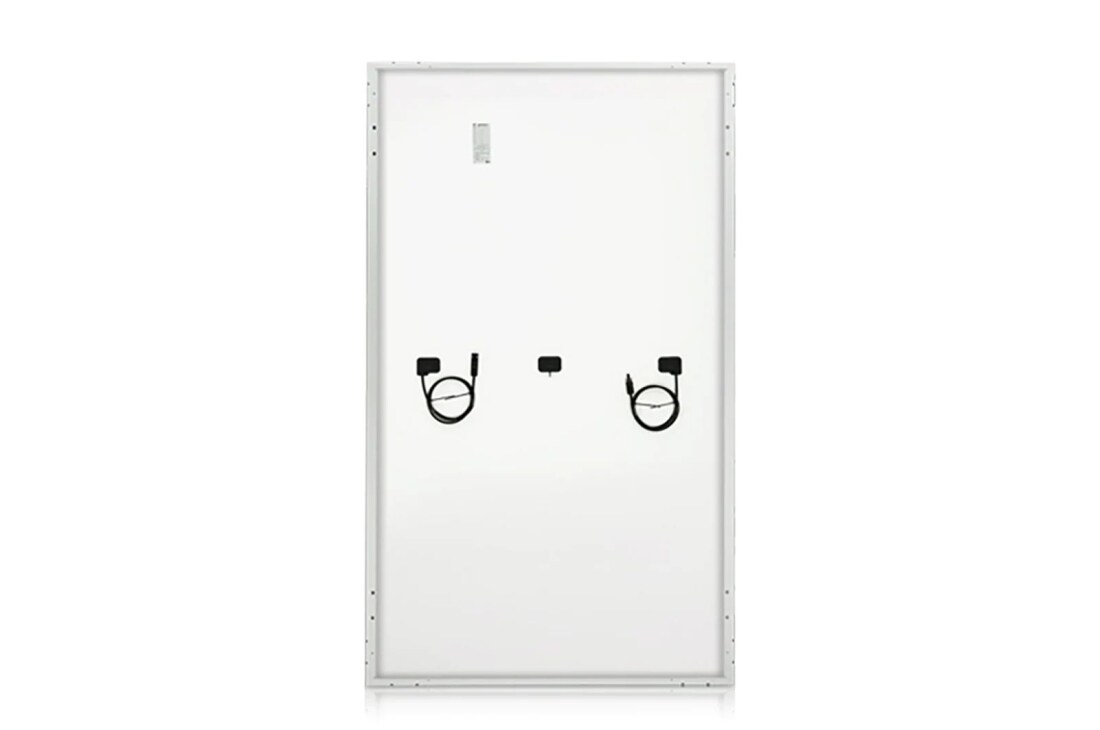

  • Junction Box (Protection Degree)
    IP68
    Cables (Length)
    1,150mm x 2EA
  • Connector (Type / Maker)
    MC4 (IEC 1000V)
CERTIFICATIONS AND WARRANTY
  • Product Warranty
    15 Years

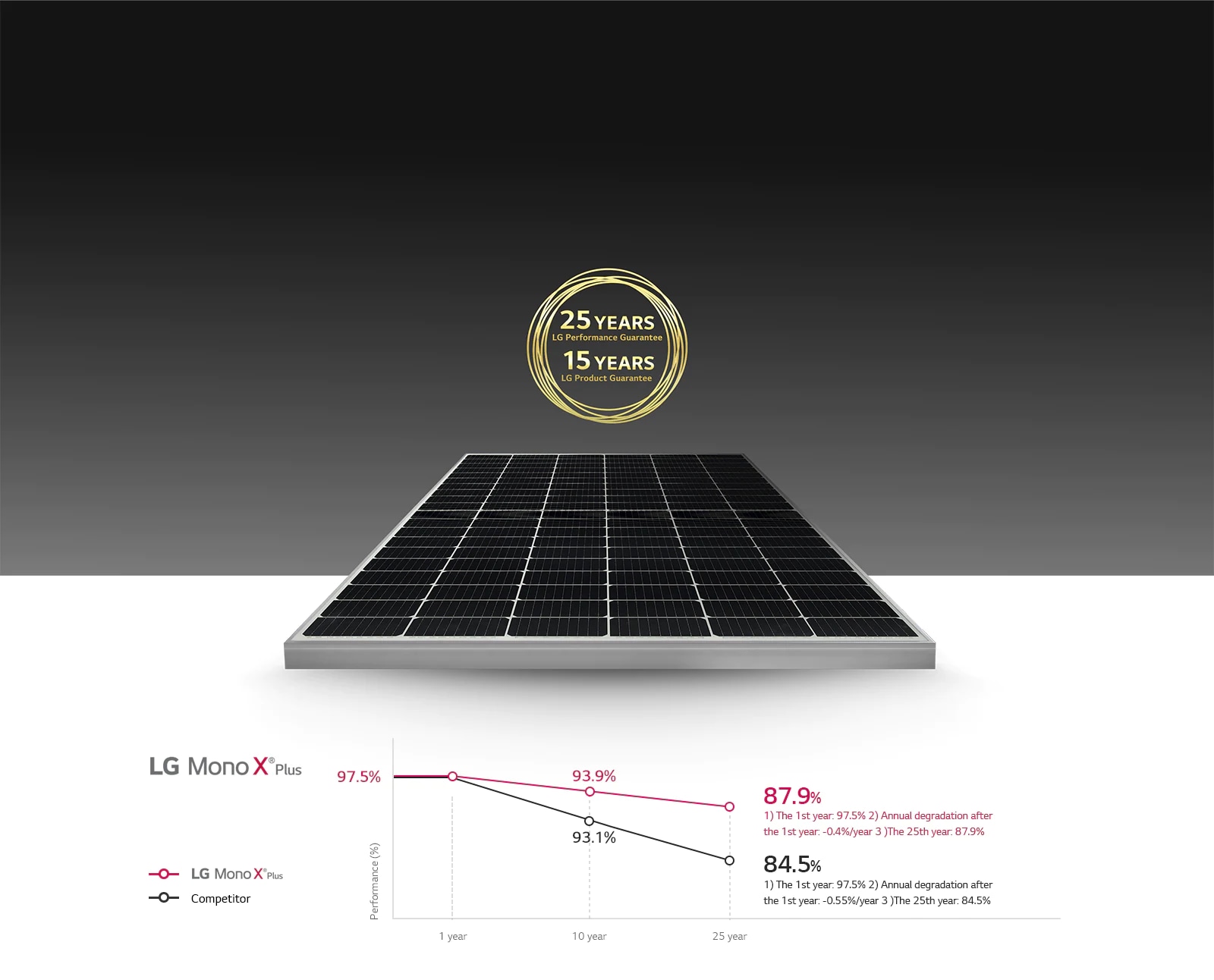

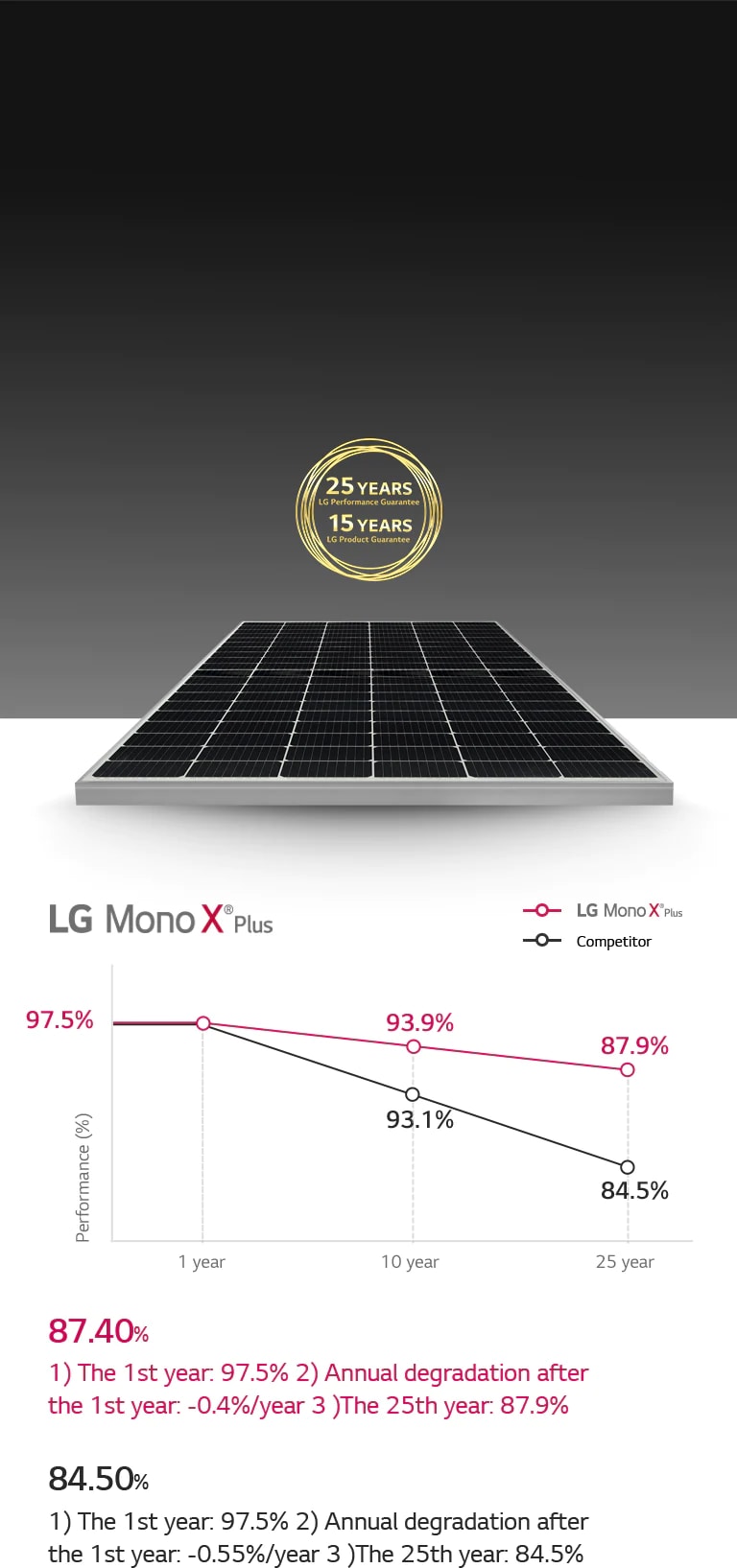

    Output Warranty of Pmax
    Linear Warranty*
  • *
    1) First years : 97.5%, 2) After 1st year : 0.4% annual degradation, 3) 87.9% for 25 years
