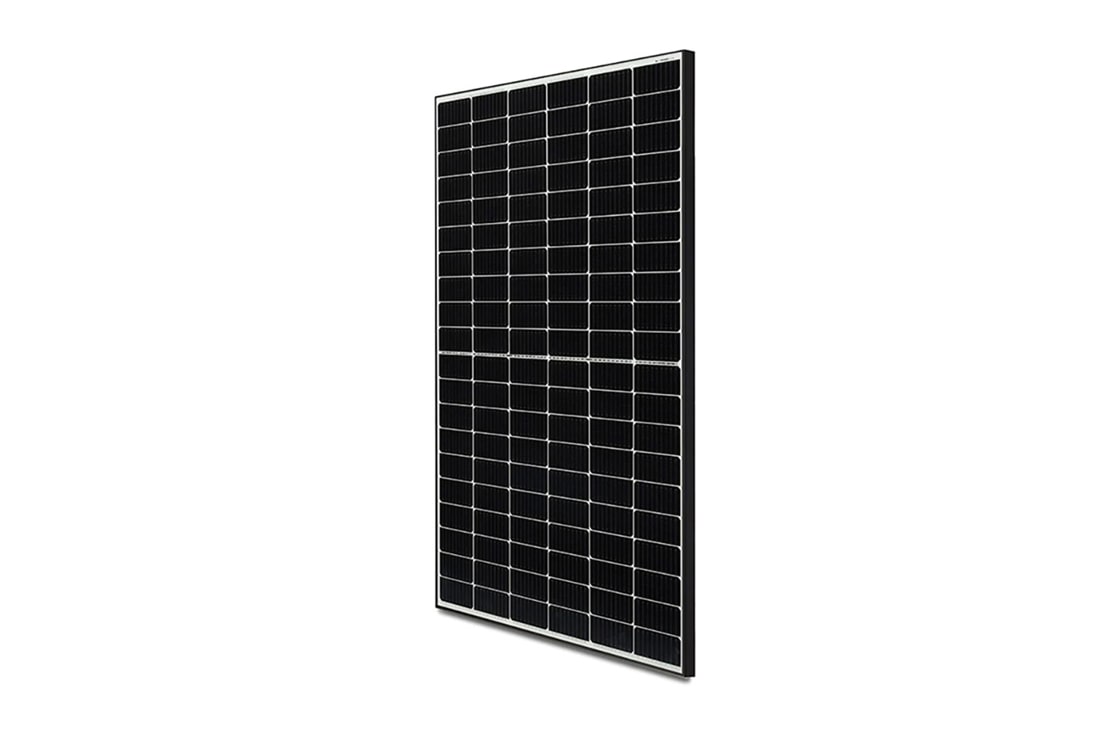

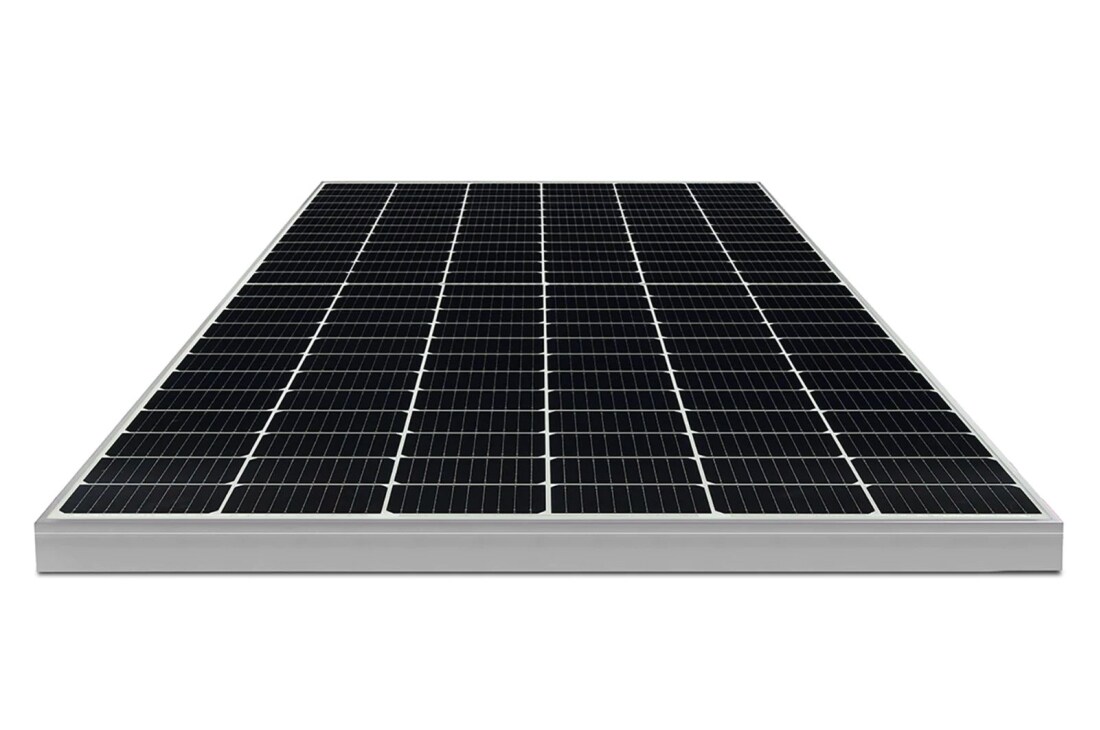

LG Mono X® Plus

Key Features

component-OBScountrySelectDesc

LG Mono X® Plus
ELECTRICAL PROPERTIES(STC*)
  • Maximum Power (Pmax) [W]
    455
    MPP Voltage (Vmpp) [V]
    41.04
  • MPP Current (Impp) [A]
    11.1
    Open Circuit Voltage (Voc, ±3 %) [V]
    50.42
  • Short Circuit Current (Isc, ±4 %) [A]
    11.51
    Module Efficiency [%]
    20.4
  • Power Tolerance [%]
    0 ~ +3
    *
    STC (Standard Test Condition) : Irradiance 1000 W/m2, Cell temperature 25°C, AM 1.5, Measure tolerance : ±3%
ELECTRICAL PROPERTIES(NMOT)
  • Maximum Power (Pmax) [W]
    342
    MPP Voltage (Vmpp) [V]
    38.45
  • MPP Current (Impp) [A]
    8.89
    Open Circuit Voltage (Voc) [V]
    47.51
  • Short Circuit Current (Isc) [A]
    9.3
GENERAL DATA
  • Cell Properties (Material / Type)
    Monocrystalline / P-type
    Cell Configuration
    144 Cells (2 x (6 x 12))
  • Number of Busbar
    9 EA
    Module Dimensions
    2,115 x 1,052 x 40 mm
  • Weight
    22.3kg
    Glass (Material)
    Tempered Glass with AR coating
  • Backsheet (Color)
    White
    Frame (Material)
    Anodized Aluminium
  • Junction Box (Protection Degree)
    IP 68 with 3 Bypass Diodes
    Cables (Length)
    1,350mm x 2EA
  • Connector (Type / Maker)
    PV-CO02 (IEC 1500V) / MC4 (IEC 1000V)
CERTIFICATIONS AND WARRANTY
  • Product Warranty
    15 Years
    Output Warranty of Pmax
    Linear Warranty*
  • *
    1) First years : 97.5%, 2) After 1st year : 0.4% annual degradation, 3) 87.9% for 25 years
