LG NeON H BiFacial

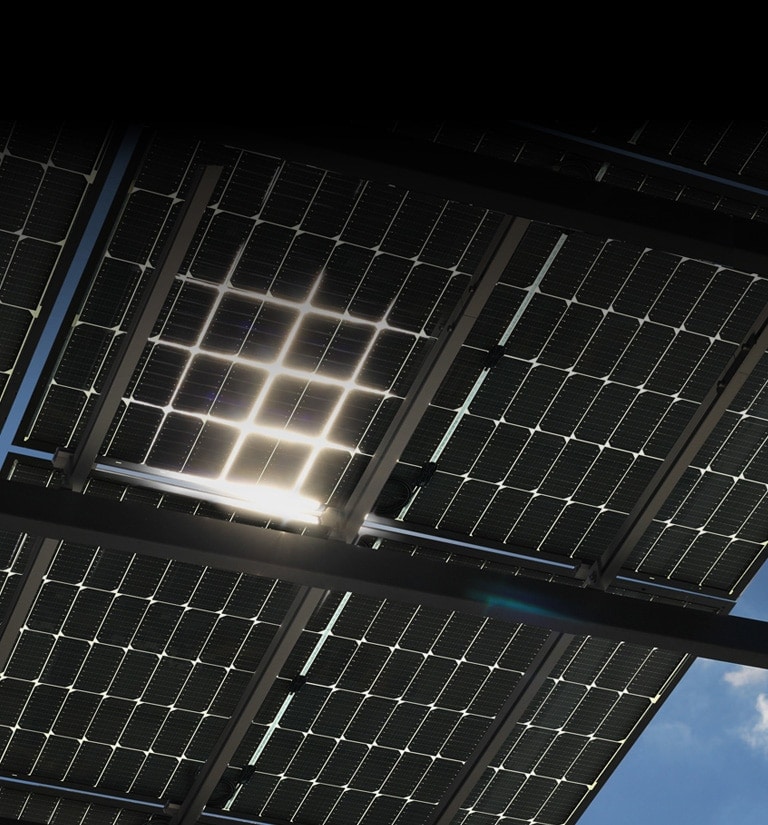

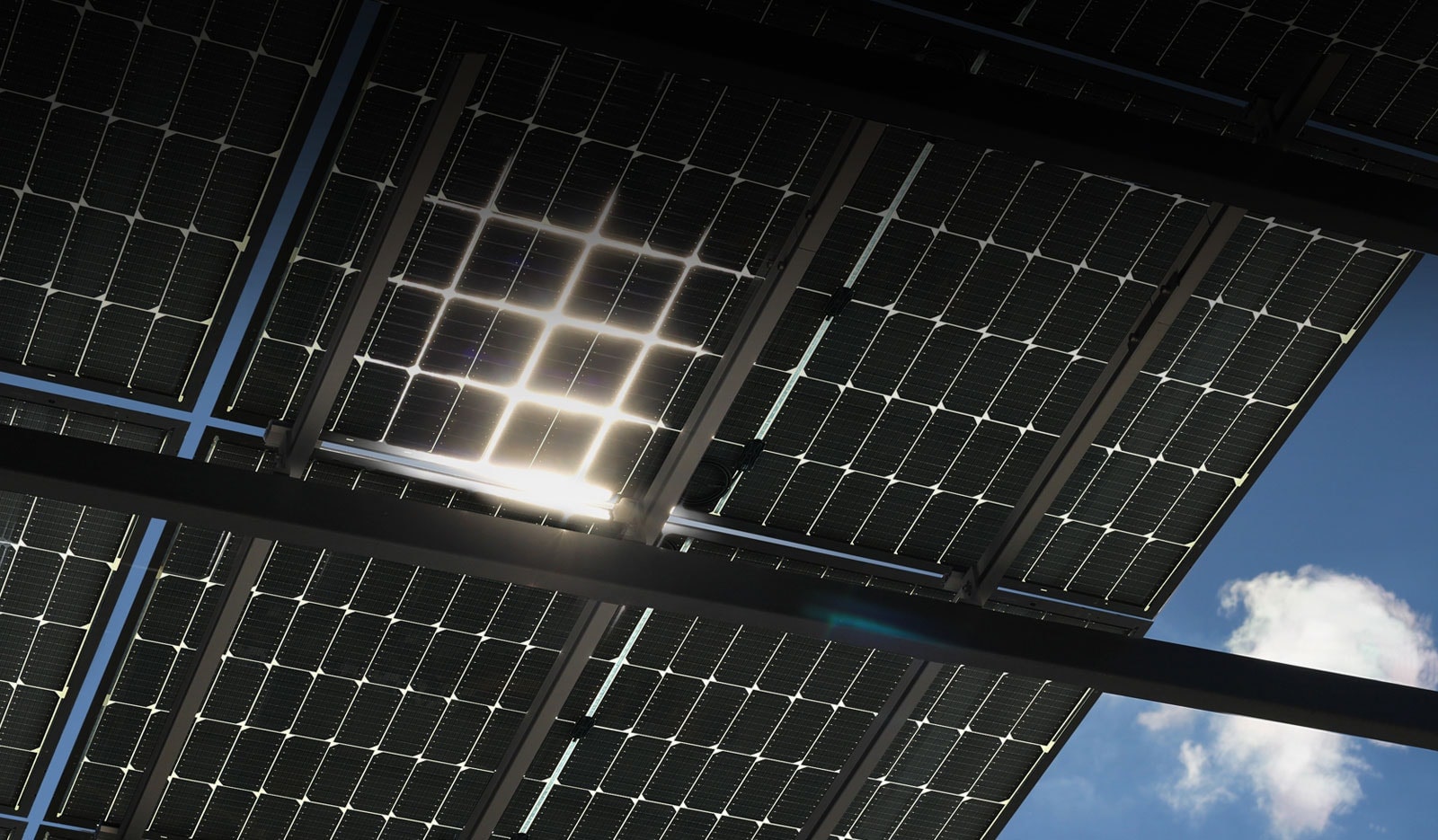

Image of LG NeON H BiFacial on the roof Image of LG NeON H BiFacial on the roof

LG NeON H BiFacial

It’s designed with a transparent back sheet to absorb sunlight from the front and the rear.
Image showing LG NeON H BiFacial using high-efficiency BiFacial cells to generate power from both sides. Image showing LG NeON H BiFacial using high-efficiency BiFacial cells to generate power from both sides.

Double-sided Cell Structure

Using highly efficient BiFacial cells, LG NeON H BiFacial generates power from both sides.

N-type Cells to prevent
Light-induced degradation (LID)

Using N-type cells, LG NeON H BiFacial panels are less affected by light induced degradation than conventional P-type solar panel.
A graph showing that LG NeON H BiFacial panels using N-type cells are less affected by light degradation than conventional P-type solar panels. A graph showing that LG NeON H BiFacial panels using N-type cells are less affected by light degradation than conventional P-type solar panels.
* Tested by Fraunhofer ISE (2018, Sep.)

Power output improvement was achieved
by implementing advanced technology

LG NeON H BiFacial Technology: 3 Unique Features
Compared to other products, LG NeON H BiFacial applied a thin electrode (paste) to reduce electricity loss.
*Front side of the cell
Unique Features .01

Less power loss

LG reduced electrical loss by applying thinner electrodes (Paste) and improving the process (mask) in order to reduce electrical resistance Thin electrodes with reduced surface area, minimize resistance to decrease power loss.
Comparison graph for HTAR Glass showing up to 3.2% or more of power generation compared to normal glass and AR glass
*HTAR : Highly Transmitted Anti-Reflection
Unique Features .02

More light absorption

LG uses *HTAR Glass, which has low reflectivity and high
transmittance to increase power generation by more than
0.4% compared to AR Glass and by more than 3.2% compared
to normal glass.
LG NeON H BiFacial improved the output by applying a cell that is 3.7% larger than other products.
Unique Features .03

Larger cell area

LG improved the output by applying a cell with a 3.7% larger
surface area.

Strict Testing to Ensure
High Reliability

LG NeON H BiFacial is tested extensively to ensure high long-term operating reliability in a diverse range of challenging environments.
Graphs showing rigorous testing and high reliability to ensure Graphs showing rigorous testing and high reliability to ensure
* = International Electrotechnical Commission
*This is based on LG Electronics' internal test. It is explained that thermal cycling is tested on a tripling basis and attenuation heat is tested double compared to IEC international standards.
Close
ELECTRICAL PROPERTIES
  • Maximum Power (Pmax)[W] - STC*
    360
    MPP Voltage (Vmpp)[V] - STC*
    34.7
  • MPP Current (Impp) [A] - STC*
    10.46
    Open Circuit Voltage (Voc, ± 5%) [V] - STC*
    41.2
  • Short Circuit Current (Isc, ± 5%) [A] - STC*
    10.98
    Module Efficiency [%] - STC*
    19.5
  • Pmax Bifaciality Coefficient [%] - STC*
    70 ± 5
    Power Tolerance [%] - STC*
    0 ~ +3
  • Maximum Power (Pmax)[W] - BiFi100**
    385
    MPP Voltage (Vmpp)[V] - BiFi100**
    34.5
  • MPP Current (Impp) [A] - BiFi100**
    11.16
    Open Circuit Voltage (Voc, ± 5%) [V] - BiFi100**
    41.2
  • Short Circuit Current (Isc, ± 5%) [A] - BiFi100**
    11.71
    Module Efficiency [%] - BiFi100**
    20.9
  • Pmax Bifaciality Coefficient [%] - BiFi100**
    70 ± 5
    Power Tolerance [%] - BiFi100**
    0 ~ +3
  • Maximum Power (Pmax)[W] - BiFi200**
    410
    MPP Voltage (Vmpp)[V] - BiFi200**
    34.5
  • MPP Current (Impp) [A] - BiFi200**
    11.88
    Open Circuit Voltage (Voc, ± 5%) [V] - BiFi200**
    41.2
  • Short Circuit Current (Isc, ± 5%) [A] - BiFi200**
    12.47
    Module Efficiency [%] - BiFi200**
    22.3
  • Pmax Bifaciality Coefficient [%] - BiFi200**
    70 ± 5
    Power Tolerance [%] - BiFi200**
    0 ~ +3
  • *
    STC (Standard Test Condition) : Irradiance 1,000W/m2, Cell temperature 25℃, AM 1.5 , Measure Tolerance : ± 3 %
    **
    The electrical properties of BiFi100 and BiFi200 measure under the front side irradiance 1,000W/m2 + (100W/m2 or 200W/m2 ) * BiFi . Use 100W/m2 for BiFi100 and 200W/m2 for BiFi200.
ELECTRICAL PROPERTIES(NMOT)
  • Maximum Power (Pmax) [W] - NMOT
    272
    MPP Voltage (Vmpp) [V] - NMOT
    32.5
  • MPP Current (Impp) [A] - NMOT
    8.38
    Open Circuit Voltage (Voc) [V] - NMOT
    38.7
  • Short Circuit Current (Isc) [A] - NMOT
    8.84
    Maximum Power (Pmax) [W] - BiFi100
    291
  • MPP Voltage (Vmpp) [V] - BiFi100
    32.5
    MPP Current (Impp) [A] - BiFi100
    8.96
  • Open Circuit Voltage (Voc) [V] - BiFi100
    38.7
    Short Circuit Current (Isc) [A] - BiFi100
    9.45
  • Maximum Power (Pmax) [W] - BiFi200
    310
    MPP Voltage (Vmpp) [V] - BiFi200
    32.5
  • MPP Current (Impp) [A] - BiFi200
    9.55
    Open Circuit Voltage (Voc) [V] - BiFi200
    38.7
  • Short Circuit Current (Isc) [A] - BiFi200
    10.07
GENERAL DATA
  • Cell Properties (Material / Type)
    Monocrystalline / N-type
    Cell Maker
    LG
  • Cell Configuration
    120 Cells (6 x 20)
    Number of Busbars
    9 EA
  • Module Dimensions (L x W x H)
    1,768 x 1,042 x 40 mm
    Weight
    18.5 kg
  • Glass (Material)
    Tempered Glass with AR coating
    Backsheet (Color)
    Transparent
  • Frame (Material)
    Anodized Aluminium
    Junction Box (Protection Degree)
    IP 68 with 3 Bypass Diodes
  • Cables (Length)(Included Connector)
    1,200 mm x 2 EA
    Connector (Type / Maker)
    MC4 / Stäubli
CERTIFICATIONS AND WARRANTY
  • Solar Module Product Warranty
    25 Years
    Solar Module Output Warranty
    Linear Warranty*
  • *
    Initial 107%, 1st year 105.4%, After 1st year : -0.35% / year, 96.4% for 25 years (Based on BiFi100)
