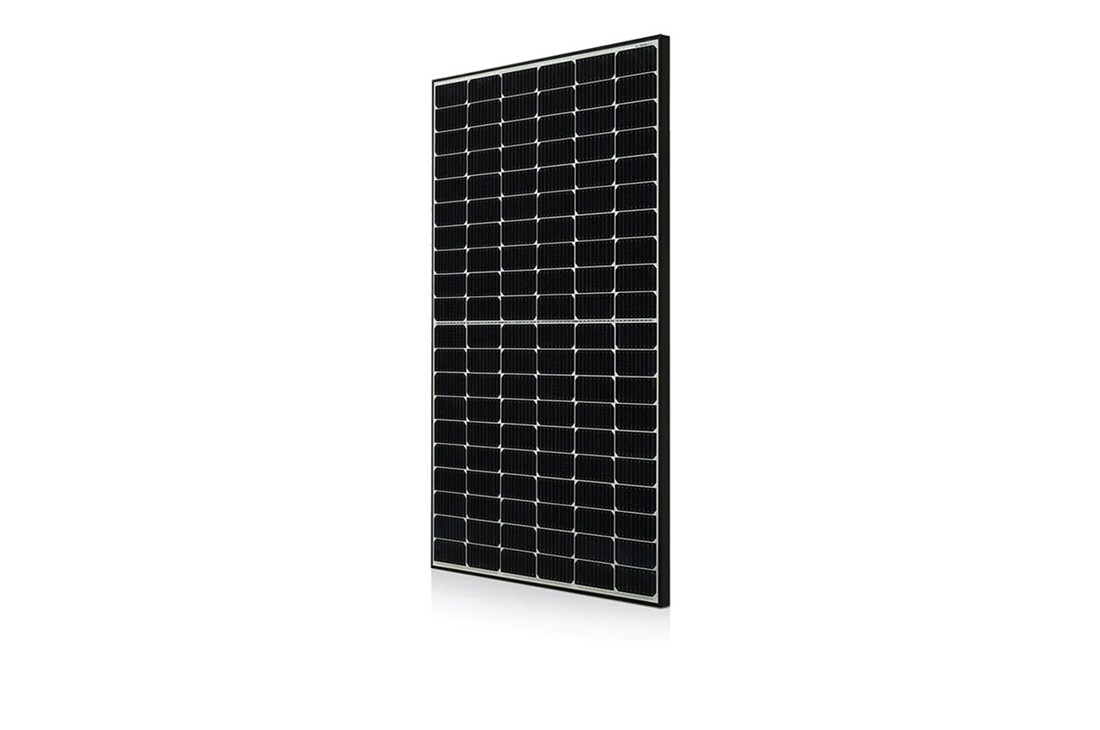

LG NeON H
* Top 5 Solar Manufacturers in 2018(estimated) from IHAS Markit. All figures are average of latest mono-perc products of each company.

Power output improvement was achieved
by implementing advanced technology

LG NeON H Technology: 3 Unique Features
Compared to other products, LG NeON H applied a thin electrode (paste) to reduce electricity loss.
*Front side of the cell
Unique Features .01

Less power loss

LG reduced electrical loss by applying thinner electrodes (Paste) and improving the process (mask) in order to reduce electrical resistance Thin electrodes
with reduced surface area, minimize resistance to decrease power loss.
Comparison graph for HTAR Glass showing up to 3.2% or more of power generation compared to normal glass and AR glass
*HTAR : Highly Transmitted Anti-Reflection
Unique Features .02

More light absorption

LG uses *HTAR Glass, which has low reflectivity and high
transmittance to increase power generation by more than
0.4% compared to AR Glass and by more than 3.2% compared
to normal glass.
NeON® H improved the output by applying a cell that is 3.7% larger than other products.
Unique Features .03

Larger cell area

LG improved the output by applying a cell with a 3.7% larger
surface area.

Strict Testing to Ensure
High Reliability

LG NeON H is tested extensively to ensure high long-term operating reliability in a diverse range of challenging environments.
Graphs showing rigorous testing and high reliability to ensure Graphs showing rigorous testing and high reliability to ensure
* = International Electrotechnical Commission
*This is based on LG Electronics' internal test. It is explained that thermal cycling is tested on a tripling basis and attenuation heat is tested double compared to IEC international standards.
ELECTRICAL PROPERTIES(STC*)
  • Maximum Power (Pmax) [W]
    380
    MPP Voltage (Vmpp) [V]
    35.1
  • MPP Current (Impp) [A]
    10.85
    Open Circuit Voltage (Voc, ± 5%) [V]
    41.7
  • Short Circuit Current (Isc, ± 5%) [A]
    11.39
    Module Efficiency [%]
    20.6
  • Power Tolerance [%]
    0 ~ +3
    *
    STC (Standard Test Condition) : Irradiance 1,000W/m2, Cell temperature 25°C, AM 1.5, Measure tolerance of Pmax : ±3%
ELECTRICAL PROPERTIES(NMOT)
  • Maximum Power (Pmax) [W]
    287
    MPP Voltage (Vmpp) [V]
    33
  • MPP Current (Impp) [A]
    8.69
    Open Circuit Voltage (Voc) [V]
    39.2
  • Short Circuit Current (Isc) [A]
    9.17
GENERAL DATA
  • Cell Properties (Material / Type)
    Monocrystalline / N-type
    Cell Maker
    LG
  • Cell Configuration
    120 Cells (6 x 20)
    Number of Busbars
    9 EA
  • Module Dimensions (L x W x H)
    1,768 x 1,042 x 40 mm
    Weight
    18.5 kg
  • Glass (Material)
    Tempered Glass with AR coating
    Backsheet (Color)
    White
  • Frame (Material)
    Anodized Aluminium
    Junction Box (Protection Degree)
    IP 68 with 3 Bypass Diodes
  • Cables (Length)(Included Connector)
    1,200 mm x 2 EA
    Connector (Type / Maker)
    MC4 / Stäubli
CERTIFICATIONS AND WARRANTY
  • Solar Module Product Warranty
    25 Years
    Solar Module Output Warranty
    Linear Warranty*
  • *
    1) First years : 98.5%, 2) After 1st year : -0.33%/year, 3) 90.6% for 25 years
