LG380N1K-E6 component-copyModelName
LG NeON H Black

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LG380N1K-E6)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LG380N1K-E6)
    AED
    AED
    LG Members Price
Total
LG NeON H Black
Image of LG NeON H Black on the roof Image of LG NeON H Black on the roof

LG NeON H Black

A matte black frame, black back sheet and black cells that provide an all-black aesthetic.

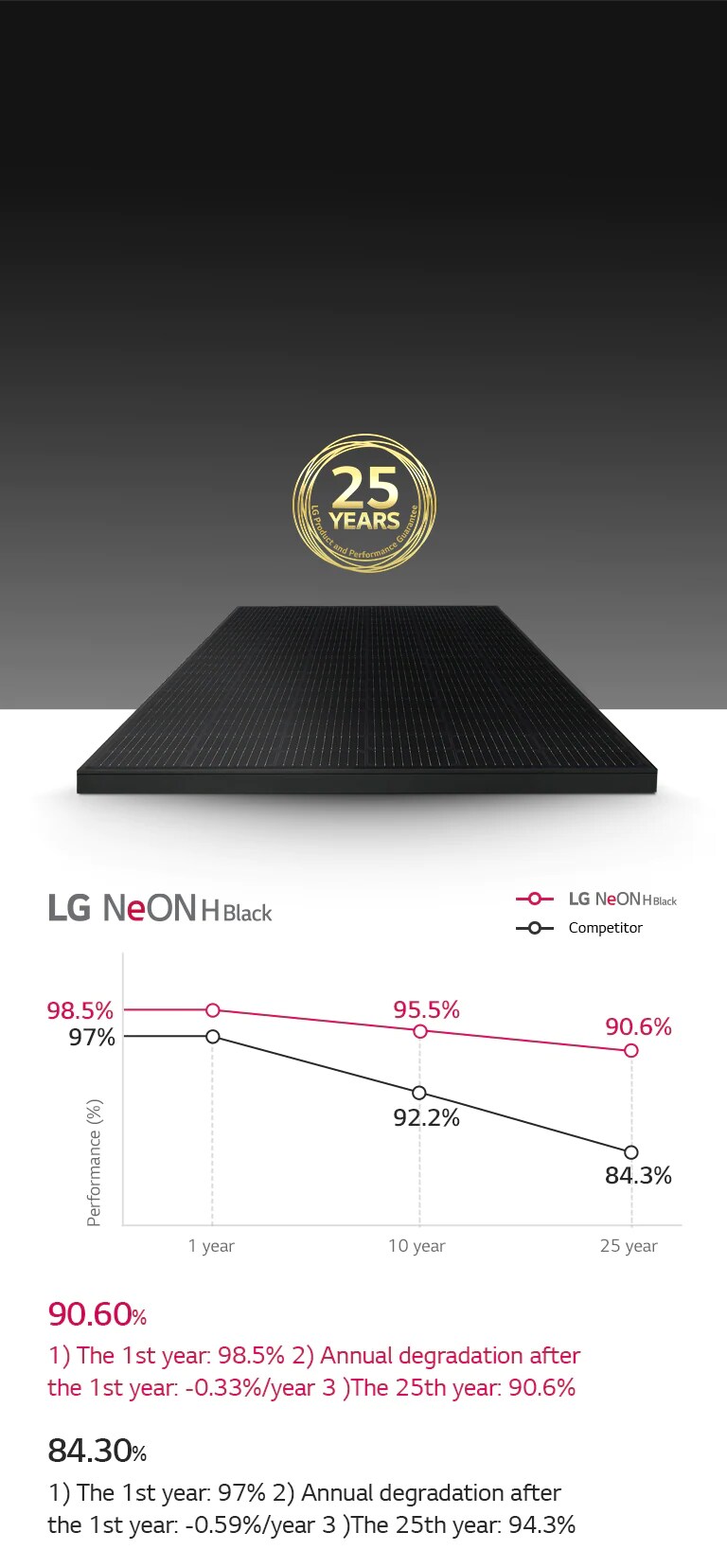

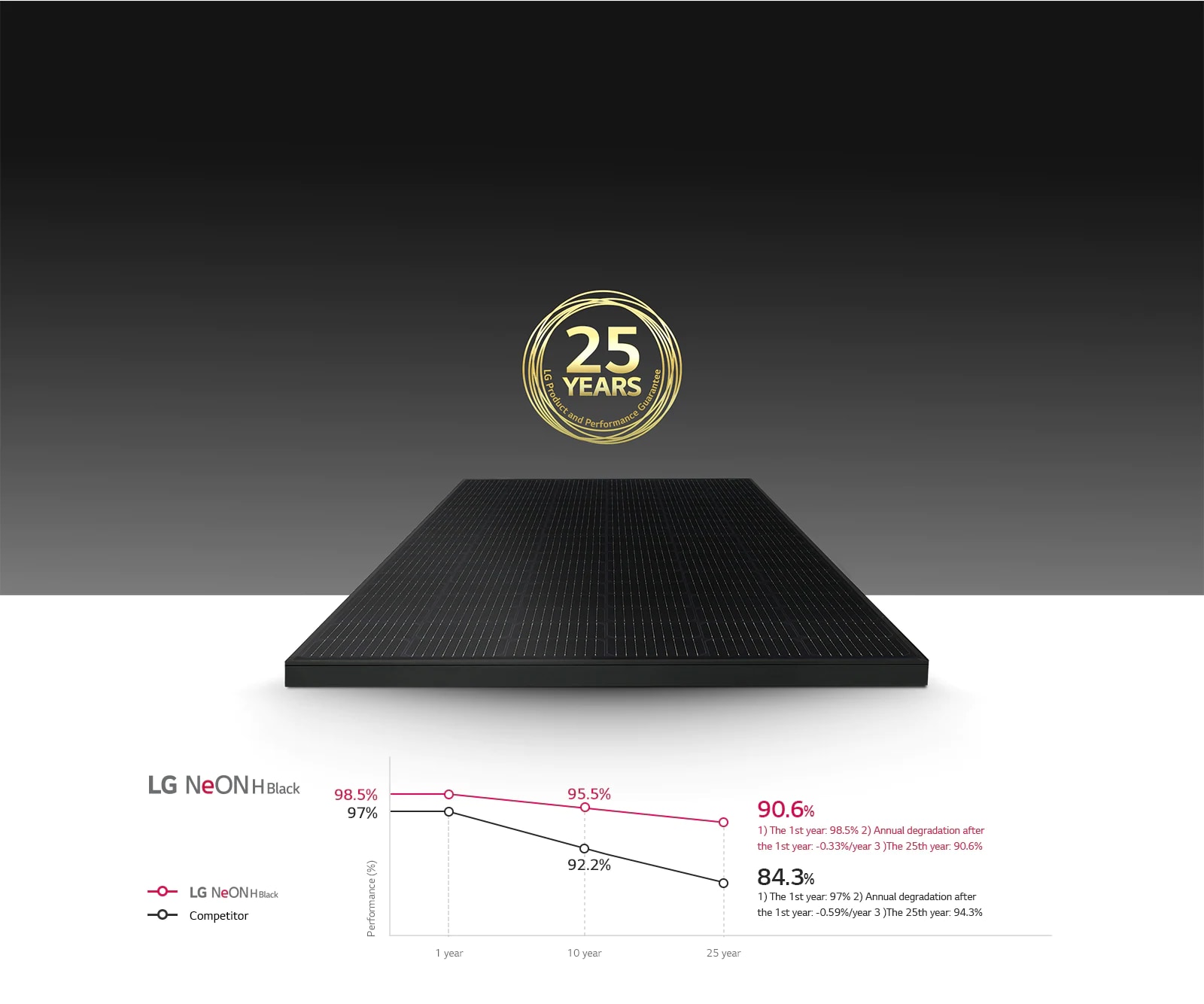

Graphs and images showing long-lasting clean energy production with a 25-year product and performance warranty Graphs and images showing long-lasting clean energy production with a 25-year product and performance warranty

An Outstanding Warranty is
There If You Need It

With a 25-year product and performance warranty, you’ll generate clean energy long into the future.
* Top 5 Solar Manufacturers in 2018(estimated) from IHAS Markit. All figures are average of latest mono-perc products of each company.

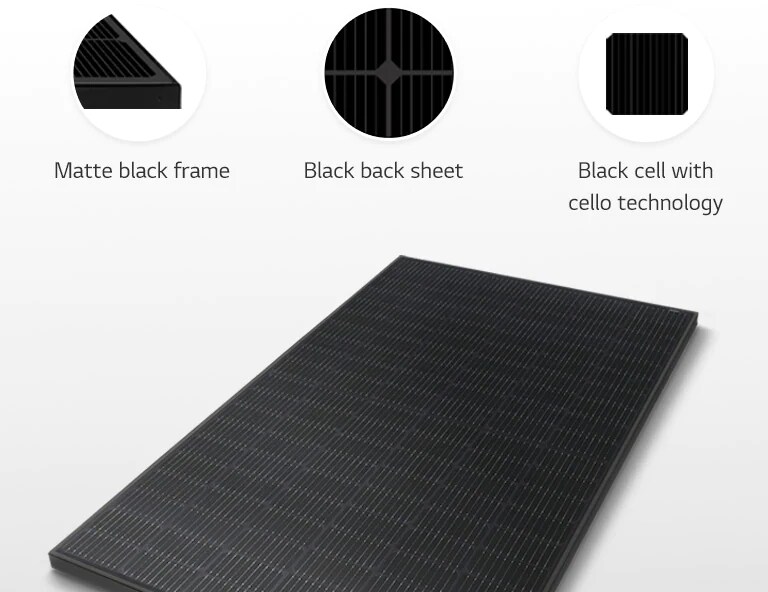

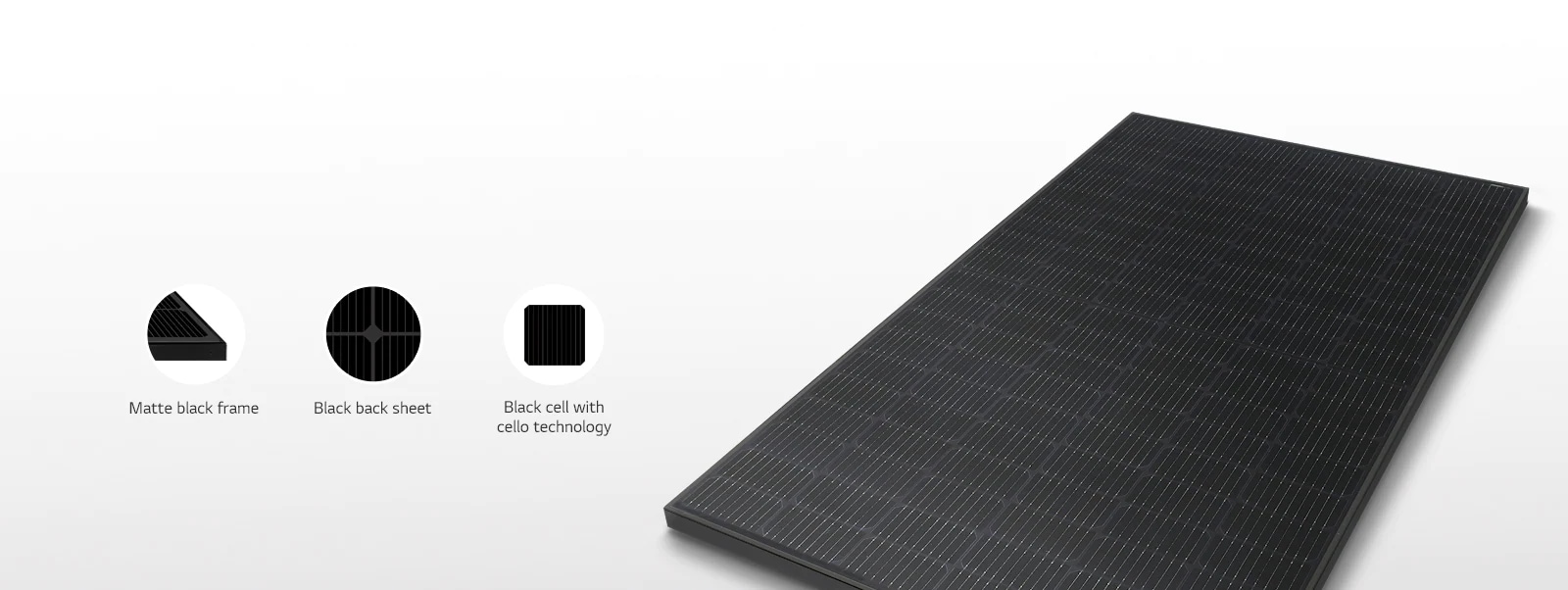

Illustrative image of LG NeON H Black with matte black frame, black back seat and black cell Illustrative image of LG NeON H Black with matte black frame, black back seat and black cell

Aesthetic Black Module

LG NeON H Black has a matte black frame, black back sheets and black cells,
making it blend in discreetly in its surroundings.

Power output improvement was achieved
by implementing advanced technology

LG NeON H Black Technology: 3 Unique Features
Compared to other products, LG NeON H Black applied a thin electrode (paste) to reduce electricity loss.
*Front side of the cell
Unique Features .01

Less power loss

LG reduced electrical loss by applying thinner electrodes (Paste) and improving the process (mask) in order to reduce electrical resistance Thin electrodes with reduced surface area, minimize resistance to decrease power loss.
Comparison graph for HTAR Glass showing up to 3.2% or more of power generation compared to normal glass and AR glass
*HTAR : Highly Transmitted Anti-Reflection
Unique Features .02

More light absorption

LG uses *HTAR Glass, which has low reflectivity and high
transmittance to increase power generation by more than
0.4% compared to AR Glass and by more than 3.2% compared
to normal glass.
LG NeON H Black improved the output by applying a cell that is 3.7% larger than other products.
Unique Features .03

Larger cell area

LG improved the output by applying a cell with a 3.7% larger
surface area.

Strict Testing to Ensure
High Reliability

LG NeON H Black is tested extensively to ensure high long-term operating reliability in a diverse range of challenging environments.

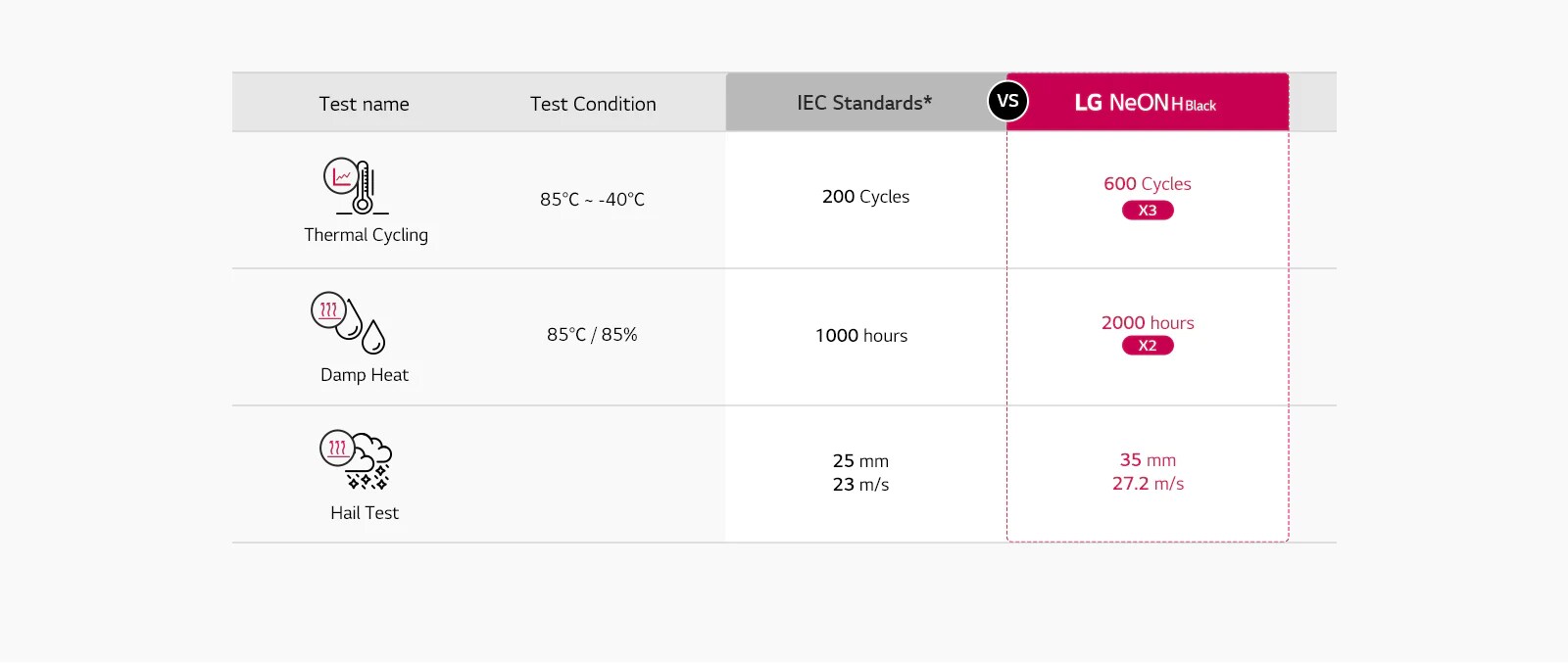

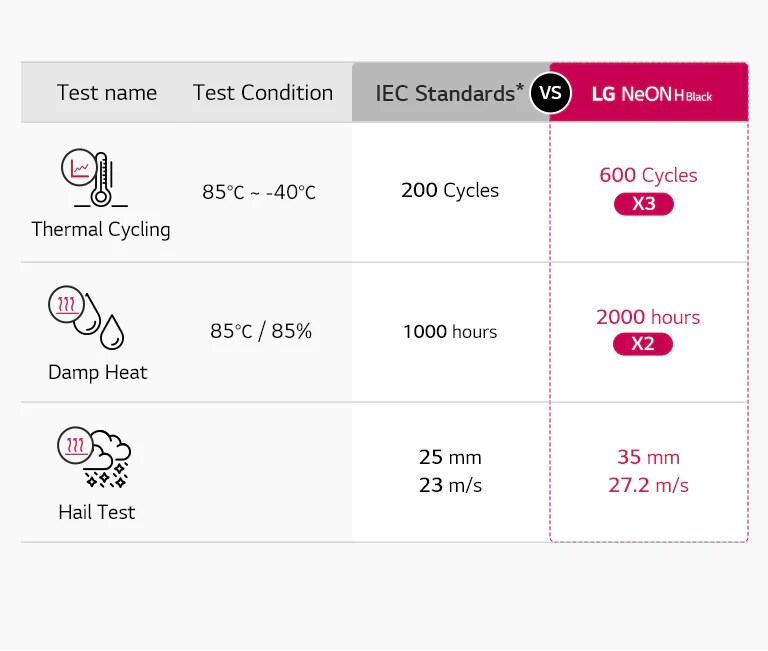

Graphs showing rigorous testing and high reliability to ensure Graphs showing rigorous testing and high reliability to ensure
* = International Electrotechnical Commission
*This is based on LG Electronics' internal test. It is explained that thermal cycling is tested on a tripling basis and attenuation heat is tested double compared to IEC international standards.
Close
ELECTRICAL PROPERTIES(STC*)
  • Maximum Power (Pmax) [W]
    380
    MPP Voltage (Vmpp) [V]
    35.2
  • MPP Current (Impp) [A]
    10.83
    Open Circuit Voltage (Voc, ± 5%) [V]
    41.7
  • Short Circuit Current (Isc, ± 5%) [A]
    11.43
    Module Efficiency [%]
    20.6
  • Power Tolerance [%]
    0 ~ +3
    *
    STC (Standard Test Condition) : Irradiance 1,000 W/m2, Cell temperature 25°C, AM 1.5 , Measurement tolerance of Pmax : ±3%
ELECTRICAL PROPERTIES(NMOT)
  • Maximum Power (Pmax) [W]
    284
    MPP Voltage (Vmpp) [V]
    32.7
  • MPP Current (Impp) [A]
    8.68
    Open Circuit Voltage (Voc) [V]
    38.9
  • Short Circuit Current (Isc) [A]
    9.22
GENERAL DATA
  • Cell Properties (Material / Type)
    Monocrystalline / N-type
    Cell Maker
    LG
  • Cell Configuration
    120 Cells (6 x 20)
    Number of Busbars
    9 EA
  • Module Dimensions (L x W x H)
    1,768 x 1,042 x 40 mm
    Weight
    18.5 kg
  • Glass (Material)
    Tempered Glass with AR coating
    Backsheet (Color)
    Black
  • Frame (Material)
    Anodized Aluminium
    Junction Box (Protection Degree)
    IP 68 with 3 Bypass Diodes
  • Cables (Length)
    1,250 mm x 2 EA
    Connector (Type / Maker)
    MC4 / Stäubli
CERTIFICATIONS AND WARRANTY
  • Solar Module Product Warranty
    25 Years
    Solar Module Output Warranty
    Linear Warranty*
  • *
    1) First years : 98.5%, 2) After 1st year : -0.33%/year, 3) 90.6% for 25 years
