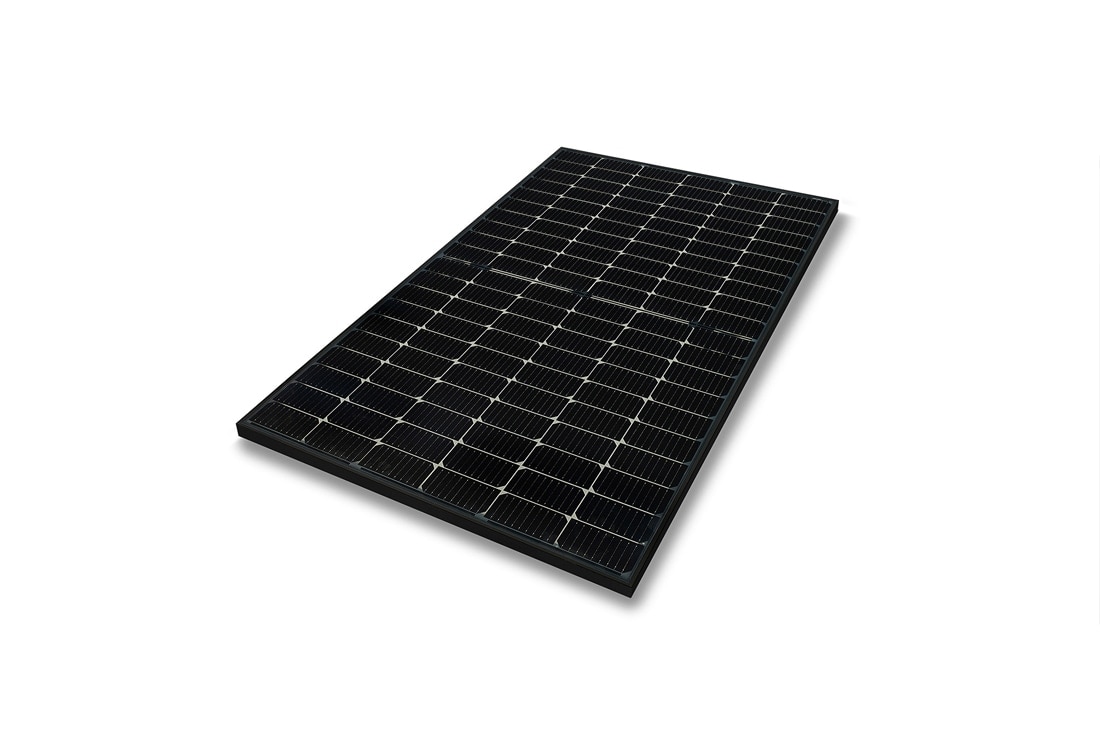

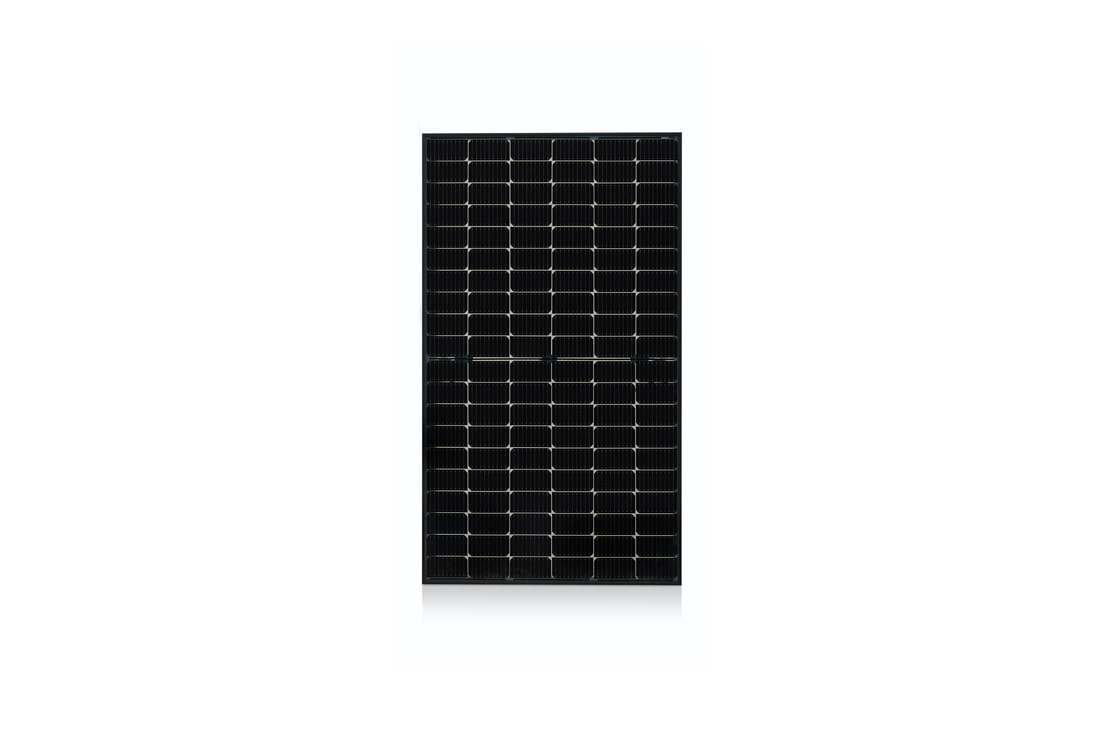

LG435N2T-E6
LG NeON H BiFacial
  • Maximum Power 435W
  • 25 year Product & Performance warranty
  • Transparent backsheet
  • Additional energy yield (up to 30%) based on ground type

component-OBScountrySelectDesc

LG NeON H BiFacial

N-type Cells to prevent
Light-induced degradation (LID)

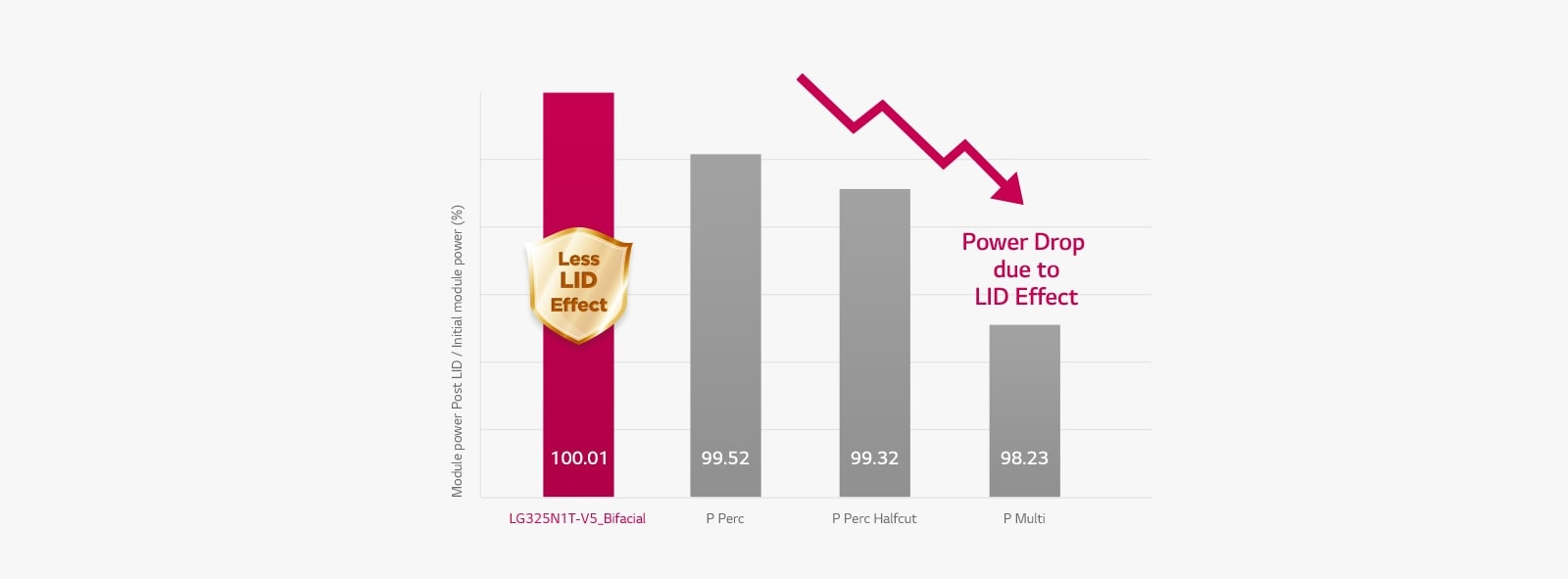

Using N-type cells, LG NeON H BiFacial panels are less affected by light induced degradation than conventional P-type solar panel.

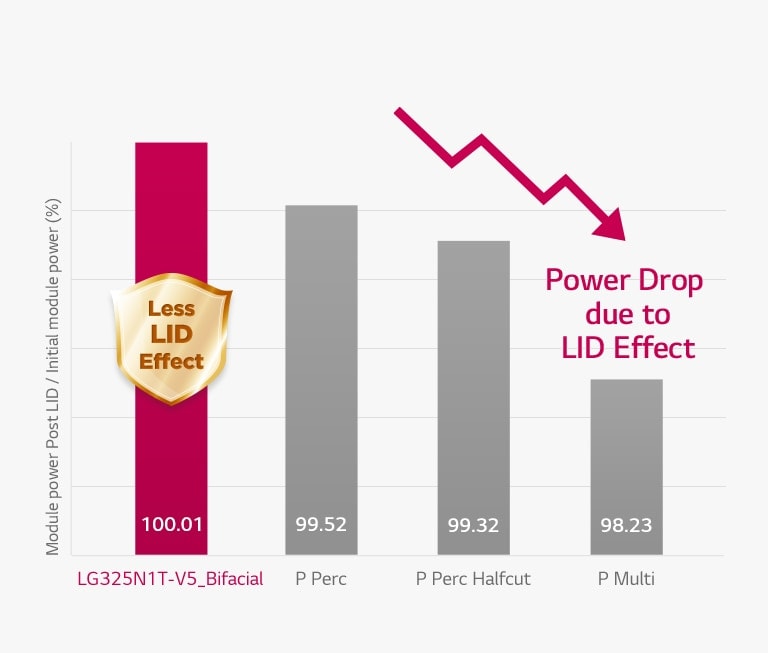

A graph showing that LG NeON H BiFacial panels using N-type cells are less affected by light degradation than conventional P-type solar panels. A graph showing that LG NeON H BiFacial panels using N-type cells are less affected by light degradation than conventional P-type solar panels.
* Tested by Fraunhofer ISE (2018, Sep.)

Power output improvement was achieved
by implementing advanced technology

LG NeON H BiFacial Technology: 3 Unique Features

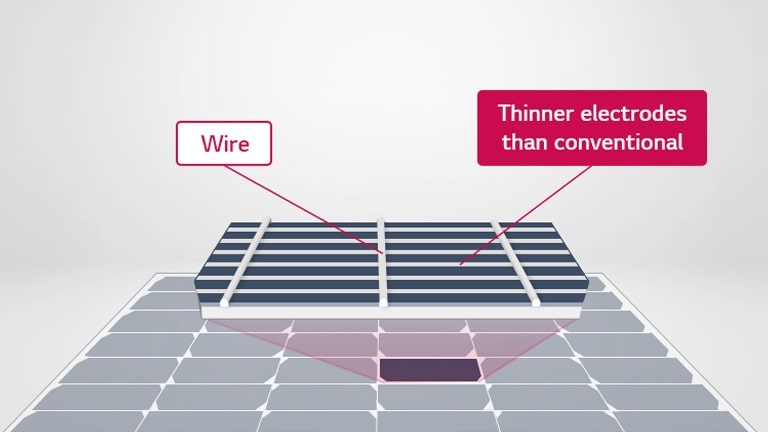

Compared to other products, LG NeON H BiFacial applied a thin electrode (paste) to reduce electricity loss.
*Front side of the cell
Unique Features .01

Less power loss

LG reduced electrical loss by applying thinner electrodes (Paste) and improving the process (mask) in order to reduce electrical resistance Thin electrodes with reduced surface area, minimize resistance to decrease power loss.

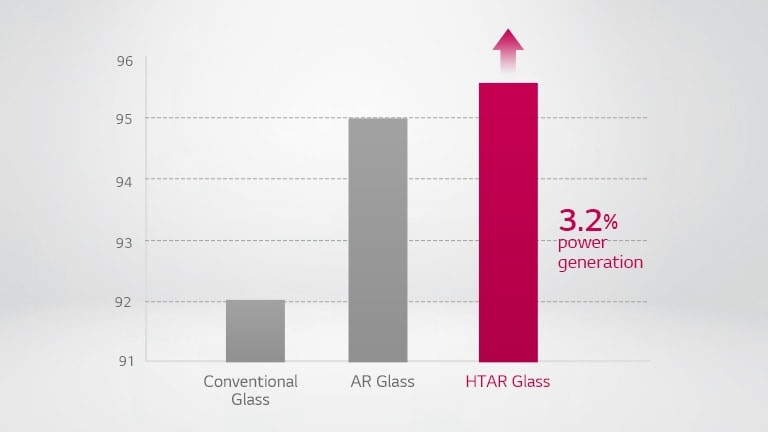

Comparison graph for HTAR Glass showing up to 3.2% or more of power generation compared to normal glass and AR glass
*HTAR : Highly Transmitted Anti-Reflection
Unique Features .02

More light absorption

LG uses *HTAR Glass, which has low reflectivity and high
transmittance to increase power generation by more than
0.4% compared to AR Glass and by more than 3.2% compared
to normal glass.

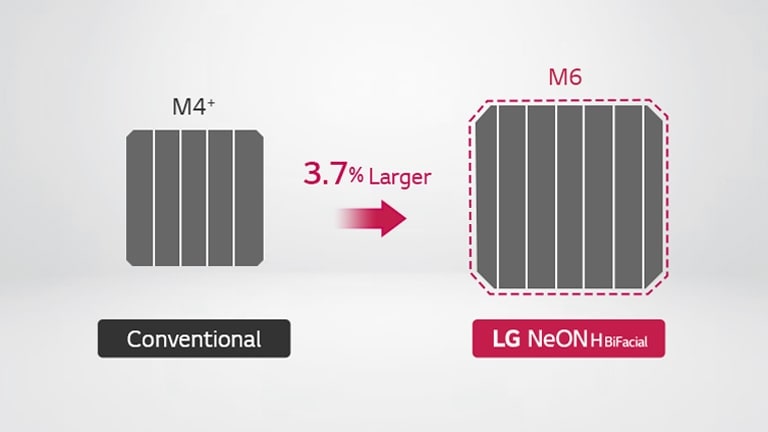

LG NeON H BiFacial improved the output by applying a cell that is 3.7% larger than other products.
Unique Features .03

Larger cell area

LG improved the output by applying a cell with a 3.7% larger
surface area.

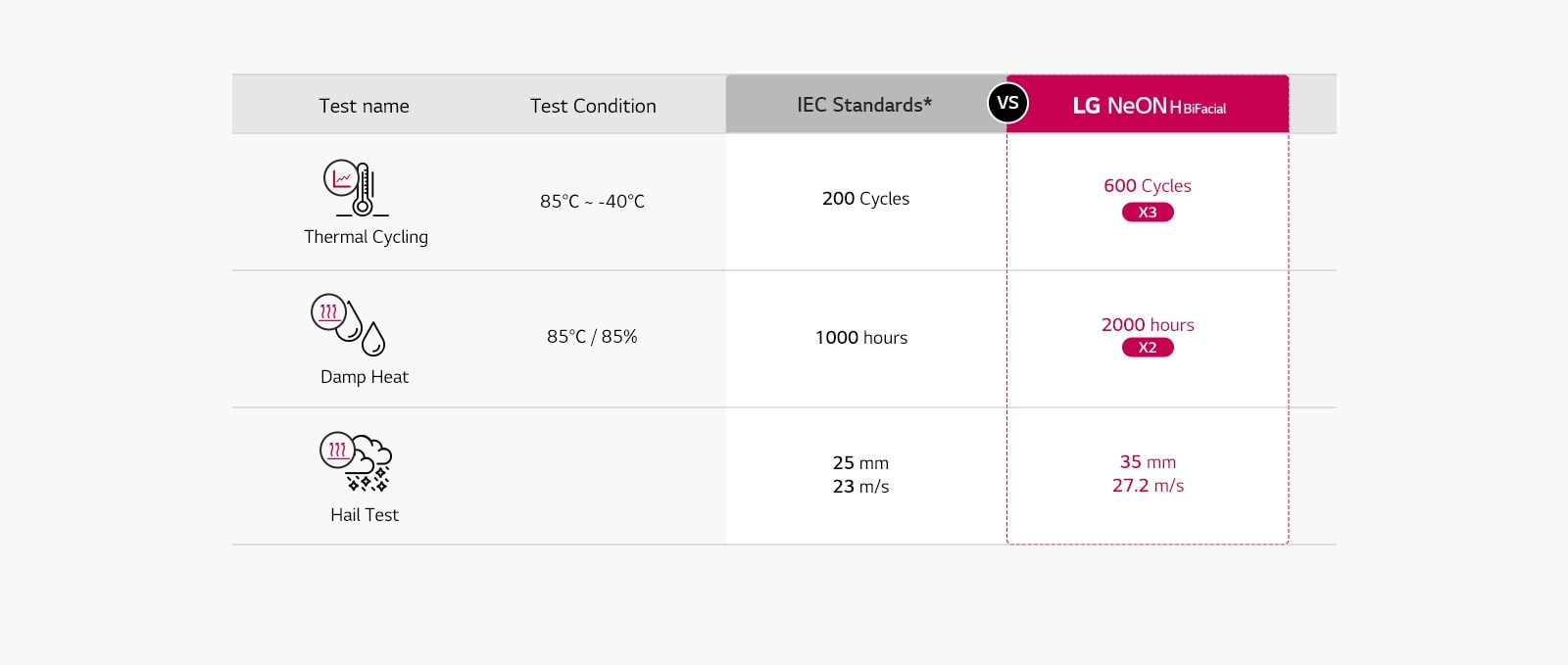

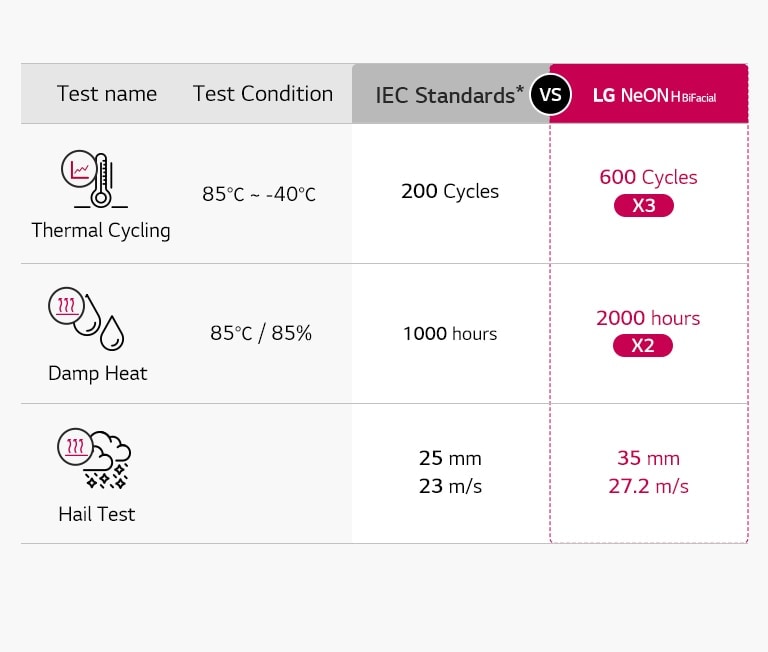

Strict Testing to Ensure
High Reliability

LG NeON H BiFacial is tested extensively to ensure high long-term operating reliability in a diverse range of challenging environments.
Graphs showing rigorous testing and high reliability to ensure Graphs showing rigorous testing and high reliability to ensure
* = International Electrotechnical Commission
*This is based on LG Electronics' internal test. It is explained that thermal cycling is tested on a tripling basis and attenuation heat is tested double compared to IEC international standards.

ELECTRICAL PROPERTIES

  • Maximum Power (Pmax) [W] - STC
    435
    MPP Voltage (Vmpp) [V] - STC
    41.4
  • MPP Current (Impp) [A] - STC
    10.51
    Open Circuit Voltage (Voc, ± 5%) [V] - STC
    49.4
  • Short Circuit Current (Isc, ± 5%) [A] - STC
    11
    Module Efficiency [%] - STC
    19.6
  • Pmax Bifaciality Coefficient [%] - STC
    70 ± 5
    Power Tolerance [%] - STC
    0 ~ +3
  • Maximum Power (Pmax) [W] - BiFi100**
    465
    MPP Voltage (Vmpp) [V] - BiFi100**
    41.4
  • MPP Current (Impp) [A] - BiFi100**
    11.24
    Open Circuit Voltage (Voc, ± 5%) [V] - BiFi100**
    49.4
  • Short Circuit Current (Isc, ± 5%) [A] - BiFi100**
    11.7
    Module Efficiency [%] - BiFi100**
    21
  • Pmax Bifaciality Coefficient [%] - BiFi100**
    70 ± 5
    Power Tolerance [%] - BiFi100**
    0 ~ +3
  • Maximum Power (Pmax) [W] - BiFi200**
    495
    MPP Voltage (Vmpp) [V] - BiFi200**
    41.4
  • MPP Current (Impp) [A] - BiFi200**
    11.96
    Open Circuit Voltage (Voc, ± 5%) [V] - BiFi200**
    49.4
  • Short Circuit Current (Isc, ± 5%) [A] - BiFi200**
    12.54
    Module Efficiency [%] - BiFi200**
    22.3
  • Pmax Bifaciality Coefficient [%] - BiFi200**
    70 ± 5
    Power Tolerance [%] - BiFi200**
    0 ~ +3
  • *
    STC (Standard Test Condition) : Irradiance 1,000W/m2, Cell temperature 25℃, AM 1.5 , Measure Tolerance : ± 3 %
    **
    The electrical properties of BiFi100 and BiFi200 measure under the front side irradiance 1,000W/m2 + (100W/m2 or 200W/m2 ) * BiFi . Use 100W/m2 for BiFi100 and 200W/m2 for BiFi200.

ELECTRICAL PROPERTIES(NMOT)

  • Maximum Power (Pmax) [W] - NMOT
    328
    MPP Voltage (Vmpp) [V] - NMOT
    39
  • MPP Current (Impp) [A] - NMOT
    8.42
    Open Circuit Voltage (Voc) [V] - NMOT
    46.6
  • Short Circuit Current (Isc) [A] - NMOT
    8.86
    Maximum Power (Pmax) [W] - BiFi100
    351
  • MPP Voltage (Vmpp) [V] - BiFi100
    39
    MPP Current (Impp) [A] - BiFi100
    9.01
  • Open Circuit Voltage (Voc) [V] - BiFi100
    46.6
    Short Circuit Current (Isc) [A] - BiFi100
    9.48
  • Maximum Power (Pmax) [W] - BiFi200
    374
    MPP Voltage (Vmpp) [V] - BiFi200
    39
  • MPP Current (Impp) [A] - BiFi200
    9.6
    Open Circuit Voltage (Voc) [V] - BiFi200
    46.6
  • Short Circuit Current (Isc) [A] - BiFi200
    10.1

GENERAL DATA

  • Cell Properties (Material / Type)
    Monocrystalline / N-type
    Cell Maker
    LG
  • Cell Configuration
    144 Cells (6 x 24)
    Number of Busbars
    9 EA
  • Module Dimensions (L x W x H)
    2,130 x 1,042 x 40 mm
    Weight
    22 kg
  • Glass (Material)
    Tempered Glass with AR coating
    Backsheet (Color)
    Transparent
  • Frame (Material)
    Anodized Aluminium
    Junction Box (Protection Degree)
    IP 68 with 3 Bypass Diodes
  • Cables (Length)
    1,200 mm x 2 EA
    Connector (Type / Maker)
    MC4 / Stäubli

CERTIFICATIONS AND WARRANTY

  • Solar Module Product Warranty
    25 Years
    Solar Module Output Warranty
    Linear Warranty*
  • *
    Initial 107%, 1st year 105.4%, After 1st year : -0.35%/year, 96.4% for 25 years (Based on BiFi100)
