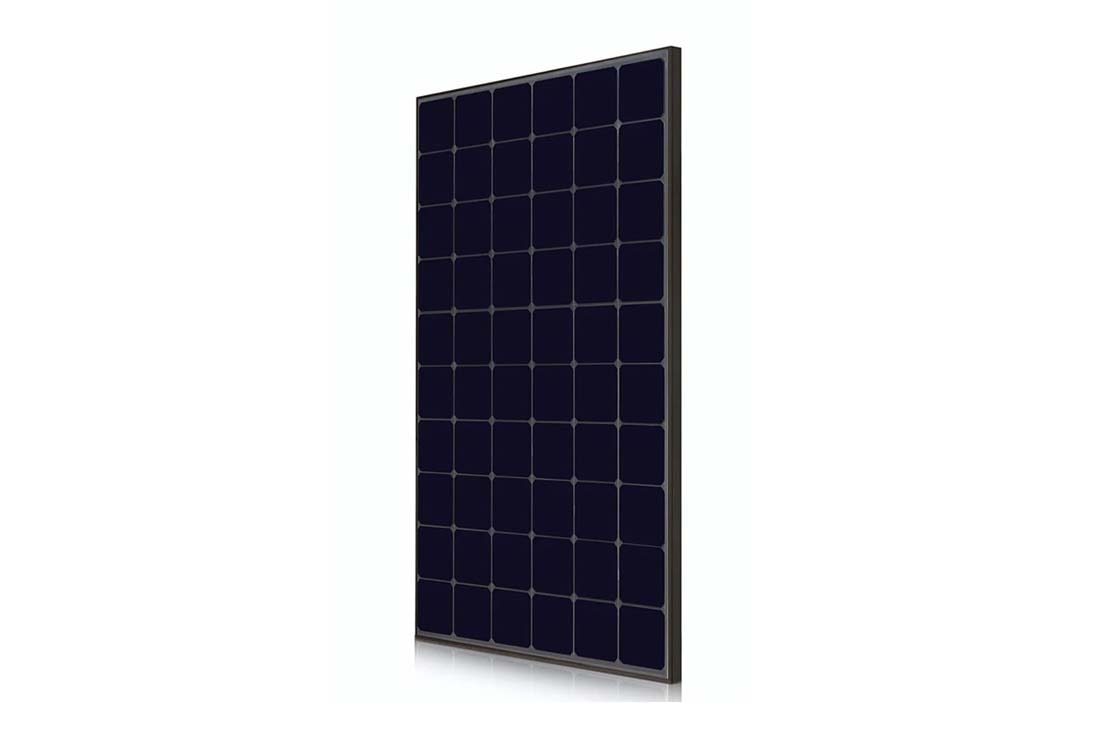

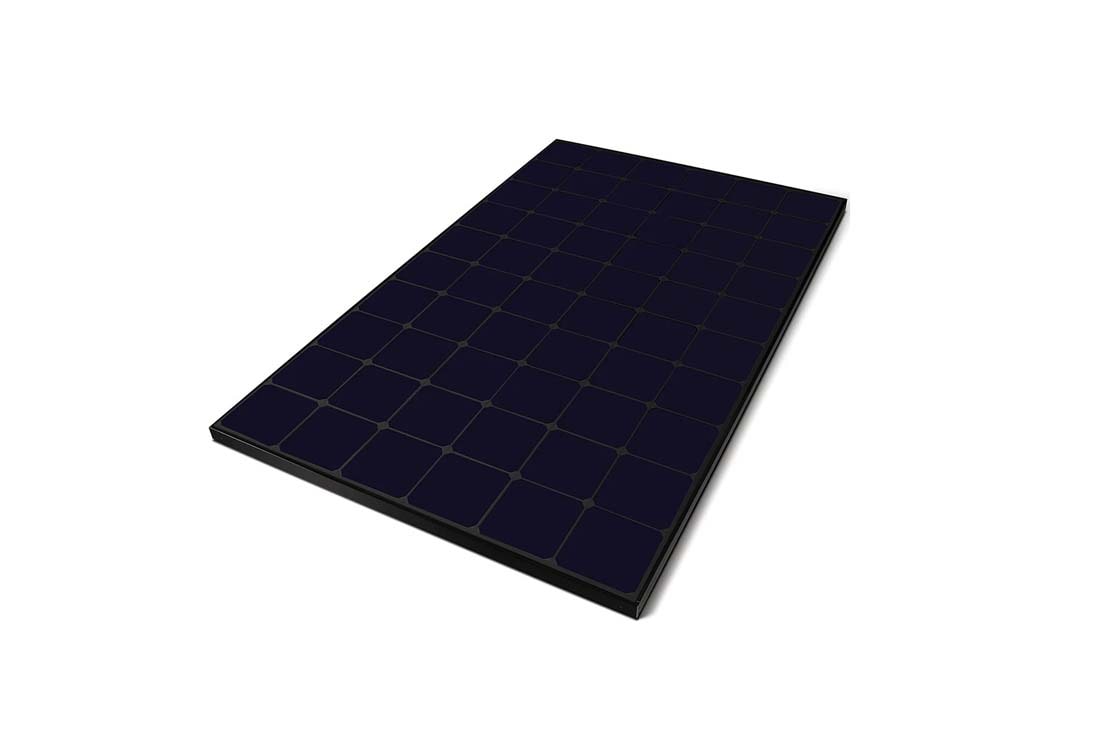

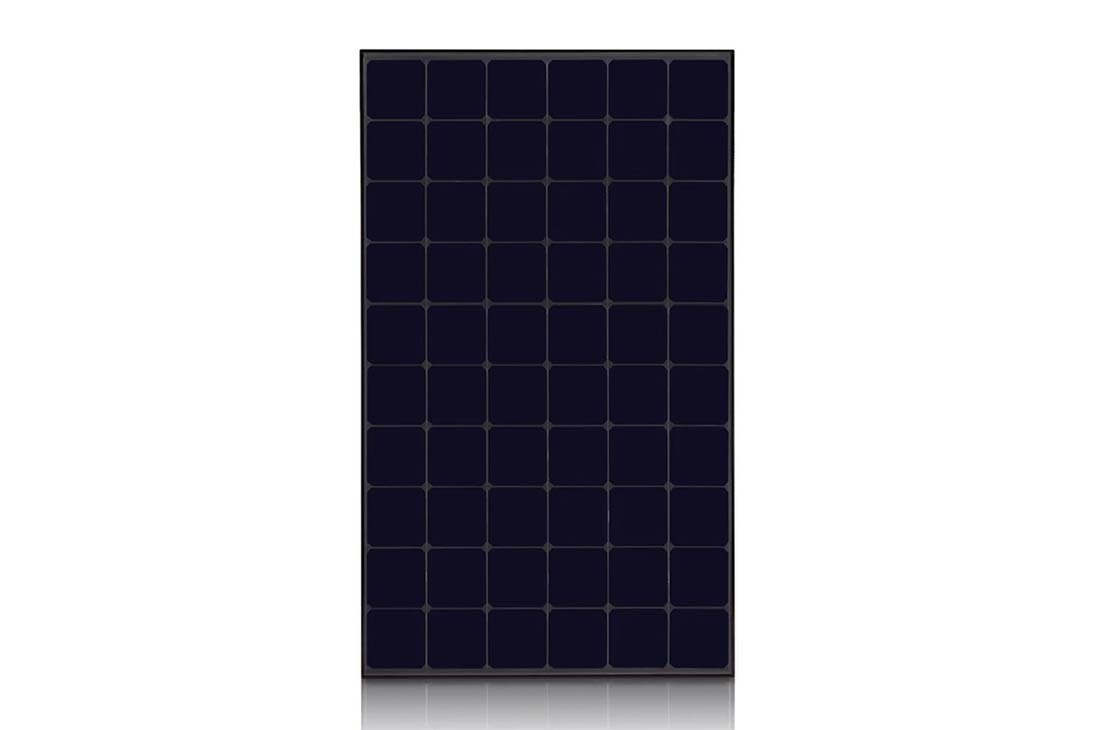

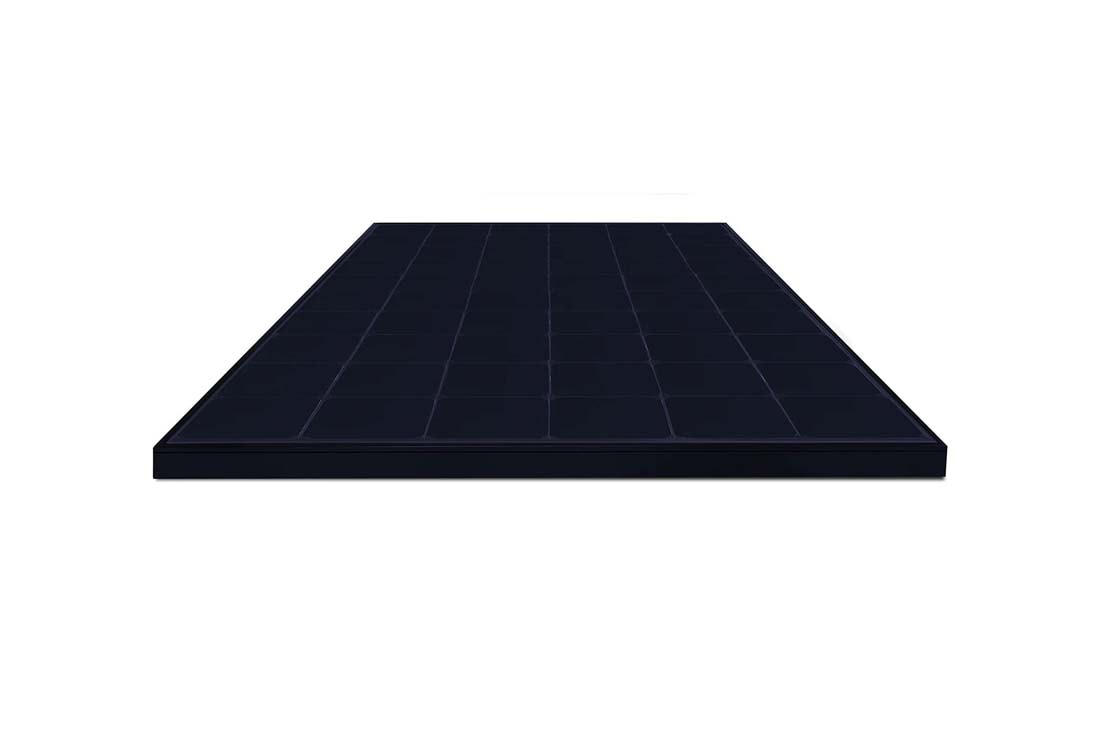

LG NeON R Prime
* Top 5 Solar Manufacturers in 2018(estimated) from IHAS Markit. All figures are average of latest mono-perc products of each company.

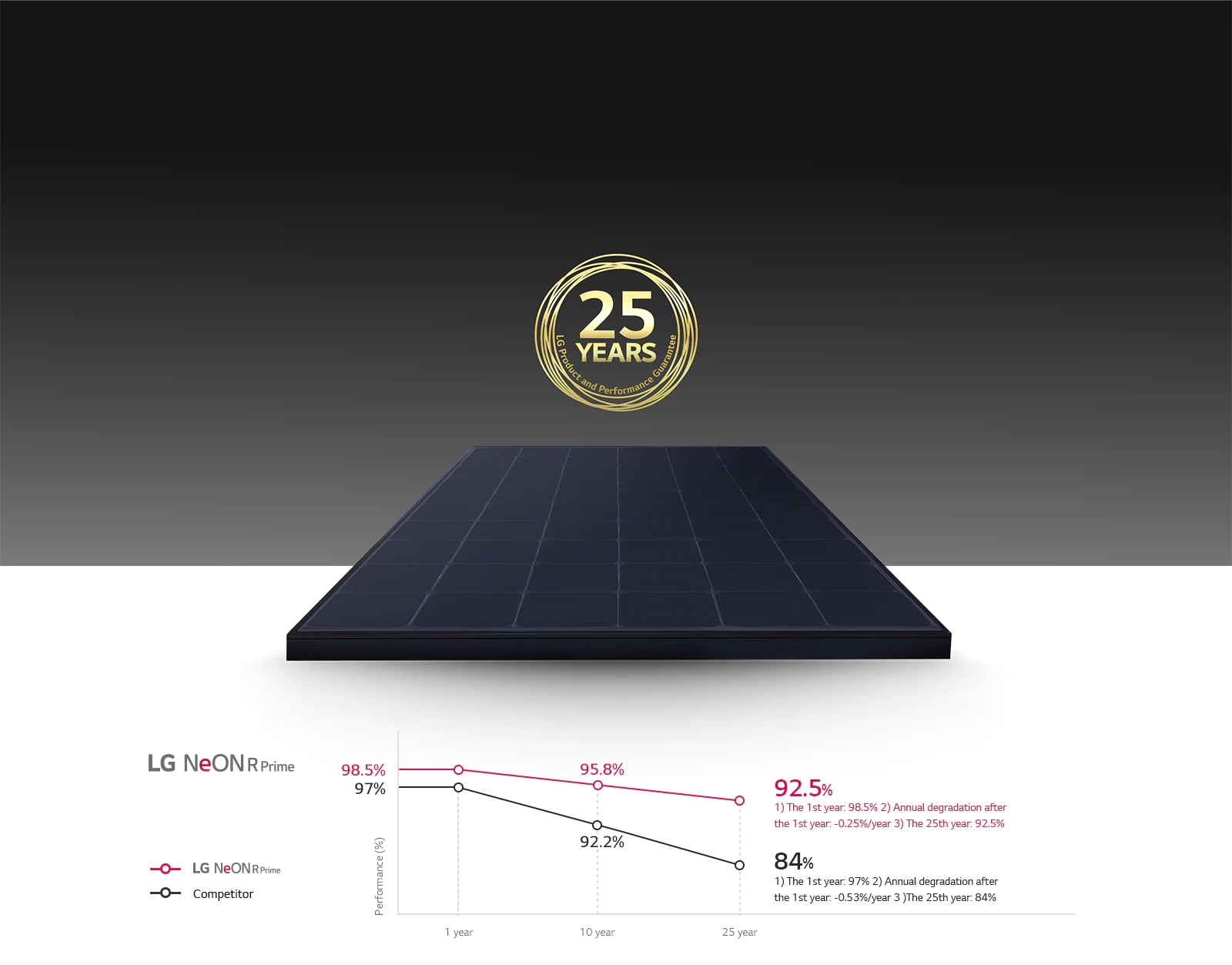

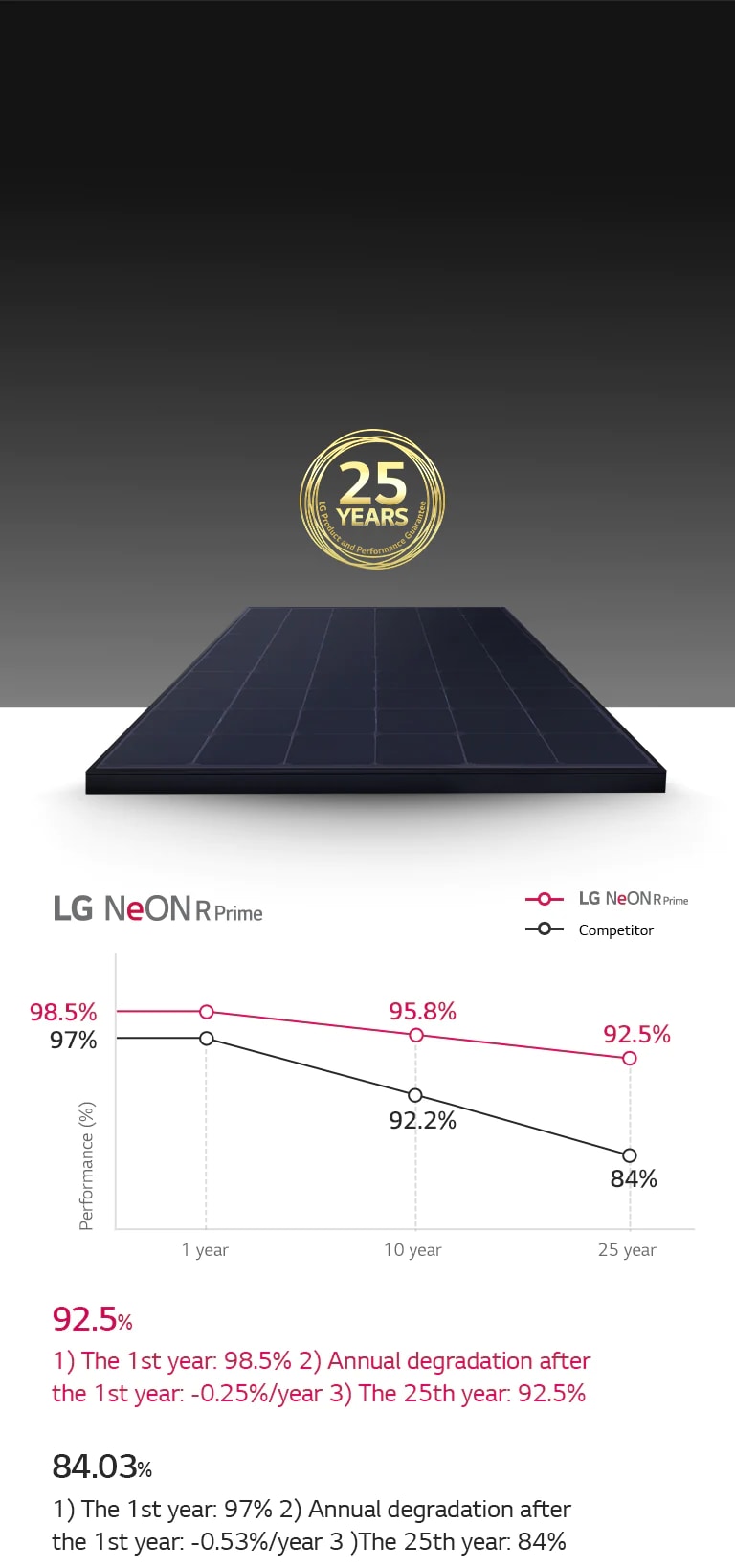

* LG NeON R Prime is clearly shown to perform at 92.5% at the end of the 25-year warranty period. Competitor products also perform equal to what is stated in their data sheets and warranty policies.

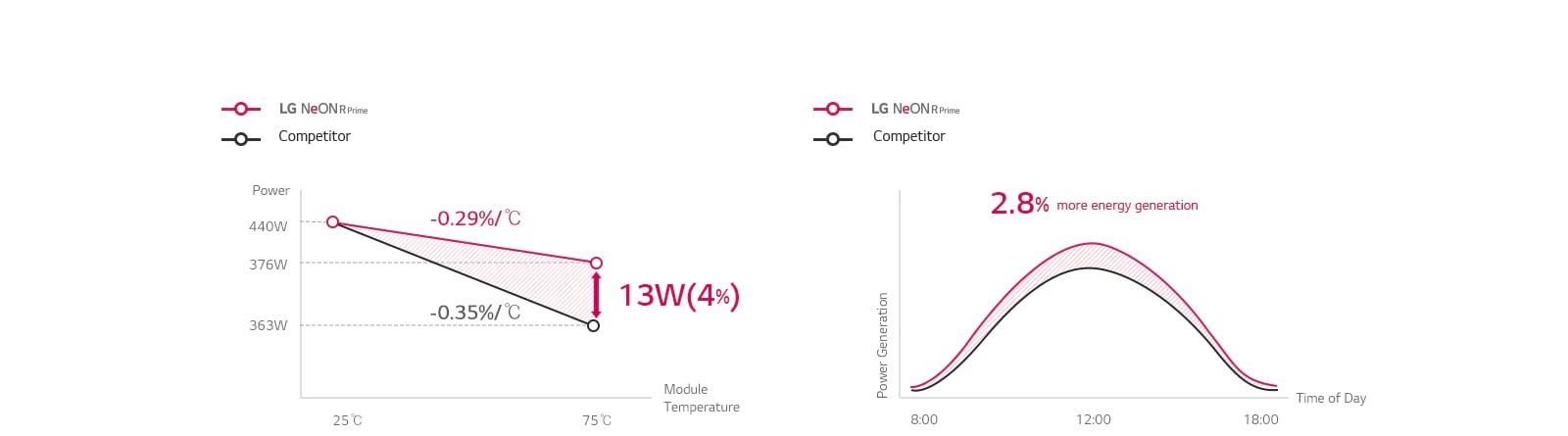

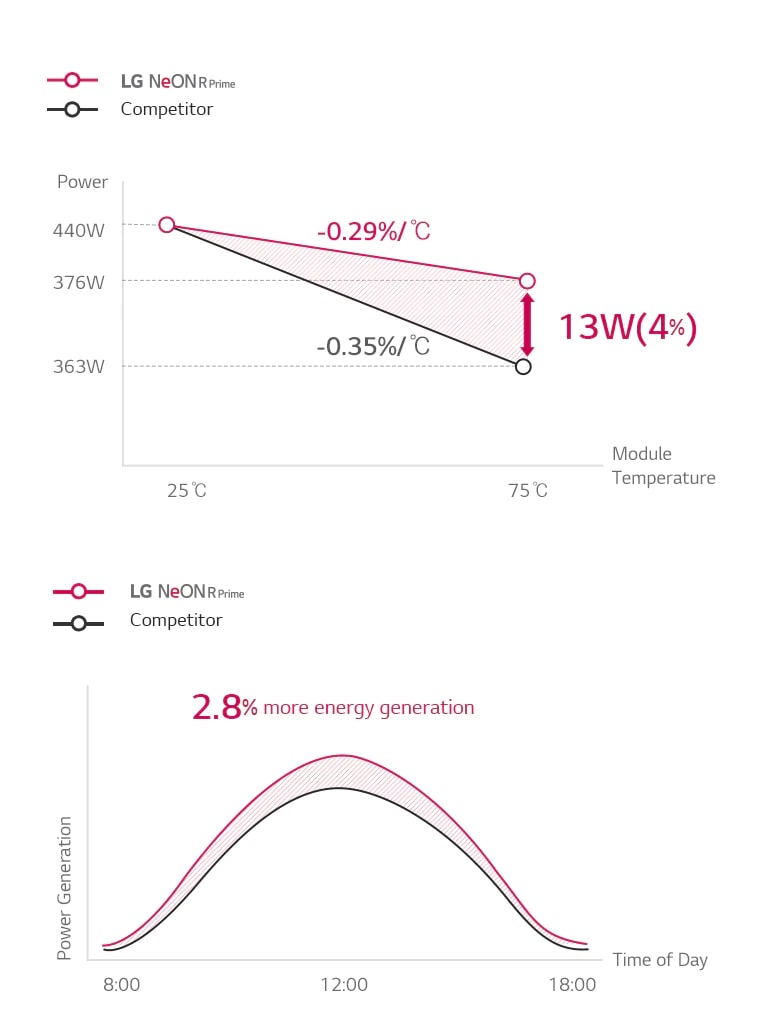

Better Output
throughout the Day

The performance of all solar modules decreases at higher temperatures.
LG NeON R Prime has a better temperature coefficient than competitors.
At a module temperature of 75 ℃ - normal during midday and afternoon when the sun is at its brightest– LG NeON R Prime produces 4% more electricity than a competitor.
Over the course of a full day, this can result in 2.8% more electricity from LG NeON R Prime.
Every bit helps!
Comparison graph for better output throughout the day Comparison graph for better output throughout the day

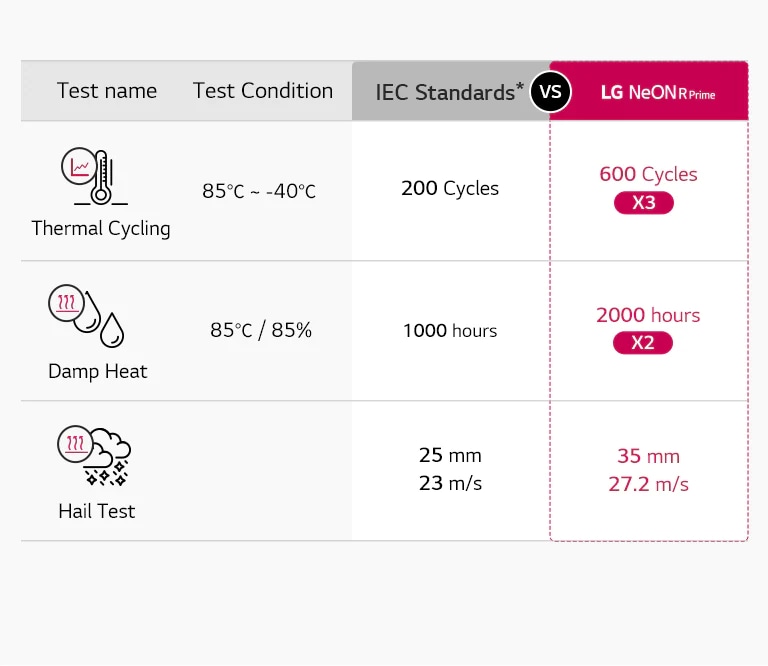

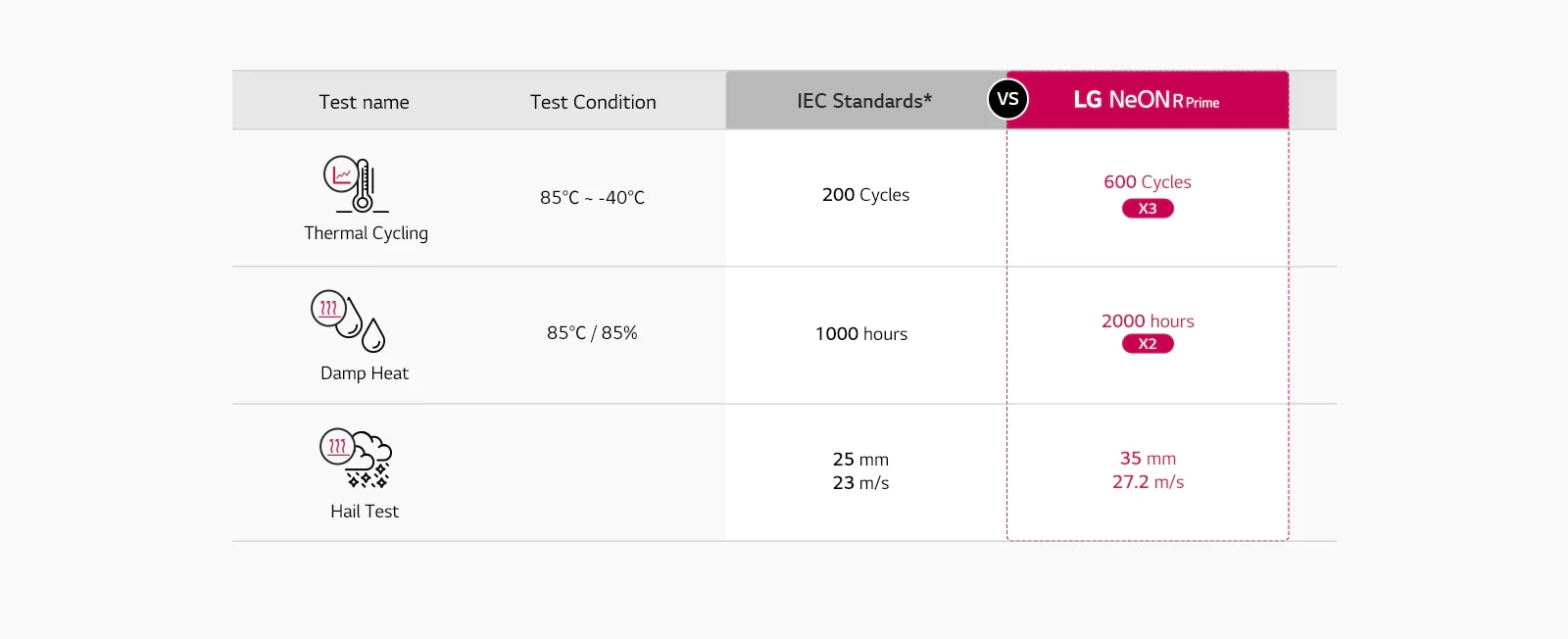

Strict Testing to Ensure
High Reliability

LG NeON R Prime is tested extensively to ensure high
long-term operating reliability in a diverse range of challenging environments.
Graphs showing rigorous testing and high reliability to ensure Graphs showing rigorous testing and high reliability to ensure
* = International Electrotechnical Commission
* Results are based on internal LG testing. International Electrotechnical Commission standards specify 200 cycles of thermal cycling testing and 1000 hours of damp heat testing.
ELECTRICAL PROPERTIES(STC*)
  • Maximum Power (Pmax) [W]
    375
    MPP Voltage (Vmpp) [V]
    37
  • MPP Current (Impp) [A]
    10.12
    Open Circuit Voltage (Voc, ± 5%) [V]
    43.4
  • Short Circuit Current (Isc, ± 5%) [A]
    10.84
    Module Efficiency [%]
    20.7
  • Power Tolerance [%]
    0 ~ +3
    *
    STC (Standard Test Condition) : Irradiance 1,000 W/m2, Cell temperature 25°C, AM 1.5, Measure tolerance of Pmax : ±3%
ELECTRICAL PROPERTIES(NMOT)
  • Maximum Power (Pmax) [W]
    284
    MPP Voltage (Vmpp) [V]
    35
  • MPP Current (Impp) [A]
    8.12
    Open Circuit Voltage (Voc) [V]
    41.4
  • Short Circuit Current (Isc) [A]
    8.74
GENERAL DATA
  • Cell Properties (Material / Type)
    Monocrystalline / N-type
    Cell Maker
    LG
  • Cell Configuration
    60 Cells (6 x 10)
    Module Dimensions (L x W x H)
    1,740 x 1,042 x 40 mm
  • Weight
    18.5 kg
    Glass (Material)
    Tempered Glass with AR coating
  • Backsheet (Color)
    Black
    Frame (Material)
    Anodized Aluminium

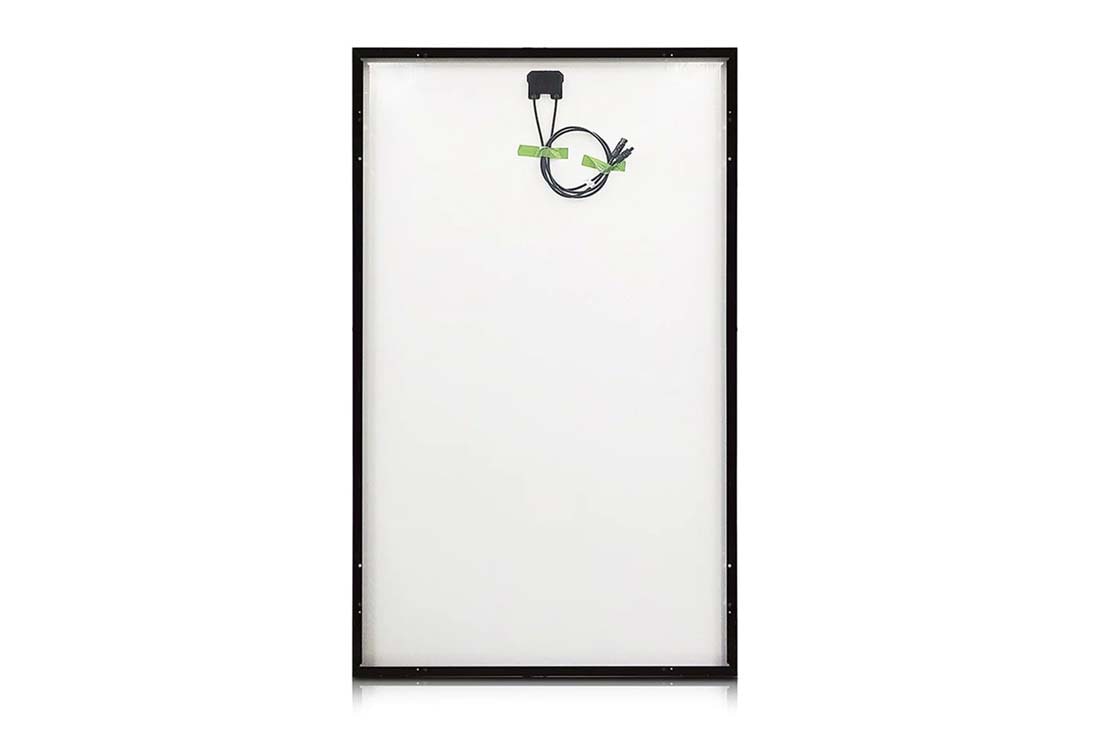

  • Junction Box (Protection Degree)
    IP 68 with 3 Bypass Diodes
    Cables (Length)
    1,250 mm x 2 EA
  • Connector (Type / Maker)
    MC4 / Stäubli
CERTIFICATIONS AND WARRANTY
  • Solar Module Product Warranty
    25 Years
    Solar Module Output Warranty
    Linear Warranty*
  • *
    1) First years : 98%, 2) After 1st year : -0.3%/year, 3) 90.8% for 25 years

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
