55EF5F-L component-copyModelName

Flexible Curved Open Frame

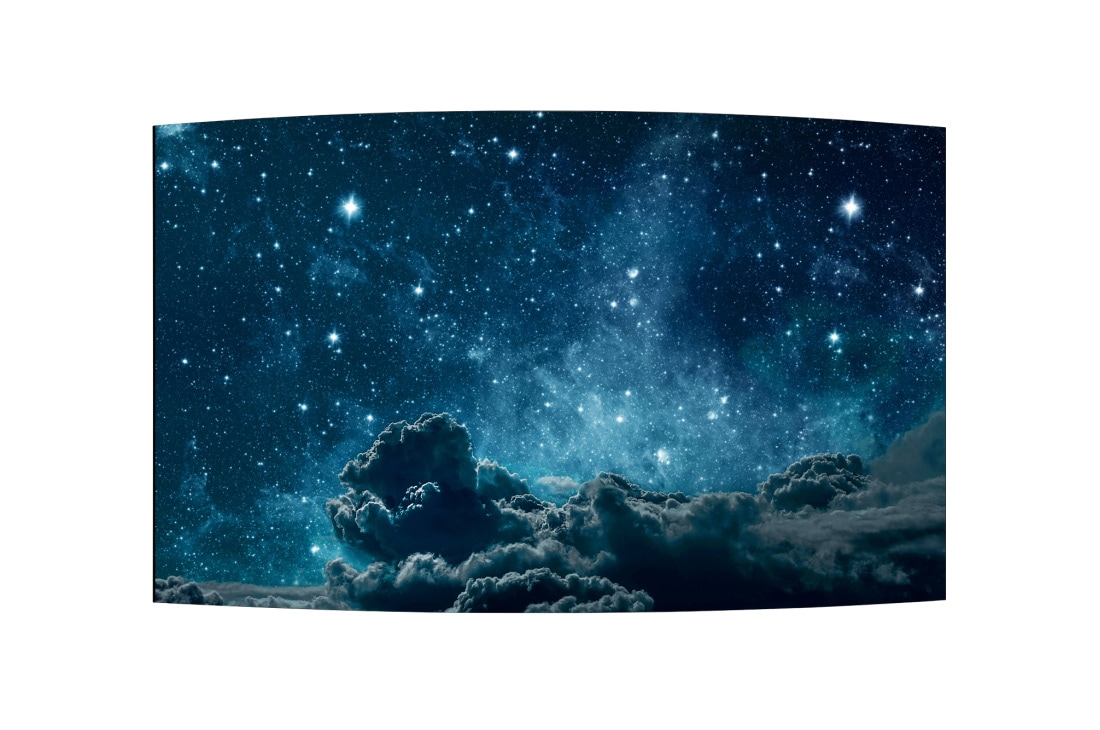

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 1

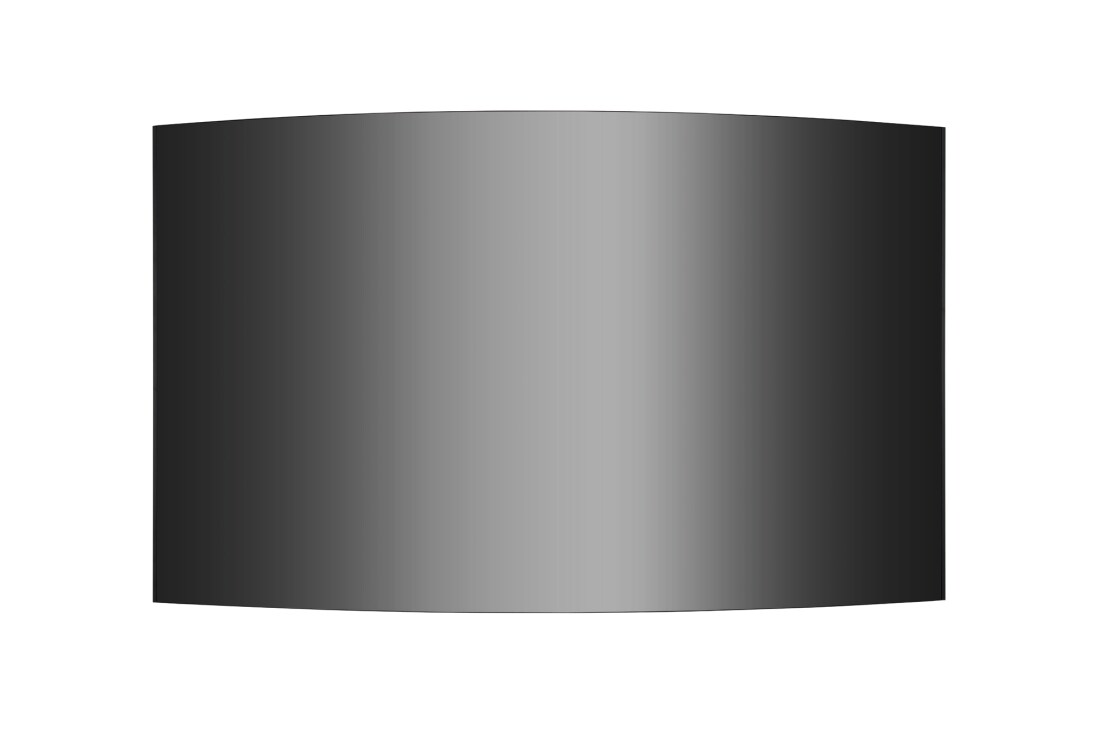

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 2

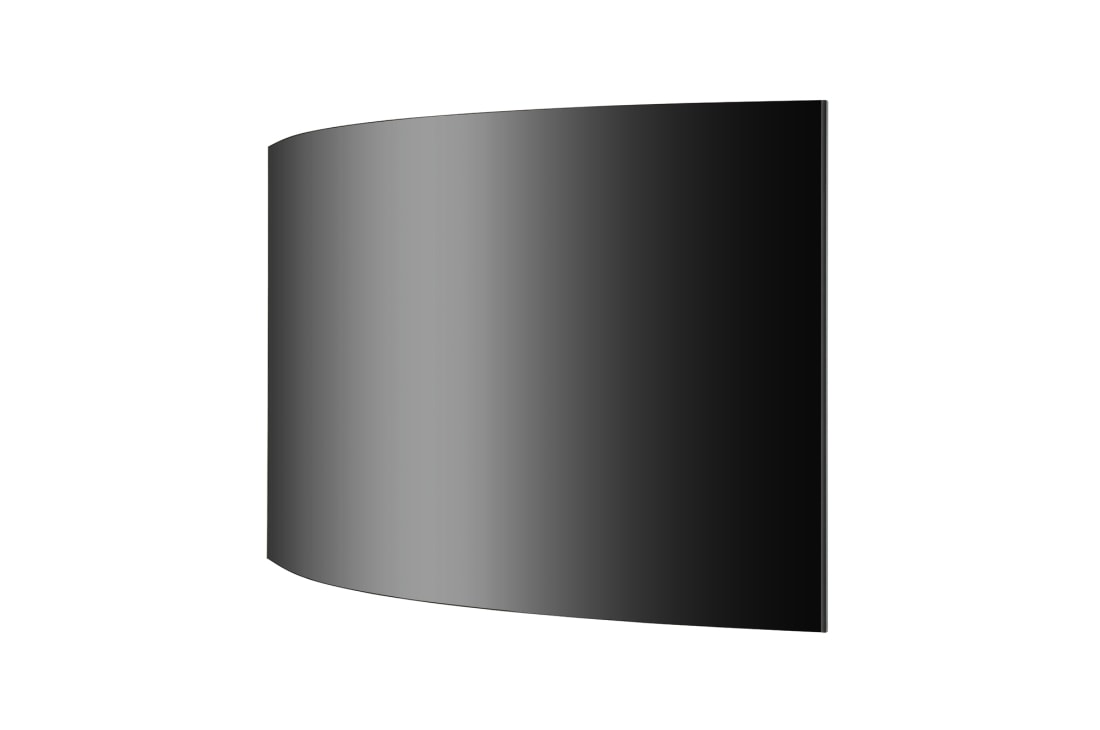

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 3

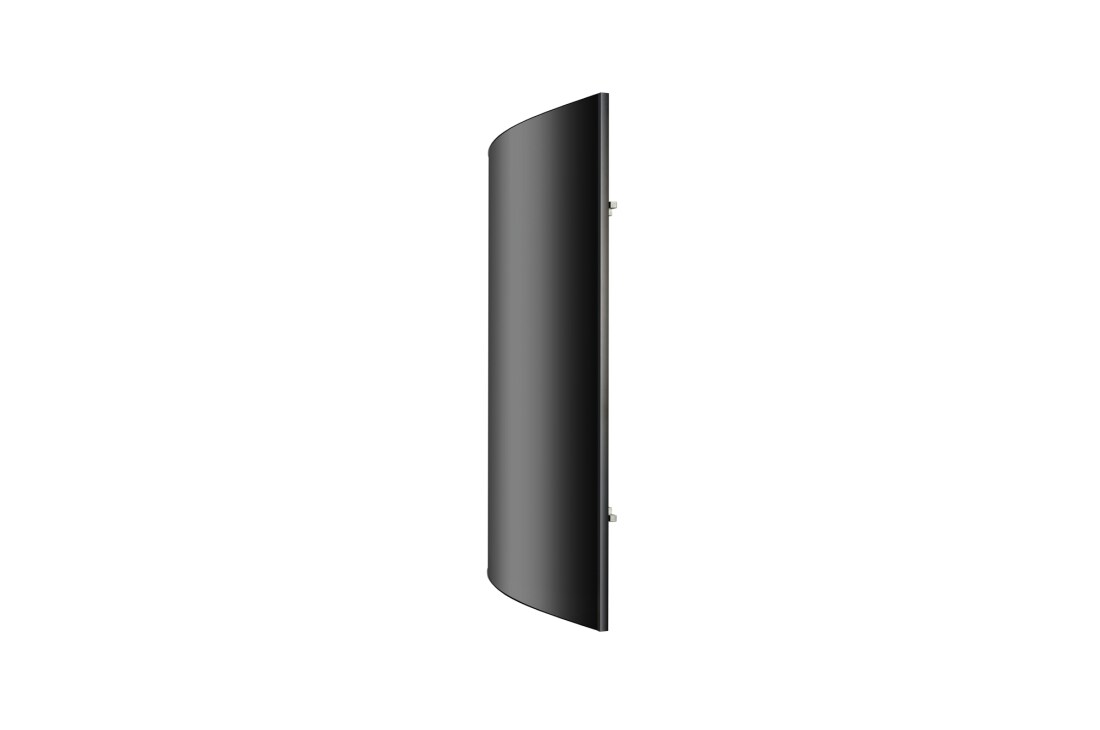

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 4

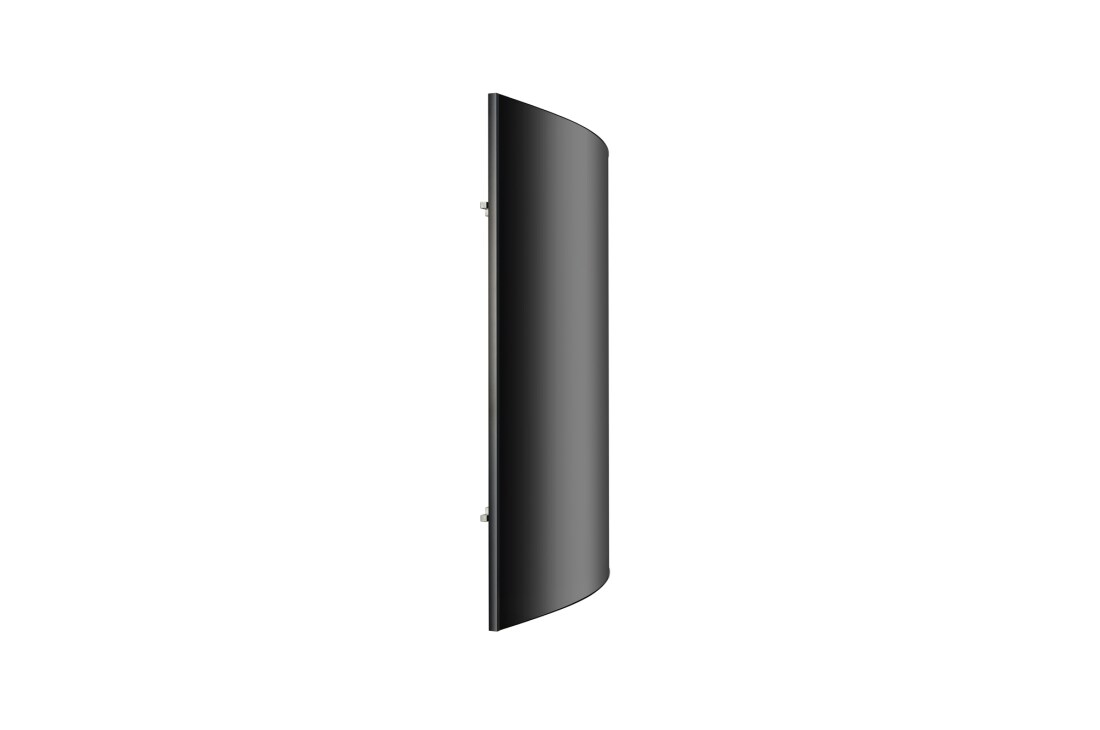

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 5

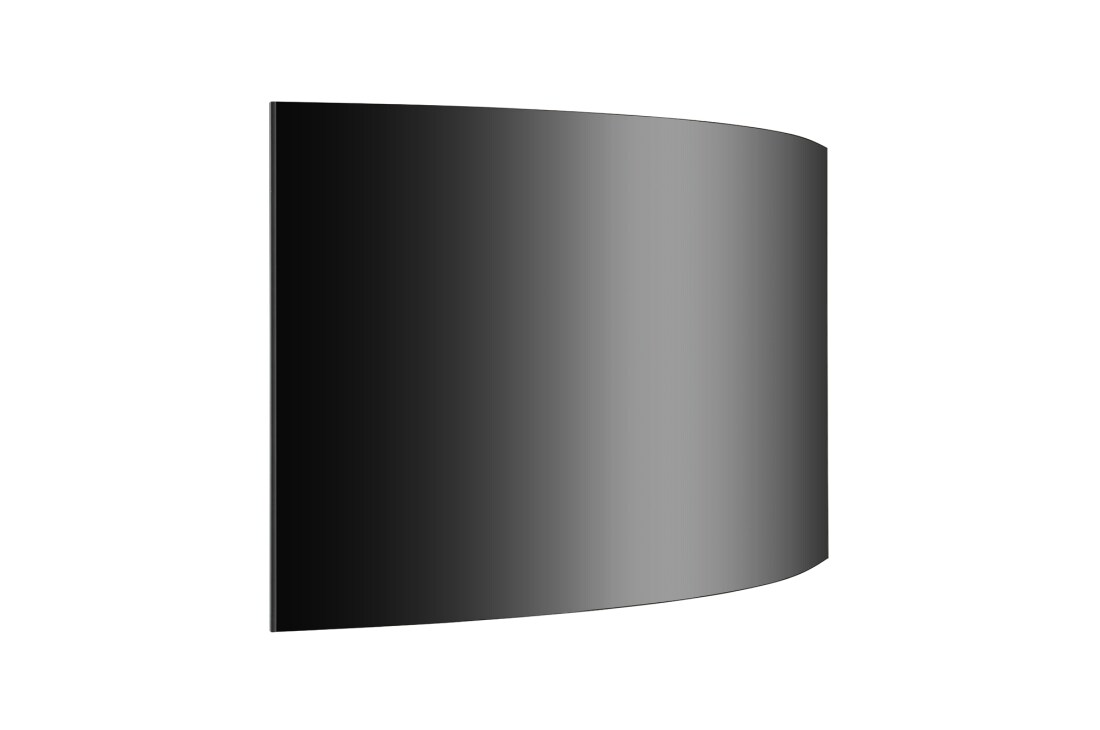

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 6

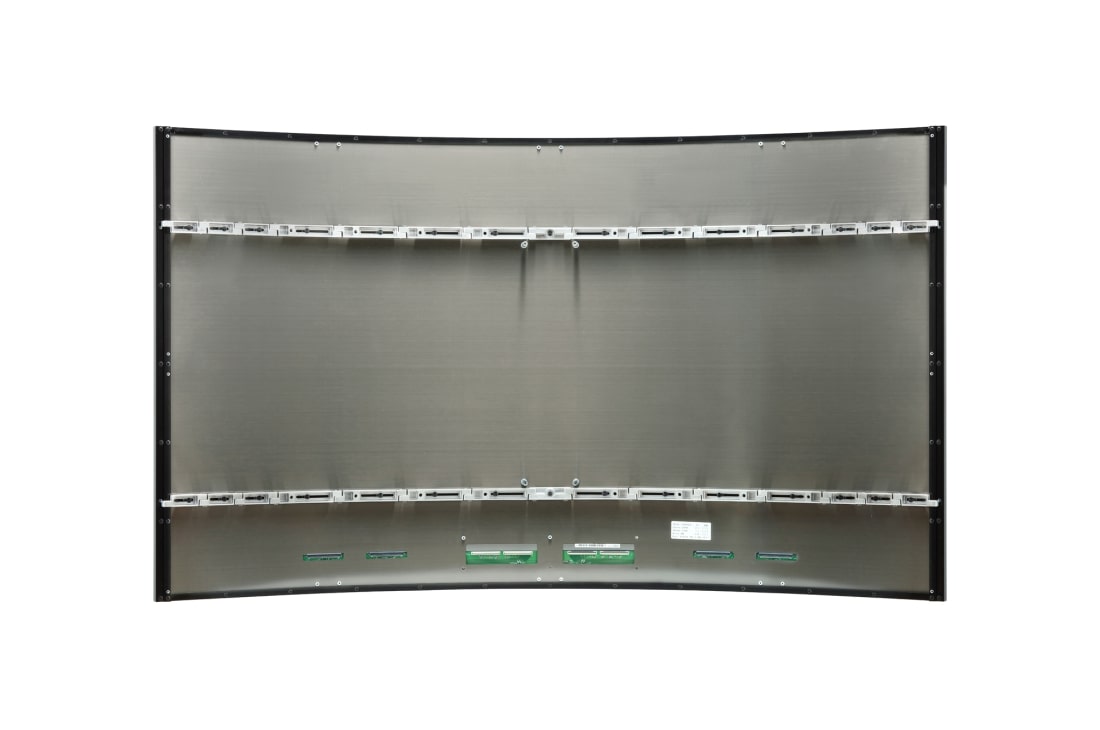

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 7

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 8

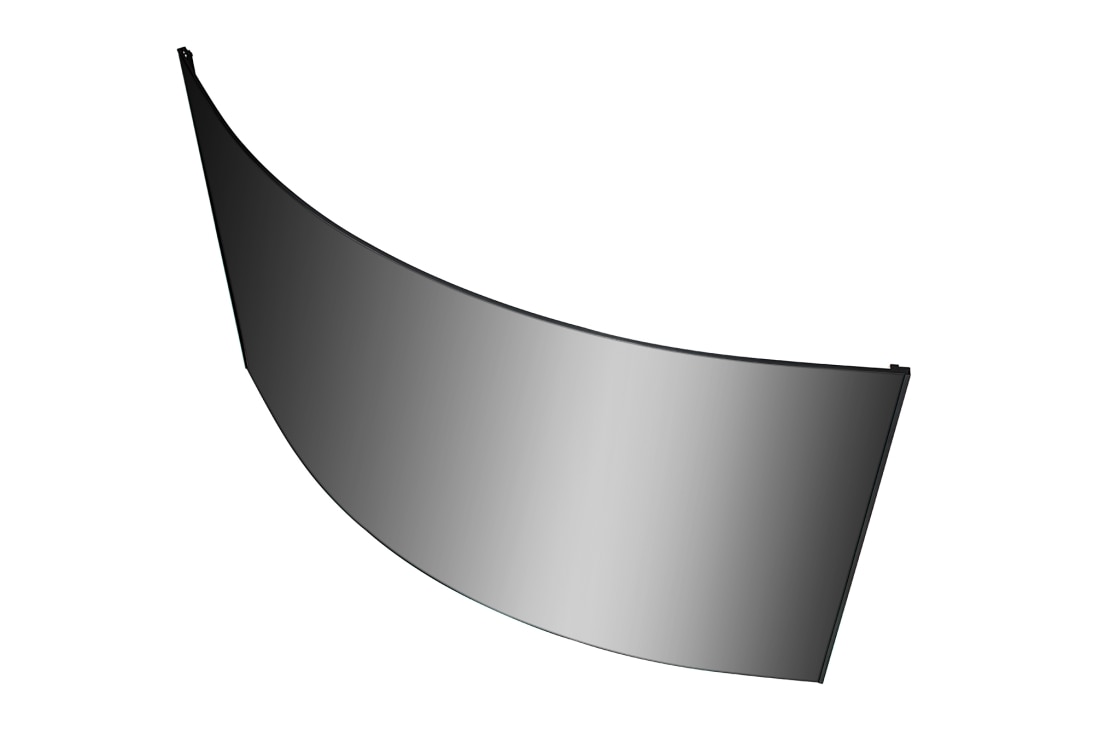

LG Flexible Curved Open Frame, 55EF5F-L, thumbnail 9

ADD TO WISHLIST

Discontinued

55EF5F-L component-copyModelName

Flexible Curved Open Frame

Name: Flexible Curved Open Frame
Brand: LG UAE
SKU: 55EF5F-L
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.): 400 cd/m² (Average Picture Level 25%)
Depth: 12.4 mm (Head Only)
Curvature: ~1,000R(Concave/convex)
Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 400 cd/m² (Average Picture Level 25%)
Depth: 12.4 mm (Head Only)
Curvature: ~1,000R(Concave/convex)
Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Flexible Curved Open Frame

Artistic Space beyond Display

Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.

UNRIVALED PICTURE QUALITY

Perfect Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

UNRIVALED PICTURE QUALITY

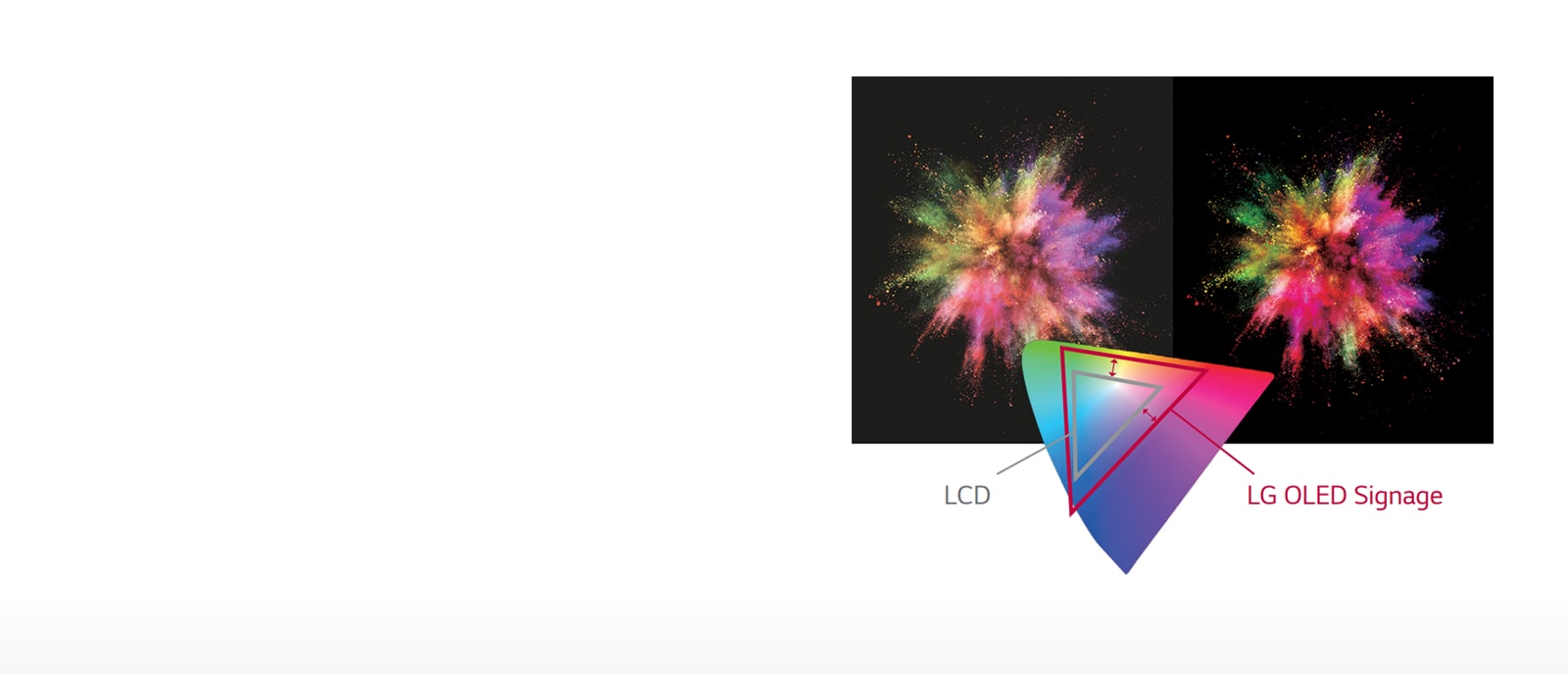

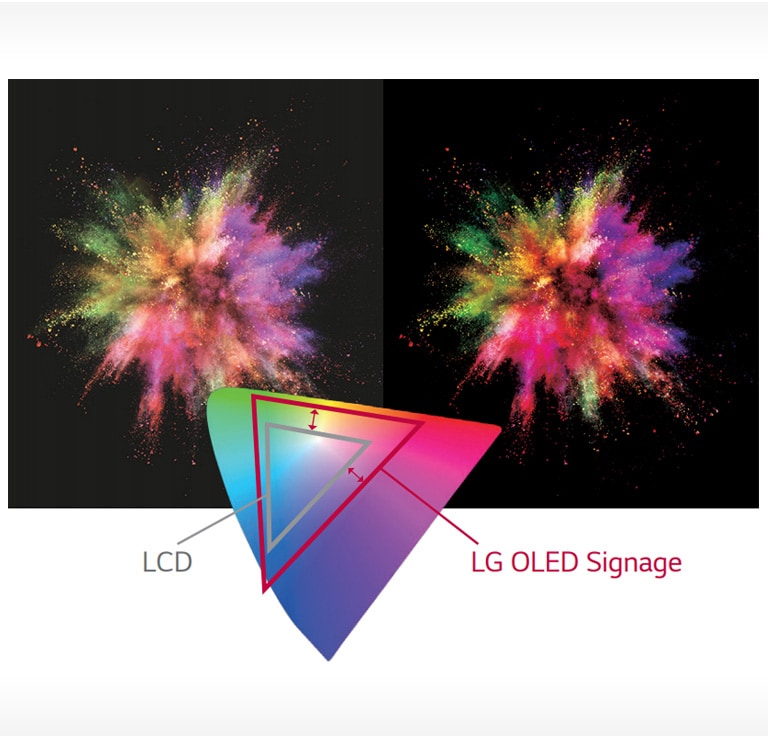

Perfect Color

LG OLED Signage provides richness in all colors, bringing colors to life with superb accuracy and vividness.

UNRIVALED PICTURE QUALITY

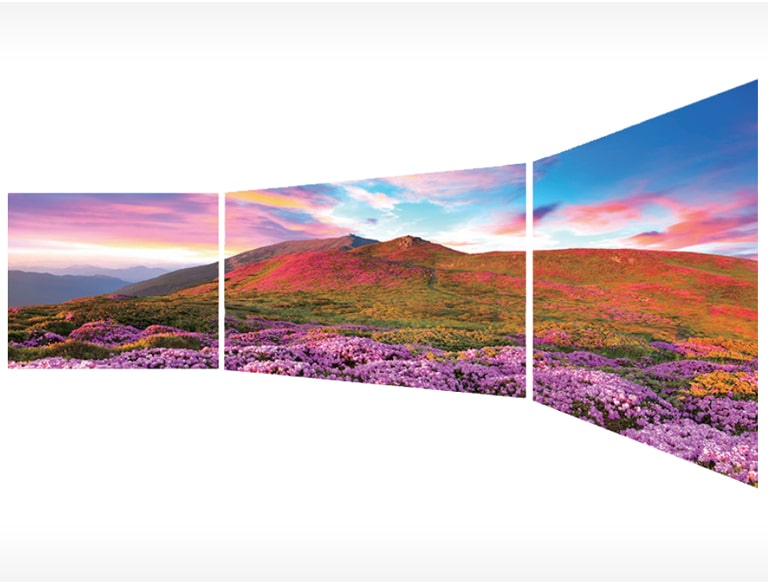

Perfect Viewing Screen

LG OLED Signage delivers its awe-inspiring picture quality and brightness even from wide viewing angles.

SPACE-FITTING DESIGN

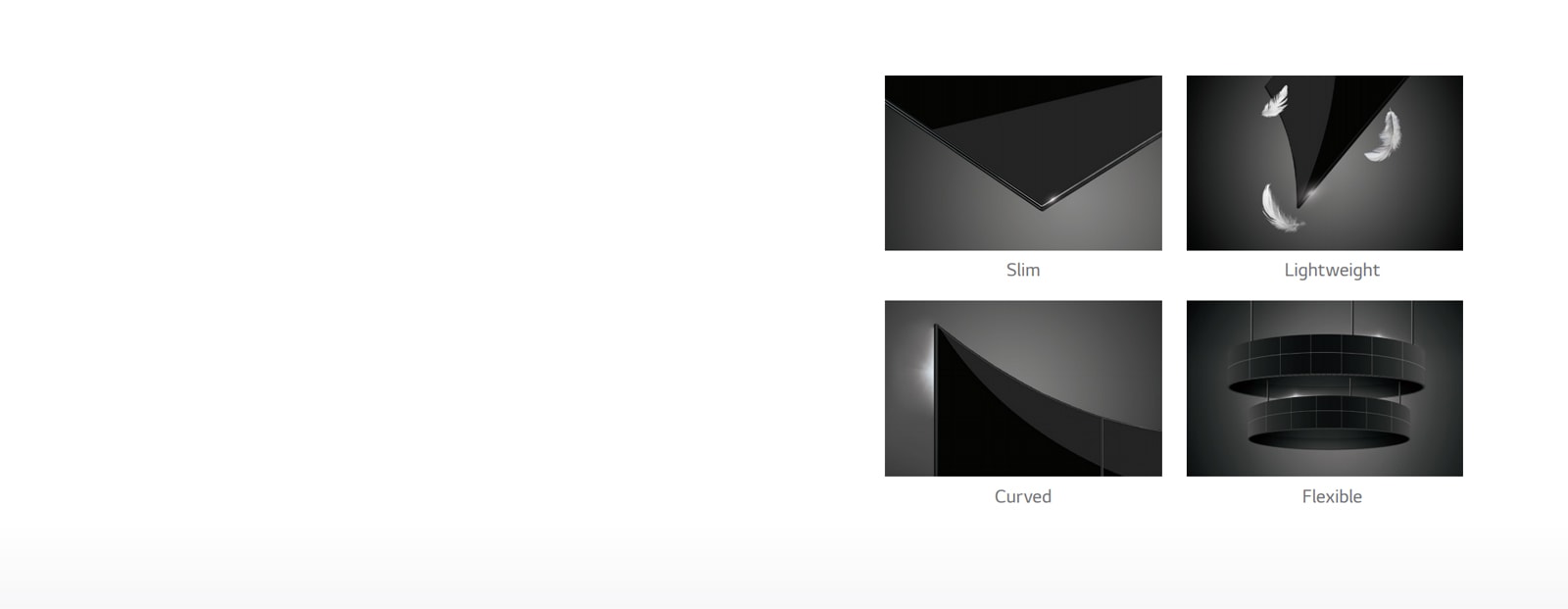

Perfect Design

LG OLED technology doesn't require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.

SPACE-FITTING DESIGN

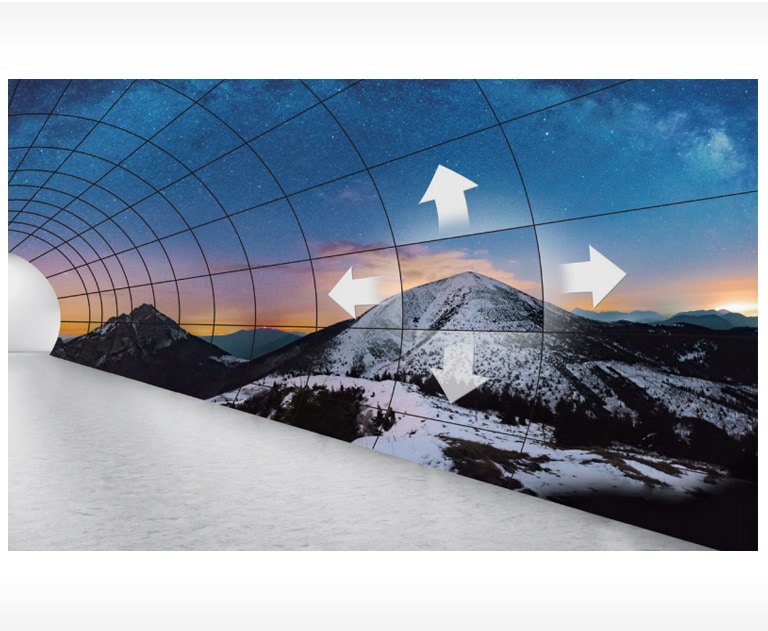

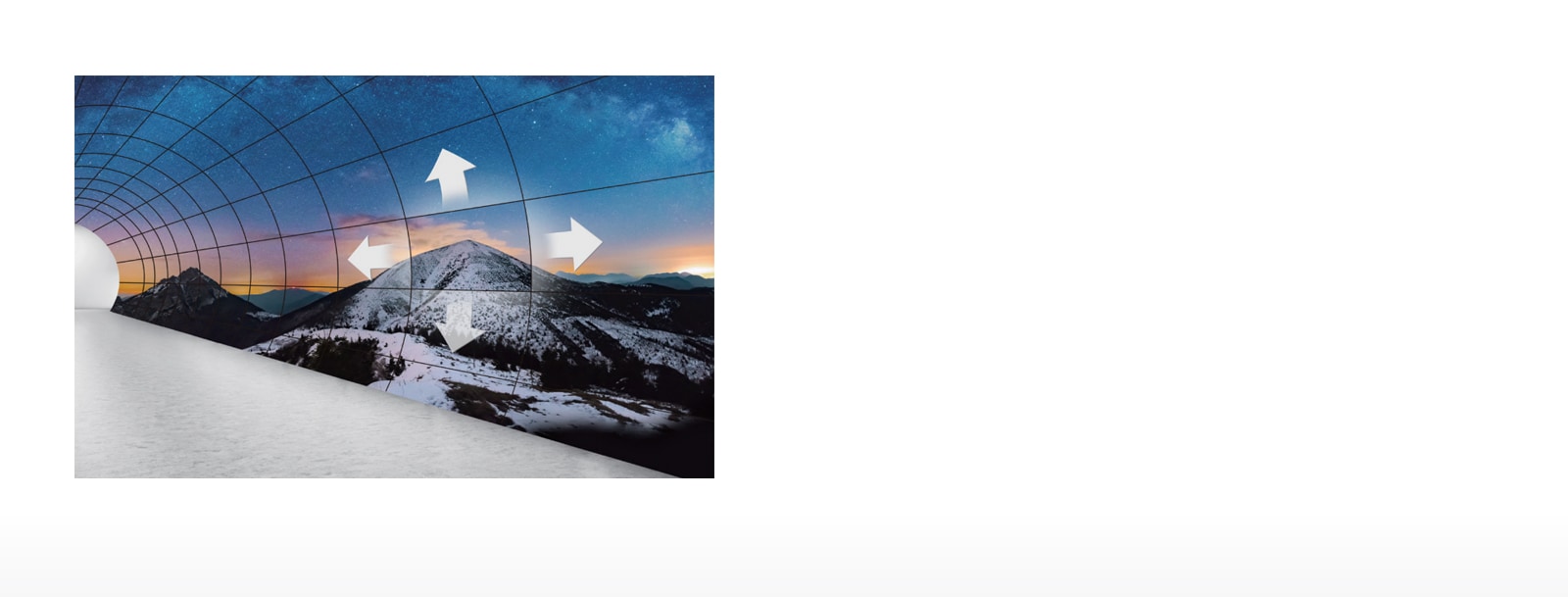

Expandable Screen Size

The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.

DESIGN FLEXIBILITY

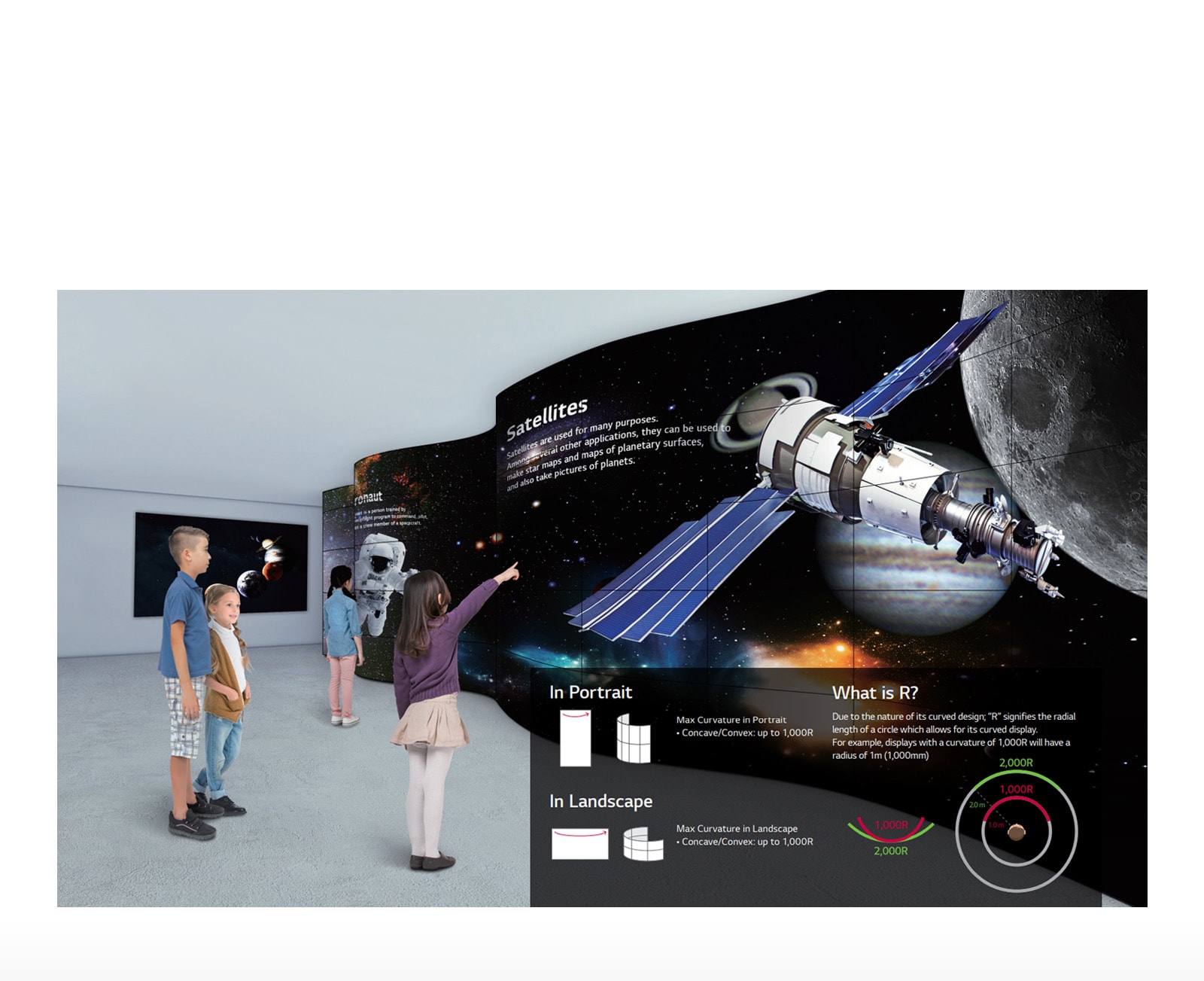

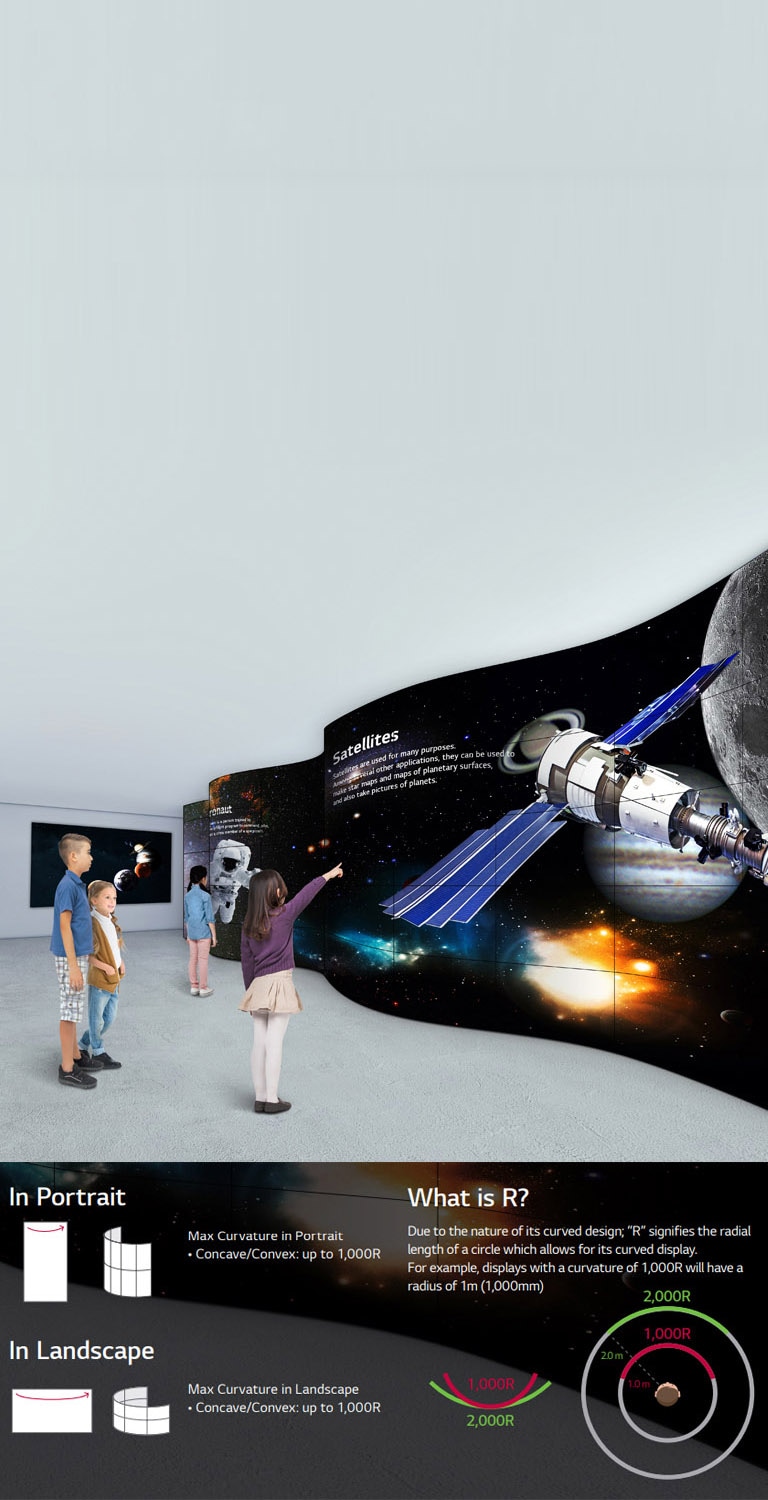

Variety of Curvature for Landmarks

The 55EF5F series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.

DESIGN FLEXIBILITY

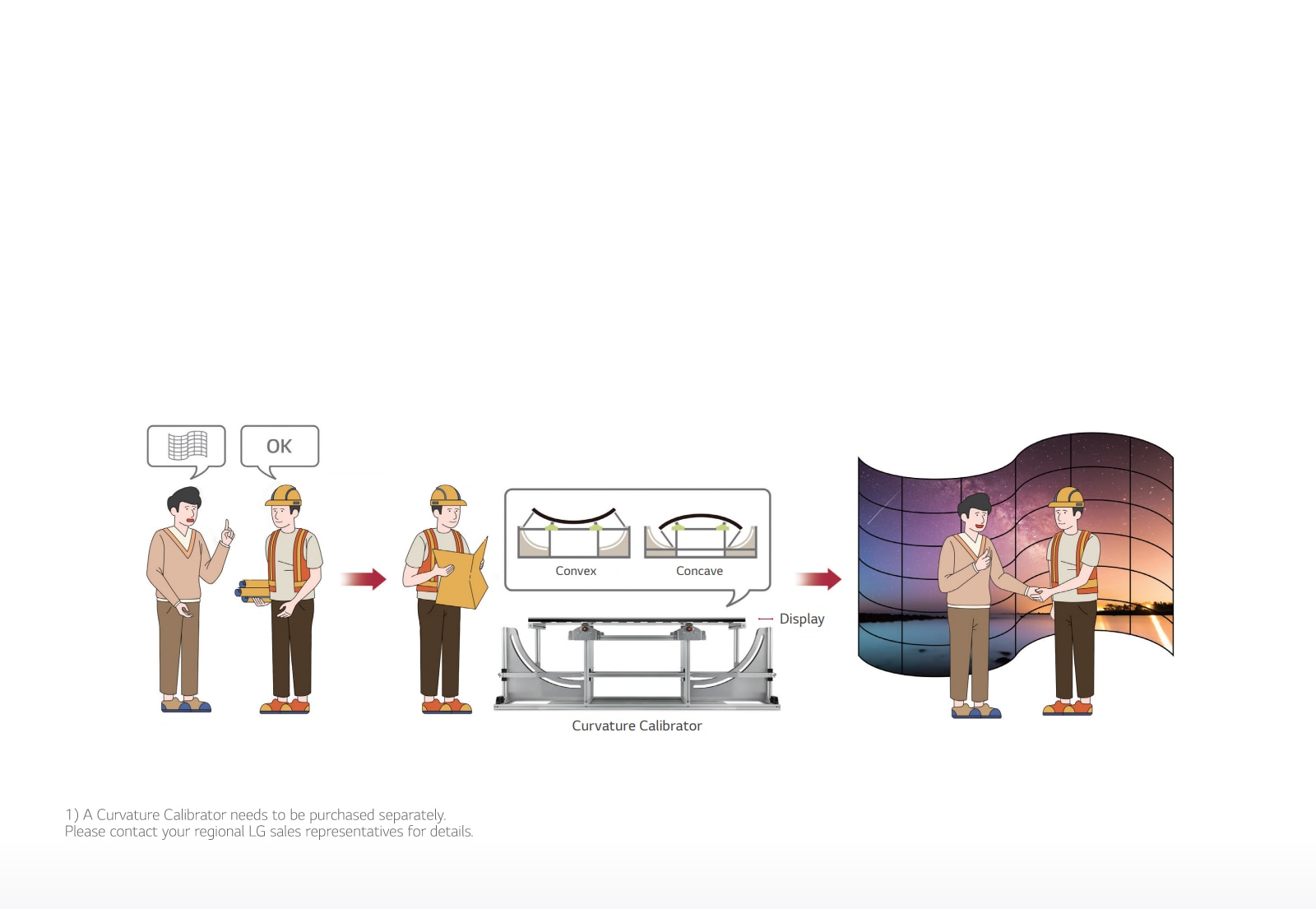

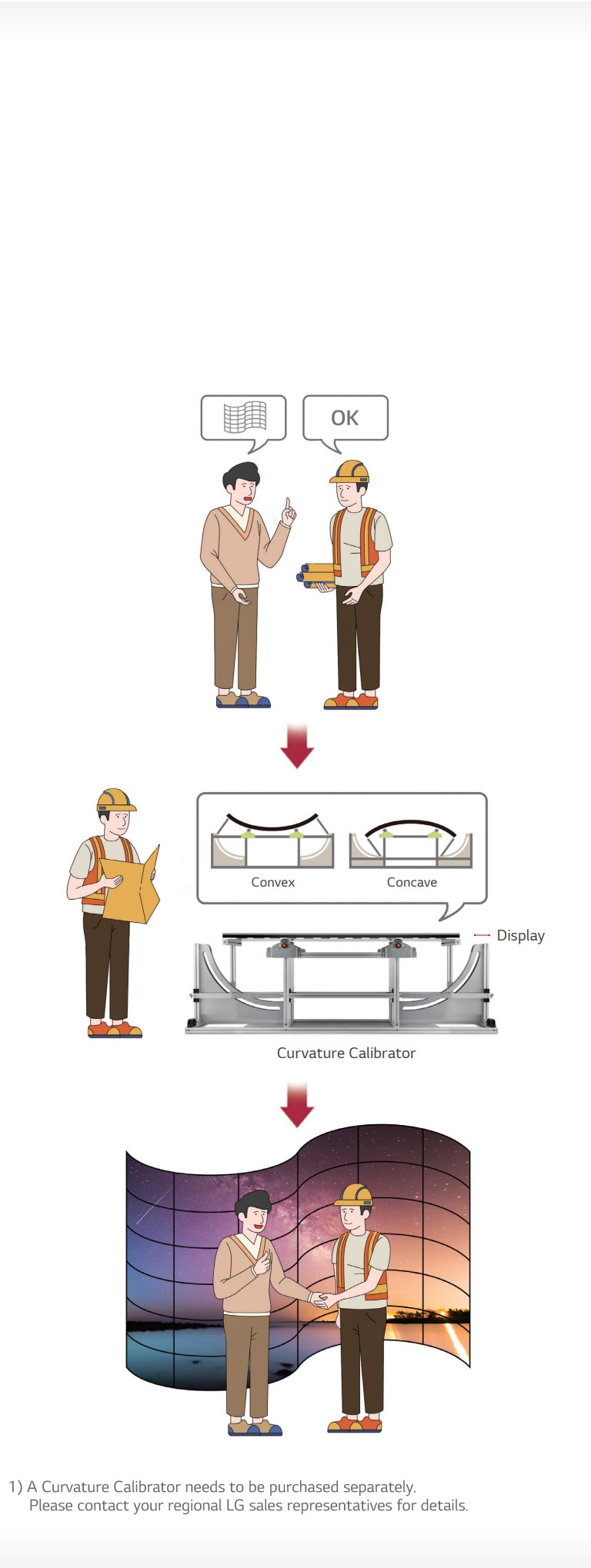

On-site Customization

The 55EF5F series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)¹⁾" supports the coordination of displays with various convex and concave curvature, depending on the requirements.

EXCELLENT PERFORMANCE

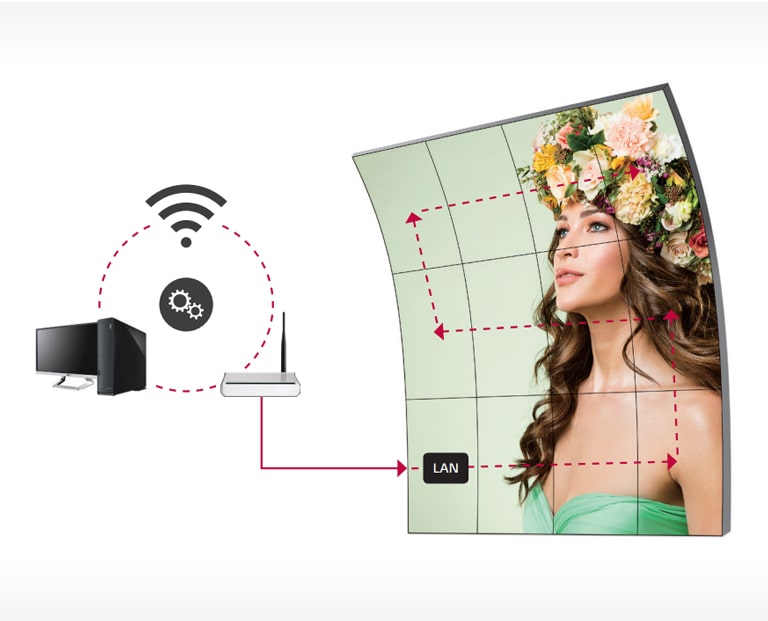

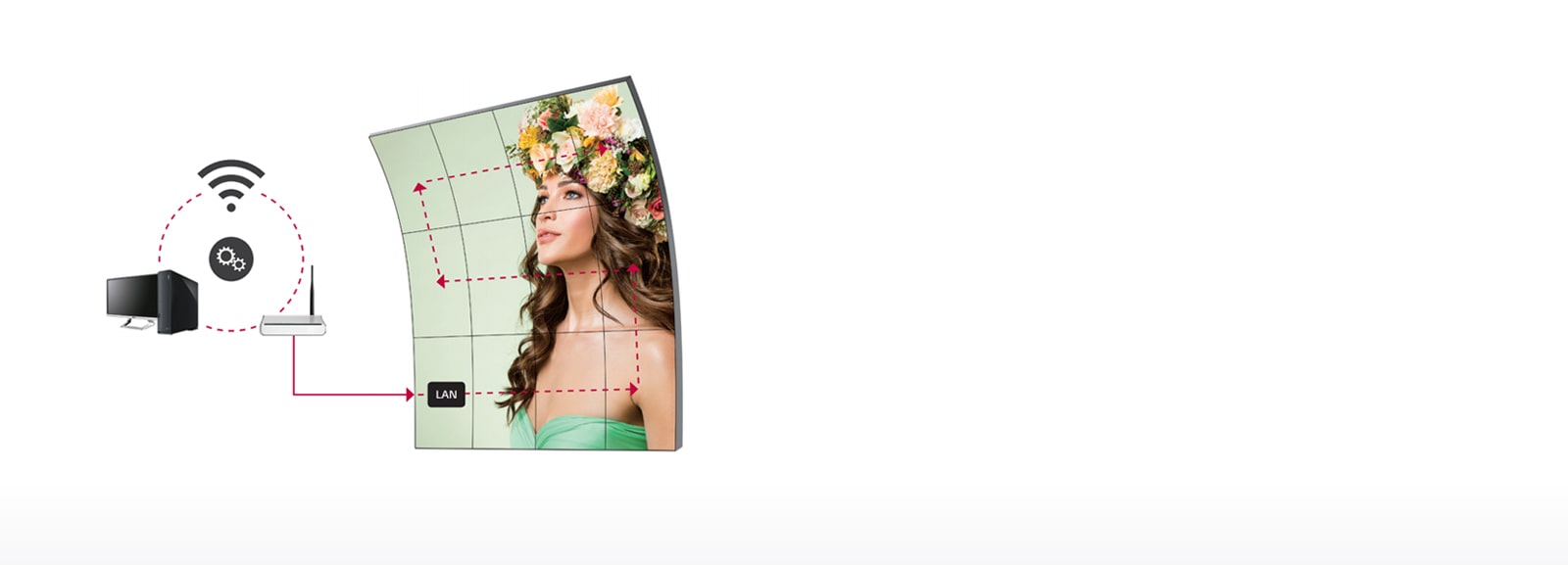

LAN Daisy Chain Management

The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.

EXCELLENT PERFORMANCE

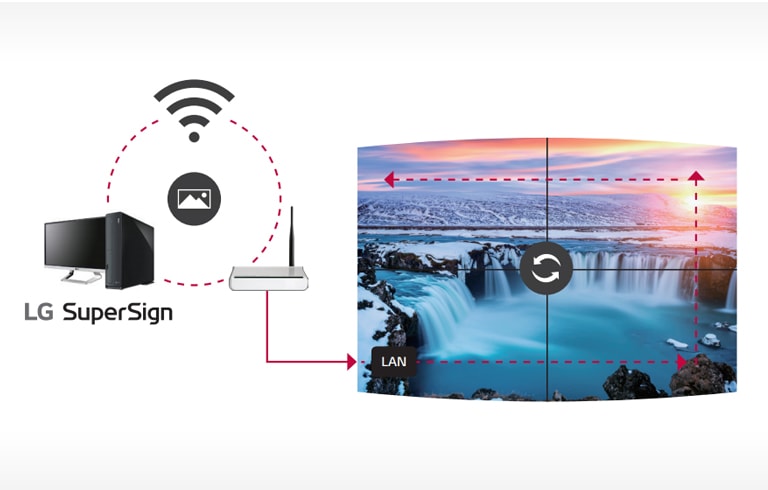

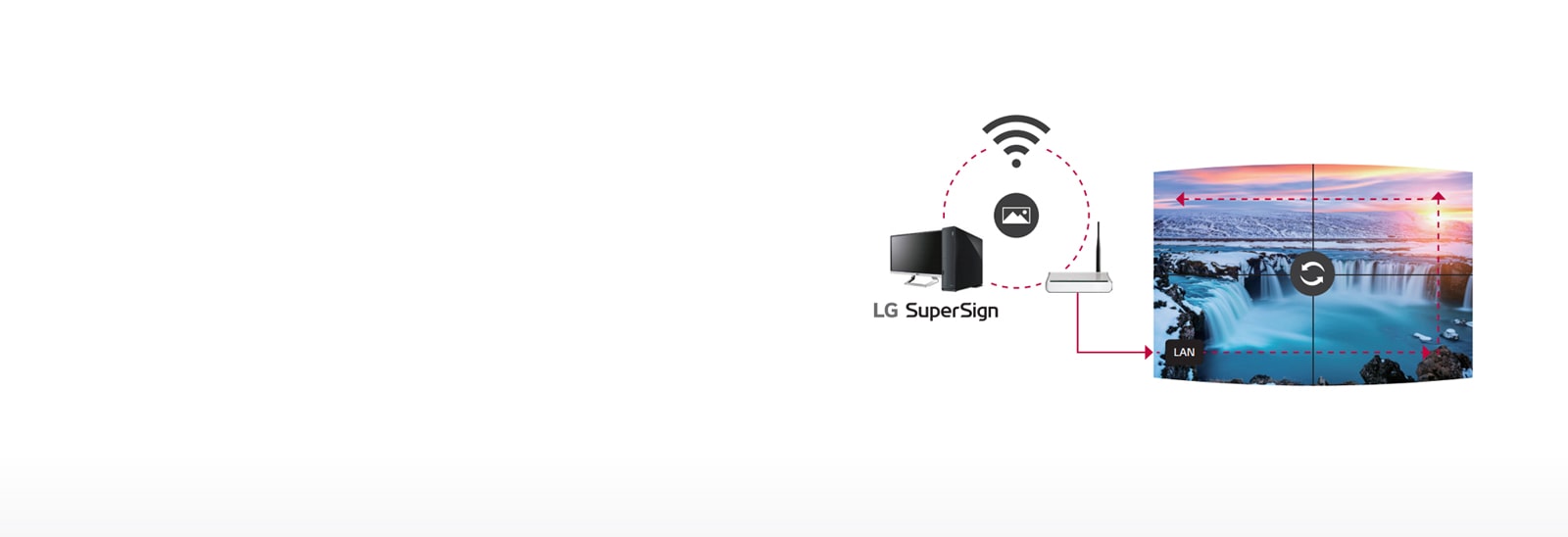

Synced Playback

Through its built-in high performance SoC, each display plays its video tile without lag for synchronized content playback.

PANEL

Screen Size

55"

Panel Technology

OLED
Aspect Ratio

16 : 9

Native Resolution

1,920 x 1,080 (FHD)
Brightness (APL25%, Typ., cd/m²)

400

Brightness (APL100%, Typ., cd/m²)

150
Contrast Ratio

150,000 : 1

Viewing Angle (H x V)

178 x 178
Life Time (Typ.)

30,000 Hrs

Operation Hours

18 Hrs / 7 Days (Moving Video Only)
Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI, DP, USB 2.0 (2)

Output

DP, Audio (Fixed/Off/Variable)
External Control

RS232C In/out, RJ45 In/out, IR In

PHYSICAL SPECIFICATION

Bezel Width (T/B/L/R)

0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)
5.0 / 10.6 / 7.6 / 7.6 mm (Flat, On Bezel)

Monitor Dimension (W x H x D)

1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut)
1,224.9 x 696.2 x 12.4 mm (Head Only)
Signage Box: 413 x 353 x 57.3 mm
Weight

6.6 kg (Head)
Signage Box: 3.5 kg

Carton Dimensions (W x H x D)

1,350 x 837 x 250 mm
Packed Weight

17 kg (Head)

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power
Power Consumption (Typ. / Max.)

309 W / 318 W (Based on 8 color bar)

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC
ErP / Energy Star

Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+ / Control
Signage365Care

Yes

ACCESSORIES

Basic

Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)

Optional

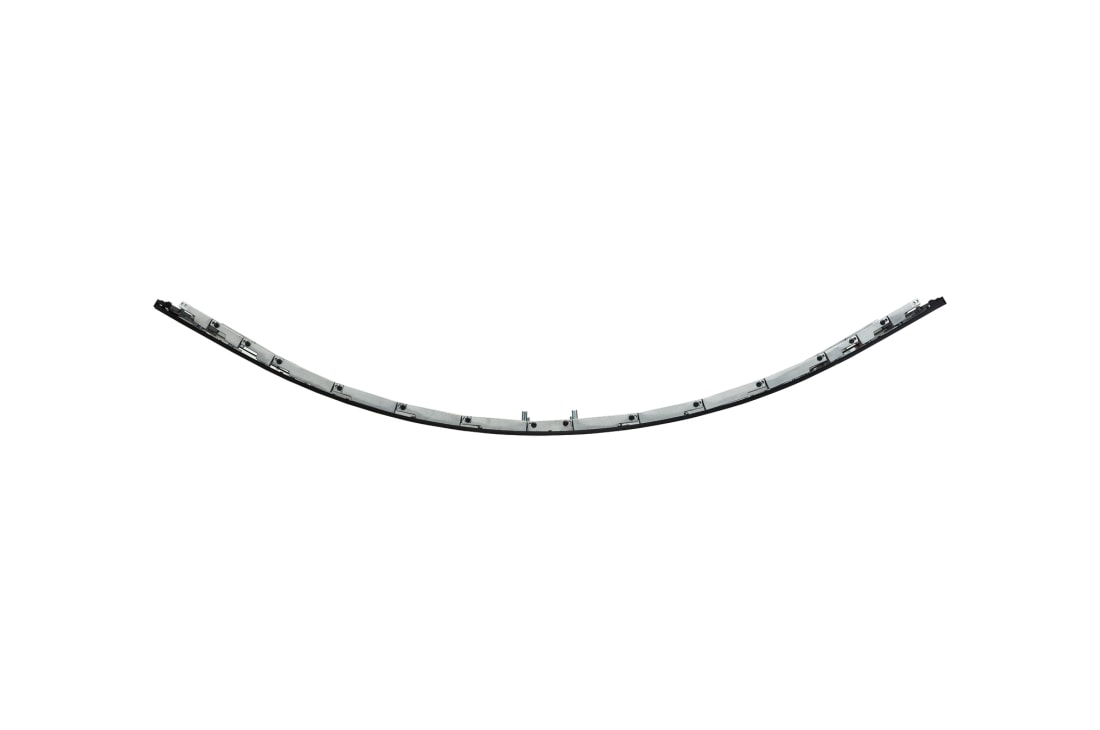

Curvature Calibrator (ACC-CC-EF5E)
