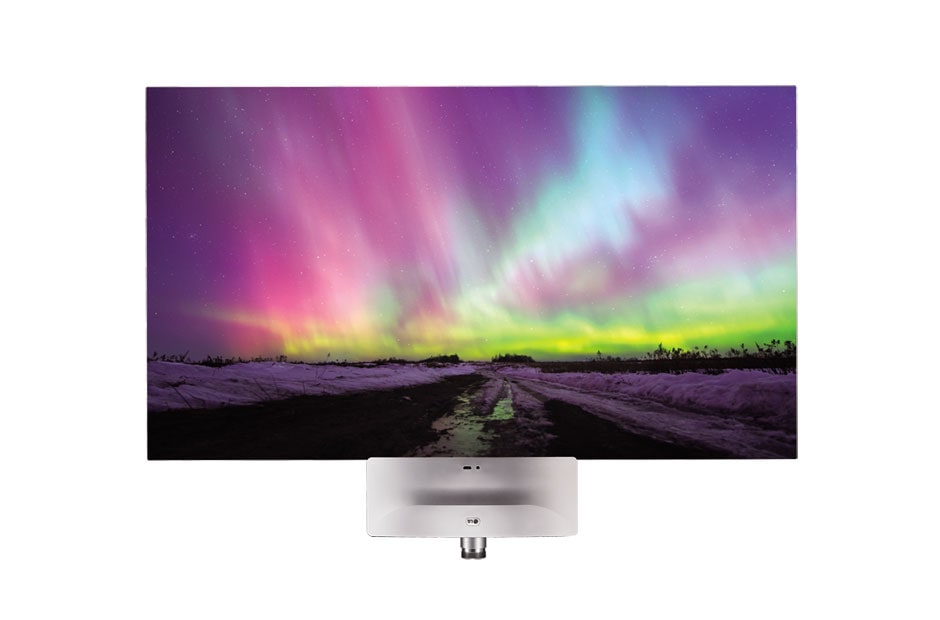

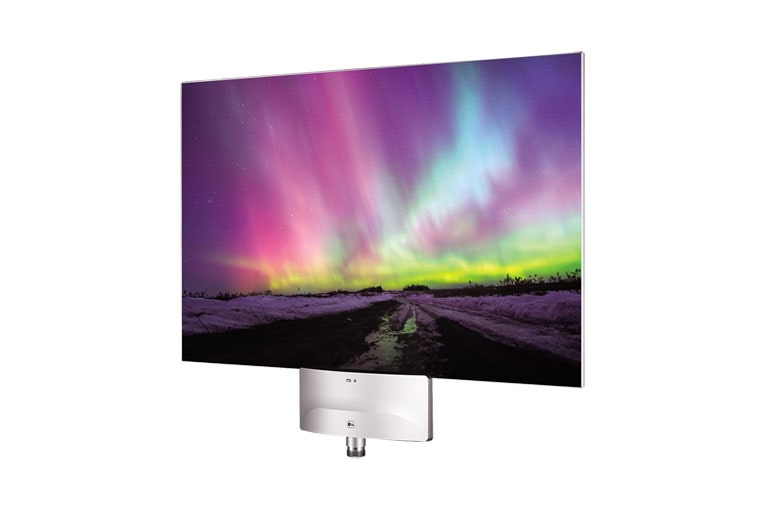

55'' Dual-View Flat OLED Signage

Key Features

component-OBScountrySelectDesc

55" Dual-View Flat OLED Signage
PANEL
  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    100/400 cd/m2 (APL 100 % / 25 %) * Average Picture Level
CONNECTIVITY
  • Input
    HDMI (1+1), DP (1+1), DVI-D (1+1)
    Output
    Audio (1+1)
  • External Control
    RS232C (1+1), RJ45 (1+1), IR Receiver, USB 2.0 (2), USB 3.0 (2)
PHYSICAL SPECIFICATION
  • Bezel Width
    2, 2, 2, 2 mm (U, B, L, R *Off-bezel)
    Dimension (W x H x D)
    Head : 1,227.6 x 702.7 x 7.94 mm (Edge depth : 8.94 mm), Signage Box : 470.1 x 402.8 x 75 mm
  • Weight (Head)
    21 kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    375 W
    DPM
    3 W
  • Power off
    0.5 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes / NA
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    External Media Player Attatchable
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
ACCESSORY
  • Basic
    Remote Controller (included 2ea batteries), Power Cord, QSG, Mini HDMI Cable (3M x 2ea, for connection between head and signage box), Power Hanness Cable (3M x 2ea, for connection between head and signage box), Regulation Book, Phone to RS232C Gender, Jack Cover, Signage Box Mounting Bracket
    Optional
    OPS Kit (KT-OPSA), Fixed Ceiling Mount Kit (ACC-CF-EH5C), Rotational Ceiling Mount Kit (ACC-CR-EH5C), Wall Mount Kit (ACC-W-EH5C), Stand Kit 1 (ACC-S-EH5C), Stand Kit 2 (ACC-S1-EH5C), Signage Box Cover (ACC-C-EH5C)
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
