Flat OLED Signage
  • Brightness(Typ.): 400 cd/m² (APL 25%)
  • Bezel: 0.9 mm (Even, Off bezel)

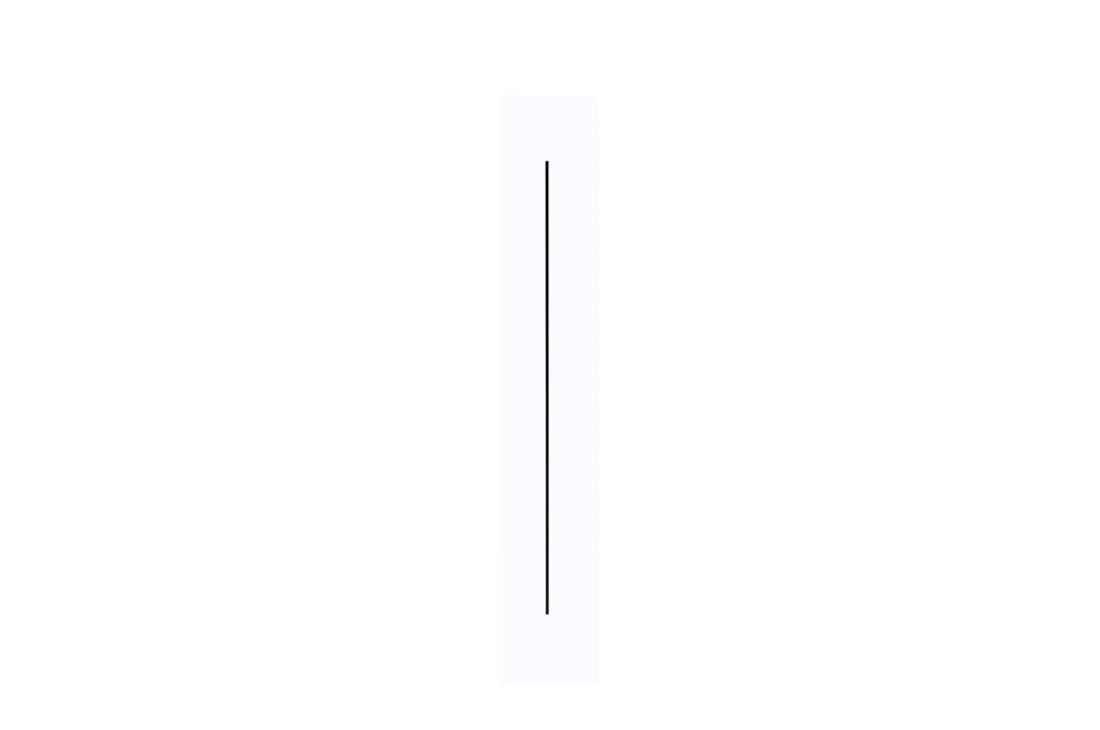

  • Depth: 4.9mm (Head)
  • Interface: HDMI/ USB 2.0(2)/ DP/ Audio Out/ RS232C/ RJ45/ IR

component-OBScountrySelectDesc

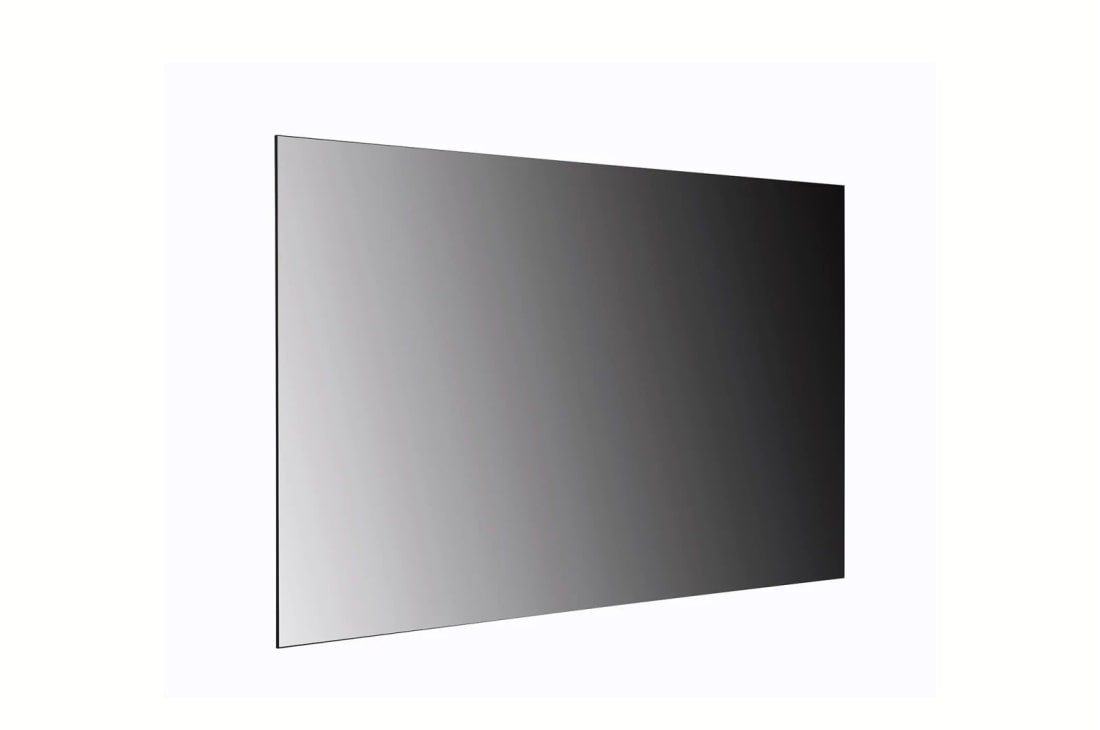

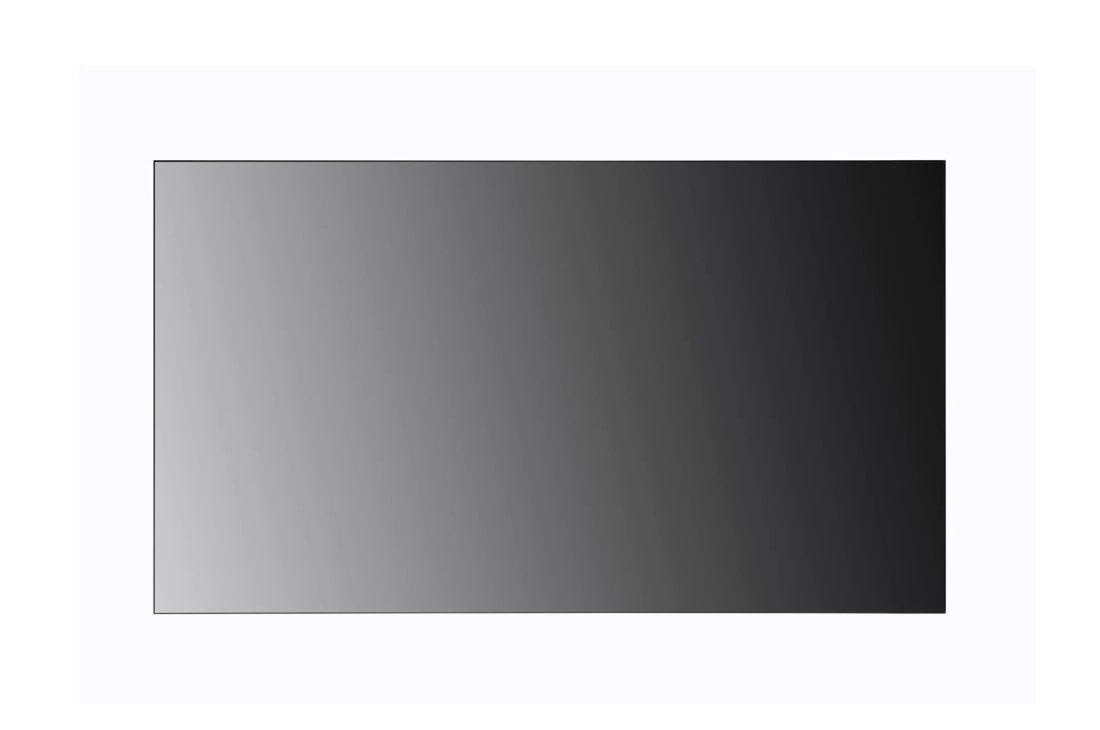

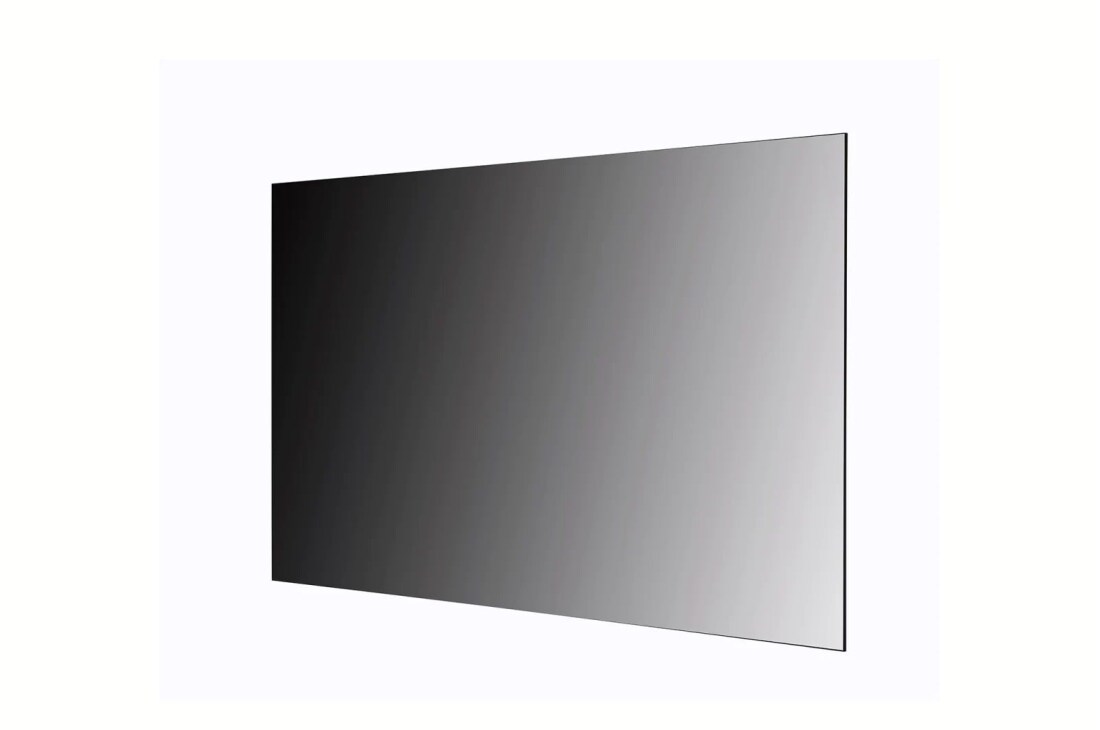

Flat OLED Signage

Artistic Space beyond Display, LG Wallpaper OLED Signage

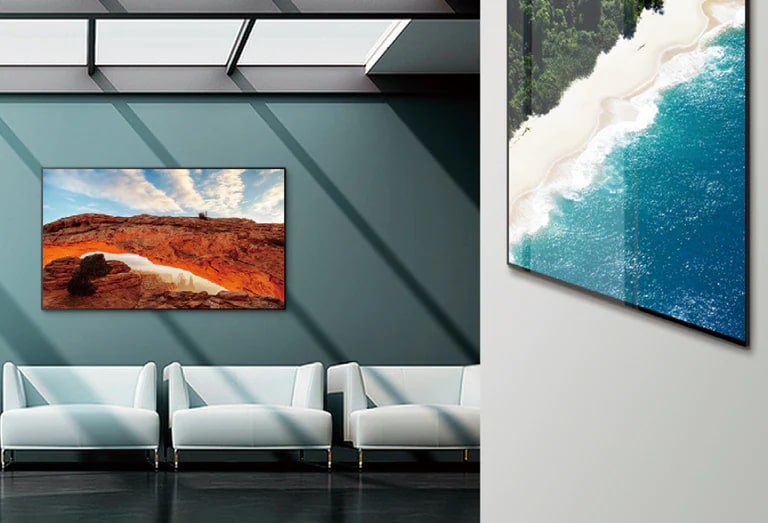

This sophisticated wallpaper OLED signage achieves the best possible picture quality, concealing its presence by blending in with the wall. Minimal space is required for installation, which simplifies the construction process. The luxurious atmosphere generated with this signage will provide customers with an extraordinary experience, making them feel like VIPs.
A display promoting a new product is installed in the store's window. A display promoting a new product is installed in the store's window.
* All images are for illustrative purposes only.
PANEL
  • Screen Size
    55
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    1920 x 1080 (FHD)
    Refresh Rate
    120 Hz
  • Brightness
    150/400nit (APL 100%/25%)
    Contrast Ratio
    150,000 : 1
  • Dynamic CR
    No

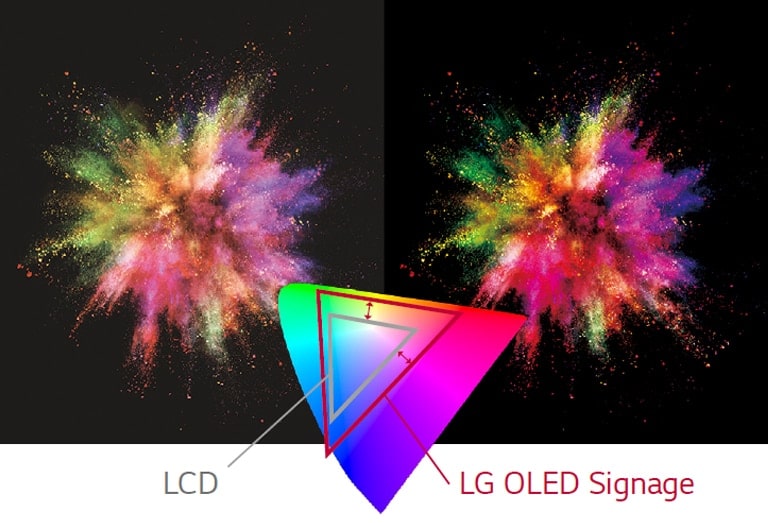

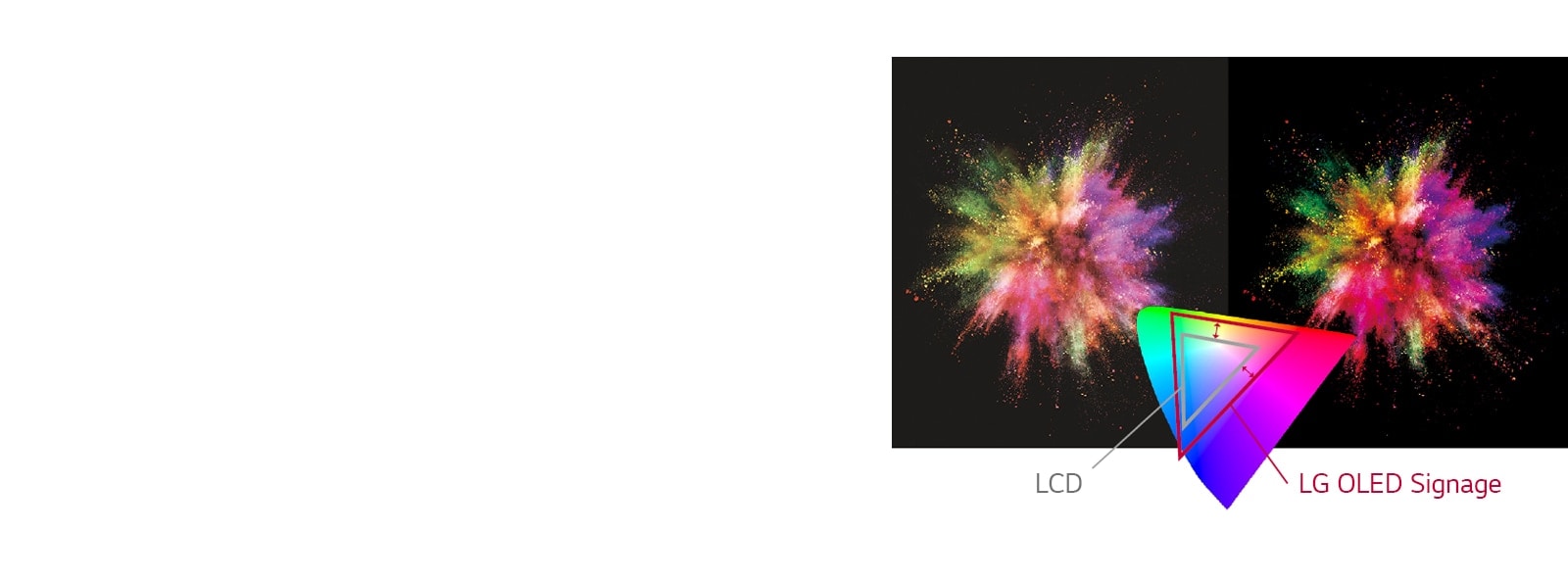

    Color Gamut
    BT709 120%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit(R), 1.07Bilion colors
  • Response Time
    1ms (G to G), 8ms (MPRT)
    Surface Treatment(Haze)
    Hard coating (2H)
    Reflectance Typ. 1.2%
  • Life time
    30,000 Hrs (Typ.)
    Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
  • Portrait / Landscape
    Yes
Connectivity
(Jack Interface)
  • Input - Digital - HDMI
    Yes (1), HDCP1.4
    Input - Digital - DP
    Yes (1), HDCP1.3
  • Input - Digital - DVI-D
    No
    Input - Analog - RGB
    No
  • Input - Audio In
    No
    Input - RS232C IN
    Yes (1)
  • Input - RJ45(LAN)
    Yes (1)
    Input - IR IN
    Yes (1), External IR Receiver
  • Input - USB
    USB2.0 Type A(2)
    Output - DP Out
    Yes (1)
  • Output - Audio Out
    Yes (1)
    Output - Externel Speaker Out
    No
  • Output - RS232C OUT
    Yes (1) (w/ IR out)
    Output - RJ45(LAN)
    Yes (1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    TBD

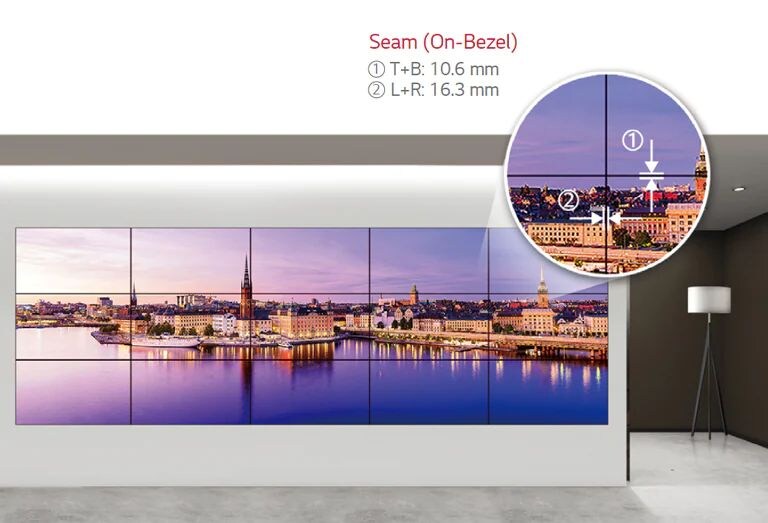

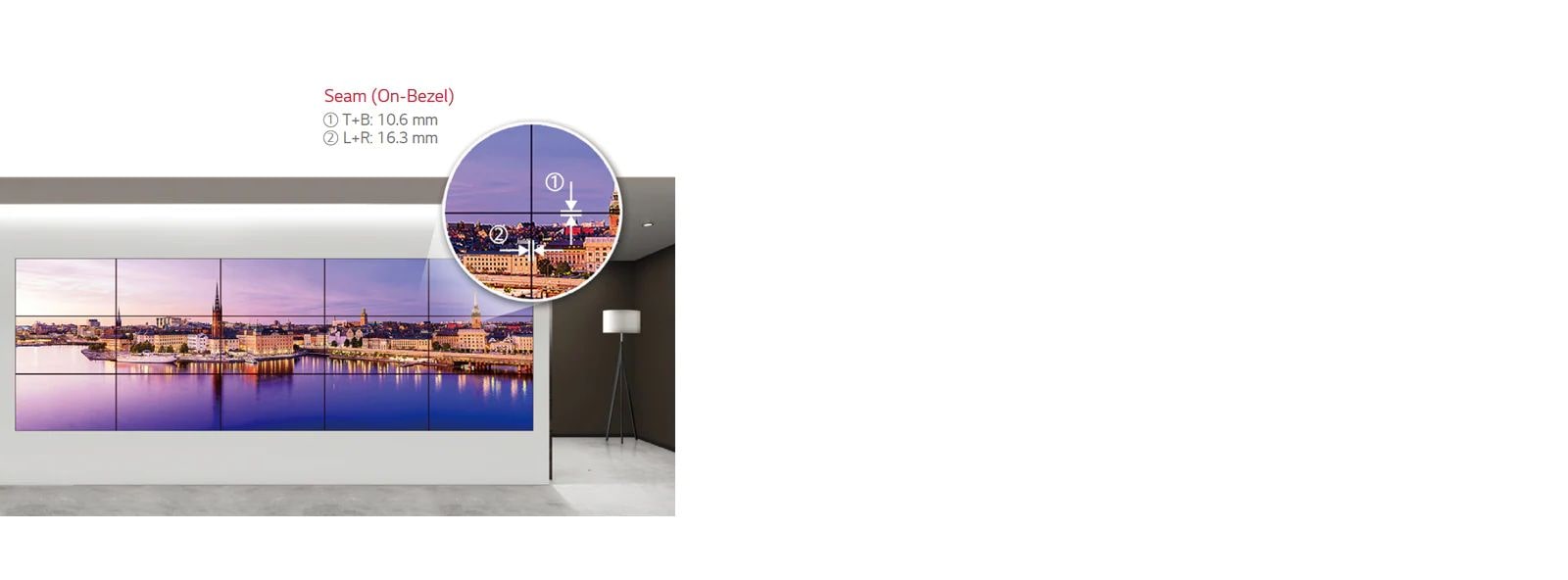

    Even Bezel : 0.9mm (Off Bezel)
    T/R/L/B : 5.3/11.0/5.3/5.3mm (On Bezel)
  • Weight(Head)
    TBD
    6.6Kg (Head)
    3.4Kg (Signage Box)
    Weight(Head+Stand)
    No
  • Packed Weight
    TBD
    22.9Kg
    Monitor Dimension(W x H x D)
    TBD
    1220.3 x 696.8 x 4.9mm (Head)
    782.8x 238.4 x 34.7mm (Signage Box)
  • Monitor Dimensions with Stand(W x H x D)
    No
    Carton Dimensions(W x H x D) (Box outer size)
    TBD 1329 x 782 x 191mm
  • Handle
    No
    VESATM Standard Mount Interface
    No
KEY FEATURE
  • HW - Internal Memory
    16GB
    HW - Wi-Fi - Built-in
    No
  • HW - Sensor - Temperature Sensor
    Yes
    HW - Sensor - Auto Brightness sensor
    No
  • HW - Sensor - Pixel sensor
    No
    HW - Sensor - Proximity Sensor
    No
  • HW - Sensor - Current Sensor
    No
    HW - Power Indicator
    No
  • HW - Local Key Operation
    No
    HW - FAN
    No
  • SW - webOS ver.
    webOS4.0
    SW - Embedded CMS - Local Contents Scheduling
    Yes
  • SW - Embedded CMS - Group Manager
    Yes
    SW - USB Plug & Play
    Yes
  • SW - Fail over
    Yes
    SW - Background Image - Booting Logo Image
    No
  • SW - Background Image - No Signal Image
    No
    SW - Sync Mode - RS-232C Sync
    Yes

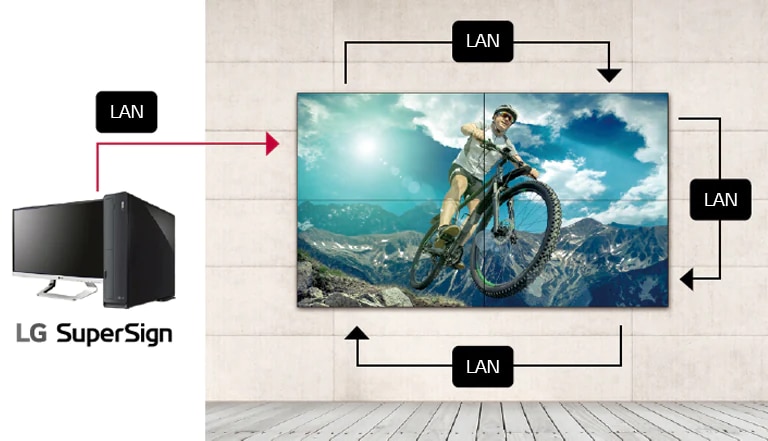

  • SW - Sync Mode - Local Network Sync
    Yes
    SW - Multi-screen - PIP
    No
  • SW - Multi-screen - PBP
    No
    SW - Screen Share
    No
  • SW - Video Tag
    Yes(4)
    SW - Play via URL
    No
  • SW - Rotation - Screen Rotation
    Yes
    SW - Rotation - External Input Rotation
    Yes
  • SW - Gapless Playback
    Yes
    SW - Tile Mode Setting
    Yes
  • SW - Setting Data Cloning
    Yes
    SW - SNMP
    Yes
  • SW - ISM Method
    Yes
    SW - Auto Set ID
    Yes
  • SW - Status Mailing
    Yes
    SW - Control Manager
    Yes
  • SW - 3rd Party Compatibility - Crestron Inside
    Yes
    SW - Power - Smart Energy Saving
    No
  • SW - Power - PM mode
    Yes
    SW - Power - Wake on LAN
    Yes
  • SW - Power - Network Ready
    No
    SW - Beacon
    No
  • SW - HDMI-CEC
    Yes
    SW - SI Server Setting
    Yes
  • SW - webRTC
    No
    SW - Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    309W
    Max.
    318W
  • BTU (British Thermal Unit)
    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
    Smart Enegy Saving
    No
  • DPM
    3W
    Power off
    0.5 W
SOUND
  • Speaker
    No
CERTIFICATION
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / No
    ePEAT(US only)
    No
OPS Compatibility
  • OPS type compatible
    No
    OPS Power built in
    No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes (v3.0)
    SuperSign Control / Control+
    Yes (v1.7 / v1.9)
  • SuperSign WB
    Yes (v3.7.15)
    SuperSign Media Editor
    Yes (v3.7)
  • Signage 365 Care
    Yes (v2.9)
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender,RS232 cable(4p-4p), FFC Cables(1600mmx4ea for connection between panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Wall Fixer(4EA), Wall Fixer Install Guide, Install Guide Sheet(2EA), Tape(10EA for Cabling/2EA for Dust proof), Screw(M4xL25,10EA / M3xL5.5,8EA)
    Optional
    No
SPECIAL FEATURE
  • Overlay Touch Compatibility
    No
