55EJ5K-B component-copyModelName

LG 2023 55inch Wallpaer OLED Signage

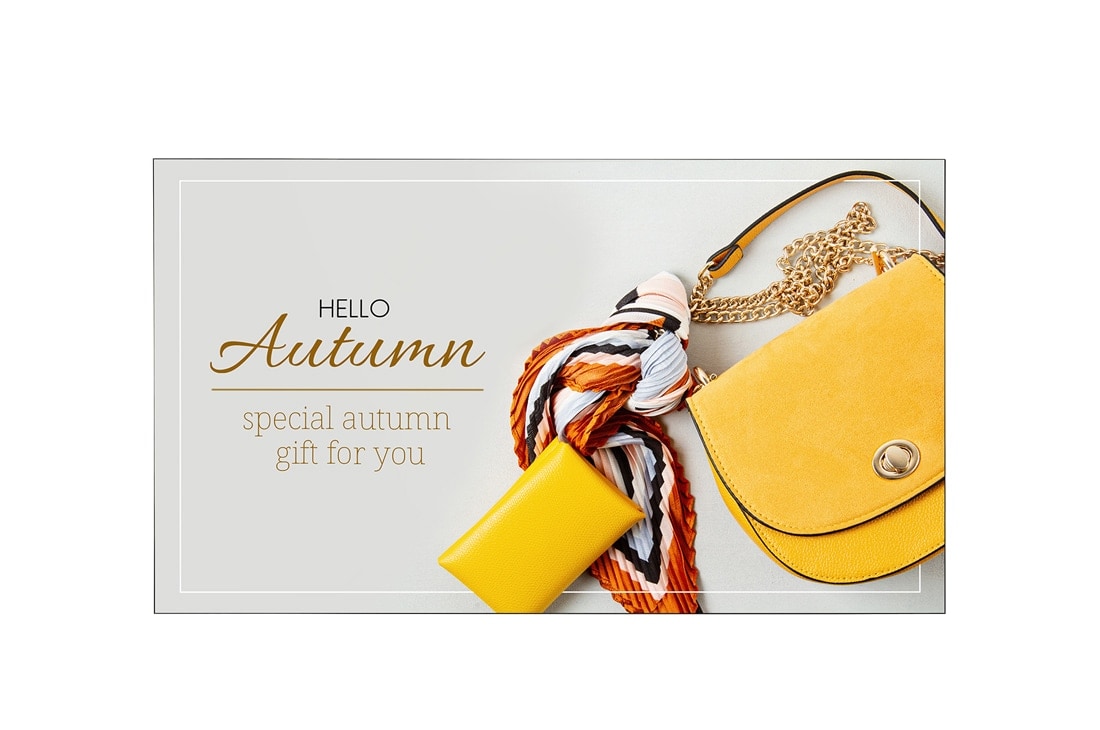

LG 2023 55inch Wallpaer OLED Signage, Front view with infill image, 55EJ5K-B, thumbnail 1

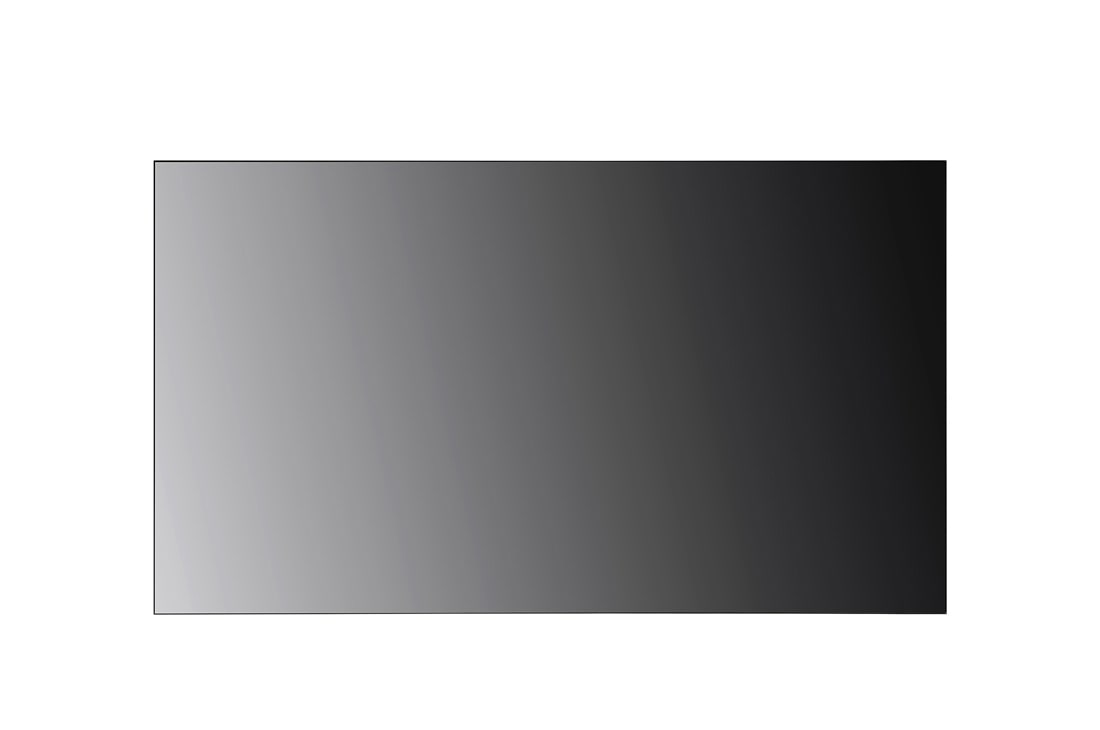

LG 2023 55inch Wallpaer OLED Signage, Front view, 55EJ5K-B, thumbnail 2

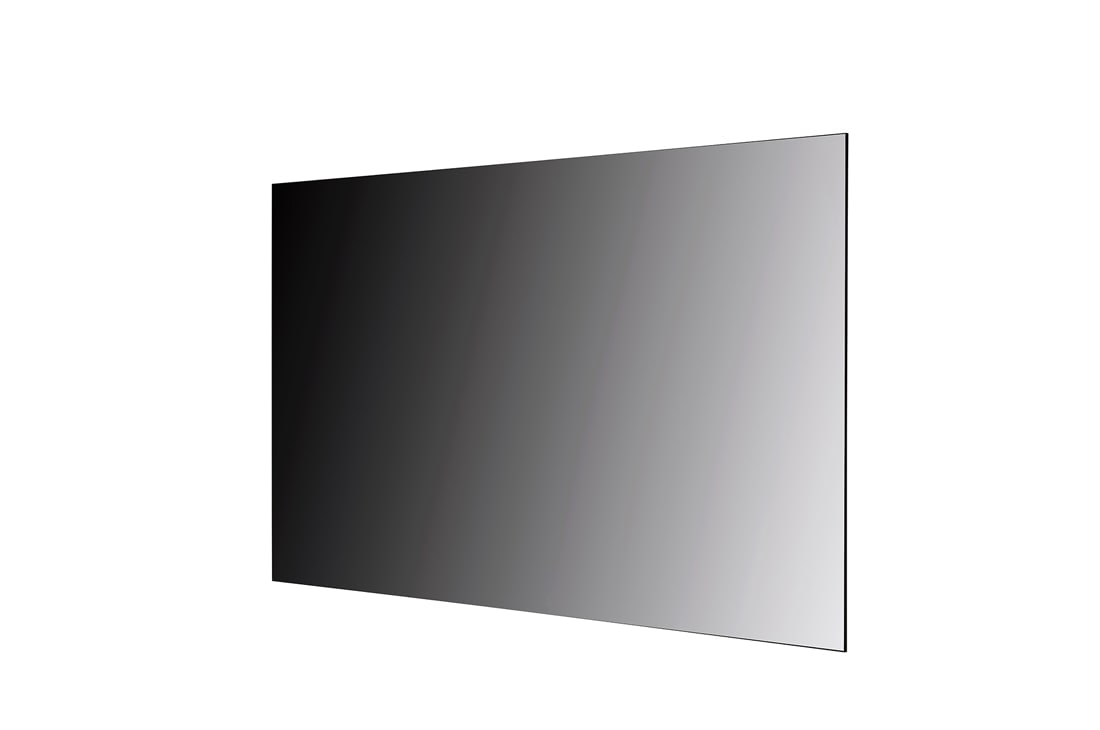

LG 2023 55inch Wallpaer OLED Signage, -45 degree side view, 55EJ5K-B, thumbnail 3

LG 2023 55inch Wallpaer OLED Signage, -90 degree side view, 55EJ5K-B, thumbnail 4

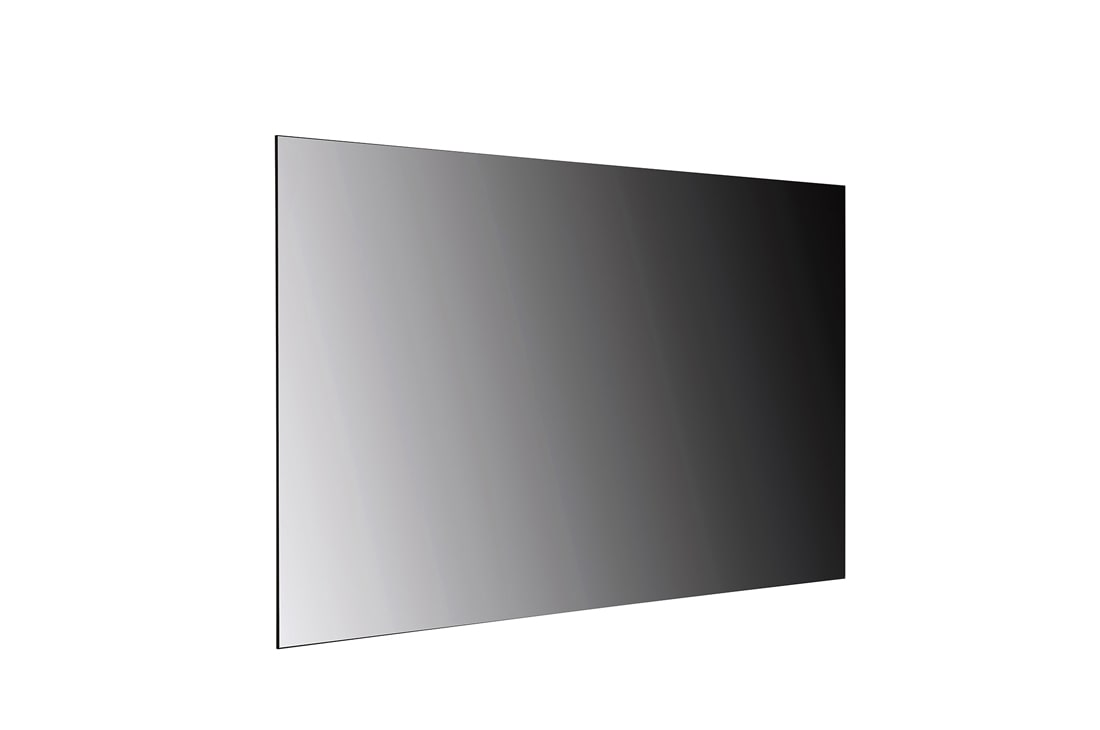

LG 2023 55inch Wallpaer OLED Signage, +45 degree side view, 55EJ5K-B, thumbnail 5

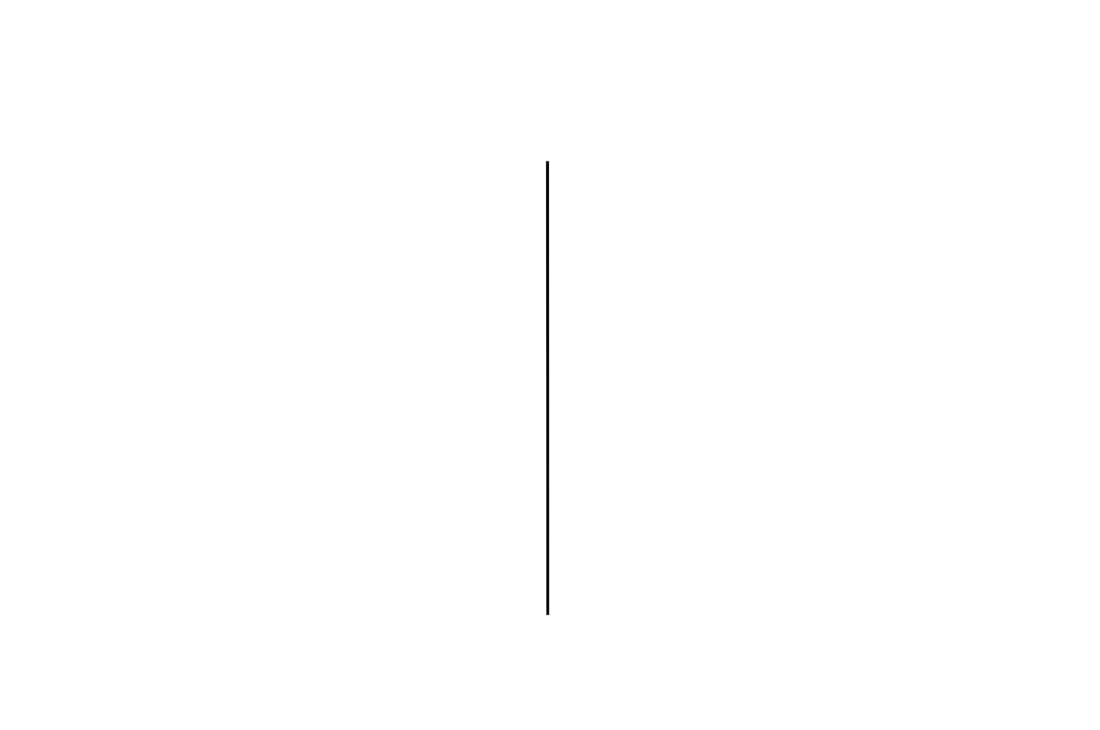

LG 2023 55inch Wallpaer OLED Signage, +90 degree side view, 55EJ5K-B, thumbnail 6

LG 2023 55inch Wallpaer OLED Signage, Rear view, 55EJ5K-B, thumbnail 7

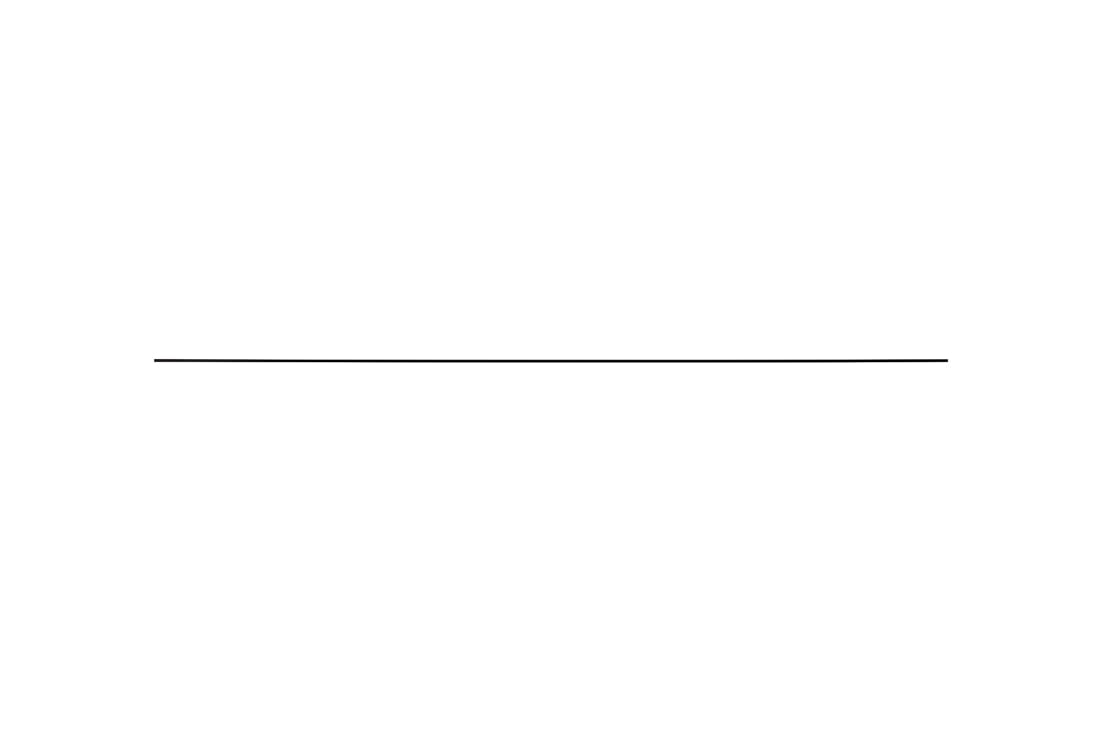

LG 2023 55inch Wallpaer OLED Signage, Top view, 55EJ5K-B, thumbnail 8

ADD TO WISHLIST

Discontinued

55EJ5K-B component-copyModelName

LG 2023 55inch Wallpaer OLED Signage

Name: LG 2023 55inch Wallpaer OLED Signage
Brand: LG UAE
SKU: 55EJ5K-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 150/400 nit (APL 100% / 25%)
Bezel : 5.3 mm (T/B/L), 11.0 mm (B)
Interface : HDMI / DP / USB(2) / RS232C / RJ45 / Audio / IR

SEE ALL SPECS

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 150/400 nit (APL 100% / 25%)
Bezel : 5.3 mm (T/B/L), 11.0 mm (B)
Interface : HDMI / DP / USB(2) / RS232C / RJ45 / Audio / IR

SEE ALL SPECS

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

LG 2023 55inch Wallpaer OLED Signage

Artistic Space beyond Display, LG Wallpaper OLED Signage

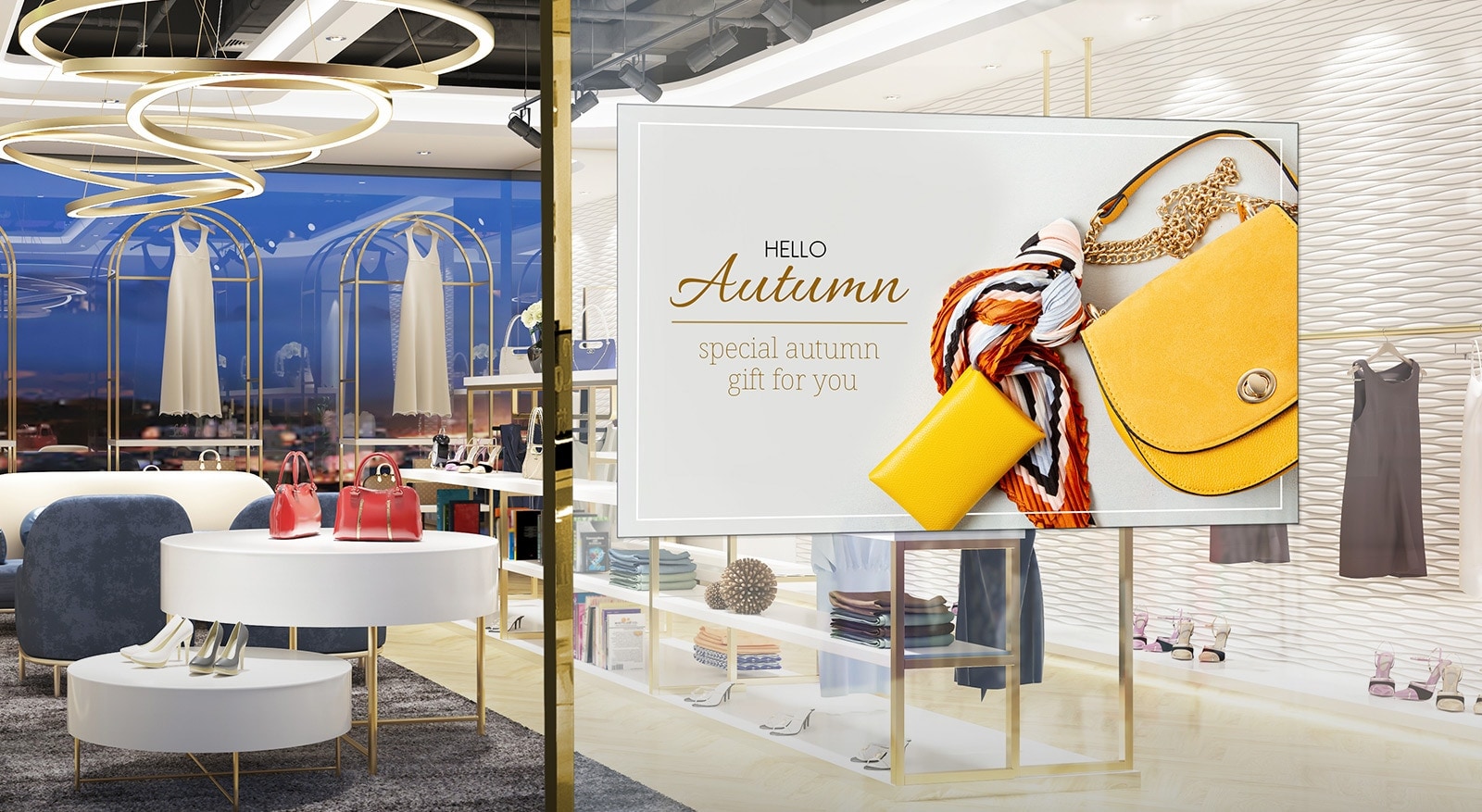

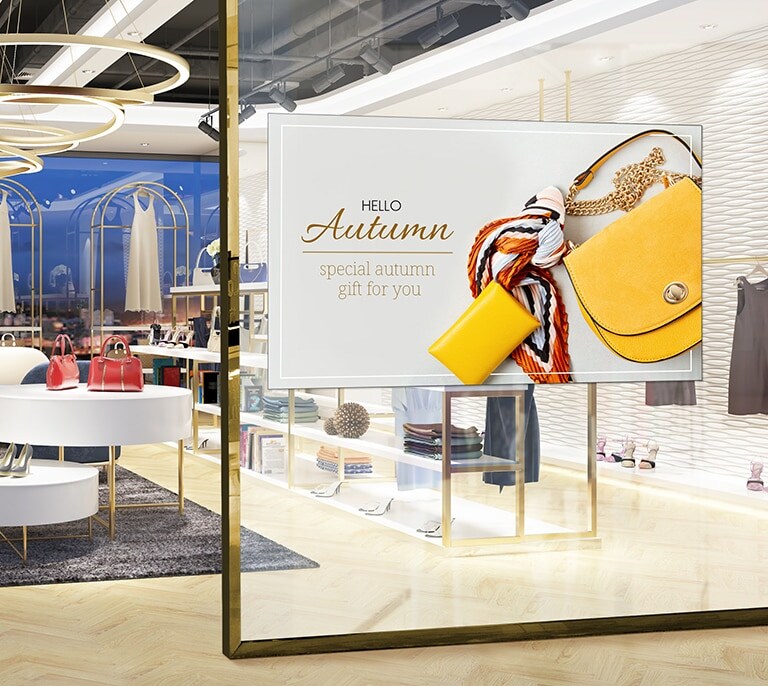

A display promoting a new product is installed in the store's window.

* All images in this web page are for illustrative purposes only.

LG OLED Signage shows better contrast between black and white than ordinary LCD.

Absolute Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

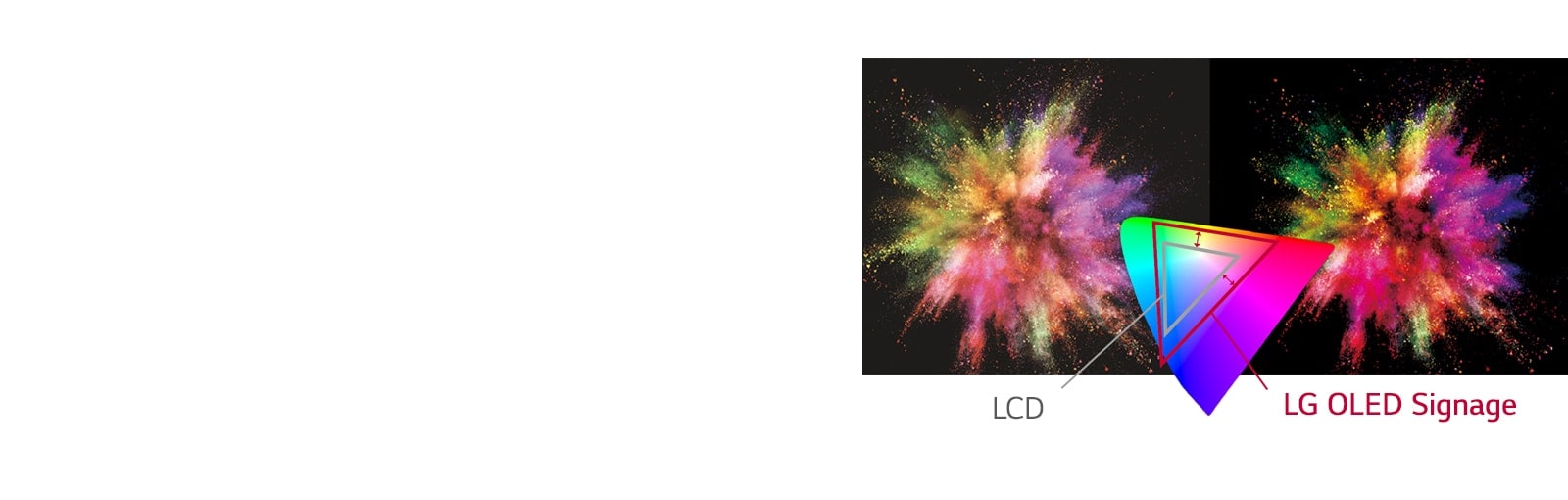

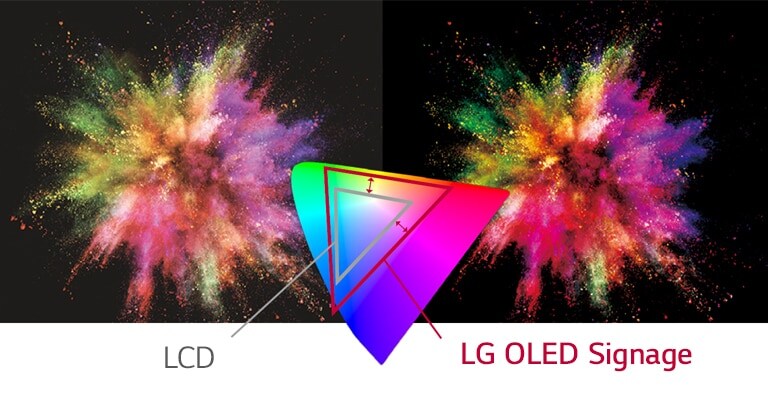

LG OLED Signage has a variety of colors rather than LCD to express the object more vividly.

Rich Color

LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

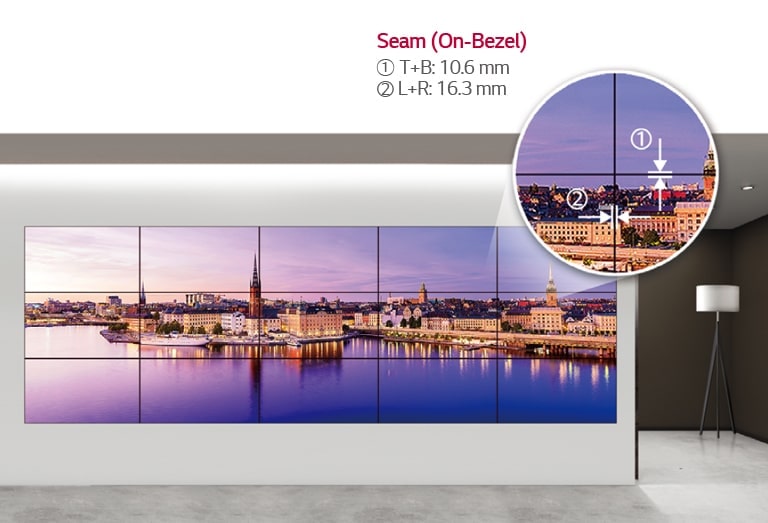

A large screen was made by tiling several screens.

N×N Expandable Screen Size

By tiling up displays horizontally and vertically, the screen size can be as large as users want. Expansive, large screens are more effective at moving viewers by providing an incredibly immersive viewing experience.

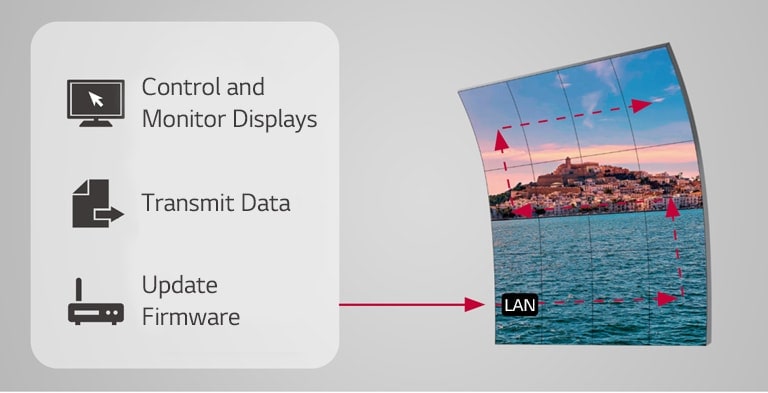

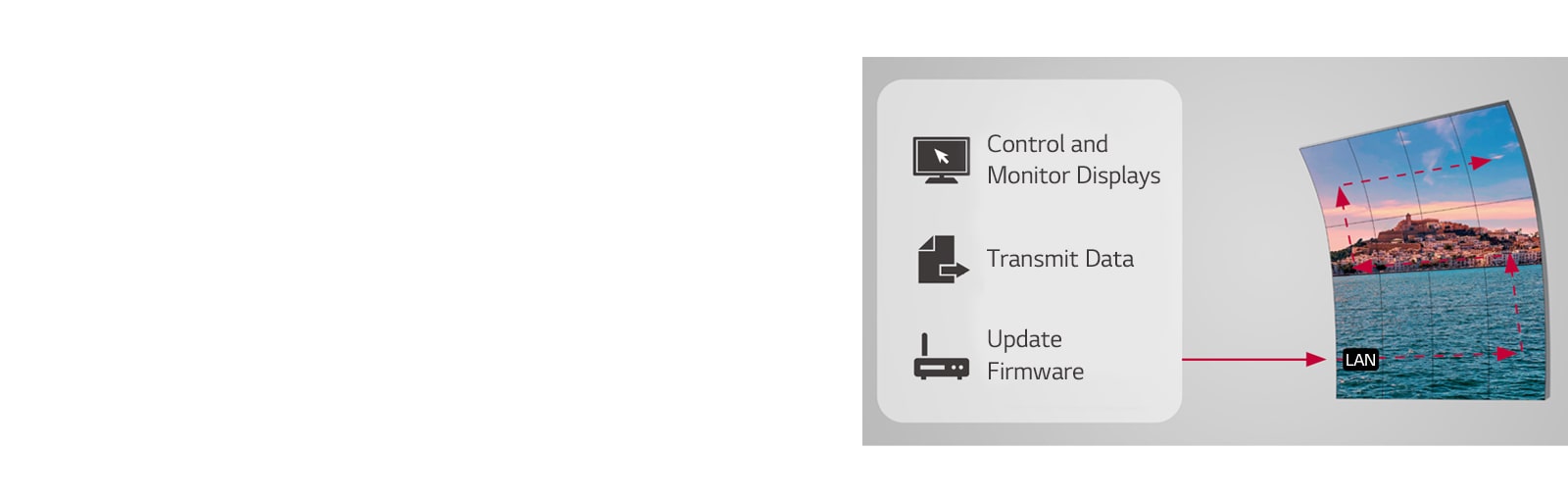

Displays are easily managed wirelessly through LAN daisy chain function.

LAN Daisy Chain Management

A LAN daisy chain is supported, allowing you to execute commands to control and monitor the displays and even update their firmware.

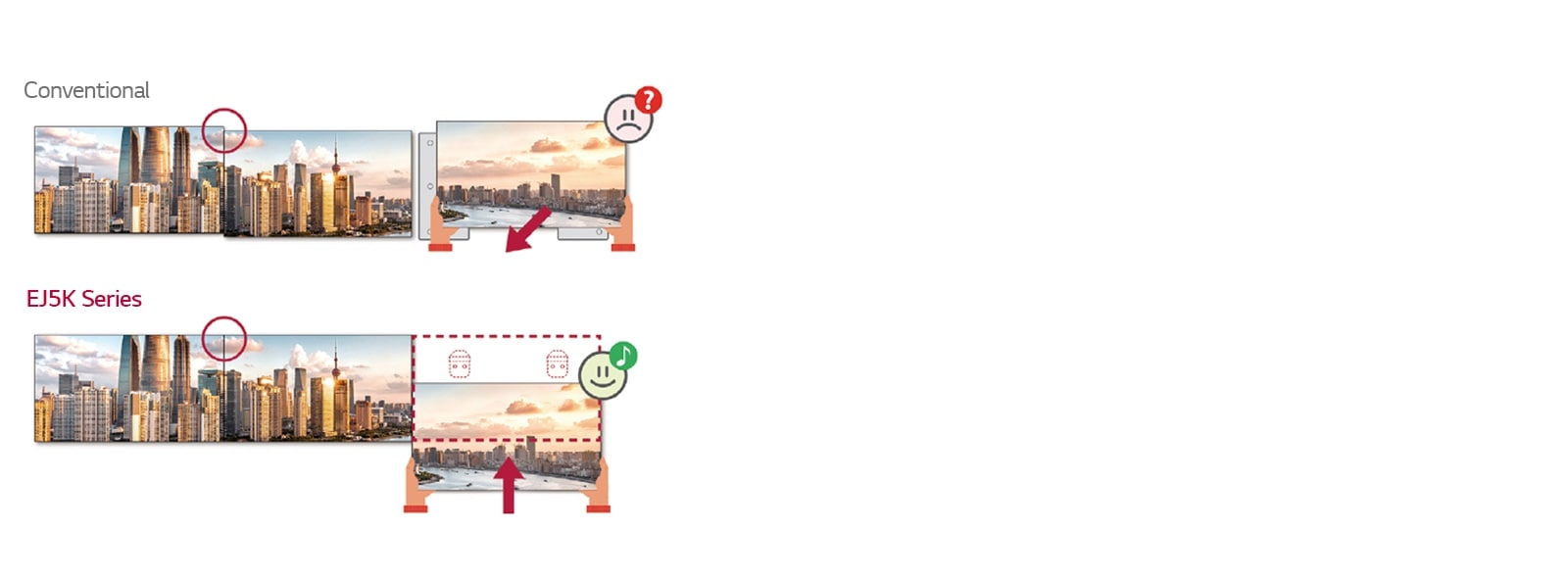

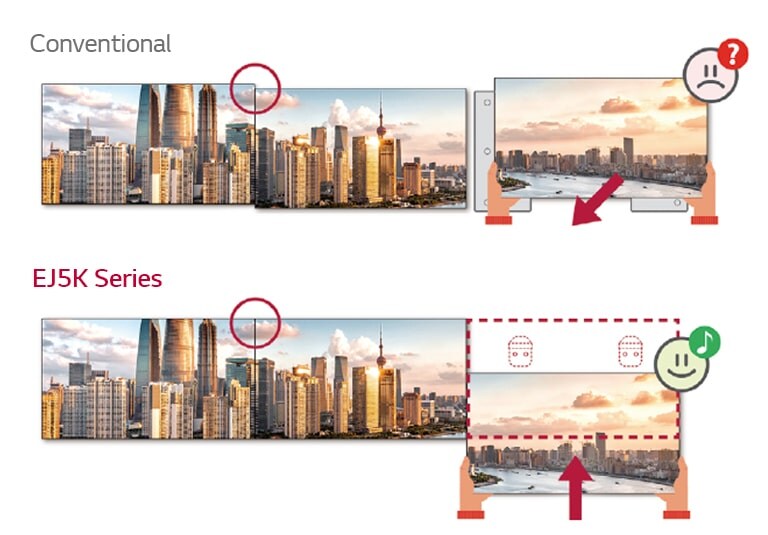

EJ5K series has a front installation feature, making it easier to tile displays.

Wall Fixers Optimized for Simple Tiling

The overall installation process of the wallpaper OLED has gotten much easier. Once the dedicated wall fixers are driven into a wall, a display can be easily hung on them. Video wall tiling has become more convenient, thanks to its front installation feature, which departs from the conventional sidesliding method.

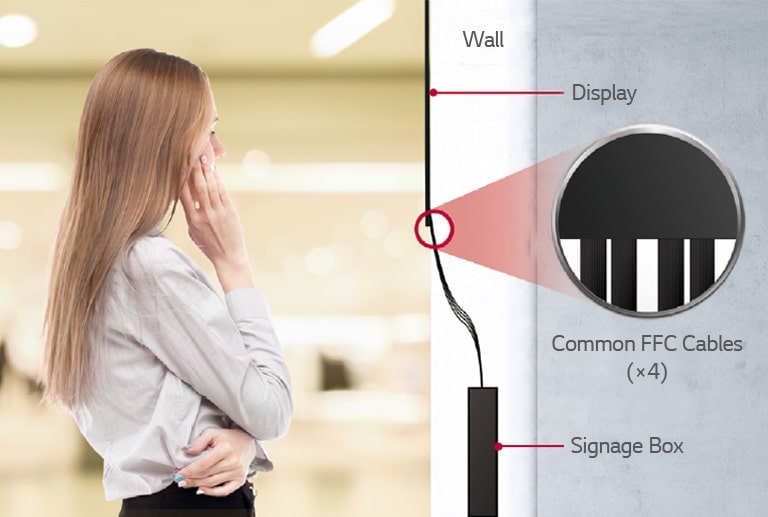

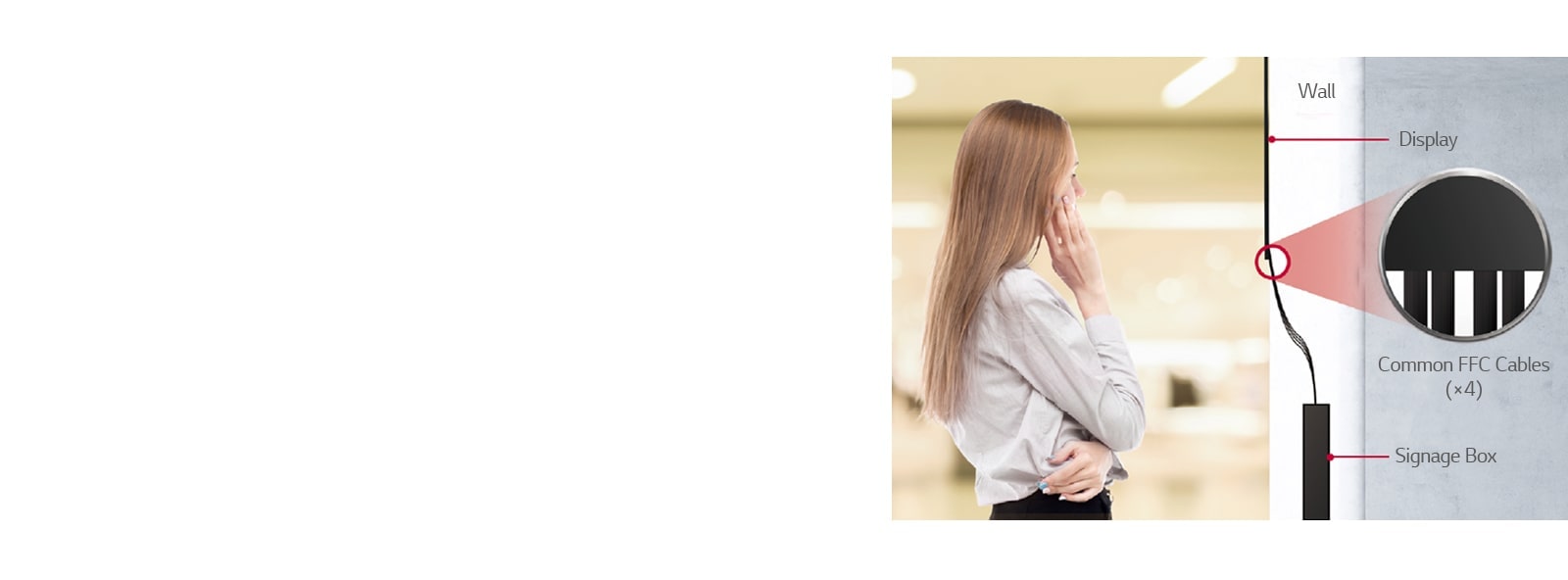

Cables are so flexible that it is easily embedded in a wall or other structures.

Enhanced Flexibility of Cables

As a result of in-depth consideration of usage scenarios, improvements have been made to the flexibility of common cables connecting the display to the signage box. These new cables are pliable enough to be easily embedded in a wall or other structures.

Splendid Design

LG’s OLED technology unlocks the new worlds of design flexibility with unbelievably lightweight and slim display. The advantages the OLED display brings are countless from the easier installation to a sleek look.

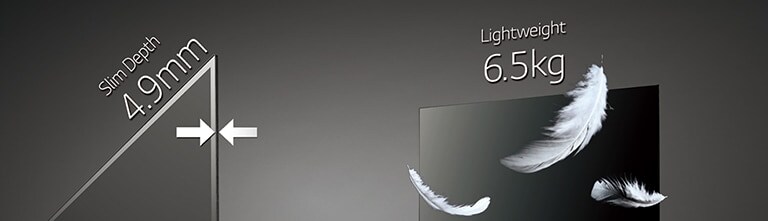

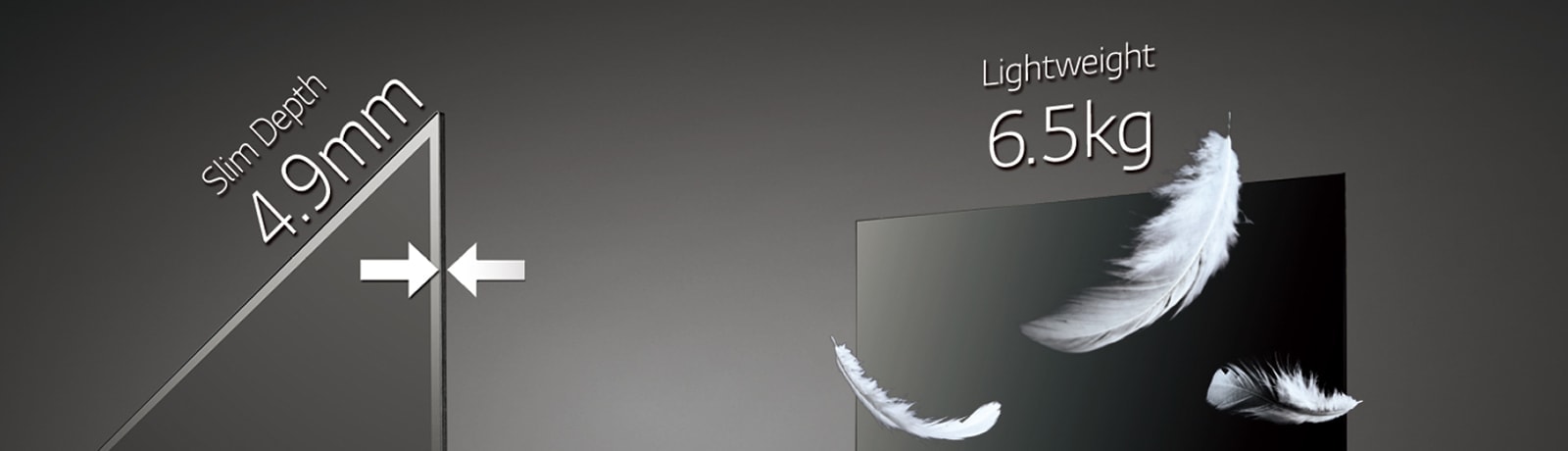

LG's OLED display is very slim and light with a depth of 4.9mm and a weight of 6.5kg.

Hide in Plain Sight

The subtle edge of the wallpaper OLED totally blends in with the wall, giving audiences the sensation that content is being played directly within the wall itself. Integrating with and adding to a luxurious interior design, the wallpaper OLED is an effective method for delivering advertisements and information.

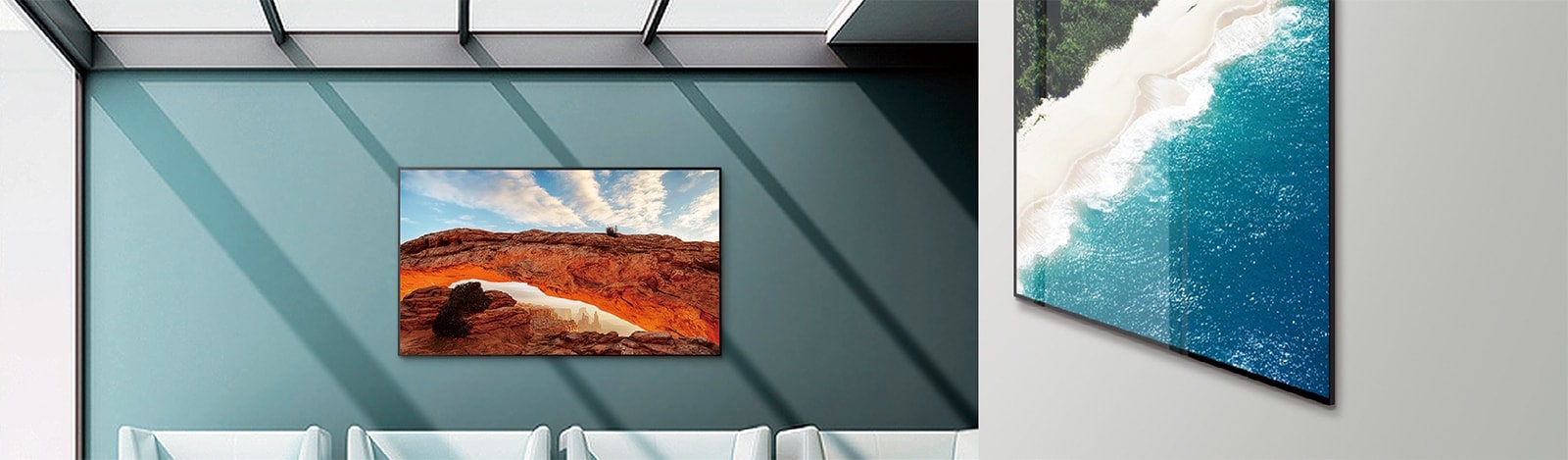

The edge of the display on the wall is so thin that it looks as if content is playing directly from the wall.

PANEL

Screen Size

55

Panel Technology

OLED
Back Light Type

OLED

Aspect Ratio

16:9
Native Resolution

1920 x 1080 (FHD)

Refresh Rate

120 Hz
Brightness

150/400nit (APL 100%/25%)

Contrast Ratio

150,000 : 1
Color Gamut

BT709 120%

Viewing Angle(H x V)

178 x 178
Color Depth

10bit(R), 1.07Bilion colors

Response Time

1ms (G to G), 8ms (MPRT)
Surface Treatment(Haze)

Hard coating (2H)
Reflectance Typ. 1.2%

Life time

30,000 Hrs (Typ.)
Operation Hours (Hours/Day)

18/7 (Moving Content Only)

Portrait / Landscape

Yes

CONNECTIVITY(JACK INTERFACE)

Input

HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45 (LAN), IR IN (1, External IR Receiver), USB2.0 Type A (2)

Output

DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45 (LAN)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

Even Bezel : 0.9mm (Off Bezel)
T/R/L/B : 5.3/5.3/5.3/11.0mm (On Bezel)
Weight(Head)

6.5Kg (Head)
3.4Kg (Signage Box)

Packed Weight

23.1Kg
Monitor Dimension(W x H x D)

1220.3 x 696.8 x 4.9mm (Head)
782.8x 238.4 x 34.7mm (Signage Box)

Carton Dimensions(W x H x D) (Box outer size)

1345 x 804 x 207mm

KEY FEATURE

HW

Internal Memory 16GB, Temperature Sensor

SW

webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

309W

Max.

318W
BTU (British Thermal Unit)

1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)

DPM

0.5 W
Power off

0.5 W

CERTIFICATION

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes / No

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes (v3.0)

SuperSign Control / Control+

Yes (v1.7 / v1.9)
SuperSign WB

Yes (v3.7.15)

SuperSign Media Editor

Yes (v3.7)
Signage 365 Care

Yes (v2.9)

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(1600mmx4ea for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Wall Fixer(4EA), Wall Fixer Install Guide, Install Guide Sheet(2EA), Tape(10EA for Cabling/2EA for Dust proof), Screw(M4xL25,10EA / M3xL5.5,8EA)

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
