55EW5PG-S component-copyModelName

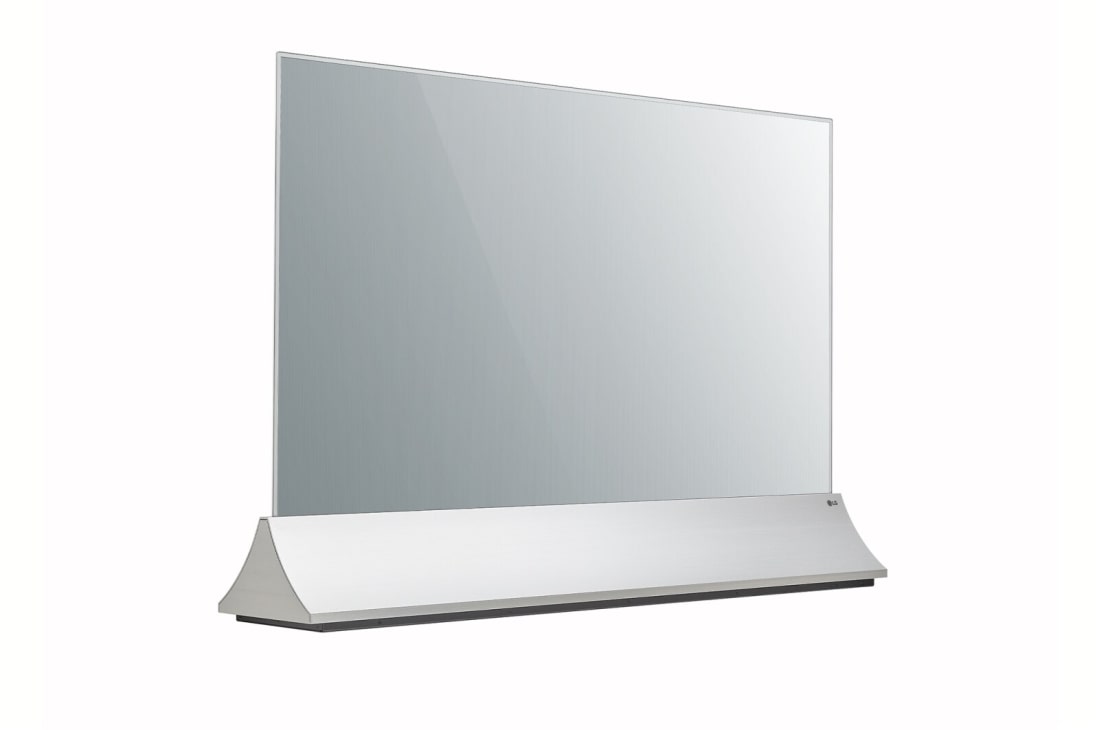

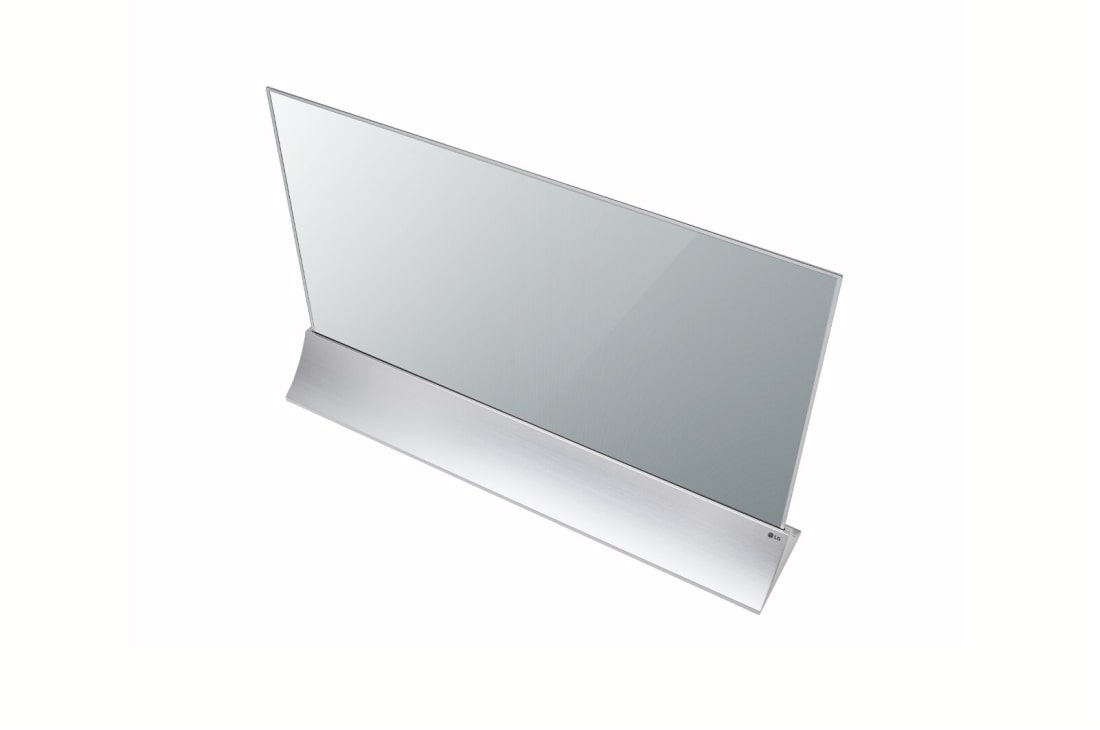

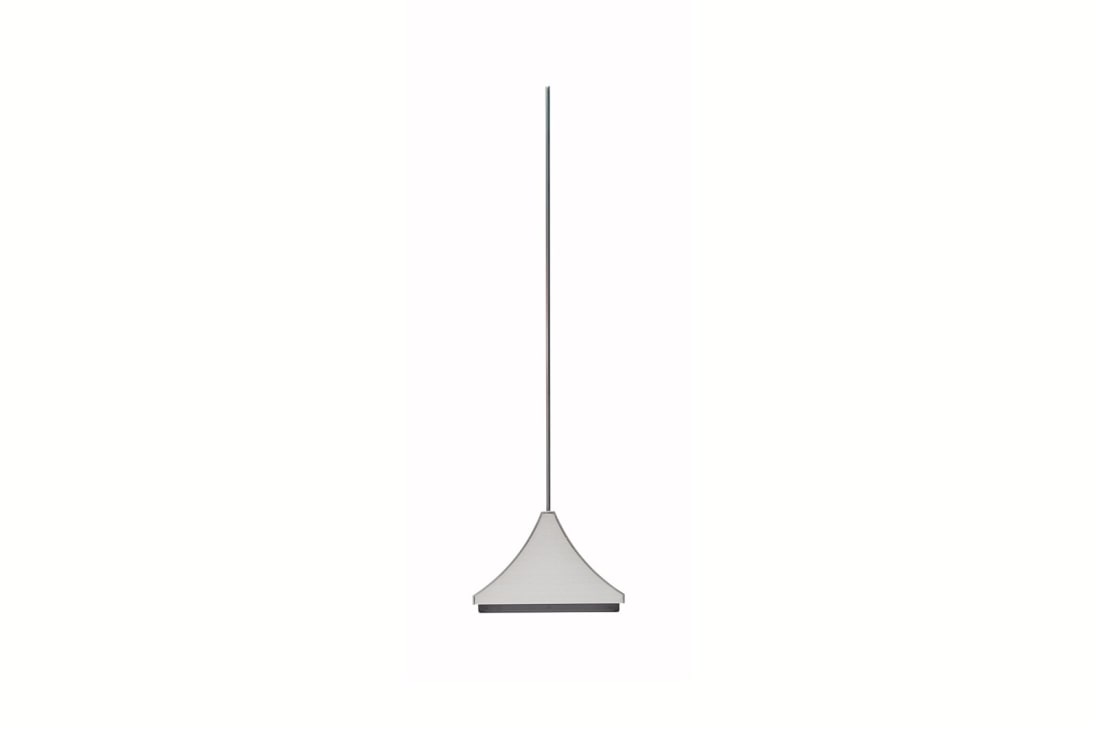

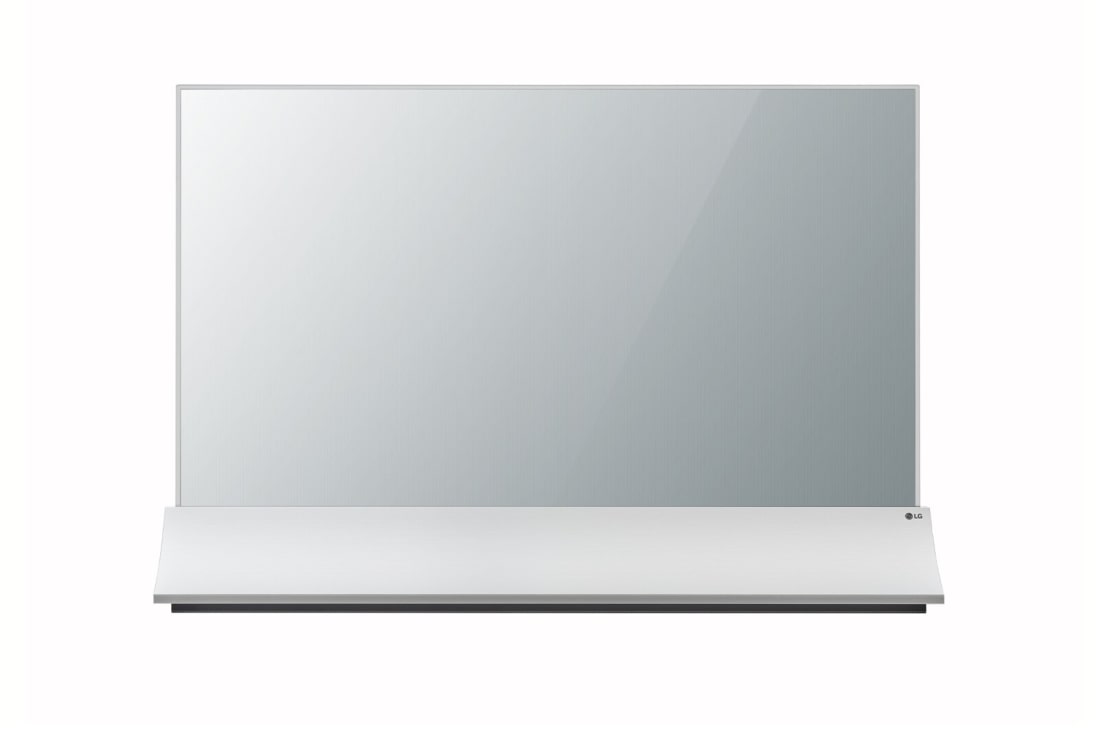

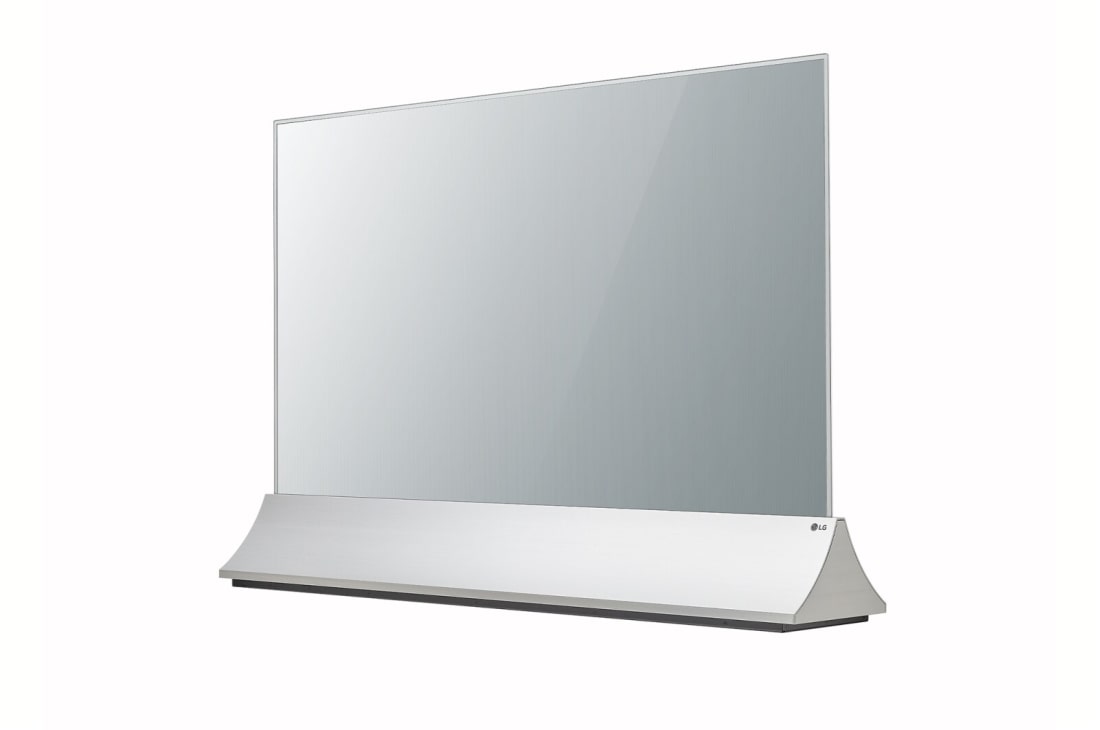

2023 LG Transparent OLED Signage 55-inch

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

2023 LG Transparent OLED Signage 55-inch
Find a Dealer
Close
PANEL
  • Screen Size
    55"
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    1920x1080 (FHD)
    Refresh Rate
    120Hz
  • Brightness
    150/400nit (APL 100%/25%, Without Glass)
    Contrast Ratio
    150,000 : 1
  • Dynamic CR
    No
    Color Gamut
    BT709 120%
  • Viewing Angle(H x V)
    178x178
    Color Depth
    10bit(R), 1.07Bilion colors
  • Response Time
    1ms (G to G), 8ms (MPRT)
    Surface Treatment(Haze)
    Hard coating (2H)
  • Life time
    30,000 Hrs (Typ.)
    Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
  • Portrait / Landscape
    Yes

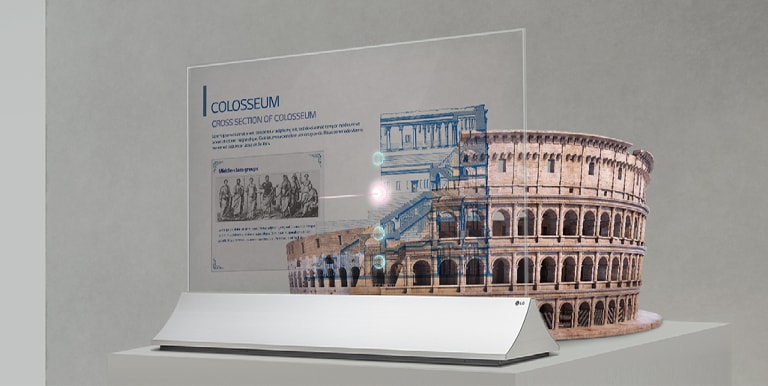

    Transparency
    38% (SET)
Connectivity
(Jack Interface)
  • Input - Digital - HDMI
    Yes (1), HDCP1.4
    Input - Digital - DP
    Yes (1), HDCP1.3
  • Input - Digital - DVI-D
    No
    Input - Analog - RGB
    No
  • Input - Audio In
    No
    Input - RS232C IN
    Yes (1)
  • Input - RJ45(LAN)
    Yes (1)
    Input - IR IN
    No, Internal IR Receiver
  • Input - USB
    USB2.0 Type A(2)
    Output - DP Out
    Yes (1)
  • Output - Audio Out
    Yes (1)
    Output - Externel Speaker Out
    No
  • Output - RS232C OUT
    Yes (1) (w/ IR out)
    Output - RJ45(LAN)
    Yes (1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Transparent
    Bezel Width
    T/R/L/B : 7.9/7.9/7.9/168.6mm
  • Weight(Head)
    28.3Kg
    Weight(Head+Stand)
    No
  • Packed Weight
    36.8Kg
    (with Pallet = 44.1Kg)
    Monitor Dimension(W x H x D)
    1256.2 x 856.9 x 242mm
  • Monitor Dimensions with Stand(W x H x D)
    No
    Carton Dimensions(W x H x D) (Box outer size)
    1344 x 334 x 965mm
    (with Pallet = 1370 x 360 x 1100mm)
  • Handle
    No
    VESA™ Standard Mount Interface
    No

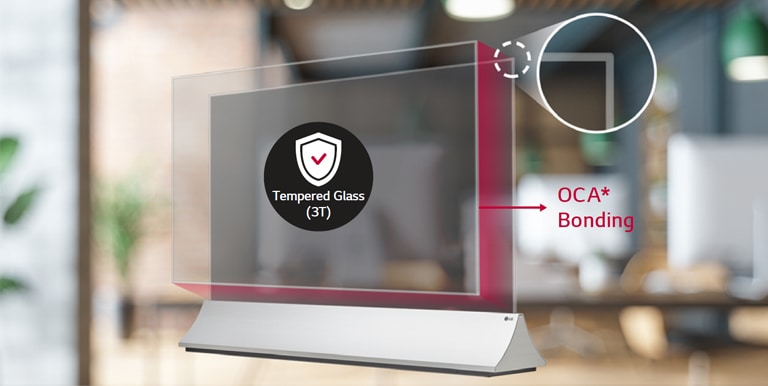

  • Protection Glass-Depth
    3.0mm
    Protection Glass-Tempered / Chemical strengthening
    Yes (Chemical strengthening)
  • Protection Glass-Anti-Reflective
    Yes (Film)
    Protection Glass-Shatter-Proof
    Yes
KEY FEATURE
  • HW - Internal Memory
    16GB
    HW - Wi-Fi - Built-in
    No
  • HW - Sensor - Temperature Sensor
    Yes
    HW - Sensor - Auto Brightness sensor
    No
  • HW - Sensor - Pixel sensor
    No
    HW - Sensor - Proximity Sensor
    No
  • HW - Sensor - Current Sensor
    No
    HW - Power Indicator
    No
  • HW - Local Key Operation
    Yes(1)
    HW - FAN
    No
  • SW - webOS ver.
    webOS4.0
    SW - Embedded CMS - Local Contents Scheduling
    Yes
  • SW - Embedded CMS - Group Manager
    Yes
    SW - USB Plug & Play
    Yes
  • SW - Fail over
    Yes
    SW - Background Image - Booting Logo Image
    No
  • SW - Background Image - No Signal Image
    No
    SW - Sync Mode - RS-232C Sync
    Yes
  • SW - Sync Mode - Local Network Sync
    Yes
    SW - Multi-screen - PIP
    No
  • SW - Multi-screen - PBP
    No
    SW - Screen Share
    No
  • SW - Video Tag
    Yes(4)
    SW - Play via URL
    No
  • SW - Rotation - Screen Rotation
    No
    SW - Rotation - External Input Rotation
    No
  • SW - Gapless Playback
    Yes
    SW - Tile Mode Setting
    No
  • SW - Setting Data Cloning
    Yes
    SW - SNMP
    Yes
  • SW - ISM Method
    Yes
    SW - Auto Set ID
    Yes
  • SW - Status Mailing
    Yes
    SW - Control Manager
    Yes
  • SW - 3rd Party Compatibility - Crestron Inside
    Yes
    SW - Power - Smart Energy Saving
    No
  • SW - Power - PM mode
    Yes
    SW - Power - Wake on LAN
    Yes
  • SW - Power - Network Ready
    No
    SW - Beacon
    No
  • SW - HDMI-CEC
    Yes
    SW - SI Server Setting
    Yes
  • SW - webRTC
    No
    SW - Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    250W
    Max.
    280W
  • BTU (British Thermal Unit)
    853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max)
    Smart Enegy Saving
    No
  • DPM
    0.5W
    Power off
    0.5W
SOUND
  • Speaker
    No
CERTIFICATION
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / No
    ePEAT(US only)
    No
OPS Compatibility
  • OPS type compatible
    No
    OPS Power built in
    No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes (v3.0)
    SuperSign Control / Control+
    Yes (v1.7 / v1.9)
  • SuperSign WB
    Yes (v3.7.15)
    SuperSign Media Editor
    Yes (v3.7)
  • Signage 365 Care
    Yes (v2.9)
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, HDMI Cable(3M), Cable Holder 2EA
    Optional
    No
SPECIAL FEATURE
  • Overlay Touch Compatibility
    No
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
