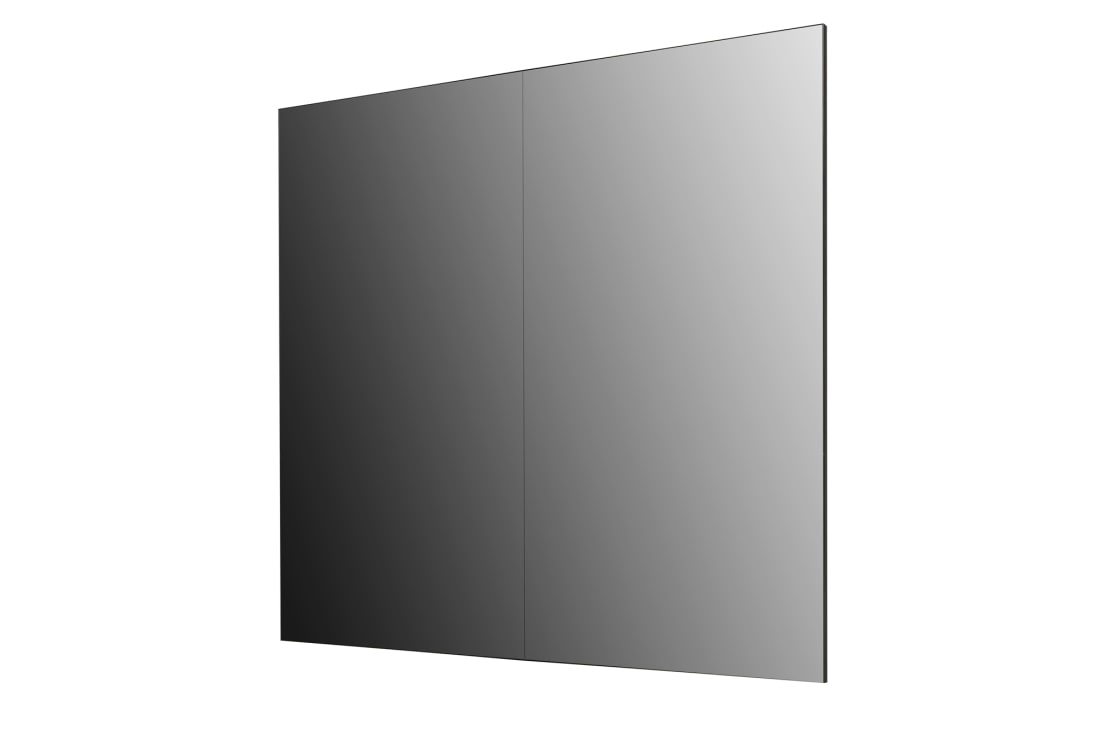

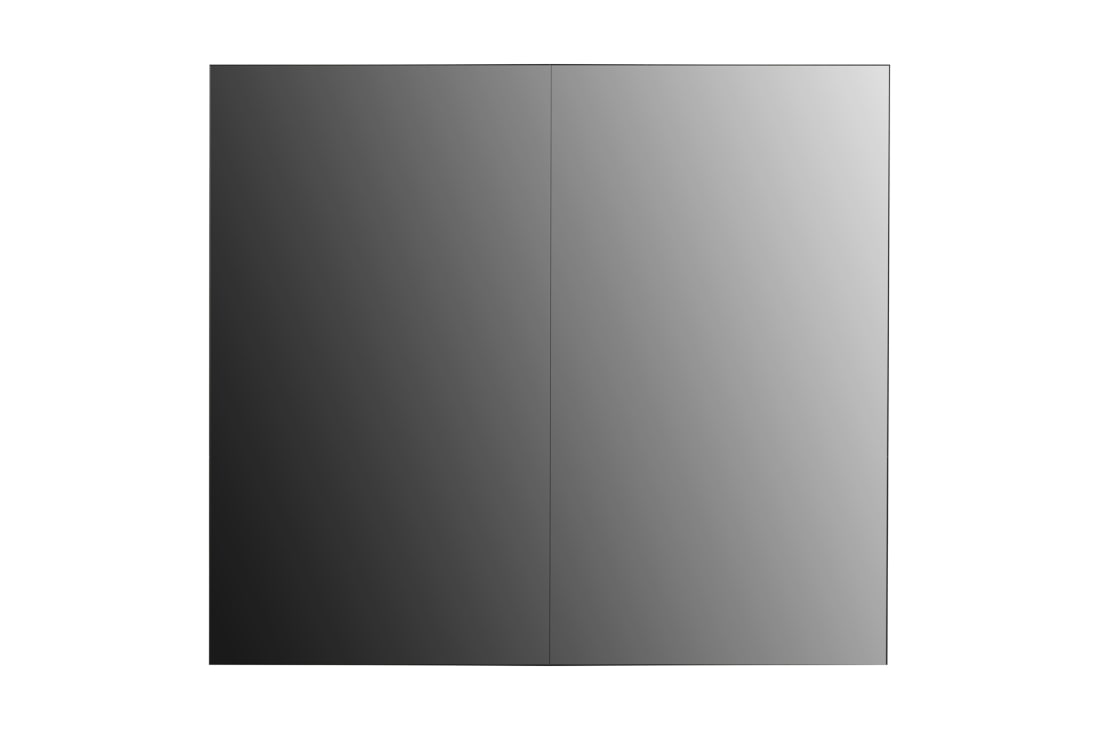

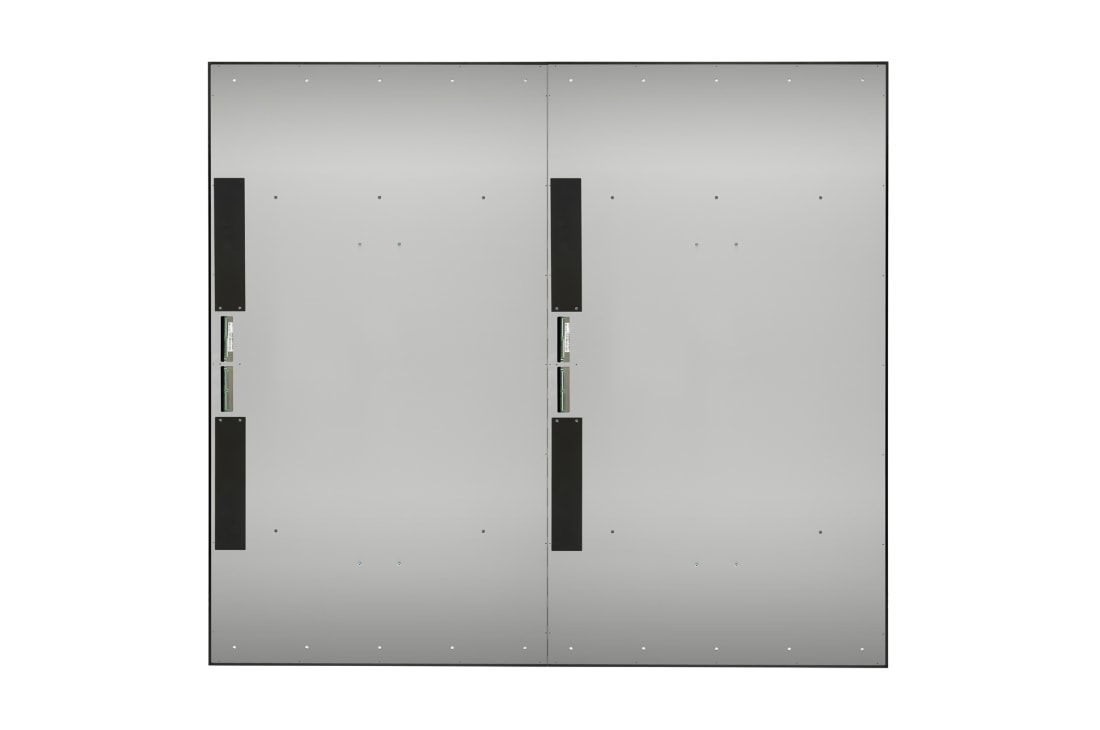

LG 65'' Video Wall OLED, 65EV5E-2, thumbnail 1

LG 65'' Video Wall OLED, 65EV5E-2, thumbnail 2

LG 65'' Video Wall OLED, 65EV5E-2, thumbnail 3

LG 65'' Video Wall OLED, 65EV5E-2, thumbnail 4

LG 65'' Video Wall OLED, 65EV5E-2, thumbnail 5

LG 65'' Video Wall OLED, 65EV5E-2, thumbnail 6

LG 65'' Video Wall OLED, 65EV5E-2, thumbnail 7

ADD TO WISHLIST

Discontinued

65EV5E-2 component-copyModelName

65'' Video Wall OLED

Name: 65'' Video Wall OLED
Brand: LG UAE
SKU: 65EV5E-2
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.): 400 cd/m² (APL 25%)
Bezel: 1.2 mm (Even, Off bezel)
Depth: 7.9 mm (Head)
Interface: HDMI/ DP/ USB 2.0(2)/ RS232C/ RJ45/ Audio Out/ IR

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 400 cd/m² (APL 25%)
Bezel: 1.2 mm (Even, Off bezel)
Depth: 7.9 mm (Head)
Interface: HDMI/ DP/ USB 2.0(2)/ RS232C/ RJ45/ Audio Out/ IR

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

65" Video Wall OLED

Artistic Space beyond Display, Video Wall OLED Signage

This video wall OLED signage delivers the deepest black against which colors come alive, maximizing the impact of advertising with lifelike content playback. Users can expand the size of the screen as much as they want by tiling up displays horizontally.

Unrivaled Picture Quality

Perfect Black

Limitless contrast and the deepest blacks
Self-lighting pixels switch off completely to reproduce absolutes blacks with no light bleed, offering infinite contrast

Unrivaled Picture Quality

Perfect Color

Accurate & stable color reproduction
Self-lighting pixels bring colors to life with superb accuracy.

Unrivaled Picture Quality

Perfect Viewing Screen

Wide viewing angle
LG OLED Signage delivers awe-inspiring picture quality across the entire screen, even from wide viewing angles.

Ultimate Elegance of the Design

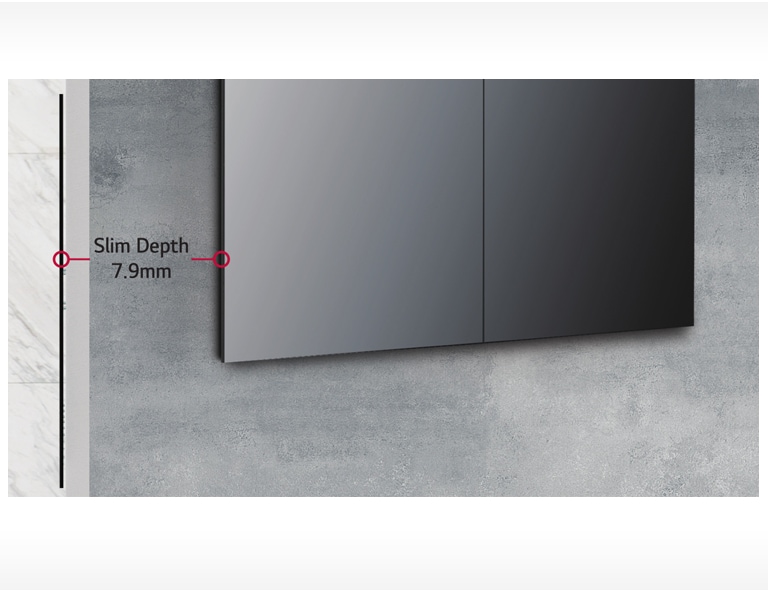

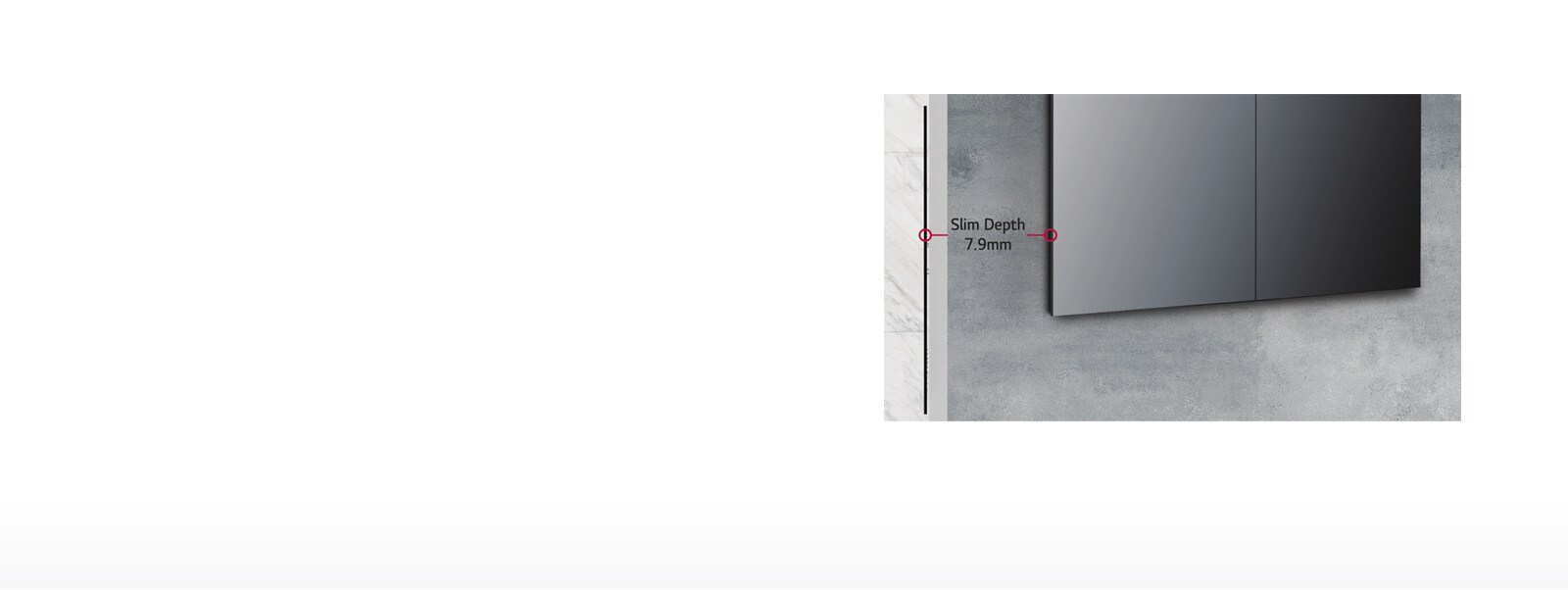

Sleek & Slim Depth

LG's OLED technology unlocks the new worlds of design flexibility with unbelievably slim display. The advantages the OLED display brings are countless from the easier installation to a sleek look.

Ultimate Elegance of the Design

One Perfect Look with Minimized Seam

Minimized seams makes connected displays appear like a single perfect screen, reducing bezel visibility and enhancing immersion.

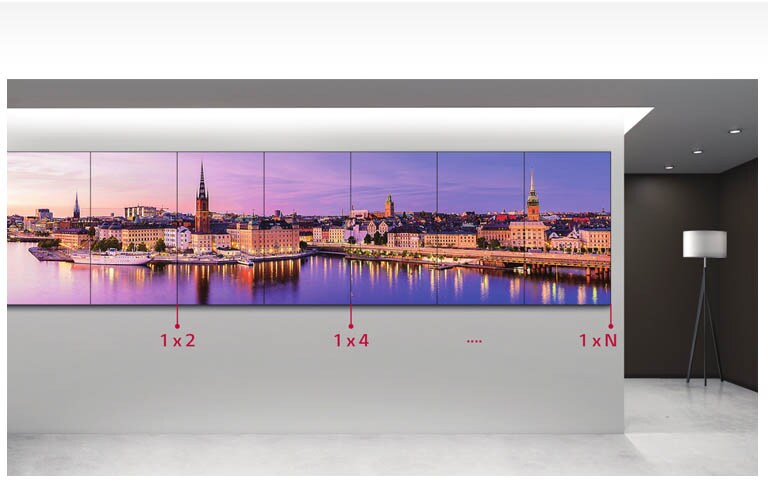

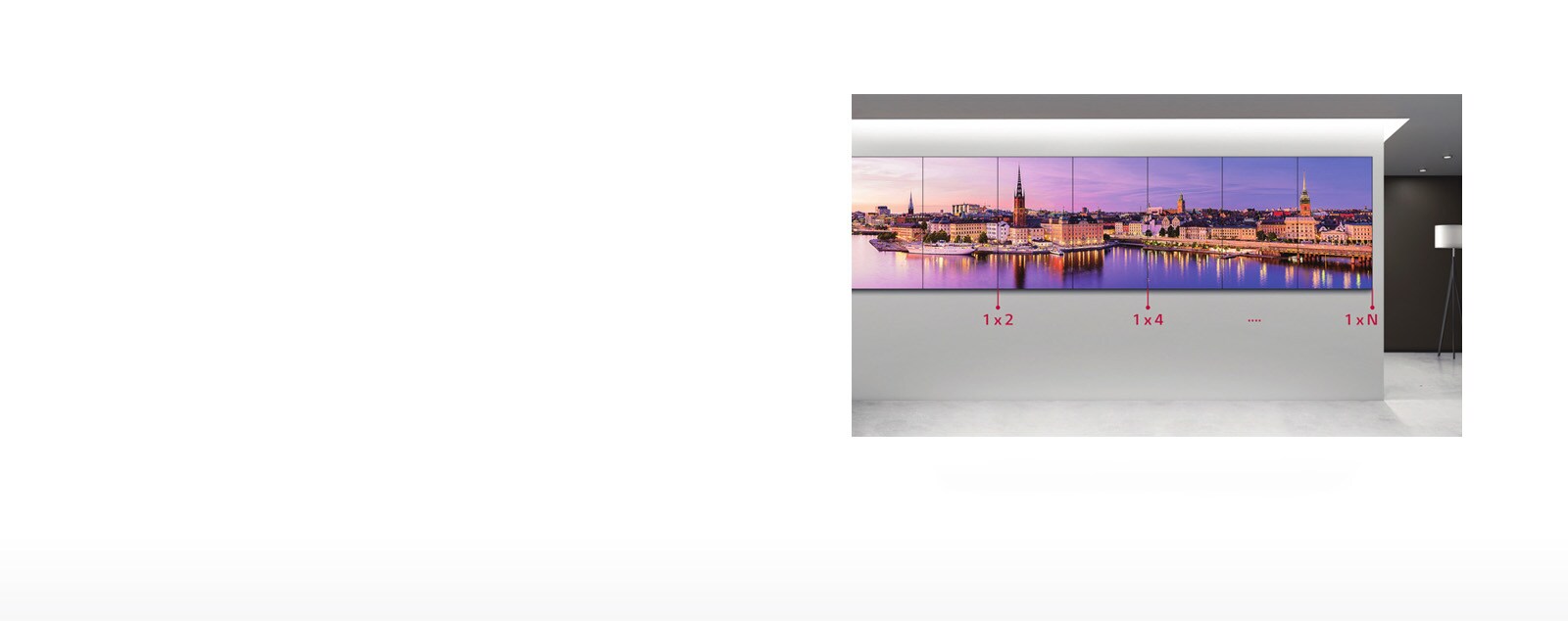

Truly Immersive Screen

1×N Expandable Screen Size

By tiling up displays horizontally*, the screen size can be as large as users want. Expansive, large screens are more effective at moving viewers by providing an incredibly immersive viewing experience.

* The product doesn't support Nx N configuration (ex. 2x2, 2x3,··· ) but 1 x N only.

Truly Immersive Screen

Uniform Brightness with VLC

VLC ^{(Video wall Luminance Compensation)} allows the tiled displays to deliver consistent picture quality throughout the screen by adjusting the luminance value of different tiles so that they appear as a uniform whole.

Operational Efficiency

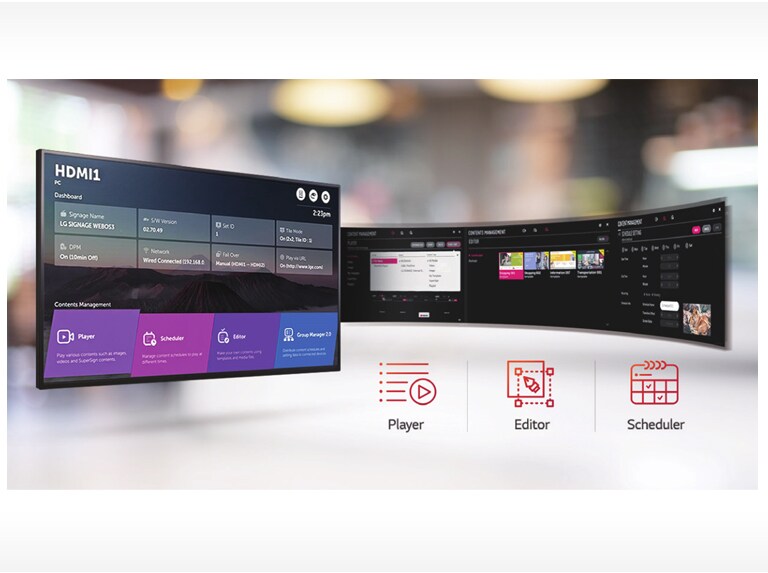

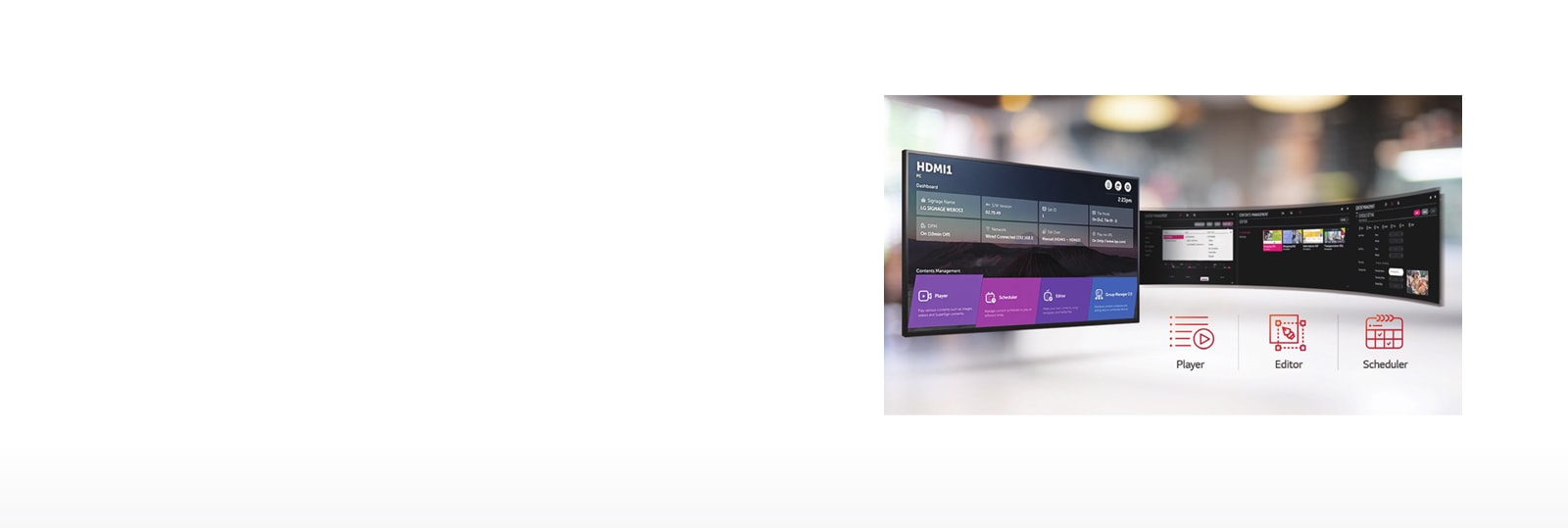

Easy Content Management

The embedded CMS^{(Content Management System)} allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier.

Operational Efficiency

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware.

PANEL

Screen Size

65"

Resolution

3,840 x 2,160 (UHD)
Brightness (APL25%, Typ., cd/m²)

400

Brightness (APL100%, Typ., cd/m²)

150

CONNECTIVITY

Input

HDMI, DP, USB 2.0 (2)

Output

DP, Audio
External Control

RS232C In/out, RJ45 (LAN) In/out, IR In

PHYSICAL SPECIFICATION

Bezel Width

1.2mm (Even) *Off-Bezel
9.1 mm (T/B), 8.7 mm (L), 11.6 mm (R) *On-Bezel
6.7 mm (Seam)

Dimension (W x H x D)

1,634.6 x 1,446.7 x 7.9 mm (Head 1x2)
2,445.4 x 1,446.7 x 7.9 mm (Head 1x3)
782.8 x 35.5 x 239.0 mm (Signage Box)
Weight

29.4 kg (Set 1×2) / 44.5 kg (Set 1×3)

Carton Dimensions (W x H x D)

1,940 x 1,120 x 536 mm (Set 1x2) / 1,940 x 1,120 x 646 mm (Set 1x3)
Packed Weight

69.6 kg (Set 1x2, w/ Pallet) / 96 kg (Set 1x3, w/ Pallet)

ENVIRONMENT CONDITIONS

Operation Temperature

0°C ~40°C

Operation Humidity

10% ~ 80%

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

440 W *8 Color Bar Based

Max.

478 W *8 Color Bar Based

STANDARD(CERTIFICATION)

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes / No

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

External Media Player Attatchable

Yes

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+ / Control

ACCESSORY

Basic

Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection Between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Fixer Screws, Anchor Bolts, Polyester Tapes, Panel Jigs
