LAS Fine-pitch

With a diverse line-up of information displays to choose from, the LAS Fine Pitch is perfect for both indoor & outdoor uses. Learn about the product features below.

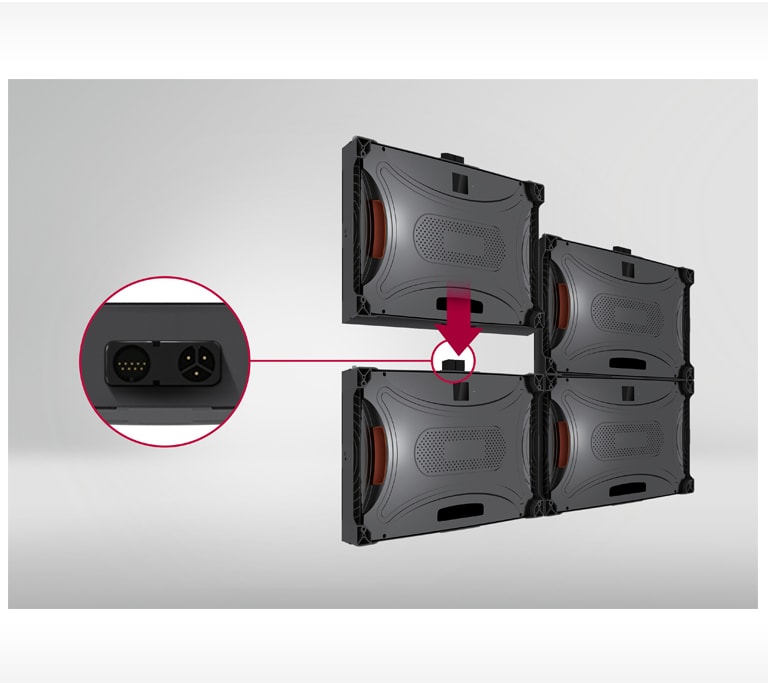

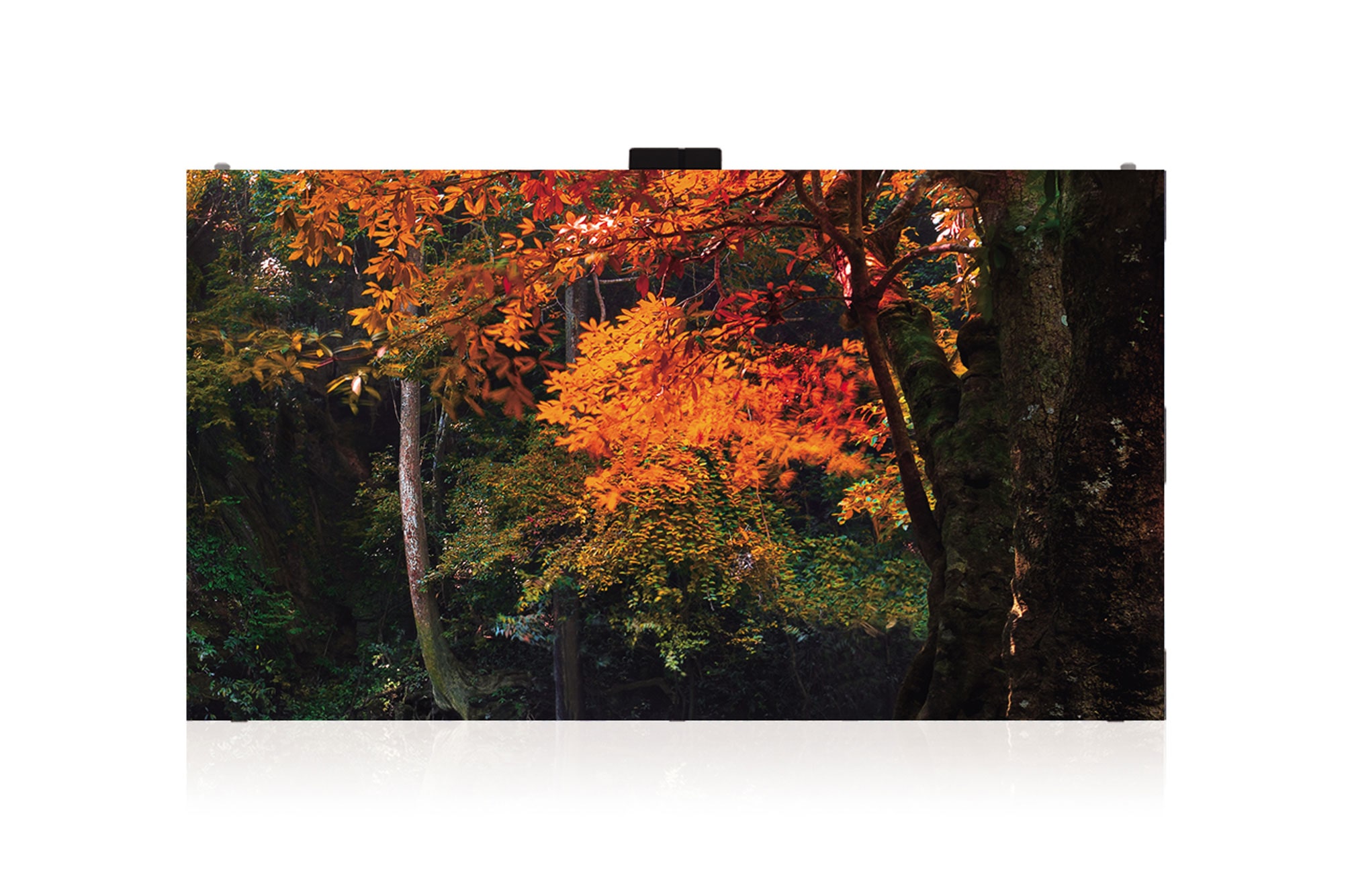

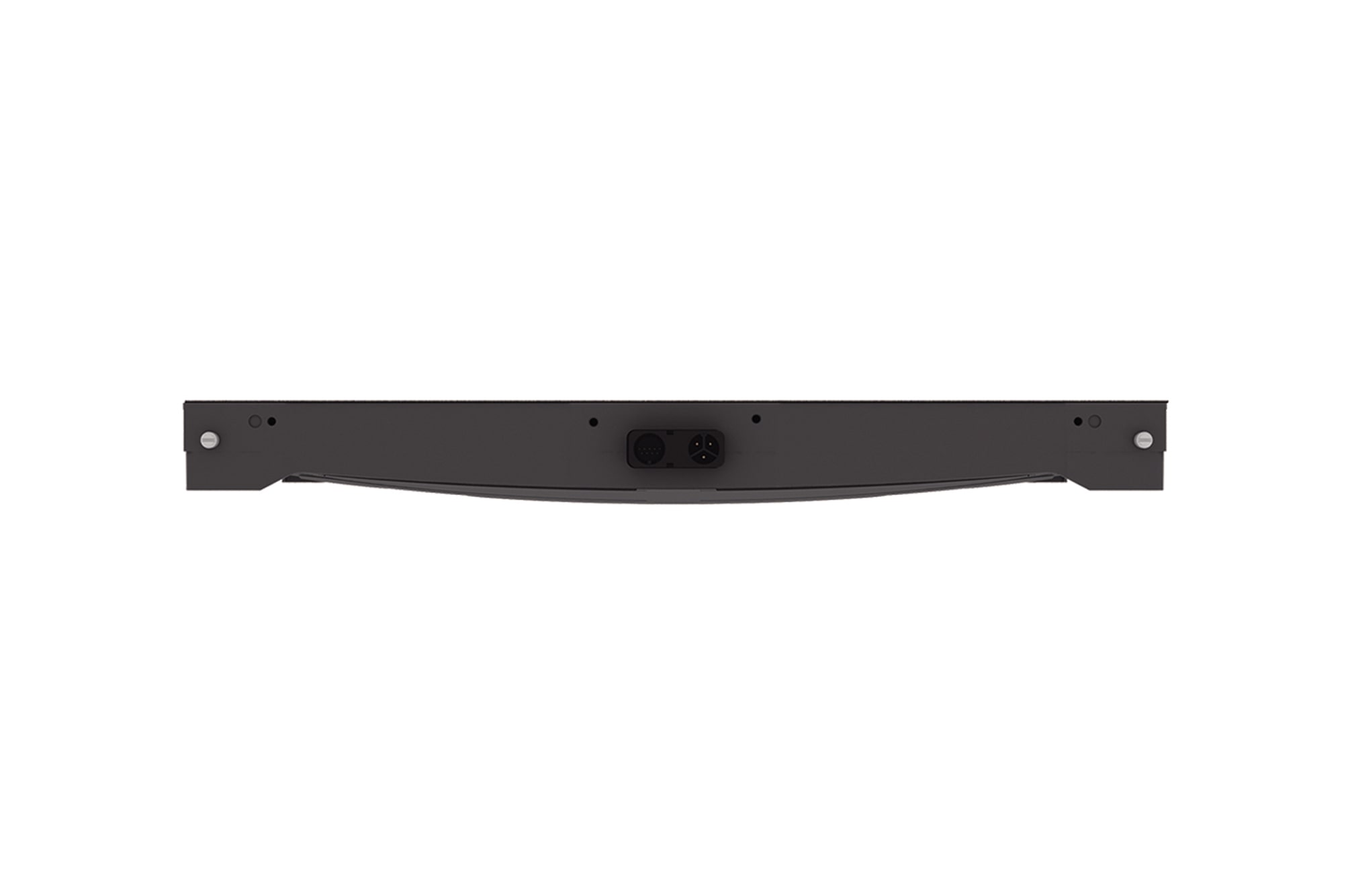

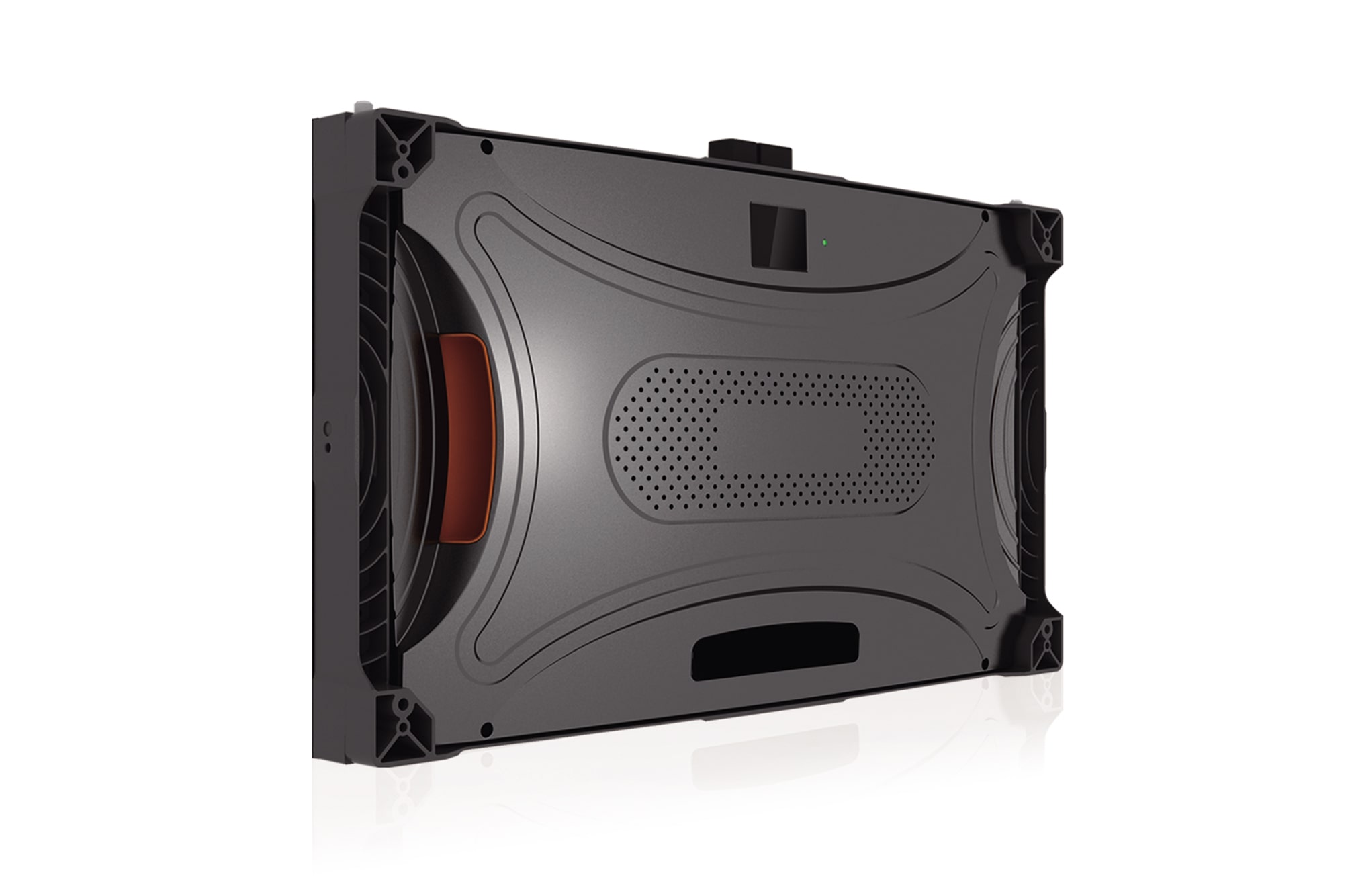

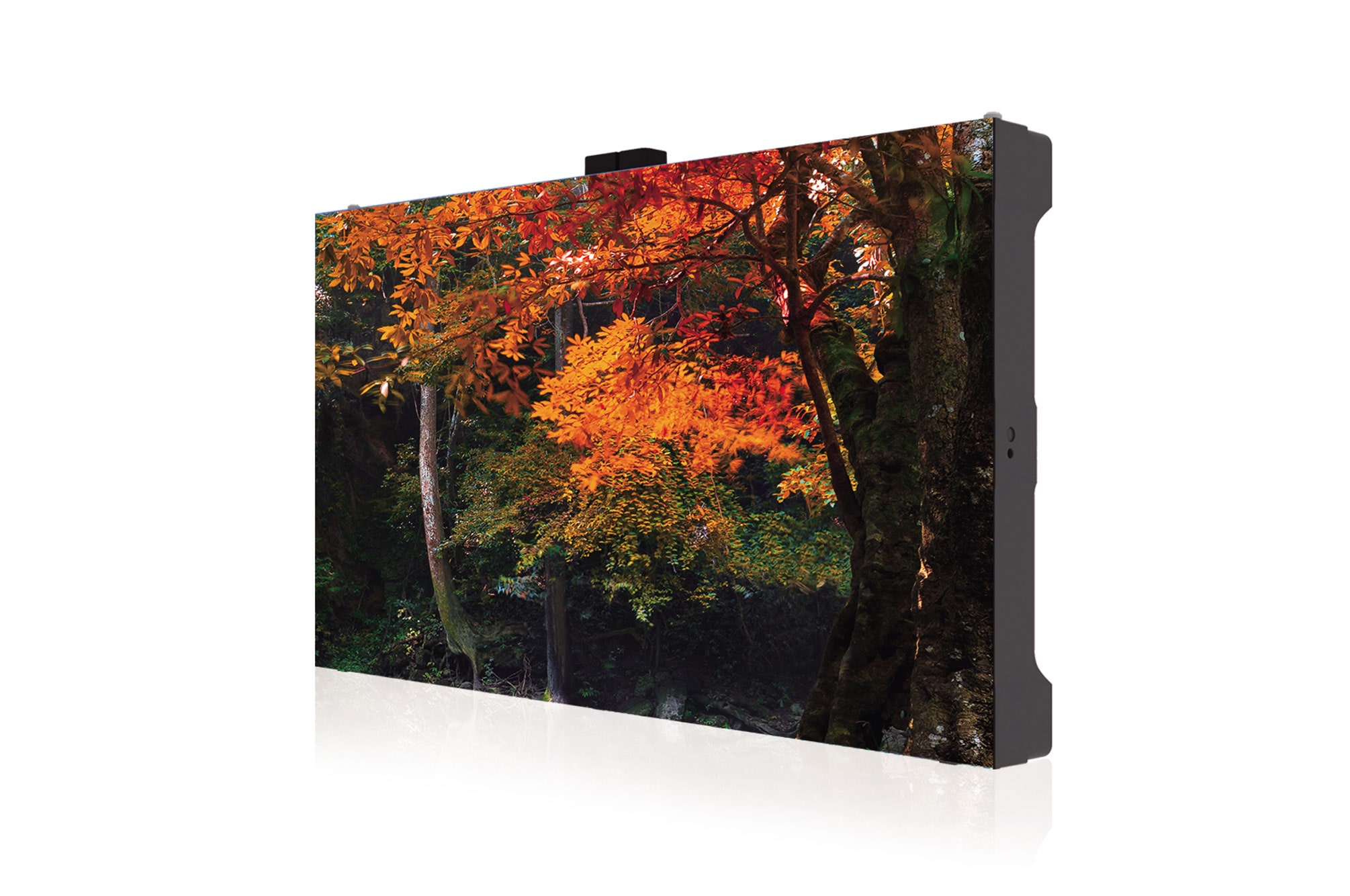

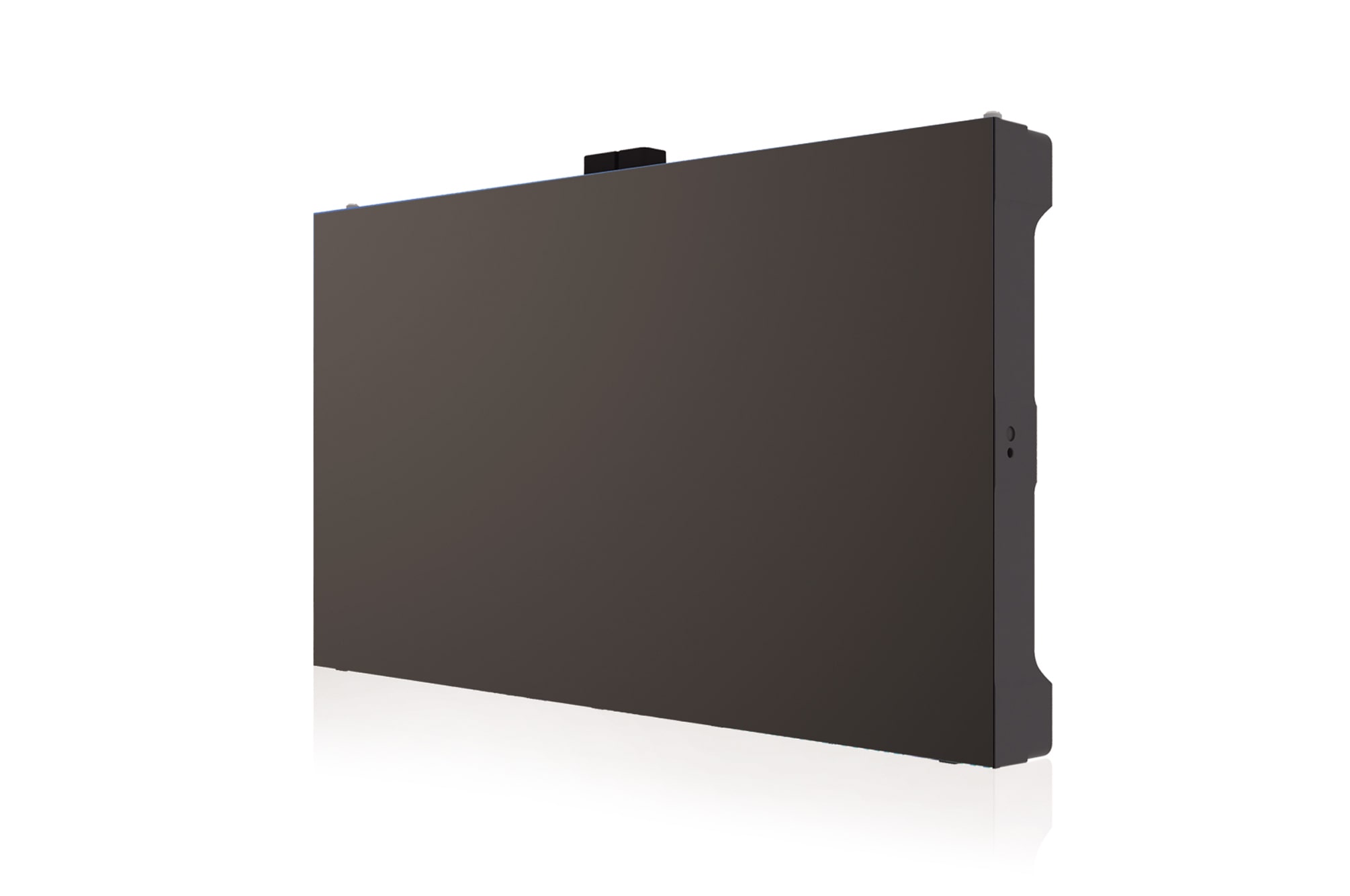

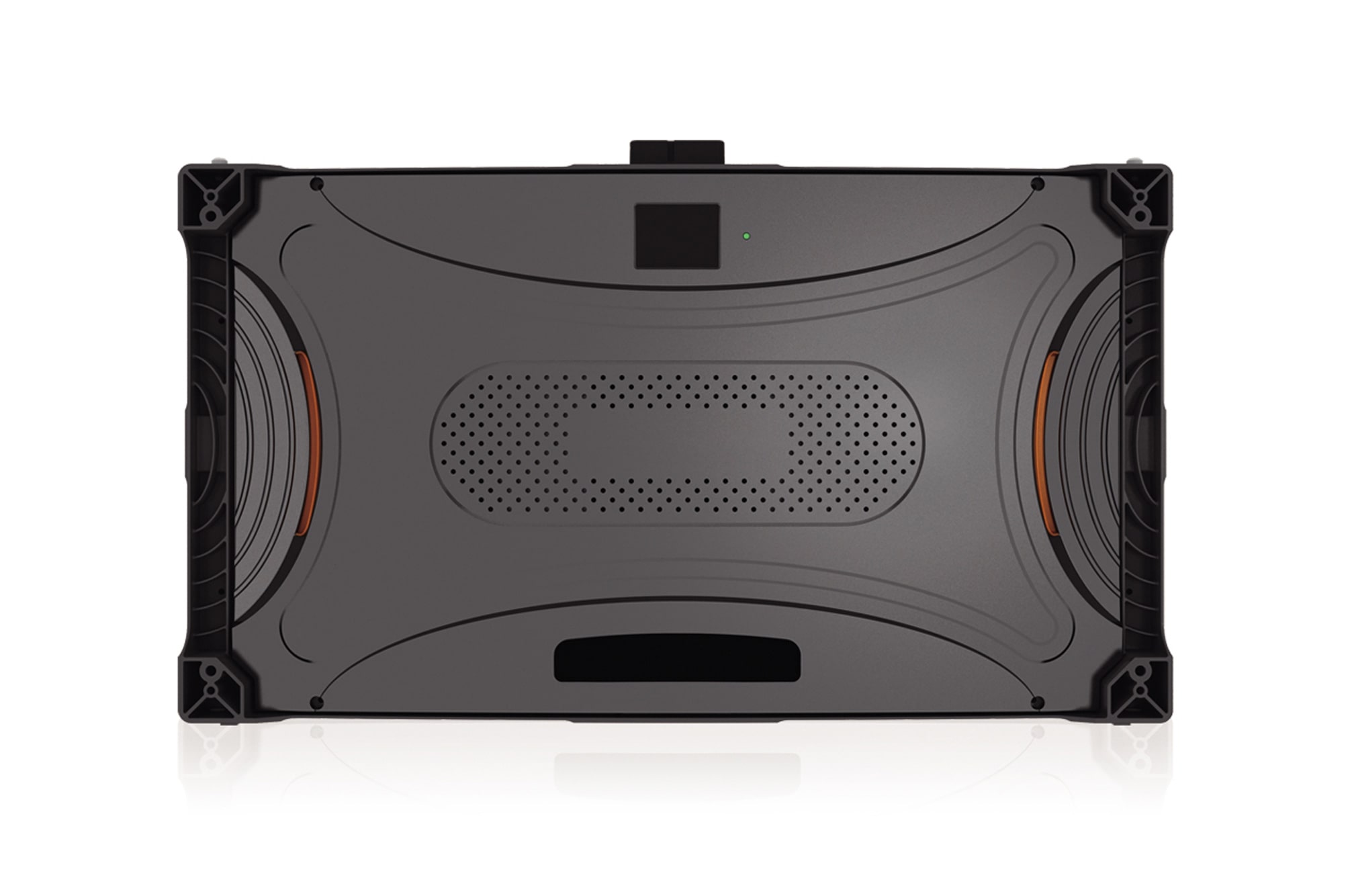

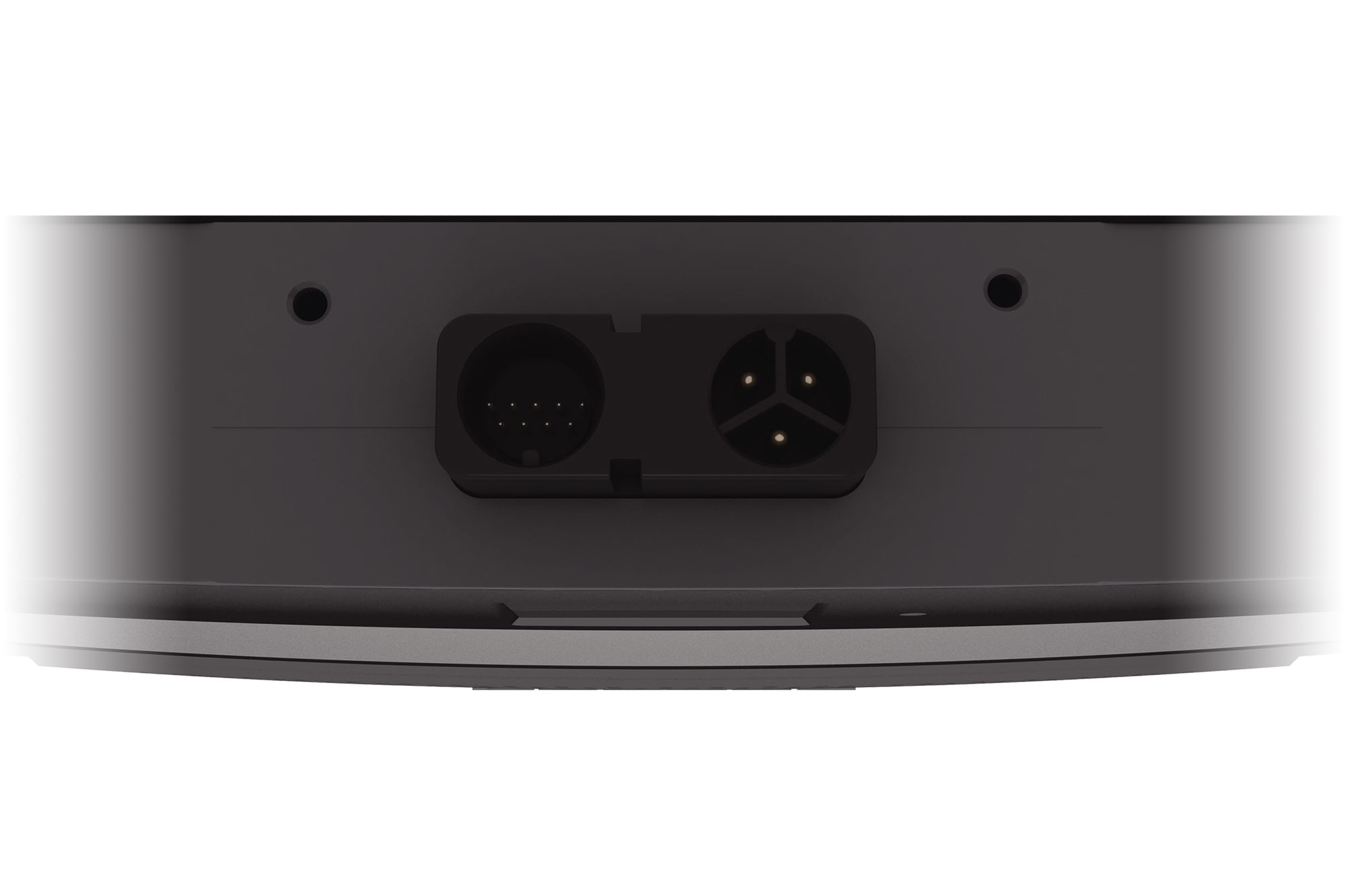

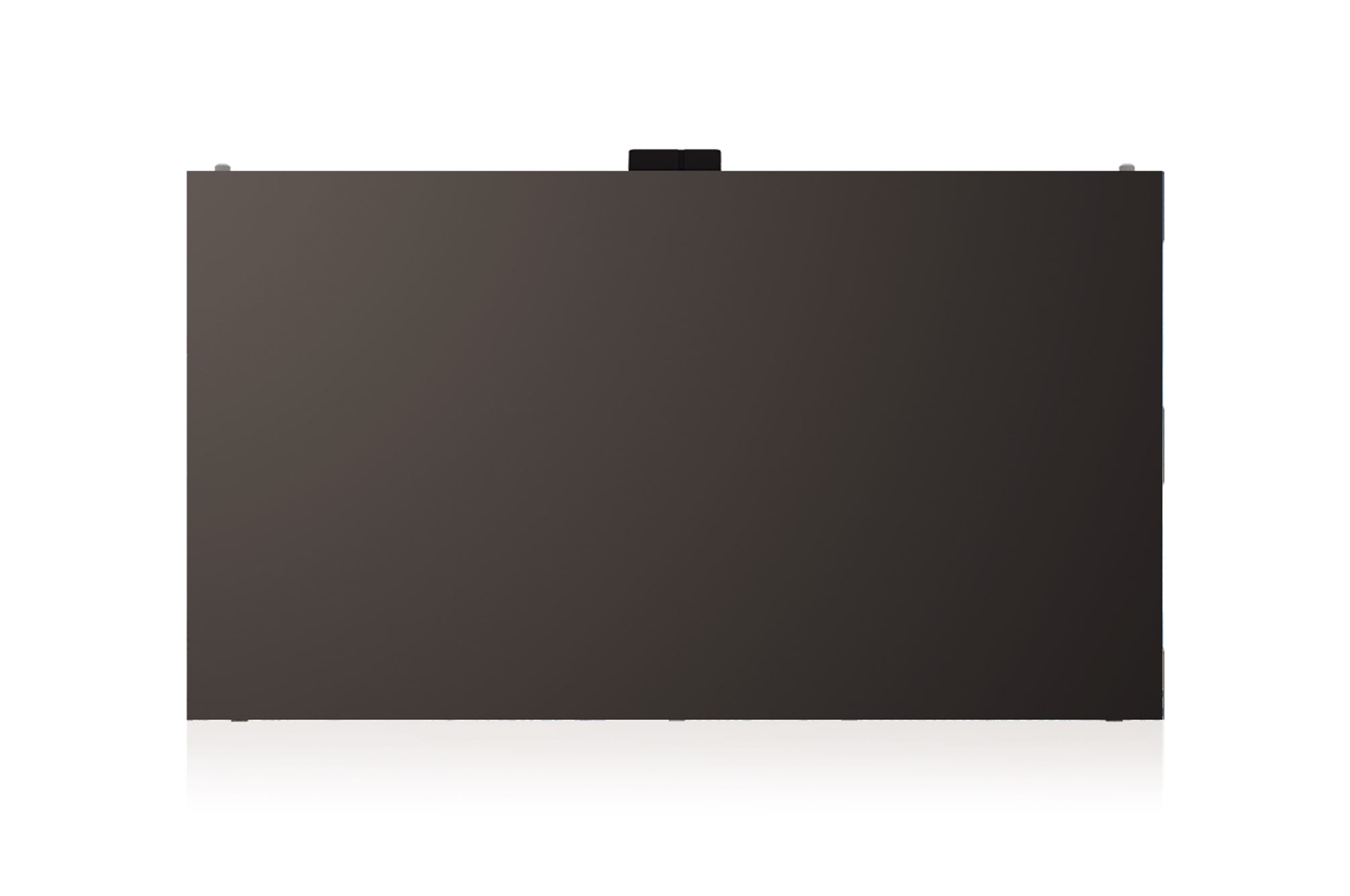

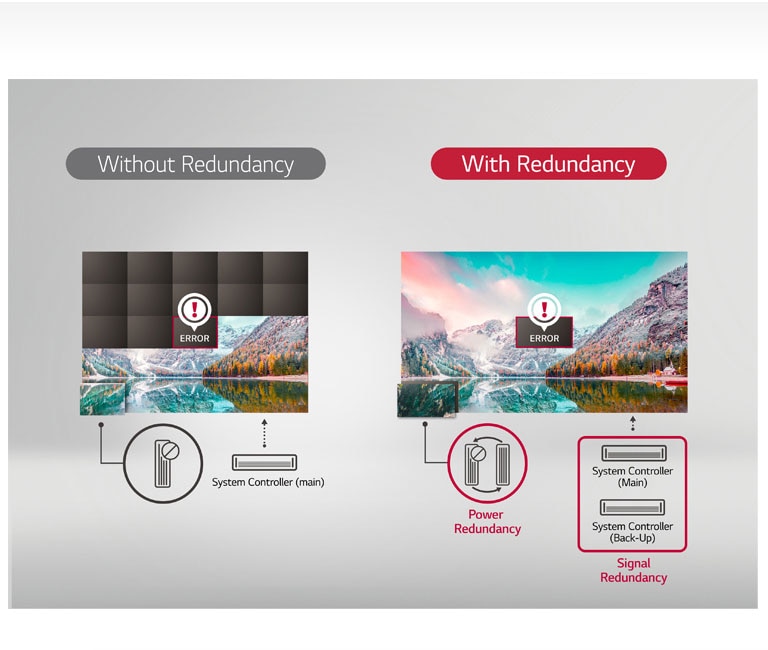

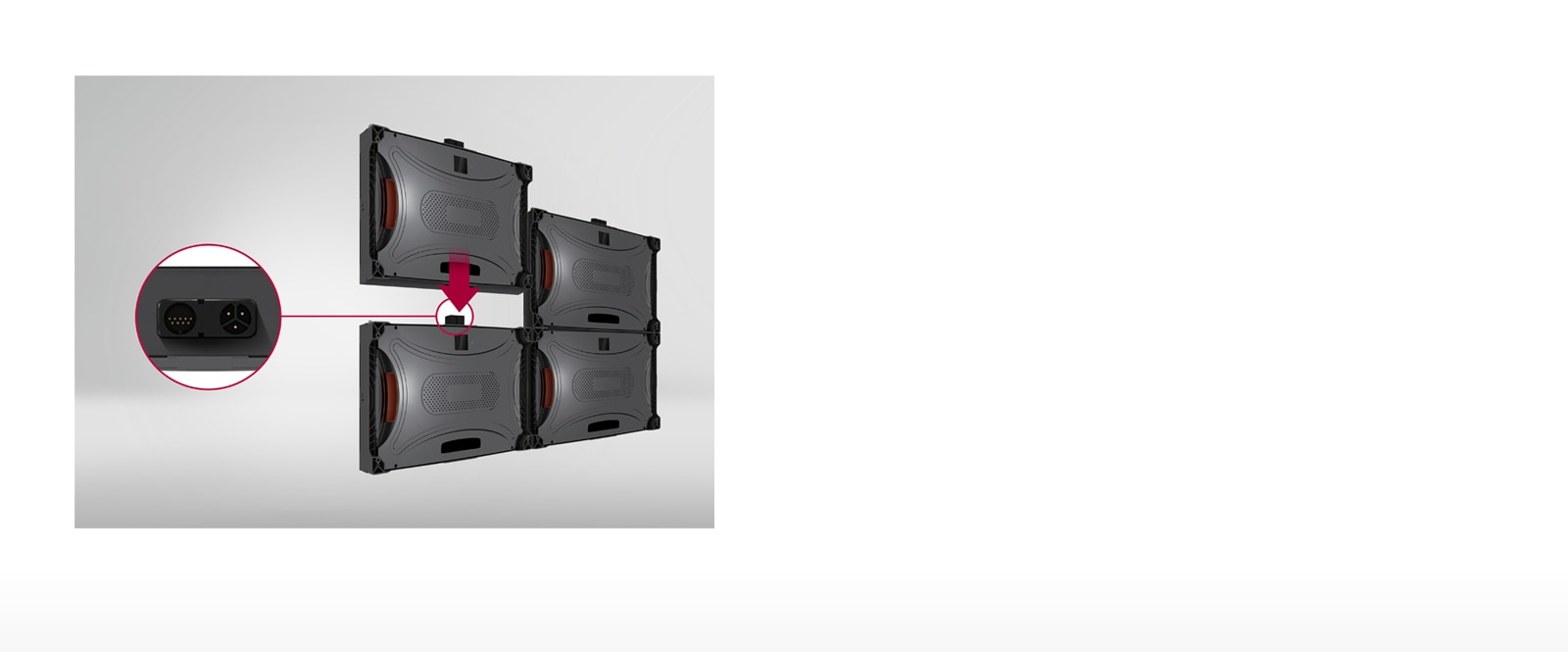

Gallery
*HDR can be supported when using a 4K controller.
*Optional
Vertical Table
Model Name LAS012DB2-F LAS012DB4-F LAS012DB7-F LAS014DB2-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.26 1.26 1.26 1.454
Unit Case Resolution
(WxH)
480 x 270 480 x 270 480 x 270 416 x 234

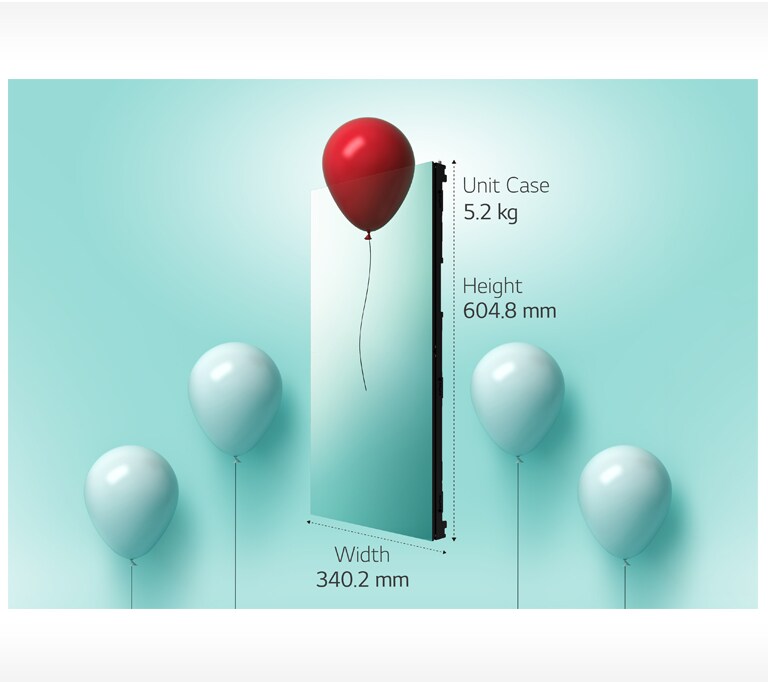

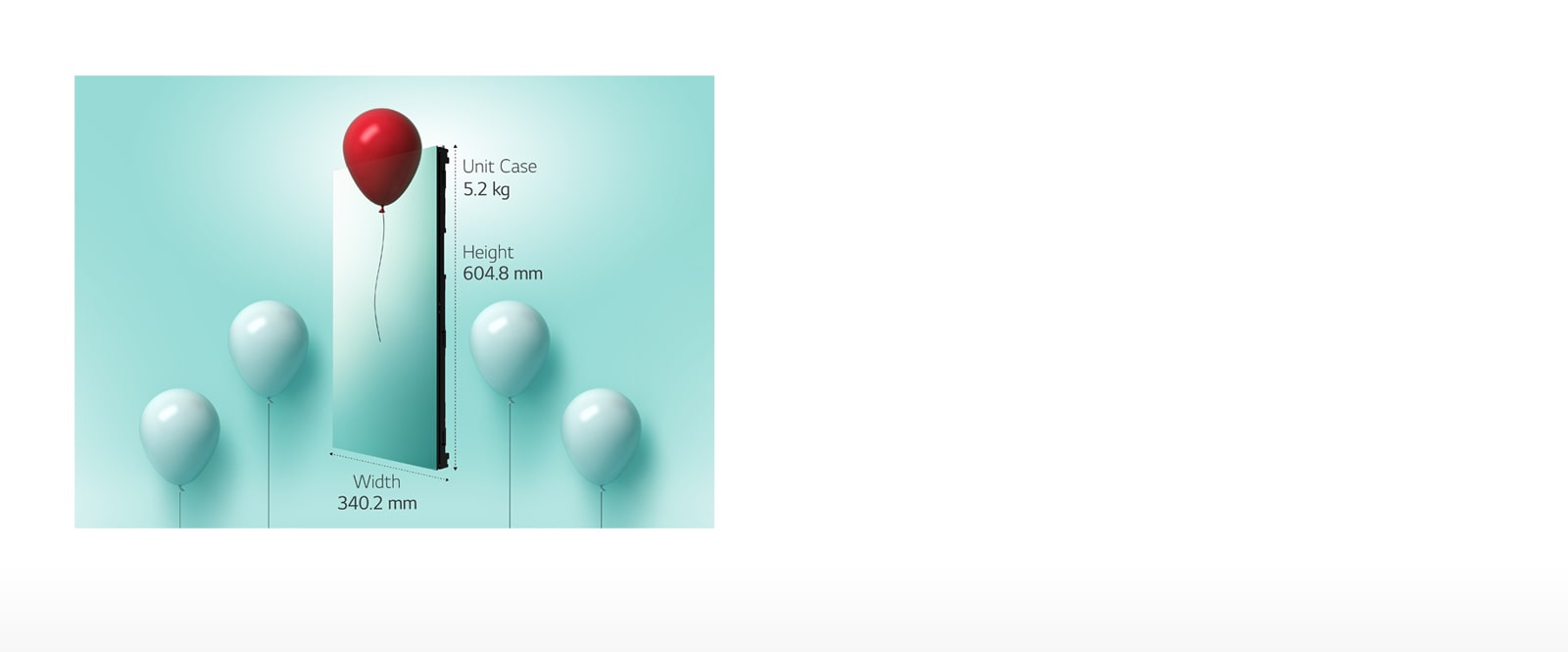

Unit Case Dimensions
(WxHxD, mm)
604.8x340.2x72.5 604.8x340.2x72.5 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case
/ Square Meter (kg)
5.2/25.3 5.2/25.3 5.2/25.3 5.2/25.3

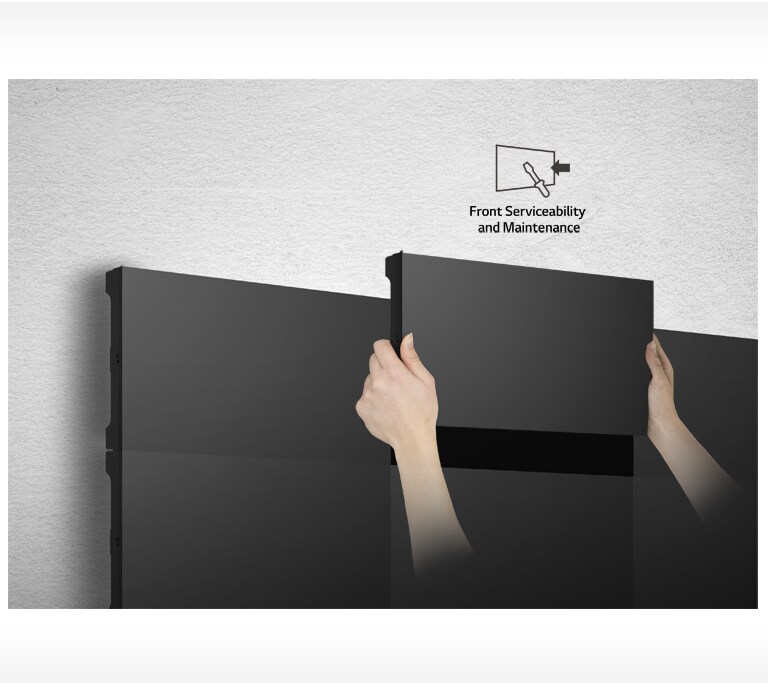

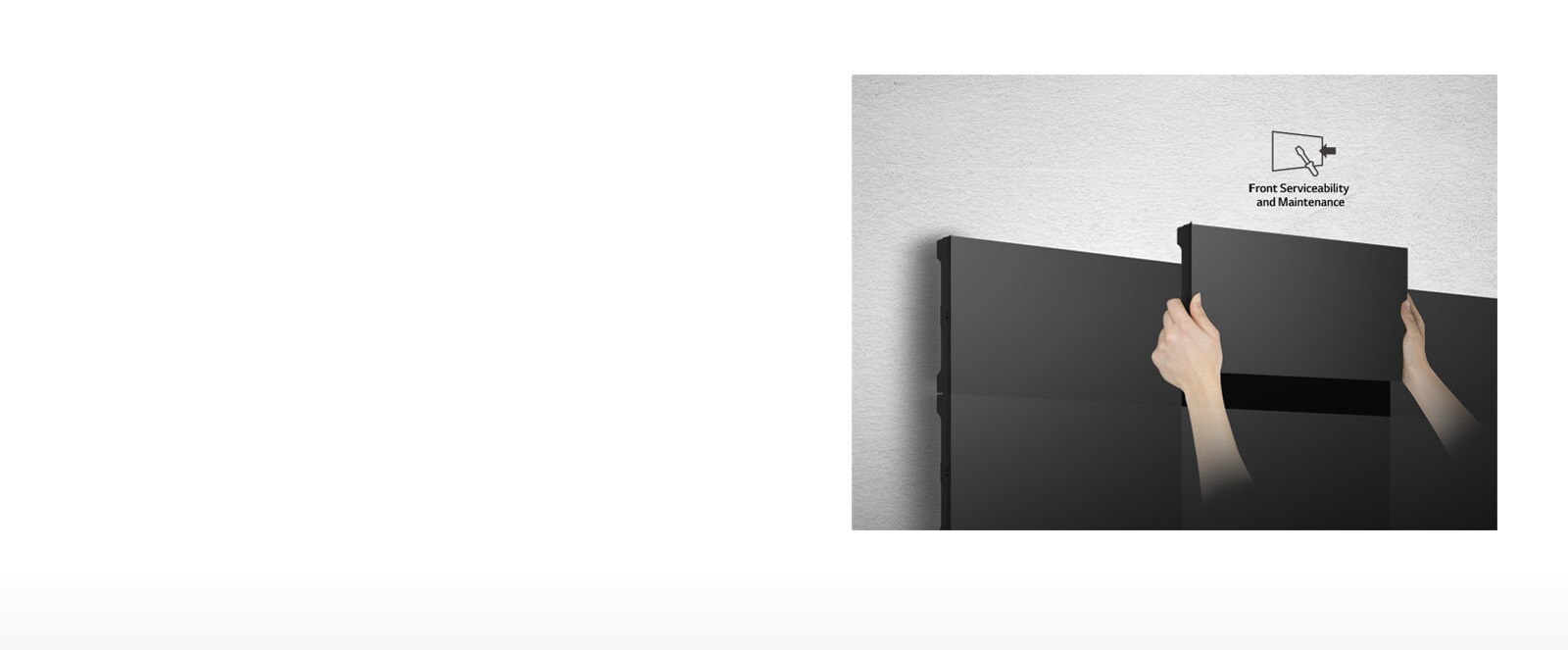

Service access Front Front Front Front
Min. Brightness
(After Calibration)
800 800 600 800
Color Temperature 3,000 - 10,000 3,000 - 10,000 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle
(Horizontal/Vertical)
160/140 160/140 160/140 160/140
Brightness Uniformity 97% 97% 97% 97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000 7,000 7,000
Processing Depth (bit) 16 16 16 16
Power Consumption
(W/Unit, Avg./Max.)
54/180 54/180 54/180 54/180
Power Consumption
(W/m², Max.)
874 874 874 874
Power Supply (V) 100 to 240 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000 3,000 3,000
Lifetime
(Half brightness)*
100,000 80,000 100,000 100,000
Operating Temperature(°C) /
Humidity
-10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH
*The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
Vertical Table
Model Name LAS014DB4-F LAS014DB7-F LAS015DB2-F LAS015DB4-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.454 1.454 1.575 1.575
Unit Case Resolution
(WxH)
416 x 234 416 x 234 384 x 216 384 x 216
Unit Case Dimensions
(WxHxD, mm)
604.8x340.2x72.5 604.8x340.2x72.5 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case
/ Square Meter (kg)
5.2/25.3 5.2/25.3 5.2/25.3 5.2/25.3
Service access Front Front Front Front
Min. Brightness
(After Calibration)
800 600 800 800
Color Temperature 3,000 - 10,000 3,000 - 10,000 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle
(Horizontal/Vertical)
160/140 160/140 160/140 160/140
Brightness Uniformity 97% 97% 97% 97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000 7,000 7,000
Processing Depth (bit) 16 16 16 16
Power Consumption
(W/Unit, Avg./Max.)
54/180 54/180 54/180 54/180
Power Consumption
(W/m², Max.)
874 874 874 874
Power Supply (V) 100 to 240 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000 3,000 3,000
Lifetime
(Half brightness)*
80,000 100,000 100,000 80,000
Operating Temperature(°C)
/ Humidity
-10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH
*The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
Vertical Table
Model Name LAS015DB7-F LAS018DB2-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.575 1.89
Unit Case Resolution
(WxH)
384 x 216 320 x 180
Unit Case Dimensions
(WxHxD, mm)
604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case
/ Square Meter (kg)
5.2/25.3 5.2/25.3
Service access Front Front
Min. Brightness
(After Calibration)
600 800
Color Temperature 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle
(Horizontal/Vertical)
160/140 160/140
Brightness Uniformity 97% 97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000
Processing Depth (bit) 16 16
Power Consumption
(W/Unit, Avg./Max.)
54/180 54/180
Power Consumption
(W/m², Max.)
874 874
Power Supply (V) 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000
Lifetime
(Half brightness)*
100,000 100,000
Operating Temperature(°C)
/ Humidity
-10° to 40°/10-80%RH -10° to 40°/10-80%RH
*The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
Vertical Table
Model Name LAS018DB4-F LAS018DB7-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 1.89 1.89
Unit Case Resolution
(WxH)
320 x 180 320 x 180
Unit Case Dimensions
(WxHxD, mm)
604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case
/ Square Meter (kg)
5.2/25.3 5.2/25.3
Service access Front Front
Min. Brightness
(After Calibration, cd/m²)
800 600
Color Temperature 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle
(Horizontal/Vertical)
160/140 160/140
Brightness Uniformity 97% 97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000
Processing Depth (bit) 16 16
Power Consumption
(W/Unit, Avg./Max.)
54/180 54/180
Power Consumption
(W/m², Max.)
874 874
Power Supply (V) 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000
Lifetime
(Half brightness, hrs)*
80,000 100,000
Operating Temperature(°C)
/ Humidity
-10° to 40°/10-80%RH -10° to 40°/10-80%RH
*The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
Vertical Table
Model Name LAS025DB2-F LAS025DB4-F LAS025DB7-F
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 2.52 2.52 2.52
Unit Case Resolution
(WxH)
240 x 136 240 x 136 240 x 136
Unit Case Dimensions
(WxHxD, mm)
604.8x340.2x72.5 604.8x340.2x72.5 604.8x340.2x72.5
Weight per Unit Case
/ Square Meter (kg)
5.2/25.3 5.2/25.3 5.2/25.3
Service access Front Front Front
Min. Brightness
(After Calibration, cd/m²)
800 800 600
Color Temperature 3,000 - 10,000 3,000 - 10,000 3,000 - 10,000
Visual Viewing Angle
(Horizontal/Vertical)
160/140 160/140 160/140
Brightness Uniformity 97% 97% 97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 7,000 7,000 7,000
Processing Depth (bit) 16 16 16
Power Consumption
(W/Unit, Avg./Max.)
54/180 54/180 54/180
Power Consumption
(W/m², Max.)
874 874 874
Power Supply (V) 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,000 3,000 3,000
Lifetime
(Half brightness, hrs)*
100,000 80,000 100,000
Operating Temperature(°C)
/ Humidity
-10° to 40°/10-80%RH -10° to 40°/10-80%RH -10° to 40°/10-80%RH
*The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
Vertical Table
Controller LCLY006HD
(2K controller)
LCLY006U
(4K controller)
Dimension (W x H x D, mm) 482.6 x 44 x 262 482.6 x 88 x 359
Size 1U standard box 2U standard box
NET Weight (kg) 2 kg 9 kg
Gross Weight (kg) 2.5 kg 9.5 kg
Input Voltage AC 100 ~ 240V AC 100 ~ 240V
Rated Power Consumption 10W 80W
Operating Temperature 0℃ ~ 40℃ 0℃ ~ 40℃
Nominal Input Resolution 1920 x 1200 @60Hz 3840 x 2160 @60Hz
For Max. Customizing Input Resolution 2,560 / 4,096 8192 * 1012 / 1012 * 8192 @60Hz
Processing Depth (bit) 8 8 / 10
SDI N/A 2 * 3G SDI
DVI 1 4
HDR N/A YES
HDMI 1 (HDCP 1.4) 1 (HDCP 2.2)
Gigabit ethernets 4 16
Ethernet (Communication with PC) N/A 1
USB IN (Connect with PC to configure Parameters) YES YES
USB OUT (Cascading with next Controller) YES YES
Certification (on Customer Requirement) ROHS/CU/CE(EMC Class A) ROHS/CU/CE(EMC Class A)
***4K Controller (LCLY006U) and FHD Controller (LCLY006HD) are considered on project to project basis. For detailed specifications, check with local sales team.
