Model Name | LBE039DD3D | LBE039DD3 | LBE039DD4D | LBE039DD4 |
---|---|---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 3.91 | 3.91 | 3.91 | 3.91 |
Unit Case Resolution (WxH) |
128x128 | 128x256 | 128x128 | 128x256 |

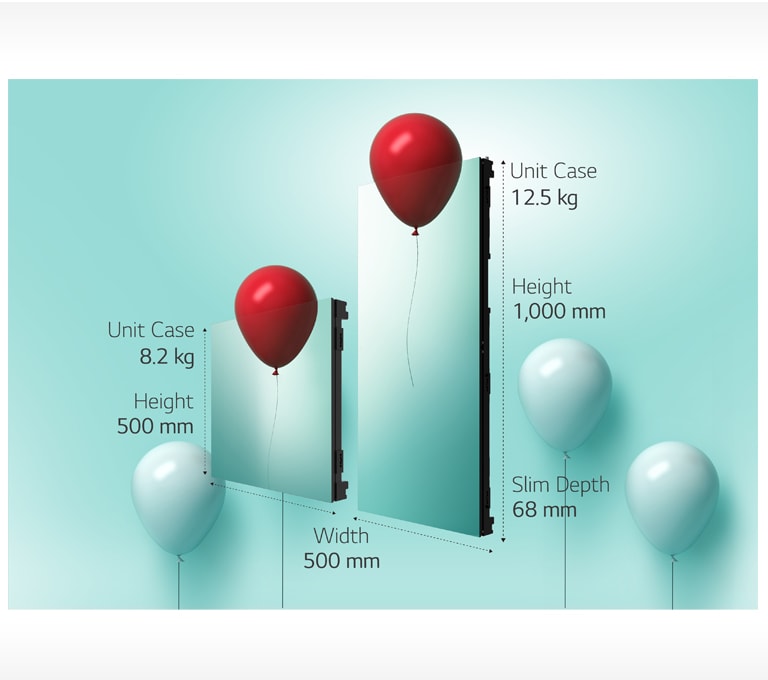

Unit Case Dimensions (WxHxD, mm) |
500x500x68 | 500x1000x68 | 500x500x68 | 500x1000x68 |
Weight per Unit Case / Square Meter (kg) |
8.2/32.8 | 12.5/25.0 | 8.2/32.8 | 12.5/25.0 |

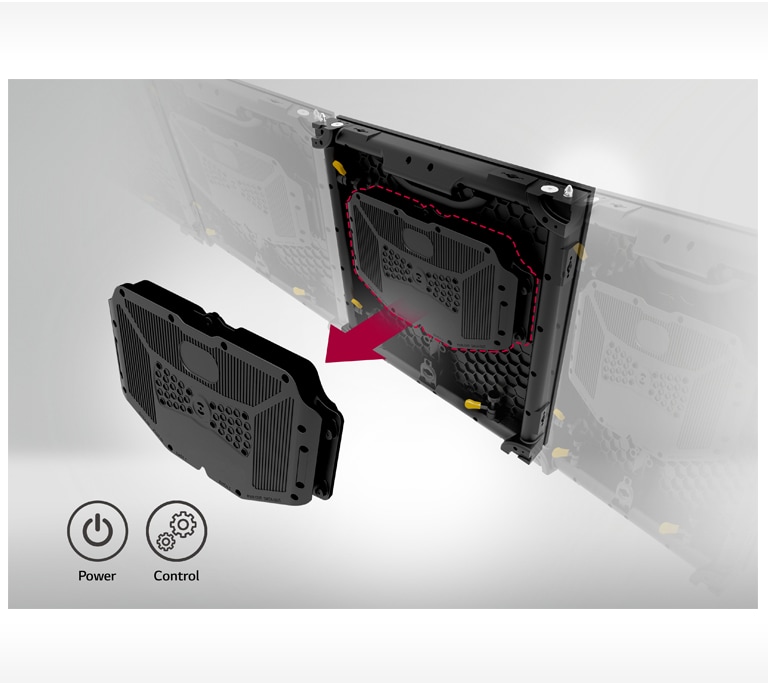

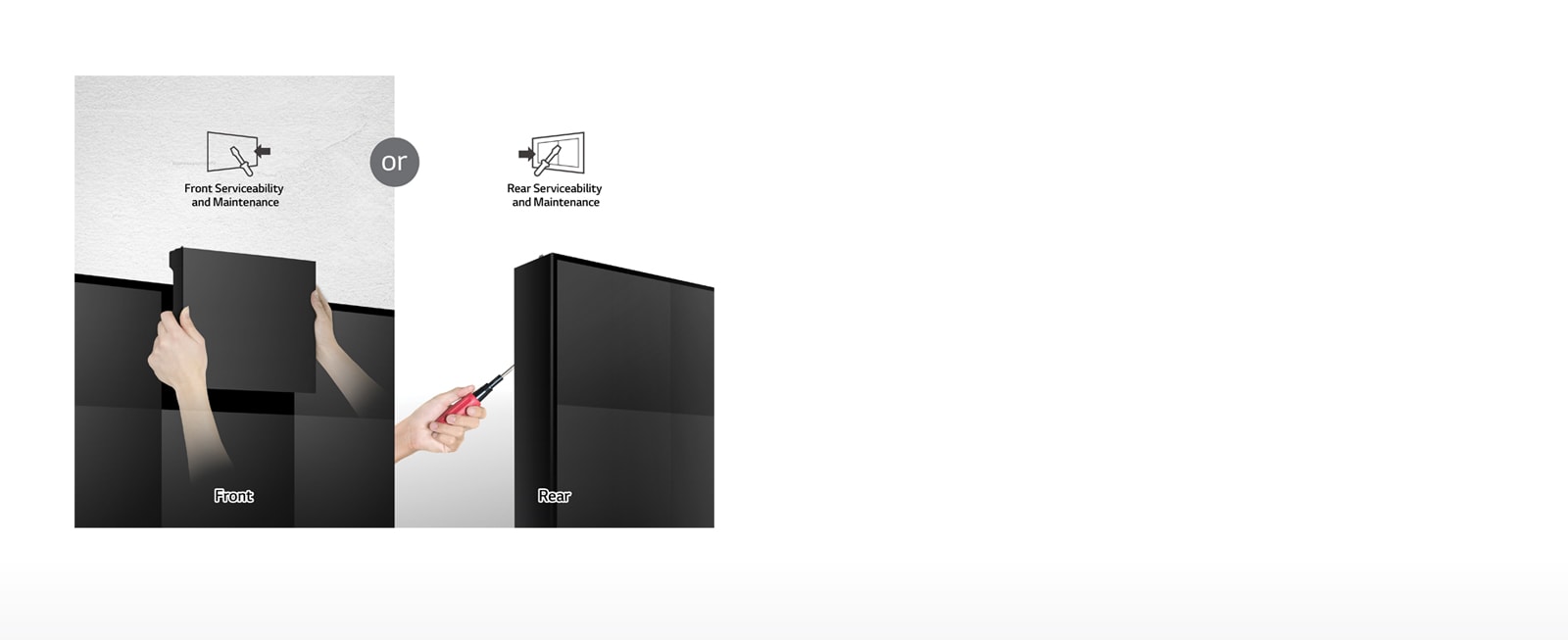

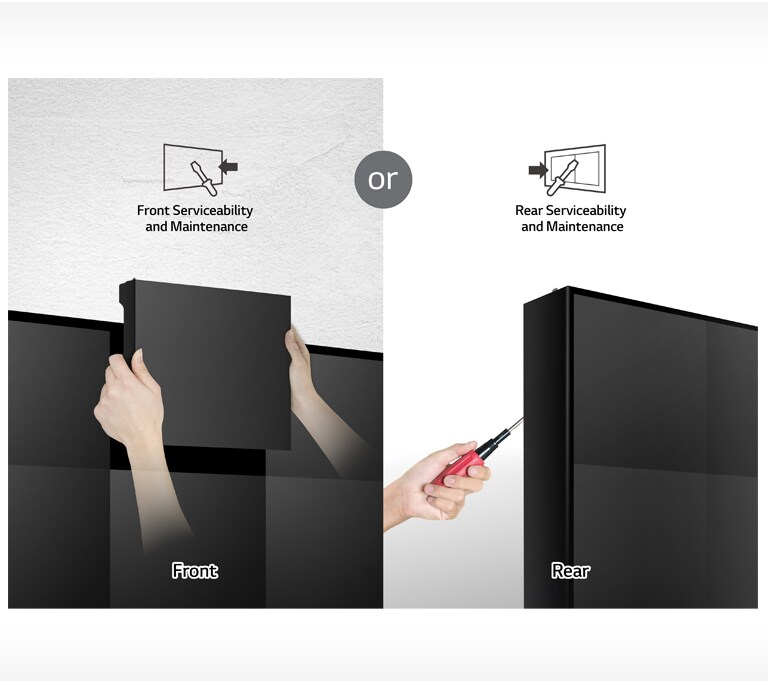

Service access | Front or Rear | Front or Rear | Front or Rear | Front or Rear |
Min. Brightness (After Calibration) |
5,500 | 5,500 | 5,000 | 5,000 |
Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
Visual Viewing Angle (Horizontal/Vertical) |
160/120 | 160/120 | 160/120 | 160/120 |
Brightness Uniformity / Color Uniformity | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy |
Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
Processing Depth (bit) | 14 | 14 | 14 | 14 |
Power Consumption (W/Unit, Avg./Max.) |
53/160 | 110/330 | 53/160 | 110/330 |
Power Consumption (W/m², Max.) |
640 | 660 | 640 | 660 |
Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
Lifetime (Half brightness)* |
80,000 | 80,000 | 50,000 | 50,000 |
Operating Temperature(°C) / Humidity | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH |

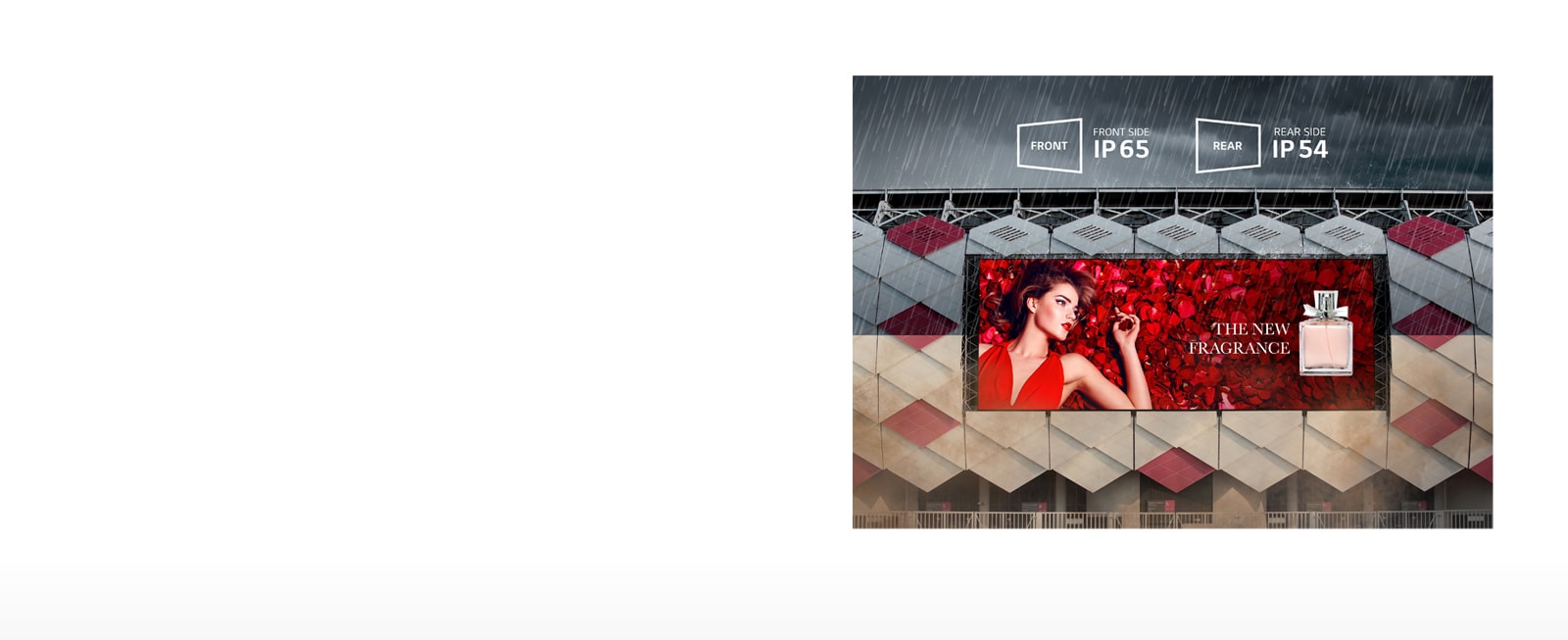

IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Model Name | LBE046DD3D | LBE046DD3 | LBE046DD4D | LBE046DD4 |
---|---|---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 4.63 | 4.63 | 4.63 | 4.63 |
Unit Case Resolution (WxH) |
108x108 | 108x216 | 108x108 | 108x216 |
Unit Case Dimensions (WxHxD, mm) |
500x500x68 | 500x1000x68 | 500x500x68 | 500x1000x68 |
Weight per Unit Case / Square Meter (kg) |
8.2/32.8 | 12.5/25.0 | 8.2/32.8 | 12.5/25.0 |
Service access | Rear | Rear | Rear | Rear |
Min. Brightness (After Calibration) |
5,500 | 5,500 | 5,000 | 5,000 |
Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
Visual Viewing Angle (Horizontal/Vertical) |
160/120 | 160/120 | 160/120 | 160/120 |
Brightness Uniformity / Color Uniformity | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy |
Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
Processing Depth (bit) | 14 | 14 | 14 | 14 |
Power Consumption (W/Unit, Avg./Max.) |
53/160 | 110/330 | 53/160 | 110/330 |
Power Consumption (W/m², Max.) |
640 | 660 | 640 | 660 |
Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
Lifetime (Half brightness)* |
80,000 | 80,000 | 50,000 | 50,000 |
Operating Temperature(°C) / Humidity | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH |
IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Model Name | LBE069DD3D | LBE069DD3 | LBE069DD4D | LBE069DD4 |
---|---|---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 6.94 | 6.94 | 6.94 | 6.94 |
Unit Case Resolution (WxH) |
72x72 | 72x144 | 72x72 | 72x72 |
Unit Case Dimensions (WxHxD, mm) |
500x500x68 | 500x1000x68 | 500x500x68 | 500x1000x68 |
Weight per Unit Case / Square Meter (kg) |
8.2/32.8 | 12.5/25.0 | 8.2/32.8 | 12.5/25.0 |
Service access | Rear | Rear | Rear | Rear |
Min. Brightness (After Calibration) |
5,500 | 5,500 | 5,000 | 5,000 |
Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
Visual Viewing Angle (Horizontal/Vertical) |
160/120 | 160/120 | 160/120 | 160/120 |
Brightness Uniformity / Color Uniformity | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy | 97%/±0.003Cx,Cy |
Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
Processing Depth (bit) | 14 | 14 | 14 | 14 |
Power Consumption (W/Unit, Avg./Max.) |
53/160 | 110/330 | 53/160 | 110/330 |
Power Consumption (W/m², Max.) |
640 | 660 | 640 | 660 |
Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
Lifetime (Half brightness)* |
80,000 | 80,000 | 50,000 | 50,000 |
Operating Temperature(°C) / Humidity | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH | -10° to +45°/0-80%RH |
IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
