LBS DOOH
The LBH High Brightness series is LG's brightest outdoor display & can handle even the harshest weather conditions. Find out more about our LBH high brightness screens below.
LBS DOOH
The LBS DOOH series comes with a slim unit case design suitable for various premium grade outdoor applications.

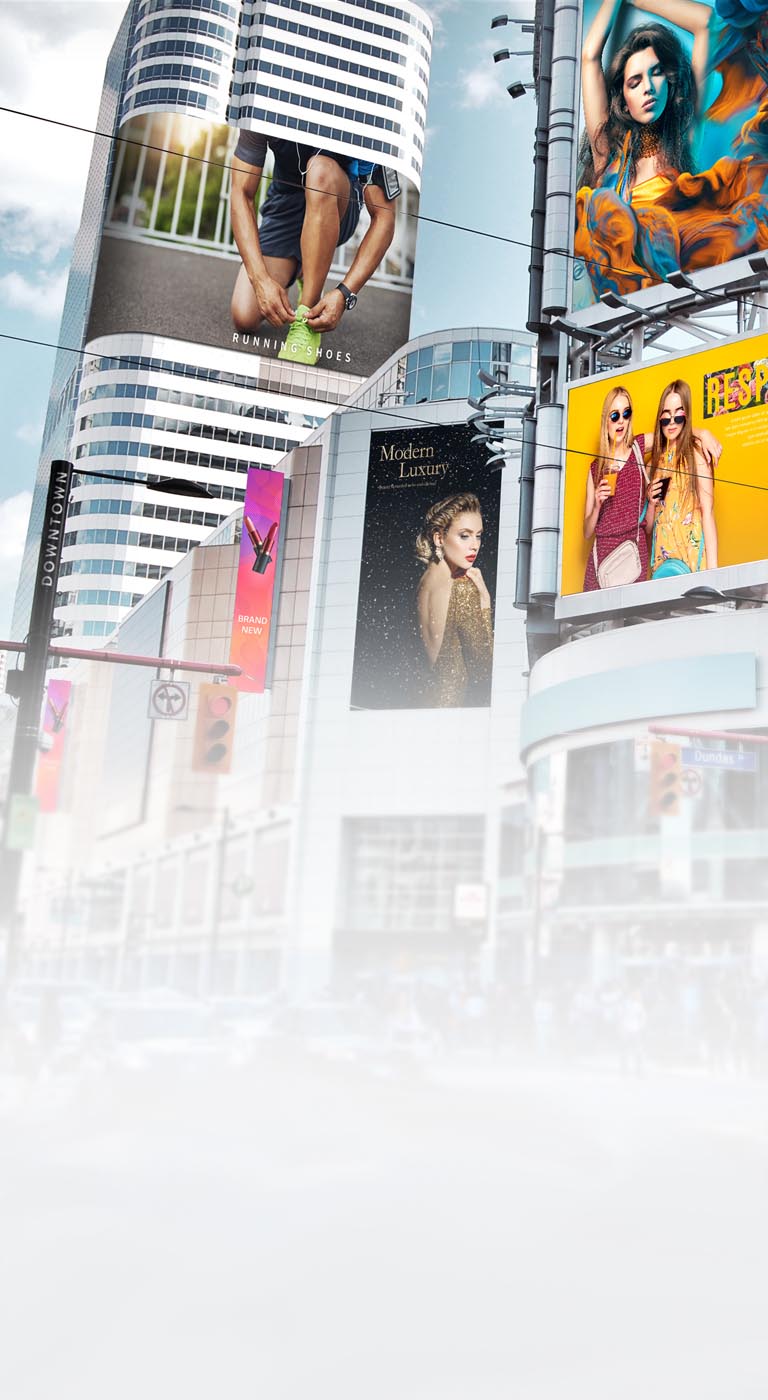

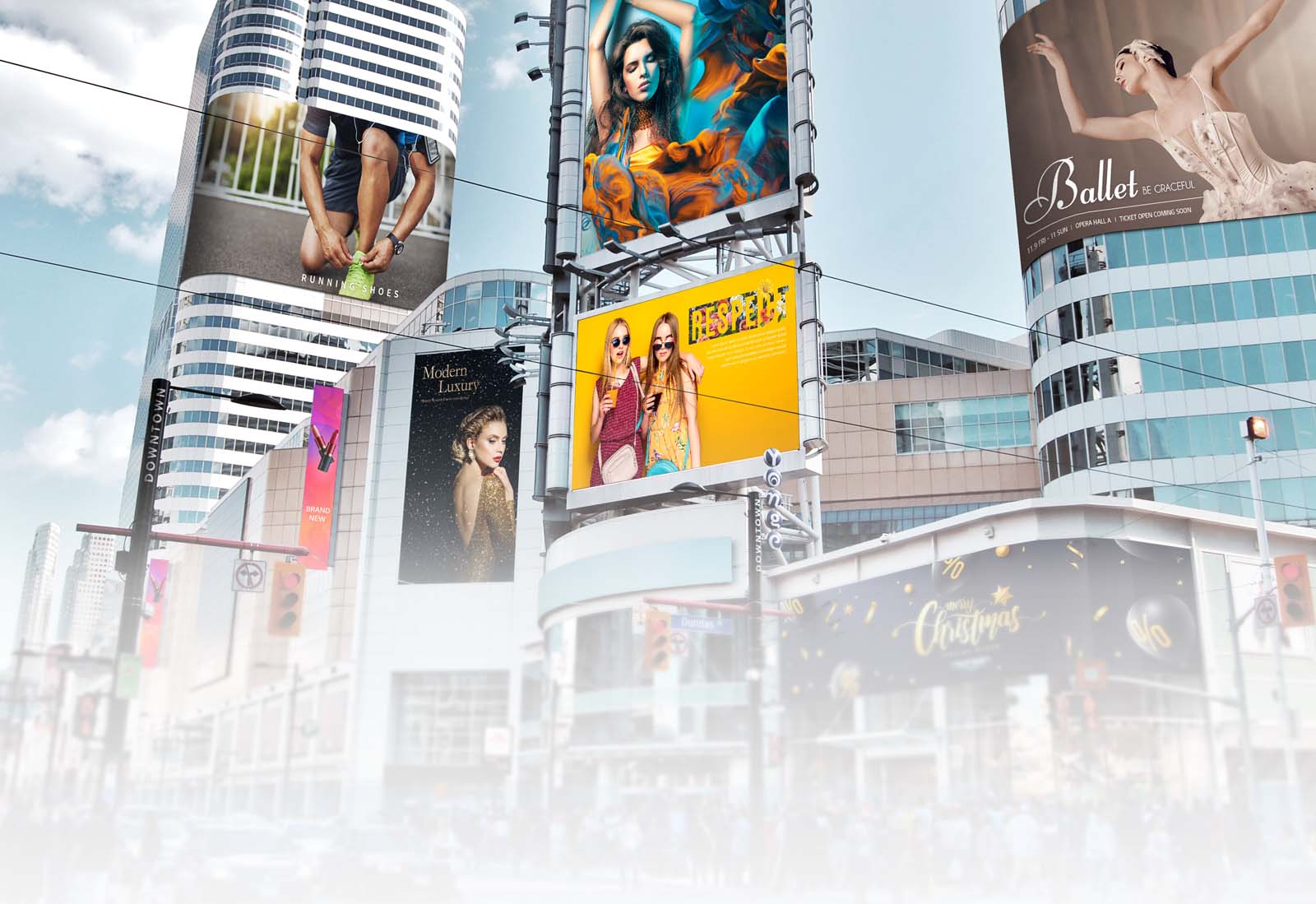

Outstading Visibility
Offering a 6,000 nits, this super-bright display excels outdoors even in direct sunlight, instantly captivating attention and effectively delivering content.

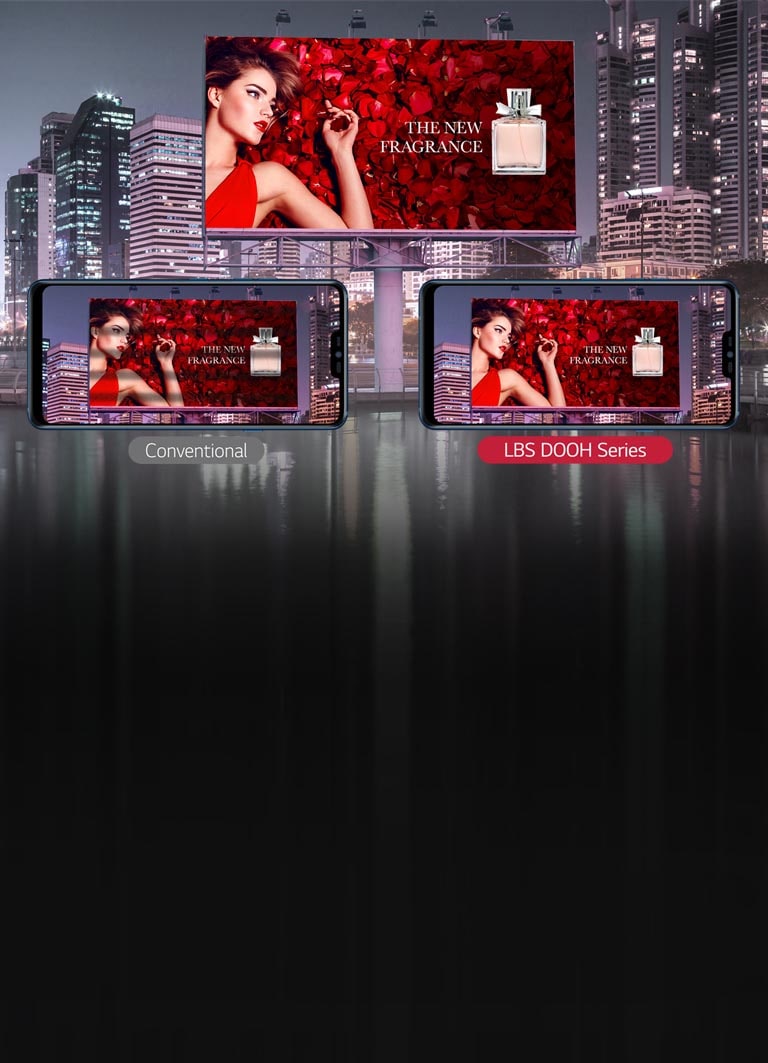

Smooth Playback in Dynamic Motion
A high refresh rate of 4,000Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.

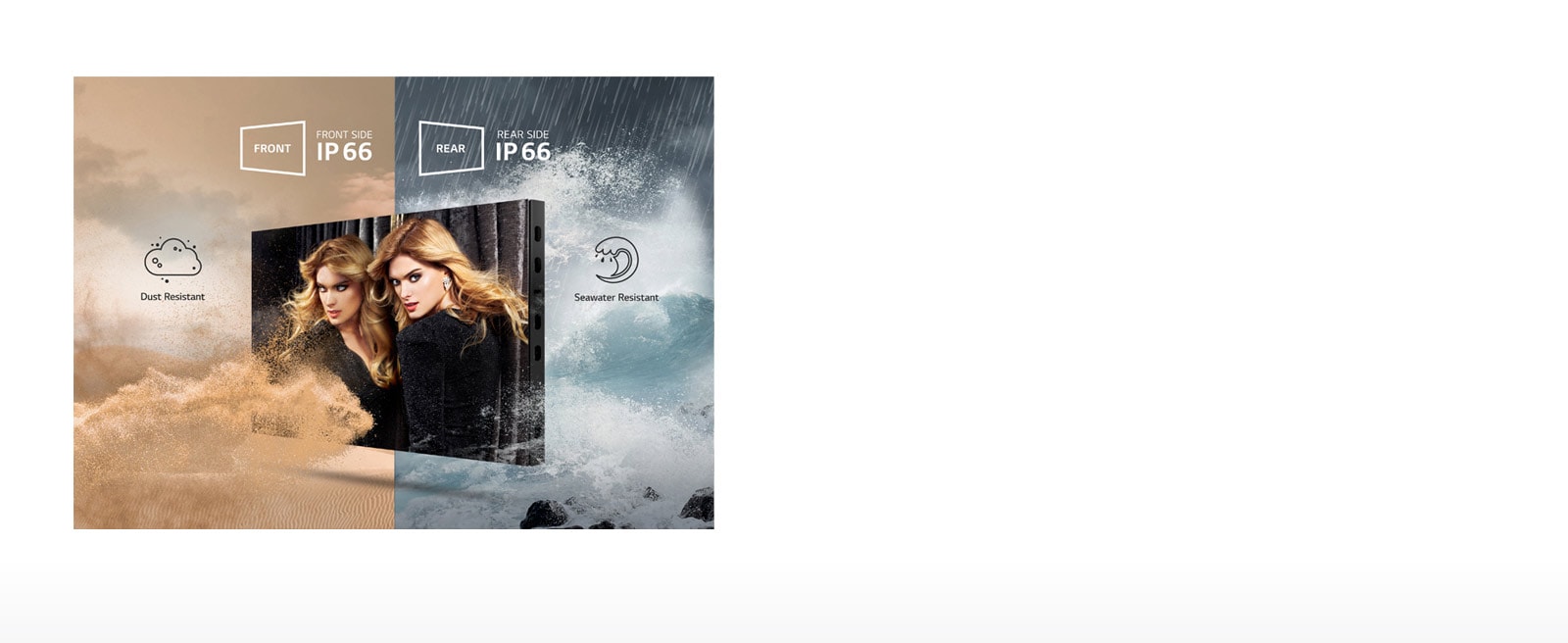

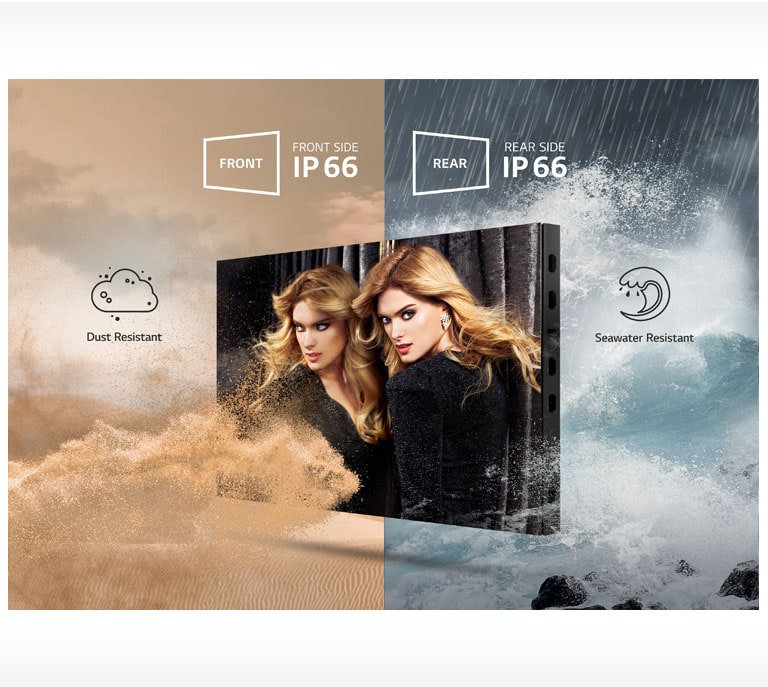

Reliable Weatherproof Design
The front and rear of the unit case are both IP66-certified, allowing stable operation unaffected by weather and harmful outdoor environments.

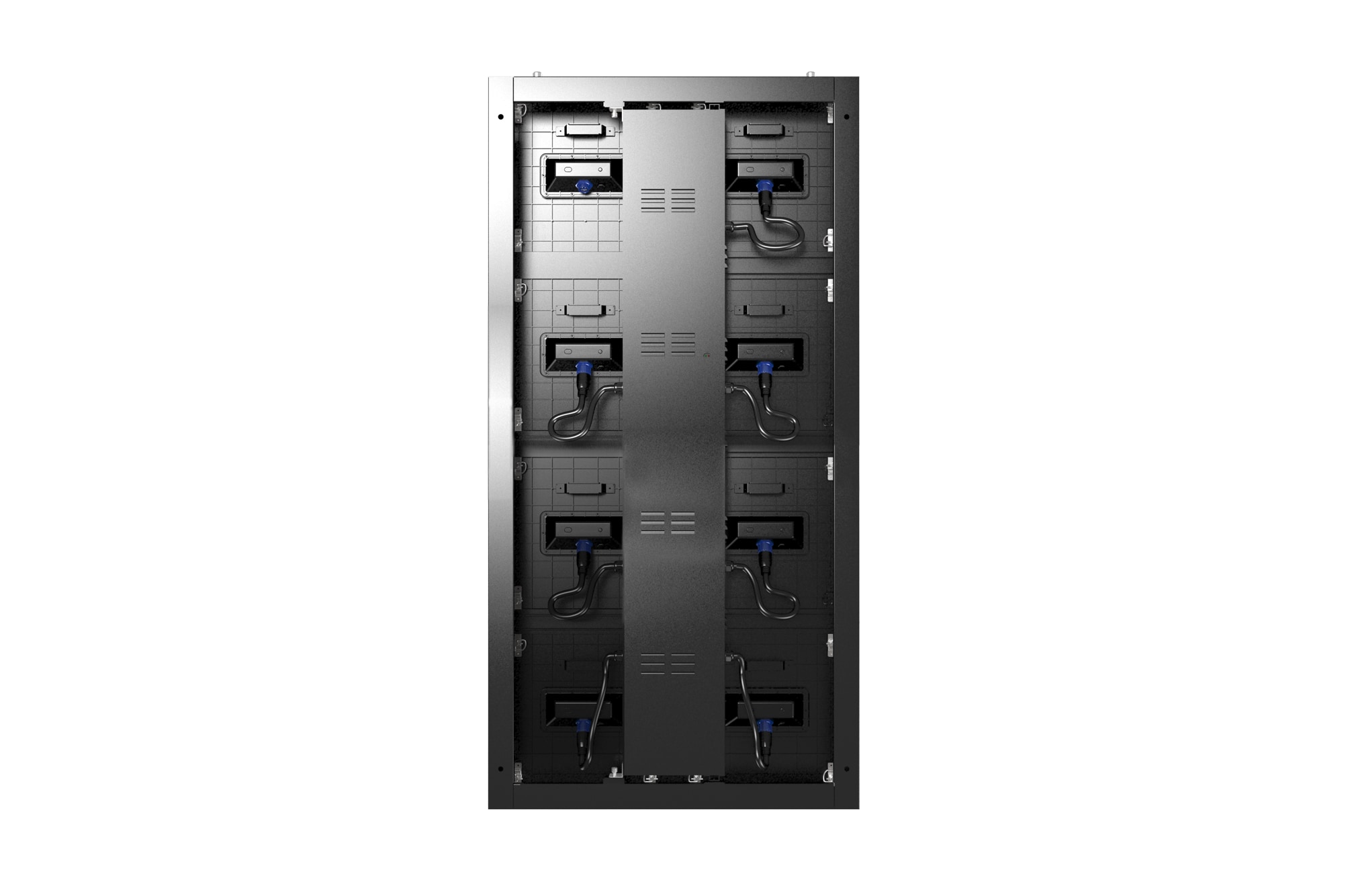

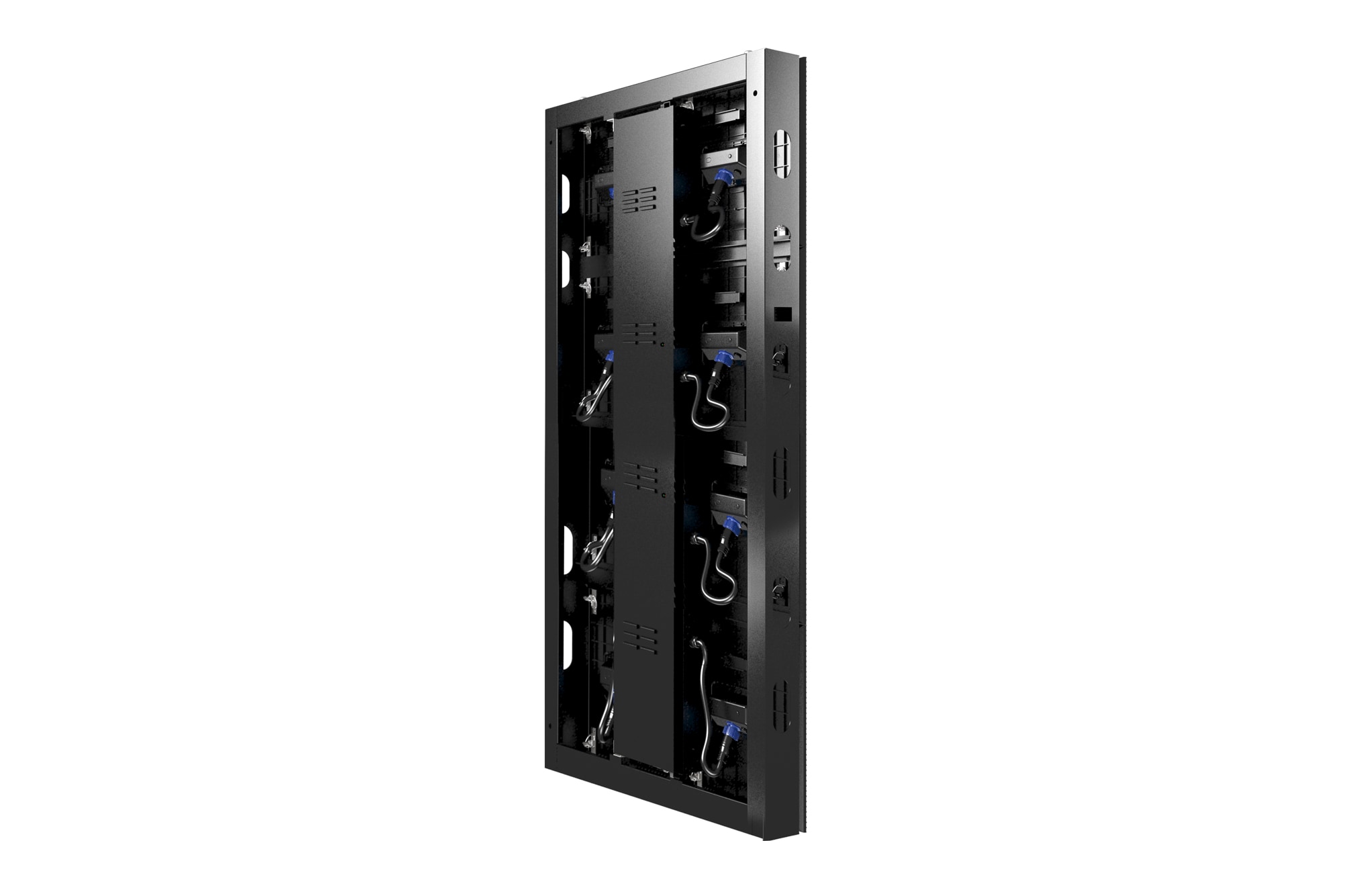

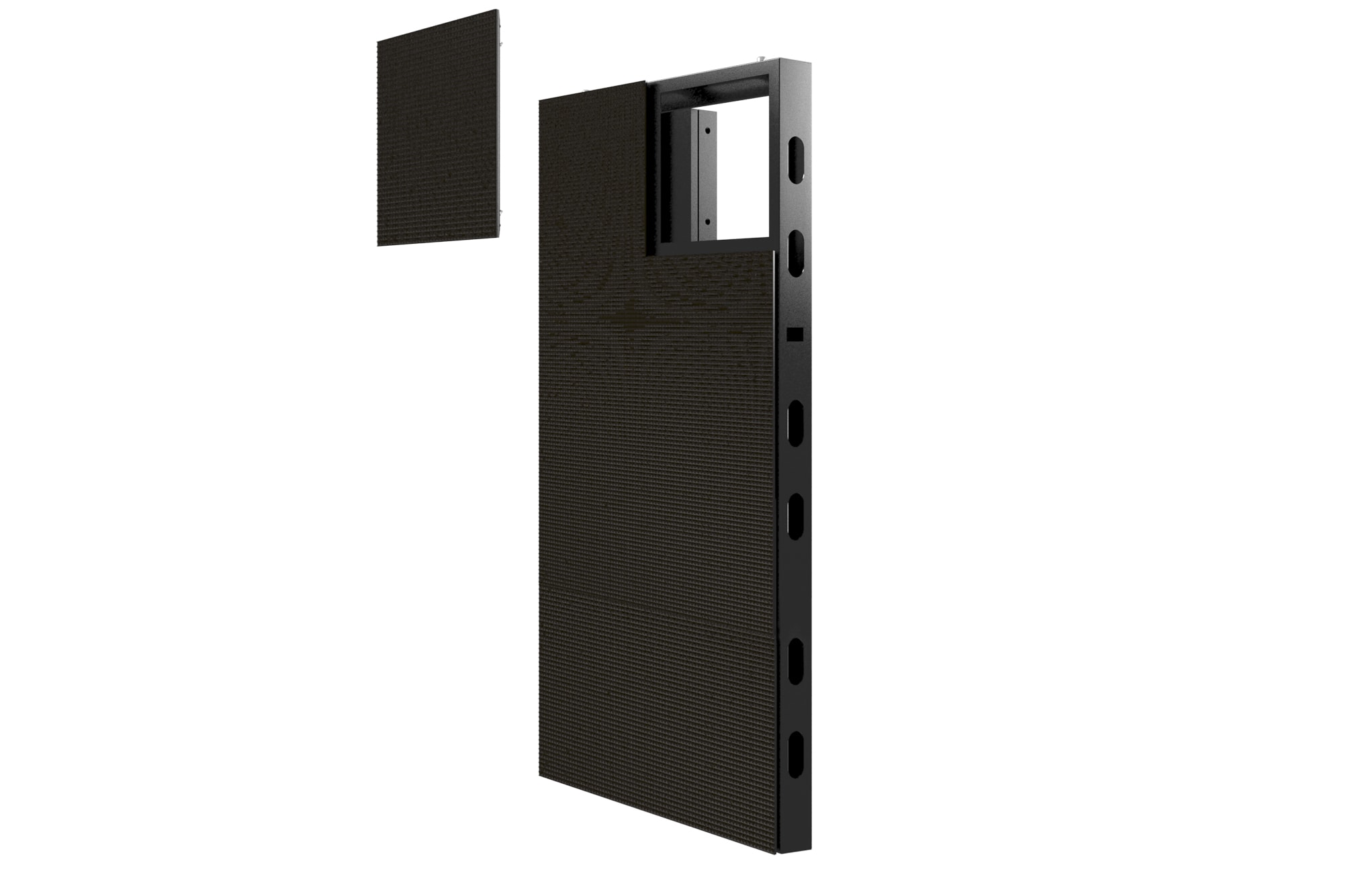

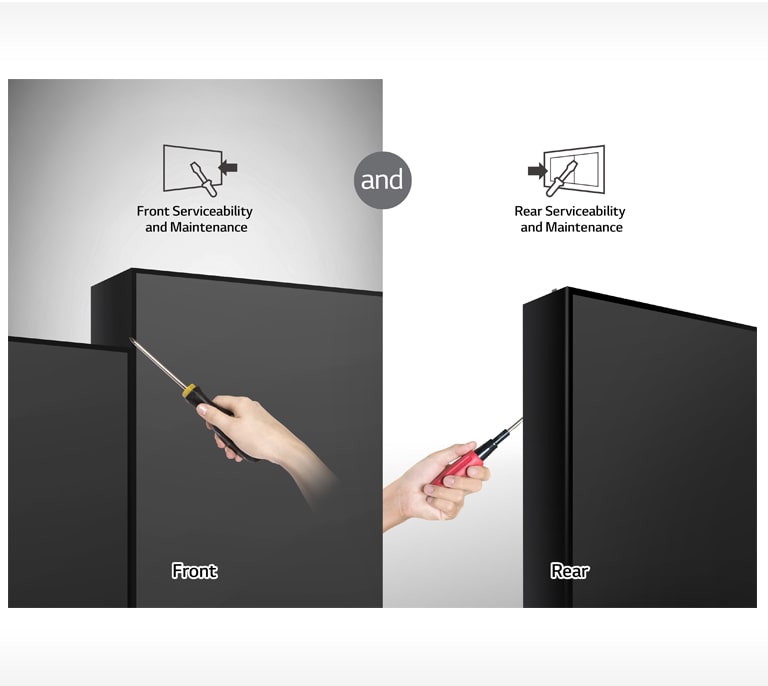

Front and Rear Serviceability
The product offers both front access and rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.

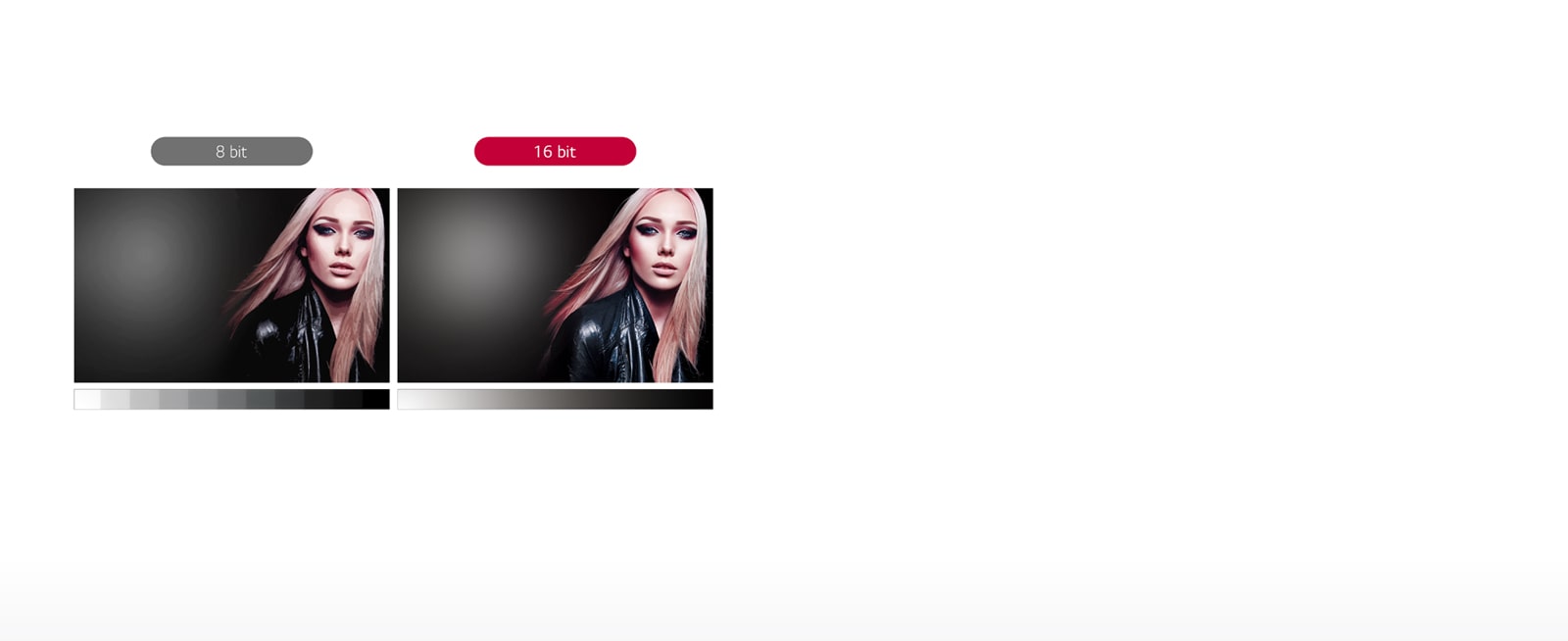

Detailed Expression of Color Depth
16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.

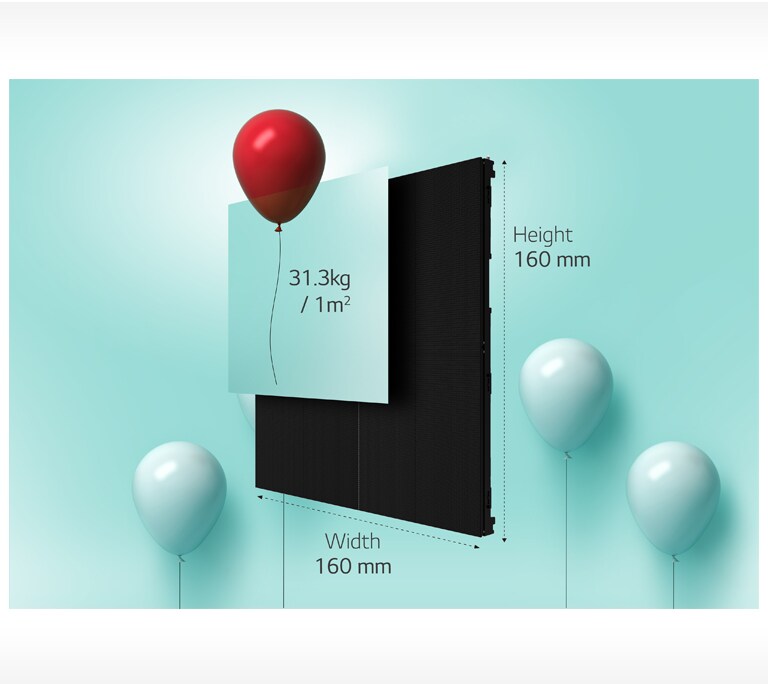

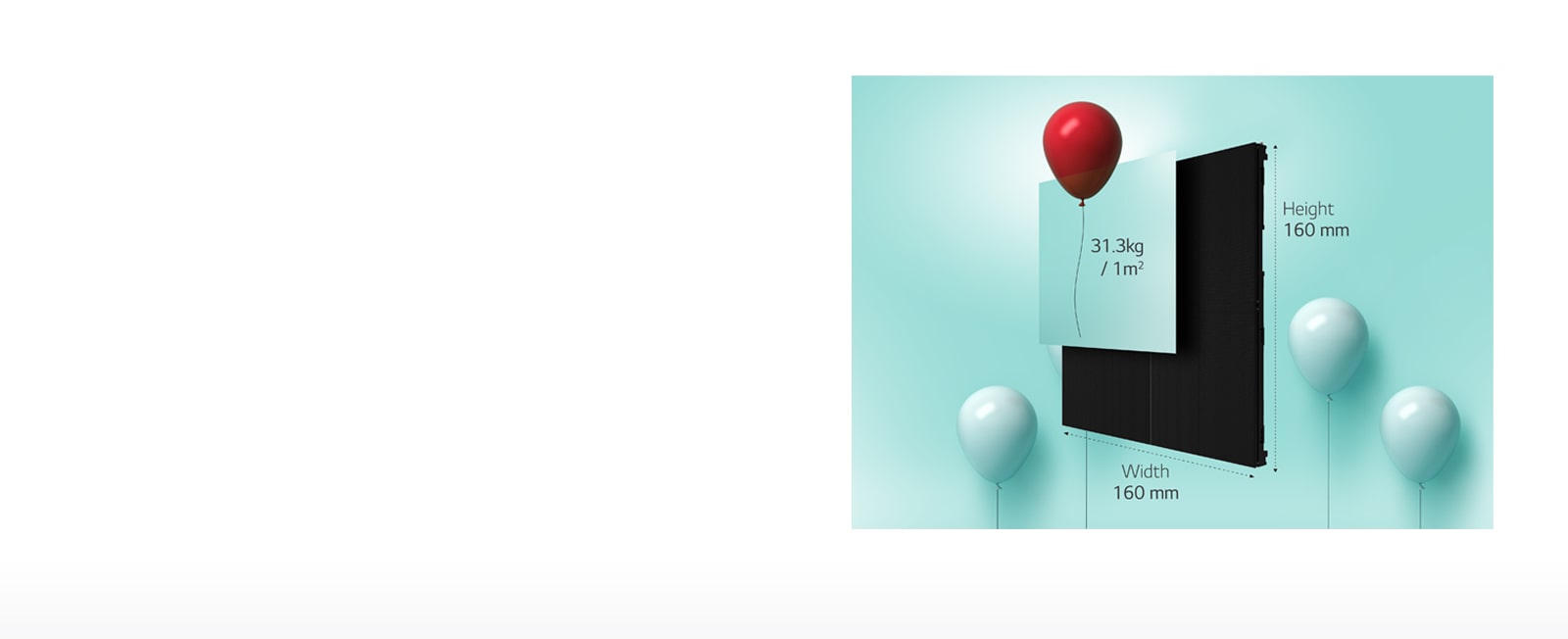

Slim and Lightweight Design
A 1m² LED display weighs only 31.3kg, keeping a full set of screens lightweight and reducing strain on the structure holding them.
| Model Name | LBS062DA1-V | LBS062DA3-V | LBS083DA1-V | LBS083DA3-V |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 6.25 | 6.25 | 8.33 | 8.33 |
| Unit Case Resolution (WxH) |
128x256 | 128x256 | 96x192 | 96x192 |
| Unit Case Dimensions (WxHxD, mm) |
800x1600x143.5 | 800x1600x143.5 | 800x1600x143.5 | 800x1600x143.5 |
| Weight per Unit Case / Square Meter (kg) |
40.0/31.3 | 40.0/31.3 | 40.0/31.3 | 40.0/31.3 |
| Service access | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Min. Brightness (After Calibration) |
6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/130 | 160/130 | 160/125 | 160/125 |
| Brightness Uniformity / Color Uniformity | ±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
312/780 | 312/780 | 320/800 | 320/800 |
| Power Consumption (W/m², Max.) |
609 | 609 | 625 | 625 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime (Half brightness)* |
100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to +50°/< 90％RH | -20° to +50°/< 90％RH | -20° to +50°/< 90％RH | -20° to +50°/< 90％RH |
| IP rating Front / Rear | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 |
| Model Name | LBS100DA1-V | LBS100DA3-V |
|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 10.00 | 10.00 |
| Unit Case Resolution (WxH) |
80x160 | 80x160 |
| Unit Case Dimensions (WxHxD, mm) |
800x1600x143.5 | 800x1600x143.5 |
| Weight per Unit Case / Square Meter (kg) |
40.0/31.3 | 40.0/31.3 |
| Service access | Front and Rear | Front and Rear |
| Min. Brightness (After Calibration) |
6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/115 | 160/115 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.05Cx,Cy | ≥97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
300/750 | 300/750 |
| Power Consumption (W/m², Max.) |
586 | 586 |
| Power Supply (V) | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 |
| Lifetime (Half brightness)* |
100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to +50°/< 90％RH | -20° to +50°/< 90％RH |
| IP rating Front / Rear | IP66/IP66 | IP66/IP66 |
