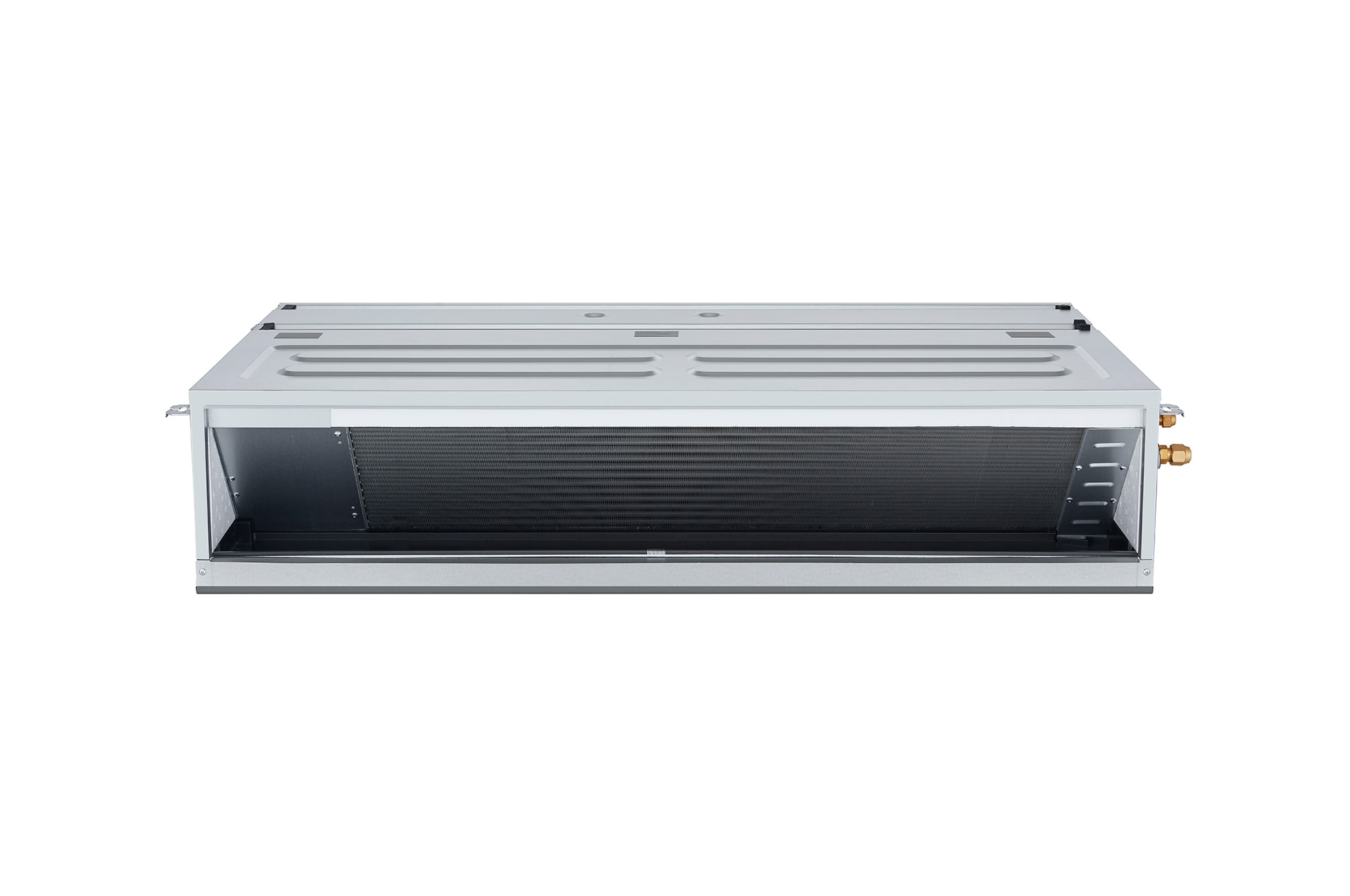

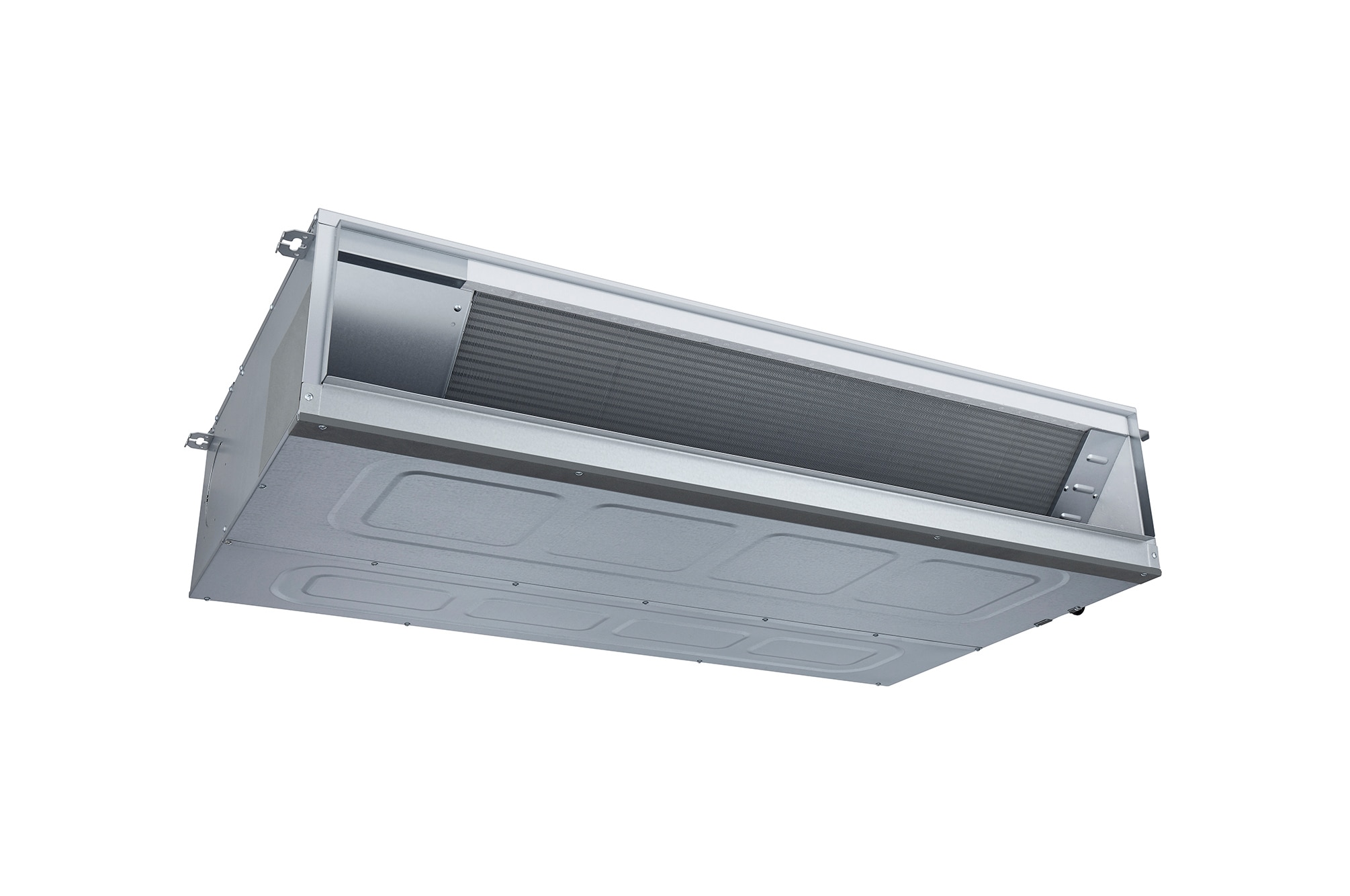

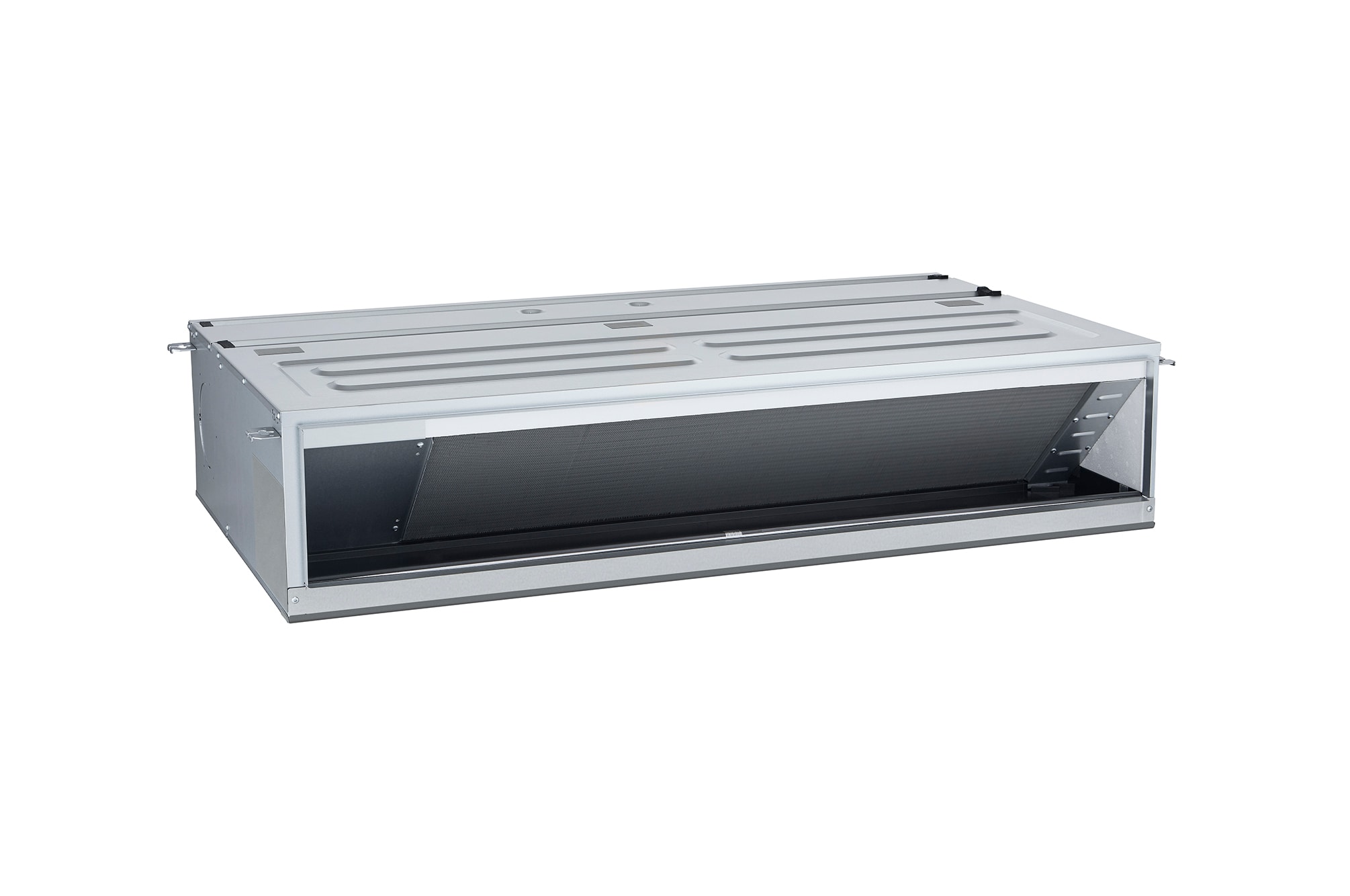

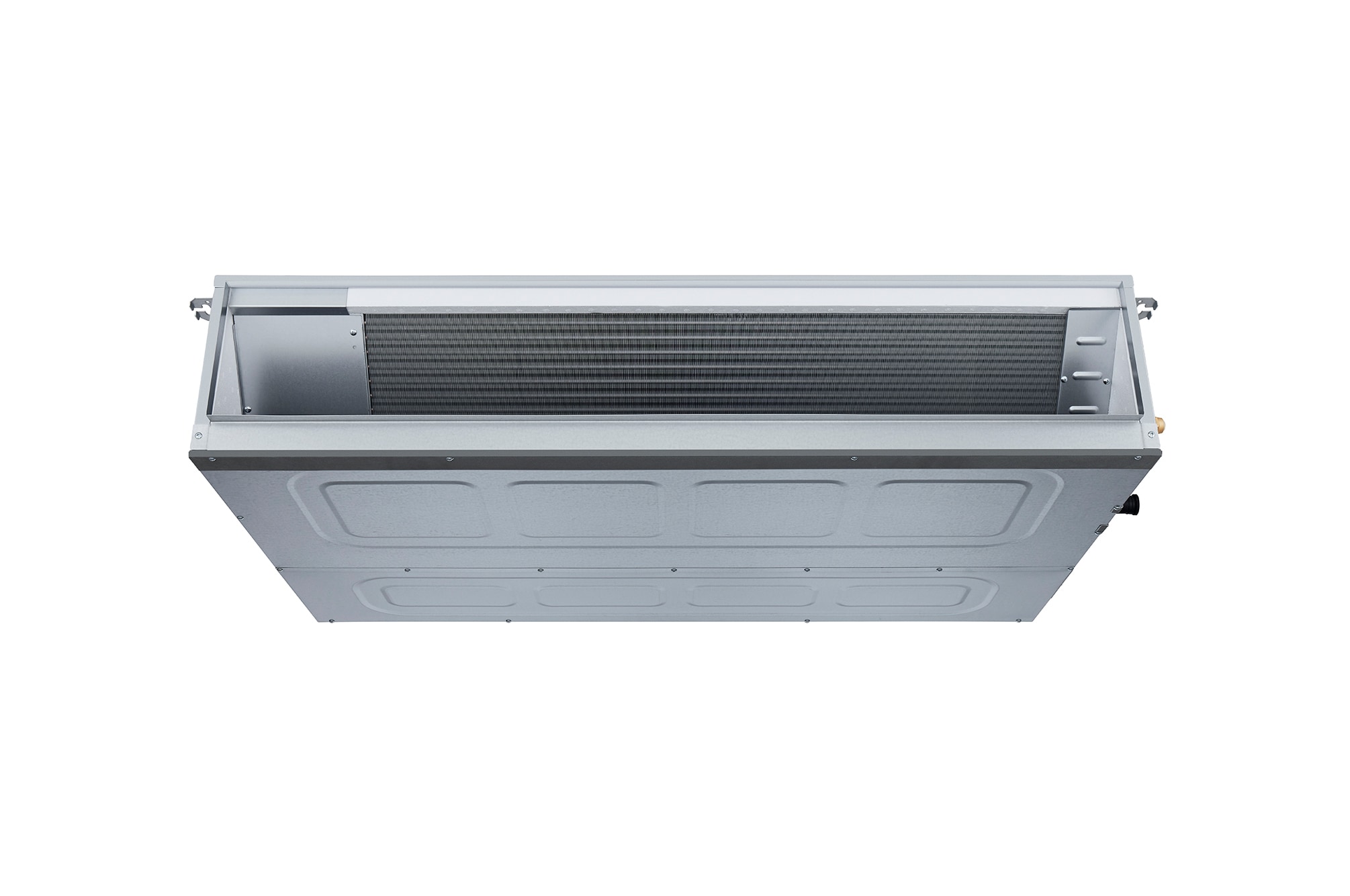

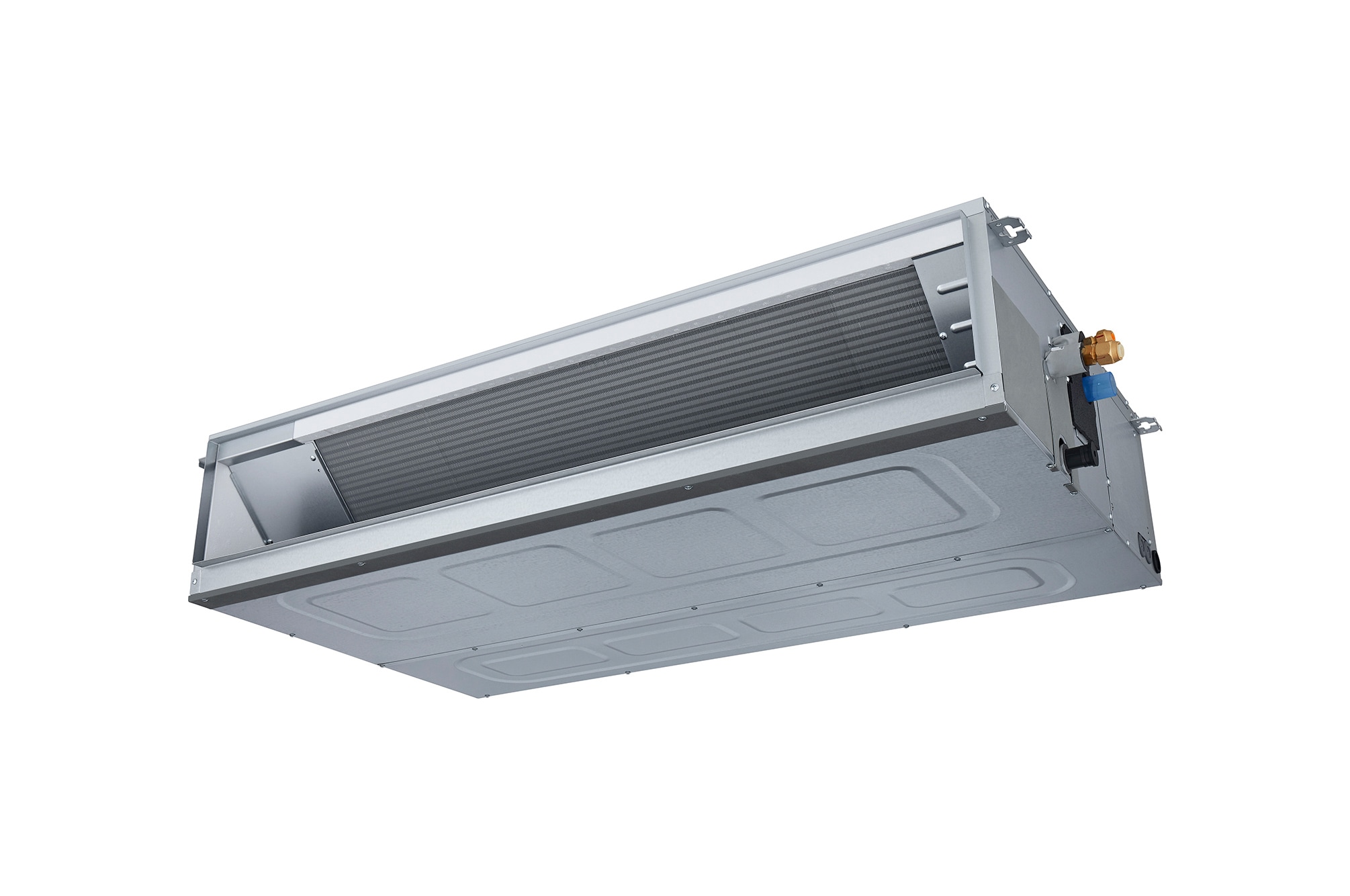

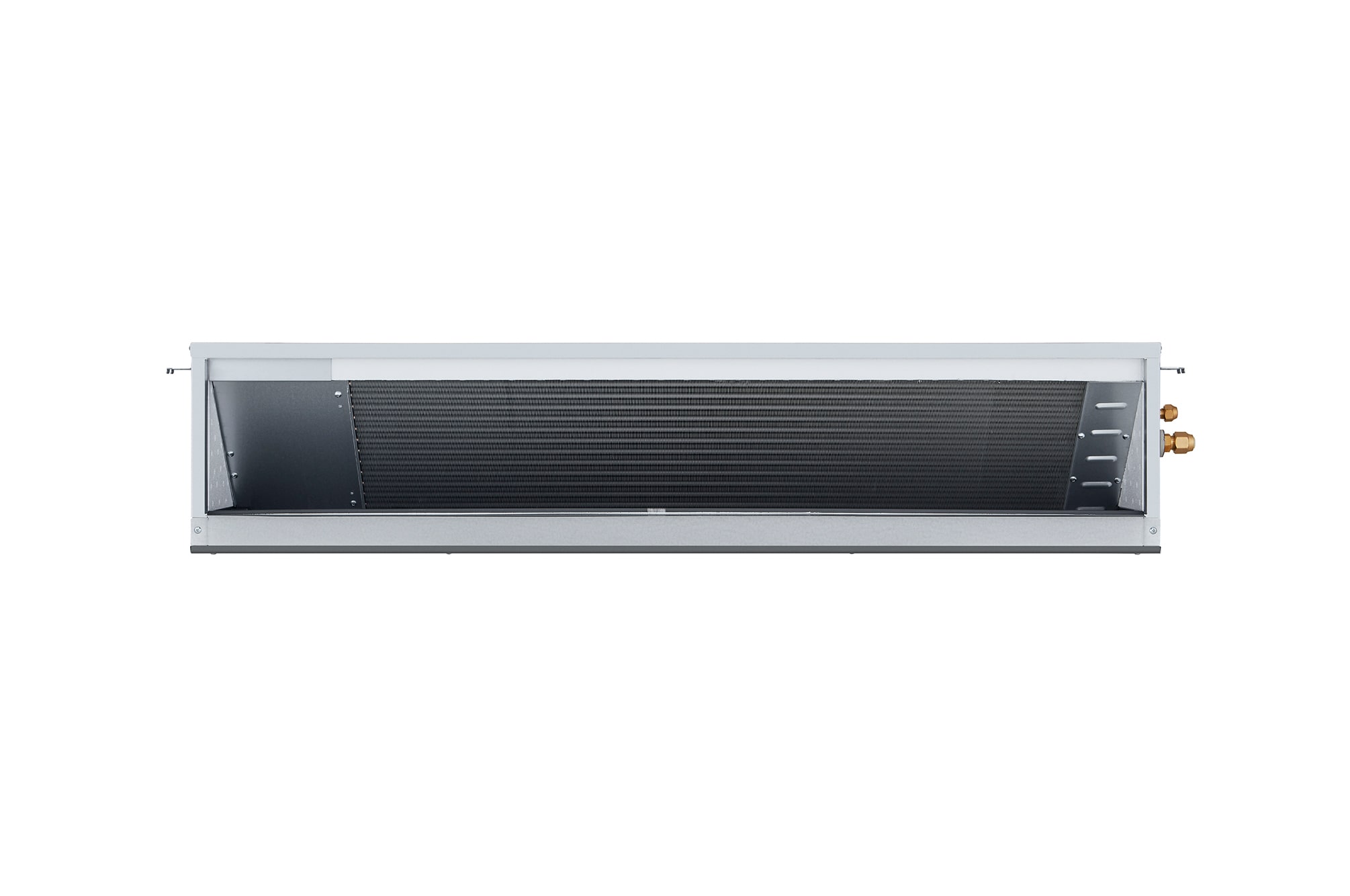

AB-Q36GM3T1
Inverter Ducted Dx 2.8 TR Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

component-OBScountrySelectDesc

Inverter Ducted Dx 2.8 TR Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

INDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    4.70 ~ 9.99 ~ 11.13
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    16,030 ~ 34,100 ~ 38,000
  • Power Input Cooling (Rated) - ㎾
    2.93
    Running Current Cooling (Rated) - A
    12.9
  • EER / COP - w/w
    3.40 / -
    Power Supply - V, Ø, ㎐
    220-240, 1, 50
  • Casing
    Galvanized Steel Plate
    Dimensions Net (W × H × D) - ㎜
    840 × 246 × 840
  • Dimensions Shipping (W × H × D) - ㎜
    922 × 318 × 917
    Weight Net - ㎏
    23.3
  • Weight Shipping - ㎏
    28.2
    Heat Exchanger (Rows × Columns × FPI)
    3 × 10 × 21
  • Heat Exchanger Face Area - ㎡ (ft²)
    0.41 (4.41)
    Fan Type
    3D Turbo Fan
  • Fan Air Flow Rate (H / M / L) - ㎥/min
    23.0 / 21.0 / 19.0
    Fan Air Flow Rate (H / M / L) - ft³/min
    812 / 742 / 671
  • Fan Motor Type
    BLDC
    Fan Motor Drive
    Internal
  • Fan Motor Output - W × No.
    50.3 × 1
    Fan Motor FLA (Full Load Ampere) - A
    0.72
  • Dehumidification Rate - ℓ/h
    2.7
    Sound Pressure Level (H / M / L) - dB(A)
    42 / 40 / 38
  • Piping Connections Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
    Piping Connections Gas Side - ㎜(inch)
    Ø 15.88 (5/8)
  • Piping Connections Drain Pipe (O.D. / I.D.) - ㎜
    Ø 32.0 / 25.0
    Safety Devices
    Fuse
  • Power and Communication Cable (included Earth) - No. × ㎟
    4C × 0.75
    Decoration Panel Model Name
    PT-MCHW0
  • Decoration Panel Casing Color
    Morning Fog
    Decoration Panel Dimensions (W × H × D) - ㎜
    950 × 35 × 950
  • Decoration Panel Net Weight - ㎏
    6.3
    Decoration Panel Shipping Weight - ㎏
    8.3

OUTDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    4.70 ~ 9.99 ~ 11.13
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    16,030 ~ 34,100 ~ 38,000
  • Power Input Cooling (Rated) - ㎾
    2.93
    Running Current Cooling (Rated) - A
    12.9
  • EER / COP - w/w
    3.41 / -
    Power Supply - V, Ø, ㎐
    220-240, 1, 50
  • Casing Color
    Warm Gray
    Dimensions Net (W × H × D) - ㎜
    950 × 834 × 330
  • Dimensions Shipping (W × H × D) - ㎜
    1,065 × 918 × 461
    Weight Net - ㎏
    59.1
  • Weight Shipping - ㎏
    66.2
    Heat Exchanger (Rows × Columns × FPI) × No.
    (2 × 38 × 14) × 1
  • Compressor Type
    Twin Rotary
    Compressor Model - Model × No.
    GJT325MAA × 1
  • Compressor Motor type
    BLDC
    Compressor Motor Output - W × No.
    2,137 × 1
  • Fan Type
    Axial
    Fan Air Flow Rate - ㎥/min × No.
    60 × 1
  • Fan Air Flow Rate - ft³/min × No.
    2,119 × 1
    Fan Motor Type
    BLDC
  • Fan Motor Output - W × No.
    124 × 1
    Sound Pressure Level Cooling (Rated) - dB(A)
    51
  • Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
    Ø 9.52 (3/8)
    Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
    Ø 15.88 (5/8)
  • Piping Length (Rated) - m
    5
    Piping Length (Min./Max.) - m
    5 / 50
  • Refrigerant Type
    R410A
    Refrigerant Precharged Amount - g
    2,200
  • Refrigerant Chargeless-Pipe Length - m(ft)
    7.5 (24.6)
    Refrigerant Additional Charging Volume - g/m(oz/ft)
    40 (0.43)
  • Refrigerant Control
    Electronic Expansion Valve
    Refrigerant Oil Type
    FVC68D
  • Refrigerant Oil Charged volume - cc × No.
    950 × 1
    Wiring Connections Power Supply Cable (included Earth) - No. × ㎟
    3C × 2.5
  • Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
    30 (98.4)
