AB-Q36GM3T2

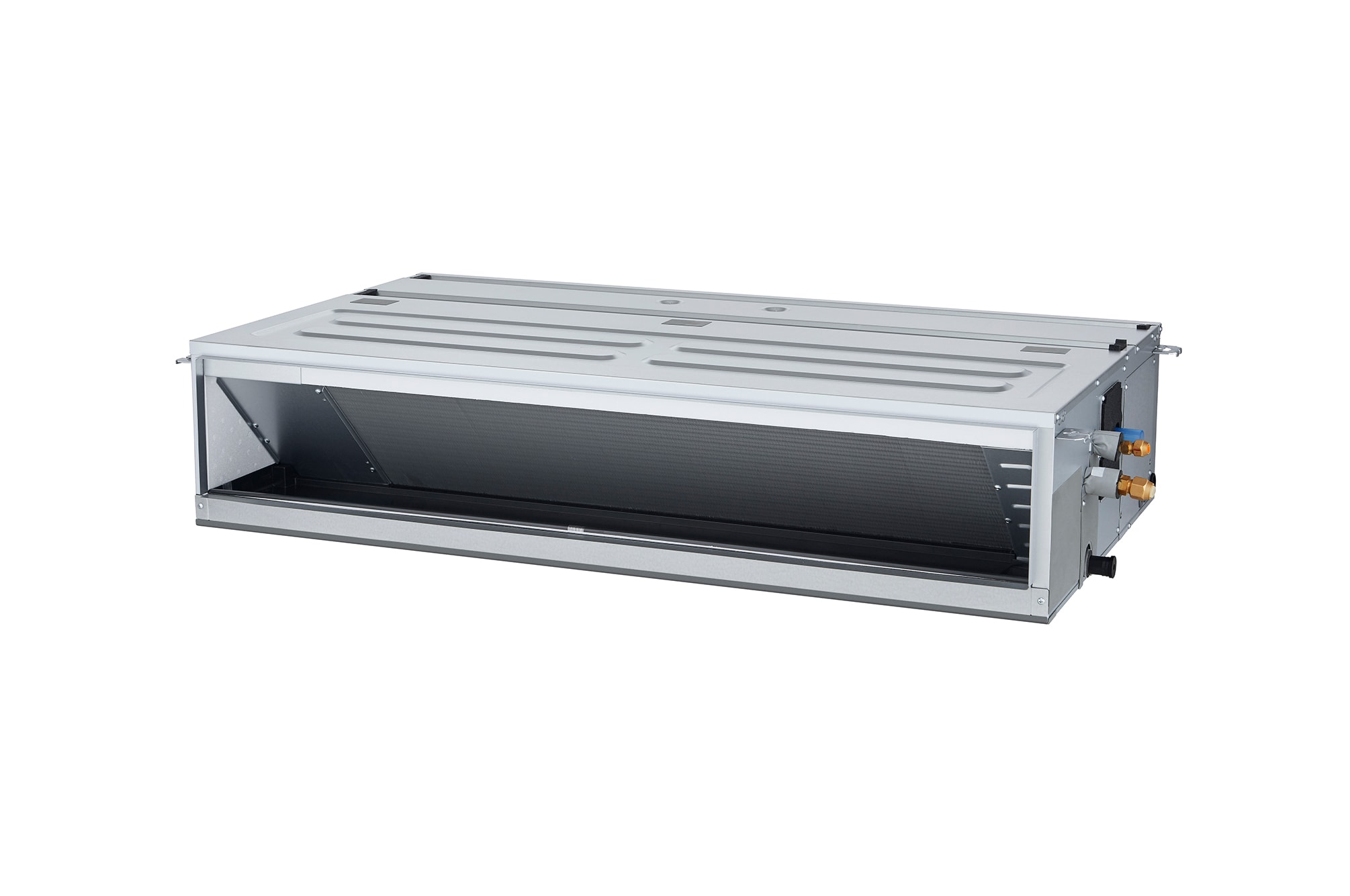

Inverter Ducted Dx 2.8 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

component-OBScountrySelectDesc

Inverter Ducted Dx 2.8 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

INDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    4.70 ~ 9.95 ~ 11.13
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    16,030 ~ 34,000 ~ 38,000
  • Power Input Cooling (Rated) - ㎾
    2.85
    Running Current Cooling (Rated/Max) - A
    12.9 / 17.0
  • Efficiency EER (T1) - Btu/h W
    11.95
    Efficiency EER (T3) - Btu/h W
    9.30
  • Power Supply - V, Ø, ㎐
    230, 1, 50
    Power Factor Cooling (Rated)
    0.99
  • Casing Color
    Warm Gray
    Dimensions Net (W × H × D) - ㎜
    1,250 × 360 × 700
  • Dimensions Shipping (W × H × D) - ㎜
    1,450 × 428 × 773
    Weight Net - ㎏
    37.5
  • Weight Shipping - ㎏
    45.0
    Heat Exchanger (Rows × Columns × FPI) × No.
    (3 × 16 × 18) × 1
  • Heat Exchanger Face Area - ㎡ (ft²)
    0.36 (3.87)
    Fan Type
    Sirocco
  • Fan Air Flow Rate (H / M / L) - ㎥/min
    32.0 / 28.0 / 24.0
    Fan Air Flow Rate (External Static Pressure-Factory Set) - ㎜Aq
    8
  • Fan Motor Type
    BLDC
    Fan Motor Output - W × No.
    154 × 1
  • Fan Motor FLA (Full Load Ampere) - A
    1.90
    Dehumidification Rate - ℓ/h
    1.9
  • Sound Pressure Level (H / M / L) - dB(A)
    36 / 33 / 31
    Piping Connections Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side - ㎜(inch)
    Ø 15.88 (5/8)
    Piping Connections Drain Pipe (O.D. / I.D.) - ㎜
    Ø 32.0 / 25.0
  • Safety Devices
    Fuse
    Refrigerant Control
    Electronic Expansion Valve
  • Power and Communication Cable (included Earth) - No. × ㎟
    4C × 0.75

OUTDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    4.70 ~ 9.95 ~ 11.13
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    16,030 ~ 34,000 ~ 38,000
  • Power Input Cooling (Rated) - ㎾
    2.85
    Running Current Cooling (Rated/Max) - A
    12.9 / 17.0
  • Efficiency EER (T1) - Btu/h W
    11.95
    Efficiency EER (T3) - Btu/h W
    9.30
  • Power Supply - V, Ø, ㎐
    230, 1, 50
    Casing Color
    Warm Gray
  • Dimensions Net (W × H × D) - ㎜
    950 × 834 × 330
    Dimensions Shipping (W × H × D) - ㎜
    1,065 × 918 × 461
  • Weight Net - ㎏
    60.0
    Weight Shipping - ㎏
    67.5
  • Heat Exchanger (Rows × Columns × FPI) × No.
    (2 × 38 × 14) × 1
    Compressor Type
    Twin Rotary
  • Compressor Model / Compressor Model - Model × No.
    GJT325MAA × 1
    Compressor Motor type
    BLDC
  • Compressor Motor Output - W × No.
    2,137 × 1
    Fan Type
    Axial Fan
  • Fan Air Flow Rate - ㎥/min × No.
    70 × 1
    Fan Motor Type
    BLDC
  • Fan Motor Output - W × No.
    124.2 × 1
    Sound Pressure Level Cooling (Rated) - dB(A)
    51
  • Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
    Ø 9.52 (3/8)
    Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
    Ø 15.88 (5/8)
  • Piping Length (Min./Max.) - m
    5 / 50
    Refrigerant Type
    R410A
  • Refrigerant Precharged Amount - g
    2,200
    Refrigerant GWP(Global Warming Potential)
    2,087.5
  • Refrigerant tCO2-eq
    4.593
    Refrigerant Chargeless-Pipe Length - m(ft)
    7.5 (24.6)
  • Refrigerant Additional Charging Volume - g/m(oz/ft)
    40 (0.43)
    Refrigerant Control
    Electronic Expansion Valve
  • Refrigerant Oil Type
    FVC68D
    Refrigerant Oil Charged volume - cc × No.
    950 × 1
  • Wiring Connections Power Supply Cable (included Earth) - No. × ㎟
    3C × 2.5
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
    30 (98.4)
