AP-Q100LFT0

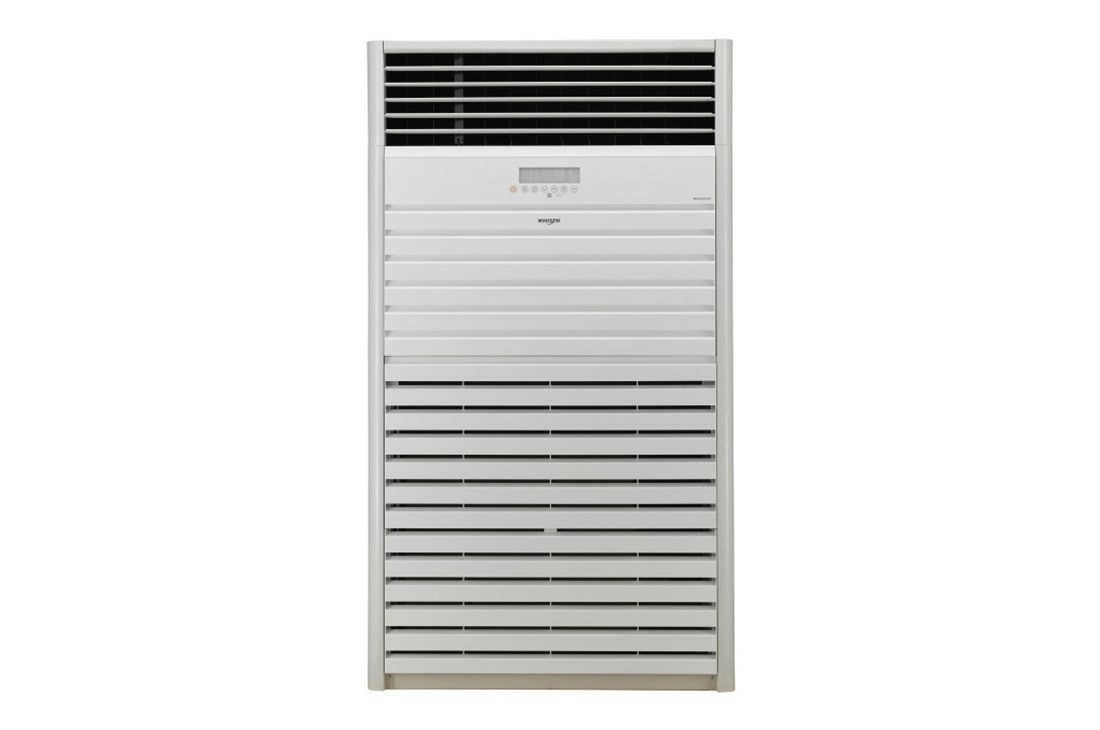

Inverter Floor Standing Split 4 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

component-OBScountrySelectDesc

Inverter Floor Standing Split 4 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
  • Quick Response1 Quick Response2

    Quick Response

    Floor standing unit can reach at a set temperature in a shorter period of time while providing powerful cooling. Meanwhile, the Power Heating function offers the optimal airflow angle, guaranteeing a faster heating performance.
  • Powerful Airflow1 Powerful Airflow2

    Powerful Airflow

    With powerful air speed and volume, the airflow can reach up to 20 meters. This allows fresh and comfortable cooling much sooner.

INDOOR SPECIFICATIONS

  • Capacity Cooling (Rated) - ㎾
    28.43
    Capacity Cooling (Rated) - Btu/h
    97,000
  • Capacity Cooling (Rated) - ㎾
    22.57
    Capacity Cooling (Rated) - Btu/h
    77,000
  • Power Input Cooling (Rated) - ㎾
    11.20
    Running Current Cooling (Rated) - A
    18.0
  • Power Supply - V, Ø, ㎐
    380-415, 3, 50
    Dimensions Body (W × H × D) - ㎜
    1,050 × 1,880 × 495
  • Dimensions Body (W × H × D) - inch
    41-1/4 × 74-7/16 × 19-1/8
    Weight Net - ㎏
    113
  • Heat Exchanger (Rows × Columns × FPI)
    3 × 40 × 19
    Heat Exchanger Face Area - ㎡ (ft²)
    0.77 (8.29)
  • Fan Type
    Sirocco
    Fan Air Flow Rate (SH / H / M / L) - ㎥/min
    68 / 61 / - / 50
  • Fan Air Flow Rate (SH / H / M / L) - ft³/min
    2,402 / 2,154 / - / 1,766
    Piping Connections Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side - ㎜(inch)
    Ø 22.2 (7/8)
    Piping Connections Drain Pipe (O.D. / I.D.) - ㎜
    Ø 32.0 / 25.0
  • Safety Devices
    Fuse
    Power and Communication Cable (included Earth) - No. × ㎟
    4C × 1.5

OUTDOOR SPECIFICATIONS

  • Capacity Cooling (Rated) - ㎾
    28.43
    Capacity Cooling (Rated) - Btu/h
    97,000
  • Capacity Cooling (Rated) - ㎾
    22.57
    Capacity Cooling (Rated) - Btu/h
    77,000
  • Power Input Cooling (Rated) - ㎾
    11.20
    Running Current Cooling (Rated) - A
    18.0
  • Power Supply - V, Ø, ㎐
    380-415, 3, 50
    Dimensions Body (W × H × D) - ㎜
    1,090 × 1,625 × 380
  • Dimensions Body (W × H × D) - inch
    34-1/4 × 25-25/32 × 12-19/32
    Weight Net - ㎏
    153
  • Heat Exchanger (Rows × Columns × FPI) × No.
    (3 × 38 × 14) × 2
    Compressor Type
    BLDC INV Scroll
  • Compressor Model - Model × No.
    JBA068MAF × 1
    Compressor Motor type
    BLDC
  • Compressor Motor Output - W × No.
    4,241 × 2
    Fan Type
    Propeller
  • Fan Air Flow Rate - ㎥/min × No.
    190 × 2
    Fan Motor Type
    BLDC
  • Fan Motor Output - W × No.
    250 × 2
    Sound Pressure Level Cooling (Rated) - dB(A)
    60
  • Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
    Ø 9.52 (3/8)
    Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
    Ø 22.2 (7/8)
  • Piping Length (Min./Max.) - m
    5 / 50
    Refrigerant Type
    R410A
  • Refrigerant Precharged Amount - g
    6,600
    Refrigerant Chargeless-Pipe Length - m(ft)
    5 (16.4)
  • Refrigerant Additional Charging Volume - g/m(oz/ft)
    60 (0.65)
    Refrigerant Control
    Electronic Expansion Valve
  • Refrigerant Oil Type
    FVC68D
    Refrigerant Oil Charged volume - cc × No.
    1,400 × 1
  • Wiring Connections Power Supply Cable (included Earth) - No. × ㎟
    5C × 6.0
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
    30 (98.4)
