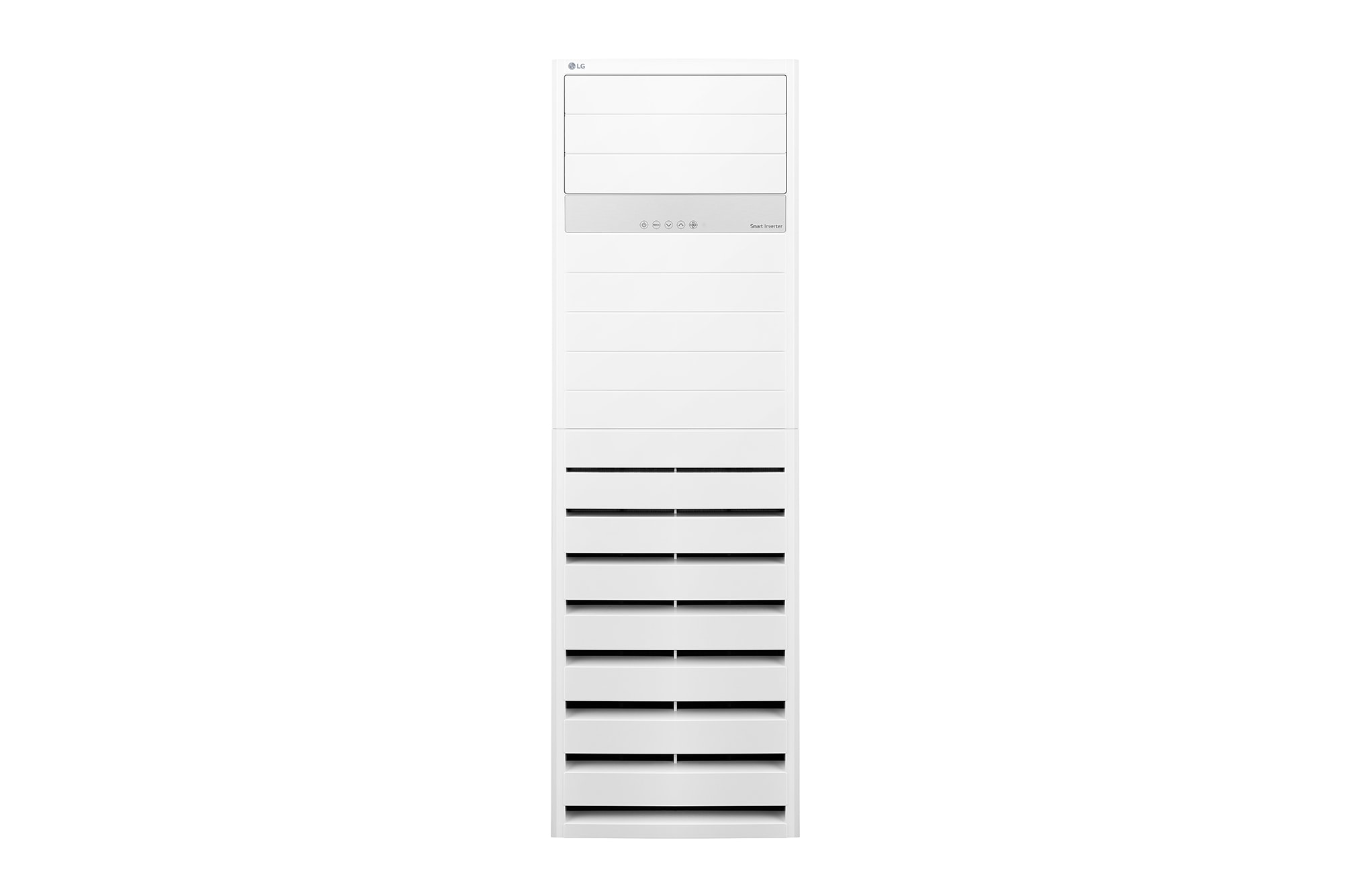

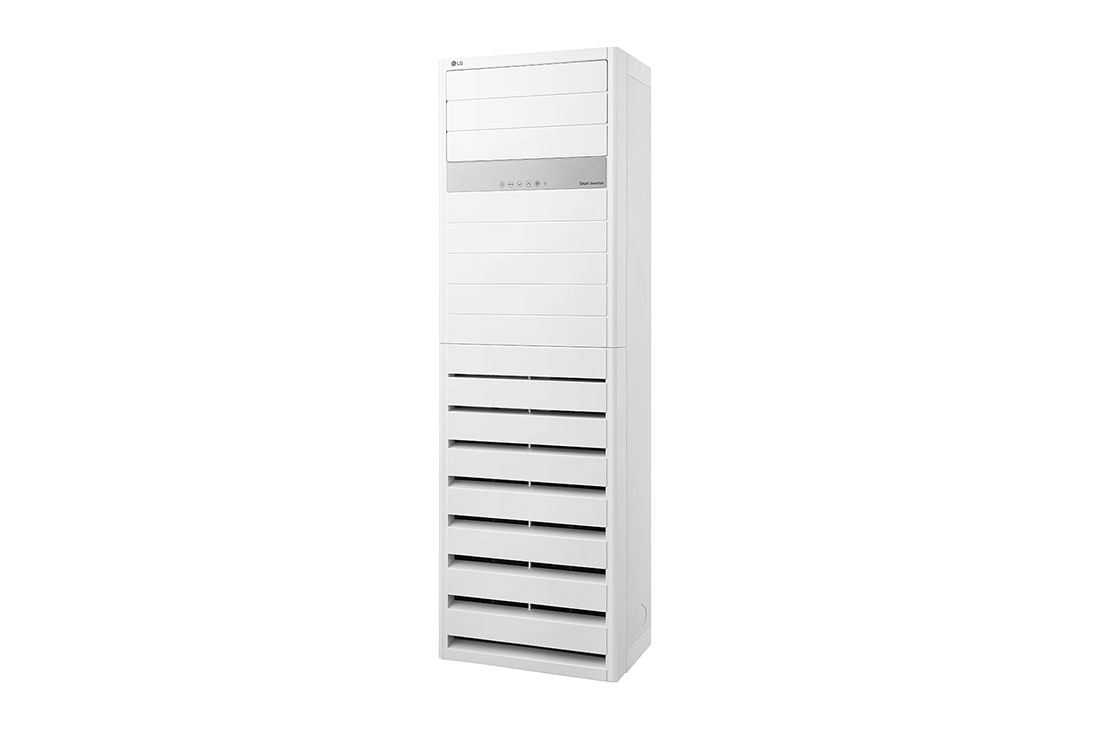

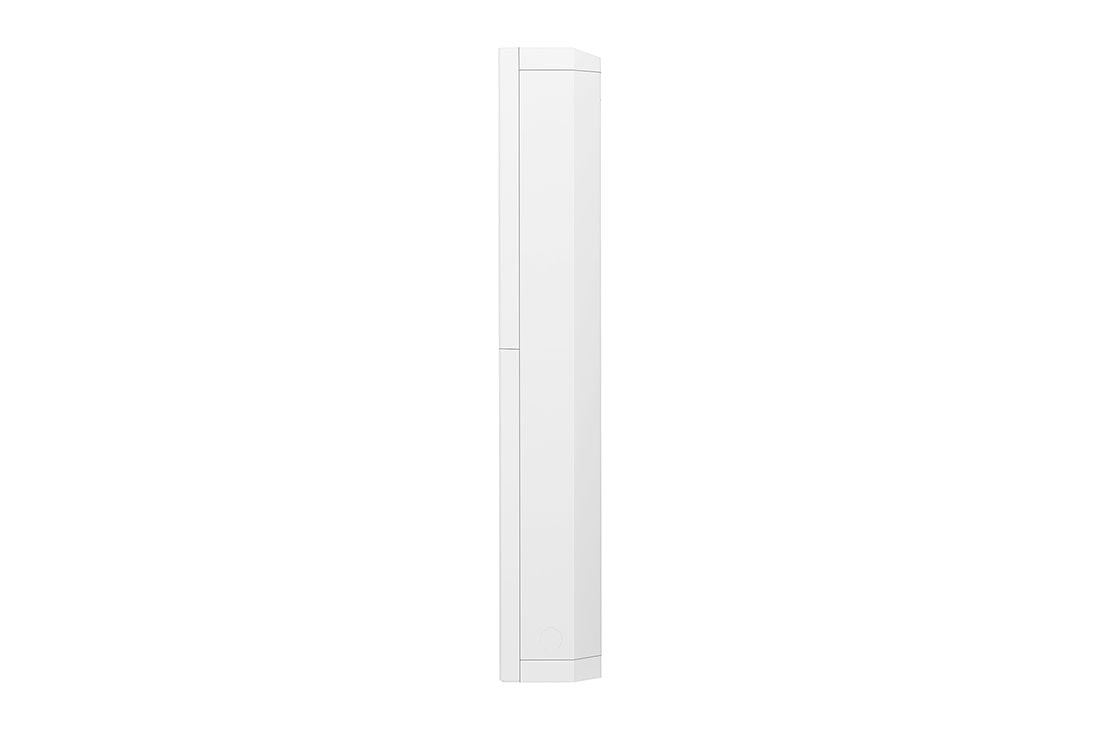

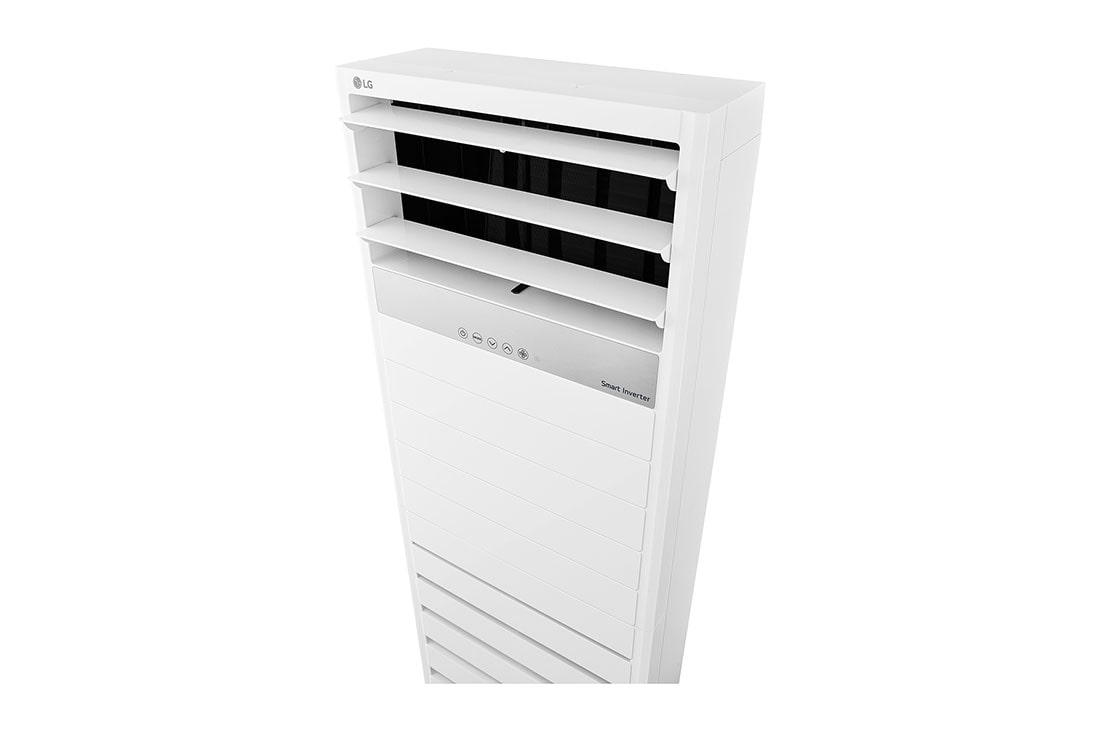

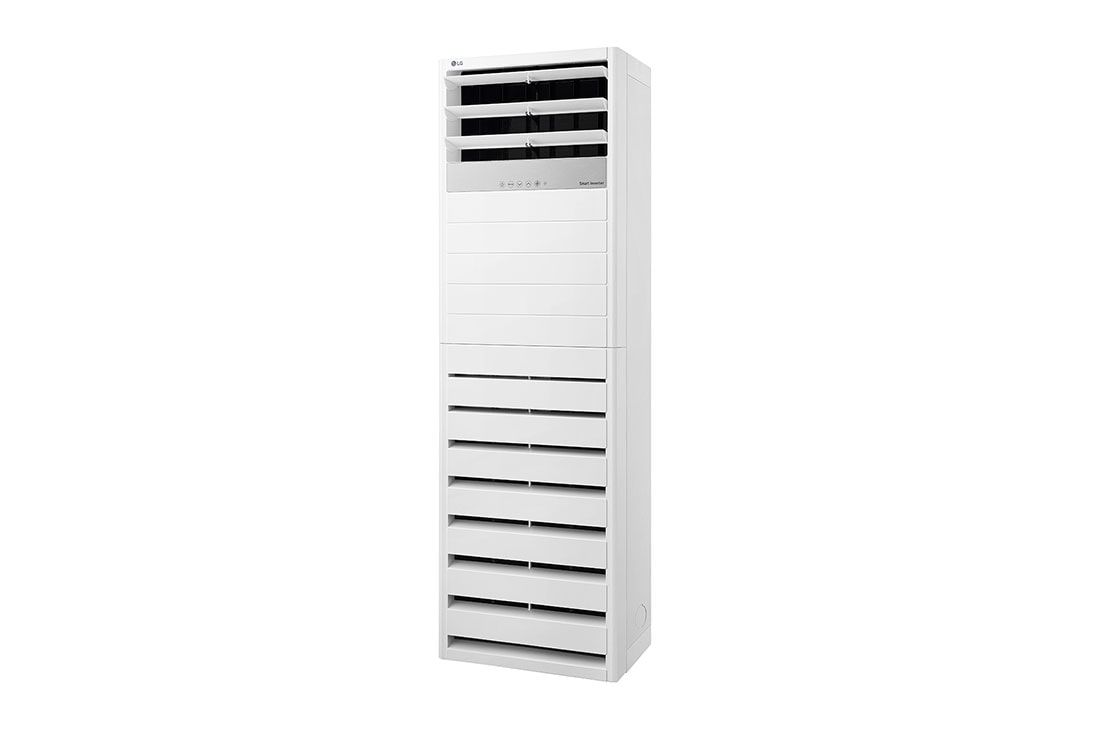

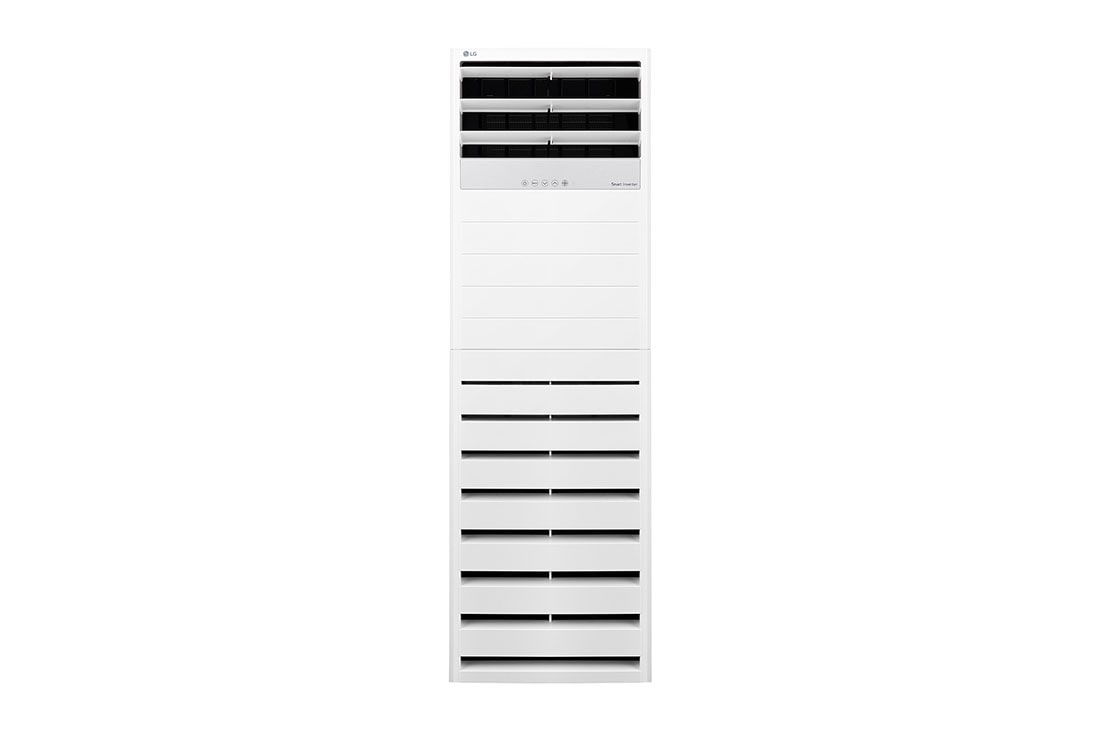

AP-Q50LT3E0

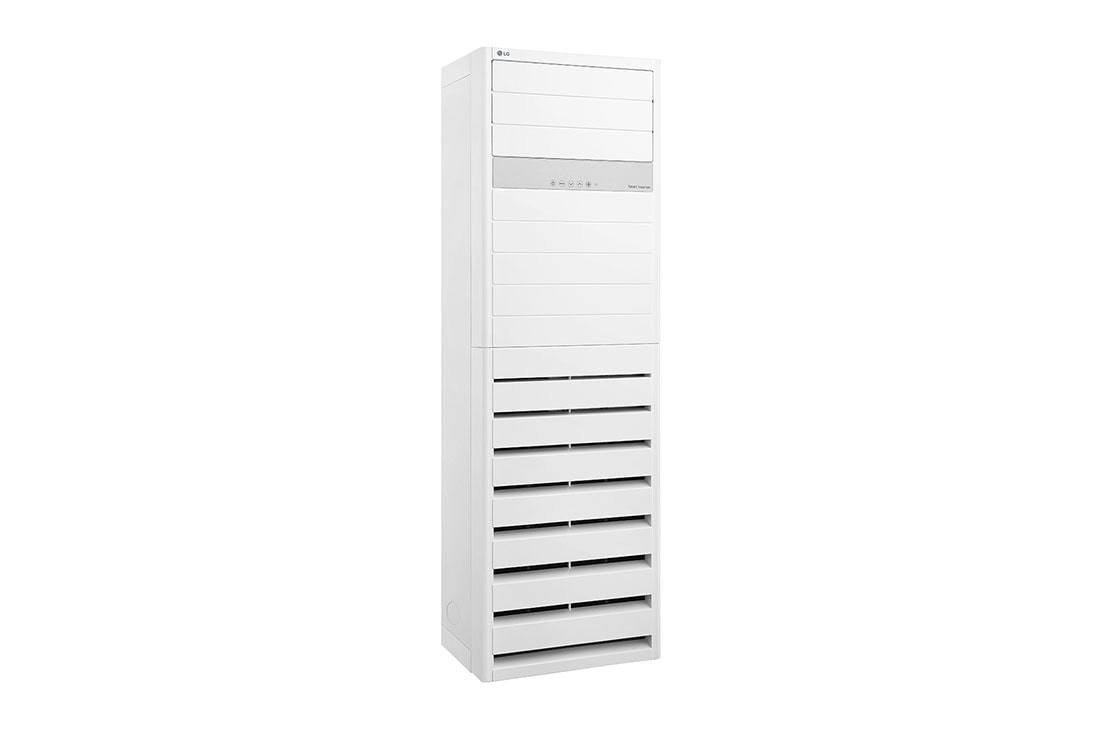

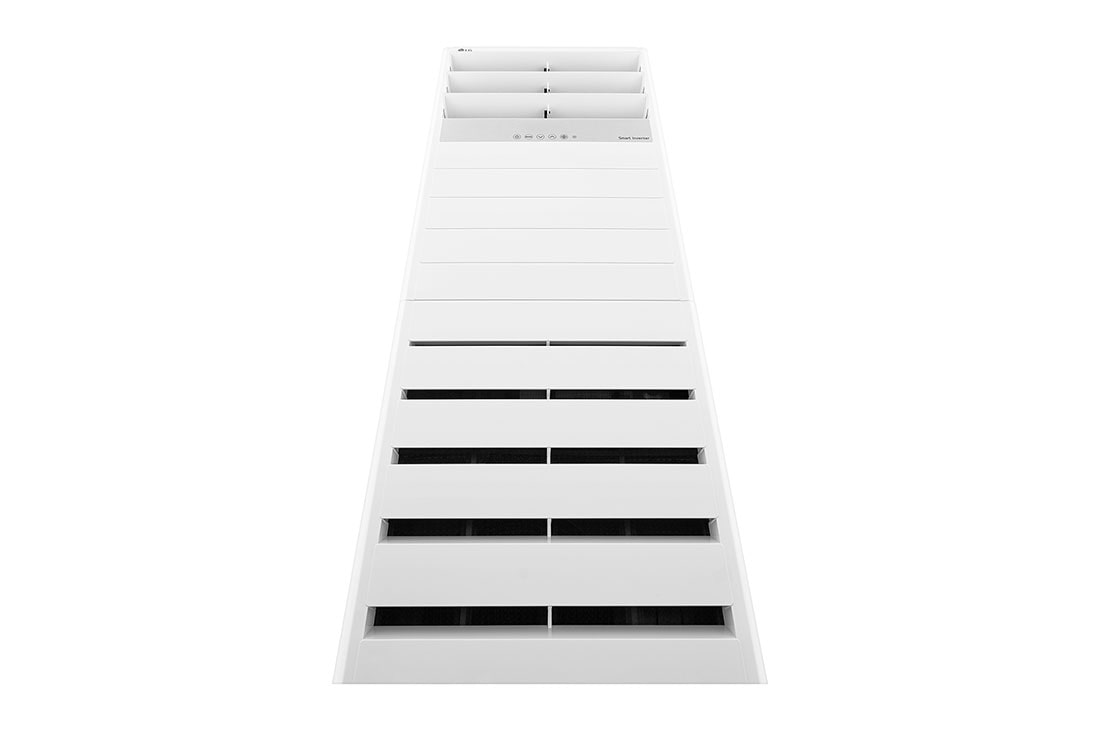

Inverter Floor Standing Split 8 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

component-OBScountrySelectDesc

Inverter Floor Standing Split 8 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
  • Quick Response1 Quick Response2

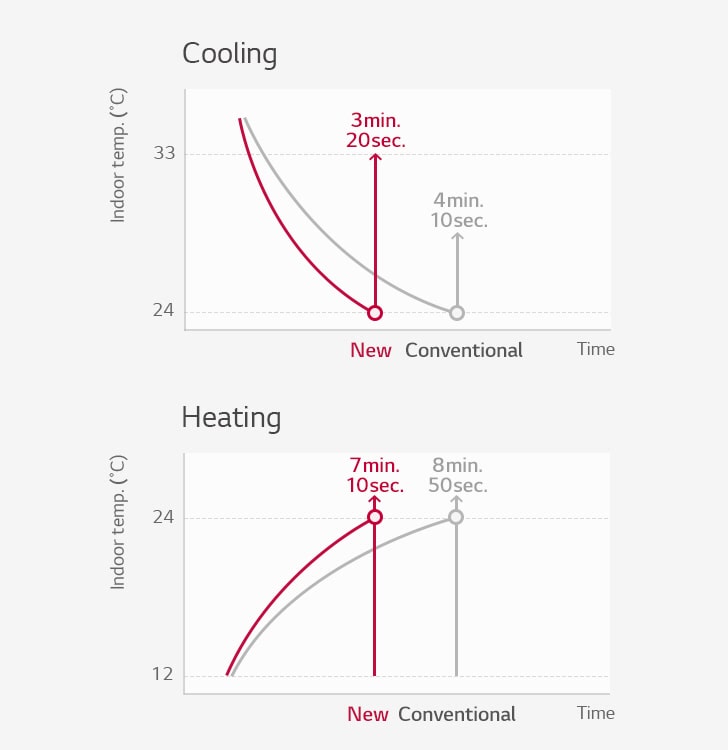

    Quick Response

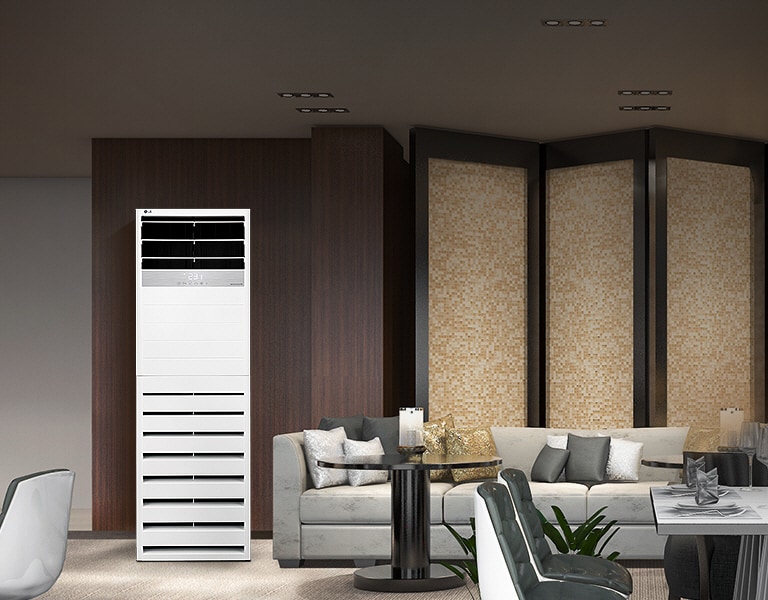

    Floor standing unit can reach at a set temperature in a shorter period of time while providing powerful cooling. Meanwhile, the Power Heating function offers the optimal airflow angle, guaranteeing a faster heating performance.
  • Powerful Airflow1 Powerful Airflow2

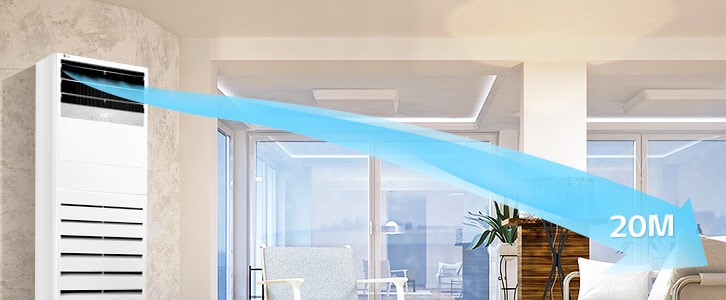

    Powerful Airflow

    With powerful air speed and volume, the airflow can reach up to 20 meters. This allows fresh and comfortable cooling much sooner.

INDOOR SPECIFICATIONS

  • Capacity Cooling (Rated) - ㎾
    13.51
    Capacity Cooling (Rated) - Btu/h
    46,100
  • Capacity Cooling (Rated) - ㎾
    11.72
    Capacity Cooling (Rated) - Btu/h
    40,000
  • Power Input Cooling (Rated) - ㎾
    3.88
    Running Current Cooling (Rated) - A
    0.91
  • Power Supply - V, Ø, ㎐
    220-240, 1, 50
    Dimensions Body (W × H × D) - ㎜
    590 × 1,840 × 440
  • Dimensions Body (W × H × D) - inch
    23-7/32 × 72-7/16 × 17-5/16
    Weight Net - ㎏
    47.0
  • Heat Exchanger (Rows × Columns × FPI)
    (2 × 32 × 67) × 1
    Heat Exchanger Face Area - ㎡ (ft²)
    0.44 (4.74)
  • Fan Type
    Sirocco
    Fan Air Flow Rate (SH / H / M / L) - ㎥/min
    37 / 33 / 28 / 24
  • Fan Air Flow Rate (SH / H / M / L) - ft³/min
    1,307 / 1,165 / 989 / 848
    Fan Motor Type
    External BLDC
  • Fan Motor Output - W × No.
    140 × 1
    Dehumidification Rate - ℓ/h
    5.2
  • Sound Pressure Level Cooling (SH / H / M / L) - dB(A)
    54 / 51 / 49 / 47
    Piping Connections Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side - ㎜(inch)
    Ø 19.05 (3/4)
    Piping Connections Drain Pipe (O.D. / I.D.) - ㎜
    Ø 21.0 / 17.0
  • Safety Devices
    Fuse
    Power and Communication Cable (included Earth) - No. × ㎟
    4C × 0.75

OUTDOOR SPECIFICATIONS

  • Capacity Cooling (Rated) - ㎾
    13.51
    Capacity Cooling (Rated) - Btu/h
    46,100
  • Capacity Cooling (Rated) - ㎾
    11.72
    Capacity Cooling (Rated) - Btu/h
    40,000
  • Power Input Cooling (Rated) - ㎾
    3.88
    Running Current Cooling (Rated) - A
    6.0
  • Power Supply - V, Ø, ㎐
    380-415, 3, 50
    Dimensions Body (W × H × D) - ㎜
    950 × 1,380 × 330
  • Dimensions Body (W × H × D) - inch
    37-13/32 × 54-11/32 × 13
    Weight Net - ㎏
    89.0
  • Heat Exchanger (Rows × Columns × FPI) × No.
    (2 × 32 × 16) × 2
    Compressor Type
    Twin Rotary
  • Compressor Model / Compressor Model - Model × No.
    GPT442MAB × 1
    Compressor Motor type
    BLDC
  • Compressor Motor Output - W × No.
    4,000(at 60Hz) × 1
    Fan Type
    Propeller
  • Fan Air Flow Rate - ㎥/min × No.
    120 × 2
    Fan Motor Type
    BLDC
  • Fan Motor Output - W × No.
    124.2 × 2
    Sound Pressure Level Cooling (Rated) - dB(A)
    62
  • Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
    Ø 9.52 (3/8)
    Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
    Ø 19.05 (3/4)
  • Piping Length (Min./Max.) - m
    5 / 30
    Refrigerant Type
    R410A
  • Refrigerant Precharged Amount - g
    3,400
    Refrigerant Chargeless-Pipe Length - m(ft)
    5 (16.4)
  • Refrigerant Additional Charging Volume - g/m(oz/ft)
    40 (0.43)
    Refrigerant Control
    Electronic Expansion Valve
  • Refrigerant Oil Type
    FVC68D
    Refrigerant Oil Charged volume - cc × No.
    1,300 × 1
  • Wiring Connections Power Supply Cable (included Earth) - No. × ㎟
    5C × 2.5
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
    20 (65.6)
