AV-Q18GM1T1

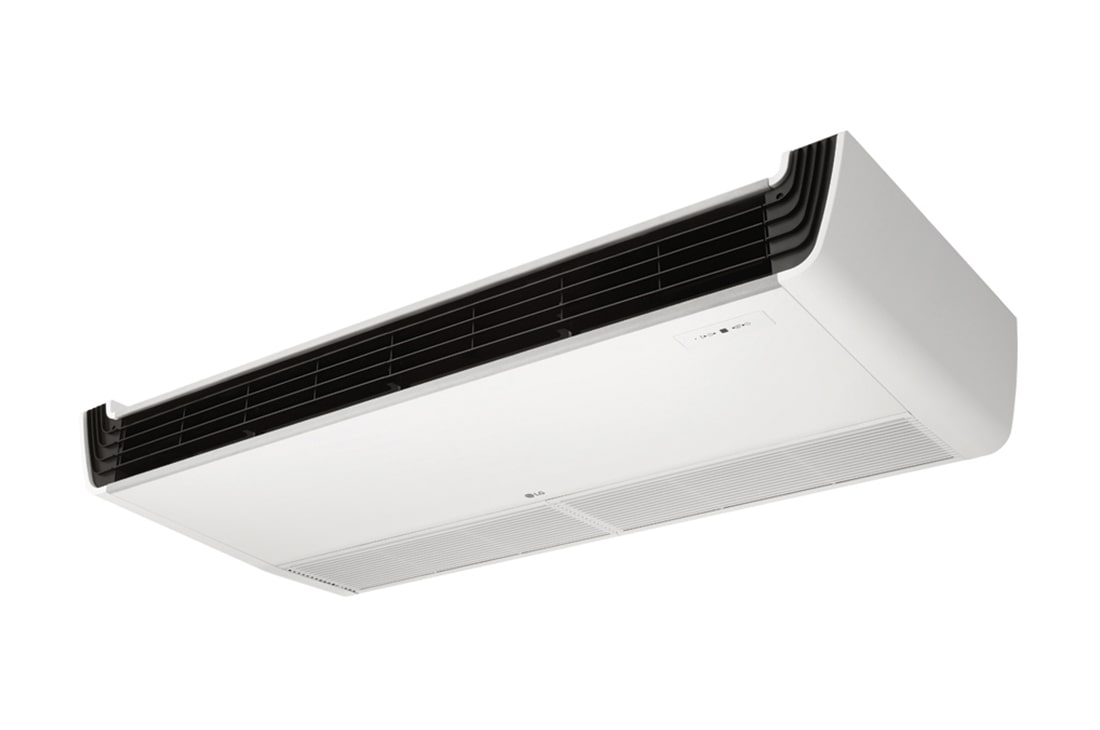

Inverter Ceiling Split 1.5 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

component-OBScountrySelectDesc

Inverter Ceiling Split 1.5 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
  • Powerful Cooling & Heating1 Powerful Cooling & Heating2

    Powerful Cooling & Heating

    Its powerful cooling and heating performance allows operation in large areas. The air flow can reach up to 15m away from the air conditioner.
  • Easy Installation & Maintenance1 Easy Installation & Maintenance2

    Easy Installation & Maintenance

    Installation speed and ease are improved with one-touch in/out filter structure and a simplified two-piece filter, which slides out for easy cleaning and maintenance.

INDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    2.10 ~ 5.27 ~ 5.86
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    7,200 ~ 18,000 ~ 20,000
  • Power Input Cooling (Rated) - ㎾
    1.55
    Running Current Cooling (Rated) - A
    6.8
  • EER / COP - w/w
    3.40 / -
    Power Supply - V, Ø, ㎐
    220-240, 1, 50
  • Dimensions Net (W × H × D) - ㎜
    1,200 × 235 × 690
    Dimensions Shipping (W × H × D) - ㎜
    1,315 × 317 × 768
  • Weight Net - ㎏
    27.3
    Weight Shipping - ㎏
    34.0
  • Heat Exchanger (Rows × Columns × FPI)
    2 × 18 × 18
    Heat Exchanger Face Area - ㎡ (ft²)
    0.27 (2.90)
  • Fan Type
    Cross Flow Fan
    Fan Air Flow Rate (H / M / L) - ㎥/min
    13.0 / 12.0 / 11.0
  • Fan Air Flow Rate (H / M / L) - ft³/min
    459 / 424 / 388
    Fan Motor Type
    BLDC
  • Fan Motor Drive
    Internal
    Fan Motor Output - W × No.
    85.9 × 1
  • Fan Motor FLA (Full Load Ampere) - A
    1.00
    Dehumidification Rate - ℓ/h
    1.9
  • Sound Pressure Level (H / M / L) - dB(A)
    40 / 38 / 37
    Piping Connections Liquid Side - ㎜(inch)
    Ø 6.35 (1/4)
  • Piping Connections Gas Side - ㎜(inch)
    Ø 12.7 (1/2)
    Piping Connections Drain Pipe (O.D. / I.D.) - ㎜
    Ø 21.5 / 16.0
  • Safety Devices
    Fuse
    Power and Communication Cable (included Earth) - No. × ㎟
    4C × 0.75

OUTDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    2.10 ~ 5.27 ~ 5.86
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    7,200 ~ 18,000 ~ 20,000
  • Power Input Cooling (Rated) - ㎾
    1.55
    Running Current Cooling (Rated) - A
    6.8
  • EER / COP - w/w
    3.40 / -
    Power Supply - V, Ø, ㎐
    220-240, 1, 50
  • Power Factor (Rated)
    0.99
    Casing Color
    Warm Gray
  • Dimensions Net (W × H × D) - ㎜
    770 × 545 × 288
    Dimensions Shipping (W × H × D) - ㎜
    920 × 585 × 388
  • Weight Net - ㎏
    34.3
    Weight Shipping - ㎏
    36.9
  • Heat Exchanger (Rows × Columns × FPI) × No.
    (2 × 24 × 14) × 1
    Compressor Type
    Twin Rotary
  • Compressor Model / Compressor Model - Model × No.
    GAT156MAD × 1
    Compressor Motor type
    BLDC
  • Compressor Motor Output - W × No.
    1,500 × 1
    Fan Type
    Axial
  • Fan Air Flow Rate - ㎥/min × No.
    28 × 1
    Fan Air Flow Rate - ft³/min × No.
    989 × 1
  • Fan Motor Type
    BLDC
    Fan Motor Output - W × No.
    43 × 1
  • Sound Pressure Level Cooling (Rated) - dB(A)
    49
    Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
    Ø 6.35 (1/4)
  • Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
    Ø 12.7 (1/2)
    Piping Length (Rated) - m
    5
  • Piping Length (Min./Max.) - m
    5 / 30
    Refrigerant Type
    R410A
  • Refrigerant Precharged Amount - g
    1,100
    Refrigerant Chargeless-Pipe Length - m(ft)
    7.5 (24.6)
  • Refrigerant Additional Charging Volume - g/m(oz/ft)
    20 (0.22)
    Refrigerant Control
    Electronic Expansion Valve
  • Refrigerant Oil Type
    RB68A
    Refrigerant Oil Charged volume - cc × No.
    400 × 1
  • Wiring Connections Power Supply Cable (included Earth) - No. × ㎟
    3C × 2.5
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
    15 (49.2)
