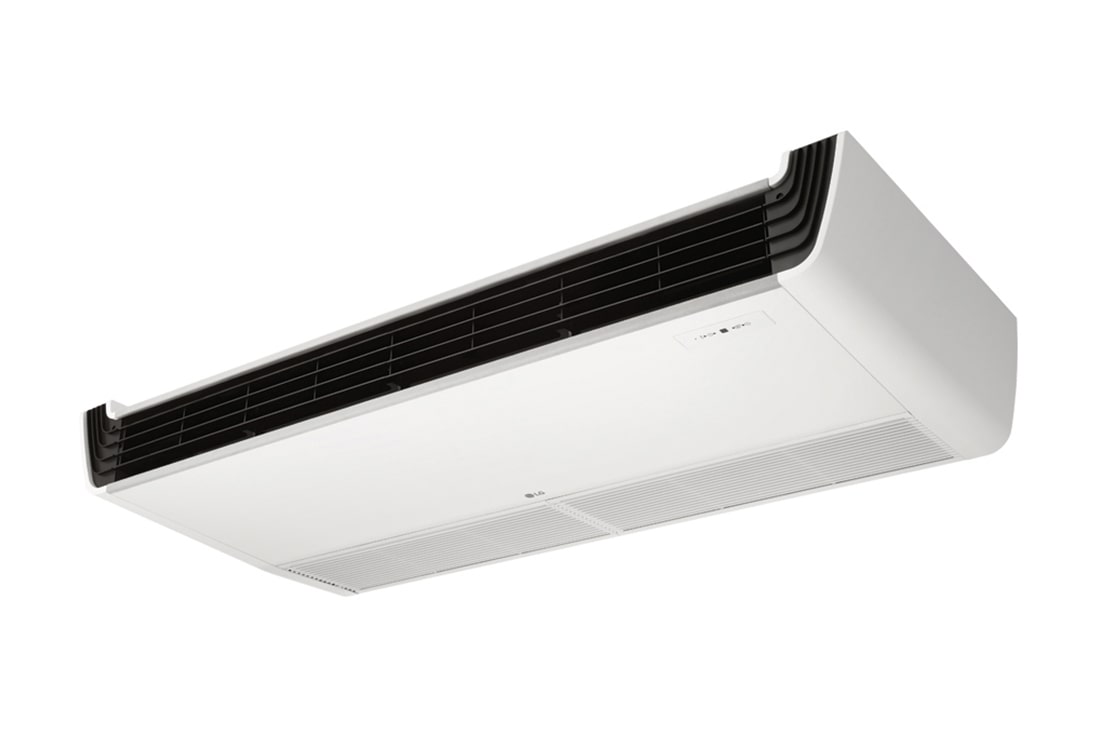

AV-Q30GM1T1
Inverter Ceiling Split 2.3 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
Inverter Ceiling Split 2.3 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
MSRP AED
  • Powerful Cooling & Heating1 Powerful Cooling & Heating2

    Powerful Cooling & Heating

    Its powerful cooling and heating performance allows operation in large areas. The air flow can reach up to 15m away from the air conditioner.
  • Easy Installation & Maintenance1 Easy Installation & Maintenance2

    Easy Installation & Maintenance

    Installation speed and ease are improved with one-touch in/out filter structure and a simplified two-piece filter, which slides out for easy cleaning and maintenance.

INDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    3.36 ~ 8.20 ~ 9.96
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    11,480 ~ 28,000 ~ 35,000
  • Power Input Cooling (Rated) - ㎾
    2.41
    Running Current Cooling (Rated) - A
    10.6
  • EER / COP - w/w
    3.40 / -
    Power Supply - V, Ø, ㎐
    220-240, 1, 50
  • Dimensions Net (W × H × D) - ㎜
    1,200 × 235 × 690
    Dimensions Shipping (W × H × D) - ㎜
    1,315 × 317 × 768
  • Weight Net - ㎏
    28.0
    Weight Shipping - ㎏
    34.5
  • Heat Exchanger (Rows × Columns × FPI)
    3 × 18 × 18
    Heat Exchanger Face Area - ㎡ (ft²)
    0.31 (3.33)
  • Fan Type
    Cross Flow Fan
    Fan Air Flow Rate (H / M / L) - ㎥/min
    20.0 / 18.0 / 16.0
  • Fan Air Flow Rate (H / M / L) - ft³/min
    706 / 636 / 565
    Fan Motor Type
    BLDC
  • Fan Motor Drive
    Internal
    Fan Motor Output - W × No.
    85.9 × 1
  • Fan Motor FLA (Full Load Ampere) - A
    1.00
    Dehumidification Rate - ℓ/h
    3.8
  • Sound Pressure Level (H / M / L) - dB(A)
    47 / 45 / 42
    Piping Connections Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side - ㎜(inch)
    Ø 15.88 (5/8)
    Piping Connections Drain Pipe (O.D. / I.D.) - ㎜
    Ø 21.5 / 16.0
  • Safety Devices
    Fuse
    Power and Communication Cable (included Earth) - No. × ㎟
    4C × 0.75

OUTDOOR SPECIFICATIONS

  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    3.36 ~ 8.20 ~ 9.96
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    11,480 ~ 28,000 ~ 35,000
  • Power Input Cooling (Rated) - ㎾
    2.41
    Running Current Cooling (Rated) - A
    10.6
  • EER / COP - w/w
    3.40 / -
    Power Supply - V, Ø, ㎐
    220-240, 1, 50
  • Power Factor (Rated)
    0.99
    Casing Color
    Warm Gray
  • Dimensions Net (W × H × D) - ㎜
    950 × 834 × 330
    Dimensions Shipping (W × H × D) - ㎜
    1,065 × 918 × 461
  • Weight Net - ㎏
    59.1
    Weight Shipping - ㎏
    66.2
  • Heat Exchanger (Rows × Columns × FPI) × No.
    (2 × 38 × 14) × 1
    Compressor Type
    Twin Rotary
  • Compressor Model / Compressor Model - Model × No.
    GJT325MAA × 1
    Compressor Motor type
    BLDC
  • Compressor Motor Output - W × No.
    2,137 × 1
    Fan Type
    Axial
  • Fan Air Flow Rate - ㎥/min × No.
    60 × 1
    Fan Air Flow Rate - ft³/min × No.
    2,119 × 1
  • Fan Motor Type
    BLDC
    Fan Motor Output - W × No.
    124 × 1
  • Sound Pressure Level Cooling (Rated) - dB(A)
    51
    Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
    Ø 15.88 (5/8)
    Piping Length (Rated) - m
    5
  • Piping Length (Min./Max.) - m
    5 / 50
    Refrigerant Type
    R410A
  • Refrigerant Precharged Amount - g
    2,200
    Refrigerant Chargeless-Pipe Length - m(ft)
    7.5 (24.6)
  • Refrigerant Additional Charging Volume - g/m(oz/ft)
    40 (0.43)
    Refrigerant Control
    Electronic Expansion Valve
  • Refrigerant Oil Type
    FVC68D
    Refrigerant Oil Charged volume - cc × No.
    950 × 1
  • Wiring Connections Power Supply Cable (included Earth) - No. × ㎟
    3C × 2.5
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
    30 (98.4)
