Inverter Ceiling Split 4.5 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
Find a Dealer
Ceiling & Floor Convertible1 Ceiling & Floor Convertible2

Ceiling & Floor Convertible

Modern & tasteful aesthetics perfectly blending in with the indoor environment
Differentiated Design1 Differentiated Design2

Differentiated Design

Award-winning elegance of the ceiling suspended unit comes with the stunning V-shaped design and black vane.
  • Powerful Cooling & Heating1 Powerful Cooling & Heating2

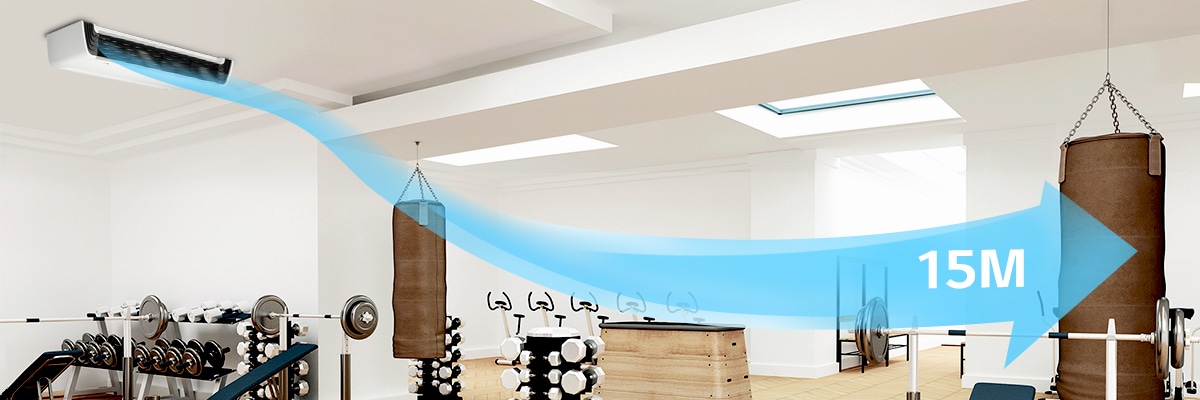

    Powerful Cooling & Heating

    Its powerful cooling and heating performance allows operation in large areas. The air flow can reach up to 15m away from the air conditioner.

Two Thermistors Control (Optional)1 Two Thermistors Control (Optional)2

Two Thermistors Control (Optional)

An optional control panel includes a second thermistor, allowing precise indoor temperature checks from multiple locations.
  • Easy Installation & Maintenance1 Easy Installation & Maintenance2

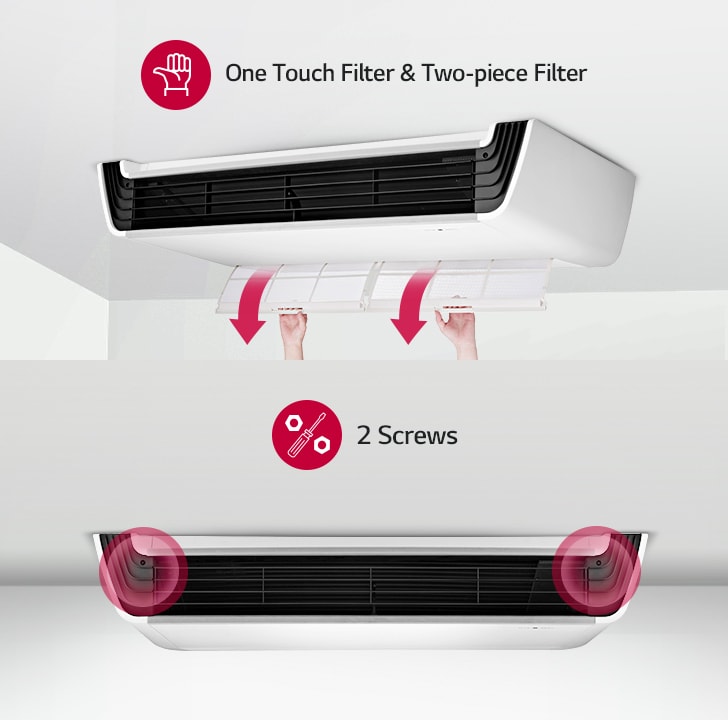

    Easy Installation & Maintenance

    Installation speed and ease are improved with one-touch in/out filter structure and a simplified two-piece filter, which slides out for easy cleaning and maintenance.
Contact Us1 Contact Us2

Contact Us

Please contact us for more information on the product and we will get in touch with you soon.
Learn More
Close
INDOOR SPECIFICATIONS
  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    6.328 ~ 15.82 ~ 16.70
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    21,600 ~ 54,000 ~ 57,000
  • Power Input Cooling (Rated) - ㎾
    5.39
    Running Current Cooling (Rated) - A
    23.7
  • EER / COP - w/w
    2.94 / -
    Power Supply - V, Ø, ㎐
    220-240, 1, 50
  • Dimensions Net (W × H × D) - ㎜
    1,600 × 235 × 690
    Dimensions Shipping (W × H × D) - ㎜
    1,715 × 317 × 768
  • Weight Net - ㎏
    36.5
    Weight Shipping - ㎏
    44.5
  • Heat Exchanger (Rows × Columns × FPI)
    3 × 18 × 18
    Heat Exchanger Face Area - ㎡ (ft²)
    0.46 (4.95)
  • Fan Type
    Cross Flow Fan
    Fan Air Flow Rate (H / M / L) - ㎥/min
    30.0 / 25.0 / 20.0
  • Fan Air Flow Rate (H / M / L) - ft³/min
    1,060 / 883 / 706
    Fan Motor Type
    BLDC
  • Fan Motor Drive
    Internal
    Fan Motor Output - W × No.
    125 × 1
  • Fan Motor FLA (Full Load Ampere) - A
    1.47
    Dehumidification Rate - ℓ/h
    7.1
  • Sound Pressure Level (H / M / L) - dB(A)
    46 / 42 / 38
    Piping Connections Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side - ㎜(inch)
    Ø 19.05 (3/4)
    Piping Connections Drain Pipe (O.D. / I.D.) - ㎜
    Ø 21.5 / 16.0
  • Safety Devices
    Fuse
    Power and Communication Cable (included Earth) - No. × ㎟
    4C × 0.75
OUTDOOR SPECIFICATIONS
  • Capacity Cooling (Min.∼Rated∼Max.) - ㎾
    6.328 ~ 15.82 ~ 16.70
    Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
    21,600 ~ 54,000 ~ 57,000
  • Power Input Cooling (Rated) - ㎾
    5.39
    Running Current Cooling (Rated) - A
    23.7
  • EER / COP - w/w
    2.94 / -
    Power Supply - V, Ø, ㎐
    220-240, 1, 50
  • Power Factor (Rated)
    0.99
    Casing Color
    Warm Gray
  • Dimensions Net (W × H × D) - ㎜
    950 × 1,380 × 330
    Dimensions Shipping (W × H × D) - ㎜
    1,140 × 1,462 × 461
  • Weight Net - ㎏
    89.5
    Weight Shipping - ㎏
    101.2
  • Heat Exchanger (Rows × Columns × FPI) × No.
    (2 × 32 × 14) × 2
    Compressor Type
    LG Inverter Scroll
  • Compressor Model / Compressor Model - Model × No.
    RJA036MAA × 1
    Compressor Motor type
    BLDC
  • Compressor Motor Output - W × No.
    3,200 × 1
    Fan Type
    Axial
  • Fan Air Flow Rate - ㎥/min × No.
    60 × 2
    Fan Air Flow Rate - ft³/min × No.
    2,119 × 2
  • Fan Motor Type
    BLDC
    Fan Motor Output - W × No.
    124 × 2
  • Sound Pressure Level Cooling (Rated) - dB(A)
    55
    Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
    Ø 9.52 (3/8)
  • Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
    Ø 19.05 (3/4)
    Piping Length (Rated) - m
    5
  • Piping Length (Min./Max.) - m
    5 / 75
    Refrigerant Type
    R410A
  • Refrigerant Precharged Amount - g
    3,800
    Refrigerant Chargeless-Pipe Length - m(ft)
    7.5 (24.6)
  • Refrigerant Additional Charging Volume - g/m(oz/ft)
    40 (0.43)
    Refrigerant Control
    Electronic Expansion Valve
  • Refrigerant Oil Type
    FVC68D
    Refrigerant Oil Charged volume - cc × No.
    1,000 × 1
  • Wiring Connections Power Supply Cable (included Earth) - No. × ㎟
    3C × 6.0
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
    30 (98.4)
