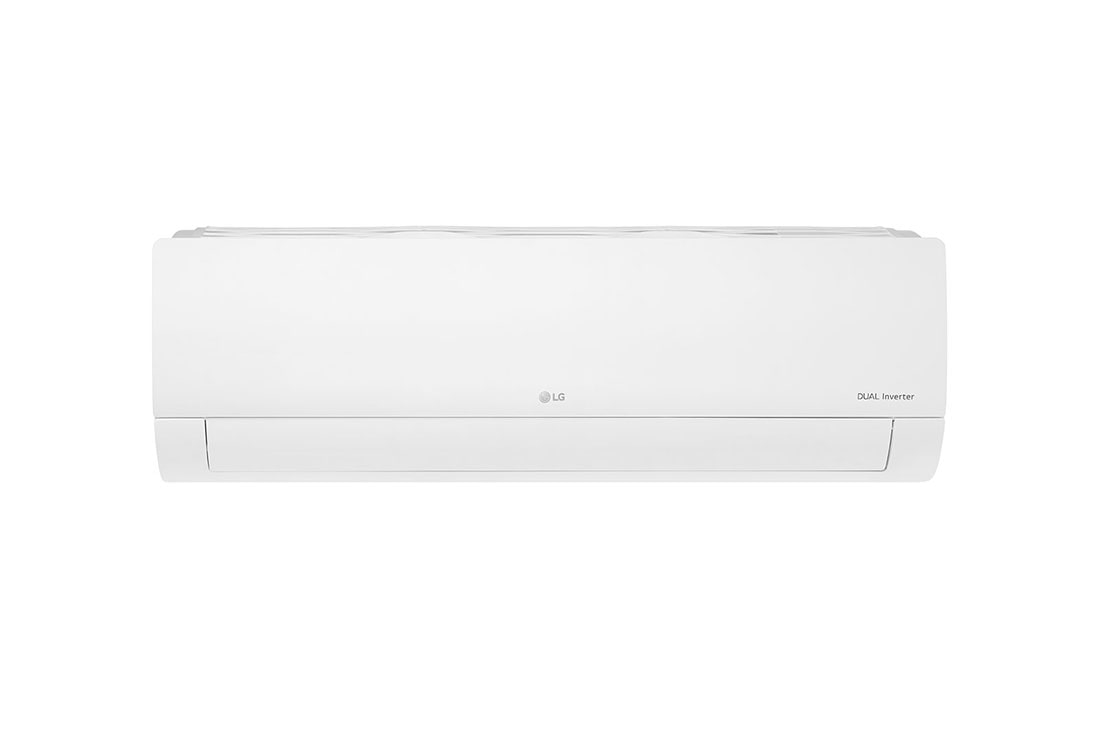

LG Dualcool Inverter Compressor STD 1.5 HP Cooling/ Heating Energy Saving , Fast Cooling with 10 Years Warranty on Compressor

Key Features

Choose your HP

See Retailer for Pricing

Limited offer

Remaining Quantity 0
  • VIP Price
    (S4-W12JA3AE)
    EGP
    EGP
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited offer

Remaining Quantity 0
  • VIP Price
    (S4-W12JA3AE)
    EGP
    EGP
    LG Members Price
Total
LG Dualcool Inverter Compressor STD 1.5 HP Cooling/ Heating Energy Saving , Fast Cooling with 10 Years Warranty on Compressor
Where to Buy
*Residential Air Conditioners have five Years Warranty for the whole set.
*Normal Compressor has five years Warranty.
*Inverter Compressor has ten years Warranty.
*Product Shelf Life time is 7 years from warranty activation date.

*Please Contact Our Live Chat or our Call Center, to get the appropriate Product Capacity.
**If you buy a product that does not match your room specifications, it will not be installed.
Dual Inverter Compressor™ With 10 Year Warranty1 Dual Inverter Compressor™ With 10 Year Warranty2

Dual Inverter Compressor™ With 10 Year Warranty

LG's Dual Inverter Compressor™ solves improper, ineffective and noisy problems, resulting in an air conditioner that cools faster, lasts longer, and runs quieter. With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.
  • Dual Inverter Compressor™1

    Dual Inverter Compressor™

    A compressor with a wider rotational frequency saves more energy and has a faster cooling range.

  • 10 Year Warranty1

    10 Year Warranty

    Verification obtained from TUV Rheinland for 10-year product life cycle.

  • TUV Rheinland1

    TUV Rheinland

    TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(US-W242Kxy0/TS-H2465DA0).

<h3 class="text-normal">Energy Saving</h3>3 <h3 class="text-normal">Energy Saving</h3>4

Energy Saving

Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. Moreover, Dual Inverter Compressor™ with power saving operation range frequency saves more energy than conventional compressor.
Watch the Full Movie
<h3 class="text-normal">Fast Cooling</h3>3 <h3 class="text-normal">Fast Cooling</h3>4

Fast Cooling

LG air conditioner begins cooling the air fast using its high speed cooling range with Dual Inverter Compressor™, so it expels air farther and cool spaces faster.

Watch the Full Movie
Simple and Slim Design with Hidden Display1 Simple and Slim Design with Hidden Display2

Simple and Slim Design with Hidden Display

LG air conditioner‘s slim and modern design makes easy installation and convenient cleaning with EZ sliding filter. Moreover large hidden display is perfect for checking your energy display conveniently.
<h3 class="text-normal">Low Noise</h3>3 <h3 class="text-normal">Low Noise</h3>4

Low Noise

LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and Dual Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.
Watch the Full Movie
Quick and Easy Installation1 Quick and Easy Installation2

Quick and Easy Installation

LG air conditioners are designed for easier and more efficient installation, regardless of the surroundings and the number of persons involved in the installation process. By reducing the manpower and time required for installation, it is now possible to install more air conditioners at more homes in a shorter period of time.
  • Vertical 6 Steps Louver Control1

    Vertical 6 Steps Louver Control

    Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

  • Dual Protection Filter1

    Dual Protection Filter

    The Dual Protection Filter captures large dust particles.

Comfort Sleep1

Comfort Sleep

Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic) ,with the simple click of one button.
  • <h3 class="text-normal">Auto Cleaning</h3>1

    Auto Cleaning

    The comprehensive auto cleaning function prevents the forming of
    bacteria and mold on the heat exchanger and thus provides a more
    pleasant and comfortable environment for the user.

  • Gold Fin™1

    Gold Fin™

    The Gold Fin™ ensures that the surface is more resistant to corrosion
    and enhances the durability of heat exchanger for a much longer period.

Jet Dry

Jet Dry

Jet Dry technology places priority in dehumidification for areas with high humidity levels to keep your room dry and fresh.
Dimensions
S4-W12JA3AE S4-W12JA3AE
Summary
  • Dimension mm
    837 × 308 × 189
  • Capacity [BTU]
    12000
  • Main Technology
    60% More Energy Saving With 30% Quick Cooling
  • Extra Spec
    10 Years Compressor Warranty
GENERAL SPECIFICATION
  • Capacity Cooling (Min ~ Rated ~ Max)
    0.88 ~ 3.52 ~ 3.87 KW
    3,000 ~ 12,000 ~ 13,200 Btu/h
    Capacity Heating (Min ~ Rated ~ Max)
    0.88 ~ 3.52 ~ 4.04 KW
    3,000 ~ 12,000 ~ 13,800 Btu/h
  • Power Input - Cooling (Min ~ Rated ~ Max)
    140 ~ 1,150 ~ 1,300 W
    Power Input - Heating (Min ~ Rated ~ Max)
    140 ~ 975 ~ 1,350 W
  • Running Current - Cooling (Min ~ Rated ~ Max)
    0.80 ~ 6.60 ~ 7.20 A
    Running Current - Heating (Min ~ Rated ~ Max)
    0.80 ~ 5.50 ~ 7.20 A
  • EER
    3.06 W/W
    10.43 (Btu/h)/W
    WEER
    16.68 (Btu/h)/W
  • Energy Label Grade - Cooling
    A+++
    COP
    3.61 W/W
    12.31 (Btu/h)/W
  • Cooling / Heating (Additional Charge)
    - / A++++
    Power Supply
    1, 220, 50 (Φ/V/Hz)
  • Available Voltage Range
    187 ~ 253 V
    Power Factor - Cooling
    80%
  • Power Factor - Heating
    80%
    Moisture Removal
    0.80l/h
  • Indoor - Air Flow Rate (Cooling, Max/H/M/L)
    12.5/9.3/7.2/2.7 m³/min
    Indoor - Air Flow Rate (Heating, Max/H/M/L)
    13/10/7/5.5 m³/min
  • Indoor - Sound Pressure Level (Cooling, Max/H/M/L/SL)
    -/41/36/28/21 dB(A)
    Indoor - Sound Pressure Level (Heating, Max/H/M/L/SL)
    -/47/42/34 dB(A)
  • Indoor - Dimensions (W × H × D) - Net
    837 × 308 × 189 mm
    Indoor - Dimensions (W × H × D) - Shipping
    882 × 385 × 253 mm
  • Indoor - Weight (Net)
    9.0 kg
    Indoor - Weight (Shipping)
    11.0 kg
  • Indoor - Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
    Outdoor - Air Flow Rate (Max)
    27.0m³/min
  • Outdoor - Sound Pressure Level (Cooling, Rated)
    51 dB(A)
    Outdoor - Sound Pressure Level (Heating, Rated)
    53 dB(A)
  • Outdoor - Dimensions (W × H × D) - Net
    717 × 495 × 230 mm
    Outdoor - Dimensions (W × H × D) - Shipping
    836 × 540 × 321 mm
  • Outdoor - Weight (Net)
    26.0 kg
    Outdoor - Weight (Shipping)
    30.5 kg
  • Outdoor - Max. Fuse Size
    15A
    Outdoor - Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Outdoor - Operation Range (Cooling)
    18 ~ 48 °C DB
    Outdoor - Operation Range (Heating)
    -5 ~ 24 °C DB
    -5 ~ 18 °C WB
  • Circuit Breaker
    15A
    Power Supply Cable
    3 x 1.0 (No. x mm²)
  • Power Supply to Unit
    Outdoor
    Power and Communication Cable
    4 x 0.75 (No. x mm²)
  • Piping - Size (Liquid)
    Ø 6.35 mm
    Piping - Size (Gas)
    Ø 9.52 mm
  • Piping - Connections Method (Indoor/Outdoor)
    Flared
    Drain Hose Size - O.D, I.D
    21.5,16.0 mm
  • Between Indoor & Outdoor - Piping Length (Min/Standard/Max)
    3/7.5/15 m
    Between Indoor & Outdoor - Piping Length (No Charge)
    3.5 m
  • Between Indoor & Outdoor - Max. Elevation Difference
    7 m
    Between Indoor & Outdoor - Piping Connection Heat Insulation
    Both liquid and gas pipes
  • Refrigerant - Type
    R410A
    Refrigerant - Pre Charge
    850g
  • Refrigerant - Additional charge
    20g/m
    Refrigerant - Control
    Capillary
  • Refrigerant - Global Warning Potential
    2087.5
    Refrigerant - t-CO₂ eq
    1.774
  • Product Type
    STD
    Cooling System
    Cold & Heat
