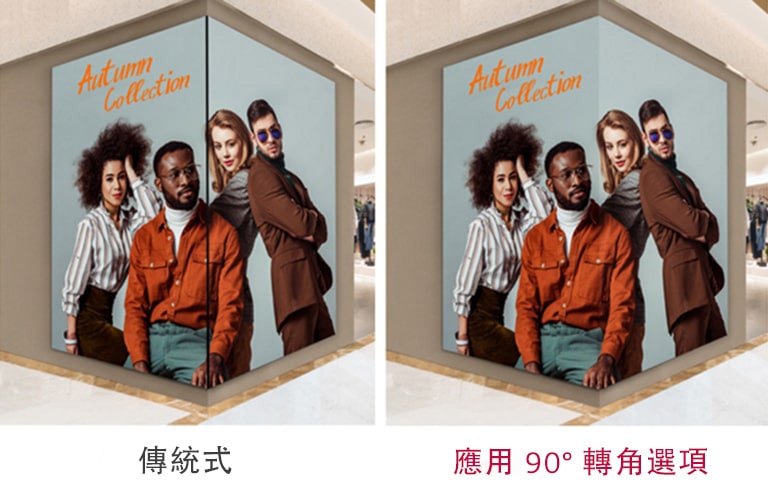

顯示採用 90 度角選項下的內容，即使在轉角位安裝也毫無中斷。

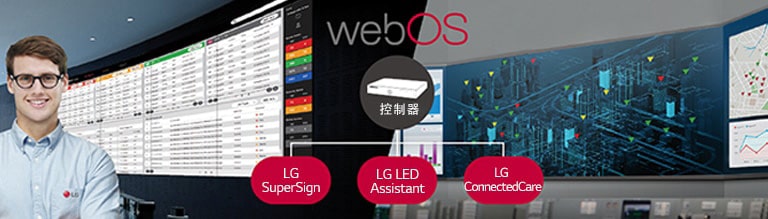

LG 維修人員正在透過 LG webOS 控制器及軟件解決方案監察 LED 屏幕的狀態。

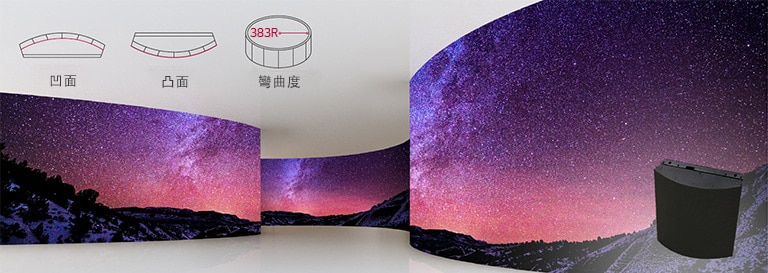

室內走廊的兩面牆都是弧形，整面牆都安裝了 LED。
Pixel Configuration
3 in 1
Pixel Pitch (mm)
1.563
Module Resolution (W x H)
192 × 108
Module Dimensions (W x H, mm)
300 × 168.75
Weight per Module (kg)
0.34 (-RK,-CK)/ 0.67 (-CKF)
No. of Modules per Cabinet (W × H)
2x2 (-RK)/ 1x2 (-CK,-CKF)
Cabinet Resolution (W × H)
384x216 (-RK)/ 192x216 (-CK, -CKF)

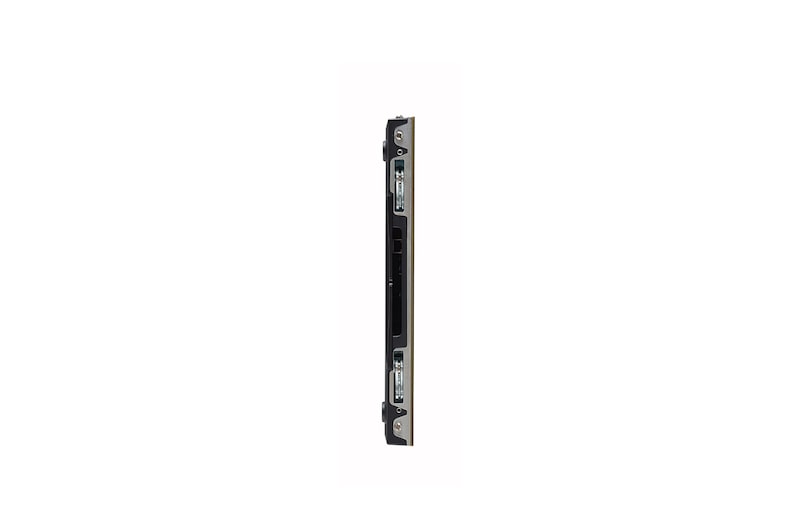

Cabinet Dimensions (W × H × D)
600x337.5x34 (-RK)/
300x337.5x29.7 (-CK)/
300x337.5x35.6 (-CKF, Cabinet Mounting Depth)
Cabinet Surface Area (m²)
0.203 (-RK)/ 0.101 (-CK, -CKF)
Weight per Cabinet (kg/unit)
5.3 (-RK)/ 4.0 (-CK)/
3.1 (-CKF, Weight Changes for Different Curves)
Weight per Square Meter (kg/m²)
26.2 (-RK)/ 39.0 (-CK)/ 30.6 (-CKF)
Physical Pixel Density (pixels/m²)
409,600
Flatness of Cabinet
± 0.1 mm
Cabinet Material
Die-casting Aluminum (-RK)/
Aluminum Machine (-CK, CKF)

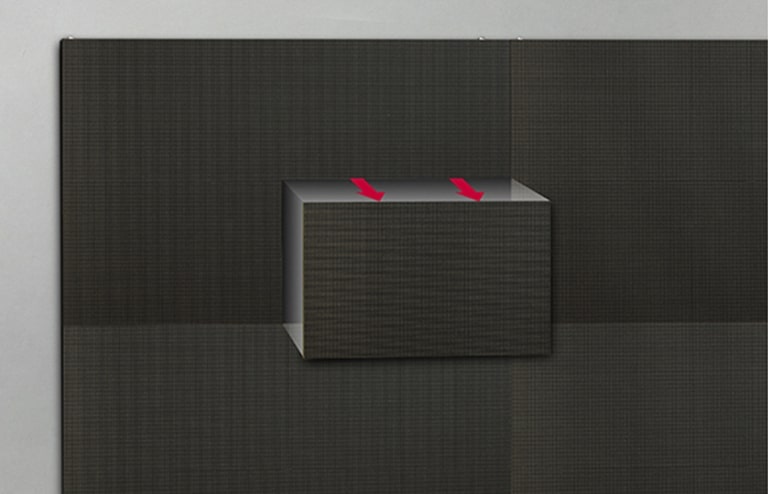

Service Access
Front
Max Brightness (After Calibration)
800
Color Temperature
3,200-9,300 (K)
Visual Viewing Angle (H×V)
160 × 160
Brightness Uniformity
97%
Color Uniformity
± 0.003 Cx,Cy
Contrast Ratio
5,000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/cabinet, Max.)
150 (-RK)/ 75 (-CK, -CKF)
Power Consumption (W/cabinet, Avg.)
50 (-RK)/ 25 (-CK, CKF)
Power Consumption (W/m², Max.)
740
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-10° to +45°
Operating Humidity
0 - 80 % RH
IP rating Front / Rear
IP30 / IP30
Controller
CVCA, LCIN006, LCIN008 (4K)
90 Degree Corner Cut
Yes
