MULTI V i, Heatpump, Outdoor Unit, 24HP, R410A

MULTI V i, Heatpump, Outdoor Unit, 24HP, R410A

ARUN240LTE6

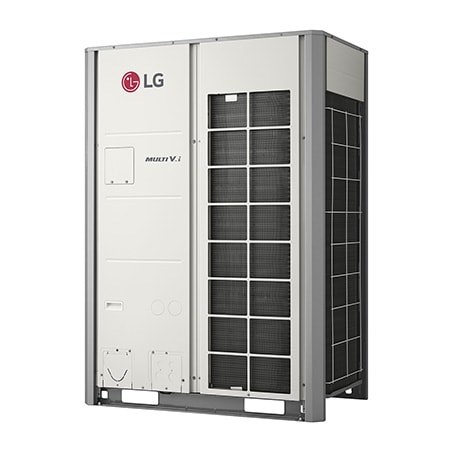

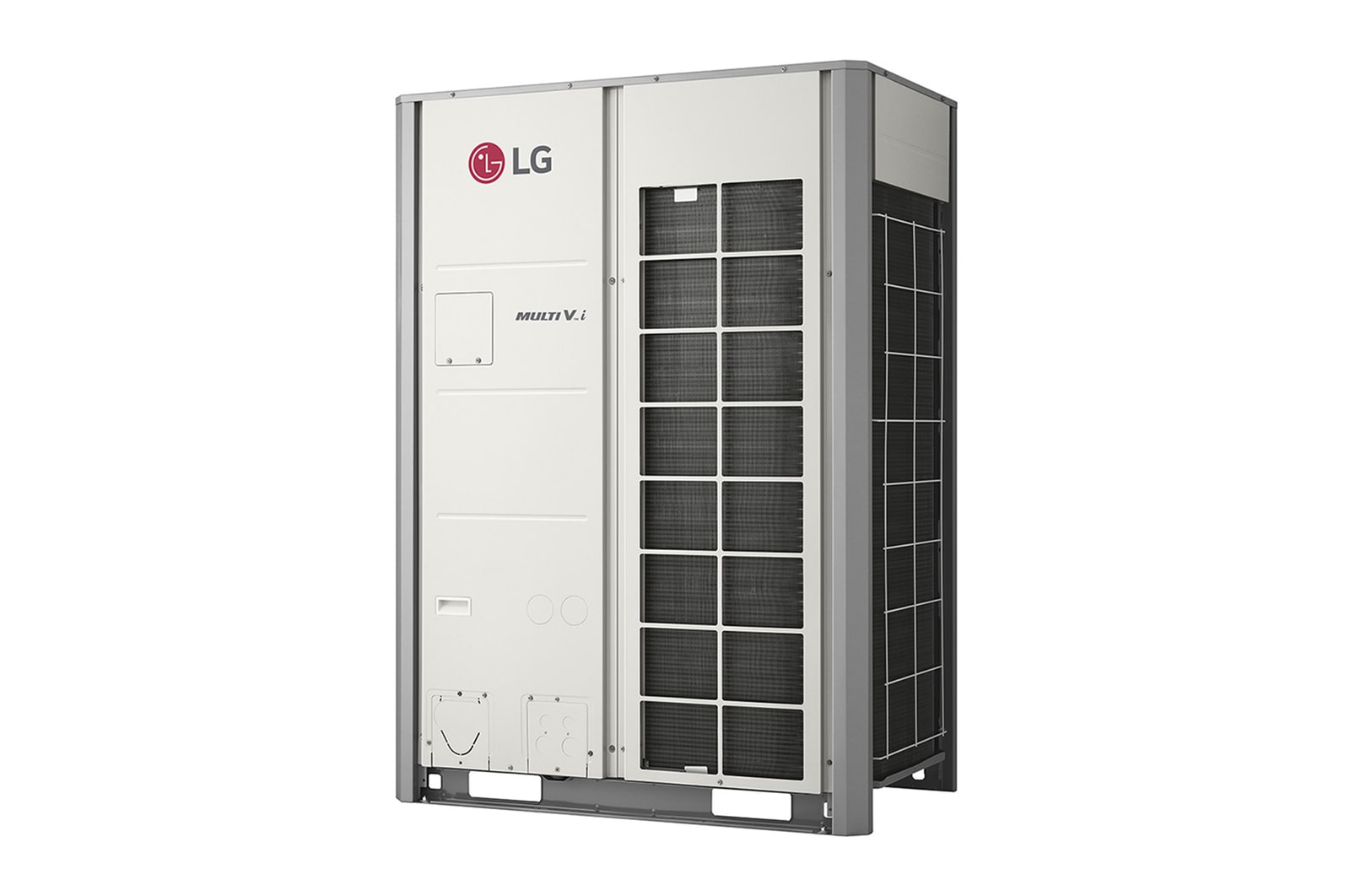

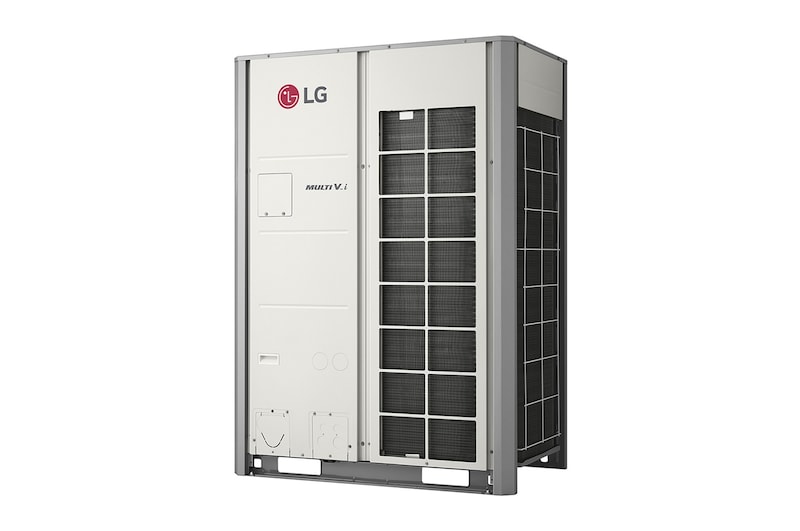

  • LG MULTI V i ARUN240LTE6 outdoor unit, 24HP. 2x1 square-shaped ducts on the right sides of the front as well as on each side of the unit.
LG MULTI V i ARUN240LTE6 outdoor unit, 24HP. 2x1 square-shaped ducts on the right sides of the front as well as on each side of the unit.

Key Features

  • High Energy Efficiency
  • AI Smart Care
  • Interlocking Operation with ERV

High Energy Efficiency

MULTI V i enables economical operation with high energy efficiency improved over previous version that was already unrivaled in the market.

AI Smart Care

Power saving mode is automatically turned on when there is no one in the space. MULTI V i is equipped with machinelearning algorithms that enable self-learning.

Interlocking Operation System

LG ERV DX interlocks seamlessly with MULTI V i, providing a solution for humidifying and ventilating the indoor space while communicating with the ODU and other IDUs. The LG ERV DX system provides a convenient way to control indoor conditions through a wired remote controller connected to MULTI V indoor units.

Print

All Spec

POWER SUPPLY

  • Case 1 (V, Phase, Hz)

    380~415, 3, 50

  • Limit Range of Voltage(Case 1) (V)

    342 ~ 456

  • Case 2 (V, Phase, Hz)

    380, 3, 60

  • Limit Range of Voltage(Case 2) (V)

    342 ~ 418

COOLING CAPACITY

  • Rated (kW)

    67.2

  • Rated (Btu/h)

    229,300

HEATING CAPACITY

  • Rated (kW)

    74.3

  • Rated (Btu/h)

    253,400

POWER INPUT(COOLING)

  • Rated (kW)

    15.90

POWER INPUT(HEATING)

  • Rated (kW)

    18.00

EFFICIENCY

  • EER(Rated) (W/W)

    4.23

  • COP(Rated) (W/W)

    4.13

POWER FACTOR(COOLING/HEATING)

  • Rated

    0.93 / 0.93

OUTDOOR FAN

  • Type

    Propeller fan

  • Air Flow Rate(High) (m³/min x No.)

    320 × 1

  • Max. External Static Pressure (Pa)

    80

  • Discharge direction(Side / Top)

    TOP

OUTDOOR FAN MOTOR

  • Type

    BLDC

  • Drive

    DC INVERTER

  • Output (W x No.)

    900 × 2

COMPRESSOR

  • Type

    Hermetically Sealed Scroll

  • Piston Displacement (cm³/rev)

    62.1 × 2

  • Number of Revolution (rev./min)

    3,600 × 2

  • Motor Output (W x No.)

    5,300 × 2

  • Starting Method

    Inverter

  • Oil Type

    FW68L(PVE)

HEAT EXCHANGER

  • Type

    Fin & Tube

  • No.

    1

  • Fin Type

    Wide Louver Plus

DIMENSIONS

  • Net(W x H x D) (mm)

    1240 x 1745 x 760

  • Shipping(W x H x D) (mm)

    1282 x 1919 x 802

WEIGHT

  • Net (kg)

    283

  • Shipping (kg)

    296

EXTERIOR

  • Color

    Morning Gray / Dawn Gray

  • RAL (Classic)

    RAL 7038 / RAL 7037

PROTECTION DEVICE

  • High Pressure Prevention

    High pressure sensor / High pressure switch

  • Frost Prevention

    O (Logical)

  • Discharge Tempreature Control

    O (Logical)

  • Compressor/Fan Protection

    Over-heat protection / Fan driver overload protector

  • Inverter Protection

    Over-heat protection / Over-current protection

REFRIGERANT

  • Type

    R410A

  • Precharged Amount (kg)

    16.0

  • GWP(Global Warming Potential)

    2087.5

  • t-CO₂ eq.

    33.4

  • Control Type

    Electronic Expansion Valve

CONNECTING PIPE

  • Liquid (mm(inch))

    15.88(5/8)

  • Gas (mm(inch))

    34.9(1-3/8)

PIPING CONNECTION TYPE

  • Liquid

    Brazing

  • Gas

    Brazing

SOUND PRESSURE LEVEL (OUTDOOR UNIT)

  • Cooling / Heating (dB(A))

    65 / 66

MEASUREMENT STANDARD (PRESSURE LEVEL)

  • Measurement Standard (Pressure Level)

    ISO 3745

SOUND POWER LEVEL (OUTDOOR UNIT)

  • Cooling / Heating (dB(A))

    88 / 89

MEASUREMENT STANDARD (POWER LEVEL)

  • Measurement Standard (Power Level)

    ISO 9614

CONNECTING CABLE

  • Communication Cable(VCTF-SB) (mm² × cores)

    2C × 1.0 ~ 1.5

ELECTRICAL CHARACTERISTIC

  • Minimium Circuit Amperes (MCA) (A)

    50.0

  • Maximum Fuse Amperes (MFA) (A)

    60

  • Total Over Current Amperes (TOCA) (A)

    56.0

  • Comp_Maximum Starting Current (MSC) (A)

    11.8

  • Comp_Rated Load Amperes (Cooling) (A)

    23.6

  • Comp_Rated Load Amperes (Heating) (A)

    28.0

  • Outdoor Fan Motor_Full Load Amperes (FLA) (A)

    2.5

CONNECTABLE INDOOR UNITS NUMBER

  • Max. (Conditional) (EA)

    39(61)
