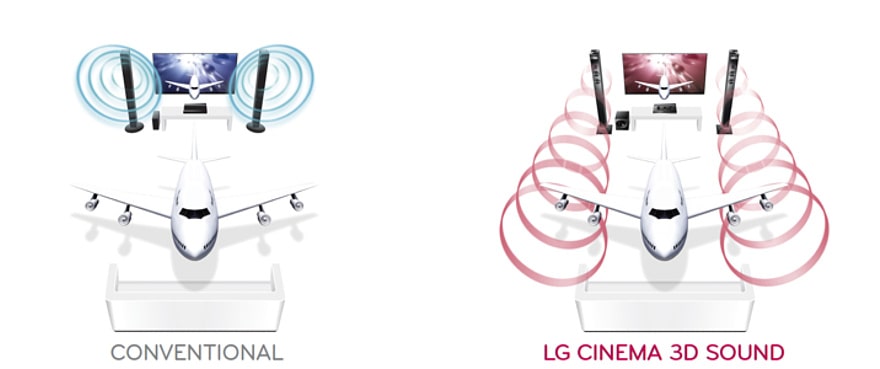

3D Sound Zooming -3D Blu-ray Disc™ 9.1 Home Cinema System with LG Smart TV and Wireless Rear Speakers

  • BH9520TW

  • Discontinued Product

Key Features

  • Bluetooth
  • LG Sound Gallery
  • Wi-Fi Direct™
  • LG Smart TV
Network
Wi-Fi Built-in Yes
Wi-Fi direct Yes
Wired Yes
DLNA-DMP Yes
DLNA-DMR Yes
LG Smart TV
Premium Contents Yes
LG Apps Yes
Physical
Size (W x H x D) mm - Center Speaker 412 x 82 x 73
Size (W x H x D) mm - Front Speaker 280 x 1330 x 280
Size (W x H x D) mm - Rear Speaker 280 x 1330 x 280
Size (W x H x D) mm - Subwoofer 251 x 336 x 347
Amplifier
Front, Top 140W X2 / 70W X2
Power Output (4Ω) Total 1100W
Power Output Center 140W
Power Output - Subwoofer 180W(Passive)
Power Output Wireless Rear L/R 180W x 2
Audio Sound Mode
DSP(LG Sound Gallery)Natural EQ Yes
Accessories
Batteries Yes
DLNA Set-up Disc Yes
HDMI Cable Yes
Instruction Manual Yes
Carton Box Type Tip on
FM Antenna Yes
RCA Code(Video), Yellow, 1P Yes
Remote Control Unit-Type CB3
Remote Control Unit-Unified Yes
Remote Control Unit-Battery(Size) AAA x 2
Speaker Cable Yes(6 EA)
Wireless RX Yes
Warranty Card Yes
3D compatibility
3D / 2D Yes / Yes
2D to 3D converting (Video) No
In & Out
Front-Display FLD
Front-FL Dimmer Yes
Front-USB 1
Front-Mic 2
Front-Audio In Yes
R/Panel-Video Out-Composit Yes
R/Panel-Video Out-Component No
R/Panel-Audio Input-Audio L/R Yes
R/Panel-Audio Input-Optical 1
R/Panel-HDMI-Out 1
R/Panel-HDMI-Input 2
R/Panel-Radio Antenna-FM Yes
R/Panel-Speaker Terminal-Composing of channel 9.1
R/Panel-Speaker Terminal-Terminal Type Lan Type
R/Panel-Ethernet Yes
R/Panel-Wireless speaker Tx dongle Yes
Convenience
All-in-One Search-CP Yes
All-in-One Search-App Yes
A/V Sync Delay(Audio Delay) Yes
Bluetooth (Rx / Tx) Yes / No
Dimmer Yes
External HDD Playback Yes
Firmware update by network Yes
Meta Data Showing GraceNote(CD/Streaming/File) Yes / Yes / Yes
Mute Yes
Simplink Yes
Sleep Yes
Smart Share 1.0 Yes
Speaker Distance(channel delay) Yes
Speaker Level Trim Yes
Test Tone Yes
Booting-Instant open (disc out) Yes
Smart phone Auto Sound Calibration Yes
Optical (direct key) Yes
Thumbnail Movie/Photo Yes / No
Karaoke-MIc Volume Yes
Karaoke-Echo Volume Yes
Dynamic Range Control-On/Off Yes
Karaoke-Fanfare Yes
Karaoke-Scoring Yes
Karaoke-Howlling Canceller Yes
Made for iPod, iPhone, iPad-iPod/iPhone via Cradle Yes
Smart phone remote control support Yes
Ultra Violet Yes
USB Direct Recording Yes
Volume on TV Yes
Wireless Speaker-1:1 Rx + Wireless Sub-woofer (3ch wireless) Yes
Woofer Level Volume Yes
BD Playback
MHP-Like Interactivity Yes
Simultaneous Playback of HD & SD Video Drip Yes
Mixed Presentation of Dual Audio Yes
BD ROM profile 5.0 profile
Still Picture PNG, JPEG, GIF
Disc & AV Format
BD-ROM Yes
BD-R Yes
BD-RE Yes
DVD(NTSC) Yes
DVD(PAL) Yes
DVD-R Yes
DVD-RW(Video/VR Mode) Yes
DVD+R Yes
DVD+RW(Video mode) Yes
Audio CD Yes
DTS-CD Yes
CD-R/CD-RW Yes
MPEG2 Yes
MPEG4 AVC (H.264) Yes
SMPTE VC1 (VC-9) Yes
DivX Yes
DivX HD Yes
MKV Yes
AVCHD Yes
M4V Yes
FLV Yes
WMV Yes
3GP Yes
LPCM Yes
Dolby Digital Yes
Dolby Digital Plus Yes
Dolby TrueHD Yes
DTS Yes
DTS-HD High Resolution Audio Yes
DTS-HD Master Audio Yes
MPEG 1/2 L2 Yes
MP3 Yes
ID3 Tag Yes
WMA Yes
AAC Yes
FLAC Yes
Graphics/Subtitle Format 2bit/8bit Sub-picture/Text-based Subtitle
Video DAC 148MHZ/12bit
NTSC/PAL Hz 60Hz / 50Hz
NTSC/PAL Hz- Resolution upto 1080p24/60Hz
VBI(WSS/CGMS-A/Closed ) Yes
NTSC⇔PAL Conversion Yes
HDMI 1.4 Yes
ARC Yes
Deep Colour (HDMI1.3) Yes
xvYCC Yes
Last Scene memory Yes
Cinema zoom Yes
Video Enhancement Yes
DVD / CD Playback
1080p Upscaling Yes
Screen Saver Yes
Auto Power Off Yes
Parental Lock Yes
Initial logo Yes
Fast Forward BD, DVD(-VR), CD-DA, MP3/WMA Yes
Fast Back BD, DVD(-VR), CD-DA, MP3/WMA Yes
Forword Slow BD, DVD(-VR) Yes
Reverse Slow Yes
Pause BD, DVD(-VR), CD-DA, MP3/WMA Yes
Forward Step BD, DVD(-VR) Yes
Search Title/Track (BD, DVD(-VR), CD-DA, MP3/WMA) Yes
Search Chapter (BD, DVD(-VR)) Yes
Search Time DVD(-VR) Yes
Repeat Play Title/Track(BD, DVD(-VR), CD-DA, MP3/WMA) Yes
Repeat Play Chapter BD, DVD(-VR) Yes
Repeat Play A-B(BD, DVD(-VR)) Yes
Play Mode Random(CD-DA, MP3/WMA) Yes
Functions
3D Blu-ray Play back Yes
DVD Playback Yes
Home Theatre Yes
Smart TV Apps Yes
USB Playback Yes
Wifi Yes
Home Menu
Cre-editable No
Home Dashboard No
Home Menu Yes
MainSet
Wall mountable Yes
Top & Bottom cabinet (slot) No
Front & Rear cabinet (tray) Yes
Radio
Tuner Type PLL
Tuning Up/Down Yes
Preset Up/Down Yes
Band FM
Preset Memory 50 Station
Clear Yes
Speaker
Model Name(front) S92T1-S
Front - SPL 82dB
Front - System Closed type
Front - Tweeter Unit 20mm Silk Dome
Front - Woofer Unit 3" PP (2EA)
3D Effect Unit (Top) 2.5" Parabolic
Front - Impedance
Front - Magnetic Shielding Non-Shielded Type
SPL (Rear) 82dB
System (Rear) closed type
Tweeter Unit (Rear) 20mm Silk Dome
Woofer Unit (Rear) 3" PP (2EA)
Impedance (Rear)
Magnetic Shielding (Rear) Non-Shielded Type
SPL (Center) 82dB
System (Center) Closed Type
Tweeter Unit (Center) 20mm Silk Dome
Woofer Unit (Center) 2.5" PP (2EA)
Impedance (Center)
Subwoofer - System Bass Reflex
Subwoofer - Woofer Unit 7" Cone
Subwoofer - Impedance
Rear Wireless Kit-Name W2
