LG 300W DVD Home Theater System

  • DH3140S

Key Features

  • 5.1channel
  • 300W
  • Portable IN
  • Karaoke

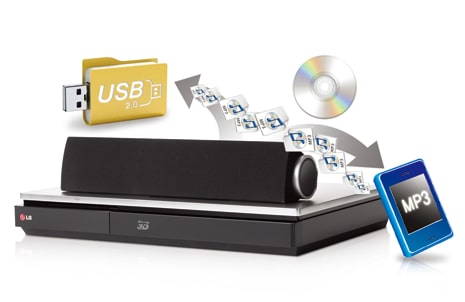

USB Direct Recording & Playback

USB Direct Recording & Playback

With LG Home Theater System, Micro and Mini Audio you can not only playback files on USB devices, but record CD tracks or FM radio programs on your USB, while listening at the same time.

Karaoke

Karaoke

Enjoy high quality entertainment. Enjoy LG Audio's karaoke function at anytime.

PORTABLE IN

Simply plug in and play your mobile devices (MP3 Player, mobile phone, etc.).

PORTABLE IN
Main Specs
Power Out Put / Channel 300 Watts, 5.1 Ch DVD Home Theater
Front L/R 45WX2
Center 45W
Sub-woofer 75W, 5.2" Bass Reflex
Surround (L/R) 45WX2
Playable Formats DVD / VCD / Super VCD / CD & DivX, MPEG 1/2 L2, WMA
Amplifier
CH 5.1
POWER OUTPUT 300W
Front L/R 45W x 2(3Ω)
Center 45W (3Ω)
Surround L/R 45W x 2(3Ω)
Sub-Woofer 75W(6Ω)
Convenience
Speaker Level Trim Yes
Speaker Distance (channel delay) Yes
Test Tone Yes
Mute Yes
Dimmer Yes
Sleep Yes
Volume on TV Yes
Dynamic Range Control Yes
Meta Data Showing GraceNote (CD/Streaming/File) No/No/No
Thumbnail Movie/Photo No/No
Bluetooth (Rx / Tx) No/No
Design (Mainset)
Front & Rear cabinet (tray) Yes
3D compatibility
3D / 2D No/No
Disc & AV Format
DVD(NTSC) Yes
DVD(PAL) Yes
DVD-R Yes
DVD-RW(Video/VR Mode) Yes/No
DVD+R Yes
DVD+RW(Video mode) Yes
Audio CD Yes
CD-R/CD-RW Yes
Video CD/Super VCD Yes/Yes
MPEG2 Yes
DivX Yes
LPCM Yes
Dolby Digital Yes
MPEG 1/2 L2 Yes
MP3/ID3 Tag Yes/Yes
Graphics/Subtitle Foramt 2bit/ 8bit Sub-picture
Video DAC 108MHZ/12bit
NTSC/PAL Hz 60Hz / 50Hz
VBI Yes
NTSC⇔PAL Conversion Yes
Last Scene memory Yes
In/Out
Composite Video Output Yes
Front Display FLD
USB 1
Audio Input Audio L/R Yes
Radio Antenna FM/AM Yes/No
Speaker Terminal Composing of channel 5.1
Speaker Terminal Terminal Type Push in (Spring)
LG Smart Funtions
Full Browser Flash 10 / HTML 5 support No/No/ No
Power
Power Consumption (in Operation) TBD
SMPS Wide
Power Off Consumption (in Standby) 0.5W↓
Playback Capability
Fast Forward / Reverse Yes/Yes
Pause Yes
Random Play Mode Yes
Repeat Play - A-B Yes
Repeat Play - Chapter Yes
Repeat Play - Title/Track Yes
Resume Stop Yes
Search - Chapter Yes
Search - Time Yes
Search - Title/Track Yes
Slow Forword / Reverse Yes/Yes
Step Forward / Reverse Yes/No
Physical
Size (W x H x D) mm Main 365 X 65 X 270
Front Speaker 113 X 113 X84
Center Speaker 114 X 113 X84
Rear Speaker 115 X 113 X84
Subwoofer 156x 325 x 260
Radio
Tuner Type PLL
Tuning Up/Down Yes
Preset Up/Down Yes
Band FM / FM(RDS) / AM Yes/ No / No
Preset Memory 50 Station
Speaker
Front/Rear/Center Model Name S34S1-S
Front/Rear/Center SPL 82dB
Front/Rear/Center System Colsed Type
Front/Rear/Center Woofer Unit 2.5" Paper Cone (1EA)
Front/Rear/Center Impedance
Front/Rear/Center Magnetic Shielding Non-Shield
Subwoofer Model Name S34S1-W
Subwoofer SPL 84dB
Subwoofer System Bass Reflex
Subwoofer Woofer Unit 5.25 " Cone
Subwoofer Impedance
Subwoofer Magnetic Shielding Non-Shield
Feature List & Accessory Kit
Remote Control Unit Type LA1
Remote Control Unit Unified Yes
Remote Control Unit Battery(Size) AAA*1
Batteries (Remote Controller) Yes
FM / AM Antenna Yes/No
Warranty Card Yes
RCA Code(Video), Yellow, 1P Yes
Carton Box Type Flexso
