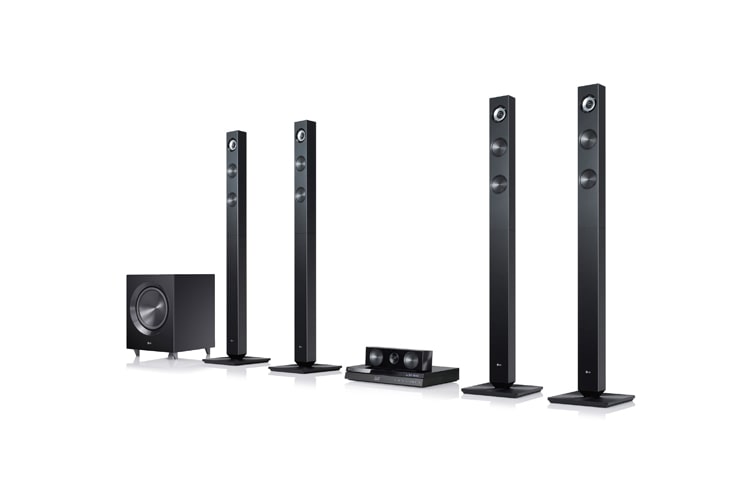

DH7520TW

  • DH7520TW

  • Discontinued Product

Key Features

  • Rear Wireless Speaker
  • Bluetooth
  • Full HD Up-Scaling
  • 1100W
Amplifier
CH 5.1CH
Power Output (4Ω) Total 1100W
Power Output - Front 180Wx2
Power Output Center 180W
Power Output - Subwoofer 200W(Passive)
Power Output Wireless Rear L/R 180W x 2
Accessories
Batteries Yes
HDMI Cable Yes
Instruction Manual Printing Book
AM Loop Antenna Yes
Carton Box Type Tip on
FM Antenna Yes
Quick Setup Guide Yes
RCA Code(Video), Yellow, 1P Yes
Remote Control Unit-Type CB1
Remote Control Unit-Battery(Size) AAA x 1
Speaker Cable Yes(6 EA)
Warranty Card Yes
In & Out
Front-Display FLD
Front-FL Dimmer Yes
Front-USB 1
Front-Mic 2
Front-Audio In Yes
R/Panel-Video Out-Composit Yes
R/Panel-Video Out-Component Yes
R/Panel-Audio Input-Audio L/R Yes
R/Panel-Audio Input-Optical 1
R/Panel-HDMI-Out 1
R/Panel-Radio Antenna-FM/AM Yes/Yes
R/Panel-Speaker Terminal-Composing of channel 5.1Ch
R/Panel-Speaker Terminal-Terminal Type Push in (Spring)
R/Panel-Wireless speaker Tx dongle Yes
Convenience
A/V Sync Delay(Audio Delay) Yes
Bluetooth (Rx / Tx) Yes/Yes
Dimmer Yes
Mute Yes
Simplink Yes
Sleep Yes
Speaker Distance(channel delay) Yes
Speaker Level Trim Yes
Test Tone Yes
Optical (direct key) Yes
Karaoke-MIc Volume Yes
Karaoke-Echo Volume Yes
Dynamic Range Control-On/Off Yes
Karaoke-Fanfare Yes
Karaoke-Scoring Yes
Karaoke-Howlling Canceller Yes
Karaoke-CD Voice Remover Yes
USB Direct Recording Yes
Volume on TV Yes
Wireless Speaker-1:1 Rx + Wireless Sub-woofer (3ch wireless) Yes
Disc & AV Format
DVD(NTSC) Yes
DVD(PAL) Yes
DVD-R Yes
DVD-RW(Video/VR Mode) Yes/No
DVD+R/+R(Double Layer) Yes/Yes
DVD+RW(Video mode) Yes
Video CD/Super VCD Yes/Yes
Audio CD Yes
CD-R/CD-RW Yes
MPEG2 Yes
DivX Yes
LPCM Yes
Dolby Digital Yes
DTS Yes
MPEG 1/2 L2 Yes
MP3 Yes
ID3 Tag Yes
WMA Yes
Graphics/Subtitle Format 2bit/8bit Sub-picture/Text-based Subtitle
Video DAC 148MHZ/12bit
NTSC/PAL Hz 60Hz / 50Hz
NTSC/PAL Hz- Resolution upto 1080p 60Hz
VBI(WSS/CGMS-A/Closed ) Yes
NTSC⇔PAL Conversion Yes
Last Scene memory Yes
DVD / CD Playback
1080p Upscaling Yes
Screen Saver Yes
Parental Lock Yes
Fast Forward BD, DVD(-VR), CD-DA, MP3/WMA Yes
Fast Back BD, DVD(-VR), CD-DA, MP3/WMA Yes
Forword Slow BD, DVD(-VR) Yes
Reverse Slow Yes
Pause BD, DVD(-VR), CD-DA, MP3/WMA Yes
Forward Step BD, DVD(-VR) Yes
Search Title/Track (BD, DVD(-VR), CD-DA, MP3/WMA) Yes
Search Chapter (BD, DVD(-VR)) Yes
Search Time DVD(-VR) Yes
Repeat Play Title/Track(BD, DVD(-VR), CD-DA, MP3/WMA) Yes
Repeat Play Chapter BD, DVD(-VR) Yes
Resume Stop DVD(-VR) Yes
Play Mode Random(CD-DA, MP3/WMA) Yes
Marker Play (CD-DA, MP3/WMA) Yes
Functions
Home Theatre Yes
Home Menu
Home Menu Yes
MainSet
Top & Bottom cabinet (slot) Yes
Power
Power Consumption TBD
Power Off Consumption TBD
SMPS Narrow 220V (SAU:WIDE)
Radio
Tuner Type PLL
Tuning Up/Down Yes
Preset Up/Down Yes
Preset Memory 50 Station
Clear Yes
Band(FM / FM(RDS) / AM) Yes/No/Yes
Speaker
Model Name(front) S72T1-S
Front - SPL 84dB
Front - System Bass Reflex
Front - Tweeter Unit 20mm ND dome
Front - Woofer Unit 3" PARABOLA (2EA)
Front - Impedance
Front - Magnetic Shielding Non-Shielded Type
SPL (Rear) 84dB
System (Rear) Bass Reflex
Tweeter Unit (Rear) 20mm ND dome
Woofer Unit (Rear) 3" Parabola (2ea)
Impedance (Rear)
Magnetic Shielding (Rear) Non-Shielded Type
SPL (Center) 84dB
System (Center) Bass Reflex
Tweeter Unit (Center) 20mm ferrite dome
Woofer Unit (Center) 3" Parabola (2ea)
Impedance (Center)
Model Name(Rear) S72T1-S
Model Name(Center) S72B1-C
Subwoofer - System Bass Reflex
Model Name(Subwoofer) S72T1-W
Subwoofer - Woofer Unit 7" PP cone
Magnetic Shielding(Center) Shielded Type
Magnetic Shielding(Subwoofer) Non-shield
Subwoofer - Impedance
SPL (Subwoofer) 83dB
Rear Wireless Kit-Name W2
