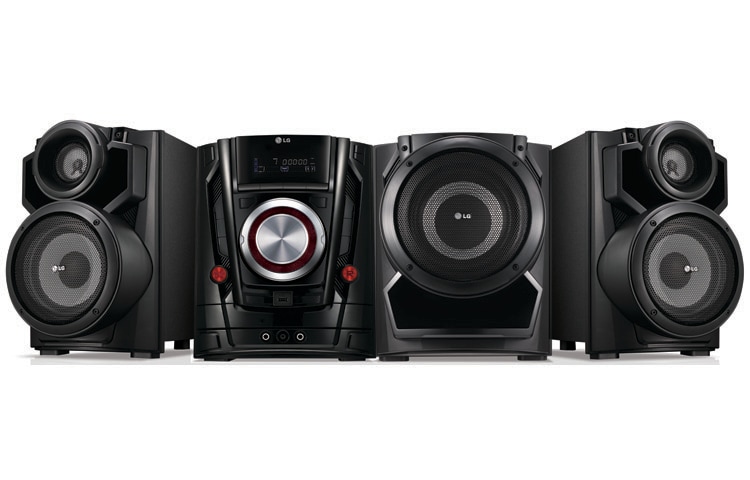

DM5620

  • DM5620

  • Discontinued Product

Key Features

  • Auto DJ
  • 350W (2.1ch)
  • Powerful Sub-Woofer
  • Dual layer Display
Sound
Auto EQ Yes
Arabic Yes
Auto DJ Yes
Bass Blast Yes
Classic Yes
EQ By-Pass Yes
Jazz Yes
MP3 Optimizer Yes
Natural EQ Yes
Pop Yes
Rock Yes
User EQ Yes
Persian Yes
VSM (Virtual) Yes
Amplifier
Aux In/Out Yes/No
Function CD/DVD Yes
Power Output (4Ω) Total 380W
Power Output - Front 110Wx2
Power Output - Subwoofer 160W
Tape Yes
Tuner Yes
USB(Plus) Yes
Audio Control
Dolby Digital Yes
2Ch Stereo(By-Pass) Yes
Mute Yes
Sound Level/Delay Time Setting Yes/No
Test Tone Yes
CST
Mechanism Type Single Mecha
Auto Reverse/Stop Auto Stop
Play Stop Yes
Play - Forward Yes
Search - FF Yes
Search -Rewind Yes
Recording/Pause Yes/Yes
Display
Display Type FLD (MDT355)
Display Demo Yes
Display Spectrum Band L/Meter
Dimmer Yes
DVD/CD/USB Player/Bluetooth
Loading Type Tray
Format(TV System) NTSC/PAL/AUTO AUTO
Progressive Scan Yes
CD Yes
DVD +/-RW Yes
VCD/SVCD Yes
CD-R/CD-RW Yes
MP3CD Yes
WMA CD Yes
JPEG Viewer Yes
Divx Yes
CDG Yes
L/R/Stereo Yes
DVD Fast Scan Yes
VCD Fast Scan Yes
Slow Yes
VCD Version 2.0
Repeat 1/Disc/All Yes/Yes/No
Program Play (Memory) Yes(300)
Program Clear Yes
Random CD Yes
Random MP3 Yes
USB Recording Yes
Disc Select(1/2/3) Disk Skip Key
MP3P battery charging by USB Yes
Music photo album Yes
MP3/WMA ID3 Tag Display Yes
Interface
Audio Out - Headphone jack (Φ3.5/Φ6.3) Yes (Φ3.5,Front)
Video Signal OUT Composite Yes(Rear)
Video Signal OUT Component Yes(Rear)
Door Locky Key (disc) Yes
Karaoke Function - Mic Jack 2EA (Φ6.3)
Speaker Out - Front L/R 1/1
Karaoke Function - Echo Yes
Karaoke Function - Mic Volume 1
Timer Yes
Volume on Tv Yes
Spaker out Sub Woofer 1(Passive)
Audio In - USB Yes(Front)
Audio In - Aux Yes(Rear)
Karaoke
CD Voice Remover Yes
ECHO Vol. Yes
Key Features
Mini HiFi Yes
Power Output
Power Requirement Narrow (50/60Hz) 110 or 220/230V 50/60Hz
Power Requirement Wide 110/220V
Power Consumption at stand by 1W↓
Remote Commander & Accessory
Battery AAA x 1
RCA Cable(Video), Yellow, 1P Yes
FM Antenna FM 75Ω ANT
AM Loop Antenna Yes
Instruction Manual Yes
Number of Key 56
Carton Box Type (Tip on / Offset / Flexo) 1 side Tip on
Model name LA1
Speaker
Speaker System Model Name DMS5620
Speaker Woofer Unit 6.5 Inch
Speaker System 2 Way
Speaker Tweeter Unit 2 Inch
Speaker Impedance
Sub Woofer Impedance
Speaker Magnetic Shielding Perfect
Model Name(front) DMS5620V
Subwoofer - System 1 Way
Model Name(Subwoofer) DMS5620W
Subwoofer - Woofer Unit 7 Inch
Magnetic Shielding(Subwoofer) Perfect
Tuner
FM (50kHz / 100kHz) 87.5 ~ 108.0 MHz
Band FM
MW / 10 kHz 520~1710kHz
/ 9 kHz 522~1620 kHz
Station Preset 50 (Random)
Am(MW) Yes
UP Yes
Preset Up Yes
Clear Yes
DOWN Yes
Clock/Timer/Sleep/Set Yes
