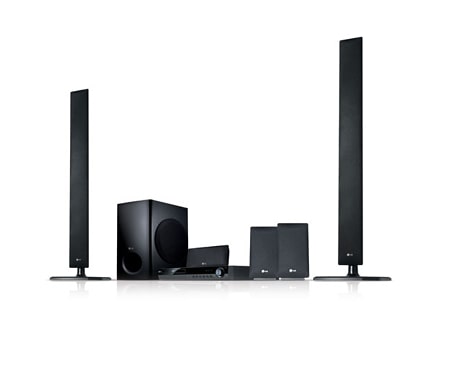

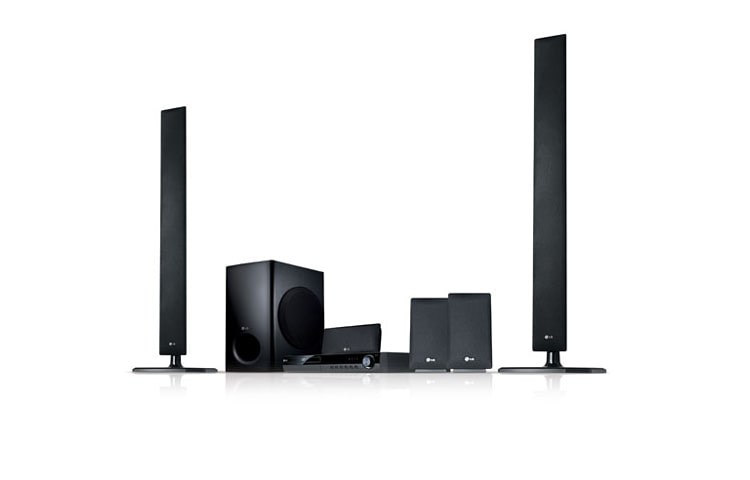

850Watts DVD Home Theatre System

  • HT865PH

Key Features

  • 1080p Full HD up-scaling via HDMI
  • Bass Blast
  • USB Direct Rec- Audio CD/FM Radio/Aux In
  • Portable in

1080p Full HD up-scaling via HDMI

Ordinary broadcast or DVD discs provides 576x480p pixels, The newest HDTVs can display 1920x1080p. LGs Full HD UP-Scaling Function solves this problem. This function converts SD signal into 1080p signal that provides high resolution images.

Bass Blast

LG Bass Blast technology provides a significant power increase in sound to fill your home with booming sound while the built-in Digital Sound Processor transforms 2.1channel into 5.1channel surround sound.

USB Direct Rec- Audio CD/FM Radio/Aux In

USB Direct Recording is a powerful and easy to use function that allows you to make MP3 music files directly from your AUDIO CDs or the radio to a USB device.

Portable in

Portable in enables you to connect Various audio sources such as iPod, mobile phones, games etc.

Virtual 10.1 Ch Sound

VSM creates a virtual multi speaker surround effect whilst delivering a more natural and voluminous sound"VSM Plus" also enhances the sense of spatial depth.

Carton Size (W x H x D) mm 1087 x 290 x 517
Gross Weight (Kg) 19.5
Net Weight (Kg) - Main 2.8
Net Weight (Kg) - Front Speaker 2.5
Net Weight Center Speaker (Kg) 0.45
Net Weight Rear Speaker (Kg) 0.5
Net Weight (Kg) - Subwoofer 4.3
Size (W x H x D) mm - Center Speaker 200 x 103 x 86
Size (W x H x D) mm - Main 360 x 62.5 x 312.3
Size (W x H x D) mm - Front Speaker 270 x 1,052 x 225
Size (W x H x D) mm - Rear Speaker 100 x 186 x 100
Container Q'ty (40ft) 365
Size (W x H x D) mm - Subwoofer 190 x 385 x 275
Container Q'ty (20ft) 175
Function Aux Yes
Function CD/DVD Yes
Function FM/AM/RDS FM
Function Portable IN Yes
Power Output (4Ω) Total 850W
Power Output - Front 136Wx2
Power Output Center 136W
Power Output Surround 136Wx2
Power Output - Subwoofer 170W
Batteries Yes
Instruction Manual Yes
Carton Box Type Tip on
FM Antenna (75Ω)
Microphone Yes
RCA Code(Video), Yellow, 1P Yes
Remote Control Unit Yes
Speaker Cable Yes(3 EA - W Fix Type)
Song Disc Yes (Semi Disc)
Warranty Card Yes
Dolby Digital Yes
Dolby PrologicⅡ Yes
2Ch Stereo(By-Pass) Yes
Natural Plus Yes
Natural EQ Yes
Auto EQ Yes
Bass Blast Yes
PL2 Music Yes
PL2 Movie Yes
Loudness Yes
Pop Yes
Classic Yes
Jazz Yes
Rock Yes
Test Tone Yes
Sound Level (Trim) Yes
Mute Yes
Display FL
Dimmer Yes
Karaoke Scoring Yes
Karaoke Fanfare Yes
Karaoke Howlling canceller Yes
Karaoke Microphone Echo Control Yes
Karaoke CD Voice Remover Yes
Sleep Yes
Screen Saver Yes
Type 1DVD Tray
Progressive Scan(PAL/NTSC) Yes
Audio-CD Yes
MP3 Yes
MP3 ID3 Tag Yes
DVD-RW(Video Mode) Yes
DVD+R Double Layer Yes
Progressive JPEG Yes
DivX Yes
Convenience (Repeat 1/ALL) Yes
Resume Yes
Last Condition Memory Yes
Program Play(Track) Yes
Random Play Yes
Skip - Fwd/Rev Yes
Scan - Fwd/Rev Yes
Slow - Fwd/Rev Yes
Volume on TV Yes
USB Plus Yes
USB Direct Recording Yes
x1.5 Audio/Video Playback Yes
Lock(Parental Control) Settings Yes
Audio Line IN Analog Aux
Audio Line IN Digital (Optical/Coaxial) Yes/No
Output Terminal(Front/Center/Rear/Subwoofer) Yes
Terminal Type Push-in
Video Signal OUT Composite 1
Video Signal OUT Component 1
Video Signal OUT HDMI Out Yes
Video Signal OUT 1080i, 720P (up-conversion) Yes
Video Signal OUT 1080p (up-conversion) Yes
CE Control (HDMI Simplink) Yes
TV Sound ez Set-up Yes
HD AV Sync Yes
Portable In Jack(3.5φ) Yes
Mic Jack (6.3φ 2mic Gold) Yes
Echo Volume Yes
External FM/MW Antenna Yes/No
Mic Volume Yes
DVD Loading Type Tray
Power On/Off Yes
Open/Close Yes
Play/Pause Yes
Stop Yes
Function Yes
Skip/Scan(Fwd)/Tuning(+) Yes
Skip/Scan(Rev)/Tuning(-) Yes
Power Consumption 110W
Power Off Consumption 0.09W ↓
SMPS Wide Special
Type PLL
Band FM
Tuning Range (FM1/50 kHz, 100 kHz) 87.50~108.00 MHz(50kHz)
Station Preset 50 (Random)
External FM/MW Antenna Yes(75ohm) / Yes
