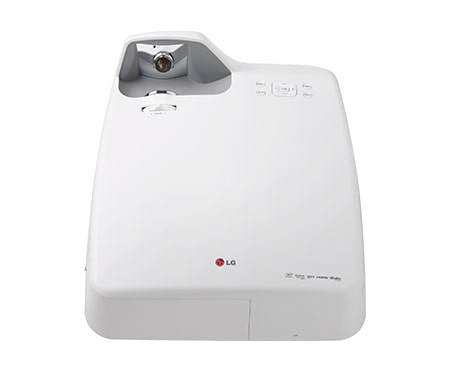

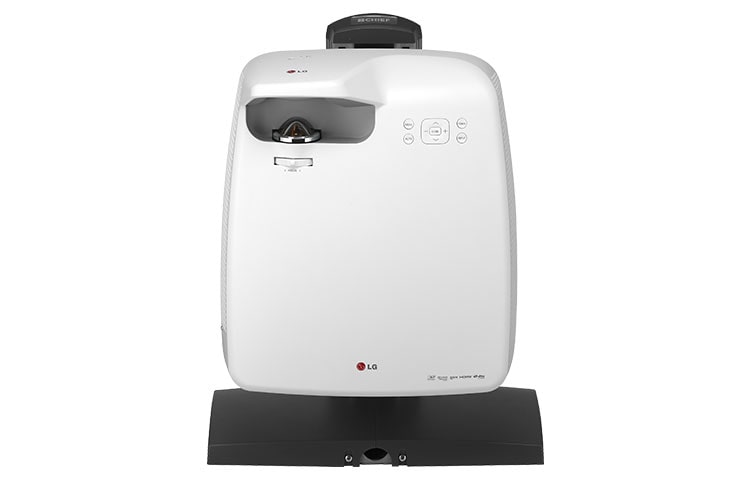

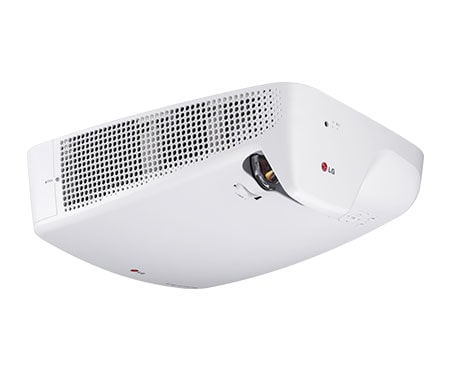

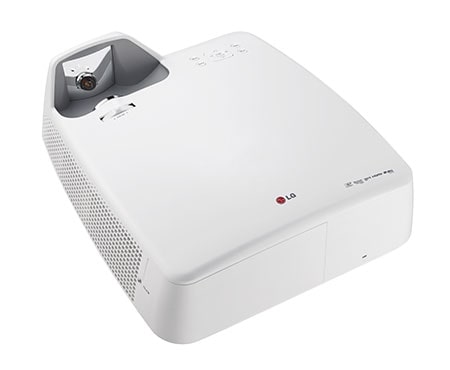

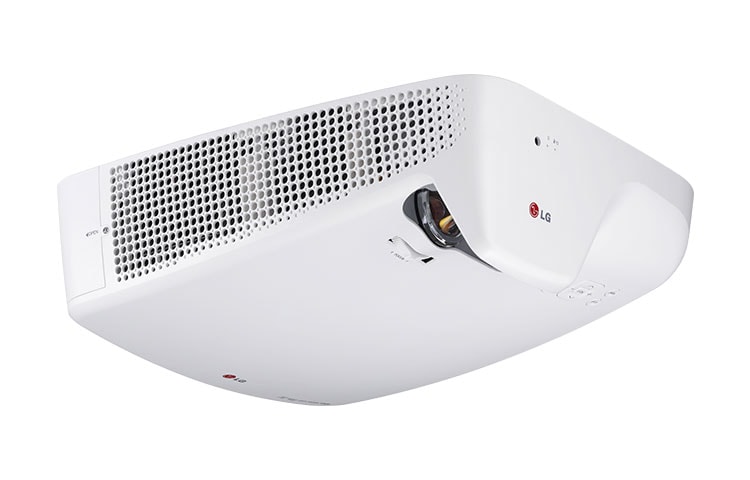

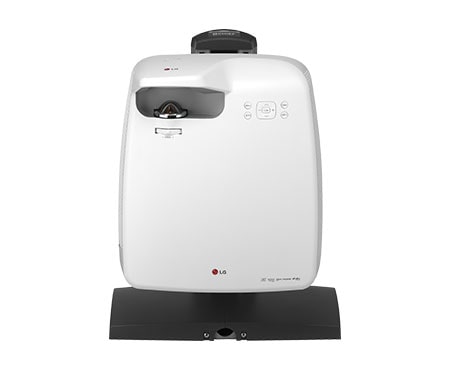

WORLD FIRST HYBRID LIGHT SOURCE UST PROJECTOR

  • SA560

  • Discontinued Product

Key Features

  • DLP
  • WXGA (1280 x 800)
  • File(Office) Viewer
  • Wireless DLNA
  • Awind, WiDi
Projection System
Technology DLP
Brightness(ANSI-Lumens) 2500
Colour wheel Phospher wheel
Contrast Ratio (FOFO) 35000:1
Native Resolution WXGA(1280x800)
Noise - Normal 32dB
Projection Offset 128%
Uniformorty(JBMMA 9point) 80%
Projection Lens
Focus Manual
Zoom Fixed
Projection Image
Screen Size 70"~110"
Standard 80"@52cm
Throw Ratio(Wide/Tele) 0.3
Lamp
Type Laser Light source (LD + P/W)
Life Economic(hrs) 20,000
General Specification
Aspect Ratio Control FULL, 16:9, Set by program, 4:3 , zoom, cinema zoom
Dimension (mm) 468x415x147.5(Without Leg)
Operation Temp 0~35(40) C
Power Consumption 260W
Power Supply AC 100 ~ 240V(Free Voltage), 50Hz/60Hz
Sound 7W + 7W
Stand-by Power 0.5W under
Weight (kg) 8.5 kg
Input Signal
Digital(HDMI) up to 1080p, up to WSXGA+(1680x1050@60Hz)
RGB up to WSXGA+(1680x1050@60Hz)
Composite Video NTSC-M / NTSC 4.43 / PAL / PAL-M / PAL-N / SECAM
Component Video 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Input/Output Terminals
Audio Out 1
Component (YPbPr) 1
Composite(AV) in 1
HDMI 1
RJ45 1
RGB in 2
RS232C 1
RGB Out 1
RGB(PC) Audio in 1
USB(SVC,Interactive) 2(type A: Dvix, type B: SVC only)
Mic in 1
Main Features
Auto Input Search Yes
Auto Sleep (Off) Yes
Auto Source Detection Yes
Automatic Standby Yes
Black Level Control Yes
Black board mode Yes
Blank Yes (Blue, Green, Logo)
Brilliant Color™ (Overlap Duty) Yes
Closed Caption AV, Korean settings
Color Temperature Yes
Digital Keystone Correction Yes (Vertical)
Expert controlvADJ Yes
Gamma Correction Yes
Image Flip Horizontal/Vertical
Noise Reduction Yes
Picture Still Yes
Picture Quality function Yes
Presentation Timer Yes
Power On Sound Yes
Quick(Instant) Power on/off Yes
Plug & Play(RGB, DVI/HDMI Input) Yes
Sleep Timer Yes
Status Display LED Yes
Added Features
File(Office) Viewer Yes
Mirroring (Awind, WiDi, WFD) Awind, WiDi
USB Host (DivX, MP3, Photo) Yes (HD DivX)
Wireless DLNA Yes
Design
Kensington Lock Yes
Leg-Stand Yes
Local Key Yes
Accessory
CD Manual Yes
Ceiling mount to meet commodity
Ez-net Program CD Yes
Manual CD
Remote control Yes
Quick Setup Guide Yes
Cable
D-sub 15 1
Power code 1
