LG ULTRA HD TV 84 inch LA9800

  • 84LA9800

  • Discontinued Product

Key Features

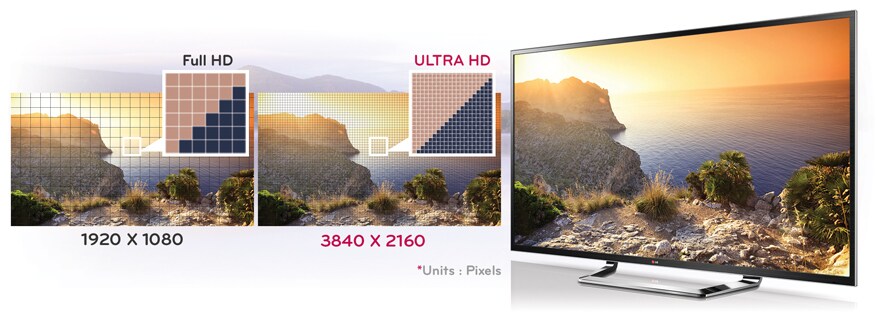

  • ULTRA HD 8.3 Megapixels
  • Tru-ULTRA HD Engine
  • CINEMA 3D

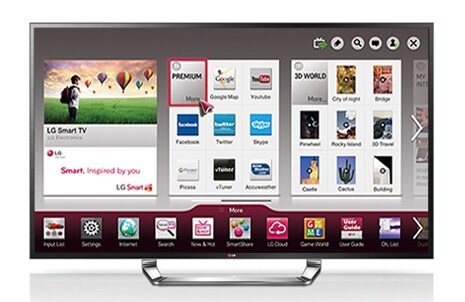

  • Intuitive Smart TV
Broadcasting System
Analog TV Reception Yes (PALⅠ, PAL/SECAM BG/DK, NTSC M)
Terrestrial DVB-T
Video
Triple XD Engine Yes
Resolution Upscaler (Basic/Plus) Yes(Plus)
Picture Mode Yes 7 modes (Vivid,Standard,Eco, Cinema,Game, isf Expert1,isf Expert2)
Aspect Ratio Yes 8 modes ( 16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
Just Scan (1:1 Pixel Matching) 0% OverScan Yes (HDMI/Component/RF) 1080i / 1080p / 720p
(3D MPEG) Noise Reduction Yes
AV Mode (Picture & Sound) Yes (Off / Cinema / Game)
Contrast Optimizer Yes
Dynamic Colour Enhancer Yes
HEVC Yes
Picture Wizard II (2D/3D) Yes
Real Cinema 24p (3:2 pull down) Yes
Audio
Mono/Stereo/Dual (MTS/SAP) Yes
Dolby Digital Decoder Yes
DTS Decoder Yes
Speaker System 2.2 Speaker (3 way 10 speakers)
Sound System Virtual Surround Plus
Clear Voice II Yes
Sound Mode Yes 6 modes (Standard, Music, Cinema, Sport, Game, User setting)
Smart Sound Mode Yes
Sound Optimizer 3 modes (Normal, Wall-Mount Type, Stand Type)
Optical Sound Sync Yes
SubWoofer Yes
Wireless Sound Sync Yes
3D Specification
3D Type (SG/FPR/AR/GPR/Non-Glass) FPR
Supporting Format S/S, T/B, C/B, F/S
3D Picture Mode Yes
3D Depth Control Yes
3D Viewpoint Control -10~+10 (default : 0)
3D Image Correction Yes
Format Auto Detection Yes
3D Sound Zooming Yes
3D to 2D Convert Source Yes
Dual Play Yes
2D to 3D Convert Source Yes
2D to 3D Mode Yes 5 modes (Standard, Manual, Cinema, Sport, Extreme)
Depth Control '0~+20 (default : 10)
Viewpoint Control '-10~+10 (default : 0)
3D USB format S/S, T/B, C/B
Smart TV
3D World (3D Contents Streaming) Yes
Full Web Browser Yes
Social Center Yes
Game World Yes
Skype Ready
App Store Yes
Premium CP Yes
Search & Recommendation Yes (Search)
SmartHome Yes
Smart Share
WiDi Yes
Network File Browser Yes
Media Link Yes
Wi-Fi B/in / Wi-Fi Ready B/In
MHL Yes
NFC (Mobile → TV, TV → Mobile) Yes
Windows 7/8 Certified Yes
Window Media Player (Play to) Yes
WiFi Direct Yes
Simplink (HDMI CEC) Yes
2nd Display Yes
DLNA Yes
Remote App Yes
USB
Divx (SD/HD/Plus HD) DivX HD
Picture JPEG, JPS, MPO
External Device App Download Yes
Jack Packs (Input & Output) TV - Side
HDMI1.4 (Simplink : HDMI CEC) 3(V)
Jack Packs (Input & Output) TV - Rear
Component In (Y,Pb,Pr + Audio) 1 (V, Gender)
RF In Yes
Headphone out 1 (V)
Digital Audio Out (Optical) 1 (Optical)
Composite In (CVBS + Audio) 1 (V, Gender)
LAN 1 (V)
Cabinet Description
VESA Compatible Yes
VESA Size 600 x 400
Local Key Type 8 Key
Logo Lighting Yes
POWER
Power Consumption (Factory) On Power Mode TBD
Power Supply (Voltage, Hz) 100~240Vac 50-60Hz
Standby Mode 1W↓
Dimension
WxHxD (in carton) TBD
Weight
in Carton TBD
3D Glasses
# of Dual Play Glasses (Dual Channel/Model Number) 1Box(2EA) F400DP
# of 3D Glasses (Model Number) 2Box(4EA,F310)
3D Glasses Box
Package Dimension (W x D x H) (mm) 160 * 180 * 35
Package Weight (g) 111
Channel
Auto Tuning / Programming Yes
Program (Channel) Edit (Add / Delete) Yes
Favorite Channel Programming Yes
Program (Channel) Labeling (Name Edit) Yes
EZ OSD (Menu System)
Language EN/FR/TH/MA/IN/AR/RU/Kurd/Far/VN/SP/PO
Quick Menu Yes
Input Device/ UX

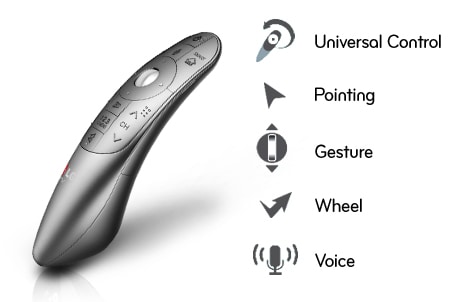

Magic Remote B/in / Ready B/in (MR13)
Modes ( 4 modes) 4modes ( Pointing / Gesture/ Wheel/ Voice)
Voice recognition Yes
Feature Search / Web browsing / SNS
Smart Phone Remote Controller (Remote App) Yes
TV Camera B/in / Ready Ready (VC500)
LCD Module
BLU Type Edge LED
Dynamic MCI (Hz) 1000
Micro Pixel Control (Local Dimming) Yes
Resolution 3840 x 2160 (Ultra HD)
Screen Size (cm) 84" : 213
Time / Clock
Auto/Manual Clock Yes
On/Off Timer Yes
Auto Off / Auto Sleep Yes
Sleep Timer Yes
Teletext
Pages Flof
TOP(Table Of Page) / Flof / List 2,000 page
