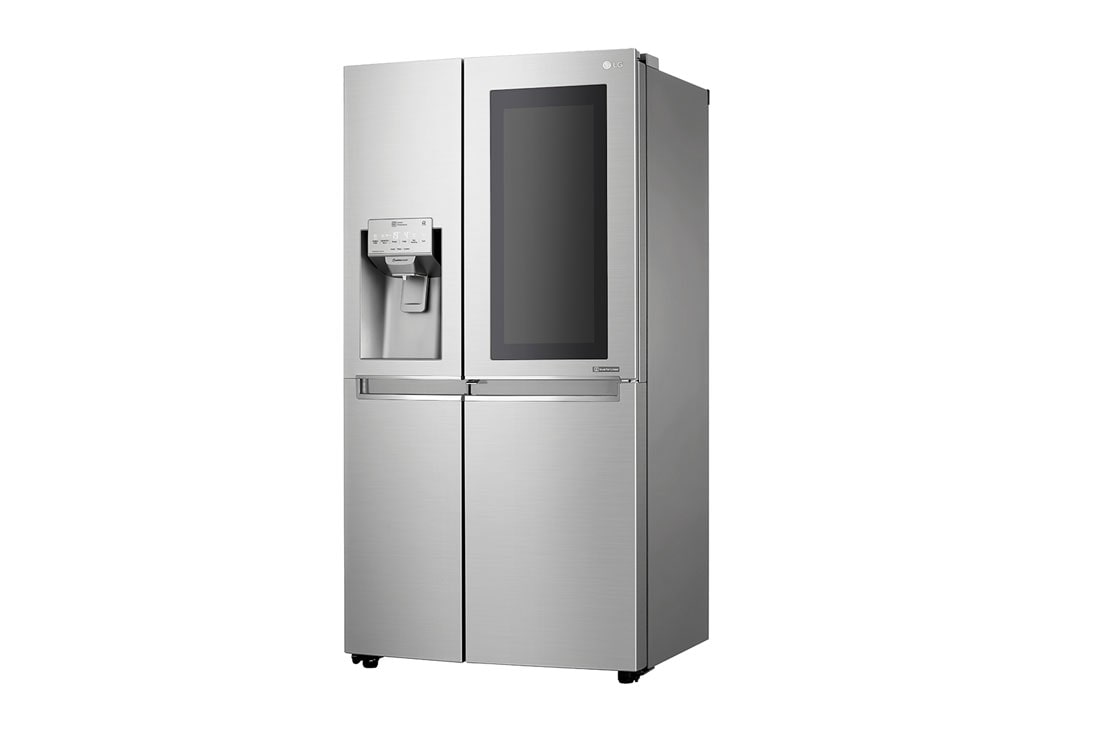

LG InstaView Door in Door

  • GC-X247CSAV

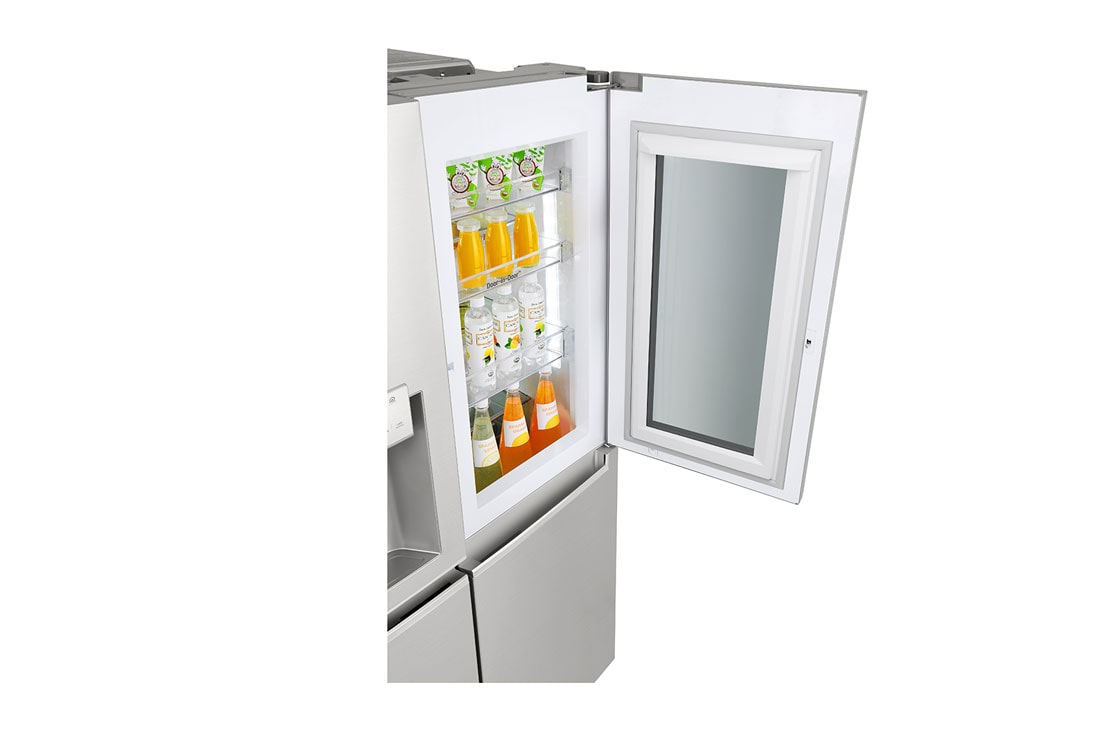

InstaView™ Door-in-Door

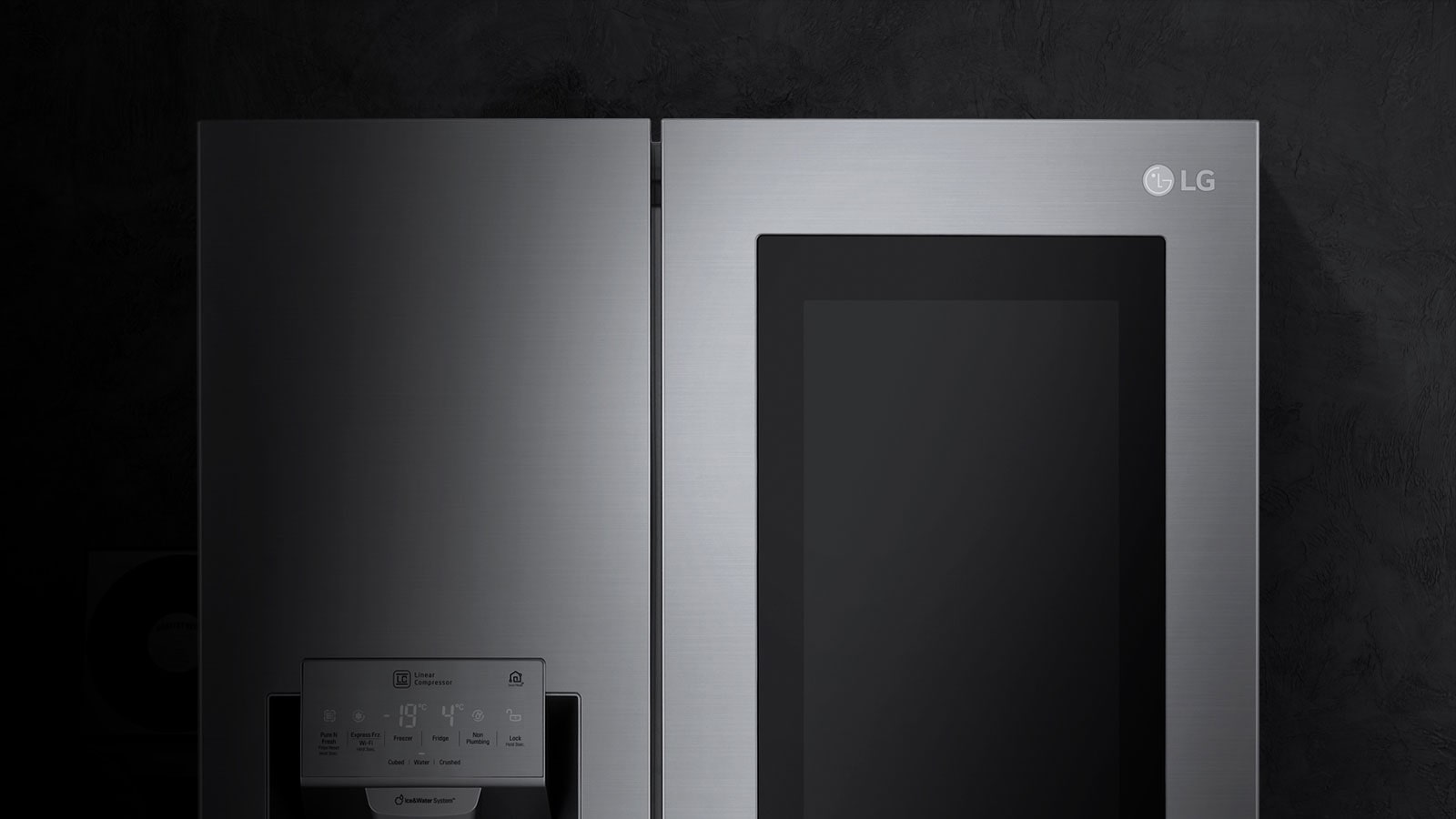

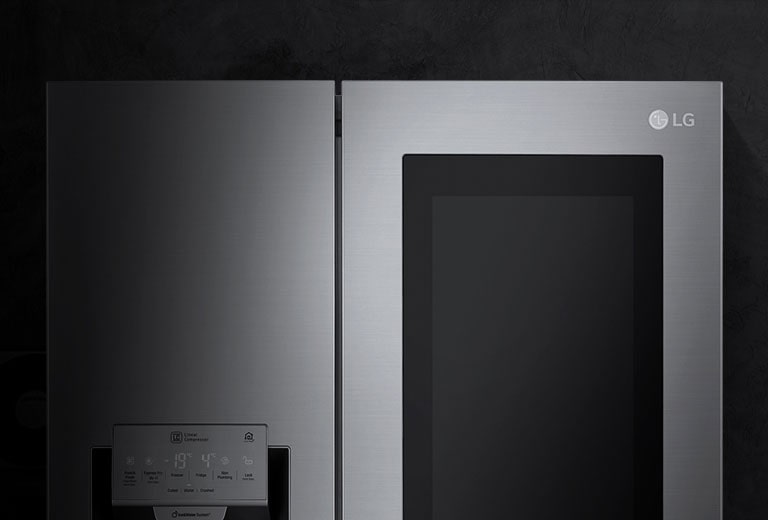

InstaView™ Door-in-Door has a sleek mirrored glass panel that illuminates with two quick knocks, allowing you to see inside the easy access compartment without ever opening the door, reducing cold air loss to help keep food fresher longer.

Easy Access to your Favorites

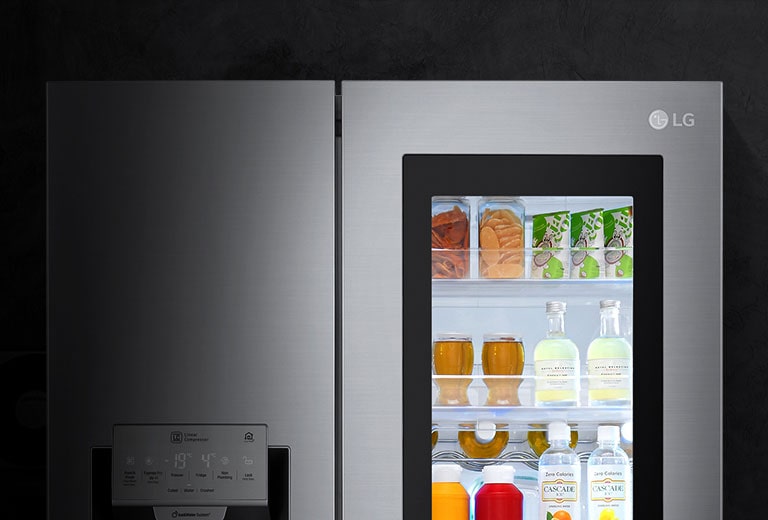

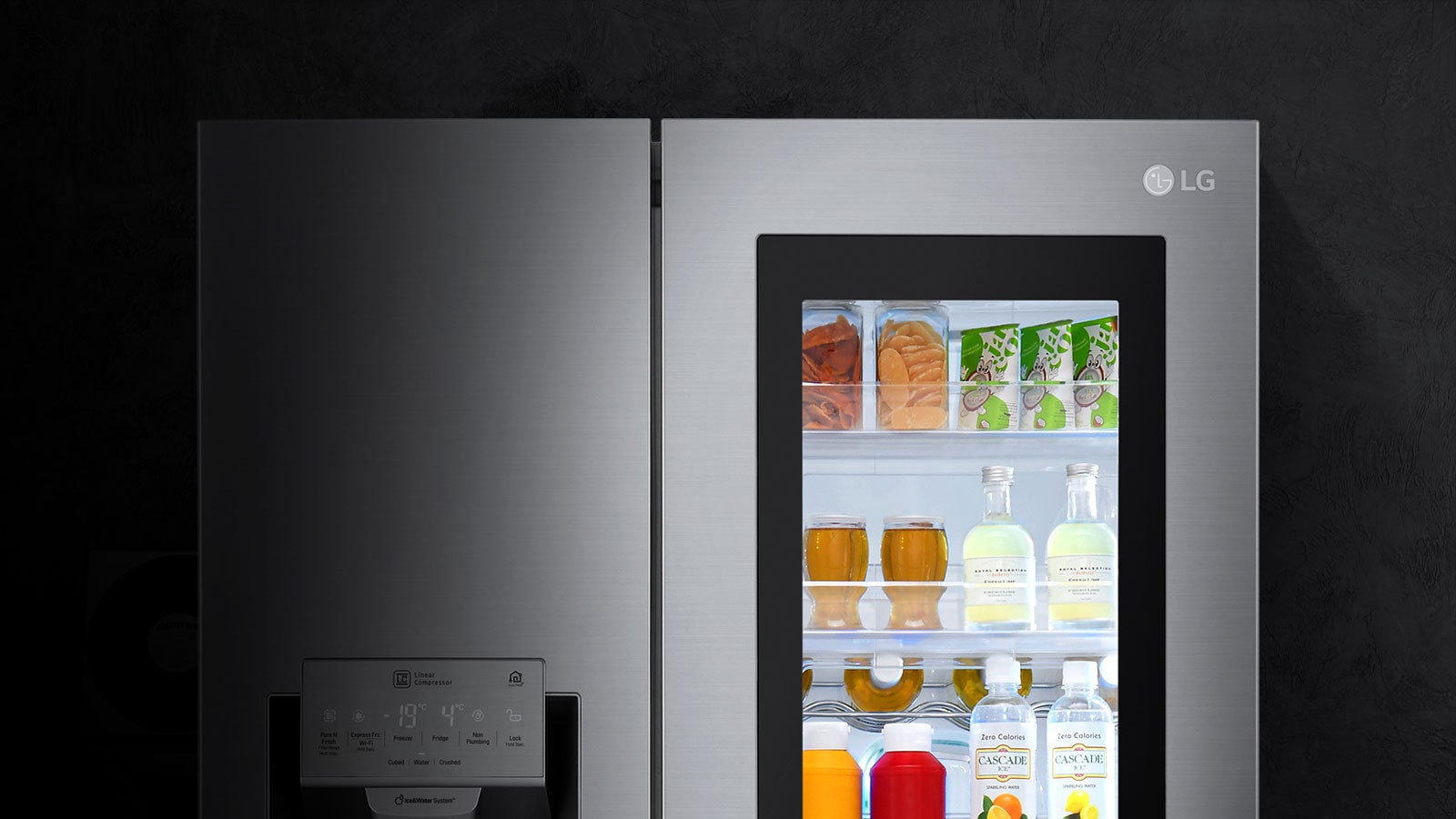

The innovative transparent window on the InstaView™ Door-in-Door enables you to check on the items stored inside without opening the door by simple two knocks.
Easy to find and access to your favorites!

Less Cold Air Loss up to 41%

Because LG InstaView™ Door-in-Door allows you to see inside without opening the door, you can reduce cold air loss. See inside without losing your cool!

*Based on Intertek testing of SX5534WB, GR-S632GLRC, and LFX3194ST/02, according to LG internal test method, measuring percentage reduction in exchange rate of air when opening Door-in-Door compared to fridge door for 10 seconds. Results may vary by models and duration of door opening

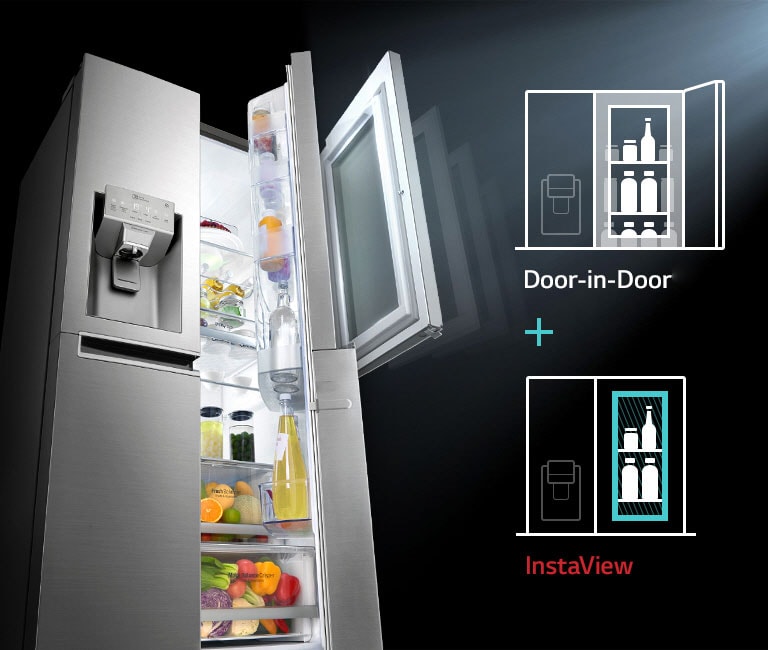

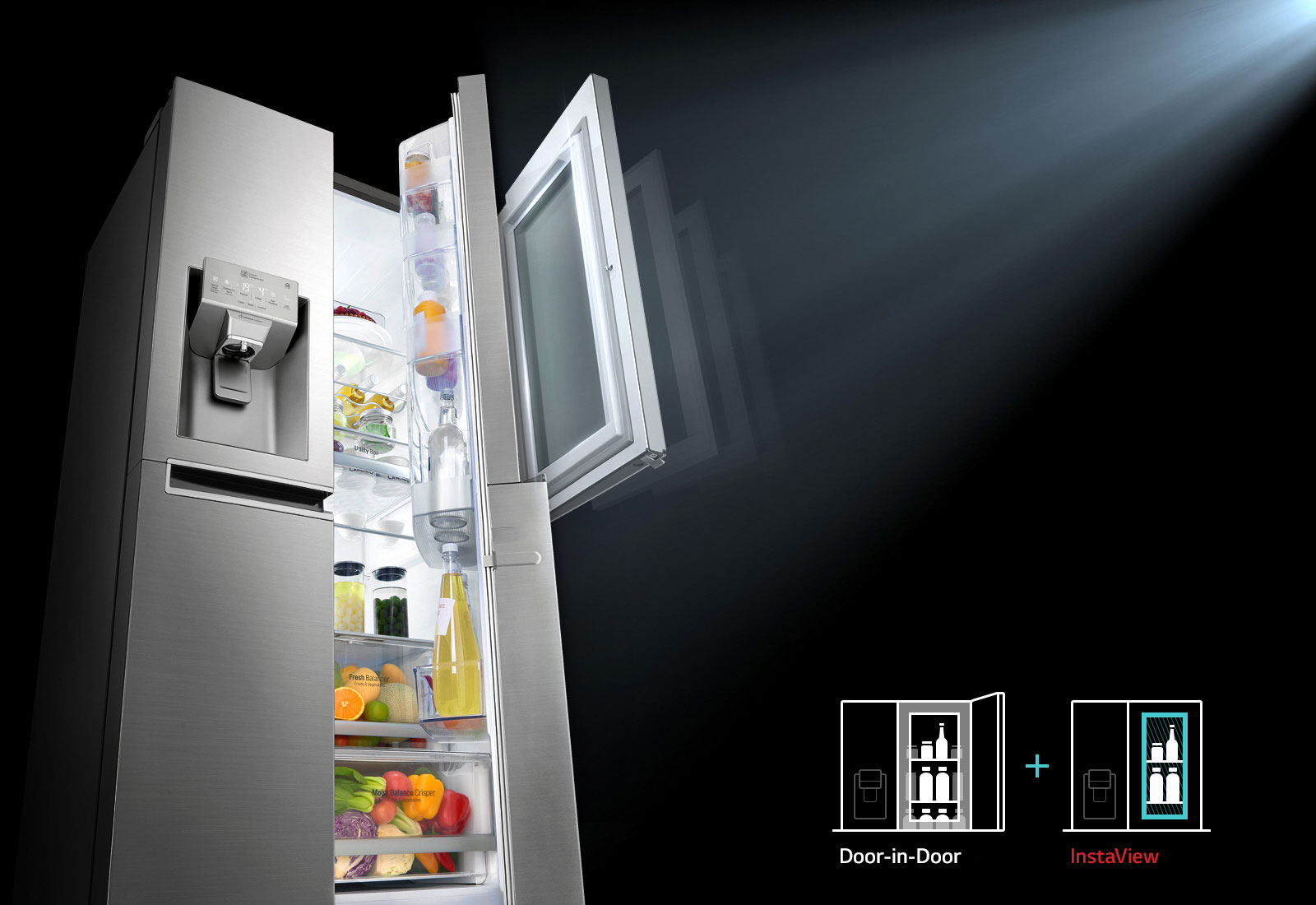

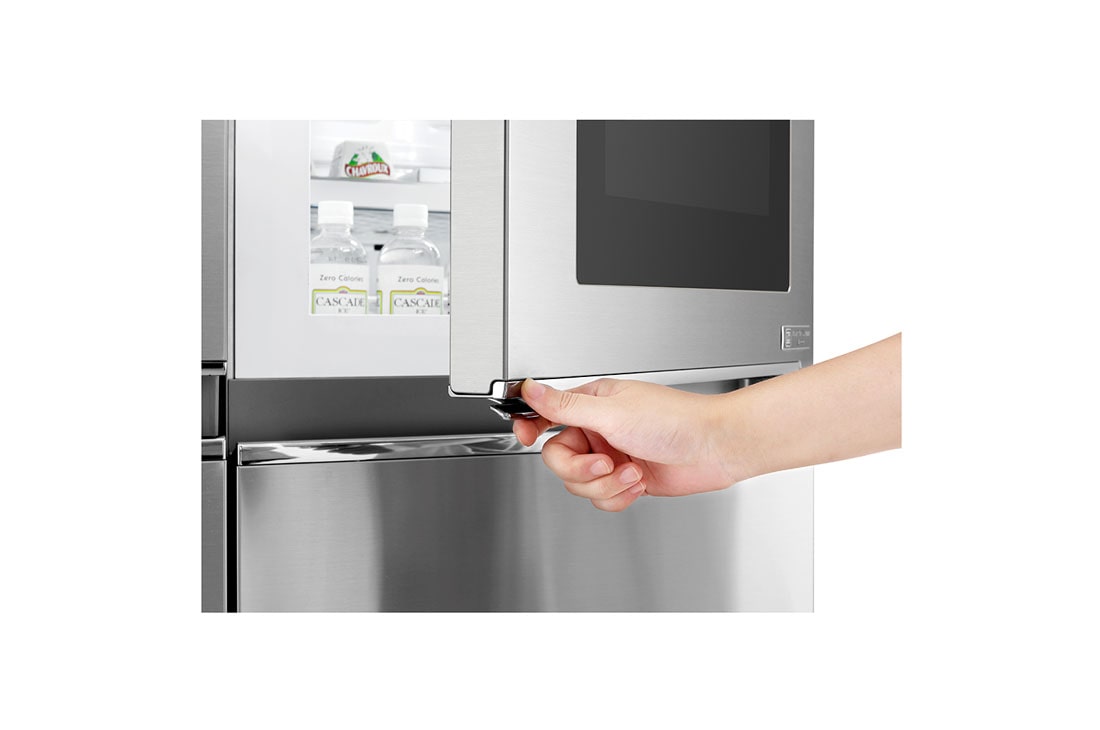

The Next Generation of Door-in-Door

The evolution of Door-in-Door continues with InstaView™ Door-in-Door. With InstaView™ Door-in-Door, you don't need to open to see inside. Now, simply knock twice on the glass to illuminate the contents inside without cold-air-loss.

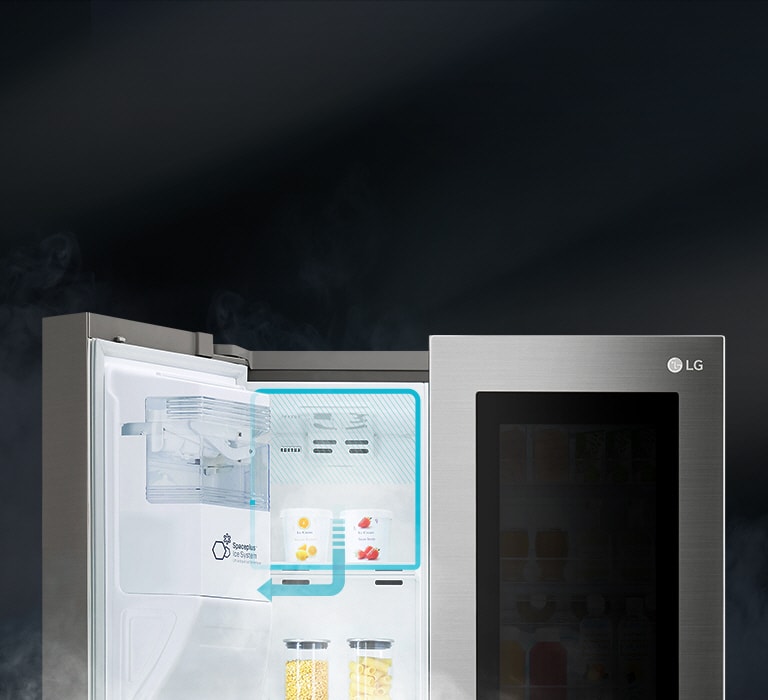

SpacePlus™ Ice System

'Door-mounted slim ice maker provides more storage space in freezer part.

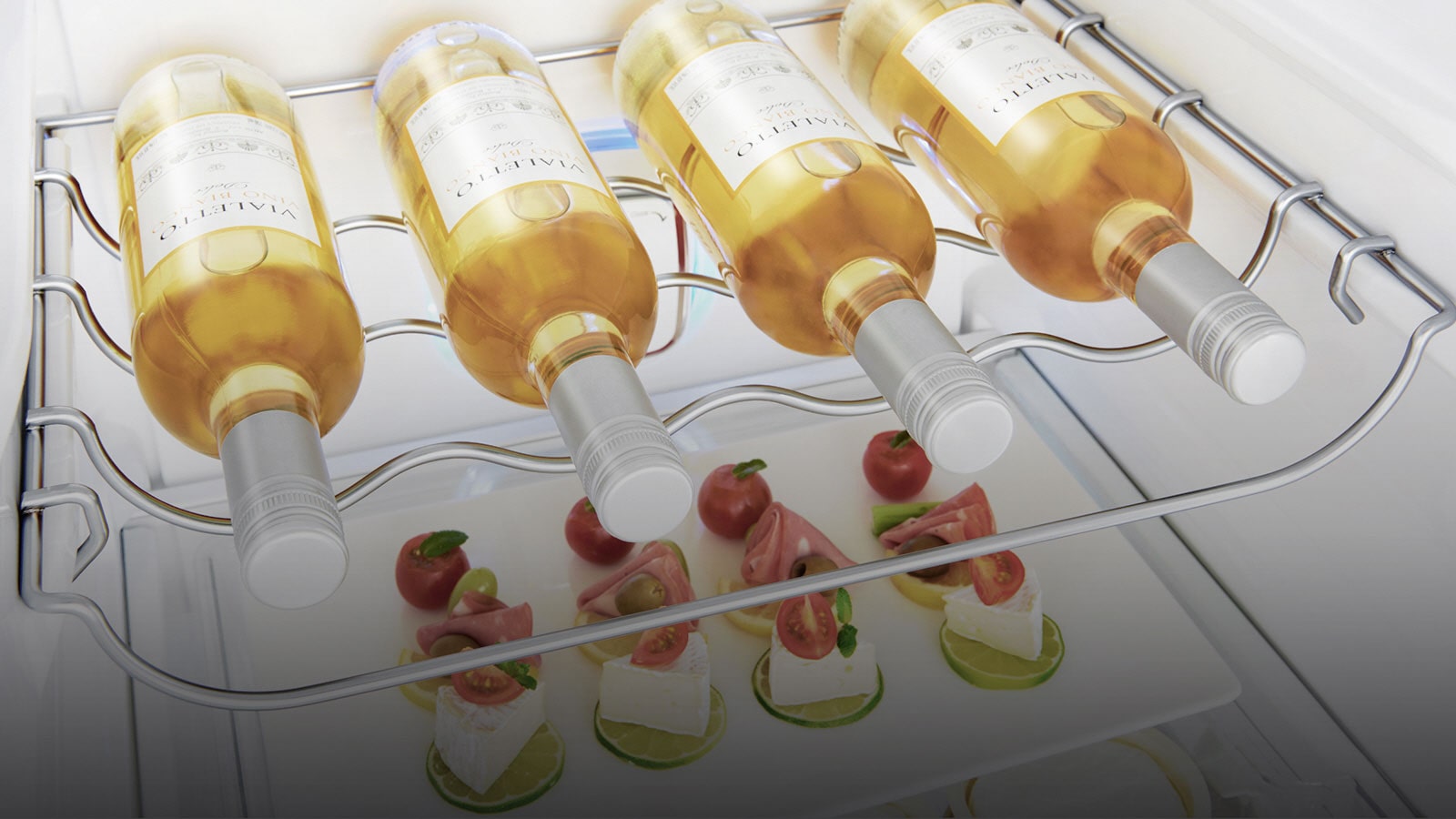

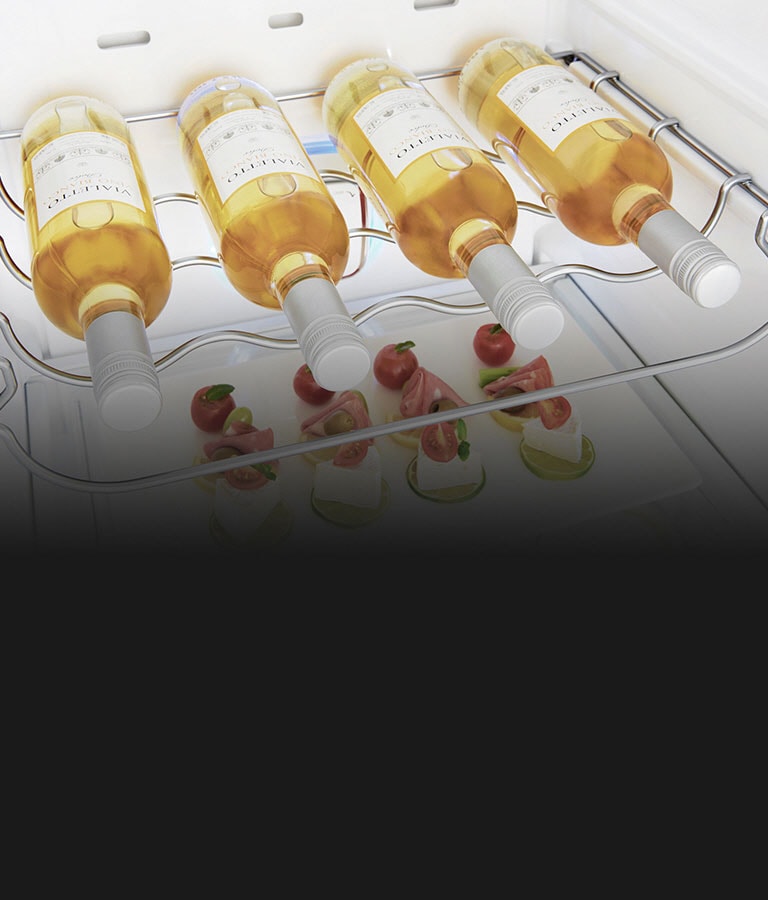

Full Wine Rack

'The user-friendly designed wine rack can store up to 4 bottles of sparkling wine in an optimal temperature.

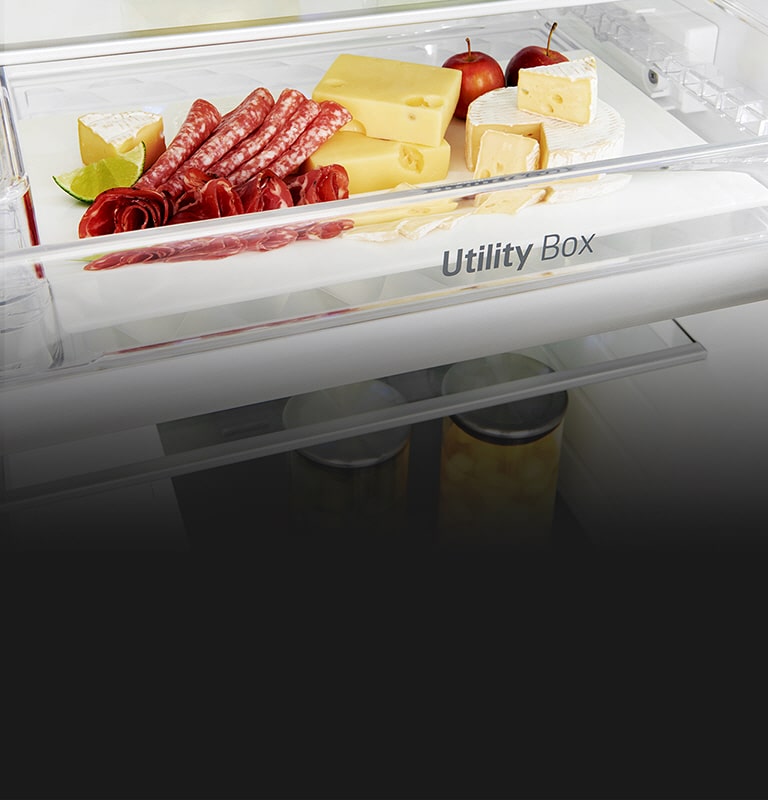

Utility Box

The optimal space for smaller items such as deli, and cheese in the proper temperature.

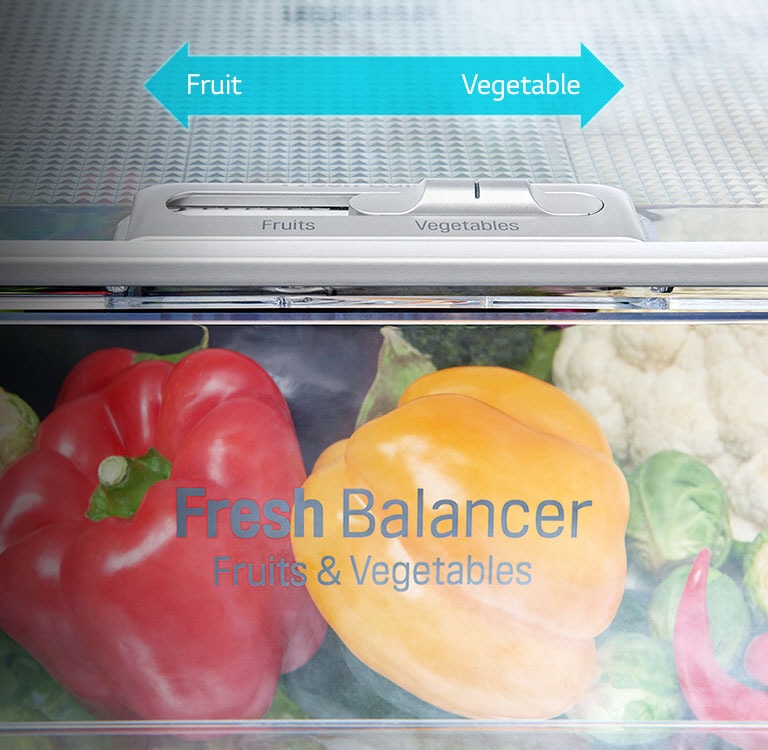

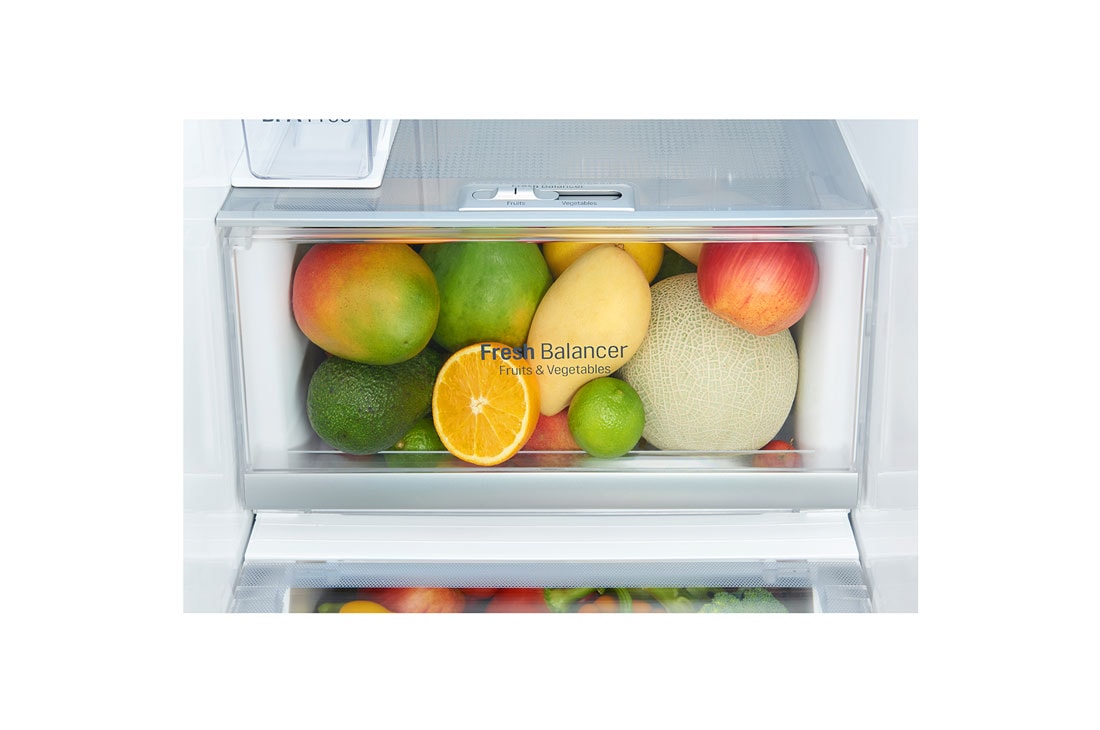

FRESHBalancer™

With a simple switch, FRESHBalancer™ keeps your vegetables and fruits in its optimal condition respectively by adjusting the right amount of humidity.

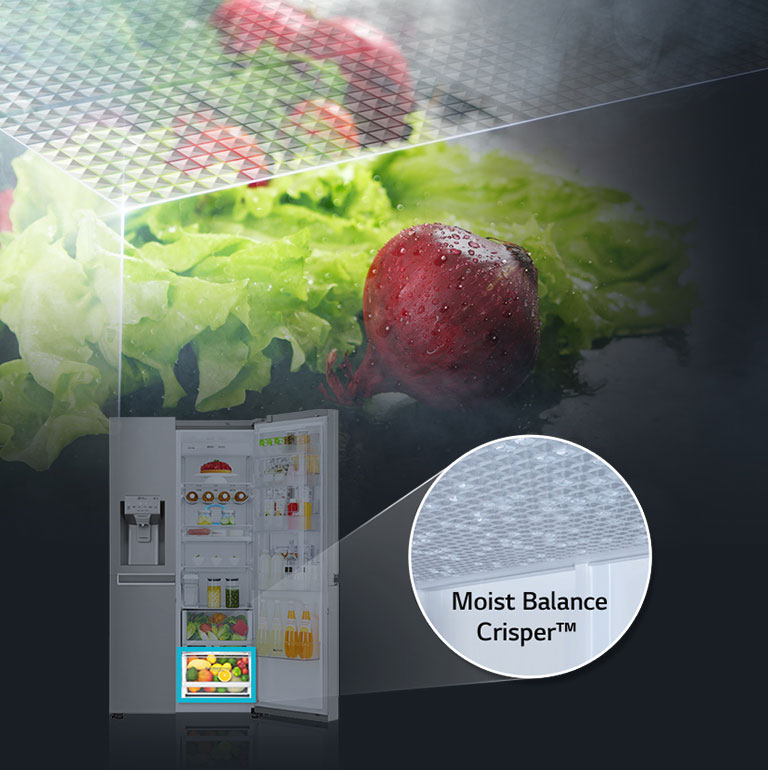

Moist Balance Crisper™

Moist Balance Crisper™ is an innovative lattice-patterned box cover which maintains the moisture at the optimal level.

Smart ThinQ™

With LG Smart ThinQ™, you can control and diagnose your refrigerator by your smart phone even when you're not at home. Easily set the refrigerator temperature, control Express Freeze, and diagnose your refrigerator with simple touch on your smart phone.

Energy Saving with Inverter Linear Compressor

LG's Inverter Linear Compressor has revolutionized the core of the refrigerator, providing up to 32% in energy savings, top-rate durability and optimal temperature control to keep foods fresher longer.

32% Energy Savings

"Energy Consumption Rate" is always important for consumers who purchase refrigerator. LG's own Inverter Linear Compressor saves more energy by adapting efficiency-engineering mechanism.

Colour
Platinum Silver Platinum Silver
Capacity (ℓ)
ISO Gross - Total 659
ISO Gross - Freezer 246
ISO Gross - Refrigerator 413
ISO Storage (Net) - Total 614
ISO Storage (Net) - Freezer 209
ISO Storage (Net) - Refrigerator 405
Dimension (mm)
Width x Height x Depth - Product 912X1790X727
Width x Height x Depth - Packing 968X1891X770
General Features
Display Touch 88 LED (White)
Temp. control - Digital Sensors Yes (6)
Temp. control - Fast Freezing Yes
Temp. control - Child Lock Yes
Temp. control - Door alarm Yes
Cooling System No Frost
Sound Power(dB) 41dB(A)↓
Energy Consumption (kWh/year) 480
Storage time during malfunctions (hr) 10
Refrigerant R600A
Compressor Linear
Climate Class T
Finish (Door) Option
Finish (Case) PCM_Embo
Handle Type Pocket (Chrome Deco.)

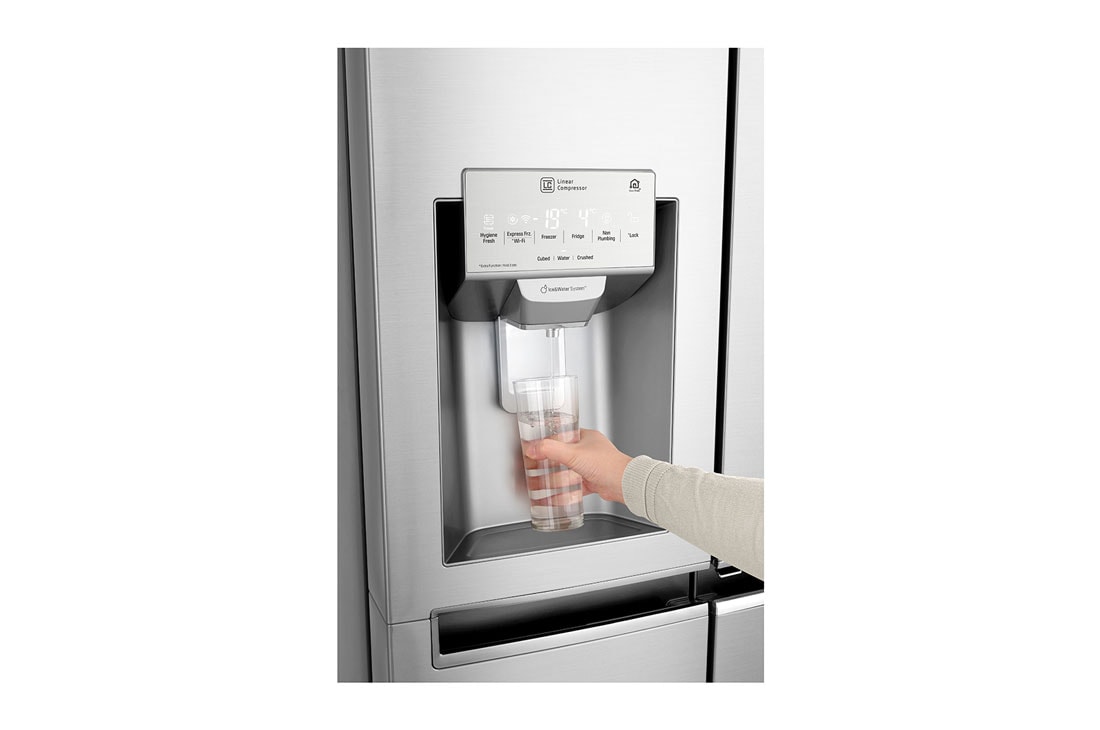

Water Dispenser Yes
Door in door™ Yes
Hygiene Fresh+™ Yes
LVS Yes
Bio Shield (gasket) Yes

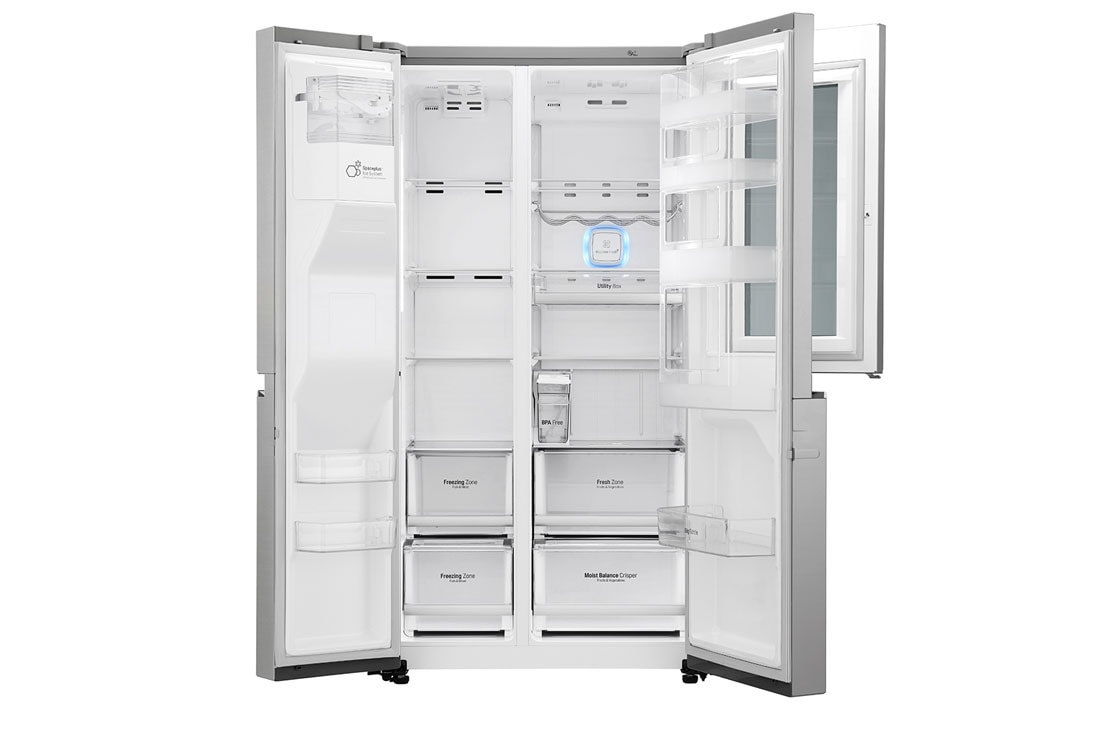

Refrigerator
Lamp Yes(Top + Back LED)
Multi Air Flow Yes
Shelf - Tempered glass Yes (3)
Shelf - Bottle Rack Yes
Door basket - Transparent Yes (5)
Door basket - Bottle Guide Yes
Door basket - Dairy Corner Yes
Metallic Decoration (Hot stamping) - Shelf Yes
Veg Box Cover T/V - Tempered Glass Yes
Vegetable Box (Drawer) - One Yes (3)
Vegetable Box (Drawer) - Moist Balance Crisper Yes
Vegetable Box (Drawer) - Fresh balance Yes
Vegetable Box (Drawer) - Utility box Yes
Egg tray Yes
Rack - Wine Rack Yes
Freezer
Lamp LED
Multi Air Flow Yes
Compartment
Ice Maker - Automatic - Indoor Yes (Slim)
Metallic Decoration (Hot stamping) - Shelf Yes
Door Basket - Transparent Yes (2)
Drawer Yes(2)
