Touch Open Frame
Inquiry to Buy

New In-Cell Touch Open Frame for Optimal Customization

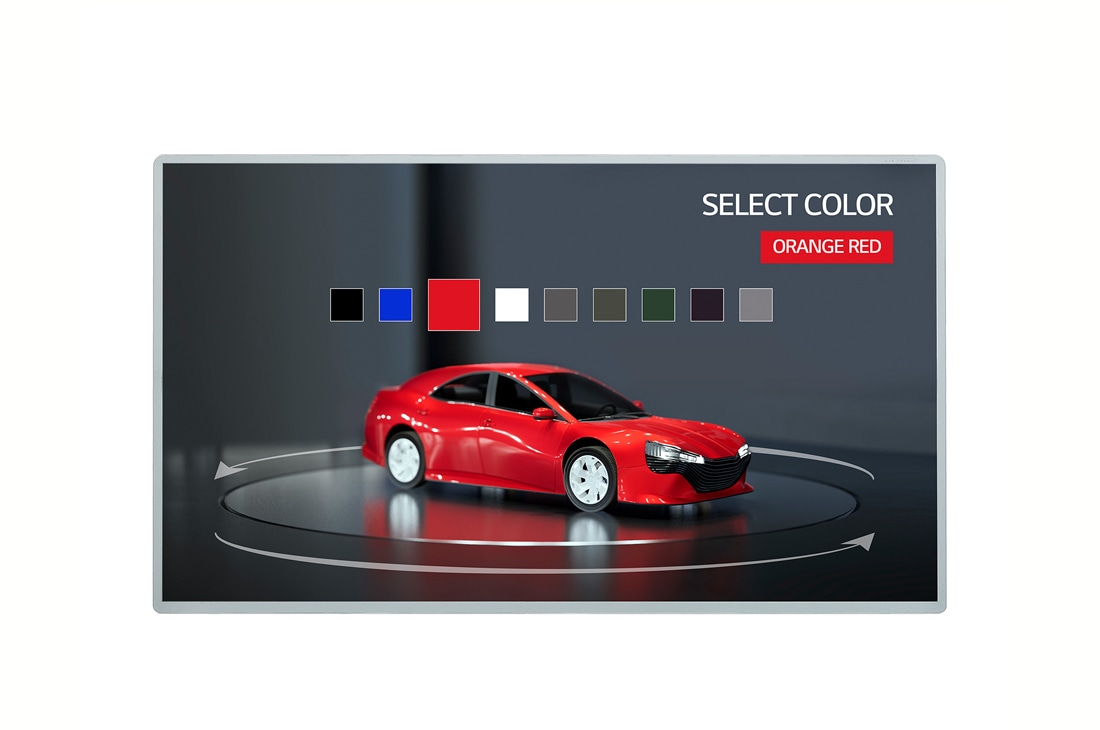

In a car dealership, a man is touching TNF3K to change the color of a car on the display. In a car dealership, a man is touching TNF3K to change the color of a car on the display.
* All images in this page are for illustrative purposes only.

Slim & Light

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

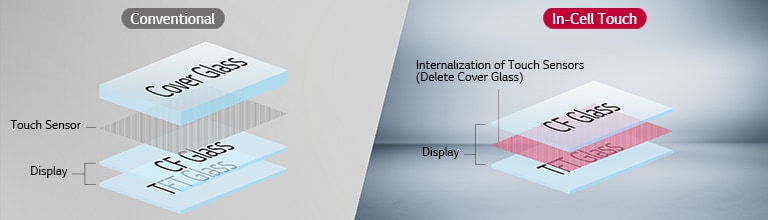

The conventional display has a touch sensor between the cover glass layer and the CF glass and TFT glass layers, whereas In-cell Touch has a touch sensor between the CF glass layer and the TFT glass layer without a cover glass layer. The conventional display has a touch sensor between the cover glass layer and the CF glass and TFT glass layers, whereas In-cell Touch has a touch sensor between the CF glass layer and the TFT glass layer without a cover glass layer.

Clear Picture Quality

Compared to general touch products, 27TNF3K implements clear picture quality without milk effects caused by additional touch sensor film parts.
While scenery on the conventional display looks blurry, the image on the In-cell Touch is clear. While scenery on the conventional display looks blurry, the image on the In-cell Touch is clear.

Design Flexibility

By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.
Various types of displays using TNF3K such as kiosk displays and publicity displays are placed. Various types of displays using TNF3K such as kiosk displays and publicity displays are placed.

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

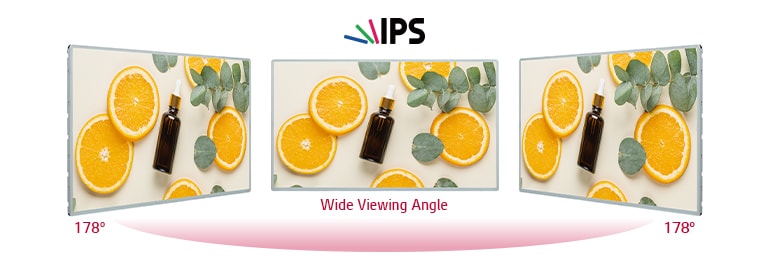

With a 178-degree wide viewing angle, the display content is visible from any angle. With a 178-degree wide viewing angle, the display content is visible from any angle.
A woman is touching a lower installed TNF3K. The TNF3K is installed tilted toward the woman so she can see the display content well. A woman is touching a lower installed TNF3K. The TNF3K is installed tilted toward the woman so she can see the display content well.

45-degree Tilt (Face up) Installation Possible

When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.
The user places all ten fingers on the display to touch it. The user places all ten fingers on the display to touch it.

10 Points of Multi-Touch

The 27TNF3K provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC* and web engine, is available on 27TNF3K for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

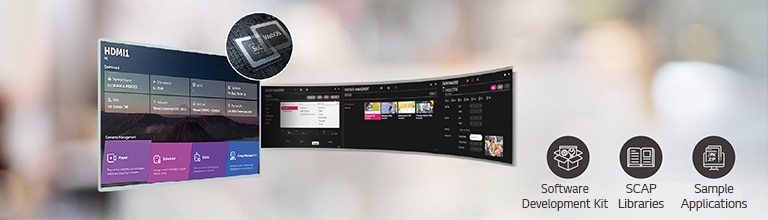

A number of tasks that can be done simultaneously are easily arranged through the webOS platform. A number of tasks that can be done simultaneously are easily arranged through the webOS platform.
* SoC : System On Chip
** GUI : Graphical User Interface
Close
Panel
  • Screen Size
    27"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    1920x1080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    300nit
    Contrast Ratio
    1,000:1
  • Color gamut
    NTSC 72%
    Viewing Angle(H x V)
    178 X 178
  • Color Depth
    8bit, 16.7 Million colors
    Response Time
    9ms (G to G)
  • Surface Treatment(Haze)
    Anti glare, 3H(Haze 25%)
    Life time
    31,000 Hrs (min)
  • Operation Hours (Hours/Day)
    16/7
    Portrait / Landscape
    Yes / Yes
Connectivity(Jack Interface)
  • Input
    HDMI (2, HDCP1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A
    Output
    Audio Out, Touch USB (USB2.0 Type B)
Mechanical Specification
  • Bezel Color
    Silver
    Bezel Width
    7.7/7.7/7.7/9.7mm
  • Weight(Head)
    4.2Kg
    Packed Weight
    6.2Kg
  • Monitor Dimension(W x H x D)
    614.9 x 355.3 x 15.1mm
    Carton Dimensions(W x H x D) (Box outer size)
    707 x 451 x 171 mm
  • VESATM Standard Mount Interface
    200x100
Key Feature(Hardware)
  • Internal Memory
    8GB(System 5GB + Available 2.48GB)
    Temperature Sensor
    Yes
  • Acceleration(Gyro) Sensor
    Yes
Key Feature(Software)
  • webOS ver.
    webOS 6.0
    Embedded CMS
    Local Contents Scheduling, Group Manager
  • USB Plug & Play
    Yes
    Fail over
    Yes
  • Background Image
    Booting Logo Image, No Signal Image
    Video Tag
    Yes
  • Play via URL
    Yes
    Gapless Playback
    Yes
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Status Mailing
    Yes
  • Control Manager
    Yes
    3rd Party Compatibility
    Crestron Inside
  • Power
    Smart Energy Saving, PM mode, Wake on LAN, Network Ready
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • DPM
    0.5W↓
    Power off
    0.5W↓
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/ CE / KC
  • ErP
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • Signage 365 Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Turkish, Polski
Accessory
  • Basic
    Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
Special Feature
  • Touch - Available object size for touch
    Ø6 mm ↑
    Touch - Reponse Time(PC Win10 Paintbrush)
    90ms ↓
  • Touch - Accuracy
    3.5mm±0.5mm
    Touch - Interface
    USB2.0
  • Touch - Operating System Support
    Win 10
    Touch - Multi touch point
    Max 10 Points
