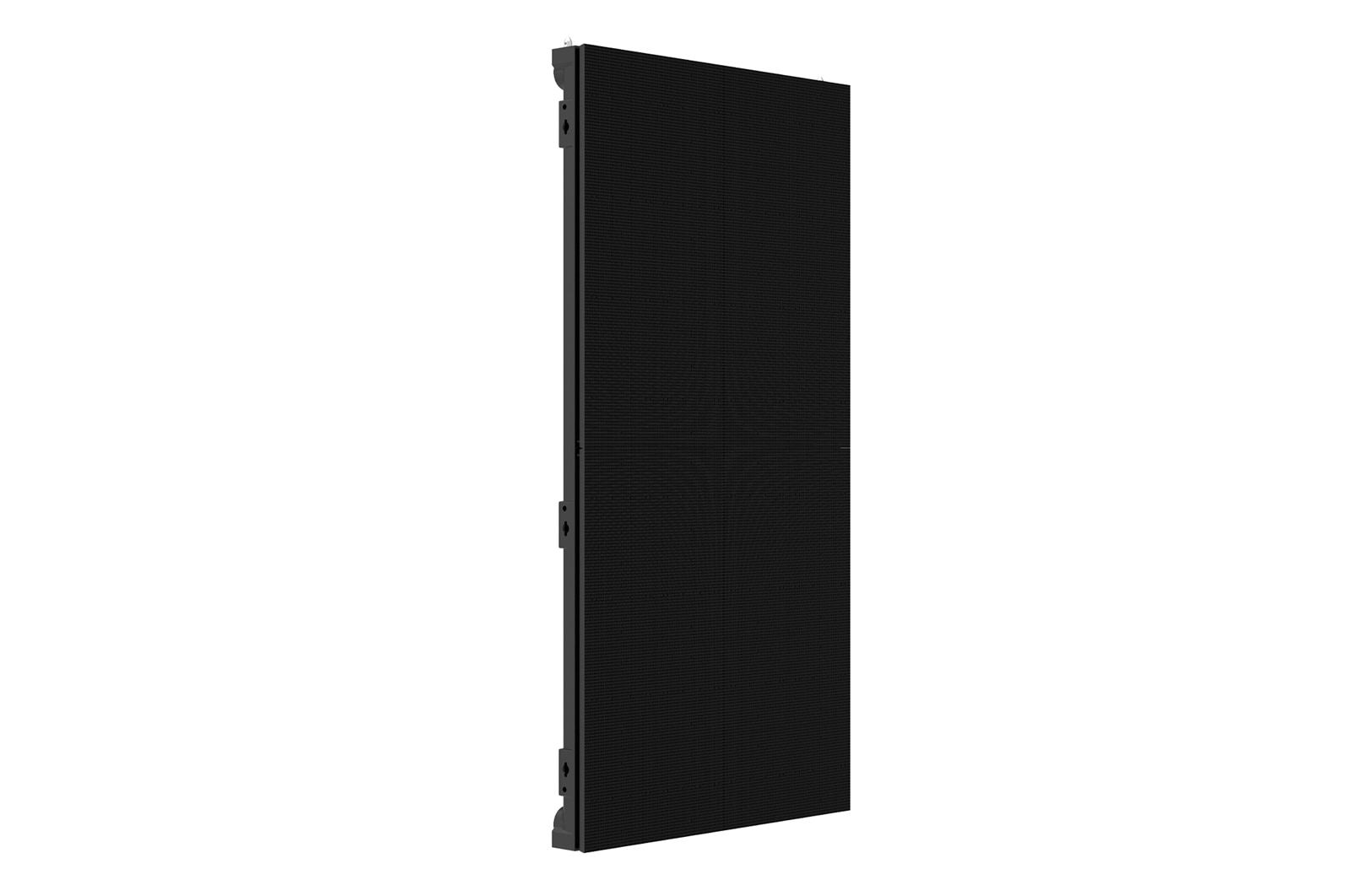

Ceiling LED Display for Virtual Production
Inquiry to Buy

Ceiling LED Display for
Virtual Production

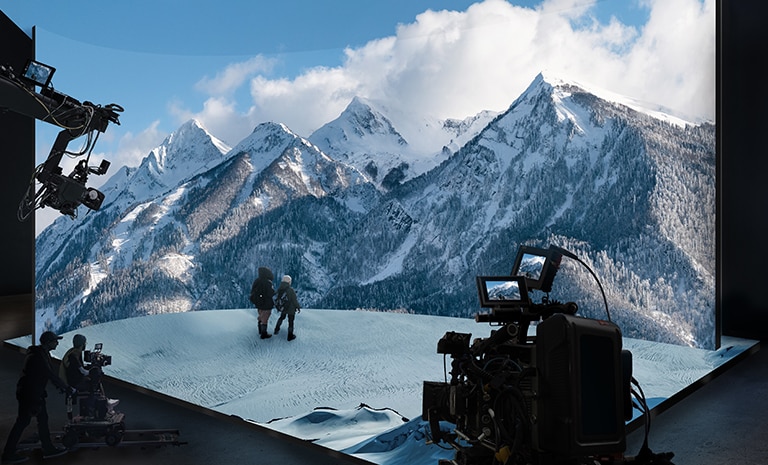

A virtual production studio with curved LED walls and ceiling and floor LEDs is filming a video of snowy mountain scenery. A virtual production studio with curved LED walls and ceiling and floor LEDs is filming a video of snowy mountain scenery.
* All images in this page are for illustrative purposes only.

Easy Installation & Maintenance

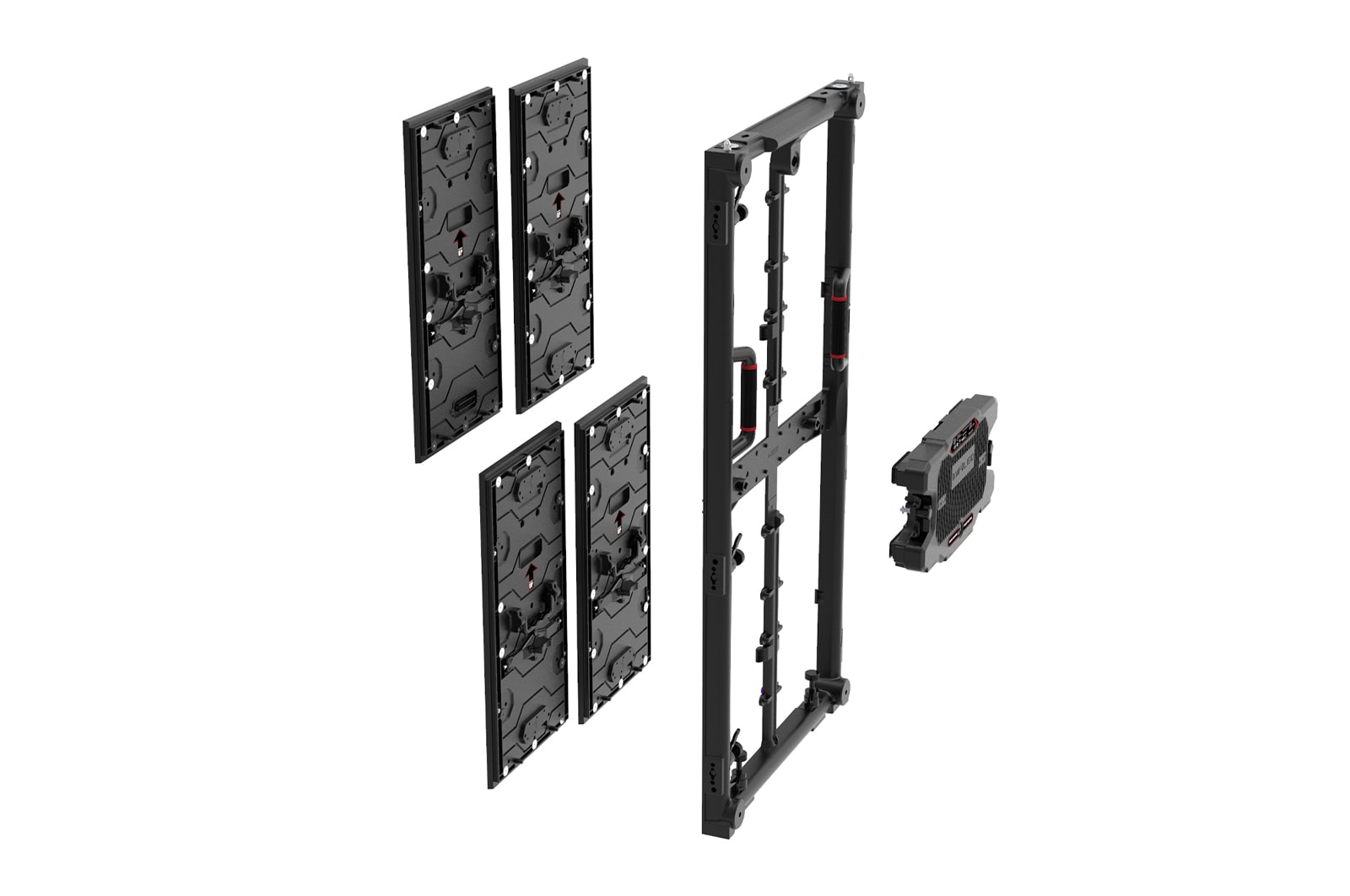

The module can be easily removed using the dedicated tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.

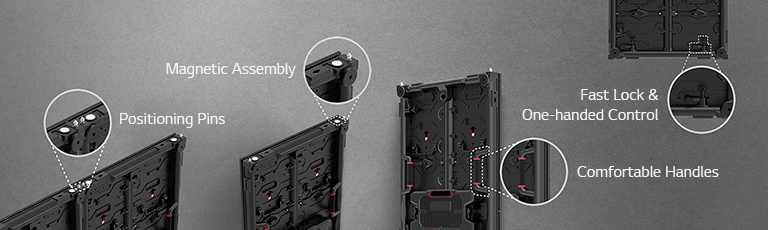

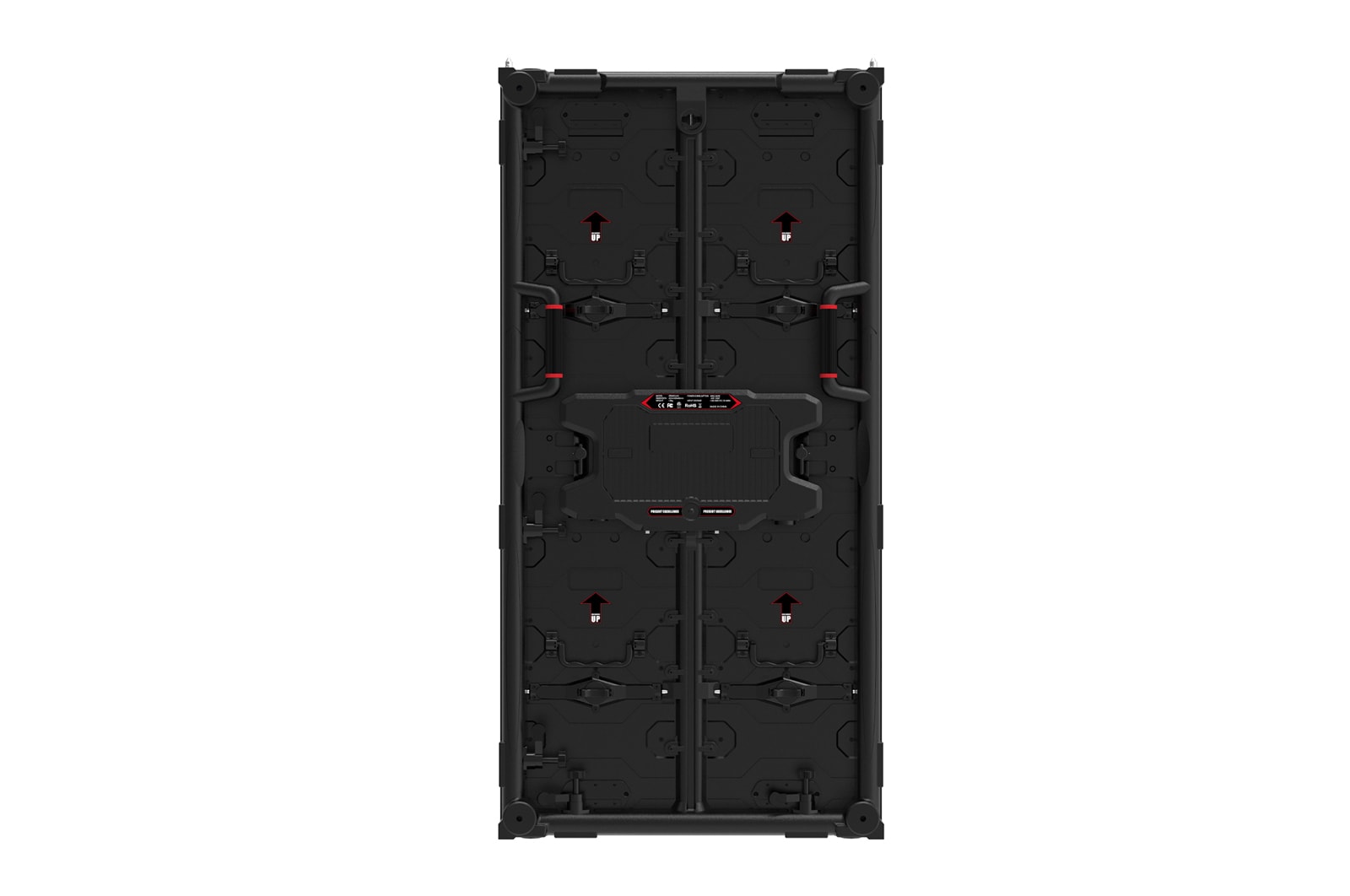

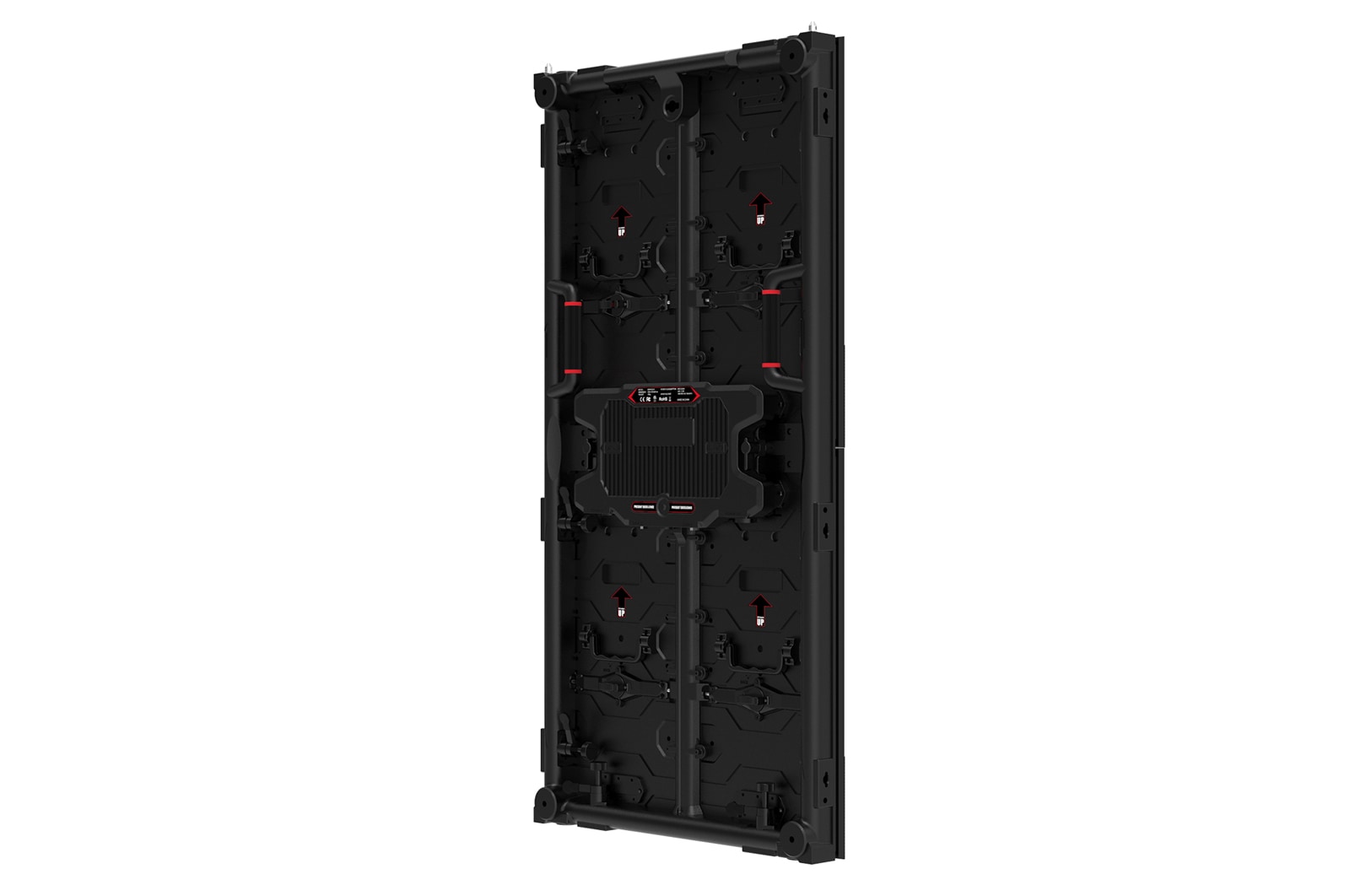

The 'Positioning Pins', 'Magnetic Assembly', 'Comfortable Handles', and 'Fast Lock & One-Handed Control' parts in the cabinet are enlarged. The 'Positioning Pins', 'Magnetic Assembly', 'Comfortable Handles', and 'Fast Lock & One-Handed Control' parts in the cabinet are enlarged.

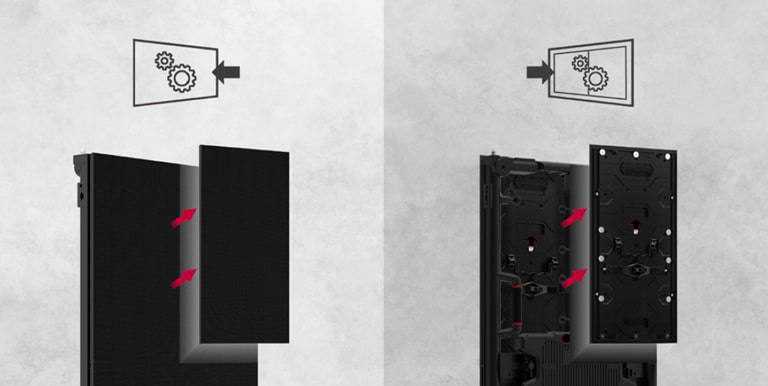

This product can be installed in either the front or rear. This product can be installed in either the front or rear.

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their need.

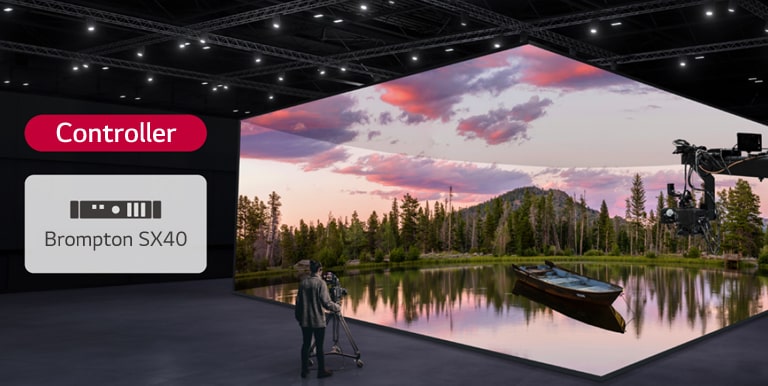

A virtual production studio which has curved LED walls and ceiling and floor LEDs is being filmed, and a compatible controller is being displayed next to it. A virtual production studio which has curved LED walls and ceiling and floor LEDs is being filmed, and a compatible controller is being displayed next to it.

Brompton LED Processor & Data Distribution

As Brompton controllers are common in the broadcast and virtual production industry, LBCK series offers support for them.

High Brightness

The ceiling LED with 5,000 nits enables LBCK series to be used for alternative lightings in XR and virtual production.

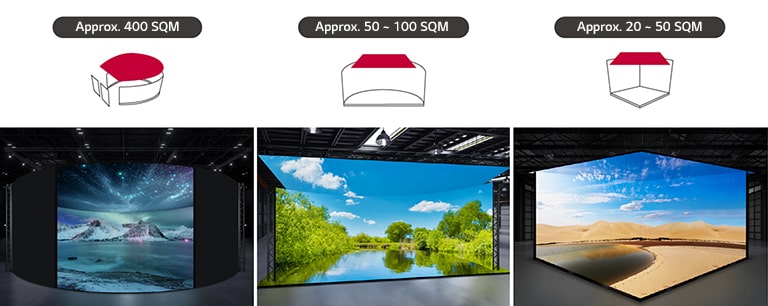

In a studio, ceiling LEDs are installed in sizes of approximately 400m2, 50-100m2, and 20-50m2, respectively. The scenery on the LED screen appears very bright. In a studio, ceiling LEDs are installed in sizes of approximately 400m2, 50-100m2, and 20-50m2, respectively. The scenery on the LED screen appears very bright.
Close
Physical Parameters
  • Pixel Configuration
    3 in 1
    Pixel Pitch(mm)
    3.91
  • Module Resolution (WxH)
    64x128
    Module Dimensions(WxH,mm)
    250x500
  • Weight per Module (kg)
    1.40
    No. of Modules per Cabinet (WxH)
    2 x 2
  • Cabinet Resolution (WxH)
    128x256
    Cabinet Dimensions (W x H x D, mm)
    500x1000x66.05
  • Cabinet Surface Area (㎡)
    0.500
    Weight per Cabinet (kg/unit)
    12.5
  • Weight per Square Meter (kg/m²)
    24.9
    Physical Pixel Density (pixels/m²)
    65,536
  • Flatness of Cabinet (mm)
    ±0.3
    Cabinet Material
    Die-casting Magnesium
  • Service Access
    Front or Rear
    (select one only)
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    5,000
    Color Temperature (K)
    2,000-11,000
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    155
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003CxCy
  • Contrast Ratio
    6,000:1
    Processing Depth (bit)
    14 (PQ, HLG)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    300
    Power Consumption (W/Cabinet, Avg.)
    100
  • Power Consumption (W/m², Max.)
    600
    Heat Dissipation (BTU/h/Cabinet, Max.)
    1,024
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    341
    Heat Dissipation (BTU/h/m², Max.)
    2,047
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -30℃ to +45℃
  • Operating Humidity
    10-99%RH
Certification
  • Certification
    CE,FCC,ETL
Environment
  • Environment
    RoHS
Controller
  • Controller
    Brompton SX40
Series
  • Series
    LBCK
  • Dimension
    • LBCK039-GN-v1.0 (3).dwg
    • LBCK039-GN-v1.0.pdf
  • Datasheet
    • LBCK-Series_Datasheet(low)_LG-Indoor-LED_220629.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
