Versatile Series
Inquiry to Buy

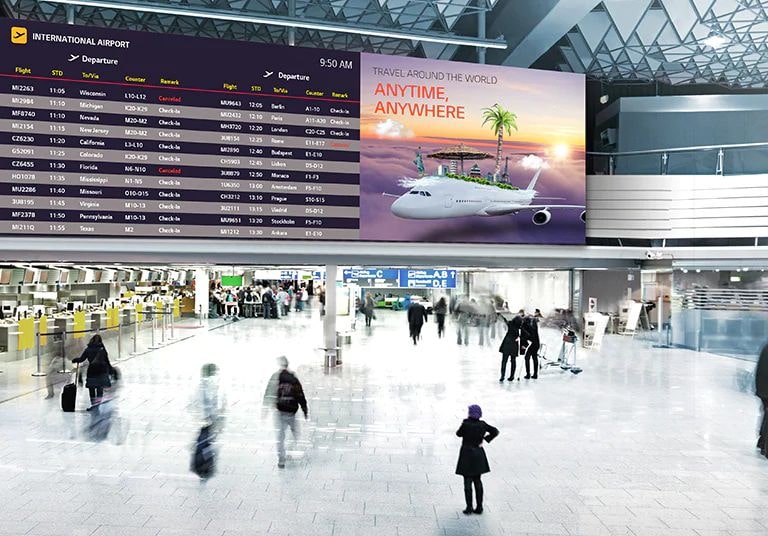

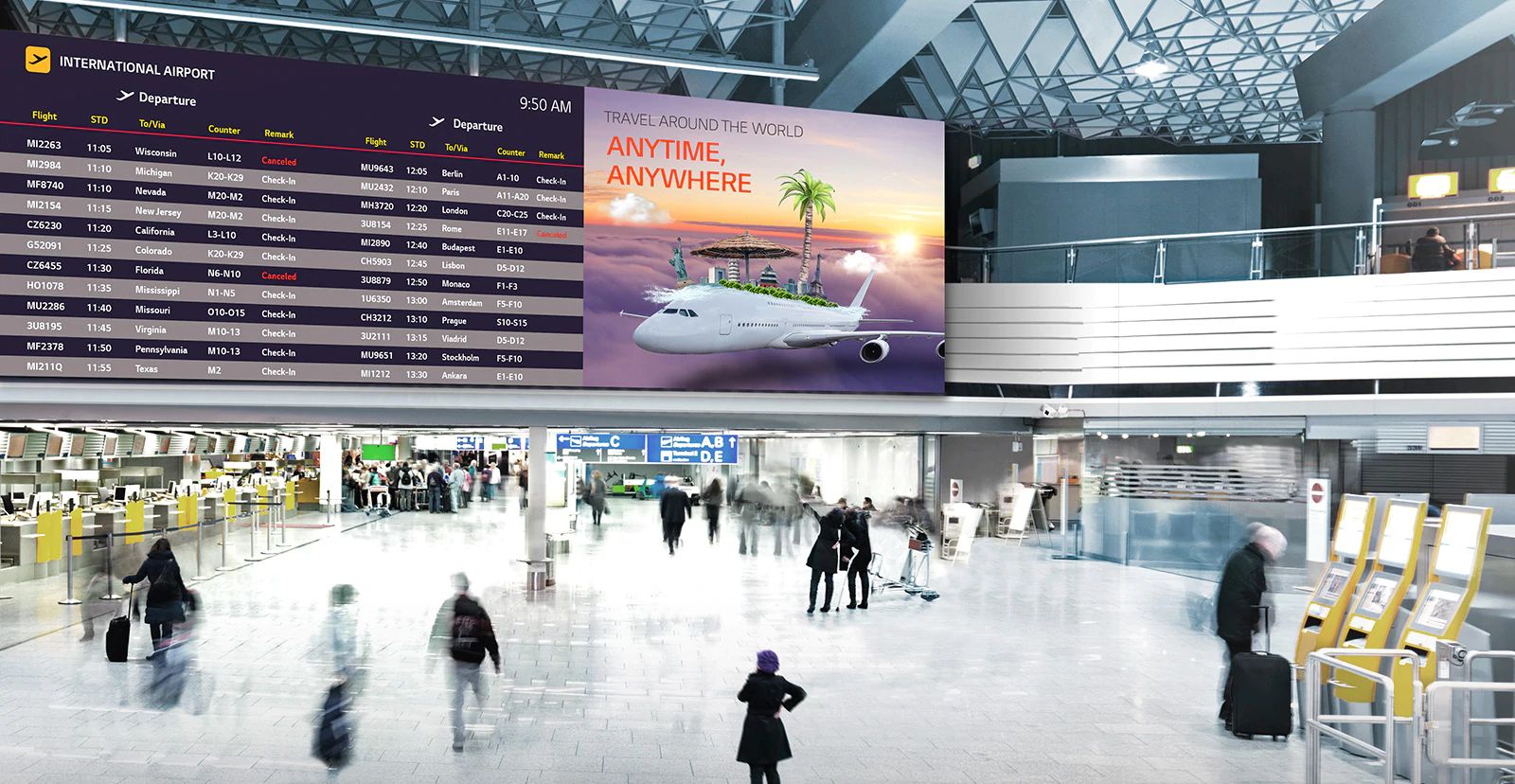

LSCA Versatile Series LSCA Versatile Series

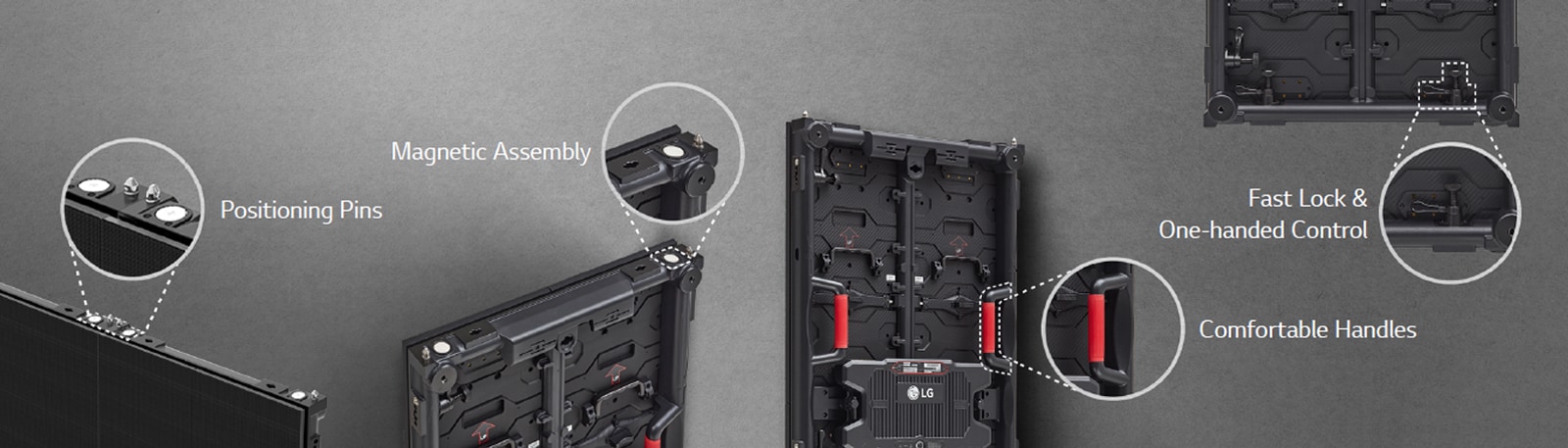

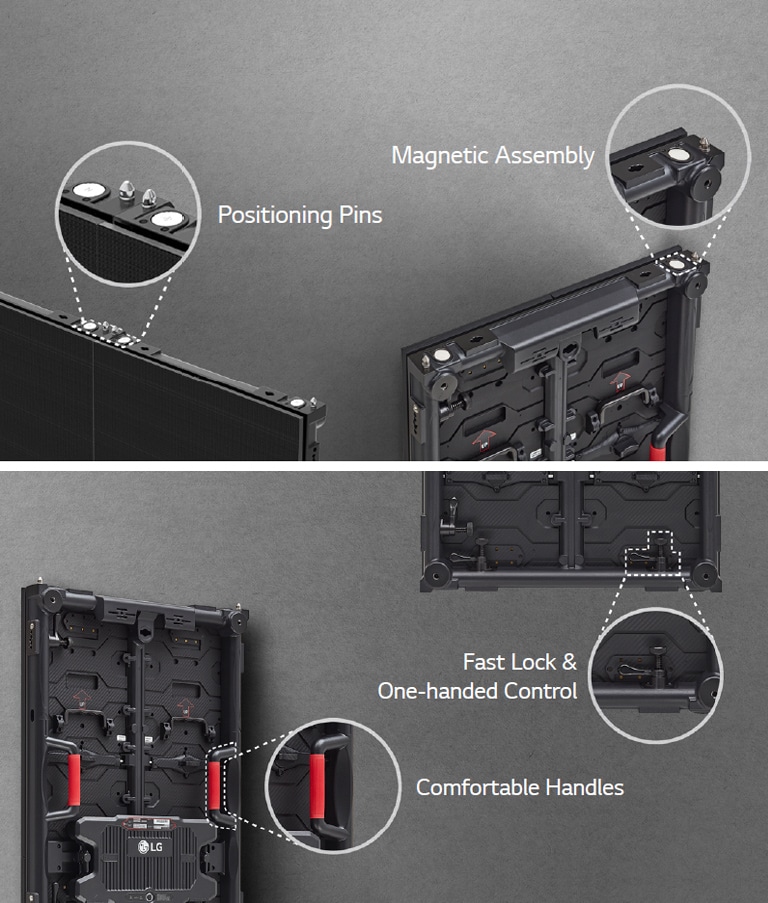

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
Fast Installation Fast Installation

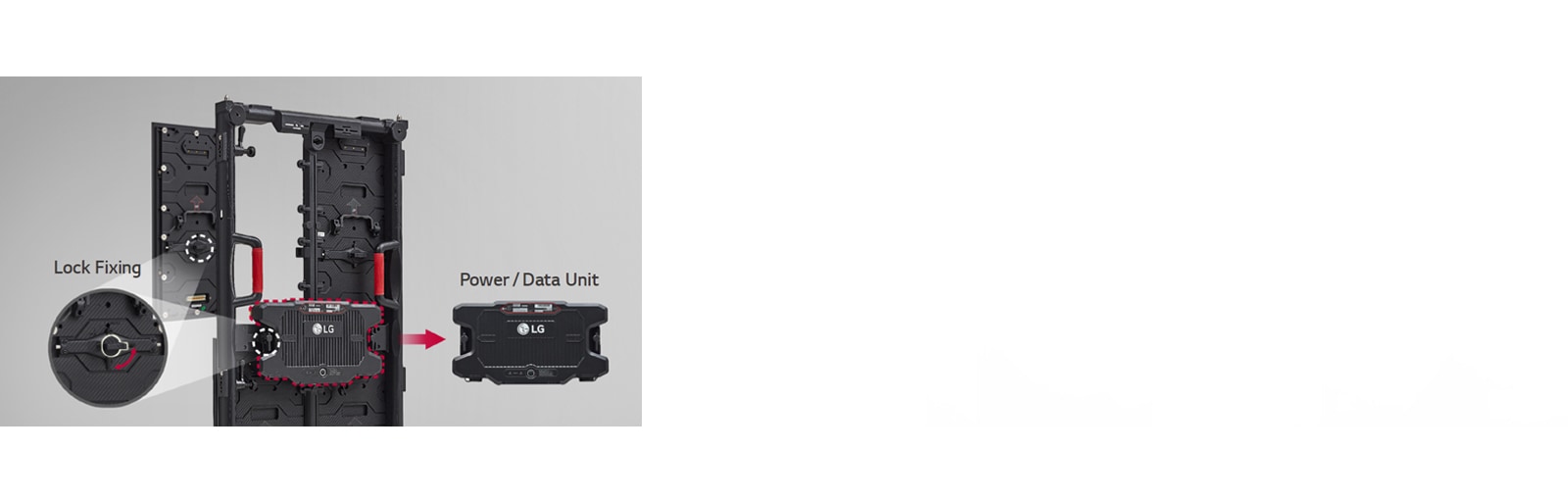

Easy Maintenance Easy Maintenance

Easy Maintenance

The LSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

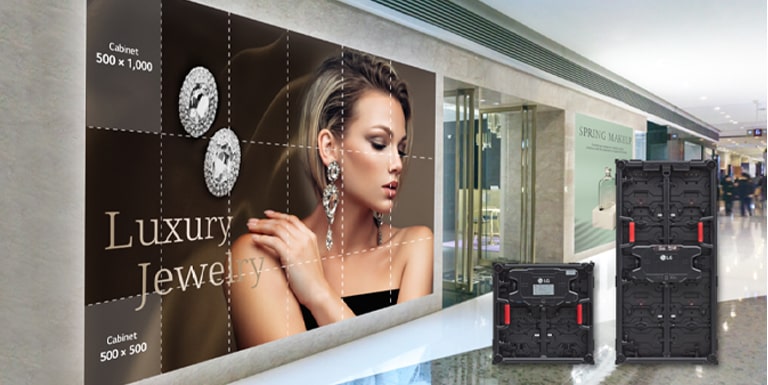

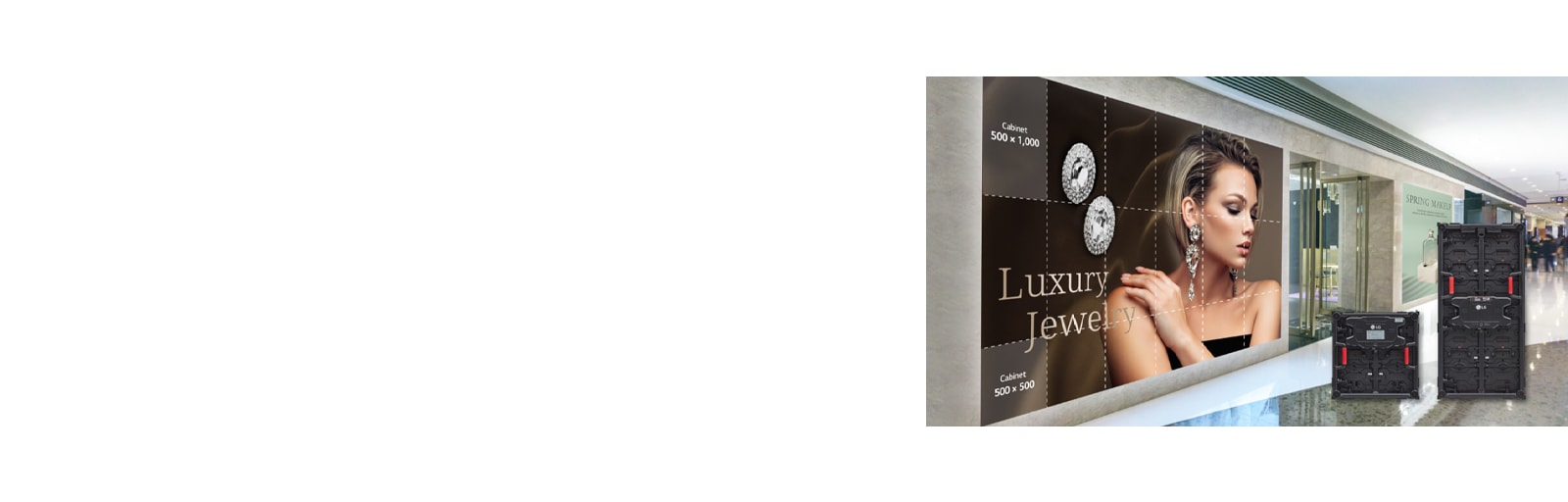

Two Cabinet Options Two Cabinet Options

Two Cabinet Options

The LSCA series offers two sizes of cabinets, enabling a screen size configuration that fits perfectly with customer's demands.

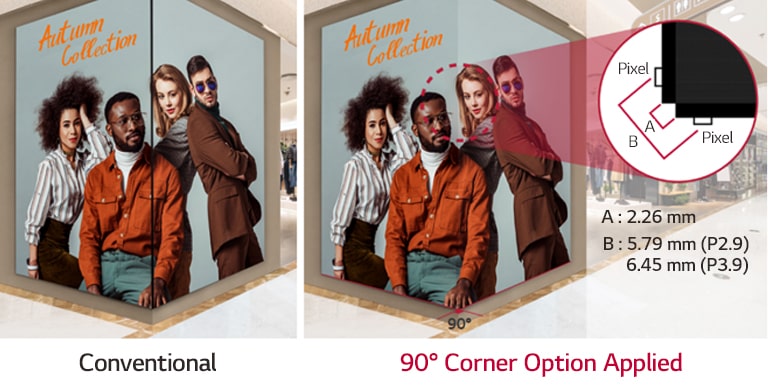

90° Corner Design Available 90° Corner Design Available

90° Corner Design Available

If you add a 90° corner option, the LSCA series can deliver flawless content even when installed on right-angled structures.

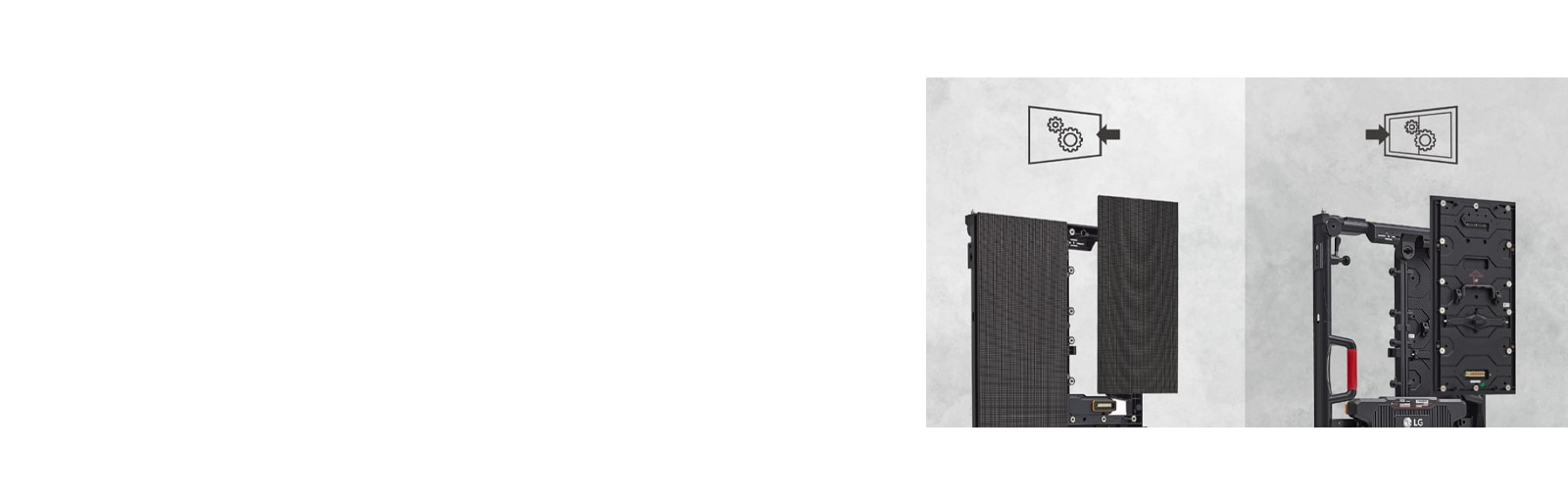

Front or Rear Serviceability Front or Rear Serviceability

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.

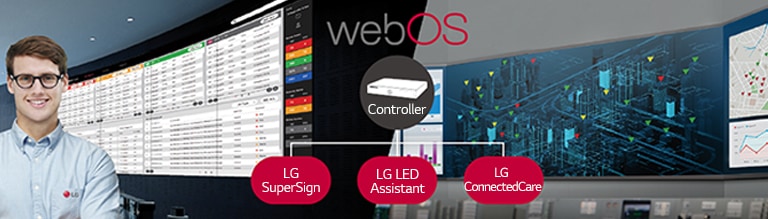

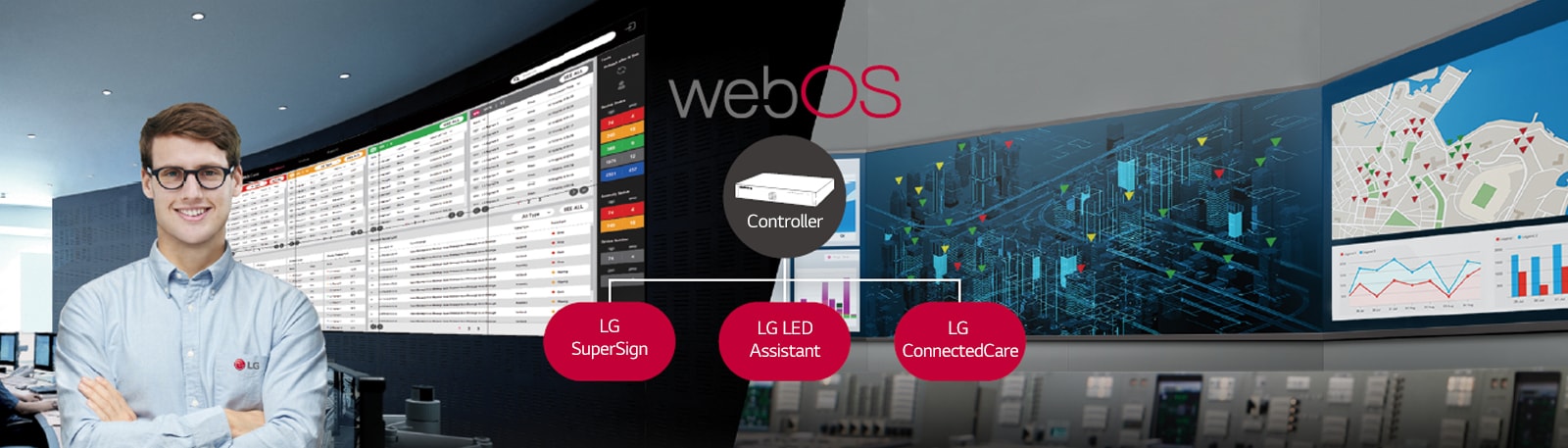

Compatibility with
LG Software Solutions

Powered by LG’s high performance system controller, the LSCA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Compatibility with LG Software Solutions Compatibility with LG Software Solutions
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
Explore more showroom at<br>LG Digital Connect1 Explore more showroom at<br>LG Digital Connect2

Explore more showroom at
LG Digital Connect

Explore
Close
Physical Parameters
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    2.97
  • Module Resolution (W x H)
    84 × 168
    Module Dimensions (W x H, mm)
    250 × 500
  • Weight per Module (kg)
    1.30
    No. of Modules per Cabinet (W × H)
    2 × 2 / 2 × 1 (Half-sized)
  • Cabinet Resolution (W × H)
    168 × 336 / 168 × 168 (Half-sized)
    Cabinet Dimensions (W × H × D)
    500 × 1,000 × 74.88 / 500 × 500 × 74.88 (Half-sized)
  • Cabinet Surface Area (m²)
    0.500 / 0.250 (Half-sized)
    Weight per Cabinet (kg/cabinet)
    12.5 / 8.5 (Half-sized)
  • Weight per Square Meter (kg/m²)
    25.0 / 34.0 (Half-sized)
    Physical Pixel Density (pixels/m²)
    112,896
  • Flatness of Cabinet
    ± 0.3 mm
    Cabinet Material
    Die Casting Aluminum Alloy
  • Service Access
    Front or Rear (One Option Only)
Optical Parameter
  • Max Brightness (After Calibration)
    1,000
    Color Temperature
    3,200-9,300 (K)
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    97%
    Color Uniformity
    ± 0.003 Cx,Cy
  • Contrast Ratio
    5,000
    Processing Depth (bit)
    14
Electrical Parameter
  • Power Consumption (W/Cabinet, Max.)
    270 / 135 (Half-sized)
    Power Consumption (W/Cabinet, Avg.)
    90 / 45 (Half-sized)
  • Power Consumption (W/m², Max.)
    540
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    2,880
Operation Conditions
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -10 °C to +45 °C
  • Operating Humidity
    0 - 80 % RH
    IP rating Front / Rear
    IP30 / IP30
Controller(CVCA)
  • Input Interface
    HDMI / DP / OPS / USB
    Input Resolution
    3,840 x 2,160 @60Hz
  • Output Signal
    Gigabit Ethernet (16 ea)
    Output Fiber Optical
    No
  • Control RJ45
    Yes
    Control USB
    No
  • Electrical Power Consumption (W)
    50
    Electrical Power Supply (V)
    AC 100-240 V
  • Mechanical Size (mm)
    443 (W) × 307.5 (D) × 63 (H) → EIA Standard Rack (2U)
    Mechanical Weight (kg)
    4.9
  • Feature Signal Redundancy
    Yes
    Feature HDR10
    Yes
Controller(LCIN006)
  • Input Interface
    HDMI / DVI
    Input Resolution
    1,920 x 1,200 @60Hz
  • Output Signal
    Gigabit Ethernet (4 ea)
    Output Fiber Optical
    No
  • Control RJ45
    No
    Control USB
    Yes
  • Electrical Power Consumption (W)
    16
    Electrical Power Supply (V)
    AC 100-240 V
  • Mechanical Size (mm)
    482.6 (W) × 250 (D) × 44.45 (H) → EIA Standard Rack (1U)
    Mechanical Weight (kg)
    2.9
  • Feature Signal Redundancy
    Yes
    Feature HDR10
    No
Controller(LCIN008(4K))
  • Input Interface
    HDMI / DVI / DP
    Input Resolution
    3,840 x 2,160 @60Hz
  • Output Signal
    Gigabit Ethernet (16 ea)
    Output Fiber Optical
    4 ea
  • Control RJ45
    Yes
    Control USB
    Yes
  • Electrical Power Consumption (W)
    30
    Electrical Power Supply (V)
    AC 100-240 V
  • Mechanical Size (mm)
    482.6 (W) × 250 (D) × 96 (H) → EIA Standard Rack (3U)
    Mechanical Weight (kg)
    4.6
  • Feature Signal Redundancy
    Yes
    Feature HDR10
    Yes
Series
  • Series
    LSCA
  • Dimension
    • LSCA0xx-CK-v1.0.dwg
    • LSCA0xx-RK-1.0.dwg
    • LSCA0xx-CK-v1.0.pdf
    • LSCA0xx-RK-1.0.pdf
  • Datasheet
    • LSCA Series_Datasheet(low)_LG Versatile LED Signage_210720.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
