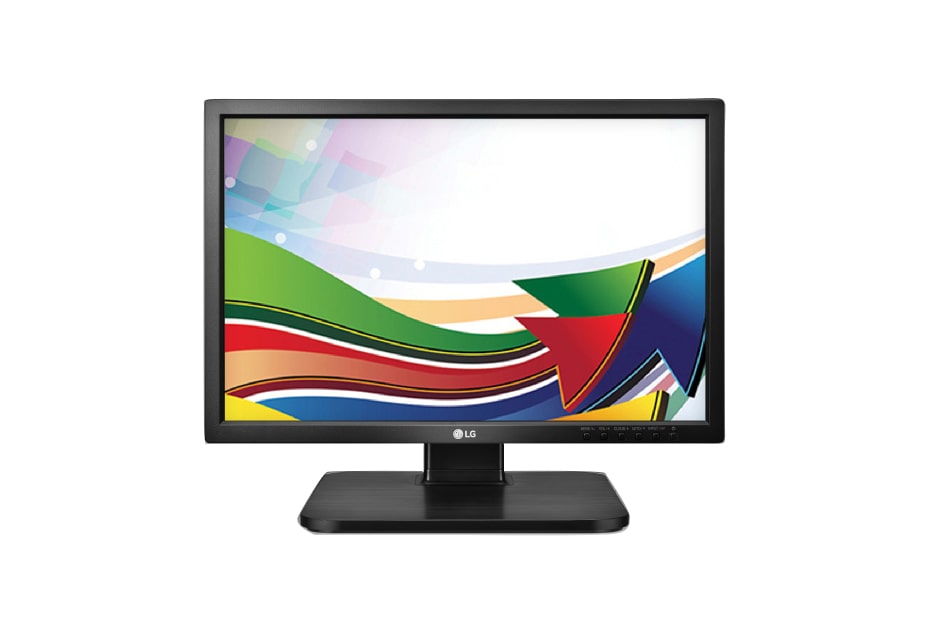

20" class (19.5"/494.03mm diagonal) Zero Client TERA2

  • 20CAV37K

Key Features

  • Our V series Zero Clients utilize a Teradici® TERA 2 Chipset, Amazon WorkSpaces, and Vmware; to deliver a powerful, secure, virtual computing solution; while reducing system building including maintenance costs as well. LED backlight technology, also provides a bright and clear display to facilitate a comfortable computing experience for daily office work and multimedia applications.

AWARD OF EXCELLENCE WINNER

Tech & Learning magazine has awarded our product as New Product Winner in its prestigious 31-year-old recognition program. Every year it honors innovative applications that break new ground as well as those that added significant enhancements to proven education tools.

HIGH PERFORMANCEVIRTUAL COMPUTING

LG’s 19CNV42K-B, 23CAV42K-BL and CBV42-B utilize a Teradici® TERA 2 Chipset and VMware to deliver a powerful and secure virtual computing solution. Compared to a traditional desktop computing system, the V series allows advanced computing with greater security while reducing system building and maintenance costs. LED backlight technology also provides a bright and clear display to facilitate a comfortable computing experience for daily office work and multimedia applications. The LG Cloud Monitor (Zero Client) combined with a Teradici PCoIP Processor and VMware Software result in an innovative ‘PCoIP Virtual Computing’ solution.

Case Study: Corona Norco Unified School District

Corona Norco Unified School District selected LG zero client displays that not only provide quality products that met its budget requirements, but also provide additional technology support and contribute to overall energy savings across the district. With Teradici, the monitors have centralized computing that makes the routine management of student labs and courseware easier to maintain.

Panel
TAA ComplaintYes
ProcessorTeradici Tera2321 PCoIP Chip
RAM512MB
ProtocolPCoIP
Networking10 / 100 / 1000
Response Time (on/off)14ms (GTG)
Viewing Angle (CR≥10)178°/178°
Surface TreatmentNon-Glare
Aspect Ratio16:10
Brightness (Typical)250 cd/m2
Color Depth (DFC)16.7M
Panel TypeAH-IPS
Resolution1440 x 900
Contrast Ratio1,000:1(Typ) 5,000,000:1(DFC)
Size (Inch) 20” Class (19.5” measured diagonally)
Pixel Pitch (mm) 0.2907(H)x0.2915(V)
System
Networking10/100/1000 Ethernet
ProcessorTeradici Tera2321 PCoIP Chip
Memory512MB
POWER CONSUMPTION (TYPICAL)
Watts in on 24W(D-sub)/29W(PCoIP)
Watts in sleep 0.5W(D-sub)/7W(PCoIP)
Watts in off 0.5W(D-sub)/0.5W(PCoIP)
Analog Frequency
H-Frequency30kHz ~ 68kHz
V-Frequency57Hz ~ 63Hz
Dimensions
Weight Set w/Stand12.3 Ibs.
UPC7 19192 19162 4
20CAV37K-B 7 19192 19162 4
Weight Set w/o Stand7.4 Ibs.
Warranty3 Years (Parts, Labor, Backlight)
Set w/o Stand (W x H x D)21.4" x 13.1" x 1.9"
Set w/Stand (W x H x D)21.4" x 15.2" x 5.1"
Box weight16.2 lbs
Box (W x H x D)24.3" x 15.9" x 7.8"
Input (Signal)
D-SubYes
Speaker
Built-in SpeakerYes (5W x 2)
Output (Signal)
DVIYes (Dual)
Others10/100 /1000
Interactive
USB 2.06 (4 Back, 2 Side)
Power
Power Save/Sleep Mode (Max)0.5W (Monitor) 5.5W (Cloud)
TypeAdapter (19V DC)
Input100 - 240V
Normal On (Typ) 18W (Monitor) 23W (Cloud)
DC Off (Max)0.5W (D-sub)/0.5W (Cloud)
INPUT AUDIO
Mic In Yes
OUTPUT AUDIO
Headphone Out Yes
Special Features
IPS Yes
2.0 USB Input (6) Yes
UPoE available with AUPoE* Adapter Yes *AUPoE sold separately
Cabinet
ColorBlack Hairline
Set (with Stand) (WxHxD)21.5" x 15.3" x 8.9"
Set Weight (with Stand)12.3 Ibs.
Set (without Stand) (WxHxD)21.5" x 13.1" x 1.9"
Set Weight (without Stand)7.4 Ibs.
Box (WxHxD)24.3” x 15.9” x 7.8”
Box Weight16.3 Ibs.
StandBase detachable, Tilt (Yes / -5º (front) ~15º (rear)), Swivel (90º), Height (130mm), Pivot
VESA Standard Mount Interface100mm x 100mm
STANDARD CERTIFICATION
UL(cUL) Yes
TUV-Type Yes
FCC-B, CE Yes
RoHSYes
INPUT/OUTPUT
USB (2.0) 6 (4 Rear, 2 side)
OthersLAN (Ethernet)
Headphone Out Yes
DVI-I out (Dual) Yes
D-sub in Yes
Audio Input (Mic In) Yes
Frequency
H-Frequency (Analog)30~69kHz
V-Frequency (Digital)57Hz ~ 63Hz
Stand
VESA Mount™100mm x 100mm
PivotYes
Base Detachable Yes
Tilt-5°(front)/15°(rear)
Swivel (Angle)90°
Height (mm)130mm
Warranty
Warranty3-Year Limited Warranty (Parts/Labor/Backlight)
Accessories
D-SubYes
Power CordYes
