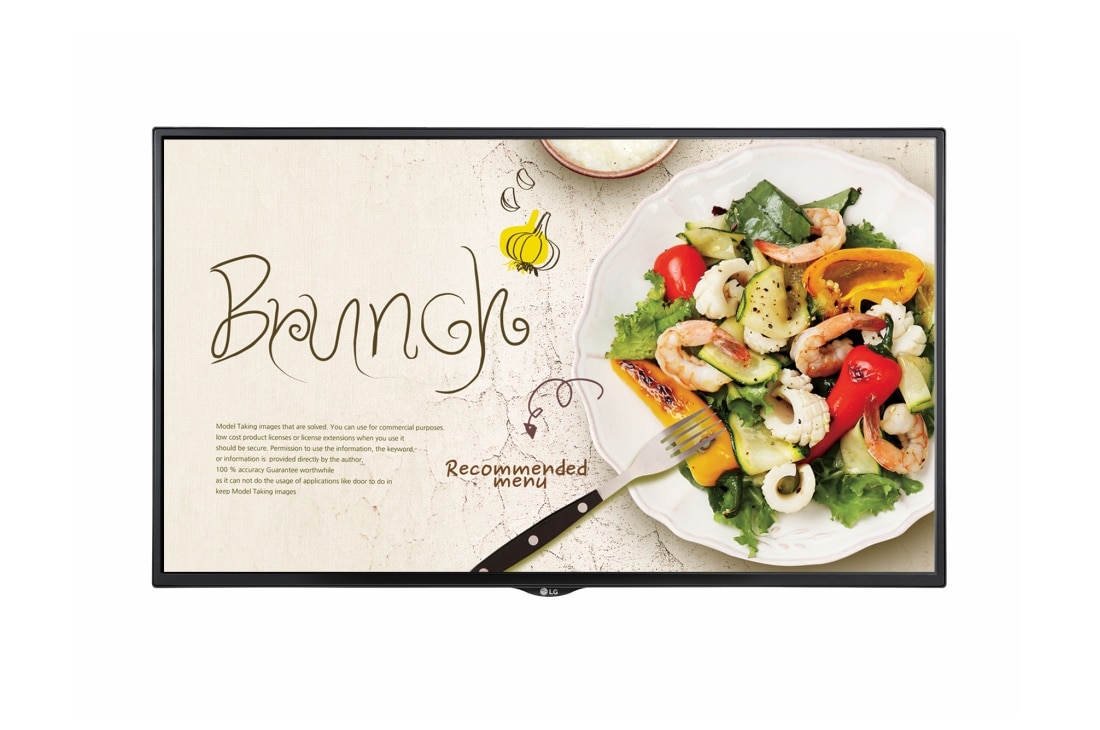

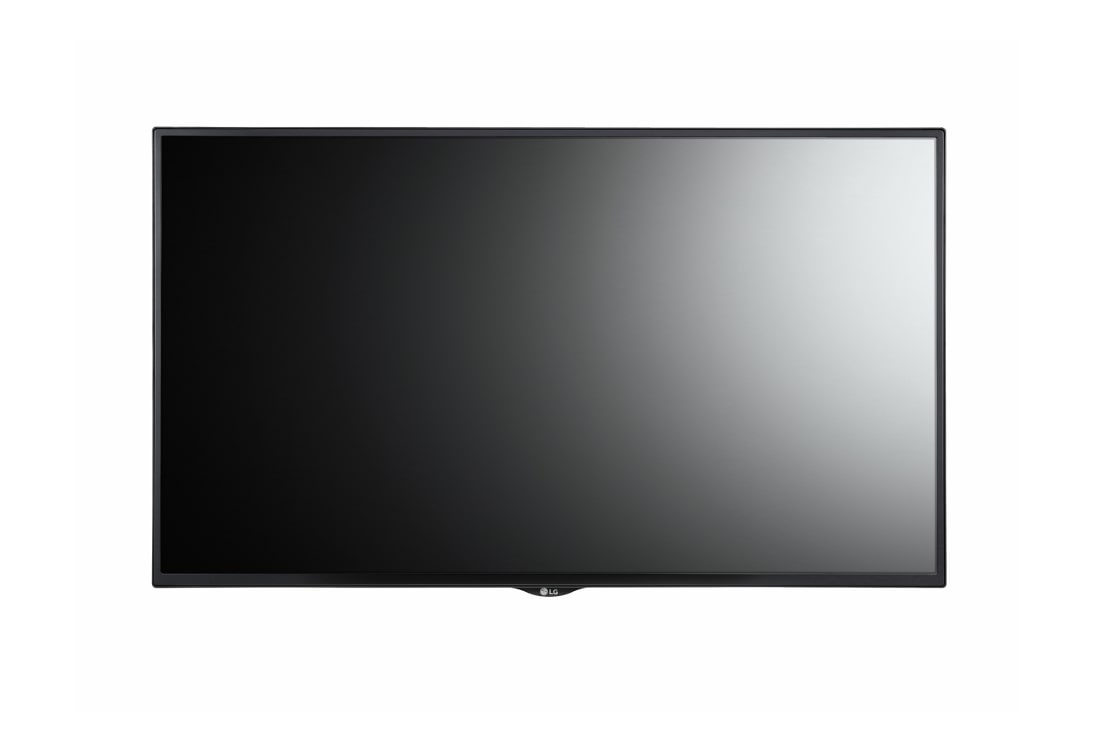

32SM5KE-B
SM5KE Series
  • Brightness(Typ.) : 400 cd/m²
  • Bezel : 13 mm (T/R/L), 18 mm (B)

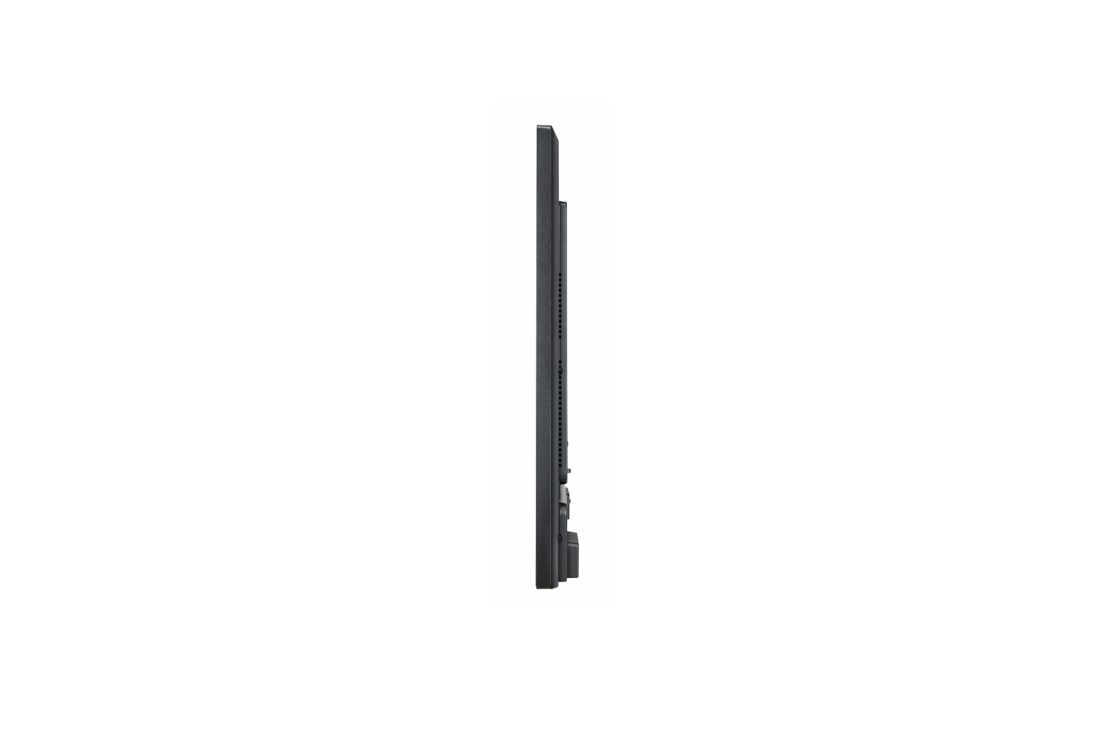

  • Depth : 55.5 mm

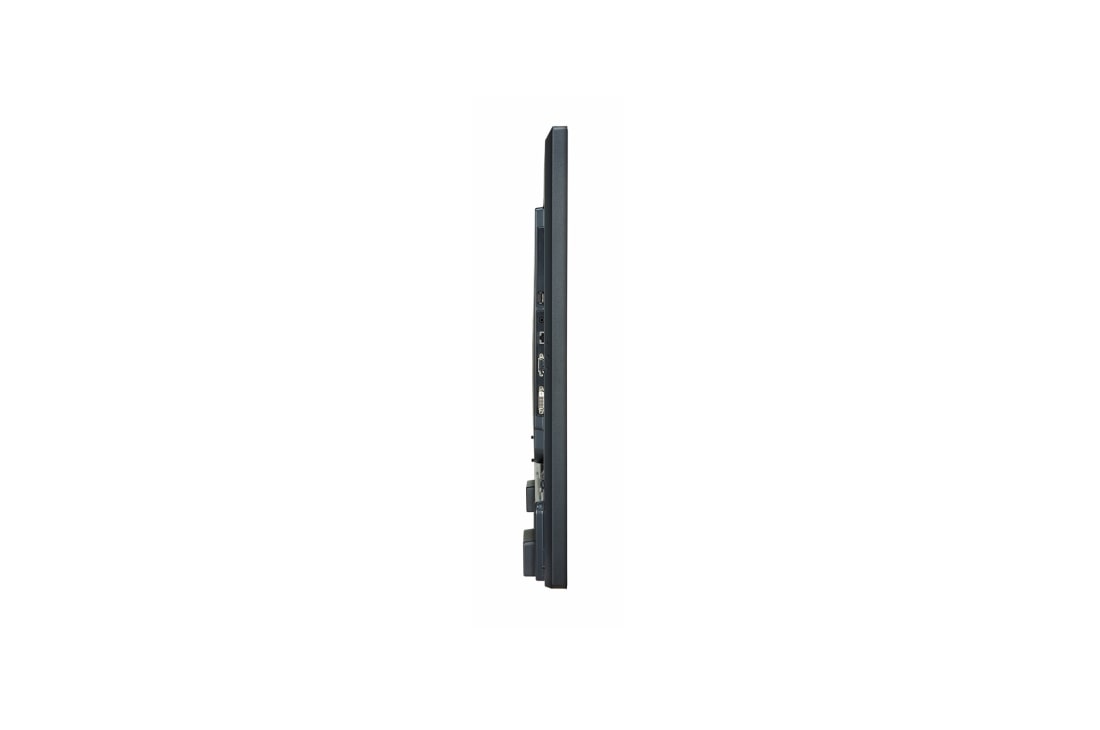

  • Interface : HDMI(3)/ DP/ DVI-D/ USB 3.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker : 10W + 10W
SM5KE Series
MSRP AED
* HLS (HTTP Live Streaming) /* UDP (User Datagram Protocol )
* RTSP(Real-Time Streaming Protocol)/* RTP (Real-time Transport Protocol)
  • Content Sharing1

    Content Sharing

    Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion1

    Real-time Promotion

    With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

  • HTTPS1

    HTTPS

    With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.

  • Proxy Server1

    Proxy Server

    Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

* Supported model: NIPPON PRIMEX (NP-3511,NP-3611)

PANEL

  • Screen Size
    32"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    400

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP(SST), Audio(Off/Fixed/Variable)
  • External Control
    RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

  • Bezel Width
    13 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    729.4 x 428.9 x 55.5 mm
  • Weight (Head)
    5.4 kg
    Monitor with Optional Stand Dimensions (W x H x D)
    729.4 x 481 x 154.2 mm
  • Weight (Head+Stand)
    6.2 kg
    Carton Dimensions (W x H x D)
    810 x 510 x 132 mm
  • Packed Weight
    6.7 kg
    VESA™ Standard Mount Interface
    200 x 200 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.
    60 W (TBD) / 85 W
    Smart Energy Saving
    45 W (TBD)

STANDARD (CERTIFICATION)

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes
    External Media Player Attatchable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control

ACCESSORY

  • Basic
    Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional
    Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T32E)
