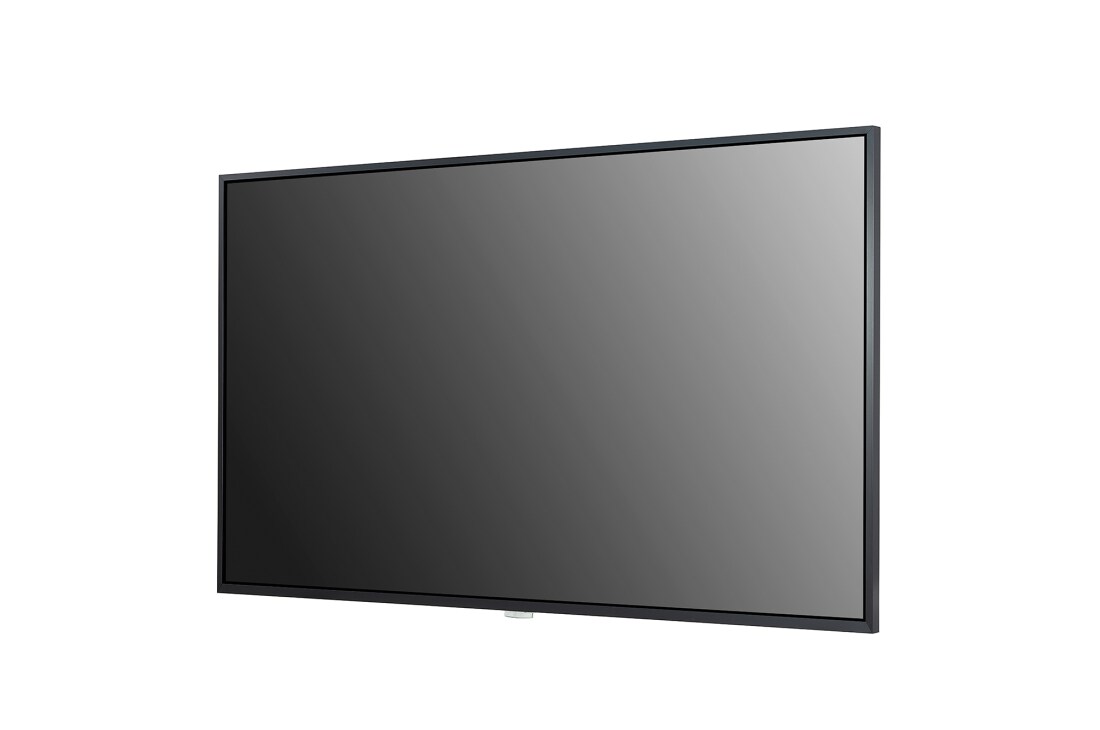

LG 55'' 350 nits 60 Hz UHD Signage, 55UM3DG-B, thumbnail 3

LG 55'' 350 nits 60 Hz UHD Signage, 55UM3DG-B, thumbnail 4

LG 55'' 350 nits 60 Hz UHD Signage, 55UM3DG-B, thumbnail 5

LG 55'' 350 nits 60 Hz UHD Signage, 55UM3DG-B, thumbnail 6

LG 55'' 350 nits 60 Hz UHD Signage, 55UM3DG-B, thumbnail 7

LG 55'' 350 nits 60 Hz UHD Signage, 55UM3DG-B, thumbnail 8

ADD TO WISHLIST

Discontinued

55UM3DG-B component-copyModelName

55'' 350 nits 60 Hz UHD Signage

Name: 55'' 350 nits 60 Hz UHD Signage
Brand: LG UAE
SKU: 55UM3DG-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Depth : 39.9 mm
Interface : HDMI(3)/ USB 2.0/ RS232C/ RJ45/ Audio
Built-in Speaker and Detachable Logo
15º Tilting Installation

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 350 cd/m²
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Depth : 39.9 mm
Interface : HDMI(3)/ USB 2.0/ RS232C/ RJ45/ Audio
Built-in Speaker and Detachable Logo
15º Tilting Installation

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

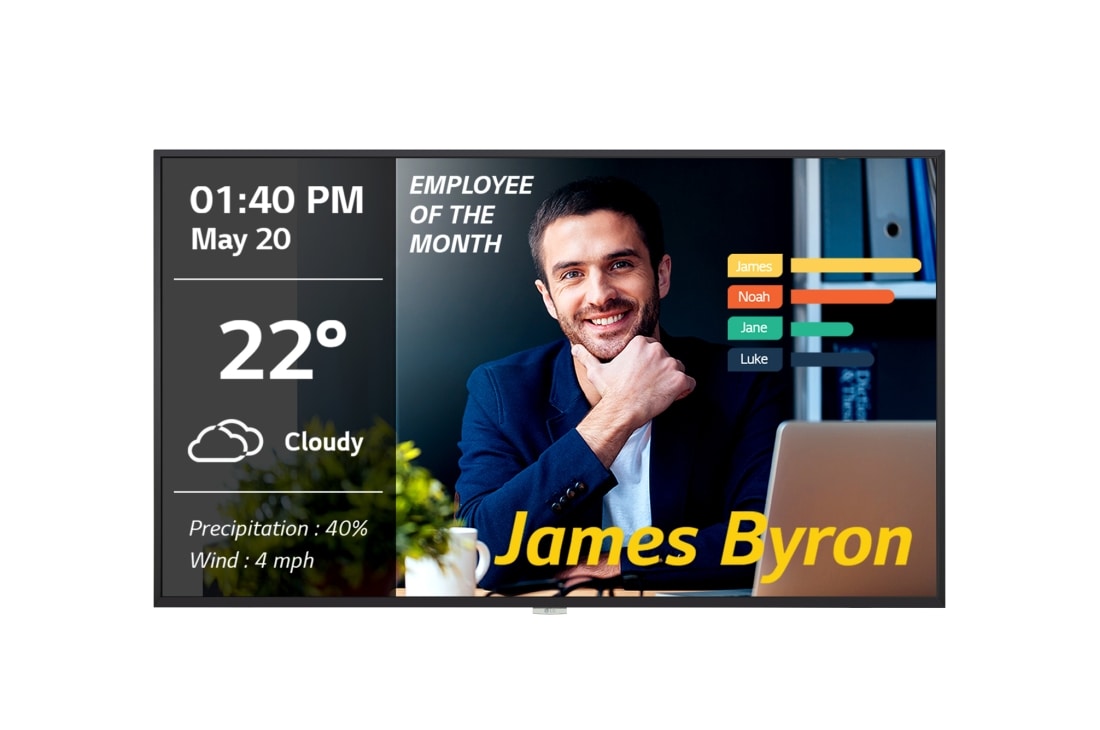

55" 350 nits 60 Hz UHD Signage

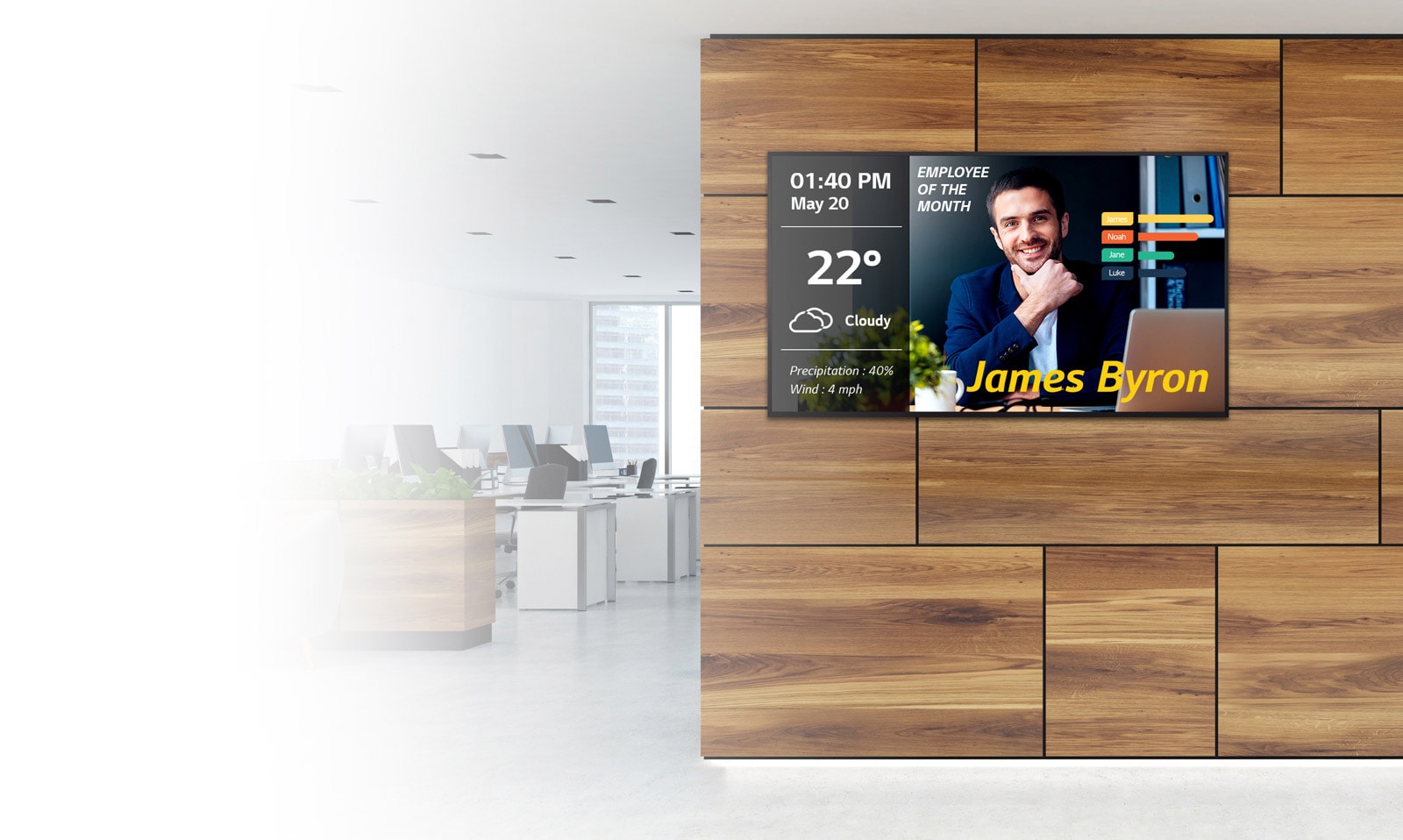

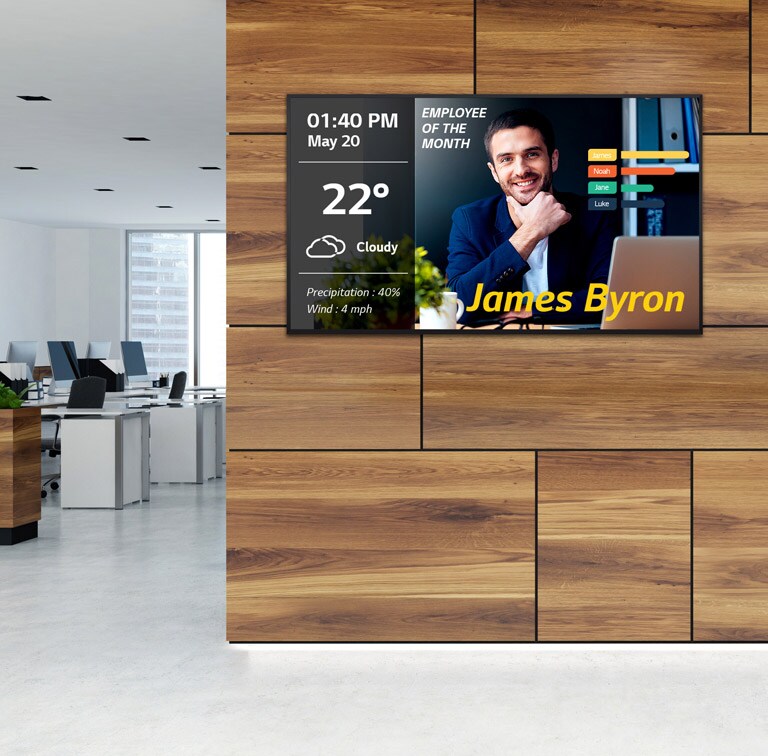

LG UHD Signage Provides Information Effectively

The UM3DG series is a UHD signage that has been optimized for various indoor environments. It features superior UHD quality, slim design, external dust protection, and various convenience for users.

SUPERB PICTURE QUALITY

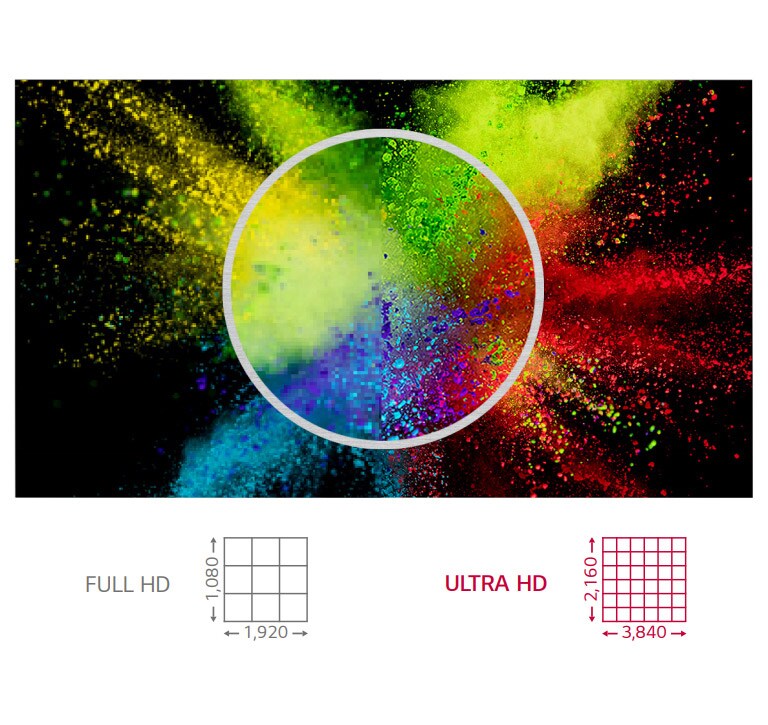

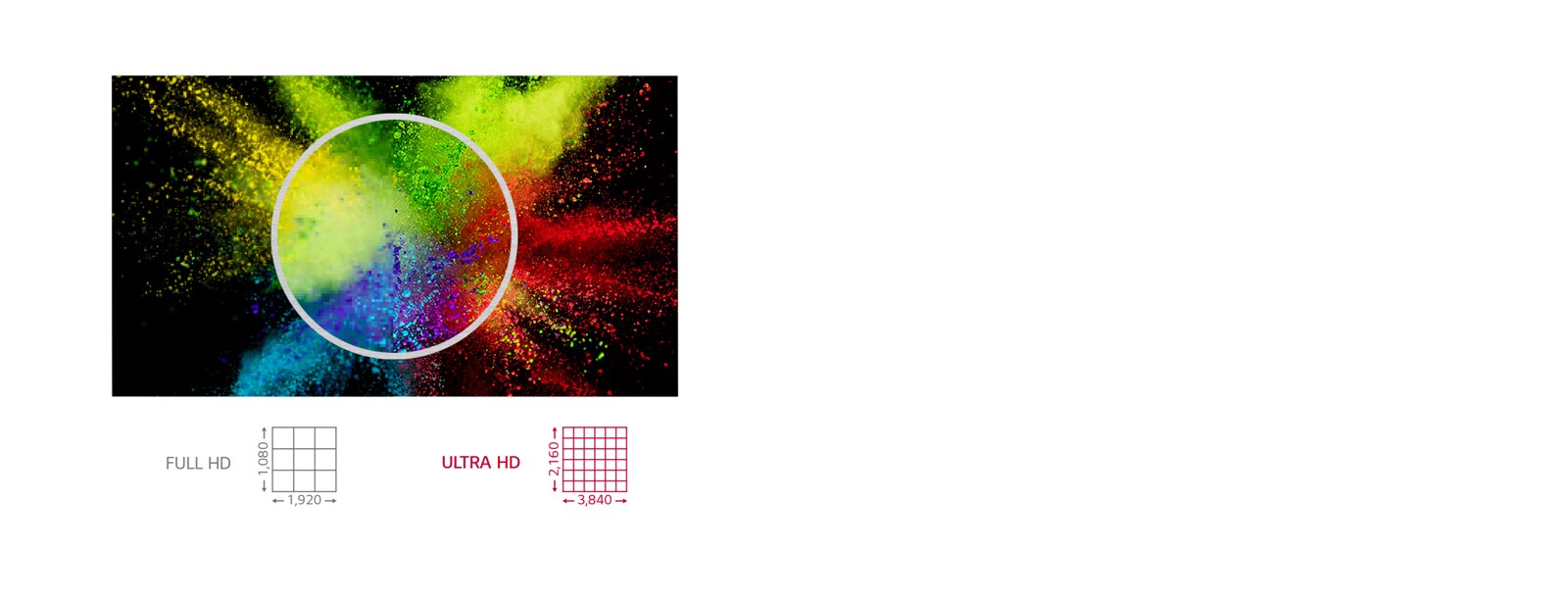

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.

SUPERB PICTURE QUALITY

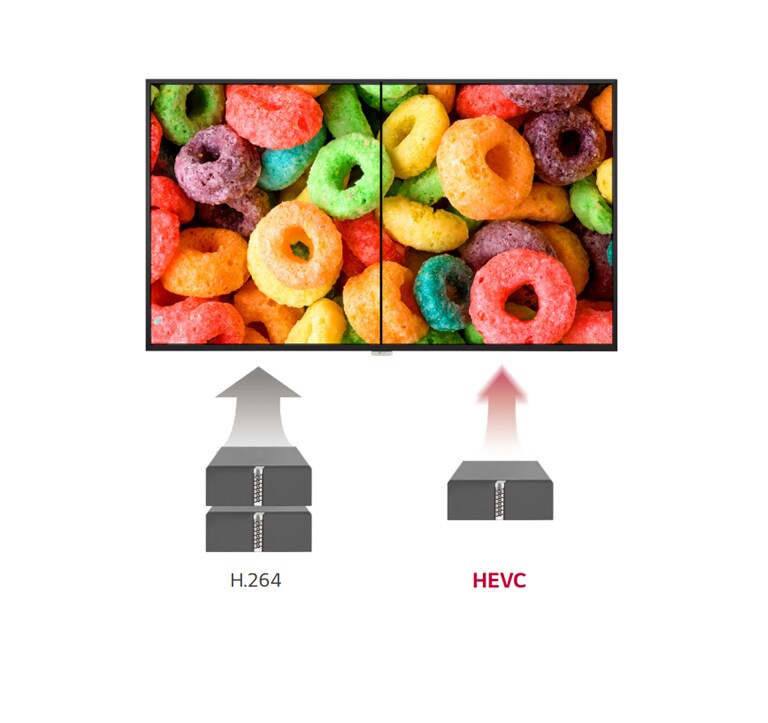

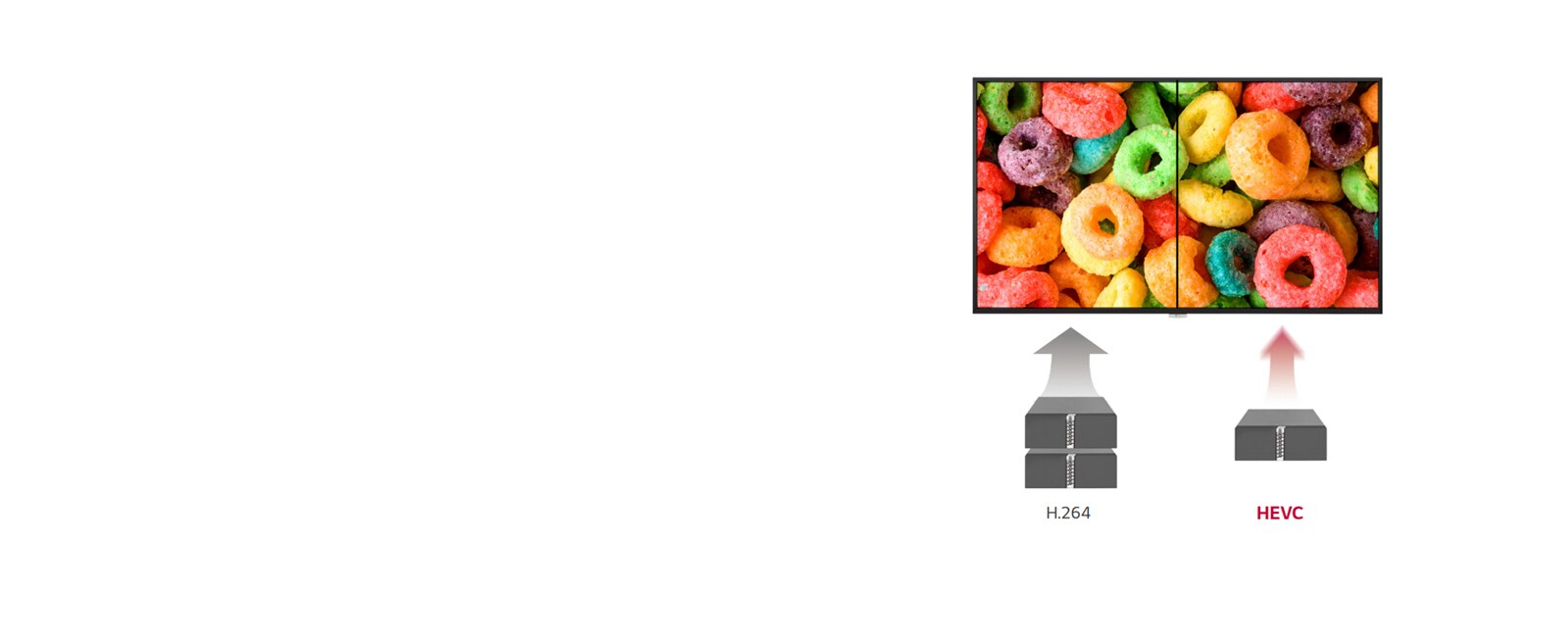

High Efficiency Video Coding

The UM3DG series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.

* HEVC : High Efficiency Video Coding

SLEEK AND PRACTICAL DESIGN

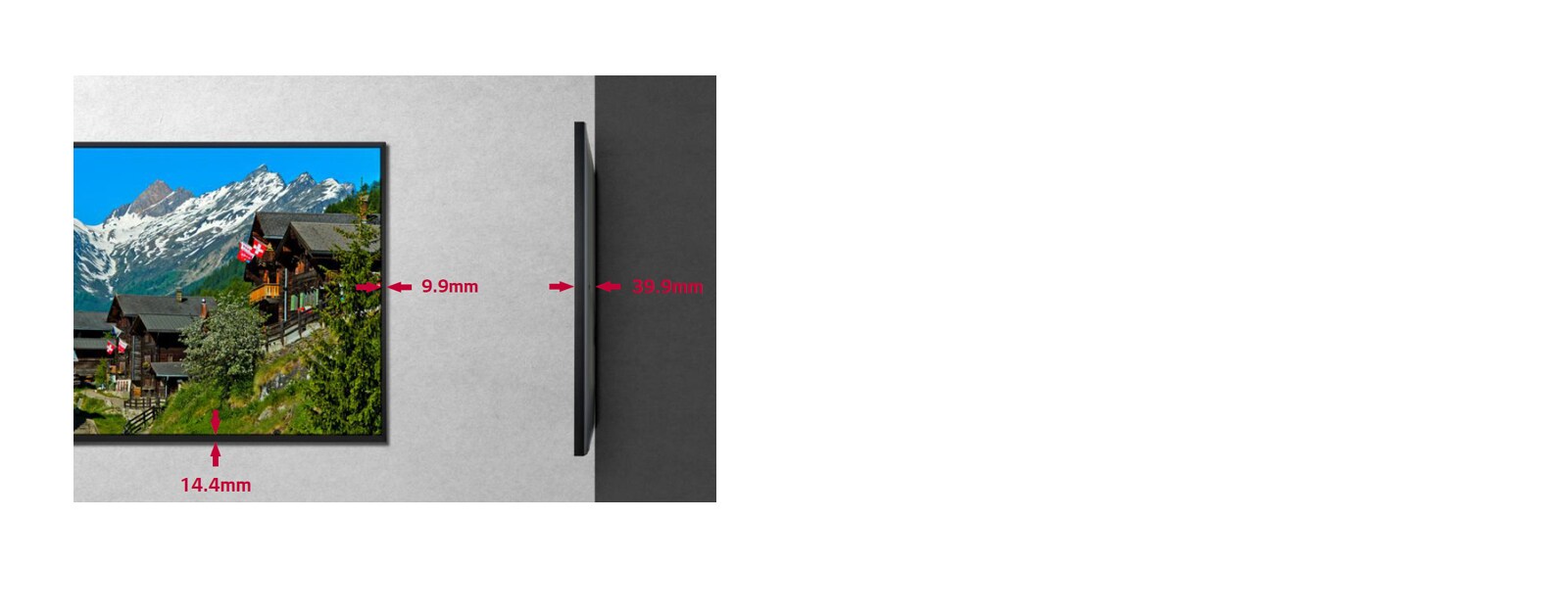

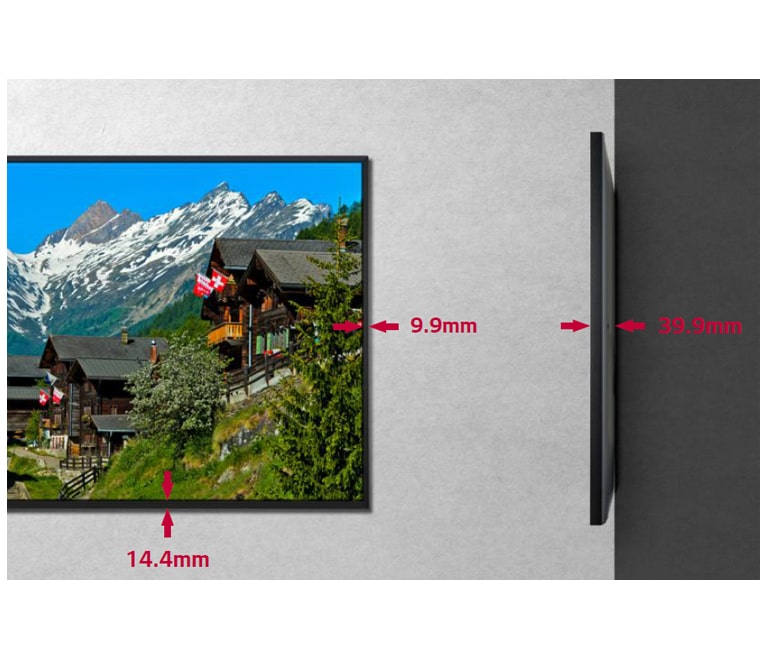

Narrow Bezel & Slim Depth

The UM3DG series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

SLEEK AND PRACTICAL DESIGN

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

PRODUCT RELIABILITY

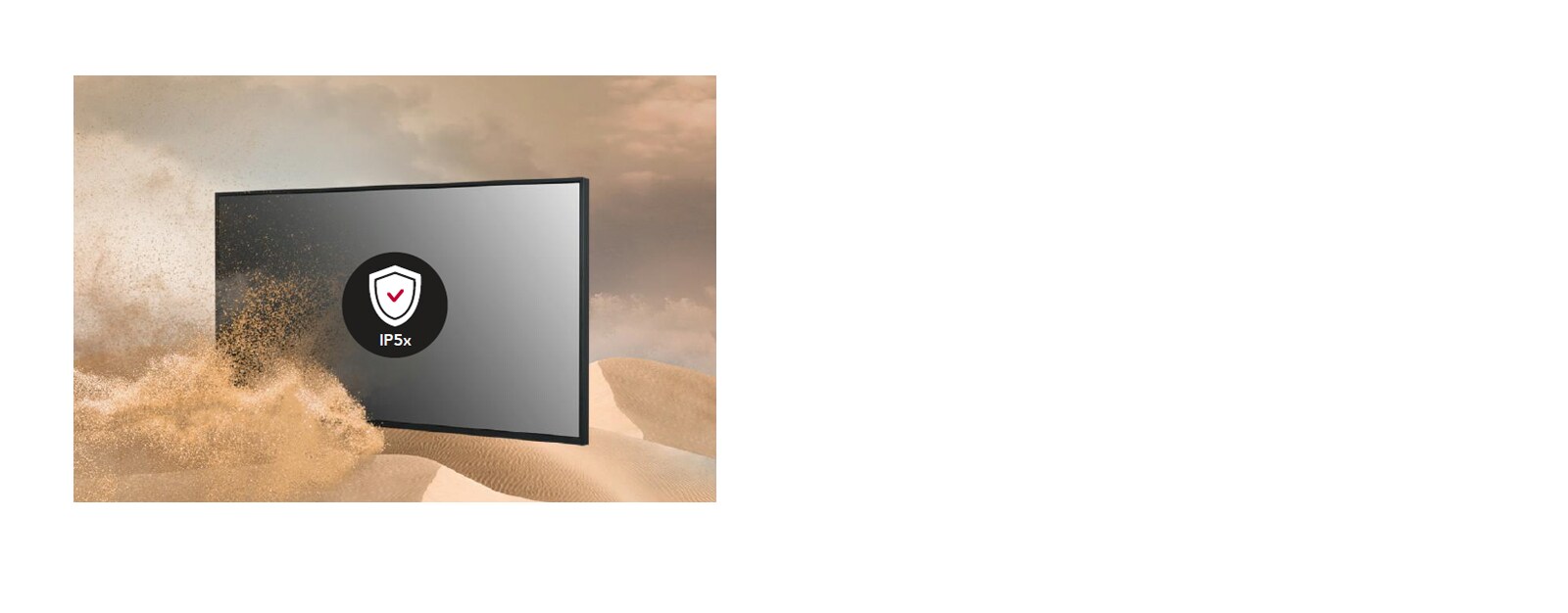

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

PRODUCT RELIABILITY

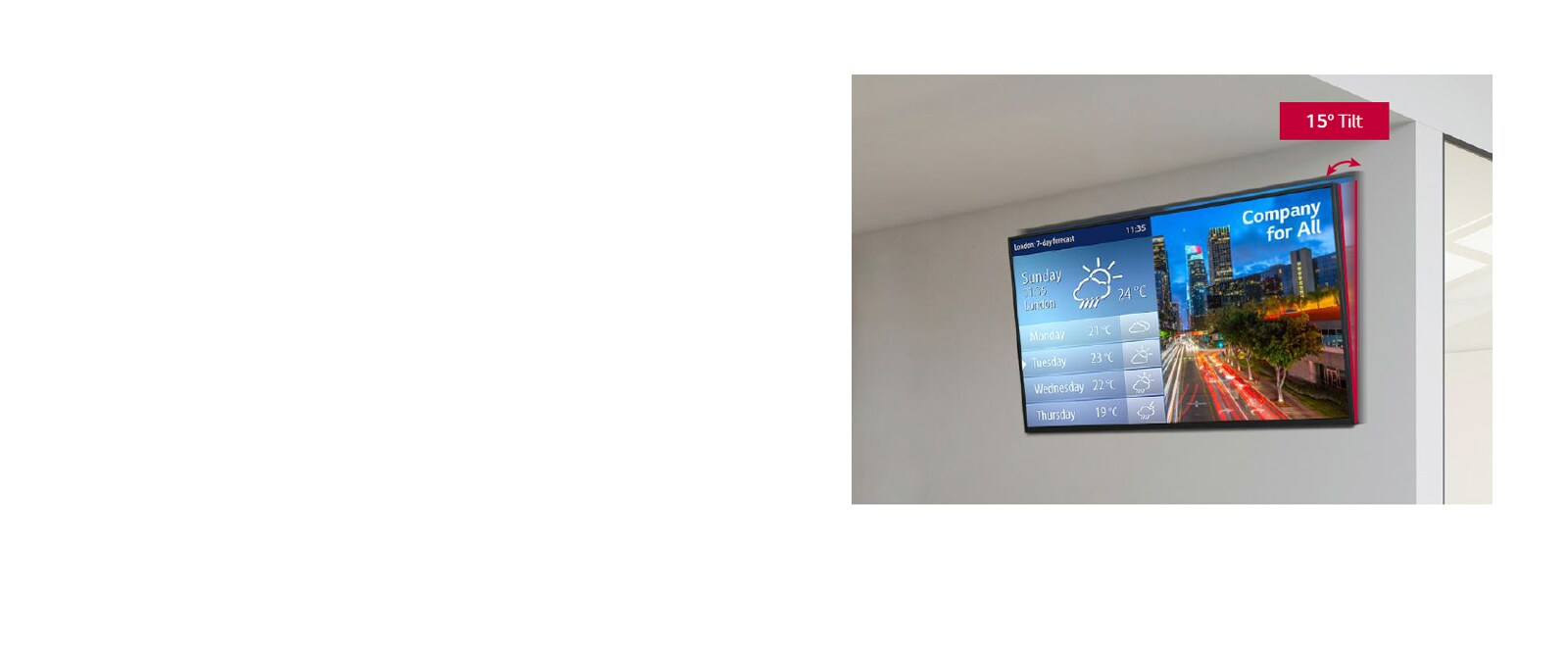

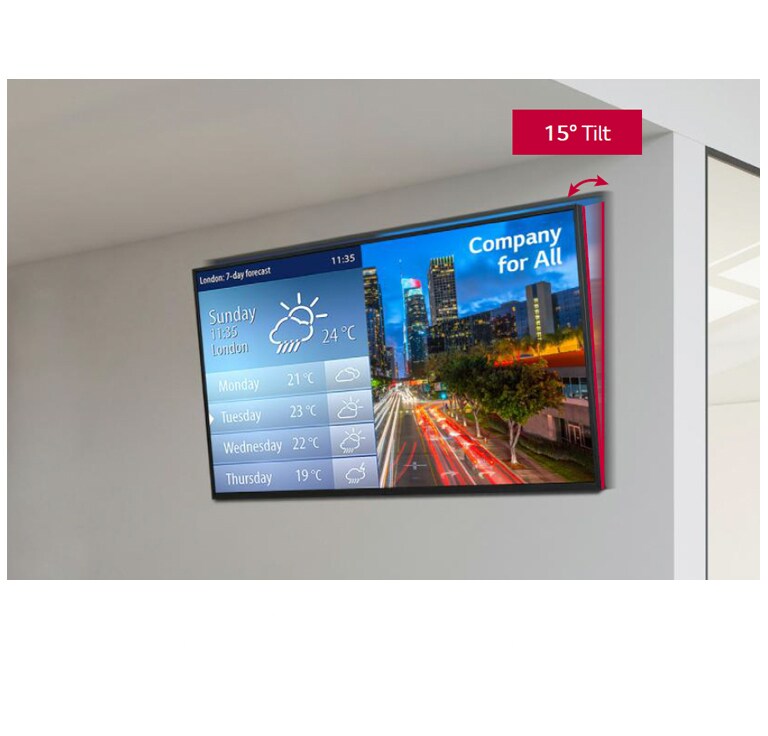

15° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the UM3DG series supports the installation with 15 degrees of tilt*.

* Tilt installation of up to 15 degrees facedown is supported. (in conditions within 30ºC temperature, 50 humidity)

USER CONVENIENCE

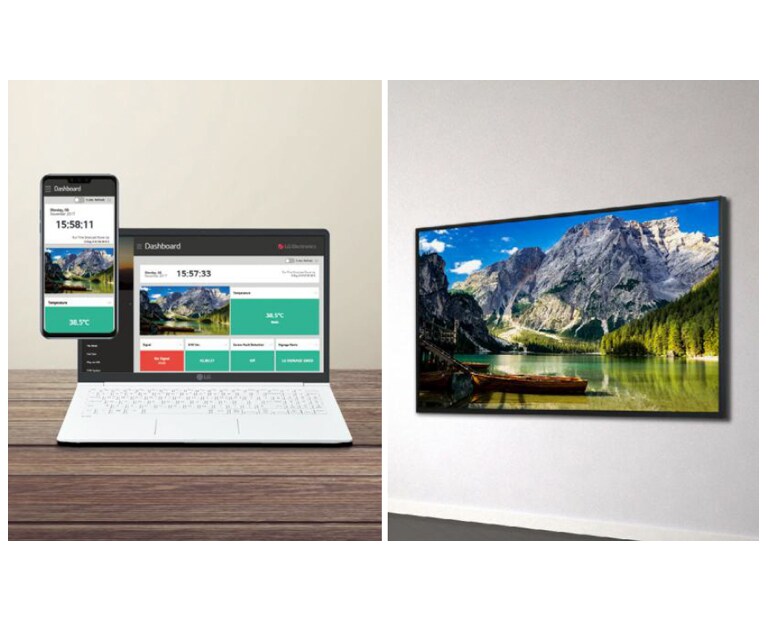

Remote Monitoring

The UM3DG series can email notifications to users when there is a problem, such as tilting of the product by external impact, so users can operate the product in a safer manner as they can get the information about the problem right away.

USER CONVENIENCE

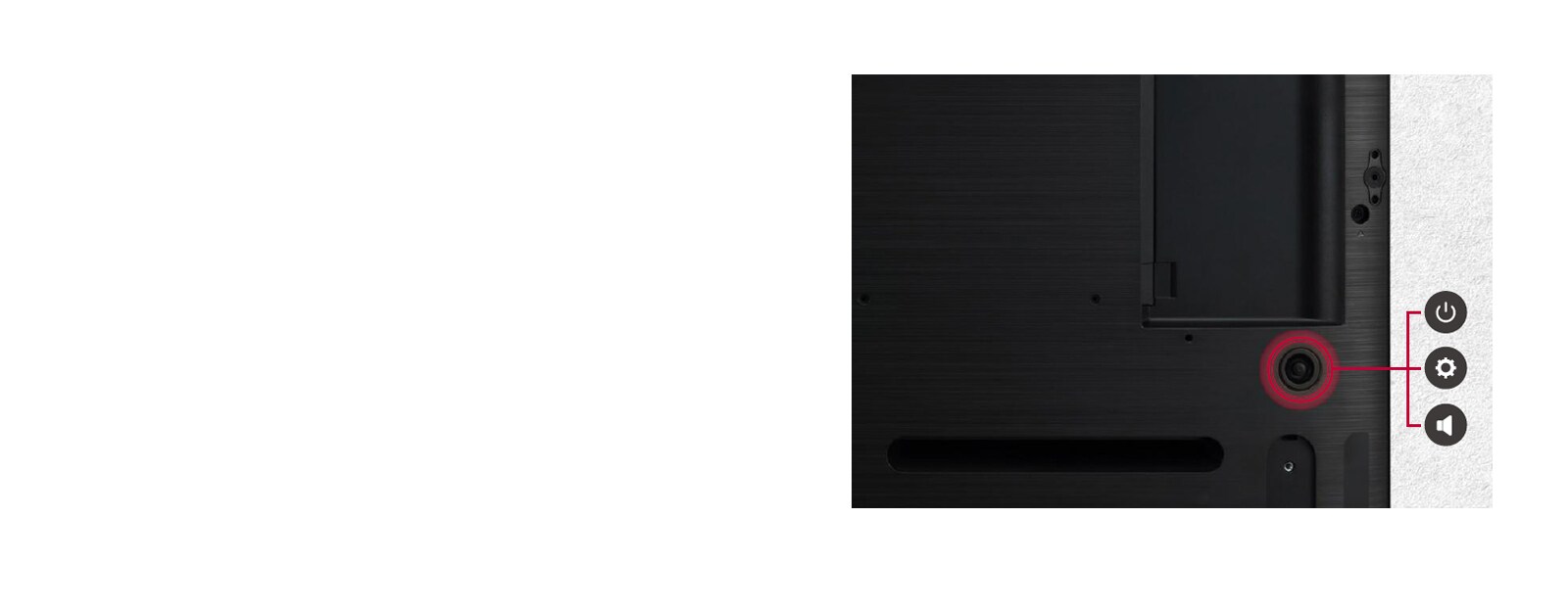

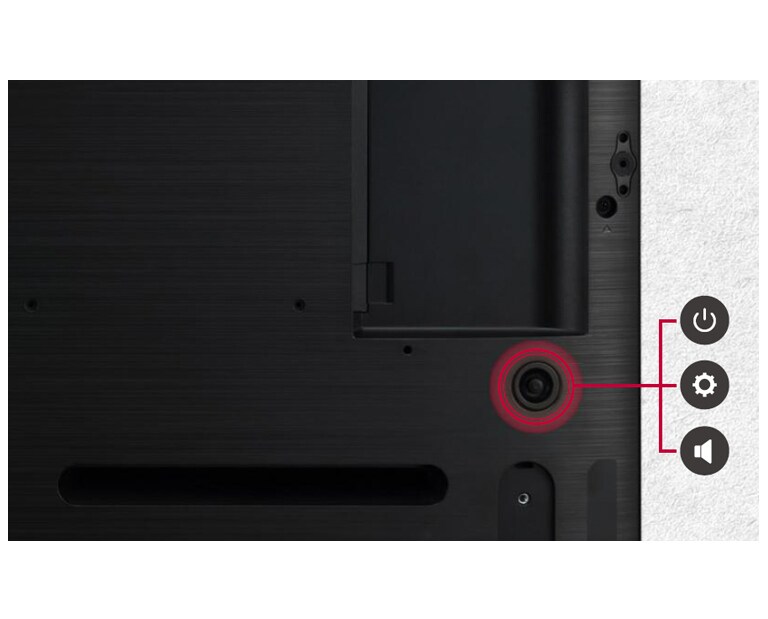

Simple Accessibility

Unlike other models where various buttons have to be pressed for control, the UM3DG series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, etc.

SMART FUNCTION

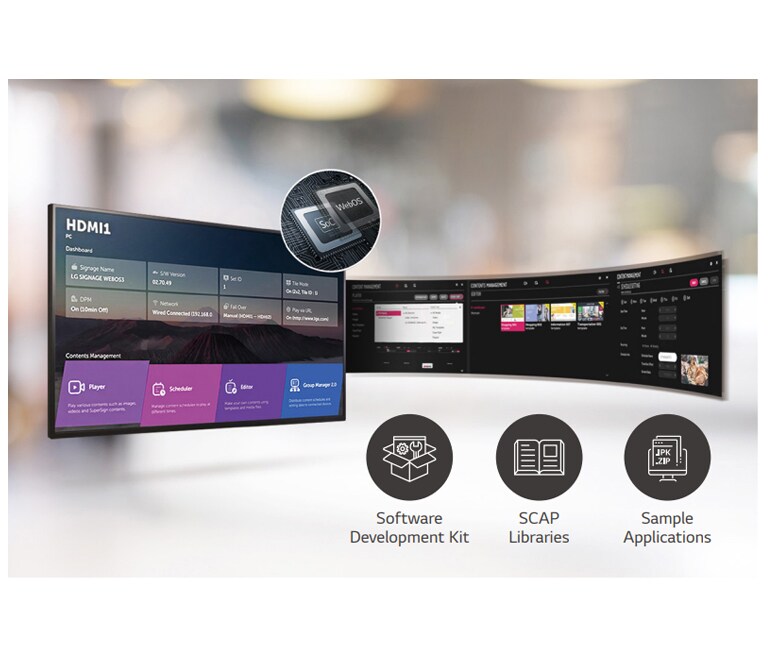

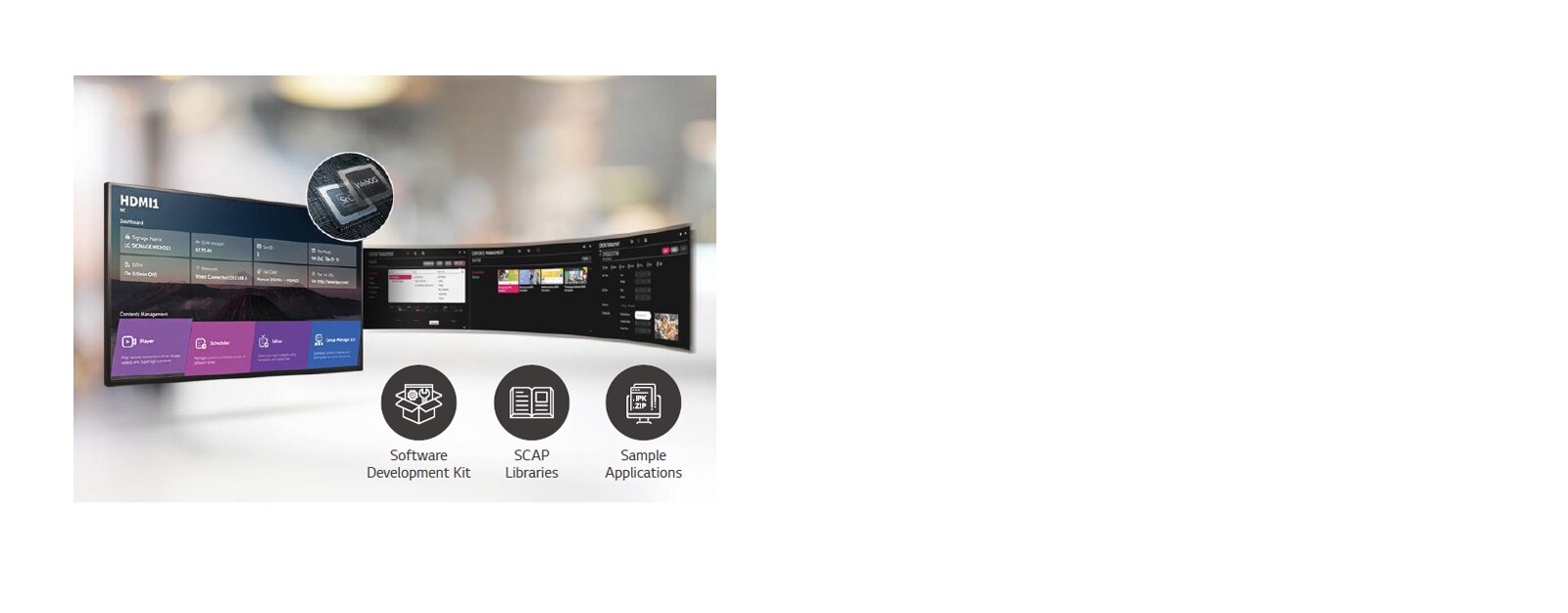

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

SMART FUNCTION

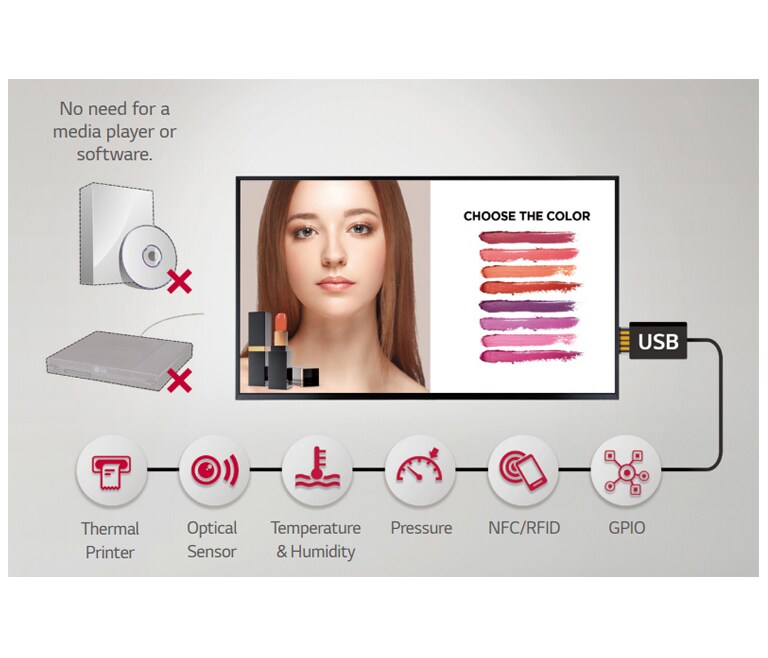

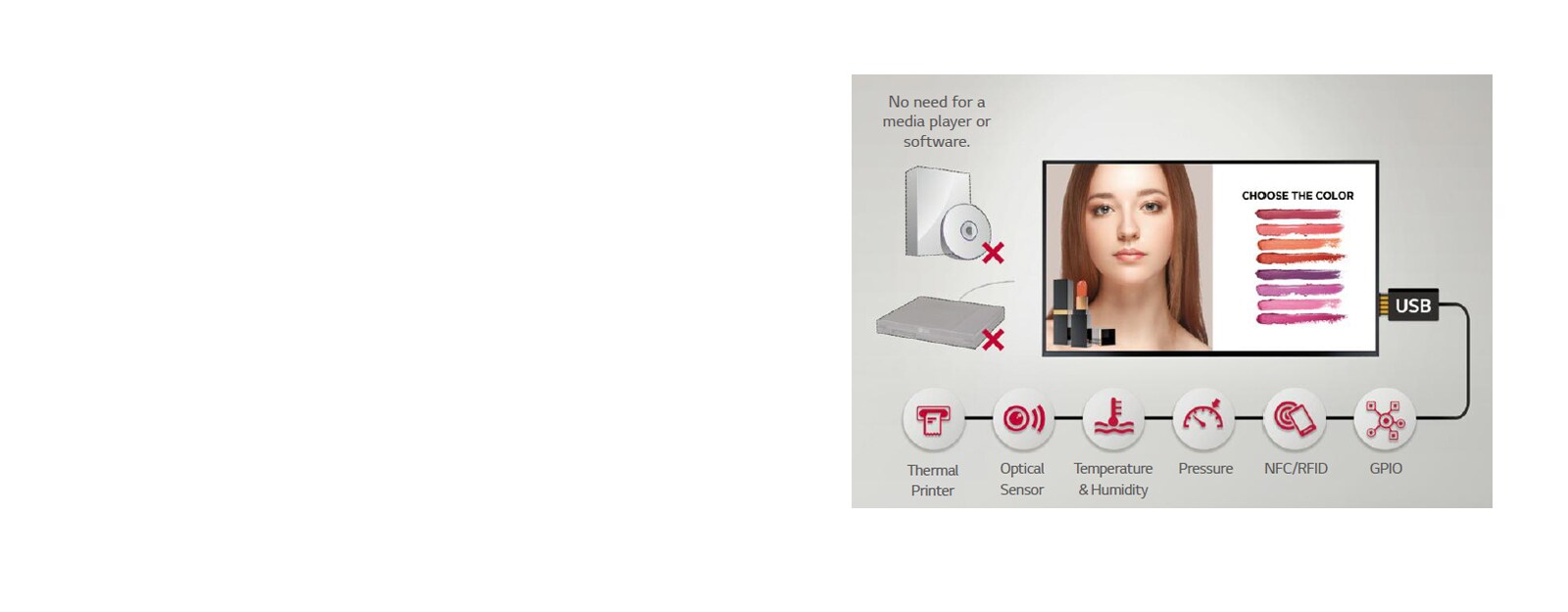

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

SMART FUNCTION

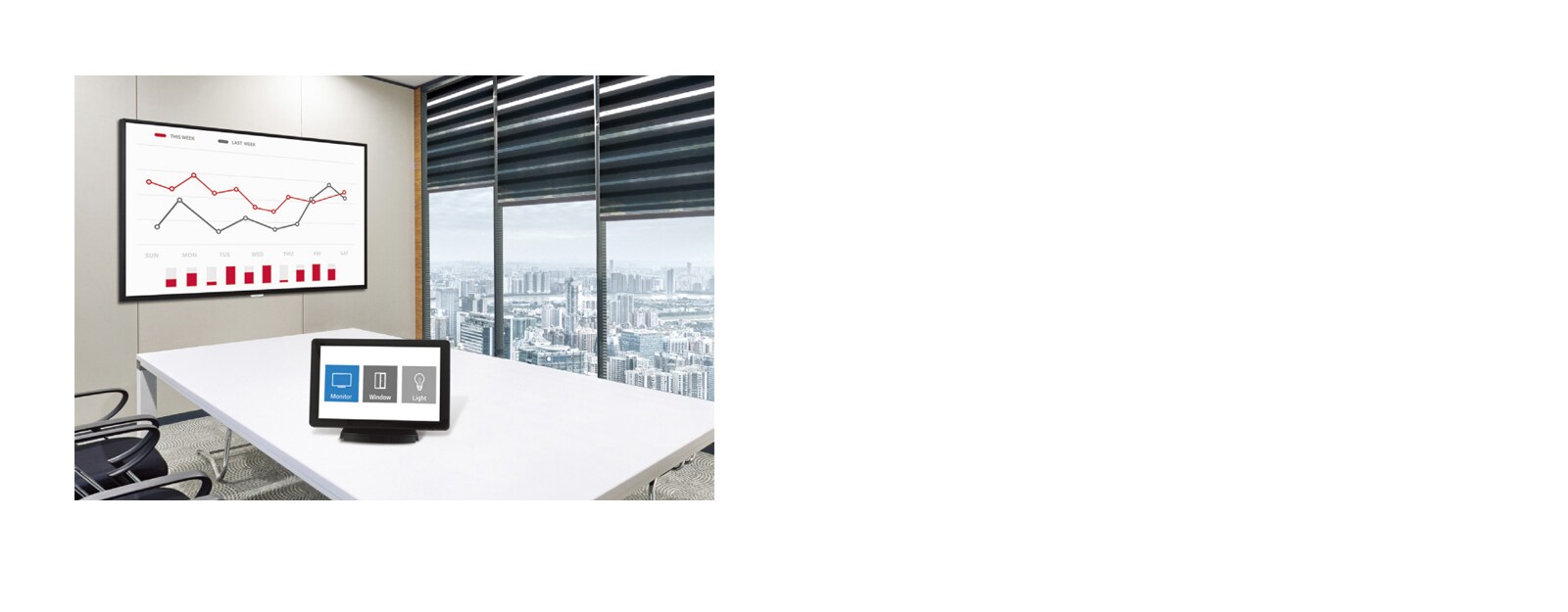

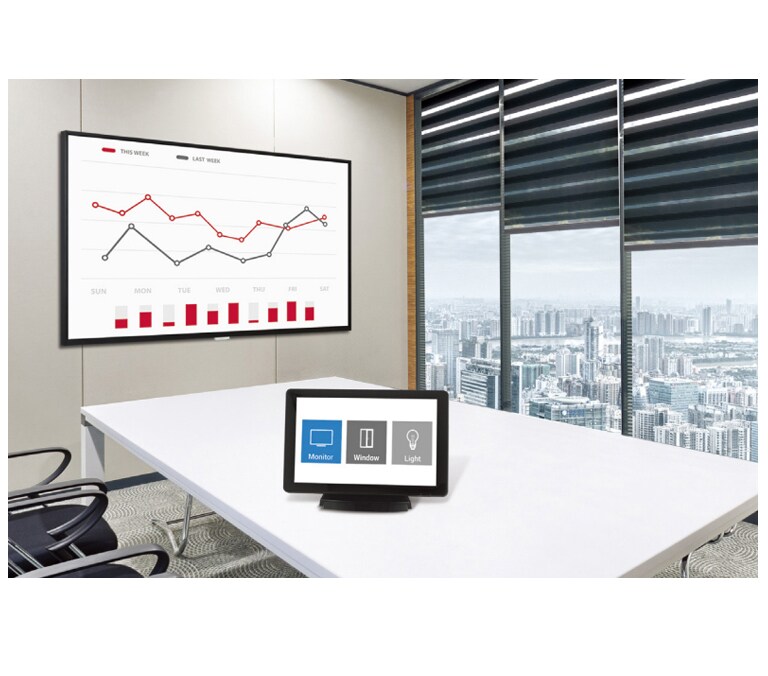

Compatibility with AV Control System

The UM3DG series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

Compatibility with Video Conference System1

SMART FUNCTION

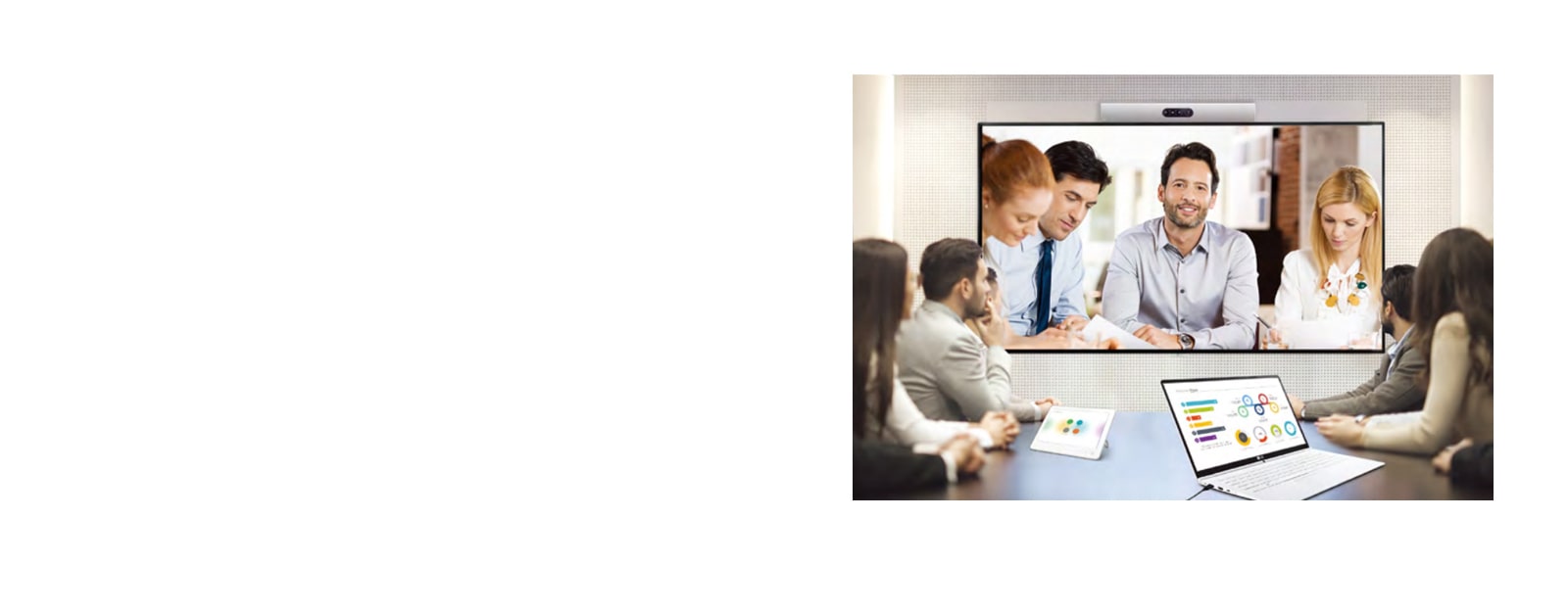

Compatibility with Video Conference System

For the optimum visual meeting, the UM3DG series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

PANEL

Screen Size

55"

Panel Technology

IPS
Aspect Ratio

16 : 9

Native Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)

350

Contrast Ratio

1,100:1
Viewing Angle (H x V)

178 x 178

Response Time

8ms(G to G)
Surface Treatment (Haze)

Haze 3%

Life time (Typ.)

50,000 Hrs
Operation Hours (Hours / Day)

18 / 7

Portrait / Landscape

Yes / Yes

CONNECTIVITY

Input

HDMI (3, HDCP 2.2), USB 2.0 Type A

Output

Audio (Off/Fixed/Variable)
External Control

RS232C In/Out (4Pin Phone-jack)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

9.9 mm (T/R/L), 14.4 mm (B)
Weight (Head)

19.0 kg

Weight (Head+Stand)

19.6 kg
Packed Weight

24.2 kg

Monitor Dimension (W × H × D)

1,234.4 x 720.9 x 39.9 mm
Monitor incl. Stand Dimensions (W x H x D)

1234.4 x 770.7 x 290.0 mm

Carton Dimensions (W × H × D)

1,360.0 x 835.0 x 175.0 mm
Handle

No

VESA™ Standard Mount Interface

300 x 300

SPECIAL FEATURE

Tilt (Facedown)

Max. 15º *In conditions within 30ºC temperature, 50% humidity

IP Rating

IP5x

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

95W / 140W

Smart Energy Saving

70W

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+
Signage365Care

Yes

ACCESSORY

Basic

Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS232C Gender

Optional

Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S)

COMPLIANCE INFORMATION

More Compliance Information

The safety information for accessories is included with the safety information for the product and is not provided separately.
