75XE3C-B component-copyModelName

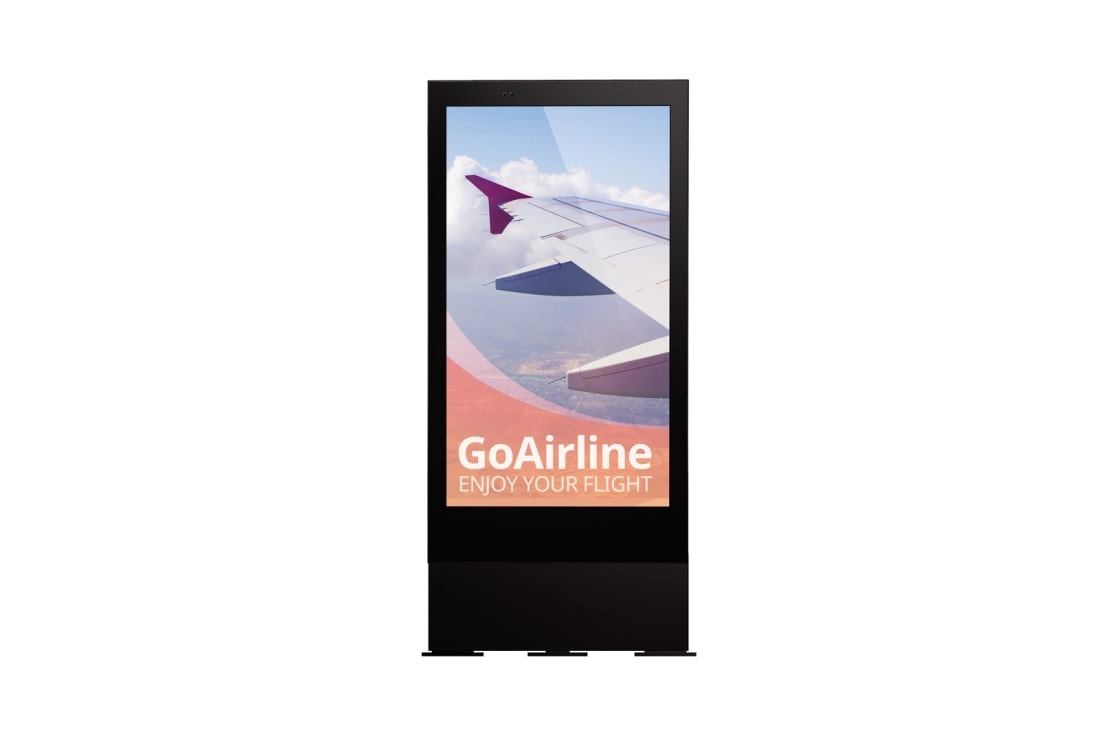

IP Rated High Brightness Outdoor Display

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75XE3C-B)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75XE3C-B)
    AED
    AED
    LG Members Price
Total
IP Rated High Brightness Outdoor Display
Find a Dealer

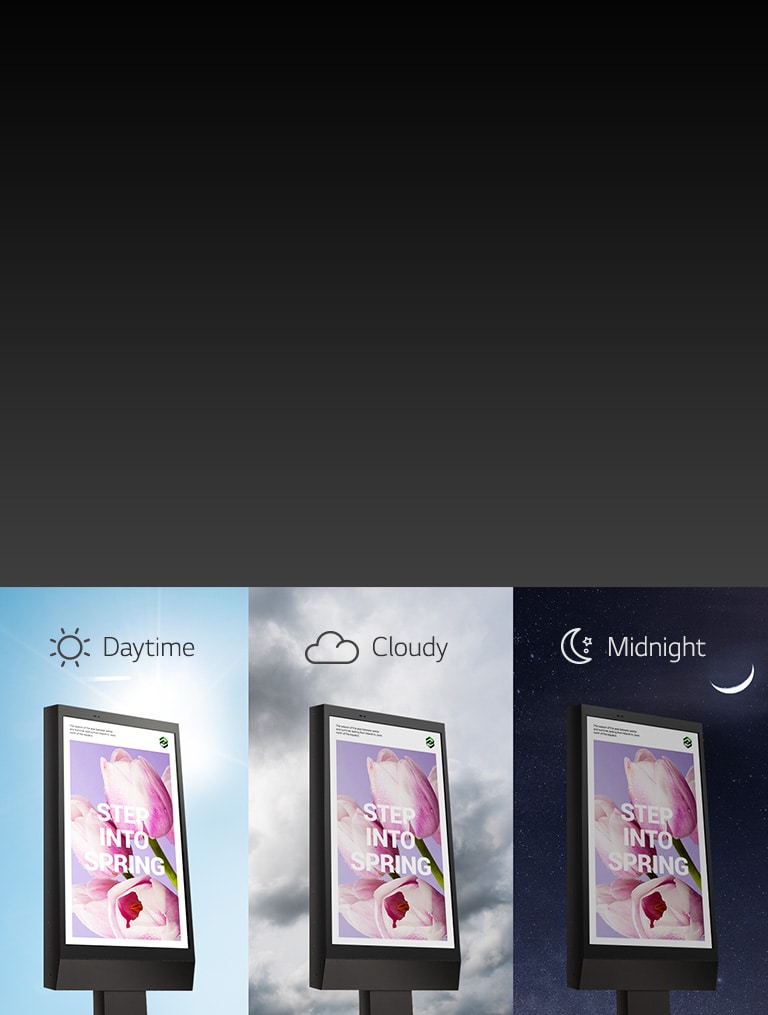

Smart Brightness Control1 Smart Brightness Control2
Auto Brightness Sensor

Smart Brightness Control

Screen brightness is automatically adjusted according to the surrounding illumination level. The brightness is increased in light for better visibility, while it is lowered in darkness to reduce power consumption.
Clear View: Polarized Sunglasses1 Clear View: Polarized Sunglasses2
QWP (Quarter Wave Plate)

Clear View: Polarized Sunglasses

FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.
True Colors, Wide View1 True Colors, Wide View2
IPS Panel Technology

True Colors, Wide View

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Conformal Coating1 Conformal Coating2

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
Protection from Dust & Humidity1 Protection from Dust & Humidity2
IP56 Design

Protection from Dust & Humidity

The XE series is sealed with IP56 design ensuring reliable operation. In addition to being waterproof, it is weatherproof against the sun, rain, snow, dust and wind's damaging effects.

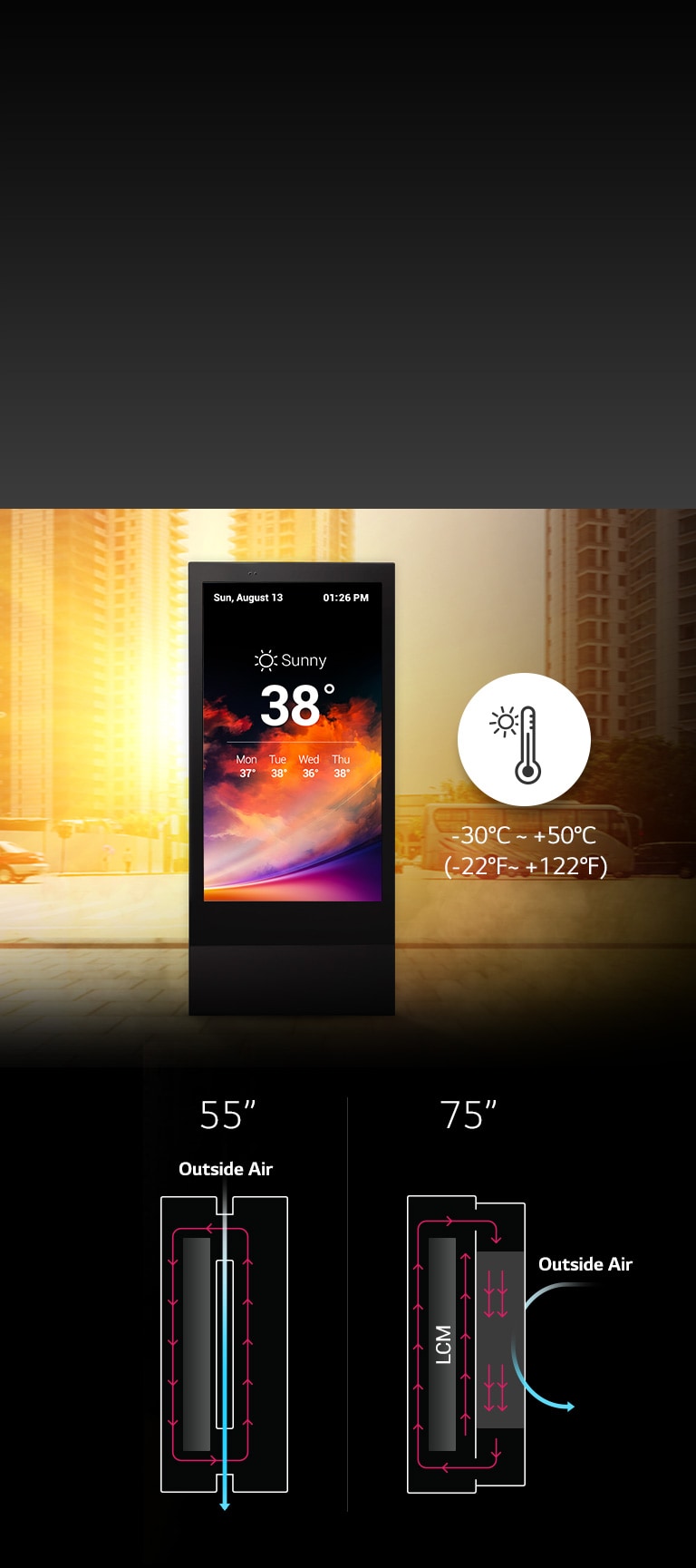

Efficient Air Circulation1 Efficient Air Circulation2
Thermal Management Solution

Efficient Air Circulation

Offers superb reliability in high temperatures. The patented thermal management technology efficiently cools down heat generated from every part of the product, preventing outside air from entering.
Protect against External Impact1 Protect against External Impact2
OCA (Optically Clear Adhesive) film

Protect against External Impact

Tempered and laminated front glass ensures optimum protection, from outdoor extremities allowing minimal to no damage from external impacts.
*9.5mm (75"), 7.5mm (55")
* Image is for illustration-purposes only.

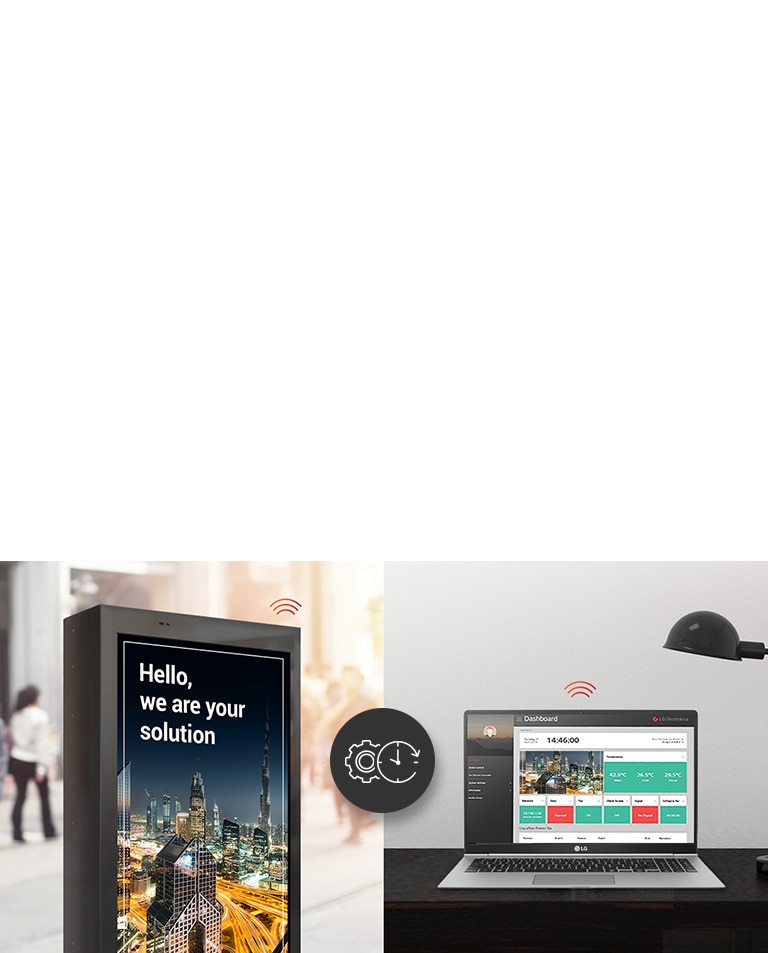

Web & Mobile Monitoring 1 Web & Mobile Monitoring 2
Embedded Control Manager

Web & Mobile Monitoring

Easy to control at all times, embedded web monitoring in the panel allows a variety of parameters to be diagnosed in real time via temperature, pixel, door, ambient light and gyro sensors.

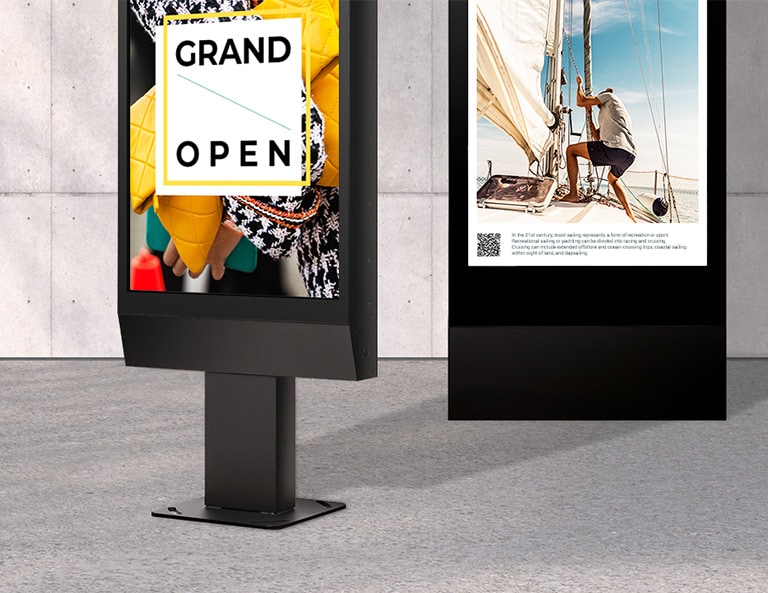

Applicable Stand Accessories1 Applicable Stand Accessories2
Optional Configuration

Applicable Stand Accessories

Optional stand to allow panel to stand freely and facilitate easy cable management.
Close
PANEL
  • Screen Size
    75" Class
    Native Resolution
    3,840 x 2,160 (UHD), M+
  • Brightness(Typ., with Protective Glass, cd/m²)
    3000
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, Audio In, USB 3.0, SD Card
    Output
    DP, External Speaker (*waterproof speakers are mandatory for outdoor installation)
  • External Control
    RS232C in/out, RJ45 in
PHYSICAL SPECIFICATION
  • Bezel Width
    110mm(T), 230mm(B), 73.3mm(L/R)
    Monitor Dimension (W x H x D)
    1,075.6 x 1,991.6 x 218.9 mm
  • Weight (Head)
    180 kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    -30 °C to 50 °C
    Operation Humidity
    5 % to 100 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    750W (Full White)
    403W (IEC 62087)
    Max
    1000W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
    External Media Player Attatchable
    Yes (Available space for media player installation inside the product)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign C
ACCESSORY
  • Basic
    Remote Controller, Manual, QSG, Regulation Book, Phone to RS232C Gender, USB cable, HDMI cable
    Optional
    Enclosure Stand (ST-750X)
COMPLIANCE INFORMATION
  • The safety information for accessories is included with the safety information for the product and is not provided separately.
